目录
题目:
一个简易吃豆人游戏,假设有一个m*n的棋盘(0<m, n<1000),棋盘格的坐标轴左上角是(0, 0),右下角是(m-1, n-1)。除了(0, 0)外,每个棋盘格上都放有一些豆子。吃豆人初始位置在(0, 0),每次只能向右或向下行动一格,并吃掉该格上的豆子,现在需要求一条路线,使吃掉的豆子的总数最大。请写一个函数计算这条路线以及吃掉的豆子数量,要求计算速度尽可能快,并且给出算法的时间复杂度。如果有多条等价路线,任意给出一条即可。
答:
解答本题分如下两步:1建立数学模型;2求解。
1建立数学模型

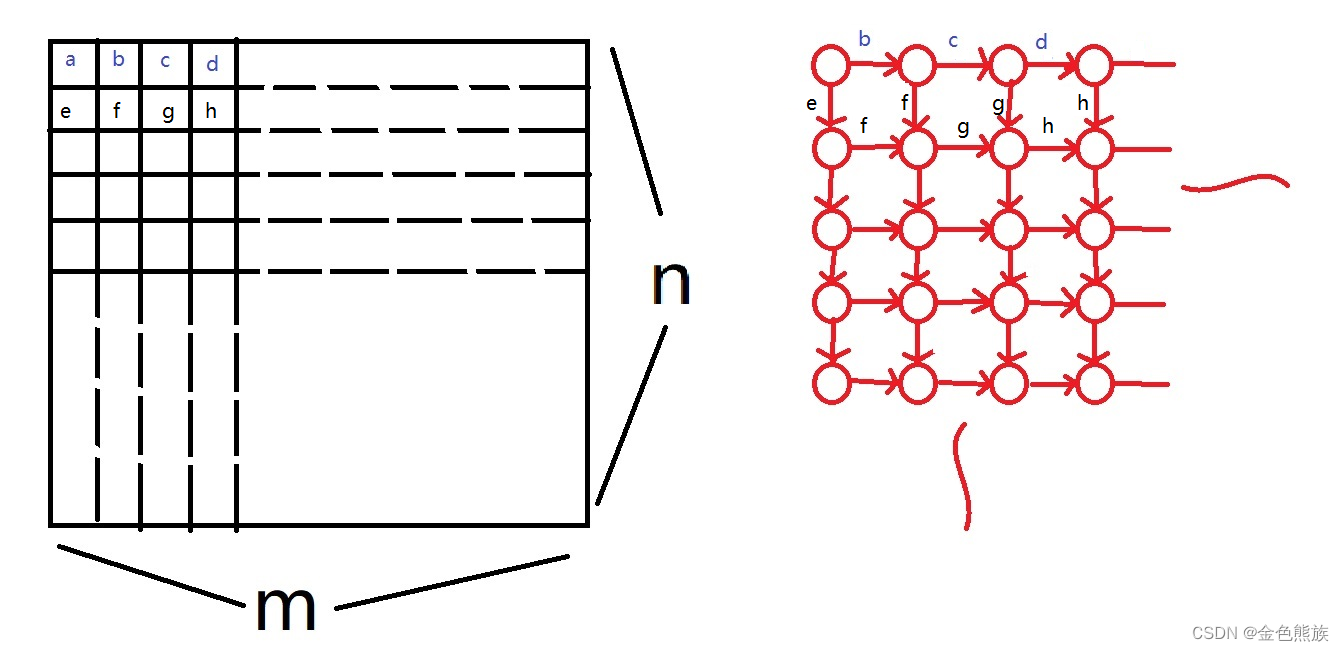

将这个m*n的棋盘(左图)抽象为图论中的有向无环图(缩写为DAG,右图)。
棋盘中的每个格子对应有向无环图的一个顶点,指向该顶点的边的权重等于该顶点的豆子数(比如,指向棋盘格子b的边,权重等于b,以此类推)。由于吃豆人只能向右或者向下移动,所以水平方向的边只能从左向右,垂直方向的边只能从上到下,如上图所示。由于这个限制,导致从任何一点出发,不论采取何种路径,都不会回到出发点,所以这个图是无环图。
由于棋盘中的每个格子对应有向无环图的一个顶点,所以有向无环图的水平方向的顶点数等于棋盘水平方向的格子数m,而水平方向的边数比顶点数少1,所以是m-1;有向无环图的垂直方向的顶点数等于棋盘垂直方向的格子数n,所以有向无环图的垂直方向的顶点数是n,垂直方向的边数是n-1。顶点总数为m*n。而边总数为(m-1)*(n-1)。
搜索吃豆人吃豆最多路线的问题就变成了搜索DAG最长路径的问题。此类问题的复杂度是O(边数+顶点数),故为O(m*n)
2求解

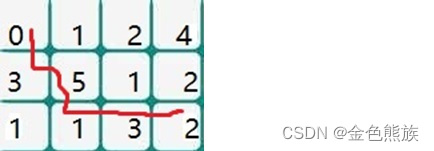

Longest Path in a Directed Acyclic Graph - GeeksforGeeks提供了示例代码解决此类问题。在此示例基础上略作修改,考虑如下棋盘,其格子中的数字代表格子内豆子数目:
根据前面的分析,数学模型对应一个顶点数为4 * 3= 12的DAG。
采用如下代码求解:
// A C++ program to find single source longest distances
// in a DAG
#include <iostream>
#include <limits.h>
#include <list>
#include <stack>
#define NINF INT_MIN
using namespace std;
// Graph is represented using adjacency list. Every
// node of adjacency list contains vertex number of
// the vertex to which edge connects. It also
// contains weight of the edge
class AdjListNode {
int v;
int weight;
public:
AdjListNode(int _v, int _w)
{
v = _v;
weight = _w;
}
int getV() { return v; }
int getWeight() { return weight; }
};
// Class to represent a graph using adjacency list
// representation
class Graph {
int V; // No. of vertices'
// Pointer to an array containing adjacency lists
list<AdjListNode>* adj;
list<int> * pPath;
// A function used by longestPath
void topologicalSortUtil(int v, bool visited[],
stack<int>& Stack);
public:
Graph(int V); // Constructor
~Graph(); // Destructor
// function to add an edge to graph
void addEdge(int u, int v, int weight);
// Finds longest distances from given source vertex
void longestPath(int s);
};
Graph::Graph(int V) // Constructor
{
this->V = V;
adj = new list<AdjListNode>[V];
pPath = new list<int>[V];
}
Graph::~Graph() // Destructor
{
delete[] adj;
delete[] pPath;
}
void Graph::addEdge(int u, int v, int weight)
{
AdjListNode node(v, weight);
adj[u].push_back(node); // Add v to u's list
}
// A recursive function used by longestPath. See below
// link for details
// https:// www.geeksforgeeks.org/topological-sorting/
void Graph::topologicalSortUtil(int v, bool visited[],
stack<int>& Stack)
{
// Mark the current node as visited
visited[v] = true;
// Recur for all the vertices adjacent to this vertex
list<AdjListNode>::iterator i;
for (i = adj[v].begin(); i != adj[v].end(); ++i) {
AdjListNode node = *i;
if (!visited[node.getV()])
topologicalSortUtil(node.getV(), visited, Stack);
}
// Push current vertex to stack which stores topological
// sort
Stack.push(v);
}
// The function to find longest distances from a given vertex.
// It uses recursive topologicalSortUtil() to get topological
// sorting.
void Graph::longestPath(int s)
{
stack<int> Stack;
int * dist = new int[V];
// Mark all the vertices as not visited
bool* visited = new bool[V];
for (int i = 0; i < V; i++)
visited[i] = false;
// Call the recursive helper function to store Topological
// Sort starting from all vertices one by one
for (int i = 0; i < V; i++)
if (visited[i] == false)
topologicalSortUtil(i, visited, Stack);
// Initialize distances to all vertices as infinite and
// distance to source as 0
for (int i = 0; i < V; i++)
{
pPath[s].clear();
dist[i] = NINF;
}
dist[s] = 0;
pPath[s].push_back(s);
// Process vertices in topological order
while (Stack.empty() == false) {
// Get the next vertex from topological order
int u = Stack.top();
Stack.pop();
// Update distances of all adjacent vertices
list<AdjListNode>::iterator i;
if (dist[u] != NINF) {
for (i = adj[u].begin(); i != adj[u].end(); ++i)
{
if (dist[i->getV()] < dist[u] + i->getWeight())
{
//更新与u相连的各个顶点到s的距离
dist[i->getV()] = dist[u] + i->getWeight();
//更新具体路径
pPath[i->getV()].assign(pPath[u].begin(), pPath[u].end());
pPath[i->getV()].push_back(i->getV());
}
}
}
}
// Print the calculated longest distances
for (int i = 0; i < V; i++)
{
cout << "length: ";
(dist[i] == NINF) ? cout << "unReachable" : cout << dist[i];
cout<< endl;
cout << "path: ";
for (const auto & item : pPath[i])
{
cout << item << " ";
}
cout << endl;
}
delete [] visited;
delete [] dist;
delete [] pPath;
}
// Driver program to test above functions
int main()
{
// Create a graph given in the above diagram.
Graph g(12);
g.addEdge(0, 1, 1);
g.addEdge(0, 4, 3);
g.addEdge(1, 2, 2);
g.addEdge(1, 5, 5);
g.addEdge(2, 3, 4);
g.addEdge(2, 6, 1);
//g.addEdge(3, 4, 0);//3号顶点处于棋盘最右
g.addEdge(3, 7, 2);
g.addEdge(4, 5, 5);
g.addEdge(4, 8, 1);
g.addEdge(5, 6, 1);
g.addEdge(5, 9, 1);
g.addEdge(6, 7, 2);
g.addEdge(6, 10, 3);
//g.addEdge(7, 8, 0);//7号顶点处于棋盘最右,不能再向右了
g.addEdge(7, 11, 2);
g.addEdge(8, 9, 1);
//g.addEdge(8, 8, 1);
g.addEdge(9, 10, 3);
//g.addEdge(9, 9, 1);
g.addEdge(10, 11, 2);
//g.addEdge(10, 10, 3);
//g.addEdge(11, 8, 0);//11号顶点处于棋盘最右,不能再向右了
//g.addEdge(11, 11, 2); //11号顶点处于棋盘最下
int s = 0;
cout << "Following are longest distances from "
"source vertex "
<< s << " \n";
g.longestPath(s);
cin.get();
return 0;
}
在上面的问题中,采用0-11标记棋盘的格子:

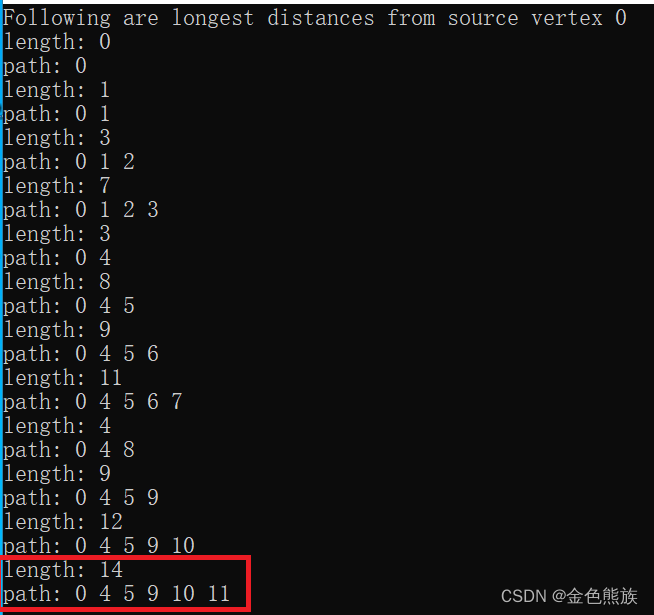

结果:
可见,最长路径是0-4-5-9-10-11,长度为14
算法的时间复杂度为O(顶点数+边数)。这里也就是O(m*n)
