archery-工单通知飞书

一、背景

因为业务需求，需要sql工单通知到飞书

二、配置

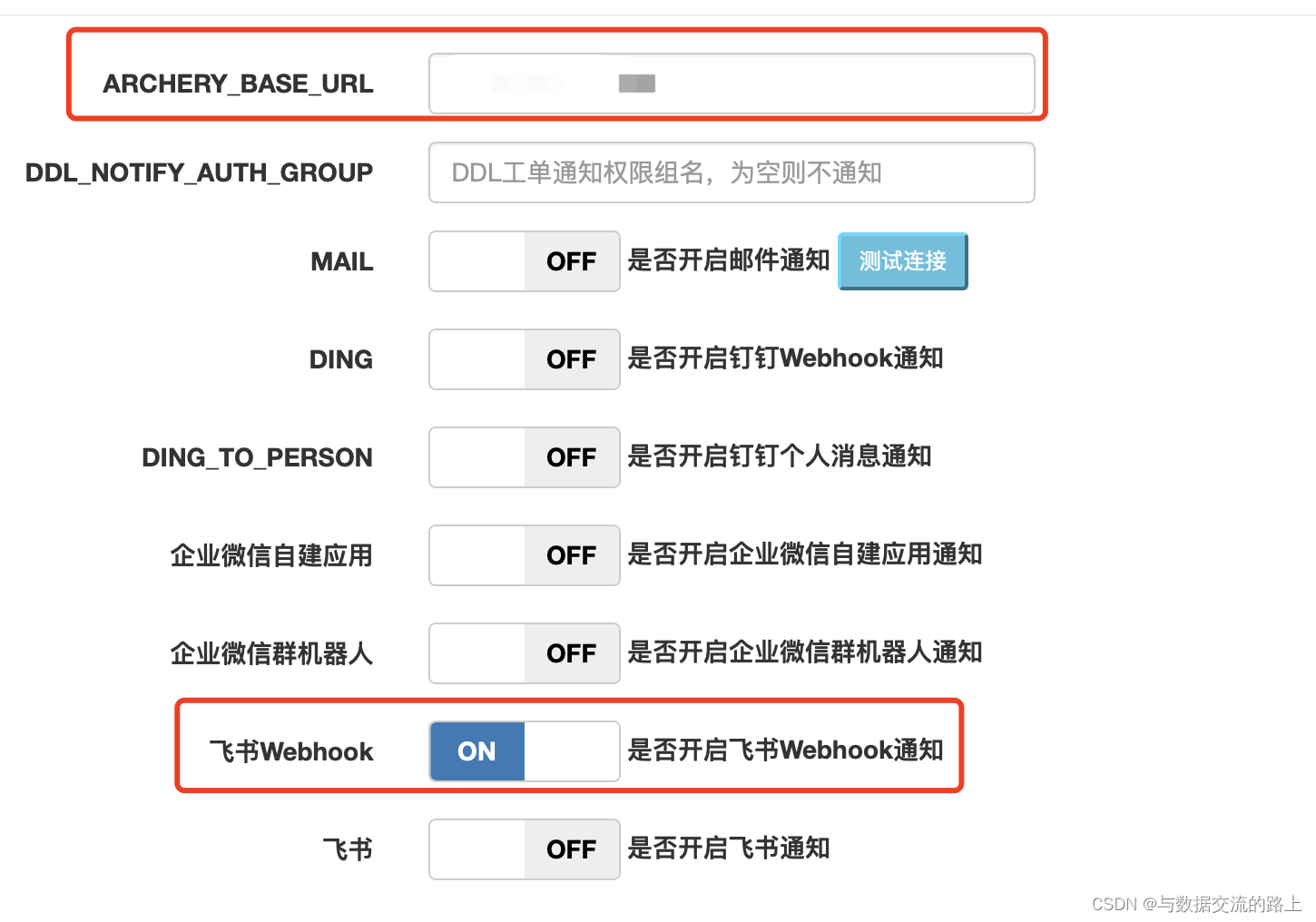

1.系统管理–>配置项管理

archery_base_url: archery服务器的ip和端口

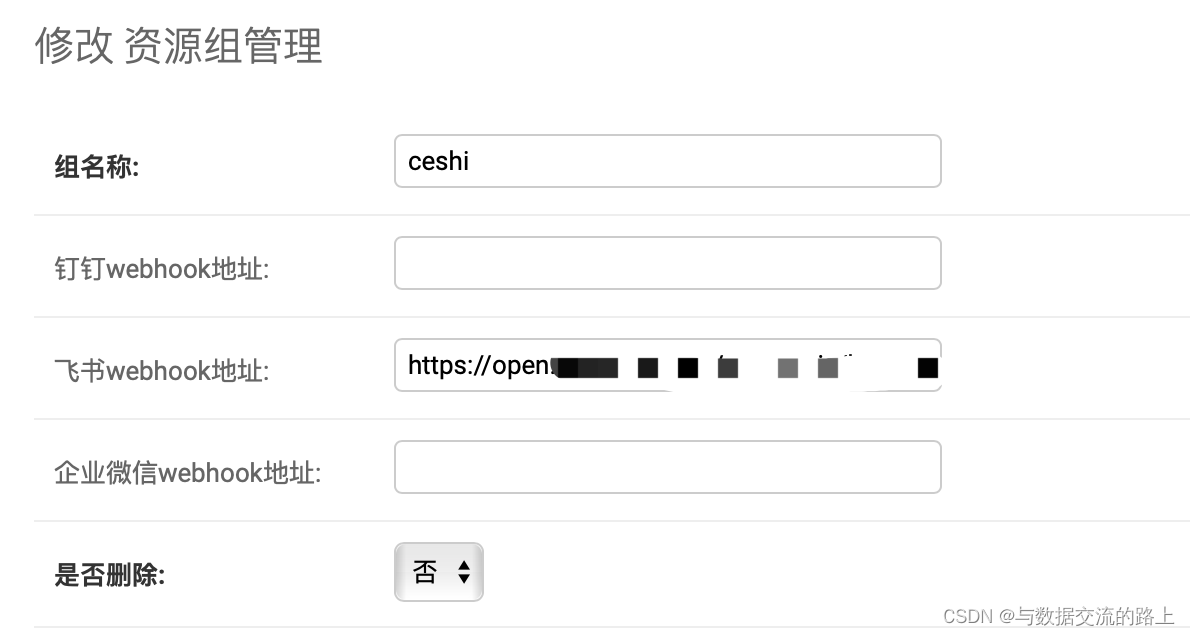

2.系统管理–>资源组管理

2.1填写webook地址
如何获取webook请参考：
https://blog.csdn.net/line_on_database/article/details/119947755

三、遇到的问题与解决

1.问题

飞书收不到sql工单消息，日志也没有报错

2.原因

新版飞书消息格式有变化，老版本的不兼容，所以需要修改下archery的源码

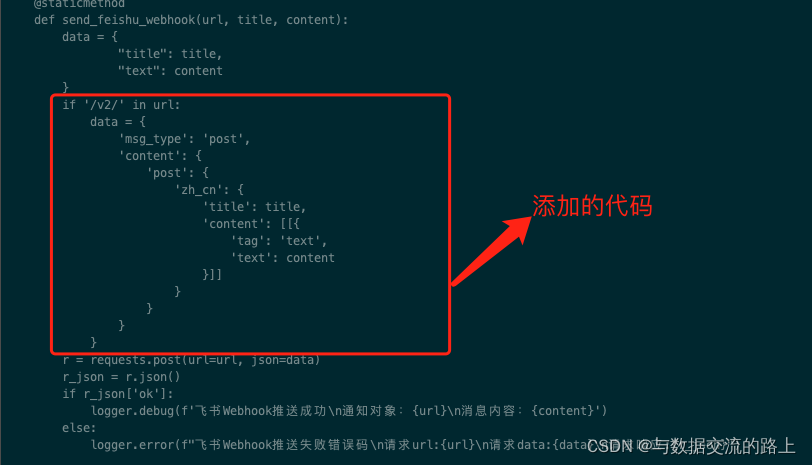

3.修改代码

vi /opt/archery/common/utils/sendmsg.py

    @staticmethod
    def send_feishu_webhook(url, title, content):
        data = {"title": title, "text": content}
        if "/v2/" in url:
            if "已正常结束" not in title:
                data = {
                    "msg_type": "post",
                    "content": {
                        "post": {
                            "zh_cn": {
                                "title": title,
                                "content": [[{"tag": "text", "text": content}]],
                            }
                        }
                    },
                }
            else:
                # 向飞书发送卡片模式的通知
                content_new = content.split('\n')
                content_new_con = content_new[:-1]
                content = {}
                is_split = True
                for new_detail in content_new_con:
                    if is_split:
                        con_key = new_detail.split('：')
                        if con_key[0] != "ticket_detail":
                            content[con_key[0]] = con_key[1]
                        else:
                            # 这么处理是防止sql中存在特殊符号的问题以及工单有多条sql的问题
                            sql_all = "：".join(con_key[1:])
                            is_split = False
                    else:
                        sql_all += new_detail
                content["ticket_detail"] = sql_all
                content_all = []
                for i, j in content.items():
                    content_text = "**" + i + "**: " + j
                    content_all.append({"tag": "div","text": {"content": content_text,"tag": "lark_md"}})
                content_head = [{"tag": "hr"}]
                content_end = [{"tag": "hr"}, {"actions": [{"tag": "button","text": {"content": "View ticket details","tag": "lark_md"},"url": content["ticket_address"],"type": "default","value": {}}],"tag": "action"}]
                content_all = content_head + content_all + content_end
                data = {"msg_type": "interactive","card": {"config": {"wide_screen_mode": True,"enable_forward": True},"header": {"title": {"content": title,"tag": "plain_text"}},"elements": content_all}}

4.github地址

https://github.com/hhyo/Archery/issues/1016
https://github.com/hhyo/Archery/commit/66ec48f4ac4c521722536cfdf3ce58bd442ba734
