oauth2授权码模式demo

最新推荐文章于 2024-03-11 22:18:18 发布

varCode

最新推荐文章于 2024-03-11 22:18:18 发布

阅读量1.1k

点赞数 1

分类专栏： web framework 文章标签： oauth2 oauth spring boot redirect

本文链接：https://blog.csdn.net/linhao_obj/article/details/113846402

版权

framework 同时被 2 个专栏收录

5 篇文章 0 订阅

订阅专栏

web

3 篇文章 0 订阅

订阅专栏

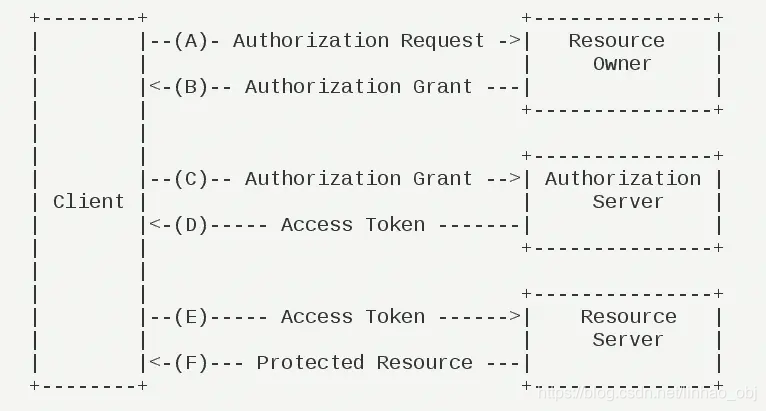

oauth2的运行流程 在这里插入图片描述

用户打开客户端以后，客户端要求用户给予授权。
用户同意给予客户端授权。
客户端使用上一步获得的授权，向认证服务器申请令牌。
认证服务器对客户端进行认证以后，确认无误，同意发放令牌。
客户端使用令牌，向资源服务器申请获取资源。
资源服务器确认令牌无误，同意向客户端开放资源。

四种模式

授权码模式（authorization code）
简化模式（implicit）
密码模式（resource owner password credentials）
客户端模式（client credentials）

其中授权码模式是功能最完整、流程最严密的授权模式。
（1）用户访问客户端，后者将前者导向认证服务器，假设用户给予授权，认证服务器将用户导向客户端事先指定的"重定向URI"（redirection URI），同时附上一个授权码。

（2）客户端收到授权码，附上早先的"重定向URI"，向认证服务器申请令牌：GET /oauth/token?response_type=code&client_id=demo&redirect_uri=重定向页面链接。请求成功返回code授权码，一般有效时间是10分钟。

（3）认证服务器核对了授权码和重定向URI，确认无误后，向客户端发送访问令牌（access token）和更新令牌（refresh token）。POST /oauth/token?response_type=authorization_code&code=SplxlOBeZQQYbYS6WxSbIA&redirect_uri=重定向页面链接。

直接开启代码

1、创建项目

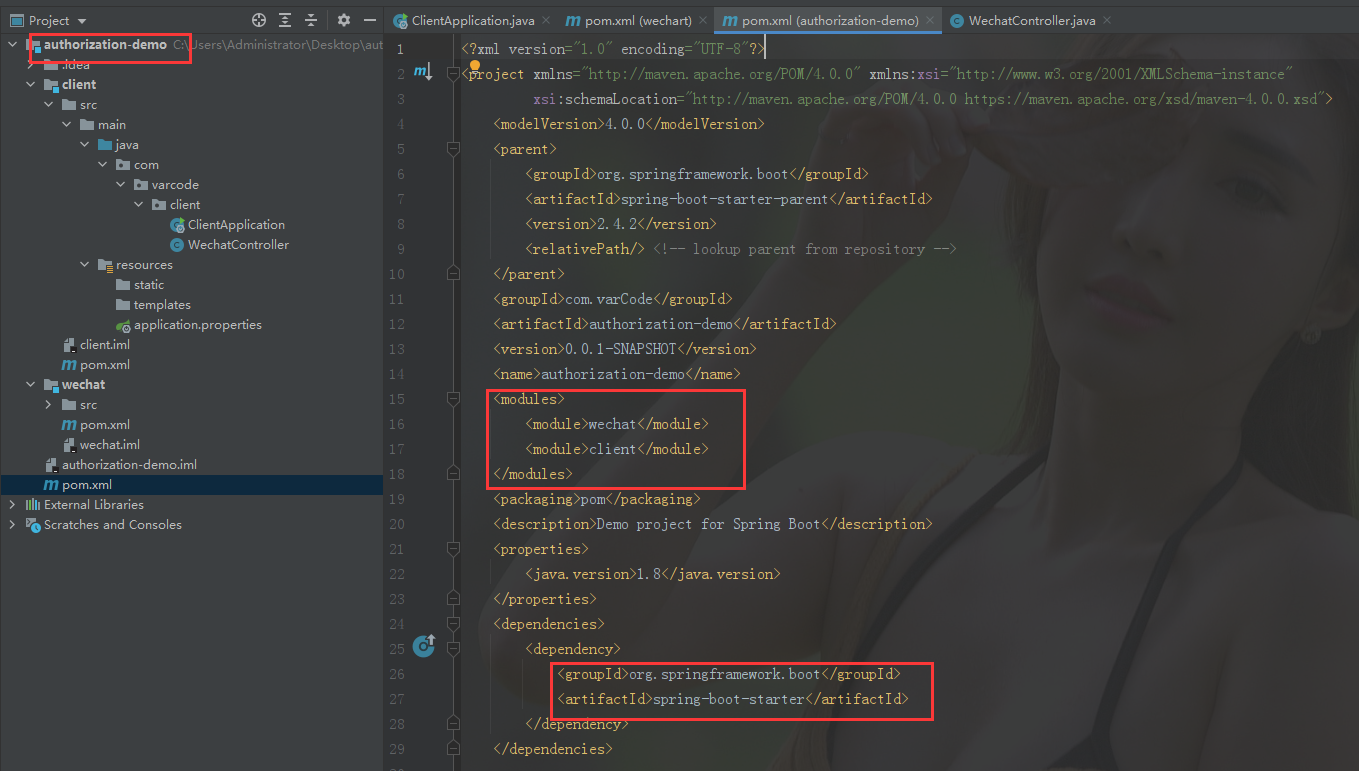

父模块authorization-demo依赖springboot包含了两个子模块客户端client及模拟的微信认证服务端wechat
在这里插入图片描述

2、maven依赖

子模块client简单的web项目，仅仅依赖web组件

<dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

wechat模块加上security集成oauth2和简单页面模板引擎thymeleaf

<dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.security.oauth</groupId>
            <artifactId>spring-security-oauth2</artifactId>
            <version>2.3.2.RELEASE</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-thymeleaf</artifactId>
        </dependency>

3、客户端代码

启动类配置一个RestTemplate和服务端微信通讯

package com.varcode.client;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.context.annotation.Bean;
import org.springframework.web.client.RestTemplate;

/**
 * Created by hlin on 2021/2/18
 */
@SpringBootApplication
public class ClientApplication {

    public static void main(String[] args) {
        SpringApplication.run(ClientApplication.class, args);
    }

    @Bean
    RestTemplate restTemplate(){
        return new RestTemplate();
    }

}

一个回调controller，用于微信redirect的地址，获取授权码code

package com.varcode.client;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.http.HttpEntity;
import org.springframework.http.HttpHeaders;
import org.springframework.http.MediaType;
import org.springframework.http.ResponseEntity;
import org.springframework.util.LinkedMultiValueMap;
import org.springframework.util.MultiValueMap;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;
import org.springframework.web.client.RestTemplate;

/**
 * Created by hlin on 2021/2/18
 */
@RestController
public class WechatController {

    @Autowired
    RestTemplate restTemplate;

    @RequestMapping("/client/wechat/redirect")
    public String getToken(@RequestParam String code){
        HttpHeaders headers = new HttpHeaders();
        headers.setContentType(MediaType.APPLICATION_FORM_URLENCODED);
        MultiValueMap<String, String> params= new LinkedMultiValueMap<>();
        params.add("grant_type","authorization_code");
        params.add("code",code);
        params.add("client_id","demo");
        params.add("client_secret","secret");
        params.add("redirect_uri","http://localhost:8081/client/wechat/redirect");
        HttpEntity<MultiValueMap<String, String>> requestEntity = new HttpEntity<>(params, headers);
        ResponseEntity<String> response = restTemplate.postForEntity("http://localhost:8080/oauth/token", requestEntity, String.class);
        String token = response.getBody();
        return token;
    }

}

配置文件一个当前服务的端口 server.port=8081

4、wechat服务端代码

启动类

package com.varcode.wechat;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

/**
 * Created by hlin on 2021/2/18
 */
@SpringBootApplication
public class WechatApplication {

    public static void main(String[] args) {
        SpringApplication.run(WechatApplication.class, args);
    }

}

security配置类

package com.varcode.wechat;

import org.springframework.context.annotation.Bean;
import org.springframework.security.authentication.AuthenticationManager;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;
import org.springframework.security.core.userdetails.User;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.crypto.password.NoOpPasswordEncoder;
import org.springframework.security.crypto.password.PasswordEncoder;
import org.springframework.security.provisioning.InMemoryUserDetailsManager;
import org.springframework.security.web.util.matcher.AntPathRequestMatcher;

/**
 * Created by hlin on 2021/2/18
 */
@Configuration
@EnableWebSecurity
public class SecurityConfiguration extends WebSecurityConfigurerAdapter {

    @Bean
    @Override
    protected UserDetailsService userDetailsService(){
        InMemoryUserDetailsManager manager = new InMemoryUserDetailsManager();
        // 创建两个微信用户
        manager.createUser(User.withUsername("wx_test17726").password("123456").authorities("USER").build());
        manager.createUser(User.withUsername("wx_test548956").password("123456").authorities("USER").build());
        return manager;
    }


    @Override
    @Bean
    public AuthenticationManager authenticationManagerBean() throws Exception {
        return super.authenticationManagerBean();
    }

    @Bean
    PasswordEncoder passwordEncoder(){
        return NoOpPasswordEncoder.getInstance();
    }

    @Override
    protected void configure(HttpSecurity http) throws Exception {
        http.
                requestMatchers()
                // 必须登录过的用户才可以进行 oauth2 的授权码申请
                .antMatchers("/", "/home","/login","/oauth/authorize")
                .and()
                .authorizeRequests()
                .anyRequest().permitAll()
                .and()
                .formLogin()
                .loginPage("/login")
                .and()
                .httpBasic()
                .disable()
                .exceptionHandling()
                .accessDeniedPage("/login?authorization_error=true")
                .and()
                .csrf()
                .requireCsrfProtectionMatcher(new AntPathRequestMatcher("/oauth/authorize"))
                .disable();
    }

}

oauth2配置类

package com.varcode.wechat;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.http.HttpMethod;
import org.springframework.security.authentication.AuthenticationManager;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.oauth2.config.annotation.configurers.ClientDetailsServiceConfigurer;
import org.springframework.security.oauth2.config.annotation.web.configuration.AuthorizationServerConfigurerAdapter;
import org.springframework.security.oauth2.config.annotation.web.configuration.EnableAuthorizationServer;
import org.springframework.security.oauth2.config.annotation.web.configuration.EnableResourceServer;
import org.springframework.security.oauth2.config.annotation.web.configuration.ResourceServerConfigurerAdapter;
import org.springframework.security.oauth2.config.annotation.web.configurers.AuthorizationServerEndpointsConfigurer;
import org.springframework.security.oauth2.config.annotation.web.configurers.AuthorizationServerSecurityConfigurer;
import org.springframework.security.oauth2.config.annotation.web.configurers.ResourceServerSecurityConfigurer;
import org.springframework.security.oauth2.provider.approval.ApprovalStore;
import org.springframework.security.oauth2.provider.approval.TokenApprovalStore;
import org.springframework.security.oauth2.provider.token.TokenStore;
import org.springframework.security.oauth2.provider.token.store.InMemoryTokenStore;

/**
 * Created by hlin on 2021/2/18
 */
@Configuration
public class OAuth2Configuration {

    private static final String WECHAT_RESOURCE_ID = "wechat";

    @Configuration
    @EnableResourceServer()
    protected static class ResourceServerConfiguration extends ResourceServerConfigurerAdapter {

        @Override
        public void configure(ResourceServerSecurityConfigurer resources) {
            resources.resourceId(WECHAT_RESOURCE_ID).stateless(true);
//             如果关闭 stateless，则 accessToken 使用时的 session id 会被记录，后续请求不携带 accessToken 也可以正常响应
//            resources.resourceId(QQ_RESOURCE_ID).stateless(false);
        }

        @Override
        public void configure(HttpSecurity http) throws Exception {
            http
                    .requestMatchers()
                    // 保险起见，防止被主过滤器链路拦截
                    .antMatchers("/wechat/**").and()
                    .authorizeRequests()
                    .antMatchers("/wechat/user/**").access("#oauth2.hasScope('user_info')")
                    .antMatchers("/wechat/group/**").access("#oauth2.hasScope('group_info')")
                    .anyRequest().authenticated();
        }

    }

    @Configuration
    @EnableAuthorizationServer
    protected static class AuthorizationServerConfiguration extends AuthorizationServerConfigurerAdapter {

        @Autowired
        @Qualifier("authenticationManagerBean")
        private AuthenticationManager authenticationManager;

        @Override
        public void configure(ClientDetailsServiceConfigurer clients) throws Exception {

            // @formatter:off
            clients.inMemory().withClient("demo")
                    .resourceIds(WECHAT_RESOURCE_ID)
                    .authorizedGrantTypes("authorization_code", "refresh_token", "implicit")
                    .authorities("ROLE_CLIENT")
                    .scopes("user_info", "group_info")
                    .secret("secret")
                    .redirectUris("http://localhost:8081/client/wechat/redirect")
                    .autoApprove(true)
                    .autoApprove("user_info");
                    //.and()多个资源认证的客户端
        }

        @Bean
        public ApprovalStore approvalStore() {
            TokenApprovalStore store = new TokenApprovalStore();
            store.setTokenStore(tokenStore());
            return store;
        }

        @Bean
        public TokenStore tokenStore() {
            return new InMemoryTokenStore();
            // 需要使用 redis 的话，放开这里
//            return new RedisTokenStore(redisConnectionFactory);
        }

        @Override
        public void configure(AuthorizationServerEndpointsConfigurer endpoints) {
            endpoints.tokenStore(tokenStore())
                    .authenticationManager(authenticationManager)
                    .allowedTokenEndpointRequestMethods(HttpMethod.GET, HttpMethod.POST)
            ;
        }

        @Override
        public void configure(AuthorizationServerSecurityConfigurer oauthServer) {
            oauthServer.realm(WECHAT_RESOURCE_ID).allowFormAuthenticationForClients();
        }

    }

}

mvc配置，几个模板页面的映射地址

package com.varcode.wechat;

import org.springframework.context.annotation.Configuration;
import org.springframework.web.servlet.config.annotation.ViewControllerRegistry;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurerAdapter;

/**
 * Created by hlin on 2021/2/18
 */
@Configuration
public class SpringMvcConfiguration extends WebMvcConfigurerAdapter {

    @Override
    public void addViewControllers(ViewControllerRegistry registry) {
        registry.addViewController("/home").setViewName("home");
        registry.addViewController("/").setViewName("home");
        registry.addViewController("/hello").setViewName("hello");
        registry.addViewController("/login").setViewName("login");
    }

}

服务端保护的资源接口

package com.varcode.wechat;

import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;


/**
 * Created by hlin on 2021/2/18
 */
@RestController
@RequestMapping("/wechat")
public class WechatController {

    @RequestMapping("/user/{id}")
    public String userInfo(@PathVariable String id){
        //模拟数据库查询结果
        if("wx_test17726".equals(id)){
            return "微信昵称:我要出去浪，微信号：wx_test17726，性别：男，年龄：22，头像：灰色头像";
        }
        if("wx_test548956".equals(id)){
            return "微信昵称:快来抓住我，微信号：wx_test548956，性别：女，年龄：16，头像：非主流头像";
        }
        return null;
    }

    @RequestMapping("/group")
    public String groupInfo(){
        //模拟数据库查询结果
        return "微信群名称：撸代码，群号：wxq_test145263，群人数：180";
    }

}

配置文件

server.port=8080
# security过滤器顺序稍微靠前
spring.security.filter.order=3
# 需要使用 redis 的话，放开这里
#spring.redis.host=127.0.0.1
#spring.redis.database=0

三个静态测试页面，templates目录下

hello.html

<!DOCTYPE html>
<html xmlns="http://www.w3.org/1999/xhtml" xmlns:th="http://www.thymeleaf.org"
      xmlns:sec="http://www.thymeleaf.org/thymeleaf-extras-springsecurity3">
    <head>
        <title>Hello Oauth2!</title>
    </head>
    <body>
        <h1 th:inline="text">Hello [[${#httpServletRequest.remoteUser}]]!</h1>
        <form th:action="@{/logout}" method="post">
            <input type="submit" value="Sign Out"/>
        </form>
    </body>
</html>

home.html

<!DOCTYPE html>
<html xmlns="http://www.w3.org/1999/xhtml" xmlns:th="http://www.thymeleaf.org" xmlns:sec="http://www.thymeleaf.org/thymeleaf-extras-springsecurity3">
    <head>
        <title>Oauth2 Example Home Page</title>
    </head>
    <body>
        <h1>Start!</h1>

        <p>Click <a th:href="@{/hello}">here</a> to see a greeting.</p>
    </body>
</html>

<!DOCTYPE html>
<html xmlns="http://www.w3.org/1999/xhtml" xmlns:th="http://www.thymeleaf.org"
      xmlns:sec="http://www.thymeleaf.org/thymeleaf-extras-springsecurity3">
    <head>
        <title>Oauth2 Example Login Page</title>
    </head>
    <body>
        <div th:if="${param.error}">
            Invalid username and password.
        </div>
        <div th:if="${param.logout}">
            You have been logged out.
        </div>
        <form th:action="@{/login}" method="post">
            <div><label> User Name : <input type="text" name="username"/> </label></div>
            <div><label> Password: <input type="password" name="password"/> </label></div>
            <div><input type="submit" value="Sign In"/></div>
        </form>
    </body>
</html>

5、测试认证流程

分别启动client和wechat服务

1、浏览器访问地址：http://localhost:8080/wechat/user/wx_test17726
需要认证提示

This XML file does not appear to have any style information associated with it. The document tree is shown below.
<oauth>
<error_description>Full authentication is required to access this resource</error_description>
<error>unauthorized</error>
</oauth>

2、获取授权码

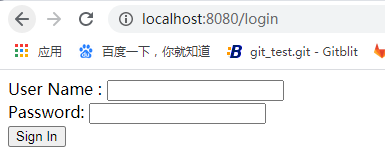

http://localhost:8080/oauth/authorize?client_id=demo&response_type=code&redirect_uri=http://localhost:8081/client/wechat/redirect跳转登录页面，根据配置是需要登录才可以获取授权码信息的，相当于用户手动允许登录授权
在这里插入图片描述

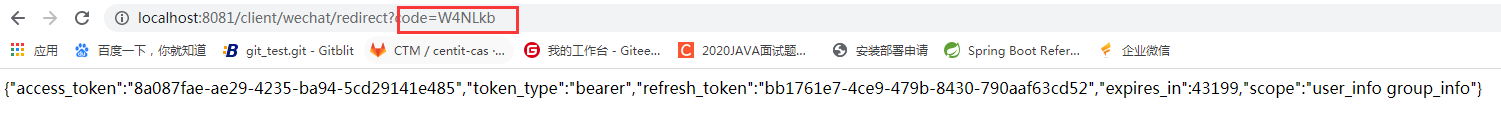

3、输入配置的模拟用户名和密码wx_test17726，123456 进入client回调redirect接口获取access_token：

{"access_token":"8a087fae-ae29-4235-ba94-5cd29141e485","token_type":"bearer","refresh_token":"bb1761e7-4ce9-479b-8430-790aaf63cd52","expires_in":43199,"scope":"user_info group_info"}

redirect_uri 执行 302 重定向，并且带上生成的 code，注意重定向到的是 8001 端口，这个时候已经是另外一个应用了，即client
地址栏code申请一次过期，access_token有时效，当天申请也是有次数限制，需客户端加入缓存redis等
在这里插入图片描述

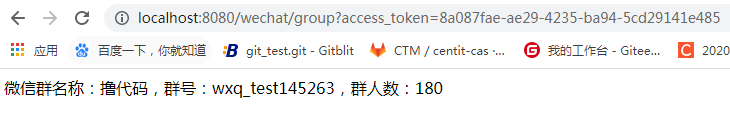

4、携带access_token访问受保护的资源接口

至此整个oauth2授权码模式流程结束！

varCode

关注

1
点赞
踩
11

收藏

觉得还不错? 一键收藏
2
评论
oauth2授权码模式demo

oauth2授权码模式demooauth2的运行流程用户打开客户端以后，客户端要求用户给予授权。用户同意给予客户端授权。客户端使用上一步获得的授权，向认证服务器申请令牌。认证服务器对客户端进行认证以后，确认无误，同意发放令牌。客户端使用令牌，向资源服务器申请获取资源。资源服务器确认令牌无误，同意向客户端开放资源。四种模式授权码模式（authorization code）简化模式（implicit）密码模式（resource owner password credentials）
复制链接

扫一扫
