updateEngine的内部启动流程

一、这一块主要分析的就是从update_Engine启动到核心类UpdateAttempterAndroid的这个过程。
代码路径：system/update_engine/
代码分析：

main.cc
int main(int argc, char** argv) {
  DEFINE_bool(logtofile, false, "Write logs to a file in log_dir.");
  DEFINE_bool(logtostderr, false,
              "Write logs to stderr instead of to a file in log_dir.");
  DEFINE_bool(foreground, false,
              "Don't daemon()ize; run in foreground.");

  chromeos_update_engine::Terminator::Init();
  brillo::FlagHelper::Init(argc, argv, "Chromium OS Update Engine");

  // We have two logging flags "--logtostderr" and "--logtofile"; and the logic
  // to choose the logging destination is:
  // 1. --logtostderr --logtofile -> logs to both
  // 2. --logtostderr             -> logs to system debug
  // 3. --logtofile or no flags   -> logs to file
  bool log_to_system = FLAGS_logtostderr;
  bool log_to_file = FLAGS_logtofile || !FLAGS_logtostderr;
  chromeos_update_engine::SetupLogging(log_to_system, log_to_file);
  if (!FLAGS_foreground)
    PLOG_IF(FATAL, daemon(0, 0) == 1) << "daemon() failed";

  LOG(INFO) << "Chrome OS Update Engine starting";

  // xz-embedded requires to initialize its CRC-32 table once on startup.
  xz_crc32_init();

  // Ensure that all written files have safe permissions.
  // This is a mask, so we _block_ all permissions for the group owner and other
  // users but allow all permissions for the user owner. We allow execution
  // for the owner so we can create directories.
  // Done _after_ log file creation.
  umask(S_IRWXG | S_IRWXO);

  chromeos_update_engine::UpdateEngineDaemon update_engine_daemon; // UpdateEngineDaemon继承自brillo::Daemon ，这里先得到 UpdateEngineDaemon 的对象。UpdateEngineDaemon 的代码在daemon.cc中
  int exit_code = update_engine_daemon.Run(); //我们发现UpdateEngineDaemon 并没有Run()这个方法，而是在父类Daemon中有 Run（）的实现。

  LOG(INFO) << "Chrome OS Update Engine terminating with exit code "
            << exit_code;
  return exit_code;
}

/external/libbrillo/brillo/daemons/daemon.cc
int Daemon::Run() {
  int exit_code = OnInit(); //又会调到 UpdateEngineDaemon的OnInit（）
  if (exit_code != EX_OK)
    return exit_code;

  message_loop_.Run();

  OnShutdown(&exit_code_);

  // base::RunLoop::QuitClosure() causes the message loop to quit
  // immediately, even if pending tasks are still queued.
  // Run a secondary loop to make sure all those are processed.
  // This becomes important when working with D-Bus since dbus::Bus does
  // a bunch of clean-up tasks asynchronously when shutting down.
  while (message_loop_.RunOnce(false /* may_block */)) {}

  return exit_code_;
}

system/update_engine/deamon.cc
int UpdateEngineDaemon::OnInit() {
  // Register the |subprocess_| singleton with this Daemon as the signal
  // handler.
  subprocess_.Init(this);

  int exit_code = Daemon::OnInit(); //调用父类Daemon进行初始化
  if (exit_code != EX_OK)
    return exit_code;

#if USE_BINDER
  android::BinderWrapper::Create();
  binder_watcher_.Init();
#endif  // USE_BINDER

#if USE_OMAHA //这块不用管，应该是使用OMAHA平台的走下面
  // Initialize update engine global state but continue if something fails.
  // TODO(deymo): Move the daemon_state_ initialization to a factory method
  // avoiding the explicit re-usage of the |bus| instance, shared between
  // D-Bus service and D-Bus client calls.
  RealSystemState* real_system_state = new RealSystemState();
  daemon_state_.reset(real_system_state);
  LOG_IF(ERROR, !real_system_state->Initialize())
      << "Failed to initialize system state.";
#else  // !USE_OMAHA
  DaemonStateAndroid* daemon_state_android = new DaemonStateAndroid(); //得到 DaemonStateAndroid对象，然后传递给指针daemon_state_，daemon_state_的指针类型是DaemonStateInterface，而 DaemonStateAndroid继承自 DaemonStateInterface。
  daemon_state_.reset(daemon_state_android);
  LOG_IF(ERROR, !daemon_state_android->Initialize()) //DaemonStateAndroid的初始化里主要做了这几件事 1、new boot_control  2、Create hardware  3、new Prefs()  4、new CertificateChecker  5、new UpdateAttempterAndroid，然后将DeamonStateAndroid  prefs  boot_control  hardware的指针传递个 UpdateAttempterAndroid类
      << "Failed to initialize system state.";
#endif  // USE_OMAHA

#if USE_BINDER
  // Create the Binder Service.
#if USE_OMAHA
  binder_service_ = new BinderUpdateEngineBrilloService{real_system_state};
#else  // !USE_OMAHA
  binder_service_ = new BinderUpdateEngineAndroidService{
      daemon_state_android->service_delegate()}; // 将ServiceDelegateAndroidInterface的指针传递给BinderUpdateEngineAndroidService，而 UpdateAttempterAndroid是继承ServiceDelegateAndroidInterface，可以理解就是BinderUpdateEngineAndroidService拿到了UpdateAttempterAndroid的对象。
#endif  // USE_OMAHA
  auto binder_wrapper = android::BinderWrapper::Get();
  if (!binder_wrapper->RegisterService(binder_service_->ServiceName(), // 将BinderUpdateEngineAndroidService 注册到serviceManager中
                                       binder_service_)) {
    LOG(ERROR) << "Failed to register binder service.";
  }

  daemon_state_->AddObserver(binder_service_.get()); //将 BinderUpdateEngineAndroidService的对象传递给DaemonStateAndroid
#endif  // USE_BINDER

#if USE_DBUS
  // Create the DBus service.
  dbus_adaptor_.reset(new UpdateEngineAdaptor(real_system_state));
  daemon_state_->AddObserver(dbus_adaptor_.get());

  dbus_adaptor_->RegisterAsync(base::Bind(&UpdateEngineDaemon::OnDBusRegistered,
                                          base::Unretained(this)));
  LOG(INFO) << "Waiting for DBus object to be registered.";
#else  // !USE_DBUS
  daemon_state_->StartUpdater(); //主要就是调用UpdateAttempterAndroid的init()方法。
#endif  // USE_DBUS
  return EX_OK;
}

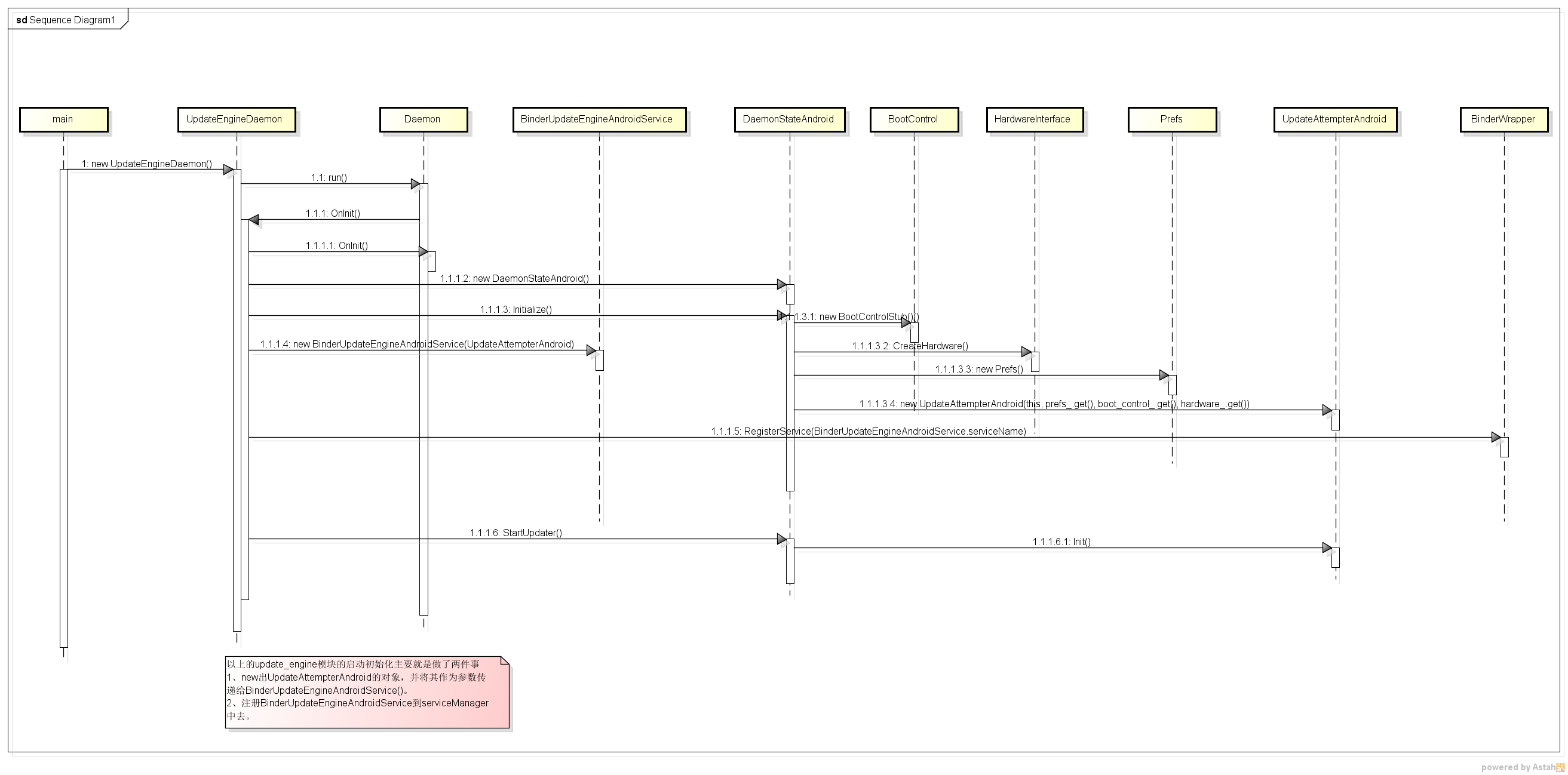

时序图

总结：以上的update_engine模块的启动初始化主要就是做了两件事：
1、new出UpdateAttempterAndroid的对象，并将其作为参数传递给BinderUpdateEngineAndroidService()。
2、注册BinderUpdateEngineAndroidService到serviceManager中去。

可见，其实BinderUpdateEngineAndroidService中的applyPayload() suspend()等， 都是调用到了UpdateAttempterAndroid。可见updateEngine的核心其实就是UpdateAttempterAndroid。
