k8s-ingress-实操

本文章属个人学习整理的对应笔记，学习内容来尚硅谷的培训课，有兴趣的同学可以跳转下方链接

【云原生Java架构师的第一课K8s+Docker+KubeSphere+DevOps】https://www.bilibili.com/video/BV13Q4y1C7hS?p=71&vd_source=08192e8d3b82bf20dfe6807a2901dd9e

---

为了展示ingress实战意义

我们的部署如下

1.部署两个deployment，都为nginx服务，都包含两个pod

2.部署两个service，分别暴露8000端口

3.ingress根据不同的域名将服务分发到不同的service上

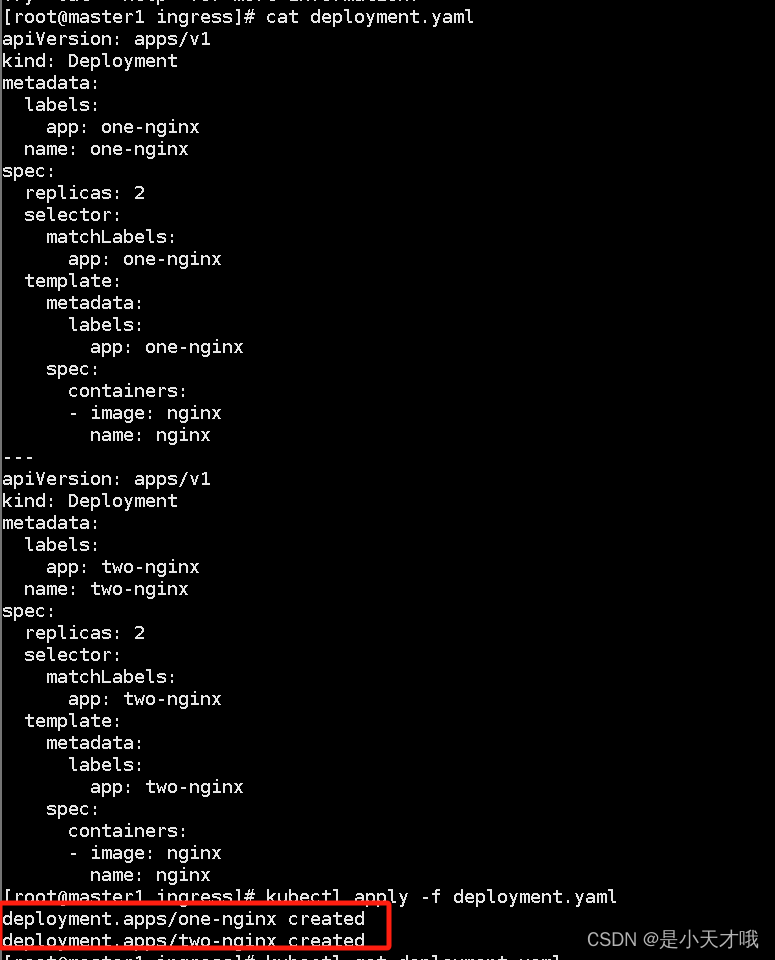

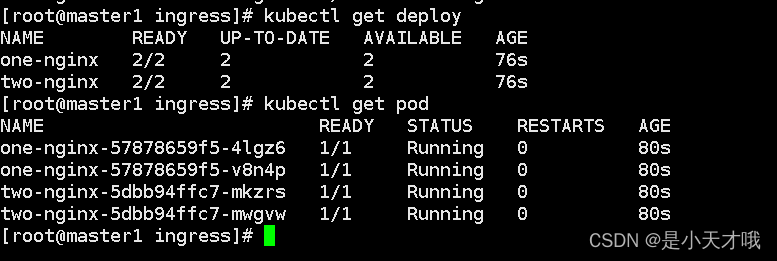

1.部署deployment

部署deployment的yaml脚本

这里注意---，相当于分割一个完整yaml文档

apiVersion: apps/v1 kind: Deployment metadata:   labels:     app: one-nginx   name: one-nginx spec:   replicas: 2   selector:     matchLabels:       app: one-nginx   template:     metadata:       labels:         app: one-nginx     spec:       containers:       - image: nginx         name: nginx --- apiVersion: apps/v1 kind: Deployment metadata:   labels:     app: two-nginx   name: two-nginx spec:   replicas: 2   selector:     matchLabels:       app: two-nginx   template:     metadata:       labels:         app: two-nginx     spec:       containers:       - image: nginx         name: nginx

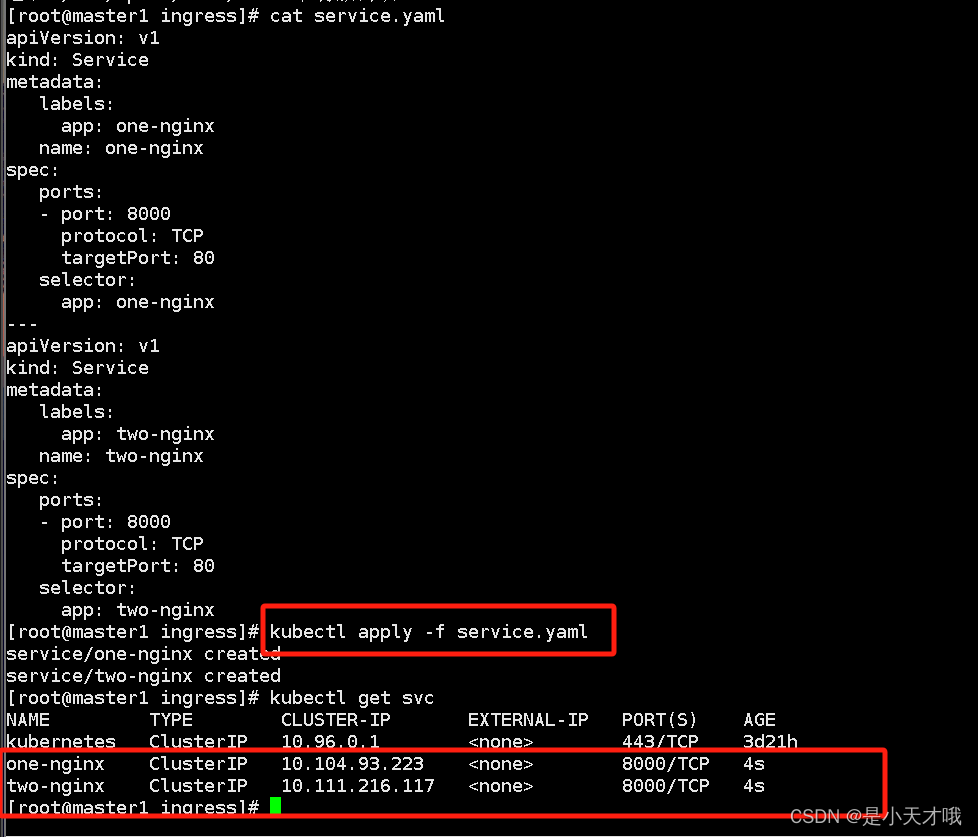

2.部署service

  部署service的yaml脚本

apiVersion: v1 kind: Service metadata:    labels:      app: one-nginx    name: one-nginx spec:    ports:    - port: 8000      protocol: TCP      targetPort: 80    selector:      app: one-nginx --- apiVersion: v1 kind: Service metadata:    labels:      app: two-nginx    name: two-nginx spec:    ports:    - port: 8000      protocol: TCP      targetPort: 80    selector:      app: two-nginx

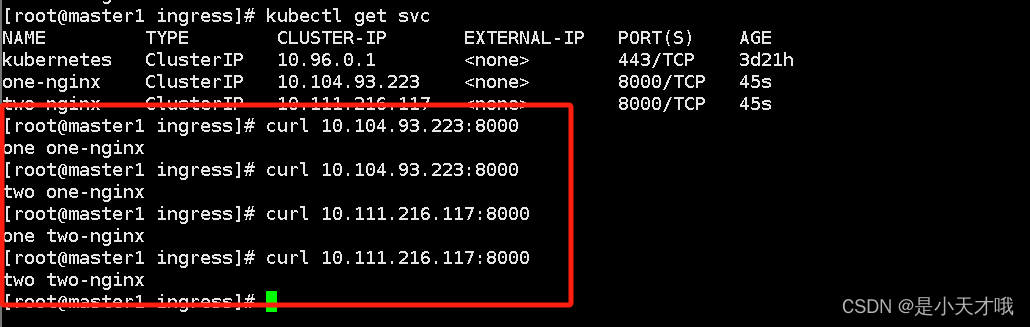

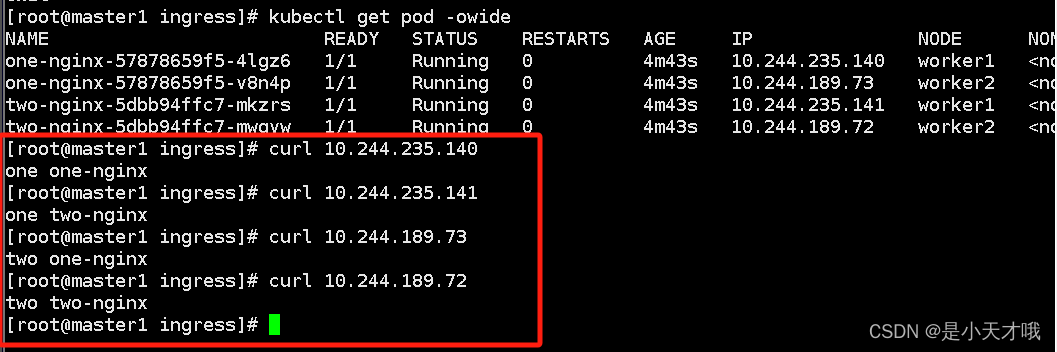

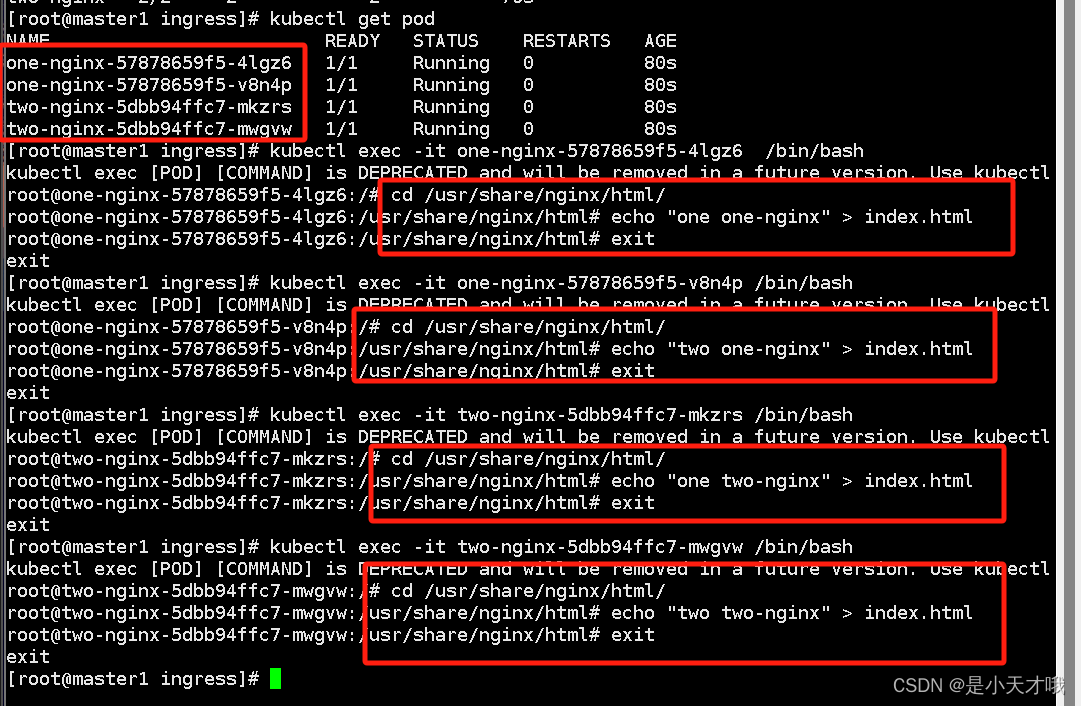

3.为了提高辨识度，我们修改下两个deploy里面的内容

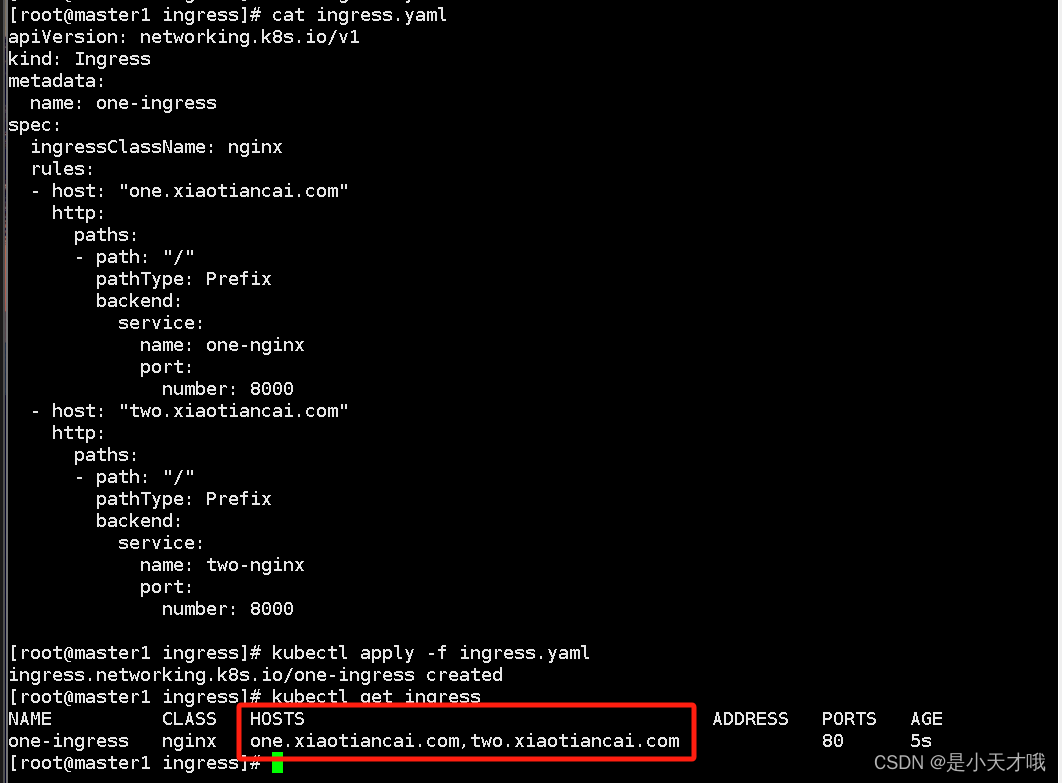

3.ingress的配置

host为匹配的域名

pathType：Prefix搭配path:"/"的意思是以域名加/为匹配的情况下

backend为后台服务，service对应name指定的哪个，监听的端口为8000

apiVersion: networking.k8s.io/v1 kind: Ingress metadata:   name: one-ingress spec:   ingressClassName: nginx   rules:   - host: "one.xiaotiancai.com"     http:       paths:       - path: "/"         pathType: Prefix         backend:           service:             name: one-nginx             port:               number: 8000   - host: "two.xiaotiancai.com"     http:       paths:       - path: "/"         pathType: Prefix         backend:           service:             name: two-nginx             port:               number: 8000

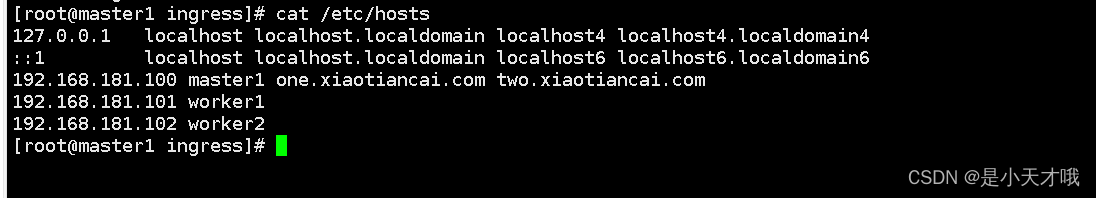

4.域名映射

直接修改本地的域名文件，ip地址用master节点的就行

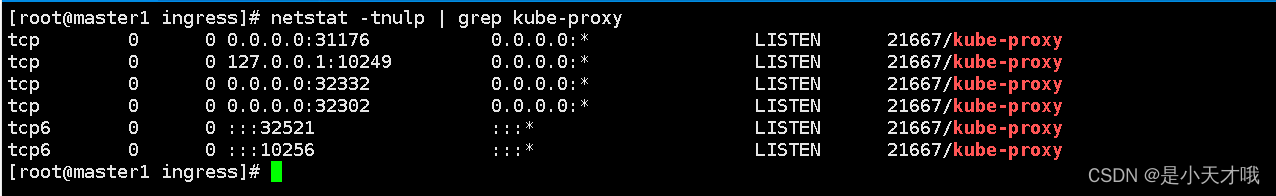

这里注意暴露端口

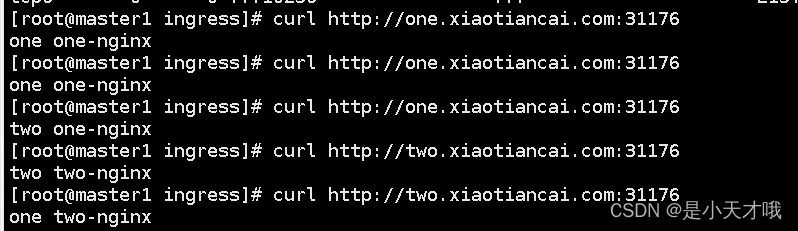

5.测试效果如下

---
