一、概述

中间拖了蛮长时间了,在上一篇我们介绍了ViewDragHelper,详情:ViewDragHelper完全解析,当然了,上一篇都是小示例的形式去演示代码功能,并不能给人一种实用的感觉。那么,本篇博客就准备实用ViewDragHelper来实现一个DrawerLayout的效果,当然了,大家也可以选择直接去看Drawerlayout的源码。相信侧滑大家肯定不陌生,网络上流传无数个版本,其实利用ViewDragHelper就能方便的写出比较不错的侧滑代码~

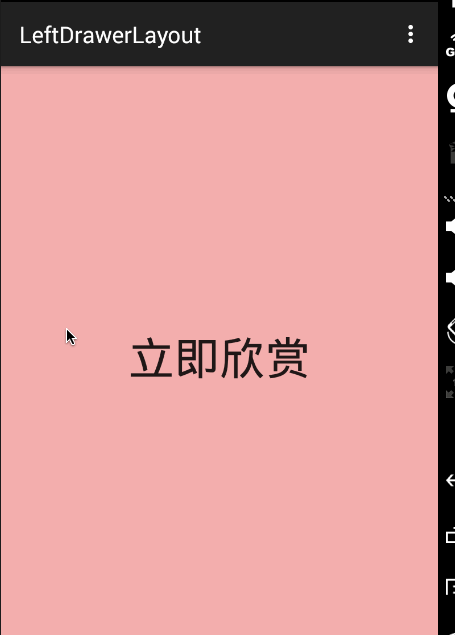

那么首先上个效果图:

ok,其实和DrawerLayout效果类似,当然不是完全的一致~~本篇的主要目的也是演示VDH的实战用法,大家在选择侧滑的时候还是建议使用DrawerLayout.

二、实战

(一)布局文件

首先看一下布局文件:

<com.zhy.learn.view.LeftDrawerLayout
xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools"                                   android:layout_width="match_parent"
android:id="@+id/id_drawerlayout"                                     android:layout_height="match_parent"
    >

    <!--content-->
    <RelativeLayout
        android:clickable="true"
        android:layout_width="match_parent"
        android:background="#44ff0000"
        android:layout_height="match_parent">

        <TextView
            android:id="@+id/id_content_tv"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="hello world"
            android:textSize="40sp"
            android:layout_centerInParent="true"/>
    </RelativeLayout>

    <!--menu-->
    <FrameLayout
        android:id="@+id/id_container_menu"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        >
    </FrameLayout>


</com.zhy.learn.view.LeftDrawerLayout>

ok,可以看到我们的LeftDrawerLayout里面一个是content,一个是menu~为了方便,我们就默认child0为content,child1为menu。

(二)LeftDrawerLayout

package com.zhy.learn.view;

import android.content.Context;
import android.support.v4.widget.ViewDragHelper;
import android.util.AttributeSet;
import android.view.MotionEvent;
import android.view.View;
import android.view.ViewGroup;

import com.zhy.util.common.L;

/**
 * Created by zhy on 15/5/29.
 */
public class LeftDrawerLayout extends ViewGroup
{
    private static final int MIN_DRAWER_MARGIN = 64; // dp
    /**
     * Minimum velocity that will be detected as a fling
     */
    private static final int MIN_FLING_VELOCITY = 400; // dips per second

    /**
     * drawer离父容器右边的最小外边距
     */
    private int mMinDrawerMargin;

    private View mLeftMenuView;
    private View mContentView;

    private ViewDragHelper mHelper;
    /**
     * drawer显示出来的占自身的百分比
     */
    private float mLeftMenuOnScrren;


    public LeftDrawerLayout(Context context, AttributeSet attrs)
    {
        super(context, attrs);
        //setup drawer's minMargin
        final float density = getResources().getDisplayMetrics().density;
        final float minVel = MIN_FLING_VELOCITY * density;
        mMinDrawerMargin = (int) (MIN_DRAWER_MARGIN * density + 0.5f);

        mHelper = ViewDragHelper.create(this, 1.0f, new ViewDragHelper.Callback()
        {
            @Override
            public int clampViewPositionHorizontal(View child, int left, int dx)
            {
                int newLeft = Math.max(-child.getWidth(), Math.min(left, 0));
                return newLeft;
            }

            @Override
            public boolean tryCaptureView(View child, int pointerId)
            {
                L.e("tryCaptureView");
                return child == mLeftMenuView;
            }

            @Override
            public void onEdgeDragStarted(int edgeFlags, int pointerId)
            {
                L.e("onEdgeDragStarted");
                mHelper.captureChildView(mLeftMenuView, pointerId);
            }

            @Override
            public void onViewReleased(View releasedChild, float xvel, float yvel)
            {
                L.e("onViewReleased");
                final int childWidth = releasedChild.getWidth();
                float offset = (childWidth + releasedChild.getLeft()) * 1.0f / childWidth;
                mHelper.settleCapturedViewAt(xvel > 0 || xvel == 0 && offset > 0.5f ? 0 : -childWidth, releasedChild.getTop());
                invalidate();
            }

            @Override
            public void onViewPositionChanged(View changedView, int left, int top, int dx, int dy)
            {
                final int childWidth = changedView.getWidth();
                float offset = (float) (childWidth + left) / childWidth;
                mLeftMenuOnScrren = offset;
                //offset can callback here
                changedView.setVisibility(offset == 0 ? View.INVISIBLE : View.VISIBLE);
                invalidate();
            }

            @Override
            public int getViewHorizontalDragRange(View child)
            {
                return mLeftMenuView == child ? child.getWidth() : 0;
            }
        });
        //设置edge_left track
        mHelper.setEdgeTrackingEnabled(ViewDragHelper.EDGE_LEFT);
        //设置minVelocity
        mHelper.setMinVelocity(minVel);
    }

    @Override
    protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec)
    {
        int widthSize = MeasureSpec.getSize(widthMeasureSpec);
        int heightSize = MeasureSpec.getSize(heightMeasureSpec);

        setMeasuredDimension(widthSize, heightSize);

        View leftMenuView = getChildAt(1);
        MarginLayoutParams lp = (MarginLayoutParams)
                leftMenuView.getLayoutParams();

        final int drawerWidthSpec = getChildMeasureSpec(widthMeasureSpec,
                mMinDrawerMargin + lp.leftMargin + lp.rightMargin,
                lp.width);
        final int drawerHeightSpec = getChildMeasureSpec(heightMeasureSpec,
                lp.topMargin + lp.bottomMargin,
                lp.height);
        leftMenuView.measure(drawerWidthSpec, drawerHeightSpec);


        View contentView = getChildAt(0);
        lp = (MarginLayoutParams) contentView.getLayoutParams();
        final int contentWidthSpec = MeasureSpec.makeMeasureSpec(
                widthSize - lp.leftMargin - lp.rightMargin, MeasureSpec.EXACTLY);
        final int contentHeightSpec = MeasureSpec.makeMeasureSpec(
                heightSize - lp.topMargin - lp.bottomMargin, MeasureSpec.EXACTLY);
        contentView.measure(contentWidthSpec, contentHeightSpec);

        mLeftMenuView = leftMenuView;
        mContentView = contentView;


    }

    @Override
    protected void onLayout(boolean changed, int l, int t, int r, int b)
    {
        View menuView = mLeftMenuView;
        View contentView = mContentView;

        MarginLayoutParams lp = (MarginLayoutParams) contentView.getLayoutParams();
        contentView.layout(lp.leftMargin, lp.topMargin,
                lp.leftMargin + contentView.getMeasuredWidth(),
                lp.topMargin + contentView.getMeasuredHeight());

        lp = (MarginLayoutParams) menuView.getLayoutParams();

        final int menuWidth = menuView.getMeasuredWidth();
        int childLeft = -menuWidth + (int) (menuWidth * mLeftMenuOnScrren);
        menuView.layout(childLeft, lp.topMargin, childLeft + menuWidth,
                lp.topMargin + menuView.getMeasuredHeight());
    }

    @Override
    public boolean onInterceptTouchEvent(MotionEvent ev)
    {
        boolean shouldInterceptTouchEvent = mHelper.shouldInterceptTouchEvent(ev);
        return shouldInterceptTouchEvent;
    }


    @Override
    public boolean onTouchEvent(MotionEvent event)
    {
        mHelper.processTouchEvent(event);
        return true;
    }


    @Override
    public void computeScroll()
    {
        if (mHelper.continueSettling(true))
        {
            invalidate();
        }
    }

    public void closeDrawer()
    {
        View menuView = mLeftMenuView;
        mLeftMenuOnScrren = 0.f;
        mHelper.smoothSlideViewTo(menuView, -menuView.getWidth(), menuView.getTop());
    }

    public void openDrawer()
    {
        View menuView = mLeftMenuView;
        mLeftMenuOnScrren = 1.0f;
        mHelper.smoothSlideViewTo(menuView, 0, menuView.getTop());
    }

    @Override
    protected LayoutParams generateDefaultLayoutParams()
    {
        return new MarginLayoutParams(LayoutParams.MATCH_PARENT, LayoutParams.MATCH_PARENT);
    }

    public LayoutParams generateLayoutParams(AttributeSet attrs)
    {
        return new MarginLayoutParams(getContext(), attrs);
    }

    protected LayoutParams generateLayoutParams(ViewGroup.LayoutParams p)
    {
        return new MarginLayoutParams(p);
    }

}

哈,很少的代码就完成了我们的侧滑的编写,目测如果使用横向的LinearLayout代码更短。构造方法中,主要就是初始化我们的mDragHelper了,接下来onMeasure和onLayout都比较简单,onLayout也只是去将我们的menu设置到屏幕的左侧以至于不可见。onInterceptTouchEventonTouchEvent中都只需要简单的调用mDragHelper的方法。那么核心代码都在我们的ViewDragHelper.Callback的实例中了。注意一点:我们LeftDrawerLayout默认的LayoutParams为MarginLayoutParams,注意复写相关方法。

接下来就把注意力放到我们的Callback中,我尽可能的按照调用的逻辑来解释各个方法:

  • onEdgeDragStarted 如果你仔细的看过上篇,那么一定知道这个方法的回调位置;因为我们的View不可见,所以我们没有办法直接通过触摸到它来把menu设置为captureView,所以我们只能设置边界检测,当MOVE时回调onEdgeDragStarted时,我们直接通过captureChildView手动捕获。

  • tryCaptureView 那么既然我们手动捕获了,为什么还需要这个方法呢?主要是因为当Drawer拉出的时候,我们通过拖拽Drawer也能进行移动菜单。

  • clampViewPositionHorizontal 主要是移动的时候去控制控制范围,可以看到我们的int newLeft = Math.max(-child.getWidth(), Math.min(left, 0));一定>=-child.getWidth() && <=0 。

  • getViewHorizontalDragRange 为什么要复写,我们上篇已经描述过,返回captureView的移动范围。

  • onViewReleased 则是释放的时候触发的,我们计算当前显示的百分比,以及加速度来决定是否显示drawer,从代码可以看出,当xvel > 0 || xvel == 0 && offset > 0.5f显示我们的菜单,其他情况隐藏。这里注意一点xvel的值只有大于我们设置的minVelocity才会出现大于0,如果小于我们设置的值则一直是0。

  • onViewPositionChanged 整个pos变化的过程中,我们计算offset保存,这里可以使用接口将offset回调出去,方便做动画。

ok,我们重写的所有方法描述完成了~那么博文主要内容也就结束了~哈~是不是 so easy ~!

呃,忘了MainActivity和Fragment的代码了~~按顺序贴

(三)LeftDrawerLayoutActivity

package com.imooc.testandroid;

import android.os.Bundle;
import android.support.v4.app.FragmentManager;
import android.support.v7.app.ActionBarActivity;
import android.view.Menu;
import android.view.MenuItem;
import android.widget.TextView;

import com.zhy.learn.view.LeftDrawerLayout;


public class LeftDrawerLayoutActivity extends ActionBarActivity
{

    private LeftMenuFragment mMenuFragment;
    private LeftDrawerLayout mLeftDrawerLayout ;
    private TextView mContentTv ;


    @Override
    protected void onCreate(Bundle savedInstanceState)
    {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_left_drawer_layout);

        mLeftDrawerLayout = (LeftDrawerLayout) findViewById(R.id.id_drawerlayout);
        mContentTv = (TextView) findViewById(R.id.id_content_tv);

        FragmentManager fm = getSupportFragmentManager();
        mMenuFragment = (LeftMenuFragment) fm.findFragmentById(R.id.id_container_menu);
        if (mMenuFragment == null)
        {
            fm.beginTransaction().add(R.id.id_container_menu, mMenuFragment = new LeftMenuFragment()).commit();
        }

        mMenuFragment.setOnMenuItemSelectedListener(new LeftMenuFragment.OnMenuItemSelectedListener()
        {
            @Override
            public void menuItemSelected(String title)
            {
                mLeftDrawerLayout.closeDrawer();
                mContentTv.setText(title);
            }
        });

    }

可以看到drawer使用了一个Fragment ~~

(四) LeftMenuFragment



import android.os.Bundle;
import android.support.annotation.Nullable;
import android.support.v4.app.ListFragment;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.ListView;

/**
 * Created by zhy on 15/4/26.
 */
public class LeftMenuFragment extends ListFragment {

    private static final int SIZE_MENU_ITEM = 3;

    private MenuItem[] mItems = new MenuItem[SIZE_MENU_ITEM];

    private LeftMenuAdapter mAdapter;


    private LayoutInflater mInflater;

    @Override
    public void onCreate(@Nullable Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);

        mInflater = LayoutInflater.from(getActivity());

        MenuItem menuItem = null;
        for (int i = 0; i < SIZE_MENU_ITEM; i++) {
            menuItem = new MenuItem(getResources().getStringArray(R.array.array_left_menu)[i], false, R.drawable.music_36px, R.drawable.music_36px_light);
            mItems[i] = menuItem;
        }
    }

    @Override
    public View onCreateView(LayoutInflater inflater, ViewGroup container, Bundle savedInstanceState) {
        return super.onCreateView(inflater, container, savedInstanceState);
    }

    @Override
    public void onViewCreated(View view, @Nullable Bundle savedInstanceState) {
        super.onViewCreated(view, savedInstanceState);
        view.setBackgroundColor(0xffffffff);
        setListAdapter(mAdapter = new LeftMenuAdapter(getActivity(), mItems));

    }

    @Override
    public void onListItemClick(ListView l, View v, int position, long id) {
        super.onListItemClick(l, v, position, id);

        if (mMenuItemSelectedListener != null) {
            mMenuItemSelectedListener.menuItemSelected(((MenuItem) getListAdapter().getItem(position)).text);
        }
        mAdapter.setSelected(position);
    }


    //选择回调的接口
    public interface OnMenuItemSelectedListener {
        void menuItemSelected(String title);
    }
    private OnMenuItemSelectedListener mMenuItemSelectedListener;

    public void setOnMenuItemSelectedListener(OnMenuItemSelectedListener menuItemSelectedListener) {
        this.mMenuItemSelectedListener = menuItemSelectedListener;
    }
}



public class MenuItem
{

    public MenuItem(String text, boolean isSelected, int icon, int iconSelected) {
        this.text = text;
        this.isSelected = isSelected;
        this.icon = icon;
        this.iconSelected = iconSelected;
    }

    boolean isSelected;
    String text;
    int icon;
    int iconSelected;
}



/**
 * Created by zhy on 15/4/26.
 */
public class LeftMenuAdapter extends ArrayAdapter<MenuItem> {


    private LayoutInflater mInflater;

    private int mSelected;


    public LeftMenuAdapter(Context context, MenuItem[] objects) {
        super(context, -1, objects);

        mInflater = LayoutInflater.from(context);

    }

    @Override
    public View getView(int position, View convertView, ViewGroup parent) {


        if (convertView == null) {
            convertView = mInflater.inflate(R.layout.item_left_menu, parent, false);
        }

        ImageView iv = (ImageView) convertView.findViewById(R.id.id_item_icon);
        TextView title = (TextView) convertView.findViewById(R.id.id_item_title);
        title.setText(getItem(position).text);
        iv.setImageResource(getItem(position).icon);
        convertView.setBackgroundColor(Color.TRANSPARENT);

        if (position == mSelected) {
            iv.setImageResource(getItem(position).iconSelected);
            convertView.setBackgroundColor(getContext().getResources().getColor(R.color.state_menu_item_selected));
        }

        return convertView;
    }

    public void setSelected(int position) {
        this.mSelected = position;
        notifyDataSetChanged();
    }


}

贴了一大串,主要就是Fragment的代码,内部有个ListView,所以还有个Adapter,这个Fragment在之前的博文中出现过,搬过来而已。item的布局文件就是一个TextView和ImageView~~不贴了~~大家自己下载源码~

源码点击下载(导入方式注意看下ReadMe)

ok,到此结束~~hava a nice day ~~
