演示
本想放视频,可airscrpt跑的时候要用屏幕,在录视频两个进程其冲突,所以录视频失败!!

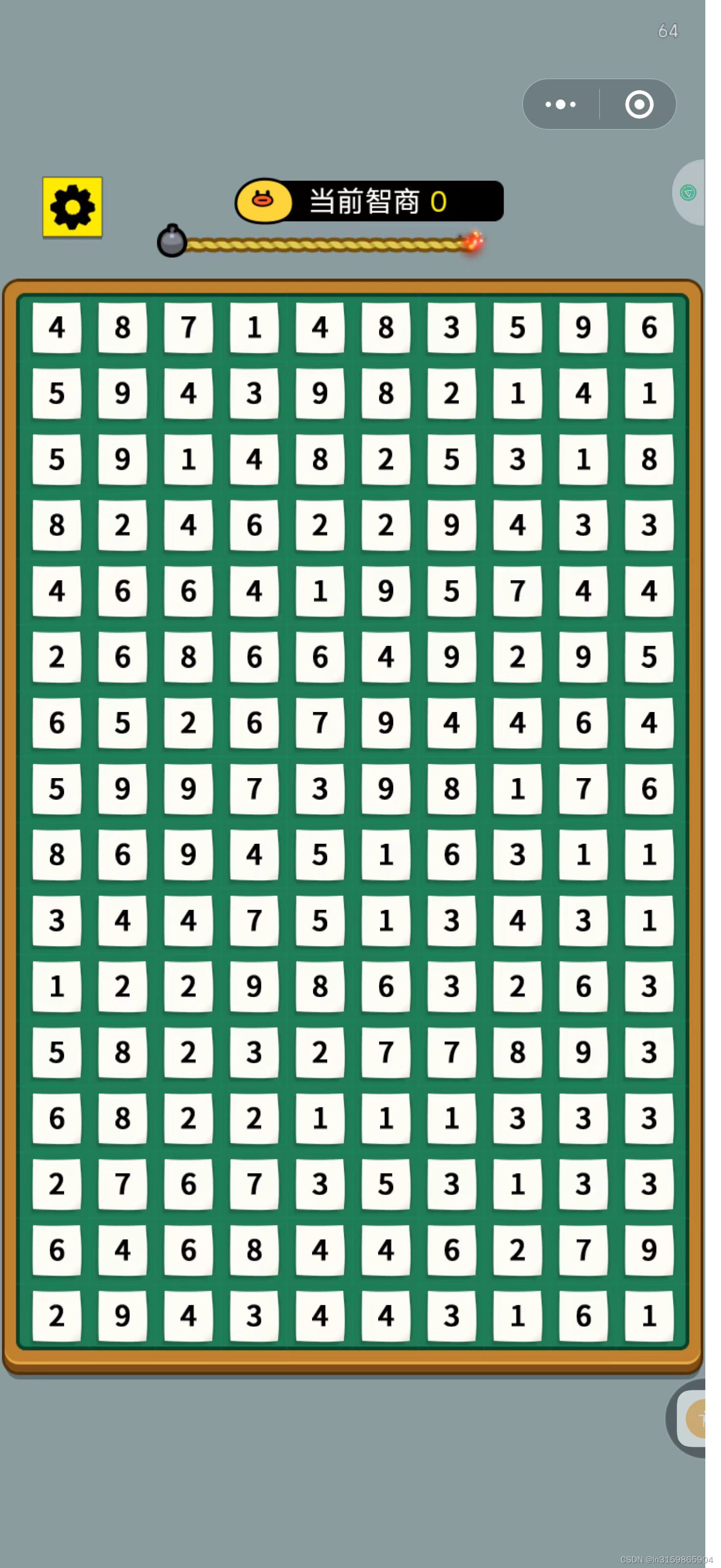

所以展示运行图片,具体运行可以看airscript官网,这里主要用到了找图的功能,用这功能去识别手机中16*10的数字矩阵,然后用算法去实现效果(slide滑动)
这里的算法比较简单
最高分可得122,最少可得90+{
改文章的内容包括:代码
数字图片(图片资源:如下:
链接:https://pan.baidu.com/s/1cicMXdSh7e37dwrsHDp2_A?pwd=k66j
提取码:k66j)
}

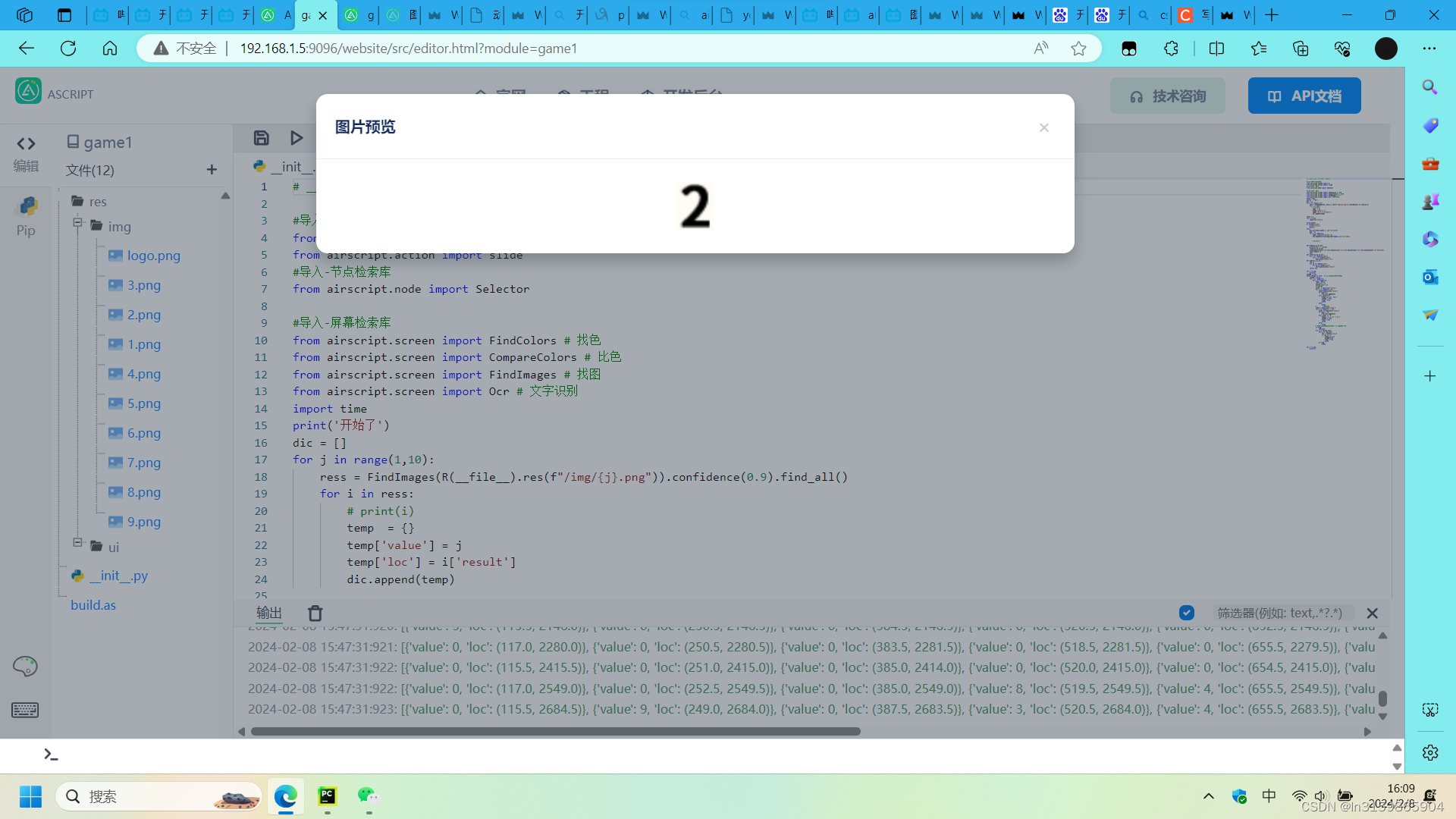

其中1,2,3到9的图片为数字图片:

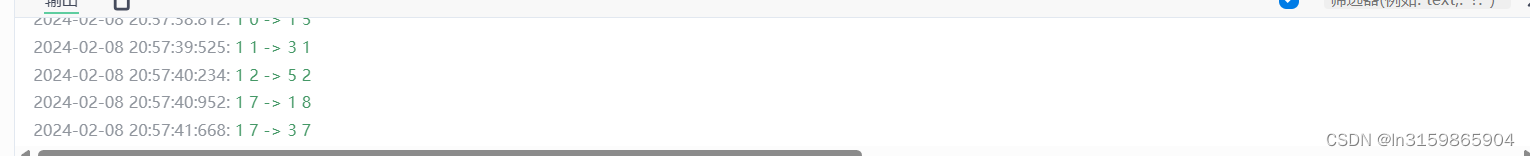

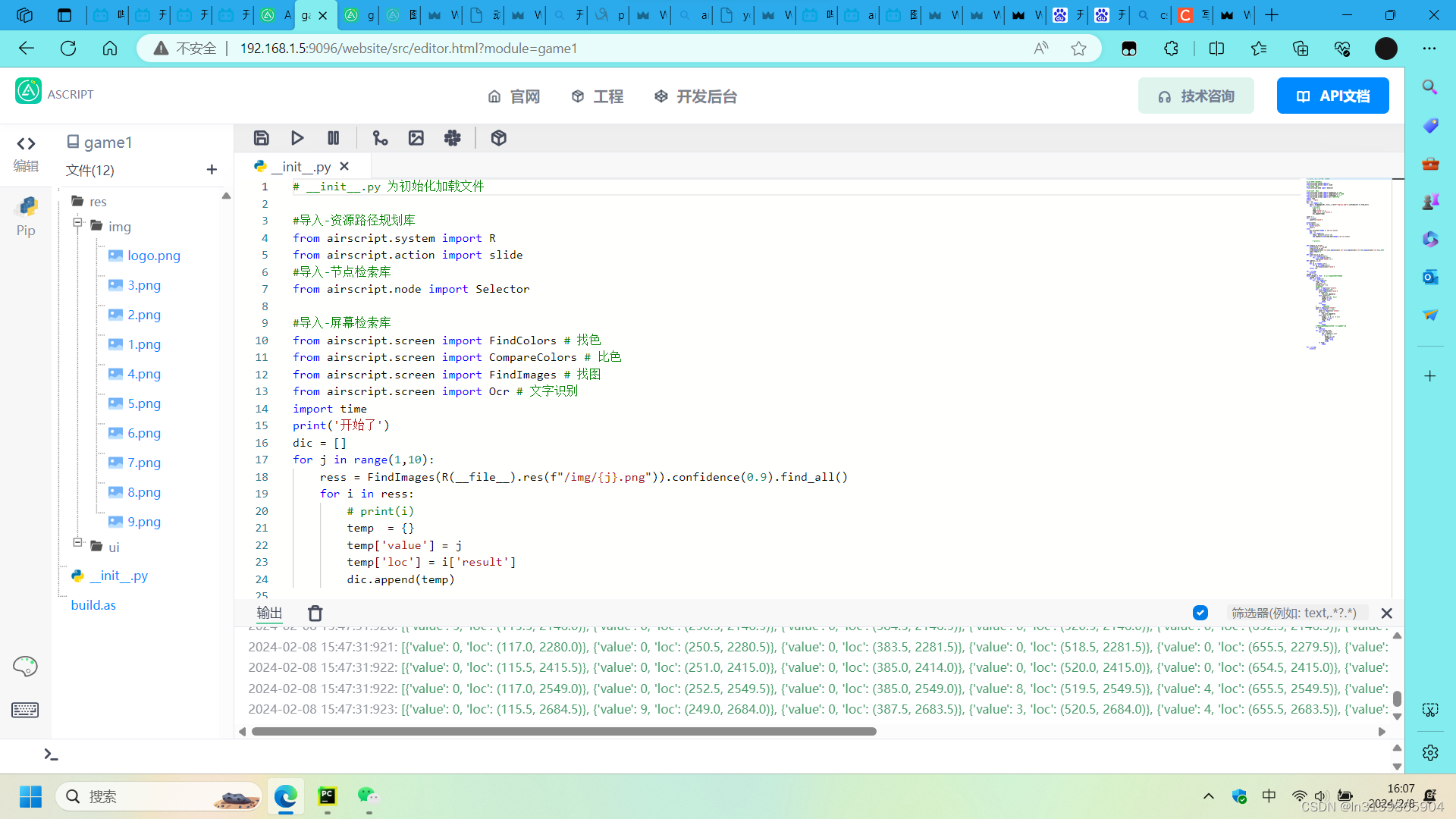

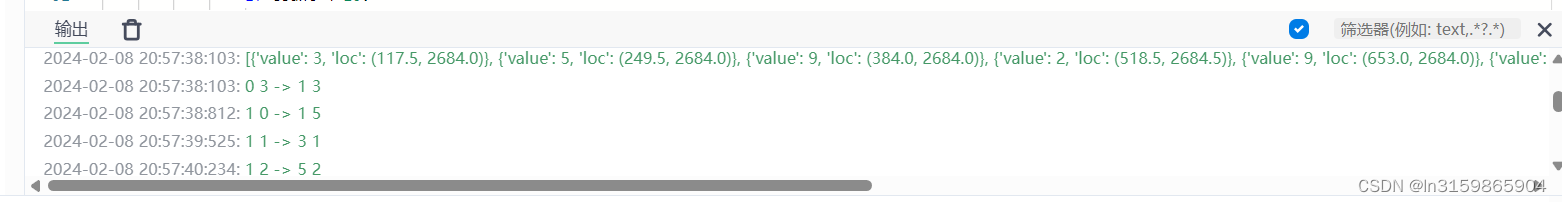

运行界面:
代码:
# __init__.py 为初始化加载文件
#导入-资源路径规划库
from airscript.system import R
from airscript.action import slide
#导入-节点检索库
from airscript.node import Selector
#导入-屏幕检索库
from airscript.screen import FindColors # 找色
from airscript.screen import CompareColors # 比色
from airscript.screen import FindImages # 找图
from airscript.screen import Ocr # 文字识别
import time
print('开始了')
dic = []
for j in range(1,10):
ress = FindImages(R(__file__).res(f"/img/{j}.png")).confidence(0.9).find_all()
for i in ress:
# print(i)
temp = {}
temp['value'] = j
temp['loc'] = i['result']
dic.append(temp)
count = 0
for i in dic:
count+=i['value']
print(count)
if len(dic)!=160:
print("error")
exit(1)
else:
dic.sort(key=lambda x: [x['loc'][1]])
map = []
for i in range(16):
temp = dic[i*10:(i+1)* 10]
map.append(sorted(temp,key=lambda x:x['loc'][0]))
# print(i)
def drag(x1,y1,x2,y2):
print(x1,y1,'->',x2,y2)
clear(x1,y1,x2,y2)
slide(map[x1][y1]['loc'][0],map[x1][y1]['loc'][1],map[x2][y2]['loc'][0],map[x2][y2]['loc'][1],200)
time.sleep(0.5)
pass
def clear(x1,y1,x2,y2):
for i in range(x1,x2+1):
for j in range(y1,y2+1):
map[i][j]['value'] = 0
def sumtt(i,j,x,y):
res =0
for x1 in range(i,x+1):
for y1 in range(j,y+1):
res+=map[x1][y1]['value']
return res
for i in map:
print(i)
change = True
while change == True: # 循环直到没有可以消除的
change = False
for i in range(16):
for j in range(10):
flag = False
row_list = []
column_list = []
#横向消除
count = map[i][j]['value']
for k in range(j+1,10):
count+=map[i][k]['value']
if count<10:
row_list.append(k)
elif count==10:
drag(i,j,i,k) #移动
change = True
flag = True
break
else:
break
# 纵向消除
count = map[i][j]['value']
for k in range(i+ 1, 16):
count += map[k][j]['value']
if count < 10:
row_list.append(k)
elif count == 10:
drag(i, j, k, j) # 移动
change = True
flag = True
break
else:
break
# 代表横向或纵向已经消除过,斜向就不搞了
if flag:
continue
for x in column_list:
for y in row_list:
res = sumtt(i,j,x,y)
if res == 10:
drag(i,j,x,y)
change=True
flag = True
break
if flag:
break
for i in map:
print(i)
