作者：真爱和自由（先知社区）``原文：https://xz.aliyun.com/t/17030

codeql 之 SSRF 漏洞自动化寻找

环境搭建

下载项目
https://github.com/l4yn3/micro_service_seclab

然后放入 IDEA 即可，之后运行

这里主要研究 SSRF
SSRF 的漏洞代码

package com.l4yn3.microserviceseclab.controller;import com.squareup.okhttp.Call;import com.squareup.okhttp.OkHttpClient;import com.squareup.okhttp.Response;import org.apache.http.HttpResponse;import org.apache.http.client.methods.HttpGet;import org.apache.http.impl.client.DefaultHttpClient;import org.springframework.web.bind.annotation.RequestMapping;import org.springframework.web.bind.annotation.RequestParam;import org.springframework.web.bind.annotation.RestController;import org.apache.http.client.fluent.Request;import java.io.IOException;import java.io.InputStream;import java.net.HttpURLConnection;import java.net.URL;@RestController@RequestMapping(value = "/ssrf")public class SSRFController {    @RequestMapping(value = "/one")    public String One(@RequestParam(value = "url") String imageUrl) {        try {            URL url = new URL(imageUrl);            HttpURLConnection connection = (HttpURLConnection) url.openConnection();            connection.setRequestMethod("GET");            return connection.getResponseMessage();        } catch (IOException var3) {            System.out.println(var3);            return "Hello";        }    }    @RequestMapping(value = "/two")    public String Two(@RequestParam(value = "url") String imageUrl) {        try {            URL url = new URL(imageUrl);            HttpResponse response = Request.Get(String.valueOf(url)).execute().returnResponse();            return response.toString();        } catch (IOException var1) {            System.out.println(var1);            return "Hello";        }    }    @RequestMapping(value = "/three")    public String Three(@RequestParam(value = "url") String imageUrl) {        try {            URL url = new URL(imageUrl);            OkHttpClient client = new OkHttpClient();            com.squareup.okhttp.Request request = new com.squareup.okhttp.Request.Builder().get().url(url).build();            Call call = client.newCall(request);            Response response = call.execute();            return response.toString();        } catch (IOException var1) {            System.out.println(var1);            return "Hello";        }    }    @RequestMapping(value = "/four")    public String Four(@RequestParam(value = "url") String imageUrl) {        try {            DefaultHttpClient client = new DefaultHttpClient();            HttpGet get = new HttpGet(imageUrl);            HttpResponse response = client.execute(get);            return response.toString();        } catch (IOException var1) {            System.out.println(var1);            return "Hello";        }    }    @RequestMapping(value = "five")    public String Five(@RequestParam(value = "url") String imageUrl) {        try {            URL url = new URL(imageUrl);            InputStream inputStream = url.openStream();            return String.valueOf(inputStream.read());        } catch (IOException var1) {            System.out.println(var1);            return "Hello";        }    }}

但是这个不太明显
我修改了一下这样更好观察

package com.l4yn3.microserviceseclab.controller;import com.squareup.okhttp.Call;import com.squareup.okhttp.OkHttpClient;import com.squareup.okhttp.Response;import org.apache.http.HttpResponse;import org.apache.http.client.methods.HttpGet;import org.apache.http.impl.client.DefaultHttpClient;import org.springframework.web.bind.annotation.RequestMapping;import org.springframework.web.bind.annotation.RequestParam;import org.springframework.web.bind.annotation.RestController;import org.apache.http.client.fluent.Request;import java.io.IOException;import java.io.InputStream;import java.net.HttpURLConnection;import java.net.URL;@RestController@RequestMapping(value = "/ssrf")public class SSRFController {    @RequestMapping(value = "/one")    public String One(@RequestParam(value = "url") String imageUrl) {        try {            URL url = new URL(imageUrl);            HttpURLConnection connection = (HttpURLConnection) url.openConnection();            connection.setRequestMethod("GET");            return connection.getResponseMessage();        } catch (IOException var3) {            System.out.println(var3);            return "Hello";        }    }    @RequestMapping(value = "/two")    public String Two(@RequestParam(value = "url") String imageUrl) {        try {            URL url = new URL(imageUrl);            HttpResponse response = Request.Get(String.valueOf(url)).execute().returnResponse();            return response.toString();        } catch (IOException var1) {            System.out.println(var1);            return "Hello";        }    }    @RequestMapping(value = "/three")    public String Three(@RequestParam(value = "url") String imageUrl) {        try {            URL url = new URL(imageUrl);            OkHttpClient client = new OkHttpClient();            com.squareup.okhttp.Request request = new com.squareup.okhttp.Request.Builder().get().url(url).build();            Call call = client.newCall(request);            Response response = call.execute();            return response.toString();        } catch (IOException var1) {            System.out.println(var1);            return "Hello";        }    }    @RequestMapping(value = "/four")    public String Four(@RequestParam(value = "url") String imageUrl) {        try {            DefaultHttpClient client = new DefaultHttpClient();            HttpGet get = new HttpGet(imageUrl);            HttpResponse response = client.execute(get);            return response.toString();        } catch (IOException var1) {            System.out.println(var1);            return "Hello";        }    }    @RequestMapping(value = "five")    public String Five(@RequestParam(value = "url") String imageUrl) {        try {            URL url = new URL(imageUrl);            InputStream inputStream = url.openStream();            return String.valueOf(inputStream.read());        } catch (IOException var1) {            System.out.println(var1);            return "Hello";        }    }}

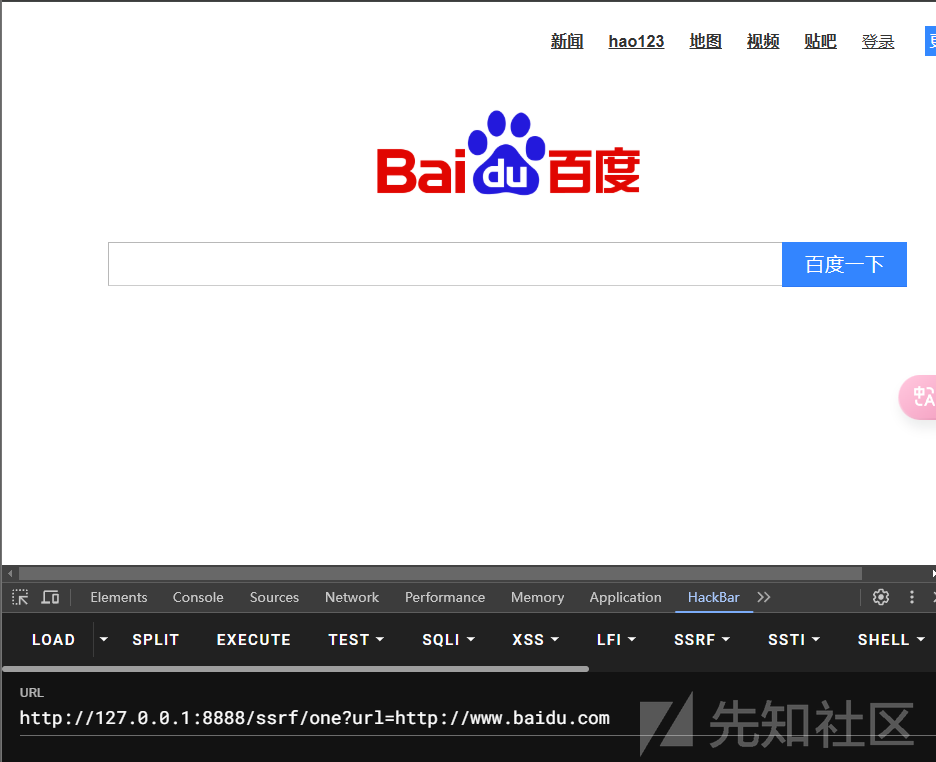

http://127.0.0.1:8888/ssrf/one?url=http://www.baidu.com

成功

漏洞分析

我们首先需要看明白造成 SSRF 漏洞的类型

HttpURLConnection 发起请求

@RequestMapping(value = "/one")public String One(@RequestParam(value = "url") String imageUrl) {    try {        URL url = new URL(imageUrl);        HttpURLConnection connection = (HttpURLConnection) url.openConnection();        connection.setRequestMethod("GET");        return connection.getResponseMessage();    } catch (IOException var3) {        System.out.println(var3);        return "Hello";    }}

HttpURLConnection 是 Java 标准库中的一个类，用于通过 URL 发起 HTTP 请求。这里直接将用户提供的 URL 用来创建连接，并发送 GET 请求

而且 URL 我们可以控制，造成了 ssrf

Apache HttpClient

@RequestMapping(value = "/two")public String Two(@RequestParam(value = "url") String imageUrl) {    try {        URL url = new URL(imageUrl);        HttpResponse response = Request.Get(String.valueOf(url)).execute().returnResponse();        return response.toString();    } catch (IOException var1) {        System.out.println(var1);        return "Hello";    }}

这里使用了 Apache HttpClient（通过 fluent API）发起 HTTP 请求。用户提供的 URL 被用来发起 GET 请求，并返回响应。

OkHttp

@RequestMapping(value = "/three")public String Three(@RequestParam(value = "url") String imageUrl) {    try {        URL url = new URL(imageUrl);        OkHttpClient client = new OkHttpClient();        com.squareup.okhttp.Request request = new com.squareup.okhttp.Request.Builder().get().url(url).build();        Call call = client.newCall(request);        Response response = call.execute();        return response.toString();    } catch (IOException var1) {        System.out.println(var1);        return "Hello";    }}

OkHttp 是一个比 HttpURLConnection 和 HttpClient 更现代的 HTTP 客户端，它的设计更注重性能和易用性。

DefaultHttpClient

@RequestMapping(value = "/four")public String Four(@RequestParam(value = "url") String imageUrl) {    try {        DefaultHttpClient client = new DefaultHttpClient();        HttpGet get = new HttpGet(imageUrl);        HttpResponse response = client.execute(get);        return response.toString();    } catch (IOException var1) {        System.out.println(var1);        return "Hello";    }}

这段代码使用的是 Apache HttpClient 中的 DefaultHttpClient 类，HttpGet 请求方式用于发起 HTTP 请求。DefaultHttpClient 是 HttpClient 的一个实现，它提供了更丰富的功能和配置选项。

openStream

@RequestMapping(value = "five")public String Five(@RequestParam(value = "url") String imageUrl) {    try {        URL url = new URL(imageUrl);        InputStream inputStream = url.openStream();        return String.valueOf(inputStream.read());    } catch (IOException var1) {        System.out.println(var1);        return "Hello";    }}

URL.openStream() 方法打开用户提供的 URL 并读取数据。openStream() 方法本质上是执行了一次 HTTP 请求，获取响应的字节流。

codeql 分析

首先就是 sink 点的匹配

官方的规则库相当的复杂，包含的类型远远比我们这五种多

其中定义在 RequestForgeryConfig 类

我们看注释

/\*\*\* DEPRECATED: Use \`RequestForgeryConfiguration\` module instead.\*\* A taint-tracking configuration characterising request-forgery risks.\*/

描述请求伪造风险的污点跟踪配置。

我们的 SSRF 类型就属于 request-forgery 风险

source 点分析

RemoteFlowSource

override predicate isSource(DataFlow::Node source) {  source instanceof RemoteFlowSource and  // Exclude results of remote HTTP requests: fetching something else based on that result  // is no worse than following a redirect returned by the remote server, and typically  // we're requesting a resource via https which we trust to only send us to safe URLs.  not source.asExpr().(MethodCall).getCallee() instanceof UrlConnectionGetInputStreamMethod}

首先是 RemoteFlowSource

我们跟进

/\*\* A data flow source of remote user input. \*/abstract class RemoteFlowSource extends SourceNode {  /\*\* Gets a string that describes the type of this remote flow source. \*/  abstract string getSourceType();  override string getThreatModel() { result = "remote" }}

很明显看注释远程用户输入的数据流源

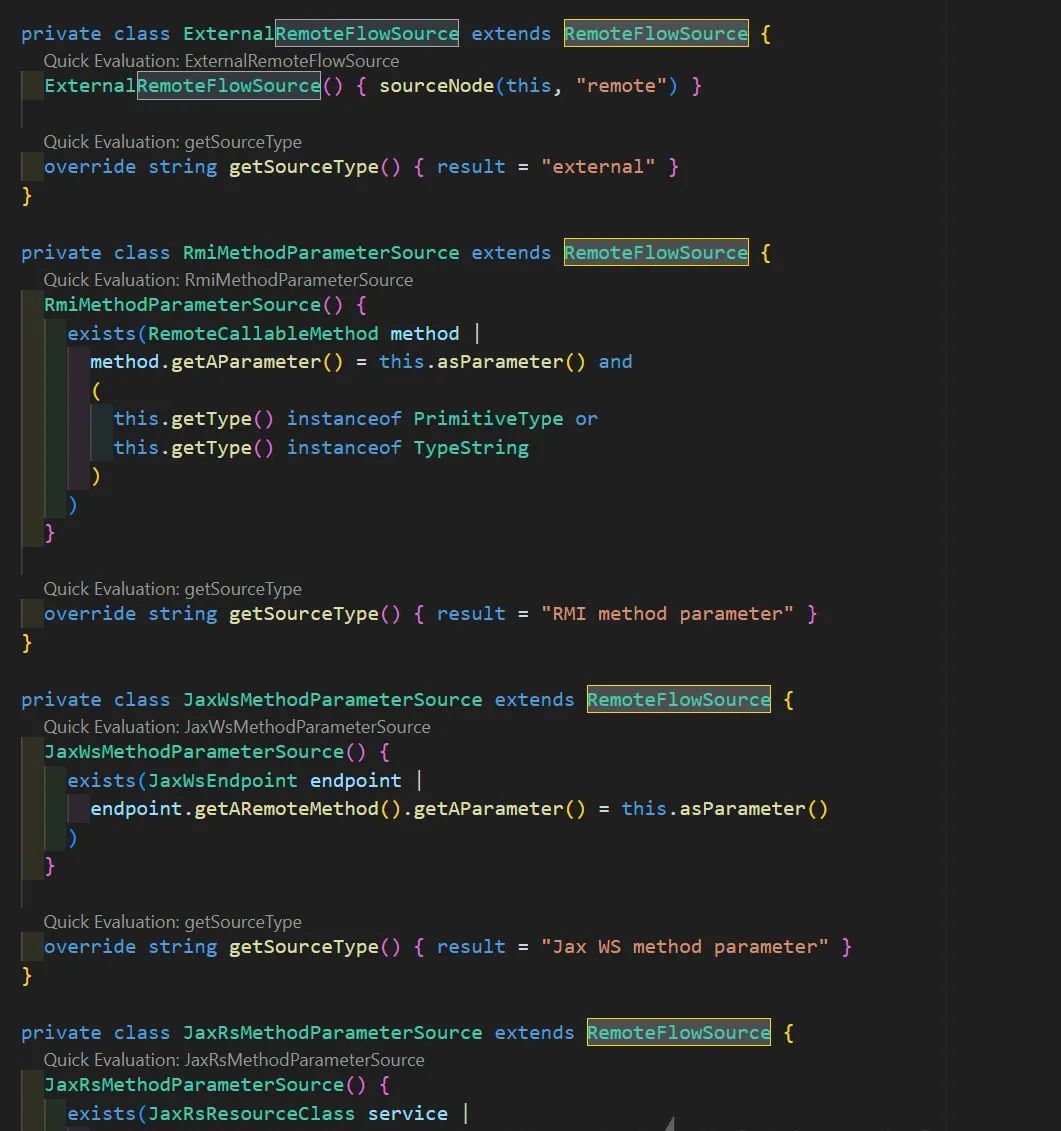

我们看到实现类，这里很多

这里就拿

private class SpringServletInputParameterSource extends RemoteFlowSource {  SpringServletInputParameterSource() {    this.asParameter() = any(SpringRequestMappingParameter srmp | srmp.isTaintedInput())  }  override string getSourceType() { result = "Spring servlet input parameter" }}

SpringServletInputParameterSource 来举个例子

首先我们需要知道什么是 SpringRequestMappingParameter 参数

这个就不跟了，因为也不是重点，就是

SpringRequestMappingParameter() { this.getCallable() instanceof SpringRequestMappingMethod }

参数的调用方法是 spring 中请求映射的方法即可，这个大家跟了就会明白

isTaintedInput 呢看注释就可以明白

predicate isTaintedInput() {    this.isExplicitlyTaintedInput()    or    // Any parameter which is not explicitly identified, is consider to be an \`@RequestParam\`, if    // it is a simple bean property) or a @ModelAttribute if not    not this.isNotDirectlyTaintedInput()  }}

isTaintedInput() 是一个用于判断输入是否为污点的谓词

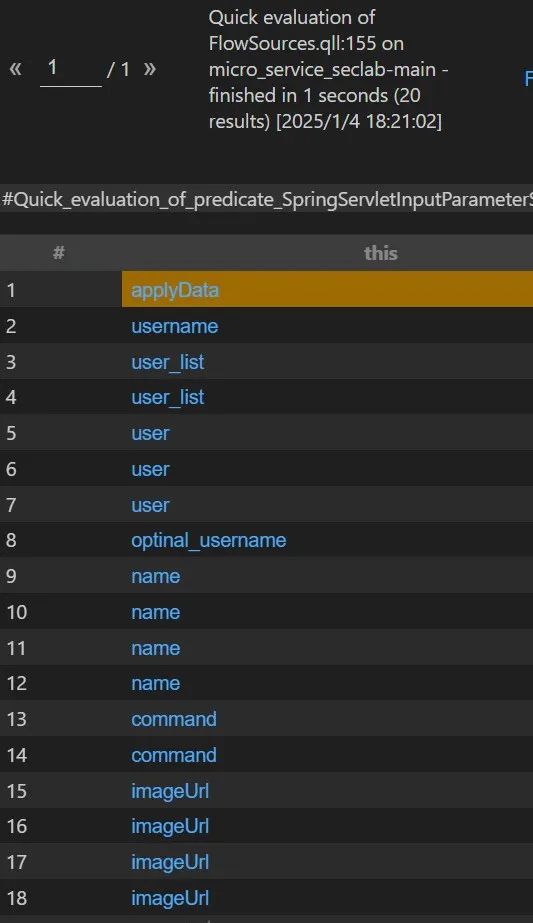

然后我们可以查查看

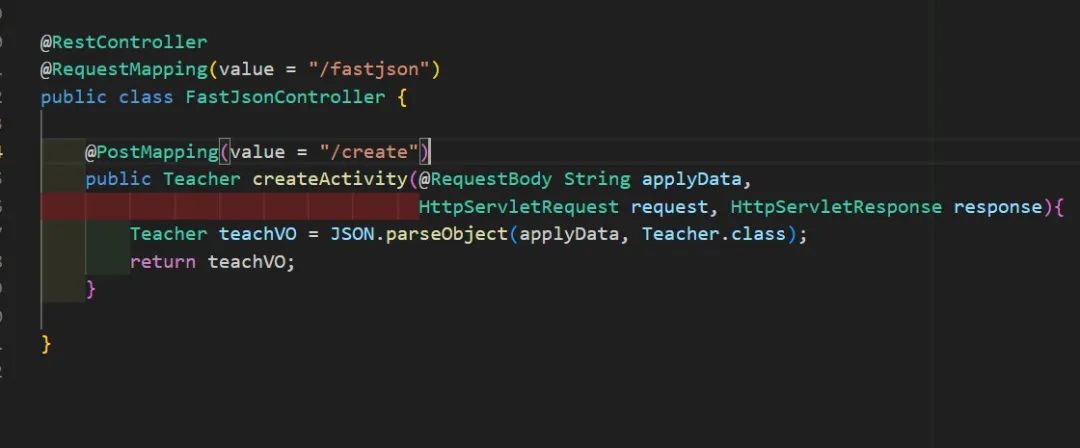

随便点几个

大家看这个截图应该能明白到底匹配了些什么 source，其实就是 spring 中用户可控的输入

排除的 source

not source.asExpr().(MethodCall).getCallee() instanceof UrlConnectionGetInputStreamMethod

跟过去

/\*\* The method \`java.net.URLConnection::getInputStream\`. \*/class UrlConnectionGetInputStreamMethod extends Method {  UrlConnectionGetInputStreamMethod() {    this.getDeclaringType() instanceof TypeUrlConnection and    this.hasName("getInputStream") and    this.hasNoParameters()  }}

就是排除某些远程请求：然后，排除所有通过 HttpURLConnection.getInputStream 方法发起的远程请求。这是因为 getInputStream 方法通常用于安全地获取远程资源，例如通过 HTTPS 请求访问外部 URL，不把这些认为是可疑的

Sink 点

override predicate isSink(DataFlow::Node sink) { sink instanceof RequestForgerySink }

跟进 RequestForgerySink 类

abstract class RequestForgerySink extends DataFlow::Node { }private class DefaultRequestForgerySink extends RequestForgerySink {  DefaultRequestForgerySink() { sinkNode(this, "request-forgery") }}

他的实现类是 DefaultRequestForgerySink 类，而匹配的是 request-forgery 类型

sinkNode 就是标记特定的数据流的，而 request-forgery 表示被标记的类型

而我们怎么知道哪些是 request-forgery 类型呢？

codeql 有一堆配置好了的类型

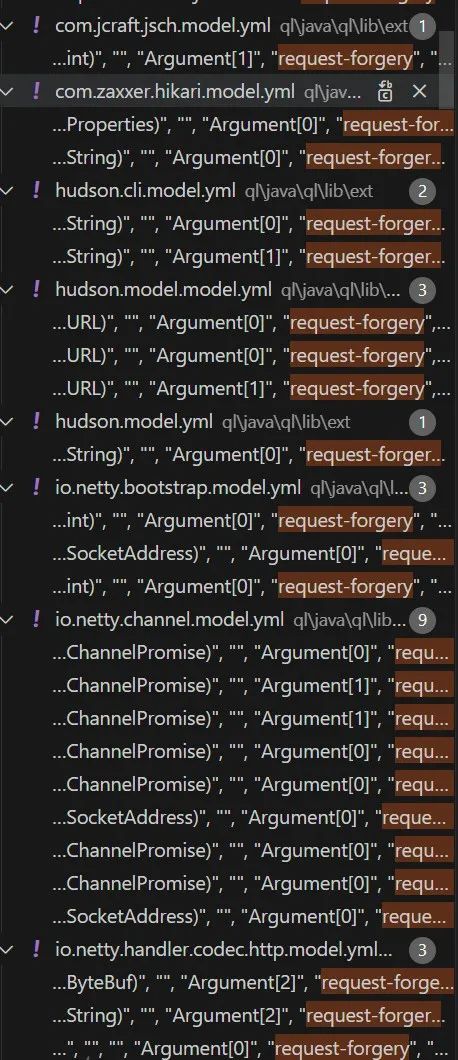

我们可以全局搜索 request-forgery

可以看出来大概是以所在的包名来分的

比如 okhttp 这种很小众的

@RequestMapping(value = "/three")public String Three(@RequestParam(value = "url") String imageUrl) {    try {        URL url = new URL(imageUrl);        OkHttpClient client = new OkHttpClient();        com.squareup.okhttp.Request request = new com.squareup.okhttp.Request.Builder().get().url(url).build();        Call call = client.newCall(request);        Response response = call.execute();        return response.toString();    } catch (IOException var1) {        System.out.println(var1);        return "Hello";    }}

我们找找这个包

可以看到是有的

isAdditionalTaintStep

这个很好理解，就是可能污点不能从 a 到 b 去追踪，但是实际的情况 a 到 b 就是一个传播过程，这时候我们就需要自己去跟踪污点了

override predicate isAdditionalTaintStep(DataFlow::Node pred, DataFlow::Node succ) {  any(RequestForgeryAdditionalTaintStep r).propagatesTaint(pred, succ)}

跟进 RequestForgeryAdditionalTaintStep

private class TypePropertiesRequestForgeryAdditionalTaintStep extends RequestForgeryAdditionalTaintStep{  override predicate propagatesTaint(DataFlow::Node pred, DataFlow::Node succ) {    exists(MethodCall ma |      // Properties props = new Properties();      // props.setProperty("jdbcUrl", tainted);      // Propagate tainted value to the qualifier \`props\`      ma.getMethod() instanceof PropertiesSetPropertyMethod and      ma.getArgument(0).(CompileTimeConstantExpr).getStringValue() = "jdbcUrl" and      pred.asExpr() = ma.getArgument(1) and      succ.asExpr() = ma.getQualifier()    )  }}

一共是两个具体的实现类

DefaultRequestForgeryAdditionalTaintStep

private class DefaultRequestForgeryAdditionalTaintStep extends RequestForgeryAdditionalTaintStep {  override predicate propagatesTaint(DataFlow::Node pred, DataFlow::Node succ) {    // propagate to a URI when its host is assigned to    exists(UriCreation c | c.getHostArg() = pred.asExpr() | succ.asExpr() = c)    or    // propagate to a URL when its host is assigned to    exists(UrlConstructorCall c | c.getHostArg() = pred.asExpr() | succ.asExpr() = c)  }}

其中 UriCreation 代表的是

class UriCreation extends Call {UriCreation() {  this.getCallee().getDeclaringType() instanceof TypeUri and  (this instanceof ClassInstanceExpr or this.getCallee().hasName("create"))}

比如

// 例 1：通过字符串创建 URIURI uri1 = new URI("http://example.com/path");// 例 2：通过 URI.create 创建 URIURI uri2 = URI.create("http://example.com/path");

UrlConstructorCall代表的是

UrlConstructorCall() { this.getConstructor().getDeclaringType() instanceof TypeUrl }

也就是匹配构造函数的，不过匹配的是

URL url = new URL("http://example.com");  // 通过 URL 构造函数创建 URL 对象

一个是 URI，一个是 URL

而 propagatesTaint 方法就是我们逻辑的主要实现

比如 UriCreation

如果其主机部分（host）被赋值为 pred.asExpr()（即当前污点源），并且 succ.asExpr()（即潜在的污点目标）是这个 UriCreation 对象时，污点就会从 pred 传播到 succ。

比如下面的代码

String userInput = request.getParameter("url");  // 假设这是用户输入的数据URI uri = URI.create(userInput);  // 使用用户输入创建 URI 对象URL url = new URL(userInput);  // 使用用户输入创建 URL 对象

我们的规则就是

当 userInput 被用作创建 URI 或 URL 时，污点就会从 userInput 传播到 uri 和 url 对象上。

如果没有那么我们的传播就是

userInput–>URI.create(userInput)
这一步它会跟丢，找不到了

TypePropertiesRequestForgeryAdditionalTaintStep

private class TypePropertiesRequestForgeryAdditionalTaintStep extends RequestForgeryAdditionalTaintStep{  override predicate propagatesTaint(DataFlow::Node pred, DataFlow::Node succ) {    exists(MethodCall ma |      // Properties props = new Properties();      // props.setProperty("jdbcUrl", tainted);      // Propagate tainted value to the qualifier \`props\`      ma.getMethod() instanceof PropertiesSetPropertyMethod and      ma.getArgument(0).(CompileTimeConstantExpr).getStringValue() = "jdbcUrl" and      pred.asExpr() = ma.getArgument(1) and      succ.asExpr() = ma.getQualifier()    )  }}

注释给的很清楚了

就是如下的这种也需要污点传播

Properties props = new Properties();String userInput = request.getParameter("jdbcUrl");  // 假设这是用户输入的数据props.setProperty("jdbcUrl", userInput);  // 设置 JDBC URL 为用户输入

通过这种方式，我们可以确保污点传播被追踪到 Properties 对象

isSanitizer

emmm，理解为清理的意思吧，就是有些点不是我们的点，可能控制的部分并不能造成漏洞

override predicate isSanitizer(DataFlow::Node node) { node instanceof RequestForgerySanitizer }

跟进 RequestForgerySanitizer
有许多的实现类

HostnameSantizer

HostnameSanitizingPrefix() {    // Matches strings that look like when prepended to untrusted input, they will restrict    // the host or entity addressed: for example, anything containing \`?\` or \`#\`, or a slash that    // doesn't appear to be a protocol specifier (e.g. \`http://\` is not sanitizing), or specifically    // the string "/".    exists(this.getStringValue().regexpFind("(\[?#\]|\[^?#:/\\\\\\\\\]\[/\\\\\\\\\])|^/$", 0, offset))  }  override int getOffset() { result = offset }}/\*\* \* A value that is the result of prepending a string that prevents any value from controlling the \* host of a URL. \*/private class HostnameSantizer extends RequestForgerySanitizer {  HostnameSantizer() { this.asExpr() = any(HostnameSanitizingPrefix hsp).getAnAppendedExpression() }}

比如http://example.com/page?name=value 中的 ?name=value 是查询部分，我们只能控制后面的，这种就不算一个点

RelativeUrlSanitizer

private predicate isRelativeUrlSanitizer(Guard guard, Expr e, boolean branch) {  guard =    any(MethodCall call |      call.getMethod().hasQualifiedName("java.net", "URI", "isAbsolute") and      e = call.getQualifier() and      branch = false    )}/\*\* \* A check that the URL is relative, and therefore safe for URL redirects. \*/private class RelativeUrlSanitizer extends RequestForgerySanitizer {  RelativeUrlSanitizer() {    this = DataFlow::BarrierGuard<isRelativeUrlSanitizer/3>::getABarrierNode()  }}

就是需要满足我们传入的是绝对的路径，这个 codeql 的代码还是很复杂的

比如这端代码

import java.net.URI;public class UrlValidator {    public static boolean validateUrl(String url) {        URI uri = URI.create(url);        // 检查URL是否是绝对的        if (uri.isAbsolute()) {            return true;  // 这是绝对 URL        }        return false;  // 这是相对 URL    }    public static void main(String\[\] args) {        String testUrl = "http://example.com";        boolean isValid = validateUrl(testUrl);        System.out.println("Is valid: " + isValid);    }}

call.getMethod().hasQualifiedName("java.net", "URI", "isAbsolute")：这部分会匹配 URI 类中的 isAbsolute() 方法。

然后

e = call.getQualifier()：call.getQualifier() 返回的是 uri 对象，即调用 isAbsolute() 方法的那个对象。因此，e 需要与 uri 对象匹配。

branch = false：这意味着我们正在查找方法调用的“否”分支，也就是 uri.isAbsolute() 返回 false 的情况。

确保我们可控的是绝对的 uri

当然还有一些…大家自己看看

codeql 实践

我们运行最后的代码

没有二和三
只有三个从 sink 到 source 的点，但是我们是有五个的，这个的话就需要慢慢检测了

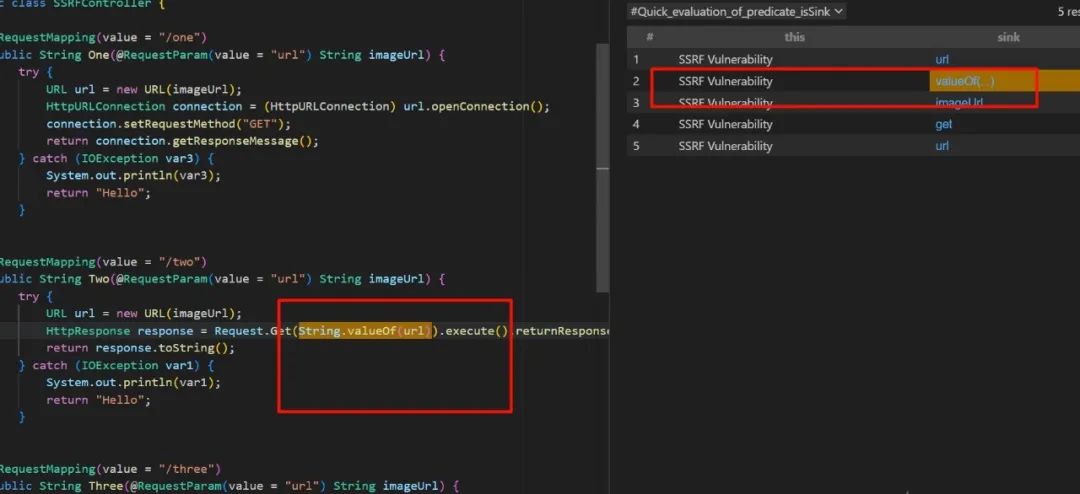

首先其实 sink 点是没有问题的

问题出现在污点传播的过程中
可以看到https://forum.butian.net/share/2117位师傅

问题出现是在正常情况下程序不会觉得 String.valueOf 方法返回的仍然是污点。

这里我们就需要自己去修改了

这里我们需要按照上面分析的同理去操作

还是回到这个代码
RequestForgery.qll
我们只需要续写一下 DefaultRequestForgeryAdditionalTaintStep

首先需要匹配到 valueOf 的代码，然后提取里面的参数

HttpResponse response = Request.Get(String.valueOf(url)).execute().returnResponse();

调用者是 String

首先我们去匹配这个类型

class TypeStringLib extends RefType {  TypeStringLib() { this.hasQualifiedName("java.lang", "String") }}

然后只需要使用如下的代码

class StringValue extends MethodAccess {    StringValue(){      this.getCallee().getDeclaringType() instanceof TypeStringLib and      this.getCallee().hasName("valueOf")    }}

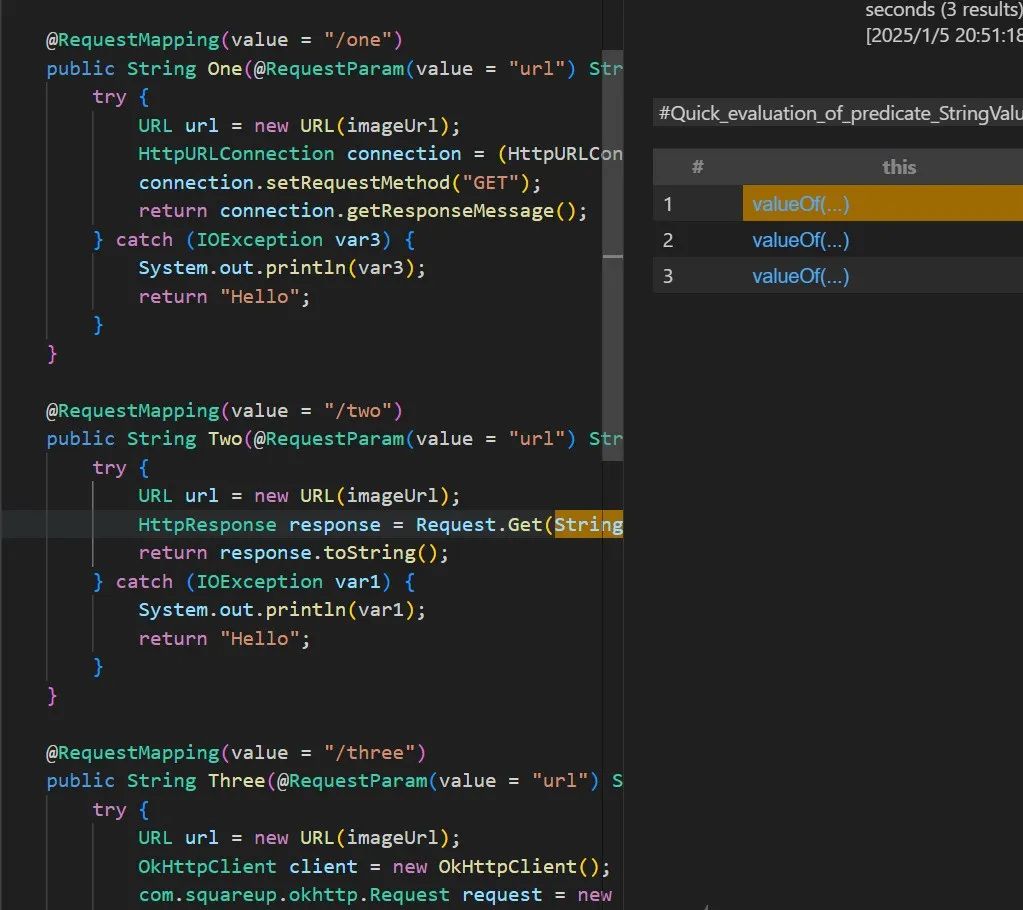

成功的匹配到

然后续写

private class DefaultRequestForgeryAdditionalTaintStep extends RequestForgeryAdditionalTaintStep {  override predicate propagatesTaint(DataFlow::Node pred, DataFlow::Node succ) {    // propagate to a URI when its host is assigned to    exists(UriCreation c | c.getHostArg() = pred.asExpr() | succ.asExpr() = c)    or    // propagate to a URL when its host is assigned to    exists(UrlConstructorCall c | c.getHostArg() = pred.asExpr() | succ.asExpr() = c)    or    exists(StringValue c | c.getArgument(0) = pred.asExpr() | succ.asExpr() = c)  }}

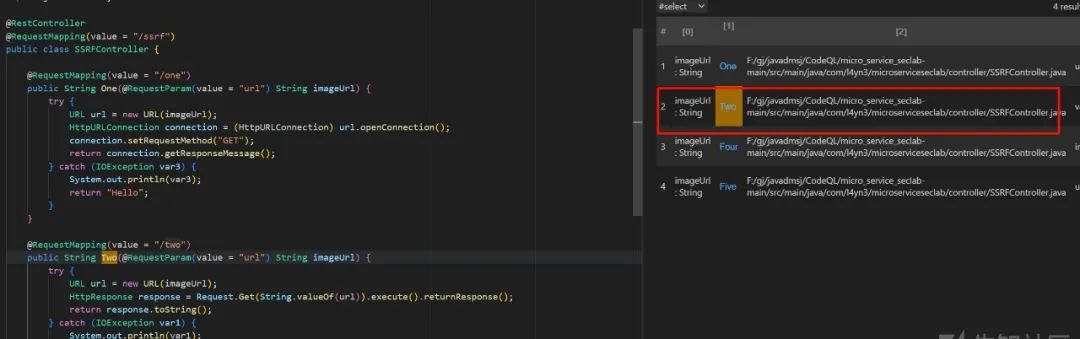

然后我们再去查询
