Apple - Audio Unit Programming Guide

: · 音频单元

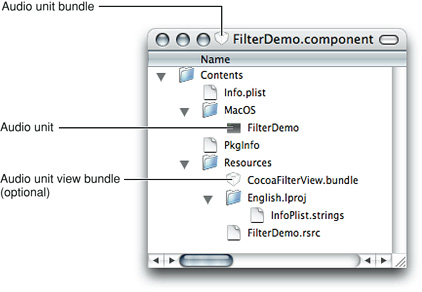

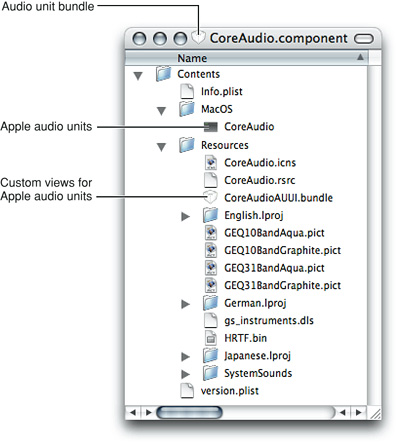

/System/Library/Components/

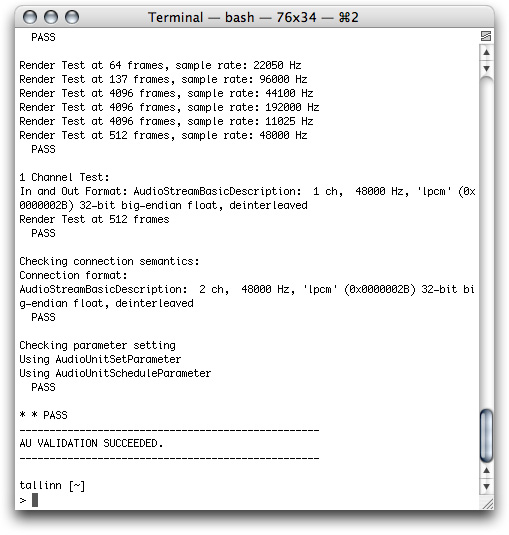

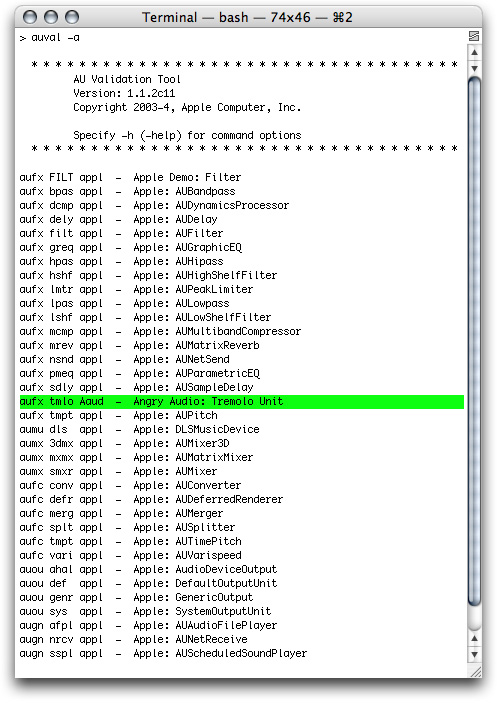

auval -h

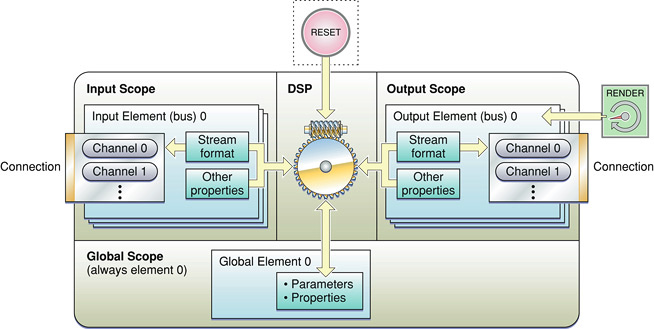

ComponentResult TremoloUnit::GetProperty (
    AudioUnitPropertyID    inID,
    AudioUnitScope         inScope,   // the host specifies the scope
    AudioUnitElement       inElement,
    void                   *outData
) {
    return AUEffectBase::GetProperty (inID, inScope, inElement, outData);
}

if (inScope == kAudioUnitScope_Global) {
    // respond to requests targeting the global scope
} else if (inScope == kAudioUnitScope_Input) {
    // respond to requests targeting the input scope
} else {
    // respond to other requests
}

enum {
    kAudioUnitScope_Global   = 0,
    kAudioUnitScope_Input    = 1,
    kAudioUnitScope_Output   = 2,
    kAudioUnitScope_Group    = 3,
    kAudioUnitScope_Part     = 4
};

ComponentResult TremoloUnit::GetProperty (
    AudioUnitPropertyID    inID,
    AudioUnitScope         inScope,
    AudioUnitElement       inElement,  // the host specifies the element here
    void                   *outData
) {
    return AUEffectBase::GetProperty (inID, inScope, inElement, outData);
}

struct AudioStreamBasicDescription {
    Float64 mSampleRate;        // sample frames per second
    UInt32  mFormatID;          // a four-char code indicating stream type
    UInt32  mFormatFlags;       // flags specific to the stream type
    UInt32  mBytesPerPacket;    // bytes per packet of audio data
    UInt32  mFramesPerPacket;   // frames per packet of audio data
    UInt32  mBytesPerFrame;     // bytes per frame of audio data
    UInt32  mChannelsPerFrame;  // number of channels per frame
    UInt32  mBitsPerChannel;    // bit depth
    UInt32  mReserved;          // padding
};
typedef struct AudioStreamBasicDescription AudioStreamBasicDescription;

typedef struct AudioUnitConnection {
    AudioUnit sourceAudioUnit;    // the audio unit that supplies audio
                                  //    data to the audio unit whose
                                  //    connection property is being set
    UInt32    sourceOutputNumber; // the output bus of the source unit
    UInt32    destInputNumber;    // the input bus of the destination unit
} AudioUnitConnection;

typedef OSStatus (*AURenderCallback)(
    void                          *inRefCon,
    AudioUnitRenderActionFlags    *ioActionFlags,
    const AudioTimeStamp          *inTimeStamp,
    UInt32                        inBusNumber,
    UInt32                        inNumberFrames,
    AudioBufferList               *ioData
);

extern ComponentResult AudioUnitRender (
    AudioUnit                     ci,
    AudioUnitRenderActionFlags    *ioActionFlags,
    const AudioTimeStamp          *inTimeStamp,
    UInt32                        inOutputBusNumber,
    UInt32                        inNumberFrames,
    AudioBufferList               *ioData
);

struct AudioBuffer {
    UInt32  mNumberChannels; // number of interleaved channels in the buffer
    UInt32  mDataByteSize;   // size, in bytes, of the buffer
    void    *mData;          // pointer to the buffer
};
typedef struct AudioBuffer AudioBuffer;

struct AudioBufferList {
    UInt32      mNumberBuffers;  // the number of buffers in the list
    AudioBuffer mBuffers[kVariableLengthArray]; // the list of buffers
};
typedef struct AudioBufferList  AudioBufferList;

void SetParameter(
    UInt32 paramID,
    Float32 value
);

typedef struct AUChannelInfo {
    SInt16    inChannels;
    SInt16    outChannels;
} AUChannelInfo;

virtual bool SupportsTail () {
		return true;
}

virtual Float64 GetTailTime() {return 3;}

virtual ComponentResult GetPropertyInfo (
    AudioUnitPropertyID  inID,
    AudioUnitScope       inScope,
    AudioUnitElement     inElement,
    UInt32               &outDataSize,
    Boolean              &outWritable
);

virtual ComponentResult GetProperty (
    AudioUnitPropertyID  inID,
    AudioUnitScope       inScope,
    AudioUnitElement     inElement,
    void                 *outData
);

virtual void Process (
    const Float32    *inSourceP,
    Float32          *inDestP,
    UInt32           inFramesToProcess,
    UInt32           inNumChannels,
    bool &           ioSilence) = 0;

if (AudioUnitGetProperty (
        inAU,                       // the audio unit the host is checking
        kAudioUnitProperty_CocoaUI, // the property the host is querying
        kAudioUnitScope_Global,
        0,
        cocoaViewInfo,
        &dataSize) == noErr) {
    CocoaViewBundlePath =            // the host gets the path to the view bundle
        (NSURL *) cocoaViewInfo -> mCocoaAUViewBundleLocation;
    factoryClassName    =            // the host gets the view's class name
        (NSString *) cocoaViewInfo -> mCocoaAUViewClass[0];
}

- (NSView *) uiViewForAudioUnit: (AudioUnit) inAudioUnit
                       withSize: (NSSize) inPreferredSize;

typedef struct AudioUnitEvent {
    AudioUnitEventType mEventType;          // 1
        union {
            AudioUnitParameter mParameter;  // 2
            AudioUnitProperty mProperty;    // 3
        } mArgument;
} AudioUnitEvent;

typedef UInt32 AudioUnitEventType;

enum {
    kAudioUnitEvent_ParameterValueChange        = 0,
    kAudioUnitEvent_BeginParameterChangeGesture = 1,
    kAudioUnitEvent_EndParameterChangeGesture   = 2,
    kAudioUnitEvent_PropertyChange              = 3
};

defaults write com.apple.Xcode PBXCustomTemplateMacroDefinitions '{ORGANIZATIONNAME = "Angry Audio";}'

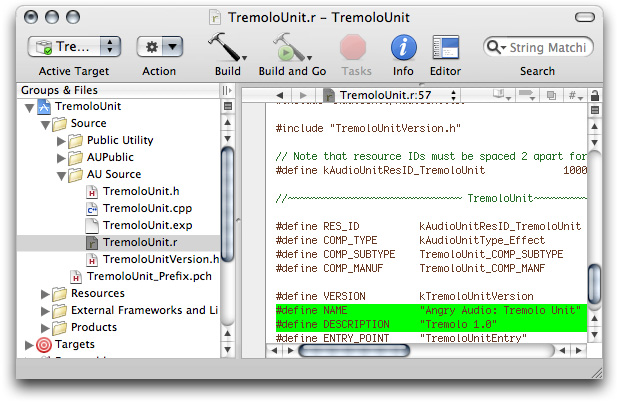

<company name>: <audio unit name>

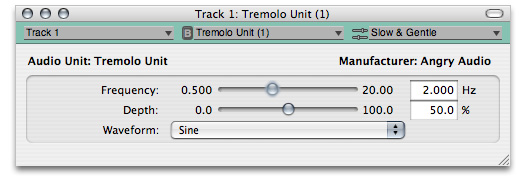

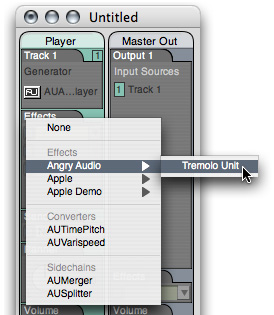

Angry Audio: Tremolo Unit

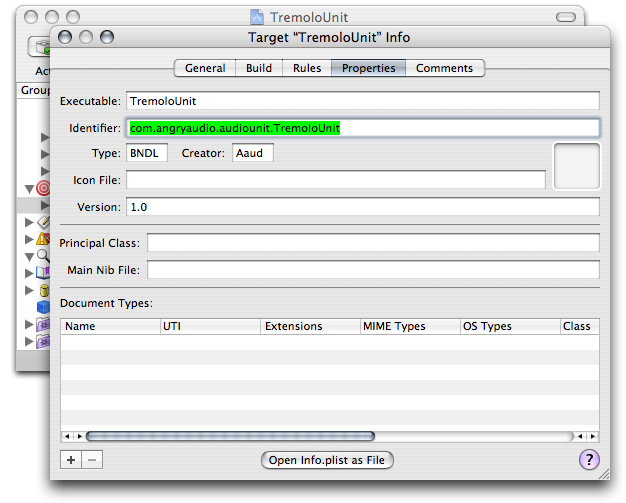

com.<company_name>.audiounit.<audio_unit_name>

com.angryaudio.audiounit.TremoloUnit

#pragma mark ____TremoloUnit Parameter Constants

static CFStringRef kParamName_Tremolo_Freq      = CFSTR ("Frequency");    // 1
static const float kDefaultValue_Tremolo_Freq   = 2.0;                    // 2
static const float kMinimumValue_Tremolo_Freq   = 0.5;                    // 3
static const float kMaximumValue_Tremolo_Freq   = 20.0;                   // 4

static CFStringRef kParamName_Tremolo_Depth     = CFSTR ("Depth");        // 5
static const float kDefaultValue_Tremolo_Depth  = 50.0;
static const float kMinimumValue_Tremolo_Depth  = 0.0;
static const float kMaximumValue_Tremolo_Depth  = 100.0;

static CFStringRef kParamName_Tremolo_Waveform  = CFSTR ("Waveform");     // 6
static const int kSineWave_Tremolo_Waveform     = 1;
static const int kSquareWave_Tremolo_Waveform   = 2;
static const int kDefaultValue_Tremolo_Waveform = kSineWave_Tremolo_Waveform;

// menu item names for the waveform parameter
static CFStringRef kMenuItem_Tremolo_Sine       = CFSTR ("Sine");         // 7
static CFStringRef kMenuItem_Tremolo_Square     = CFSTR ("Square");       // 8

// parameter identifiers
enum {                                                                    // 9
    kParameter_Frequency  = 0,
    kParameter_Depth      = 1,
    kParameter_Waveform   = 2,
    kNumberOfParameters   = 3
};

TremoloUnit::TremoloUnit (AudioUnit component) : AUEffectBase (component) {

    CreateElements ();
    Globals () -> UseIndexedParameters (kNumberOfParameters);

    SetParameter (                                       // 1
        kParameter_Frequency,
        kDefaultValue_Tremolo_Freq
    );

    SetParameter (                                       // 2
        kParameter_Depth,
        kDefaultValue_Tremolo_Depth
    );

    SetParameter (                                       // 3
        kParameter_Waveform,
        kDefaultValue_Tremolo_Waveform
    );

    #if AU_DEBUG_DISPATCHER
        mDebugDispatcher = new AUDebugDispatcher (this);
    #endif
}

#pragma mark ____Parameters
ComponentResult TremoloUnit::GetParameterInfo (
        AudioUnitScope          inScope,
        AudioUnitParameterID    inParameterID,
        AudioUnitParameterInfo  &outParameterInfo
) {
    ComponentResult result = noErr;

    outParameterInfo.flags =    kAudioUnitParameterFlag_IsWritable        // 1
                                | kAudioUnitParameterFlag_IsReadable;

    if (inScope == kAudioUnitScope_Global) {                              // 2
        switch (inParameterID) {
            case kParameter_Frequency:                                    // 3
                AUBase::FillInParameterName (
                    outParameterInfo,
                    kParamName_Tremolo_Freq,
                    false
                );
                outParameterInfo.unit =                                   // 4
                    kAudioUnitParameterUnit_Hertz;
                outParameterInfo.minValue =                               // 5
                        kMinimumValue_Tremolo_Freq;
                outParameterInfo.maxValue =                               // 6
                        kMaximumValue_Tremolo_Freq;
                outParameterInfo.defaultValue =                           // 7
                        kDefaultValue_Tremolo_Freq;
                outParameterInfo.flags                                    // 8
                        |= kAudioUnitParameterFlag_DisplayLogarithmic;
                break;

            case kParameter_Depth:                                        // 9
                AUBase::FillInParameterName (
                    outParameterInfo,
                    kParamName_Tremolo_Depth,
                    false
                );
                outParameterInfo.unit =                                   // 10
                    kAudioUnitParameterUnit_Percent;
                outParameterInfo.minValue =
                    kMinimumValue_Tremolo_Depth;
                outParameterInfo.maxValue =
                    kMaximumValue_Tremolo_Depth;
                outParameterInfo.defaultValue =
                     kDefaultValue_Tremolo_Depth;
                break;

            case kParameter_Waveform:                                     // 11
                AUBase::FillInParameterName (
                    outParameterInfo,
                    kParamName_Tremolo_Waveform,
                    false
                );
                outParameterInfo.unit =                                   // 12
                    kAudioUnitParameterUnit_Indexed;
                outParameterInfo.minValue =
                    kSineWave_Tremolo_Waveform;
                outParameterInfo.maxValue =
                    kSquareWave_Tremolo_Waveform;
                outParameterInfo.defaultValue =
                    kDefaultValue_Tremolo_Waveform;
                break;

            default:
                result = kAudioUnitErr_InvalidParameter;
                break;
        }
    } else {
        result = kAudioUnitErr_InvalidParameter;
    }
    return result;
}

ComponentResult TremoloUnit::GetParameterValueStrings (
    AudioUnitScope          inScope,
    AudioUnitParameterID    inParameterID,
    CFArrayRef              *outStrings
) {
    if ((inScope == kAudioUnitScope_Global) &&             // 1
        (inParameterID == kParameter_Waveform)) {

        if (outStrings == NULL) return noErr;              // 2

        CFStringRef strings [] = {                         // 3
            kMenuItem_Tremolo_Sine,
            kMenuItem_Tremolo_Square
        };

        *outStrings = CFArrayCreate (                      // 4
            NULL,
            (const void **) strings,
            (sizeof (strings) / sizeof (strings [0])),     // 5
            NULL
        );
        return noErr;
    }
    return kAudioUnitErr_InvalidParameter;
}

#pragma mark ____TremoloUnit Factory Preset Constants
static const float kParameter_Preset_Frequency_Slow = 2.0;    // 1
static const float kParameter_Preset_Frequency_Fast = 20.0;   // 2
static const float kParameter_Preset_Depth_Slow     = 50.0;   // 3
static const float kParameter_Preset_Depth_Fast     = 90.0;   // 4
static const float kParameter_Preset_Waveform_Slow            // 5
    = kSineWave_Tremolo_Waveform;
static const float kParameter_Preset_Waveform_Fast            // 6
    = kSquareWave_Tremolo_Waveform;
enum {
    kPreset_Slow    = 0,                                      // 7
    kPreset_Fast    = 1,                                      // 8
    kNumberPresets  = 2                                       // 9
};

static AUPreset kPresets [kNumberPresets] = {                 // 10

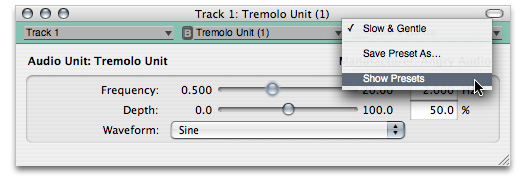

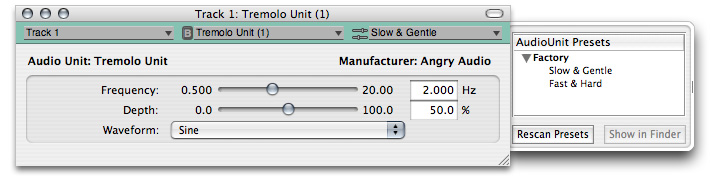

    {kPreset_Slow, CFSTR ("Slow & Gentle")},
    {kPreset_Fast, CFSTR ("Fast & Hard")}
};

static const int kPreset_Default = kPreset_Slow;              // 11

#pragma mark ____TremoloUnit
class TremoloUnit : public AUEffectBase {

public:
    TremoloUnit (AudioUnit component);
...
    virtual ComponentResult GetPresets (       // 1
        CFArrayRef        *outData
    ) const;

    virtual OSStatus NewFactoryPresetSet (     // 2
        const AUPreset    &inNewFactoryPreset
    );
protected:
...
};

TremoloUnit::TremoloUnit (AudioUnit component) : AUEffectBase (component) {

    CreateElements ();
    Globals () -> UseIndexedParameters (kNumberOfParameters);
    // code for setting default values for the audio unit parameters
    SetAFactoryPresetAsCurrent (                    // 1
        kPresets [kPreset_Default]
    );
    // boilerplate code for debug dispatcher
}

#pragma mark ____Factory Presets
ComponentResult TremoloUnit::GetPresets (                     // 1
    CFArrayRef *outData
) const {

    if (outData == NULL) return noErr;                        // 2

    CFMutableArrayRef presetsArray = CFArrayCreateMutable (   // 3
        NULL,
        kNumberPresets,
        NULL
    );

    for (int i = 0; i < kNumberPresets; ++i) {                // 4
        CFArrayAppendValue (
            presetsArray,
            &kPresets [i]
        );
    }

    *outData = (CFArrayRef) presetsArray;                     // 5
    return noErr;
}

OSStatus TremoloUnit::NewFactoryPresetSet (                         // 1
    const AUPreset &inNewFactoryPreset
) {
    SInt32 chosenPreset = inNewFactoryPreset.presetNumber;          // 2

    if (                                                            // 3
        chosenPreset == kPreset_Slow ||
        chosenPreset == kPreset_Fast
    ) {
        for (int i = 0; i < kNumberPresets; ++i) {                  // 4
            if (chosenPreset == kPresets[i].presetNumber) {
                switch (chosenPreset) {                             // 5

                    case kPreset_Slow:                              // 6
                        SetParameter (                              // 7
                            kParameter_Frequency,
                            kParameter_Preset_Frequency_Slow
                        );
                        SetParameter (                              // 8
                            kParameter_Depth,
                            kParameter_Preset_Depth_Slow
                        );
                        SetParameter (                              // 9
                            kParameter_Waveform,
                            kParameter_Preset_Waveform_Slow
                        );
                        break;

                    case kPreset_Fast:                             // 10
                        SetParameter (
                            kParameter_Frequency,
                           kParameter_Preset_Frequency_Fast
                        );
                        SetParameter (
                            kParameter_Depth,
                            kParameter_Preset_Depth_Fast
                        );
                        SetParameter (
                            kParameter_Waveform,
                            kParameter_Preset_Waveform_Fast
                        );
                        break;
                }
                SetAFactoryPresetAsCurrent (                        // 11
                    kPresets [i]
                );
                return noErr;                                       // 12
            }
        }
    }
    return kAudioUnitErr_InvalidProperty;                           // 13
}

class TremoloUnit : public AUEffectBase
{
public:
    TremoloUnit(AudioUnit component);

...

protected:
    class TremoloUnitKernel : public AUKernelBase {
        public:
            TremoloUnitKernel (AUEffectBase *inAudioUnit); // 1

            virtual void Process (
                const Float32    *inSourceP,
                Float32          *inDestP,
                UInt32           inFramesToProcess,
                UInt32           inNumChannels,   // equal to 1
                bool             &ioSilence
        );

        virtual void Reset();

        private:
            enum     {kWaveArraySize = 2000};             // 2
            float    mSine [kWaveArraySize];              // 3
            float    mSquare [kWaveArraySize];            // 4
            float    *waveArrayPointer;                   // 5
            Float32  mSampleFrequency;                    // 6
            long     mSamplesProcessed;                   // 7
            enum     {sampleLimit = (int) 10E6};          // 8
            float    mCurrentScale;                       // 9
            float    mNextScale;                          // 10
    };
};

#pragma mark ____TremoloUnitEffectKernel
//~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
//    TremoloUnit::TremoloUnitKernel::TremoloUnitKernel()
//~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
TremoloUnit::TremoloUnitKernel::TremoloUnitKernel (AUEffectBase *inAudioUnit) :
    AUKernelBase (inAudioUnit), mSamplesProcessed (0), mCurrentScale (0) // 1
{
    for (int i = 0; i < kWaveArraySize; ++i) {                           // 2
        double radians = i * 2.0 * pi / kWaveArraySize;
        mSine [i] = (sin (radians) + 1.0) * 0.5;
    }

    for (int i = 0; i < kWaveArraySize; ++i) {                           // 3
        double radians = i * 2.0 * pi / kWaveArraySize;
        radians = radians + 0.32;
        mSquare [i] =
            (
                sin (radians) +
                0.3 * sin (3 * radians) +
                0.15 * sin (5 * radians) +
                0.075 * sin (7 * radians) +
                0.0375 * sin (9 * radians) +
                0.01875 * sin (11 * radians) +
                0.009375 * sin (13 * radians) +
                0.8
            ) * 0.63;
    }
    mSampleFrequency = GetSampleRate ();                                 // 4
}

void TremoloUnit::TremoloUnitKernel::Process (                        // 1
    const Float32   *inSourceP,                                       // 2
    Float32         *inDestP,                                         // 3
    UInt32          inSamplesToProcess,                               // 4
    UInt32          inNumChannels,                                    // 5
    bool            &ioSilence                                        // 6
) {
    if (!ioSilence) {                                                 // 7

        const Float32 *sourceP = inSourceP;                           // 8

        Float32  *destP = inDestP,                                    // 9
                 inputSample,                                         // 10
                 outputSample,                                        // 11
                 tremoloFrequency,                                    // 12
                 tremoloDepth,                                        // 13
                 samplesPerTremoloCycle,                              // 14
                 rawTremoloGain,                                      // 15
                 tremoloGain;                                         // 16

        int      tremoloWaveform;                                     // 17

        tremoloFrequency = GetParameter (kParameter_Frequency);       // 18
        tremoloDepth     = GetParameter (kParameter_Depth);           // 19
        tremoloWaveform  =
            (int) GetParameter (kParameter_Waveform);                 // 20

        if (tremoloWaveform != kSineWave_Tremolo_Waveform             // 21
            && tremoloWaveform != kSquareWave_Tremolo_Waveform)
                tremoloWaveform = kSquareWave_Tremolo_Waveform;

        if (tremoloWaveform == kSineWave_Tremolo_Waveform)  {         // 22
            waveArrayPointer = &mSine [0];
        } else {
            waveArrayPointer = &mSquare [0];
        }

        if (tremoloFrequency < kMinimumValue_Tremolo_Freq)            // 23
            tremoloFrequency = kMinimumValue_Tremolo_Freq;
        if (tremoloFrequency > kMaximumValue_Tremolo_Freq)
            tremoloFrequency = kMaximumValue_Tremolo_Freq;

        if (tremoloDepth     < kMinimumValue_Tremolo_Depth)           // 24
            tremoloDepth     = kMinimumValue_Tremolo_Depth;
        if (tremoloDepth     > kMaximumValue_Tremolo_Depth)
            tremoloDepth     = kMaximumValue_Tremolo_Depth;

        samplesPerTremoloCycle = mSampleFrequency / tremoloFrequency; // 25
        mNextScale = kWaveArraySize / samplesPerTremoloCycle;         // 26

        // the sample processing loop
        for (int i = inSamplesToProcess; i > 0; --i) {                // 27

            int index =                                               // 28
                static_cast<long>(mSamplesProcessed * mCurrentScale) %
                    kWaveArraySize;

            if ((mNextScale != mCurrentScale) && (index == 0)) {      // 29
                mCurrentScale = mNextScale;
                mSamplesProcessed = 0;
            }

            if ((mSamplesProcessed >= sampleLimit) && (index == 0))   // 30
                mSamplesProcessed = 0;

            rawTremoloGain = waveArrayPointer [index];                // 31

            tremoloGain       = (rawTremoloGain * tremoloDepth -      // 32
                                tremoloDepth + 100.0) * 0.01;
            inputSample       = *sourceP;                             // 33
            outputSample      = (inputSample * tremoloGain);          // 34
            *destP            = outputSample;                         // 35
            sourceP           += 1;                                   // 36
            destP             += 1;                                   // 37
            mSamplesProcessed += 1;                                   // 38
        }
    }
}

void TremoloUnit::TremoloUnitKernel::Reset() {
    mCurrentScale        = 0;                    // 1
    mSamplesProcessed    = 0;                    // 2
}

virtual bool SupportsTail () {return true;}

auval -v aufx tmlo Aaud

字段值	例子	举例来说
两个字段都是`–1`	`inChannels = –1` `outChannels = –1`	这是默认情况。任意数量的输入和输出通道，只要数字匹配
一个是`–1`，另一个场是正的	inChannels = –1``outChannels = 2	任意数量的输入通道，恰好两个输出通道
一个字段是`–1`，另一个字段是`–2`	inChannels = –1``outChannels = –2	任意数量的输入通道，任意数量的输出通道
两个字段都有非负值	inChannels = 2``outChannels = 6	正好两个输入通道，正好六个输出通道
	inChannels = 0``outChannels = 2	没有输入通道，只有两个输出通道（例如具有立体声输出的乐器单元）
两个字段都为负值，都不是`–1`或`–2`	inChannels = –4``outChannels = –8	最多四个输入通道和最多八个输出通道

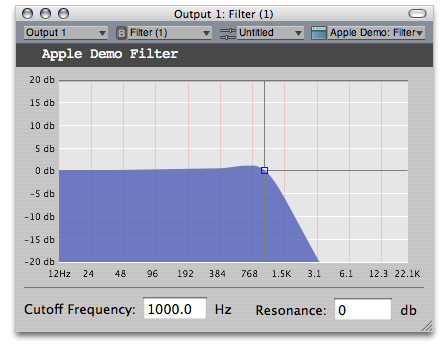

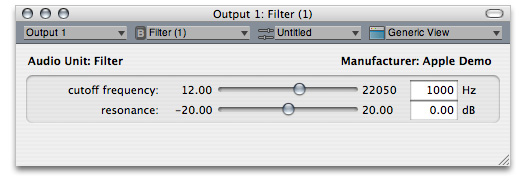

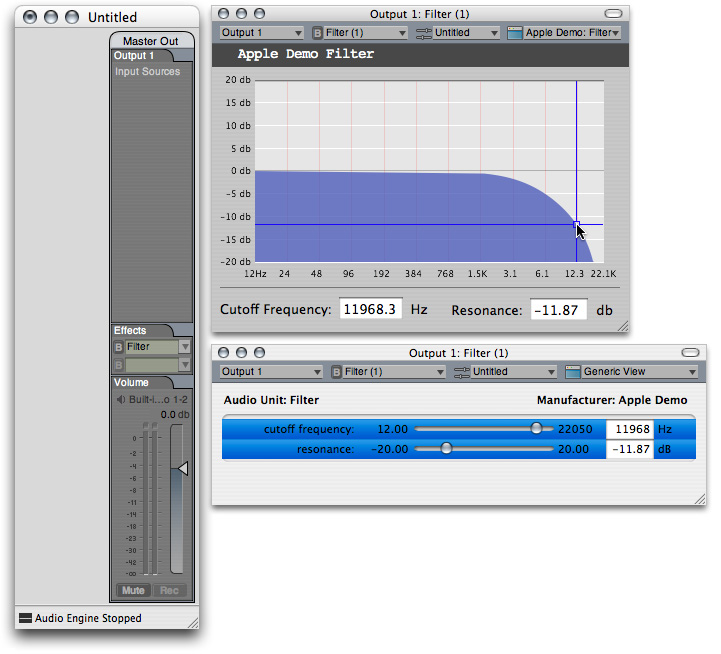

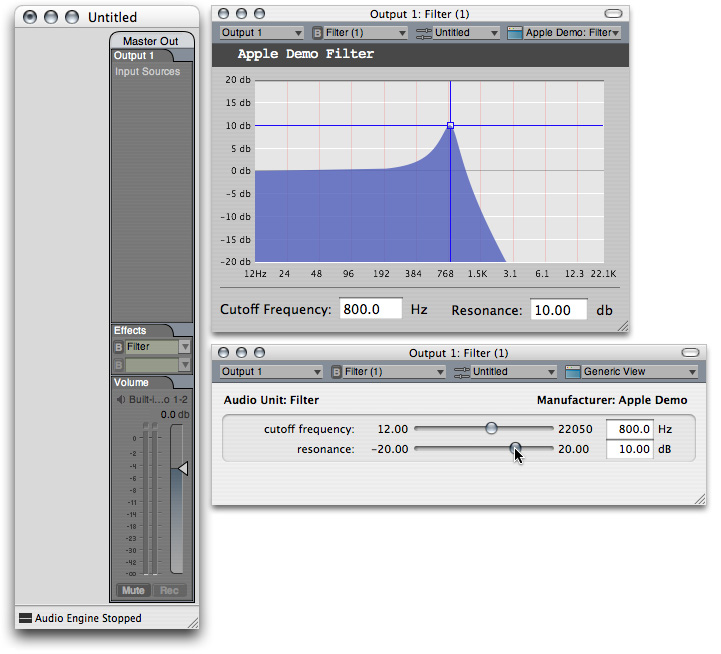

用户界面项	示例值	价值来源

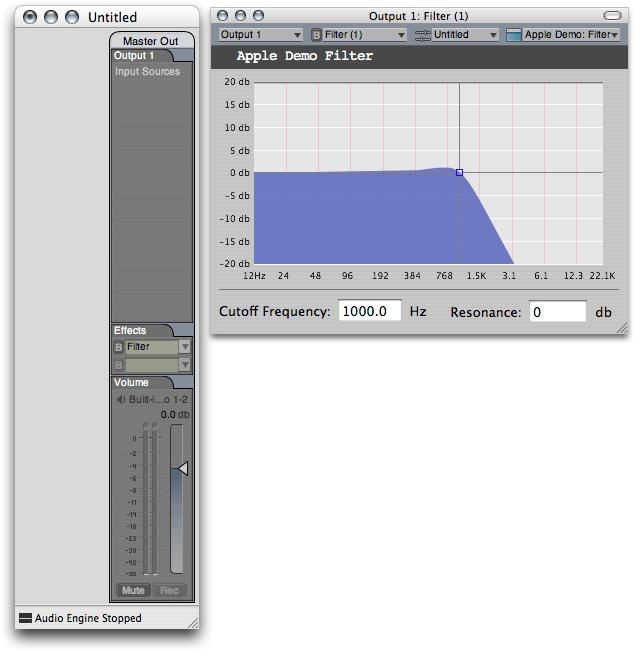

音频单元名称，位于视图实用程序窗口的左上角	Audio Unit: Filter	`<className>.r`文件中定义的 `NAME` 常量
音频单元名称，在视图实用程序窗口的标题栏和弹出窗口中	Filter	`<className>.r`文件中定义的 `NAME` 常量
制造商名称，位于视图实用程序窗口的右上角	Apple Demo	`<className>.r`文件中定义的 `NAME`常量
参数名称	cutoff frequency（截止频率）	`<className>.h` 文件中的 `kParameterOneName` `CFStringRef 字符串值
参数最大值	22050	`<className>.cpp`文件中的 `GetParameterInfo`方法
参数最小值	12.00	`<className>.cpp`文件中的 `GetParameterInfo` 方法
参数默认值	1000	`<className>.h`文件中的 `kDefaultValue_ParamOne` 浮点值
计量单位名称	Hz	`<className>.cpp` 文件中的 `GetParameterInfo`方法指定的测量单位。
滑块	用户可调。初始设置为指示参数默认值。	通用视图机制为该参数提供了一个滑块。这是因为 `GetParameterInfo` 方法中定义的参数测量单位是“线性增益”。

参数属性	价值
用户界面名称	频率
描述	颤音效果的频率。当此参数设置为 2 Hz 时，每秒有两个颤音效果周期。此参数的值是连续的，因此用户可以在可用范围内设置任意值。用户使用滑块调整颤音频率。
程序名称	`kTremolo_Frequency`
测量单位	Hz
最小值	0.5
最大值	10.0
默认值	2.0

参数属性	价值
用户界面名称	深度

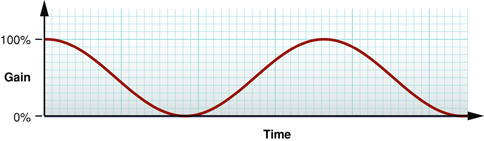

描述	颤音效果的深度或强度。设置为 0% 时，无颤音效果。设置为 100% 时，颤音效果在每个周期内从静音到单位增益变化。此参数的值是连续的，因此用户可以在可用范围内设置任何值。用户使用滑块调整颤音深度。
程序名称	`kTremolo_Depth`
测量单位	Percent
最小值	0.0
最大值	100.0
默认值	50.0

参数属性	价值
用户界面名称	波形
描述	颤音效果遵循的波形。此参数可以采用一组离散值。用户从菜单中选择颤音波形。
程序名称	`kTremolo_Waveform`
测量单位	Indexed
一个值	Sine
另一个值	Square 正方形
默认值	Sine 正弦

范围	价值
用户界面名称	Slow & Gentle 缓慢而温柔
描述	A gentle waver 轻轻一挥
`kTremolo_Frequency` 值	2.0 赫兹
`kTremolo_Depth` 值	50％
`kTremolo_Waveform` 值	Sine 正弦

范围	价值
用户界面名称	Fast & Hard 又快又硬
描述	狂热、震撼、激烈
`kTremolo_Frequency` 值	20.0 赫兹
`kTremolo_Depth` 值	90％
`kTremolo_Waveform` 值	正方形

Apple - Audio Unit Programming Guide

文章目录

一、介绍

谁应该阅读本文档？

本文档的组织

音频单元开发取得新进展

音频单元开发所需的工具

也可以看看

二、音频单元开发基础知识

1、音频单元开发周期

2、什么是音频单元？

音频单元程序结构和生命周期

音频单元文件结构

一些基本术语

3、音频单元作为插件

插件的本质

教程：在主机应用程序中使用音频单元

核心音频 SDK 的作用

音频单元的组件管理器要求

音频单元的安装和注册

音频单元识别

音频单元的插件 API 要求

音频单元规范

4、音频单元作为模型-视图-控制器设计模式的实例

5、音频单元实际运行

打开和关闭音频单元

添加复制保护

多重实例

音频处理图和拉模型

处理：问题的核心

加工

重置

渲染时调整

支持参数自动化

6、音频单元验证和测试

使用 auval 工具进行音频单元验证

音频单元测试和主机应用程序

使用 AU Lab 进行测试

您可以使用 AU Lab 测试什么

改变主机应用程序的特征

音频单元的自定义测试

三、音频单元

1、音频单元架构

1.1 音频单元范围

1.2 音频单元元素

音频单元连接

音频处理图形连接

渲染回调连接

音频单元通道

2、通过子类化创建音频单元

3、控制代码：参数、出厂预设和属性

定义和使用参数

工厂预设和参数持久性

定义和使用属性

常用属性

定义自定义属性

4、合成、处理和数据格式转换代码

信号处理

音乐合成

音乐效果

数据格式转换

5、音频单元生命周期

概述

程序化活动类别

让音频单元焕发活力

属性配置

音频单元初始化和取消初始化

n 对 n 个效果单元中的内核实例化

音频处理图交互

音频单元处理

结束语

四、音频单元视图

1、视图类型

2、关注点分离

3、通用观点

4、自定义视图

5、视图实例化和初始化

6、参数和属性事件

音频单元事件 API

参数手势
