Kubeedge1.15版本安装edgemesh（超详解）

Kubeedge1.15版本安装edgemesh（超详解）

1、Kubeedge安装edgemesh前置

参考官网链接：边缘 Kube-API 端点 | EdgeMesh

1.1、配置云端cloudcore

在云端，开启 dynamicController 模块，配置完成后，需要重启 cloudcore，这里Kubeedge，我这里没有找到/etc/kubeedge/config/cloudcore.yaml文件，看官方文档解释是因为采用keadm安装，用提示的keadm init这个要重新初始化，我不建议！采用下面的kubectl edit命令好点，能打开就行！！！

$ kubectl edit cm cloudcore -n kubeedge

//修改完，重启cloudcore

systemctl restart cloudcore

1.2、配置边缘端

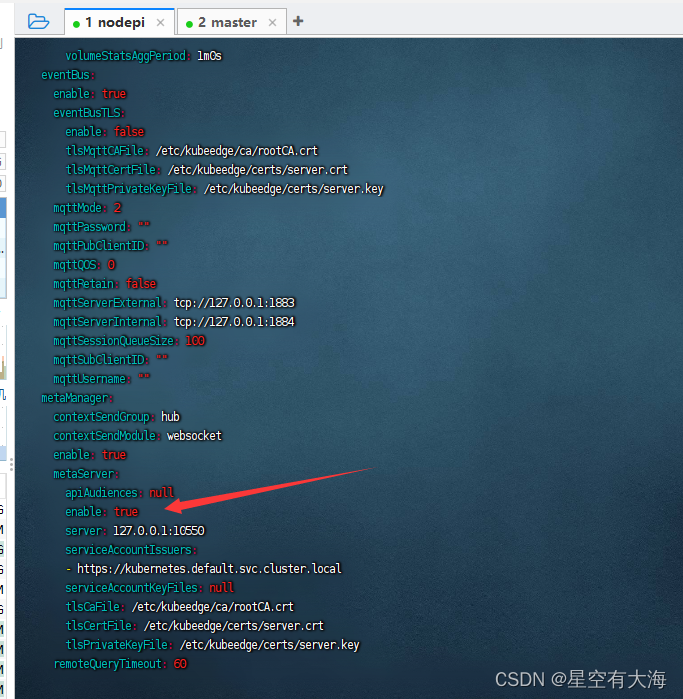

1）在边缘节点，打开 metaServer 模块（如果你的 KubeEdge < 1.8.0，还需关闭旧版 edgeMesh 模块），配置完成后，需要重启 edgecore

$ vim /etc/kubeedge/config/edgecore.yaml

modules:
  ...
  edgeMesh:
    enable: false
  ...
  metaManager:
    metaServer:
      enable: true   //配置这里
...

//重启edgecore
$ systemctl restart edgecore

2）在边缘节点，配置 clusterDNS 和 clusterDomain，配置完成后，需要重启 edgecore

$ vim /etc/kubeedge/config/edgecore.yaml
modules:
  ...
  edged:
    clusterDNS: 169.254.96.16
    clusterDomain: cluster.local
...



//如果 KubeEdge >= v1.12.0，请这样配置：

$ vim /etc/kubeedge/config/edgecore.yaml
modules:
  ...
  edged:
    ...
    tailoredKubeletConfig:
      ...
      clusterDNS:
      - 169.254.96.16
      clusterDomain: cluster.local
...

//重启edgecore
$ systemctl restart edgecore

[^]: 提示步骤3的配置是为了边缘应用能够访问到 EdgeMesh 的 DNS 服务，与边缘 Kube-API 端点本身无关，但为了配置的流畅性，还是放在这里说明。clusterDNS 设置的值 ‘169.254.96.16’ 来自于 commonConfig在新窗口打开 中 bridgeDeviceIP 的默认值，正常情况下无需修改，非得修改请保持两者一致。

3)最后，在边缘节点，测试边缘 Kube-API 端点功能是否正常

$ curl 127.0.0.1:10550/api/v1/services

{"apiVersion":"v1","items":[{"apiVersion":"v1","kind":"Service","metadata":{"creationTimestamp":"2021-04-14T06:30:05Z","labels":{"component":"apiserver","provider":"kubernetes"},"name":"kubernetes","namespace":"default","resourceVersion":"147","selfLink":"default/services/kubernetes","uid":"55eeebea-08cf-4d1a-8b04-e85f8ae112a9"},"spec":{"clusterIP":"10.96.0.1","ports":[{"name":"https","port":443,"protocol":"TCP","targetPort":6443}],"sessionAffinity":"None","type":"ClusterIP"},"status":{"loadBalancer":{}}},{"apiVersion":"v1","kind":"Service","metadata":{"annotations":{"prometheus.io/port":"9153","prometheus.io/scrape":"true"},"creationTimestamp":"2021-04-14T06:30:07Z","labels":{"k8s-app":"kube-dns","kubernetes.io/cluster-service":"true","kubernetes.io/name":"KubeDNS"},"name":"kube-dns","namespace":"kube-system","resourceVersion":"203","selfLink":"kube-system/services/kube-dns","uid":"c221ac20-cbfa-406b-812a-c44b9d82d6dc"},"spec":{"clusterIP":"10.96.0.10","ports":[{"name":"dns","port":53,"protocol":"UDP","targetPort":53},{"name":"dns-tcp","port":53,"protocol":"TCP","targetPort":53},{"name":"metrics","port":9153,"protocol":"TCP","targetPort":9153}],"selector":{"k8s-app":"kube-dns"},"sessionAffinity":"None","type":"ClusterIP"},"status":{"loadBalancer":{}}}],"kind":"ServiceList","metadata":{"resourceVersion":"377360","selfLink":"/api/v1/services"}}

2、安装Edgemesh

2.1、两种安装方式，俺只会手动安装

edgemesh云端和边缘端都要安装，具体会说：

mater节点（云端）：

1）手动安装Edgemesh，自己主机上下下来，再传给云端节点也行！

git clone https://github.com/kubeedge/edgemesh.git
cd edgemesh

2）安装CRDs

 kubectl apply -f build/crds/istio/
customresourcedefinition.apiextensions.k8s.io/destinationrules.networking.istio.io created
customresourcedefinition.apiextensions.k8s.io/gateways.networking.istio.io created
customresourcedefinition.apiextensions.k8s.io/virtualservices.networking.istio.io created

3）部署 edgemesh-agent

kubectl apply -f build/agent/resources/
serviceaccount/edgemesh-agent created
clusterrole.rbac.authorization.k8s.io/edgemesh-agent created
clusterrolebinding.rbac.authorization.k8s.io/edgemesh-agent created
configmap/edgemesh-agent-cfg created
configmap/edgemesh-agent-psk created
daemonset.apps/edgemesh-agent created

提示
请根据你的 K8s 集群设置 build/agent/resources/04-configmap.yaml 的 relayNodes，并重新生成 PSK 密码。

这里有个提示，我们要修改build/agent/resources/04-configmap.yaml这个文件，使用以下命令：

cd build/agent/resources
vim 04-configmap.yaml

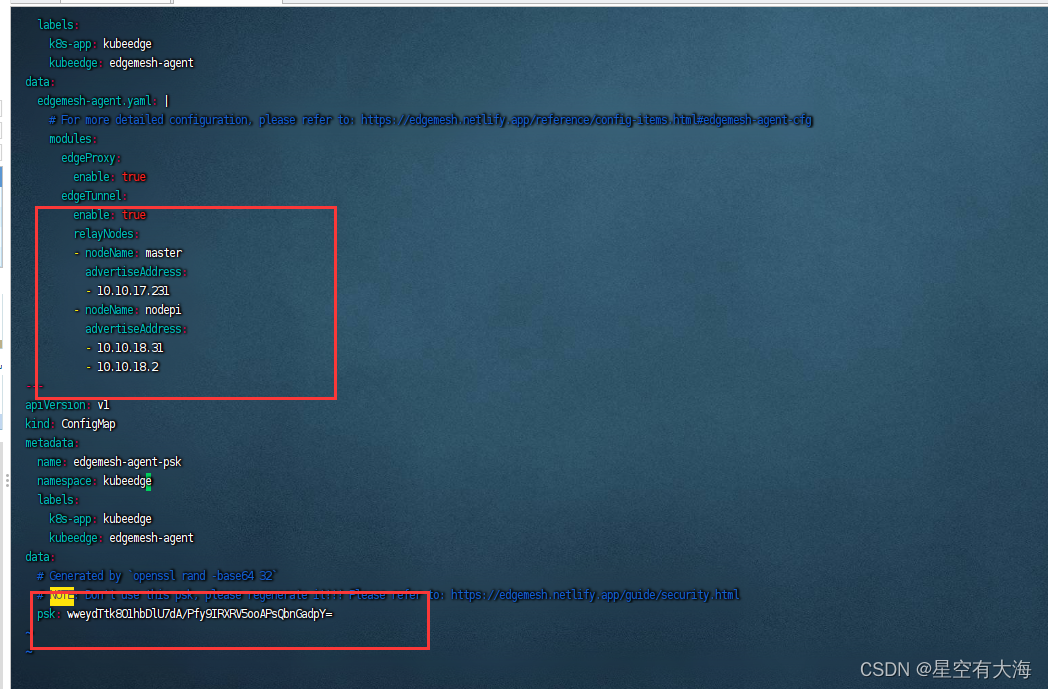

改成如图所示：

注意最下面的psk设置，重新另起一个终端，使用以下命令生成psk，下面也标注了如何生成PSK，一定要重新生成！然后填上去保存，然后重新运行步骤3的部署。

openssl rand -base64 32

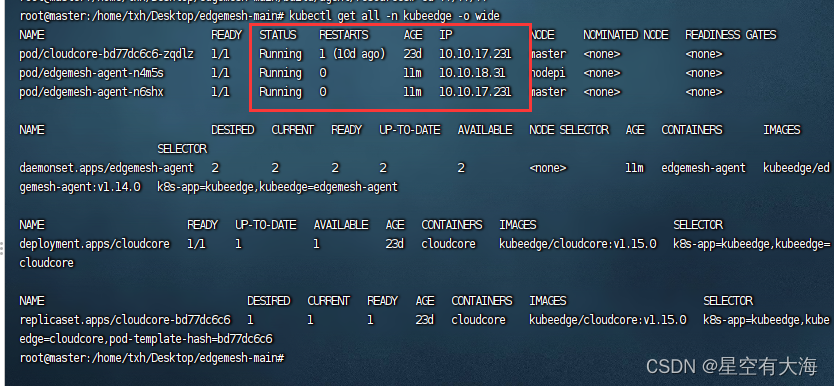

4）检验部署结果

kubectl get all -n kubeedge -o wide

后面云边协同通信测试请看参考链接2或者去看官方链接：快速上手 | EdgeMesh
