本文详细介绍了如何利用百度地图API手动添加文字标记，包括设置标记位置、自定义文字内容以及调整样式，帮助开发者实现地图上的个性化标注。
摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >


<!DOCTYPE html>
<html>
<head>
    <meta http-equiv="Content-Type" content="text/html; charset=utf-8" />
    <meta name="viewport" content="initial-scale=1.0, user-scalable=no" />
    <script type="text/javascript" src="http://api.map.baidu.com/api?v=2.0&ak=youak"></script>
    <script type="text/javascript" src="http://api.map.baidu.com/library/Heatmap/2.0/src/Heatmap_min.js"></script>
    <title>显示多个文本</title>
    <style type="text/css">
		ul,li{list-style: none;margin:0;padding:0;float:left;}
		html{height:100%}
		body{height:100%;margin:0px;padding:0px;font-family:"微软雅黑";}
        #l-map{height:95%;width:100%;}

		#container{height:100%;width:100%;}
		#r-result{width:100%;}
    </style>
</head>
<body>
    <div id="r-result"><input type="text" id="suggestId" size="20" value="百度" style="width:150px;" /><input type="button" onclick="add_sosuo();" value="搜索" /><input type="text" id="demo1" size="20" style="width:150px;" /><input type="button" onclick="add_wenzi();" value="添加文字" /></div>

	<div id="container"></div>
    <div id="l-map"></div>
	<div id="searchResultPanel" style="border:1px solid #C0C0C0;width:150px;height:auto; display:none;"></div>

</body>
</html>

<script type="text/javascript">
            var map = new BMap.Map("container");
            var point = new BMap.Point(116.315992,39.939071);
            map.centerAndZoom(point, 16);
            map.enableScrollWheelZoom(true);     //开启鼠标滚轮缩放

            function G(id) {
		return document.getElementById(id);
	}

	var ac = new BMap.Autocomplete(    //建立一个自动完成的对象
		{"input" : "suggestId"
		,"location" : map
	});

	ac.addEventListener("onhighlight", function(e) {  //鼠标放在下拉列表上的事件
		var str = "";
		var _value = e.fromitem.value;
		var value = "";
		if (e.fromitem.index > -1) {
			value = _value.province +  _value.city +  _value.district +  _value.street +  _value.business;
		}
		str = "FromItem<br />index = " + e.fromitem.index + "<br />value = " + value;

		value = "";
		if (e.toitem.index > -1) {
			_value = e.toitem.value;
			value = _value.province +  _value.city +  _value.district +  _value.street +  _value.business;
		}
		str += "<br />ToItem<br />index = " + e.toitem.index + "<br />value = " + value;
		G("searchResultPanel").innerHTML = str;
	});

	var myValue;
	ac.addEventListener("onconfirm", function(e) {    //鼠标点击下拉列表后的事件
		var _value = e.item.value;
		myValue = _value.province +  _value.city +  _value.district +  _value.street +  _value.business;
		G("searchResultPanel").innerHTML ="onconfirm<br />index = " + e.item.index + "<br />myValue = " + myValue;

		setPlace();
	});

	function setPlace(){

		//map.clearOverlays();    //清除地图上所有覆盖物
		function myFun(){
			var pp = local.getResults().getPoi(0).point;    //获取第一个智能搜索的结果
			map.centerAndZoom(pp, 18);
			map.addOverlay(new BMap.Marker(pp));    //添加标注
		}
		var local = new BMap.LocalSearch(map, { //智能搜索
		  onSearchComplete: myFun
		});
		local.search(myValue);
	}

            var mapPoints = [
                {x:30.18015,y:120.174968,title:"C",con:"我是C",branch:"老三"},
                {x:30.324994,y:120.164399,title:"D",con:"我是D",branch:"老四"},
                {x:30.24884,y:120.305074,title:"E",con:"我是E",branch:"老五"}
            ];
            //var i = 0;


            // 函数 创建多个标注
            function markerFun (points,label,infoWindows) {

                map.addOverlay(label);

                label.addEventListener("click",function (event) {
                    console.log("0001");
                    map.openInfoWindow(infoWindows,points);//参数：窗口、点  根据点击的点出现对应的窗口
                });
            }

            function addlab () {
                for (var i=0; i < mapPoints.length; i++) {
                    var points = new BMap.Point(mapPoints[i].x, mapPoints[i].y);//创建坐标点
                    var opts = {
                        position: points,    // 指定文本标注所在的地理位置
                        offset: new BMap.Size(0, 0),    //设置文本偏移量
                    }
                    var label = new BMap.Label(mapPoints[i].branch, opts, {
                        offset: new BMap.Size(0, 0)
                    });  // 创建文本标注对象
                    label.setStyle({
                        color: "rad",
                        backgroundColor: 'transparent',//文本背景色
                        borderColor: 'transparent',//文本框边框色
                        fontSize: "12px",
                        height: "20px",
                        lineHeight: "20px",
                        fontFamily: "微软雅黑"
                    });
                    var infoopts = {
                        width: 250,
                        height: 100,
                        title: mapPoints[i].title
                    };
                    var infoWindows = new BMap.InfoWindow(mapPoints[i].con, infoopts);

                    markerFun(points, label, infoWindows);
                    console.log("增加字2")
                }
            }
                map.addEventListener("click",function(e){
                    console.log("x:" + e.point.lng + "," + "y:"+ e.point.lat);
                });

                map.addEventListener("zoomend", function(){
                    console.log("地图缩放至："+this.getZoom()+"级");
                });

                map.addEventListener("zoomend", function(){
                //alert("地图缩放至："+this.getZoom()+"级");
                    if (this.getZoom()==18 && this.getOverlays().length == 0)//this.getOverlays().length如果当前覆盖物等于0,添加覆盖物,防重复添加
                        {
                            console.log("增加字1",this.getOverlays().length)
                            addlab ();           //增加字
                        }
                    if (this.getZoom()<18)
                        {
                            map.clearOverlays();
                        }

                });

        </script>

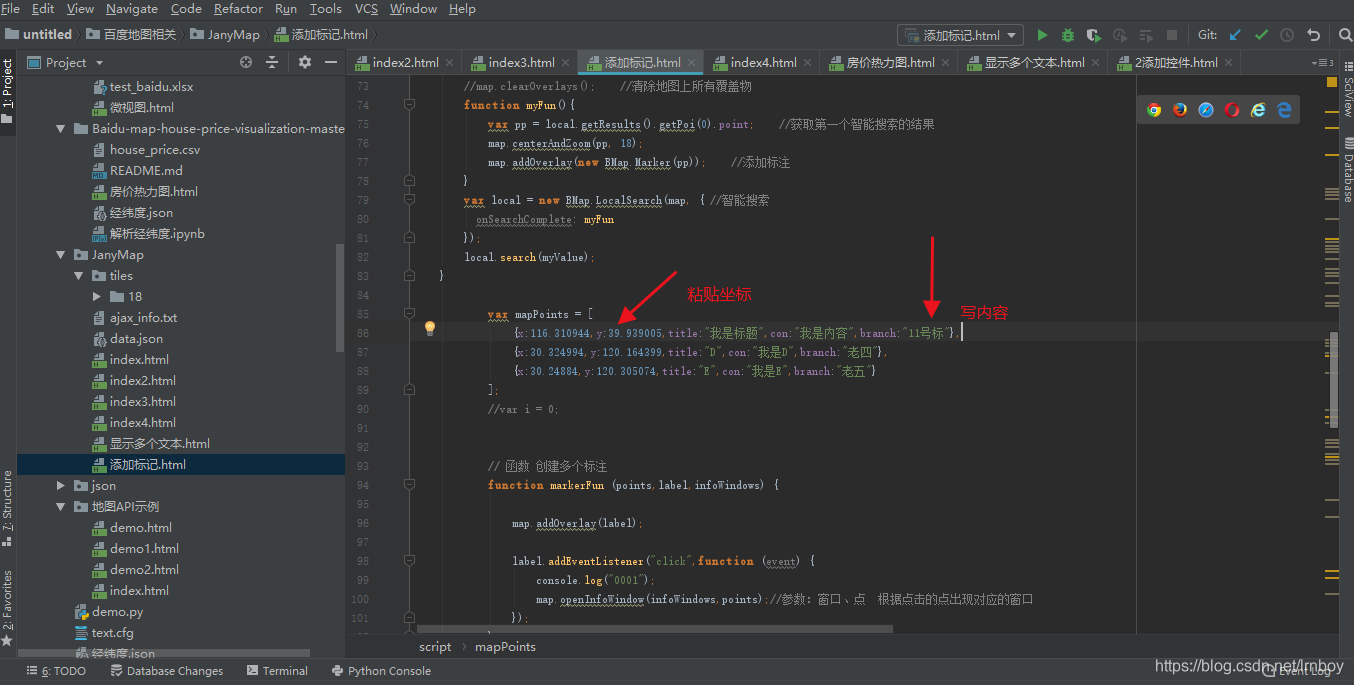

在这里插入图片描述
