MyBatisHelloWorld（MAVEN+Mbatis 通过Mapper接口方式接连数据库）

本文章仅为一个Mybatis的Demo示例，操作mapper.xml里面的sql语句的方式有多种，本人比较推崇通过mapper接口的方式来操作，示例如下：

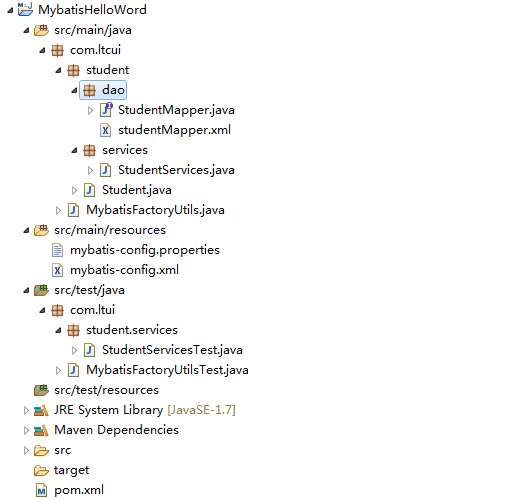

整个工程目录如下：

接下来逐个说明下：

1、Maven工程的核心配置文件 pom.xml  里面配置所有需要引入的Jar包及对应的版本

<project xmlns="http://maven.apache.org/POM/4.0.0"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<groupId>mybatis.ltcui</groupId>
	<artifactId>MybatisHelloWord</artifactId>
	<version>0.0.1-SNAPSHOT</version>

	<properties>
		<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
		<mybatis.version>3.2.8</mybatis.version>

		<oracle.driver.version>11.2.0.3.0</oracle.driver.version>

		<logback.version>1.1.3</logback.version>
	</properties>
	<dependencies>
		<!-- mybatis start -->
		<dependency>
			<groupId>org.mybatis</groupId>
			<artifactId>mybatis</artifactId>
			<version>${mybatis.version}</version>
		</dependency>
		<!-- mybatis end -->

		<!-- db oracle -->
		<dependency>
			<groupId>com.oracle</groupId>
			<artifactId>ojdbc6</artifactId>
			<version>${oracle.driver.version}</version>
		</dependency>
		<!-- db oracle -->

		<!-- logback start -->
		<dependency>
			<groupId>ch.qos.logback</groupId>
			<artifactId>logback-classic</artifactId>
			<version>${logback.version}</version>
		</dependency>
		<!-- logback end -->
	</dependencies>

	<!-- 指定maven编译方式为jdk1.7版本 -->
	<profiles>
		<profile>
			<id>jdk-1.7</id>
			<activation>
				<activeByDefault>true</activeByDefault>
				<jdk>1.7</jdk>
			</activation>
			<properties>
				<maven.compiler.source>1.7</maven.compiler.source>
				<maven.compiler.target>1.7</maven.compiler.target>
				<maven.compiler.compilerVersion>1.7</maven.compiler.compilerVersion>
			</properties>
		</profile>
	</profiles>
</project>

2、工程配置文件 mybatis-config.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration PUBLIC "-//mybatis.org//DTD Config 3.0//EN" "http://mybatis.org/dtd/mybatis-3-config.dtd">

<configuration>
    <!-- 引入外部的properties配置文件 -->
	<properties resource="mybatis-config.properties" />

	<typeAliases>
		<package name="com.ltcui.student"/>
	</typeAliases>

	<environments default="development">
		<environment id="development">
			<transactionManager type="JDBC"/>
			<dataSource type="POOLED">
				 <!-- 数据库基本信息配置 -->
		         <property name="driver" value="${connect.oracle.driverClassName}" />
		         <property name="url" value="${connect.oracle.url}" />
		         <property name="username" value="${connect.oracle.username}" />
		         <property name="password" value="${connect.oracle.password}" />
			</dataSource>
		</environment>
	</environments>

	<mappers>
		<!-- 指定引入单个mapper.xml文件 -->
		<!-- <mapper resource="com.ltcui.student.dao.studentMapper.xml"/> -->
		<!-- 自动查找指定目录下的所有mapper.xml文件 -->
		<package name="com.ltcui"/>
	</mappers>
</configuration>

用来配置数据库相关信息及其它信息！

3、数据库配置文件 mybatis-config.properties

#连接数据库相关配置  ORACLE 开始####
connect.db=oracle
connect.oracle.url=jdbc:oracle:thin:@//127.0.0.1:1521/orcl
connect.oracle.driverClassName=oracle.jdbc.driver.OracleDriver
connect.oracle.username=123
connect.oracle.password=1234
#连接数据库相关配置   结束####

4、完成以上配置后，下面创建一个获取SqlSessionFactory对象的公用类 MybatisFactoryUtils

文件 MybatisFactoryUtils.java

package com.ltcui;

import java.io.IOException;
import java.io.InputStream;

import org.apache.ibatis.io.Resources;
import org.apache.ibatis.session.SqlSessionFactory;
import org.apache.ibatis.session.SqlSessionFactoryBuilder;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

public class MybatisFactoryUtils {
	private static Logger logger = LoggerFactory.getLogger(MybatisFactoryUtils.class);
	private static SqlSessionFactory factory = null;

	/**
	 * 单例模式 获取 SqlSessionFactory 对象
	 *
	 * @return
	 */
	public static SqlSessionFactory getSessionFactory() {
		if(MybatisFactoryUtils.factory == null){
			synchronized(MybatisFactoryUtils.class){
				if(MybatisFactoryUtils.factory == null){
					InputStream inputStream = null;
					try {
						inputStream = Resources.getResourceAsStream("mybatis-config.xml");
					} catch (IOException e) {
						logger.error(e.getMessage());
						e.printStackTrace();
					}
					MybatisFactoryUtils.factory = new SqlSessionFactoryBuilder().build(inputStream);
				}
			}
		}
		logger.info(MybatisFactoryUtils.factory + "");
		return MybatisFactoryUtils.factory;
	}
}

完成后，写一个测试类来测试下是否成功：  MybatisFactoryUtilsTest.java

package com.ltui;

import com.ltcui.MybatisFactoryUtils;

public class MybatisFactoryUtilsTest {

	public static void main(String[] args) {
		MybatisFactoryUtils.getSessionFactory();
	}
}

打印出如下的信息：

则说明环境搭建成功且已经成功连接到数据库

需要说明的是 其中的Oracle的Jar包，在Maven官网库里面没有相应的Jar包供下载，需要自己去网上下载，下载后可以导入自己本地的Maven库中，下面给出导入到本地Maven资源库的一个示例：

mvn install:install-file -Dfile=sqljdbc4.jar -DgroupId=com.microsoft.sqlserver -DartifactId=sqljdbc4 -Dversion=4.0 -Dpackaging=jar

-- 示例：
mvn install:install-file -Dfile=ojdbc6-11.2.0.3.0.jar -DgroupId=com.oracle -DartifactId=ojdbc6 -Dversion=11.2.0.3.0 -Dpackaging=jar

下面给出一个通过Mapper接口形式操作数据的示例：

1、先创建一个实体类 Student.java

package com.ltcui.student;

public class Student {
	private String stuId;
	private String stuName;
	private String stuSex;
	private int stuAge;

	public String getStuId() {
		return stuId;
	}

	public void setStuId(String stuId) {
		this.stuId = stuId;
	}

	public String getStuName() {
		return stuName;
	}

	public void setStuName(String stuName) {
		this.stuName = stuName;
	}

	public String getStuSex() {
		return stuSex;
	}

	public void setStuSex(String stuSex) {
		this.stuSex = stuSex;
	}

	public int getStuAge() {
		return stuAge;
	}

	public void setStuAge(int stuAge) {
		this.stuAge = stuAge;
	}

	@Override
	public String toString() {
		return "Student [stuId=" + stuId + ", stuName=" + stuName + ", stuSex=" + stuSex + ", stuAge=" + stuAge + "]";
	}

}

2、接着再创建一个Mapper接口类  StudentMapper.java

package com.ltcui.student.dao;

import com.ltcui.student.Student;

public interface StudentMapper {
	Student getStudentById(String stuId);
}

3、在StudentMapper.java的目录(也可以在其它目录)里面创建一个 studentmapper.xml配置文件

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper  PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">

<mapper namespace="com.ltcui.student.dao.StudentMapper">
	<select id="getStudentById" parameterType="string" resultType="Student">
		select stuId, stuName, stuSex, stuAge
		  from student
		where stuId = #{stuId}
	</select>
</mapper>

内容表示根据学生ID查询一个学生对象

3、创建一个业务处理类 StudentServices.java

package com.ltcui.student.services;

import org.apache.ibatis.session.SqlSession;
import org.apache.ibatis.session.SqlSessionFactory;

import com.ltcui.MybatisFactoryUtils;
import com.ltcui.student.Student;
import com.ltcui.student.dao.StudentMapper;

public class StudentServices {

	/**
	 * 根据学生ID查询学生
	 *
	 * @param stuId 学生ID
	 * @return 学生对象
	 */
	public Student getStudentById(String stuId) {
		// 获取 SqlSessionFactory
		SqlSessionFactory sqlSessionFalctory = MybatisFactoryUtils.getSessionFactory();
		SqlSession sqlSession = sqlSessionFalctory.openSession();
		// 此处需要注意 StudentMapper类的路径 需要与 studentMapper.xml配置文件里面的namespace一致 否则会报错误
		StudentMapper studentMapper = sqlSession.getMapper(StudentMapper.class); // 获取StudentMapper 接口对象
		Student student = studentMapper.getStudentById(stuId); // 直接调用接口
		sqlSession.close(); // 注意不要忘记关闭

		return student ;
	}
}

接着再对该业务类作个测试，写个测试类 MybatisFactoryUtilsTest.java：

package com.ltui.student.services;

import com.ltcui.student.Student;
import com.ltcui.student.services.StudentServices;

public class StudentServicesTest {

	public static void testGetStudentById(String stuId){
		StudentServices services = new StudentServices();
		Student studnet = services.getStudentById(stuId);
		System.out.println(studnet.toString());
	}

	public static void main(String[] args) {
		testGetStudentById("1");
	}
}

执行结果打印如下：

最后附上Student数据表结构创建语句Oracle

CREATE TABLE student
(
  stuId  VARCHAR2(20),
  stuName  VARCHAR2(20),
  stuSex  VARCHAR2(20),
  stuAge  INTEGER,
  PRIMARY KEY (stuId)
) ;

源代码请参考： MybatisHelloWorld

至此结束，谢谢！
