基于shinydashboard搭建你的仪表板（三）

前言

    前面已经介绍了shinydashboard框架的标题栏和侧边栏的输入项部分，这节介绍一下侧边栏的菜单项（menu items），侧边栏的菜单项主要用于切换不同的主体界面，点击不同的菜单项，主体呈现出不同的界面内容。

【R语言】shinydashboard系列一：标题栏

【R语言】shinydashboard系列二：侧边栏--输入项

菜单项menu items

菜单项分类

    侧边栏的菜单项可以分为静态菜单项和动态菜单项，注意这里说的静态和动态说的是书写代码的时候，而不是对于呈现的结果。静态菜单项用到两个函数：sidebarMenu()和tabItems()，动态菜单项用到上一节讲到的一对输出函数：sidebarMenuOutput()和renderMenu()。

注意

    静态菜单项：sidebarMenu()函数写在ui脚本dashboardSidebar()中，tabItems()函数写在dashboardBody()中；动态菜单项：输出项sidebarMenuOutput()函数写在ui脚本dashboardSidebar()中，renderMenu()函数写在server脚本中与之对应。

静态菜单项

    静态菜单项主要用到两个函数：sidebarMenu()和tabItems()，sidebarMenu()函数写在dashboardSidebar()函数中，tabItems()函数写在dashboardBody()中，两种通过tabName相互对应。例如：

library(shiny)
library(shinydashboard)
library(ggplot2)
library(DT)
ui <- dashboardPage(
  dashboardHeader(title = "Flash WorkingNotes"),
  dashboardSidebar(
    sidebarMenu(
      menuItem("Data", tabName = "Data", icon = icon("dashboard")),
      menuItem("Summary", tabName = "Summary",icon = icon("th"), badgeColor = "green"),
      menuItem("Plot", tabName = "Plot", icon = icon("bar-chart-o")),
      menuItem("Plot1", tabName = "Plot1", icon = icon("bar-chart-o"))
    )),
  dashboardBody(
    tabItems(
      tabItem(tabName = "Data", box(dataTableOutput("Data"), width = 100)),
      tabItem(tabName = "Summary",verbatimTextOutput("Summary")),
      tabItem(tabName = "Plot", plotOutput("Plot")),
      tabItem(tabName = "Plot1",plotOutput("Plot1")))
  )
)
server <- function(input, output) {
  set.seed(123)
  data = diamonds[sample(1:nrow(diamonds), 10000, replace = F), ]
  output$Data <- renderDataTable({datatable(data)})
  output$Summary <- renderPrint({str(data)})
  output$Plot <- renderPlot({
    ggplot(data, aes(x = price, fill = cut)) +
      geom_histogram(position = "fill", bins = 30) +
      ggtitle("histogram plot") +
      theme(plot.title = element_text(hjust = 0.5)) + xlab("")
  })
  output$Plot1 <- renderPlot({
    ggplot(data = data, aes(x = carat, y = price, colour = color)) +
      geom_point() +  ggtitle("scatter diagram") +
      theme(plot.title = element_text(hjust = 0.5))
  })
}
shinyApp(ui, server)



    注意上面sidebarMenu()和tabItems()书写位置，sidebarMenu()中的menuItem与tabItems()中的tabItem成对出现，通过tabname一一对应。

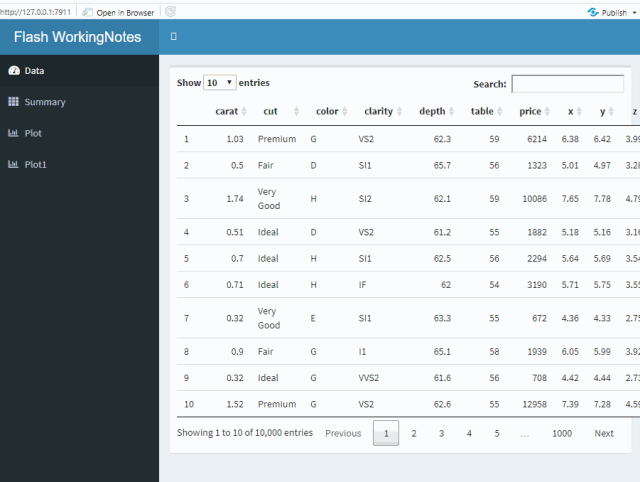

上面4个菜单项：Data菜单项呈现原数据，Summary菜单项查看数据字段类型，Plot菜单项绘制直方图，Plot1菜单项绘制散点图。上述代码运行结果：

动态菜单项

    动态菜单项通过sidebarMenuOutput()和renderMenu()实现。sidebarMenuOutput()写在ui中的dashboardSidebar()中，renderMenu()写在server中与之对应，两者通过变量名匹配。

library(shiny)
library(shinydashboard)
library(ggplot2)
library(DT)

ui <- dashboardPage(
  dashboardHeader(title = "Flash WorkingNotes"),
  dashboardSidebar(sidebarMenuOutput("menu")),
  dashboardBody(
    tabItems(
    tabItem(tabName = "Data", box(dataTableOutput("Data"), width = 100)),
    tabItem(tabName = "Summary",verbatimTextOutput("Summary")),
    tabItem(tabName = "Plot", plotOutput("Plot")),
    tabItem(tabName = "Plot1",plotOutput("Plot1"))))
)

server <- function(input, output) {
  set.seed(123)
  data = diamonds[sample(1:nrow(diamonds), 10000, replace = F), ]
  output$menu <- renderMenu({
    sidebarMenu(
      menuItem("Data", tabName = "Data", icon = icon("dashboard")),
      menuItem("Summary", icon = icon("th"), tabName = "Summary",badgeColor = "green"),
      menuItem("Plot", tabName = "Plot", icon = icon("bar-chart-o")),
      menuItem("Plot1", tabName = "Plot1", icon = icon("bar-chart-o"))
    )
  })
  output$Author <- renderText({paste("The Author:", input$text)})
  output$Data <- renderDataTable({datatable(data)})
  output$Summary <- renderPrint({str(data)})
  output$Plot <- renderPlot({
    ggplot(data, aes(x = price, fill = cut)) +
      geom_histogram(position = "fill", bins = 30) +
      ggtitle("histogram plot") +
      theme(plot.title = element_text(hjust = 0.5)) + xlab("")
  })
  output$Plot1 <- renderPlot({
    ggplot(data = data, aes(x = carat, y = price, colour = color)) +
      geom_point() +  ggtitle("scatter diagram") +
      theme(plot.title = element_text(hjust = 0.5))
  })
}
shinyApp(ui, server)

    注意上面sidebarMenuOutput()和renderMenu()的书写位置，两者通过menu变量名匹配。

总结

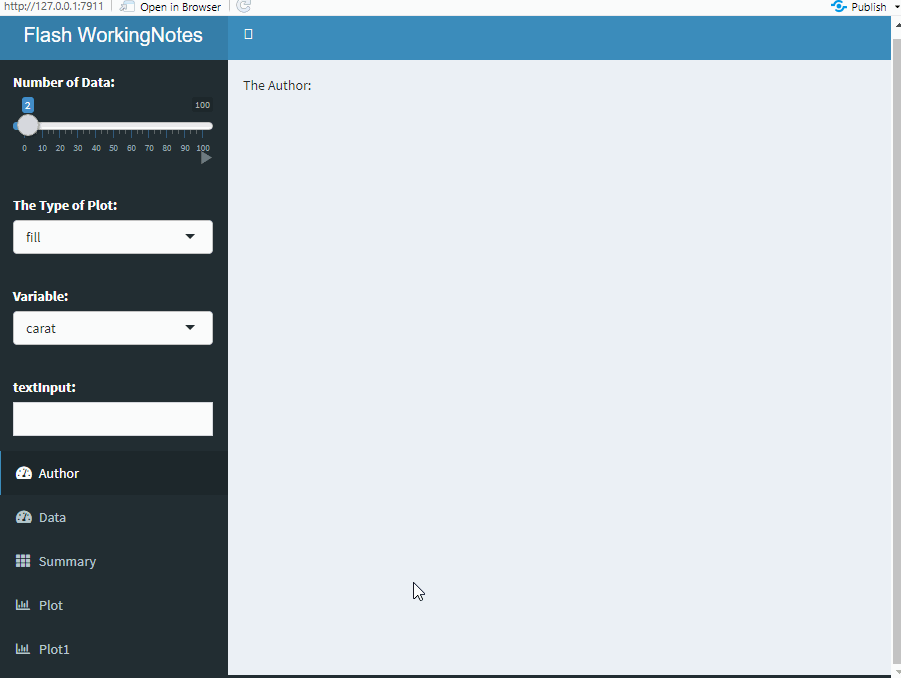

    恭喜勇士，进入西决！！！将侧边栏的输入项和菜单项介绍完整。菜单项用于切换主体呈现的界面，输入项用于改变主体呈现的内容，书写代码的时候菜单项有静态菜单项和动态菜单项。重点注意菜单项和输入项以及对应的输出项函数的书写位置，即可灵活使用。最后上传一下文章开头动态图的代码。

library(shiny)
library(shinydashboard)
library(ggplot2)
library(DT)
ui <- dashboardPage(
  dashboardHeader(title = "Flash WorkingNotes"),
  dashboardSidebar(
    sidebarMenu(
      menuItem("Data", tabName = "Data", icon = icon("dashboard")),
      menuItem("Summary", icon = icon("th"), tabName = "Summary",badgeColor = "green"),
      menuItem("Plot", tabName = "Plot", icon = icon("bar-chart-o")),
      menuItem("Plot1", tabName = "Plot1", icon = icon("bar-chart-o"))
    )),
  dashboardBody(
    tabItems(
      tabItem(tabName = "Data", box(dataTableOutput("Data"), width = 100)),
      tabItem(tabName = "Summary",verbatimTextOutput("Summary")),
      tabItem(tabName = "Plot", plotOutput("Plot")),
      tabItem(tabName = "Plot1",plotOutput("Plot1")))
  )
)

server <- function(input, output) {
  set.seed(123)
  data = diamonds[sample(1:nrow(diamonds), 10000, replace = F), ]
  output$Author <- renderText({paste("The Author:", input$text)})
  output$Data <- renderDataTable({datatable(data)})
  output$Summary <- renderPrint({str(data)})
  output$Plot <- renderPlot({
    ggplot(data, aes(x = price, fill = cut)) +
      geom_histogram(position = "fill", bins = 30) +
      ggtitle("histogram plot") +
      theme(plot.title = element_text(hjust = 0.5)) + xlab("")
  })
  output$Plot1 <- renderPlot({
    ggplot(data = data, aes(x = carat, y = price, colour = color)) +
      geom_point() +  ggtitle("scatter diagram") +
      theme(plot.title = element_text(hjust = 0.5))
  })
}
shinyApp(ui, server)
