- @author : luoz
- @date time:2016年9月18日 上午9:21:08
基于实现无向图的API
由浅入深理解深度优先搜索算法
分析深度优先搜索解决的单点路径问题,连通性问题,二分色问题
无向图
- 无向图即为由边(edge)和顶点(vertex)组成的图模型。
- 图的几种表示方法(使用哪种数据结构表示图)
1>邻接矩阵:
V*V的boolean矩阵,相连则true,这种数据结构对于上百万个顶点,空间需求太大。
2>边的数组:
使用一个边(edge)类,含有两个顶点变量。但是这种数据结构不能检查图所有的边。
3>邻接表数组
每个顶点都构造一个以顶点为索引的列表数组,数组中的元素都是和顶点相连的。下面的实现均是这种数据结构。 - 基于邻接表实现的图的性能分析
1>使用空间和V+E成正比。
2>当增加一条边时,所需时间为常数。
3>遍历某个顶点的所有相邻顶点时,所需时间和V的度数成正比(处理每个相邻点所需时间为常数)
所以,结合三个分析:
基于以上操作的实现,邻接表性能趋向最优。 - 实现(Java)
package graphTheory;
import java.io.*;
import java.util.*;
/**
* @author : luoz
* @date time:2016年9月16日 下午3:52:06
**/
public class Graph {
//vertex number
private int V;
//edge number
private int E;
//adjacency number
private Bag<Integer>[] adj;
//FileIO
FileIO fileio;
/**
* set up a graph and vertexs number are V.
* @param V
*/
public void Graph(int V)
{
this.V = V;
this.E = 0;
adj = (Bag<Integer>[]) new Bag[V];
for(int v = 0;v<V;v++)
{
adj[v] = new Bag<Integer>();
}
}
/**
* read edge and vertex from a file and file name is Graph.txt
* read String s from file,and the String data structure like:1 2,3 4,2 3,...
*/
public void Graph()
{
fileio = new FileIO();
String s = fileio.characterReader(new File("Graph.txt"));
String[] st = s.split(",");
int E = st.length;
for(int i = 0;i<E;i++)
{
String[] str = st[i].split(" ");
addEdge(Integer.parseInt(str[0]),Integer.parseInt(str[1]));
}
}
public int V(){
return V;
}
public int E(){
return E;
}
/**
* add the vertex to the list.
* @param v
* @param w
*/
public void addEdge(int v,int w)
{
adj[v].add(w);
adj[w].add(v);
E++;
}
public Iterable<Integer> adj(int v)
{
return adj[v];
}
}
深度优先搜索
- 思想
走迷宫策略:按着通道(边),一直走未走过的,当遇到已经走过(标记过)的,则返回(递归)上一个路口(顶点),走这个路口的另外通道。走的过程中,用一个绳子标记已经走过的路(path)。

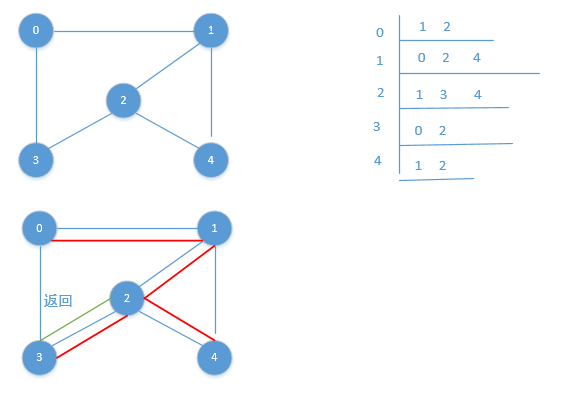

如图:
由图,红色是搜索路径(path),根据邻接表的顺序一直走下去,直到遇到没路或者走过的路,则返回。 - 实现(Java)
package graphTheory;
import java.util.Stack;
/**
* @author : luoz
* @date time:2016年9月18日 上午9:20:34
**/
public class DepthFirstSearch {
//the vertex is called dfs()
private boolean[] marked;
//first vertex to last vertex way
private int[] edgeTo;
//the start point
private final int s;
public boolean marked(int w)
{
return marked[w];
}
public boolean hashPathTo(int v){
return marked[v];
}
//method:set up a DepthFirstSearch
public DepthFirstSearch(Graph G,int s){
marked = new boolean[G.V()];
edgeTo = new int[G.V()];
this.s = s;
dfs(G,s);
}
//resursion for G to get the DepthFirstSearch
private void dfs(Graph G,int v)
{
marked[v] = true;
for(int w:G.adj(v))
if(!marked[w])
{
edgeTo[w] = v;
dfs(G,w);
}
}
public Iterable<Integer> pathTo(int v)
{
if(!hashPathTo(v))
return null;
Stack<Integer> path = new Stack<Integer>();
for(int x = v; x != s;x= edgeTo[x])
path.push(x);
path.push(s);
return path;
}
}
广度优先搜索
- 单点路径
给定一个图和一个顶点,是否存在该顶点到目标顶点的路径,存在则输出。
实现:即上一份API的实现方法pathTo() - 是否为无环图
给定的的图,是否为无环图?
实现:既然是判断,必然需要增加boolean型变量:hashCycle
public void Cycle(Graph G)
{
marked = new boolean[G.V()];
for(int s = 0;s <G.V();s++)
{
if(!marked(s))
cdfs(G,s,s);
}
}
private void cdfs(Graph G,int v,int u)
{
marked[v] = true;
for(int w : G.adj(v))
{
if(!marked[w])
cdfs(G,w,v);
else if(w != v)
hashCycle = true;
}
}
public boolean hashCycle()
{
return hashCycle;
}
- 双色问题(二分图)
能否用两种颜色将图的所有顶点着色,使得任意一条边的两个顶点都为不同颜色?(这是否为一个二分图)
实现:
public void TwoColor(Graph G)
{
marked = new boolean[G.V()];
color = new boolean[G.V()];
for(int s = 0;s<G.V();s++)
{
if(!marked[s])
colorDFS(G,s);
}
}
private void colorDFS(Graph G,int v)
{
marked[v] = true;
for(int w : G.adj(v))
{
if(!marked[w])
{
color[w] = !color[v];
colorDFS(G,w);
}
else if(color[w] == color[v])
isTwoColor = false;
}
}
public boolean isTwoColor()
{
return isTwoColor;
}
算法第四版
