一、案例目的

基于Spring Boot+MyBatis+MySQL完成图书管理系统的设计与实现，本案例完成两个实体的维护和实体间的关系，两个实体分别为学生对象和图书对象，实体间的关系是学生借阅图书。

二、需求分析

2.1 系统角色

本系统包含图书管理员和学生两个角色，图书管理员可以维护学生信息、维护图书信息、查询借阅信息，学生可以查询图书、借阅图书、归还图书、查询借阅记录。

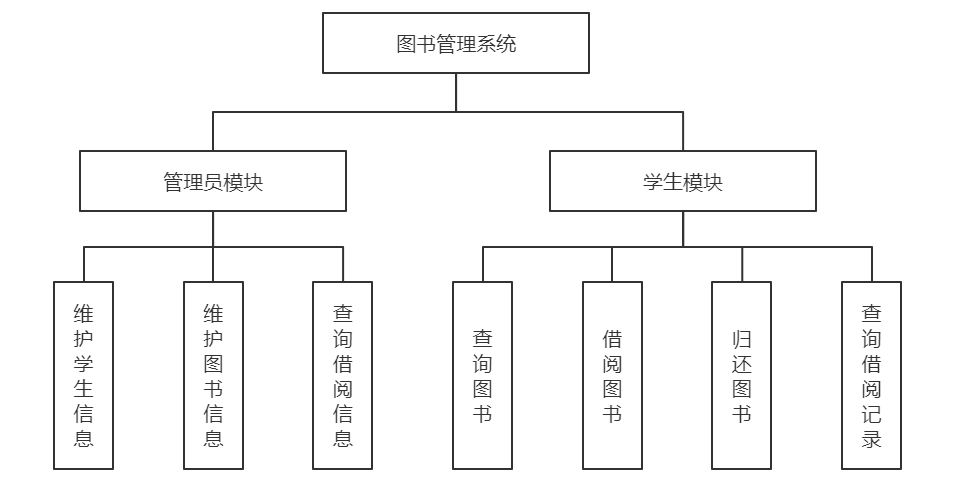

2.2 该系统功能层次图如下：

2.3 管理员模块功能

维护学生信息，可以对学生信息进行新增、修改、删除操作。

维护图书信息，可以对图书信息进行新增、修改、下架操作。

查询借阅信息，可以按条件对图书借阅情况进行查询，可以查询已借阅图书信息和未归还图书信息。

2.4 学生模块功能

查询图书，学生可以按条件查询图书相关信息。

借阅图书，学生可以借阅图书。

归还图书，学生对图书进行归还操作。

查询借阅记录，学生对自己借阅的图书记录进行查询。

三、数据库设计

学生表：学生编号、姓名、年龄、性别、出生日期、身份证号、电话号码。

图书表：图书编号、图书名称、图书类别、出版社、作者、图书库存、图书状态（0：正常，1：已下架）。

借阅记录表：借阅记录ID、学生编号、图书编号、借阅时间、归还状态、归还时间。

3.1 创建学生表

create table t_student  (
    id varchar(32) ,
    name varchar(255),
    age int,
    sex varchar(2),
    birthday varchar(20),
    idCard varchar(20),
    phone varchar(20)
);

3.2 创建图书表

create table t_book(
   id varchar(32),
   name varchar(50),
   category varchar(32),
   press varchar(50),
   author varchar(50),
   num int,
   state varchar(2) default '0' comment '图书状态(0正常,1已下架)'
);

3.3 创建借阅记录表

create table t_borrow(
   id varchar(32),
   sid varchar(32),
   bid varchar(32),
   borrow_time varchar(32),
   borrow_state varchar(2) comment '借阅状态(0借阅中，1已归还)',
   back_time varchar(32)
);

3.4 数据初始化

insert into t_student
values('S1111','zhangsan',20,'1','2000-01-01','370701200001011111','15800000001');
insert into t_student
values('S2222','lisi',20,'1','2000-01-01','370701200001011112','15800000002');

四、案例实现

4.1 创建Spring Boot项目

创建Spring Boot项目，项目名称为springboot-book02。

pom文件如下所示：

<dependencies>
    <!--spring boot web-->
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
    </dependency>
    <!--mybatis-->
    <dependency>
        <groupId>org.mybatis.spring.boot</groupId>
        <artifactId>mybatis-spring-boot-starter</artifactId>
        <version>2.3.0</version>
    </dependency>
    <!--mysql-->
    <dependency>
        <groupId>com.mysql</groupId>
        <artifactId>mysql-connector-j</artifactId>
        <scope>runtime</scope>
    </dependency>
    <!--lombok-->
    <dependency>
        <groupId>org.projectlombok</groupId>
        <artifactId>lombok</artifactId>
        <optional>true</optional>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-test</artifactId>
        <scope>test</scope>
    </dependency>
</dependencies>

4.2 基本配置

4.2.1 创建配置文件

resources目录下创建application.yml。

# 配置端口号
server:
  port: 8090

# 配置数据源
spring:
  datasource:
    driver-class-name: com.mysql.cj.jdbc.Driver
    url: jdbc:mysql://localhost:3306/book
    username: root
    password: root

# 配置MyBatis
mybatis:
  mapper-locations: classpath*:mapper/**/*Mapper.xml
  type-aliases-package: com.wfit

4.2.2 创建Constants常量类

com.wfit.boot.commons目录下创建Constants.java。

public class Constants {
    // 默认成功码
    public static final int SUCCESS_CODE = 200;
    public static final String SUCCESS_MSG = "操作成功";
    // 默认失败码
    public static final int ERROR_CODE = 500;
    public static final String ERROR_MSG = "系统异常";
    // 图书状态（0：正常，1：已下架）
    public static final String BOOK_STATE_NORMAL = "0";
    public static final String BOOK_STATE_REMOVED = "1";
    // 归还状态(0：借阅状态，1：归还状态)
    public static final String BORROW_STATE_BORROW = "0";
    public static final String BORROW_STATE_BACK = "1";
}

4.2.3 创建Result类

com.wfit.boot.commons目录下创建Result.java。

@Data
@NoArgsConstructor
@AllArgsConstructor
public class Result<T> {

    //响应码
    private int code;
    //响应消息
    private String msg;
    //响应结果
    private T data;

    public static <T> Result<T> success(T data){
        return new Result<>(Constants.SUCCESS_CODE, Constants.SUCCESS_MSG,data);
    }

    public static <T> Result<T> error(T data){
        return new Result<>(Constants.ERROR_CODE, Constants.ERROR_MSG,data);
    }

}

4.2.4 创建DateTimeUtil类

com.wfit.boot.commons目录下创建DateTimeUtil.java。

public class DateTimeUtil {

    public static String now(){
        LocalDateTime dateTime = LocalDateTime.now();
        DateTimeFormatter formatter = DateTimeFormatter.ofPattern("yyyy-MM-dd HH:mm:ss");
        return dateTime.format(formatter);
    }

}

4.2.5 创建UuidUtil类

com.wfit.boot.commons目录下创建UuidUtil.java。

public class UuidUtil {

    public static String getUUID(){
        String uuid = UUID.randomUUID().toString().trim().replaceAll("-", "");
        return uuid;
    }

}

4.3 Student模块

4.3.1 创建Student实体类

com.wfit.boot.pojo目录下创建Student.java。

@Data
public class Student implements Serializable {

    private String id;      //学生学号
    private String name;
    private int age;
    private String sex;
    private String birthday;
    private String idCard;
    private String phone;

}

4.3.2 创建StudentController类

com.wfit.boot.controller目录下创建StudentController.java。

/**
 * 维护学生信息
 */
@RestController
@RequestMapping("/student")
public class StudentController {

    @Autowired
    private StudentService studentService;

    /**
     * 新增学生信息
     */
    @PostMapping("/add")
    public Result addStudent(@RequestBody Student student){
        studentService.saveStudent(student);
        return Result.success("新增学生成功," + student);
    }
    /**
     * 修改学生信息
     */
    @PostMapping("/update")
    public Result updateStudent(@RequestBody Student student){
        studentService.updateStudent(student);
        return Result.success("修改成功," + student);
    }
    /**
     * 删除学生信息
     */
    @GetMapping("/del")
    public Result delStudent(String id){
        studentService.delStudent(id);
        return Result.success("删除学生成功," + id);
    }
    /**
     * 查询学生信息
     */
    @GetMapping("/query")
    public Result queryStudent(){
        List<Student> studentList = studentService.queryStudent();
        return Result.success(studentList);
    }

}

4.3.3 创建StudentService接口

com.wfit.boot.service目录下创建StudentService.java。

public interface StudentService {

    public void saveStudent(Student student);

    public void updateStudent(Student student);

    public void delStudent(String id);

    public List<Student> queryStudent();

}

4.3.4 创建StudentServiceImpl类

com.wfit.boot.service.impl目录下创建StudentServiceImpl.java。

@Service
public class StudentServiceImpl implements StudentService {

    @Resource
    private StudentMapper studentMapper;

    @Override
    public void saveStudent(Student student) {
        studentMapper.saveStudent(student);
    }

    @Override
    public void updateStudent(Student student) {
        studentMapper.updateStudent(student);
    }

    @Override
    public void delStudent(String id) {
        studentMapper.delStudent(id);
    }

    @Override
    public List<Student> queryStudent() {
        return studentMapper.queryStudent();
    }
}

4.3.5 创建StudentMapper接口

com.wfit.boot.mapper目录下创建StudentMapper.java。

@Mapper
public interface StudentMapper {

    public void saveStudent(Student student);

    public void updateStudent(Student student);

    public void delStudent(String id);

    public List<Student> queryStudent();
}

4.3.6 创建StudentMapper.xml文件

resources.mapper目录下创建StudentMapper.xml。

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.wfit.boot.mapper.StudentMapper">
    <!--新增学生信息-->
    <insert id="saveStudent" parameterType="com.wfit.boot.pojo.Student">
        insert into t_student values(
            #{id},
            #{name},
            #{age},
            #{sex},
            #{birthday},
            #{idCard},
            #{phone}
        )
    </insert>
    <!--修改学生信息-->
    <update id="updateStudent" parameterType="com.wfit.boot.pojo.Student">
        update t_student
        set name = #{name}, age = #{age}
        where id = #{id}
    </update>
    <!--删除学生信息-->
    <delete id="delStudent" parameterType="java.lang.String">
        delete from t_student where id = #{id}
    </delete>
    <!--查询学生信息-->
    <select id="queryStudent" resultType="com.wfit.boot.pojo.Student">
        select *
        from t_student
    </select>
</mapper>

4.4 Book模块

4.4.1 创建Book实体类

com.wfit.boot.pojo目录下创建Book.java。

@Data
public class Book implements Serializable {

    private String id;      //图书ISBN
    private String name;
    private String category;
    private String press;
    private String author;
    private int num;
    private String state;   //图书状态（0：正常，1：已下架）

}

4.4.2 创建BookController类

com.wfit.boot.controller目录下创建BookController.java。

/**
 * 维护图书信息
 */
@RestController
@RequestMapping("/book")
public class BookController {

    @Autowired
    private BookService bookService;

    /**

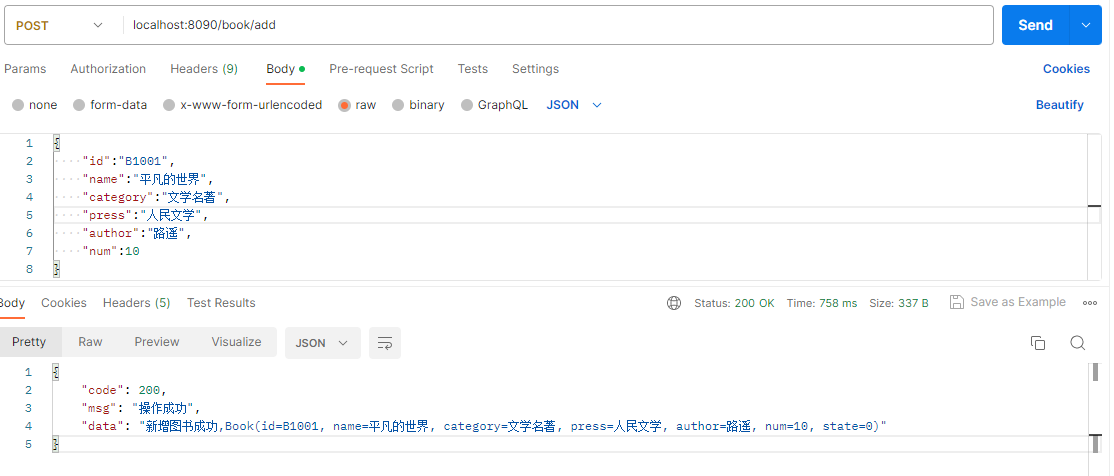

     * 新增图书信息
     */
    @PostMapping("/add")
    public Result addBook(@RequestBody Book book) {
        try{
            bookService.addBook(book);
        }catch (Exception e){
            return Result.error(e.getMessage());
        }
        return Result.success("新增图书成功," + book);
    }
    /**

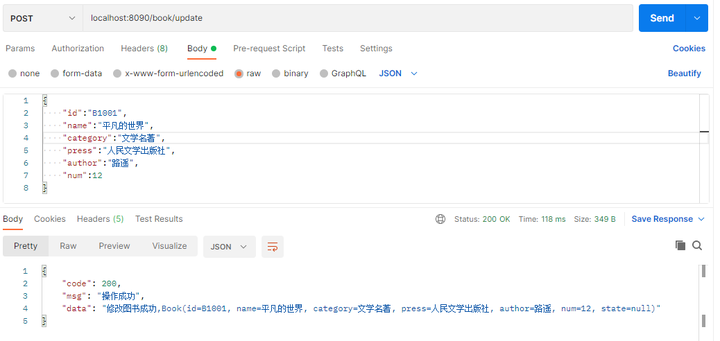

     * 修改图书信息
     */
    @PostMapping("/update")
    public Result updateBook(@RequestBody Book book){
        try{
            bookService.updateBook(book);
        }catch (Exception e){
            return Result.error(e.getMessage());
        }
        return Result.success("修改图书成功," + book);
    }
    /**

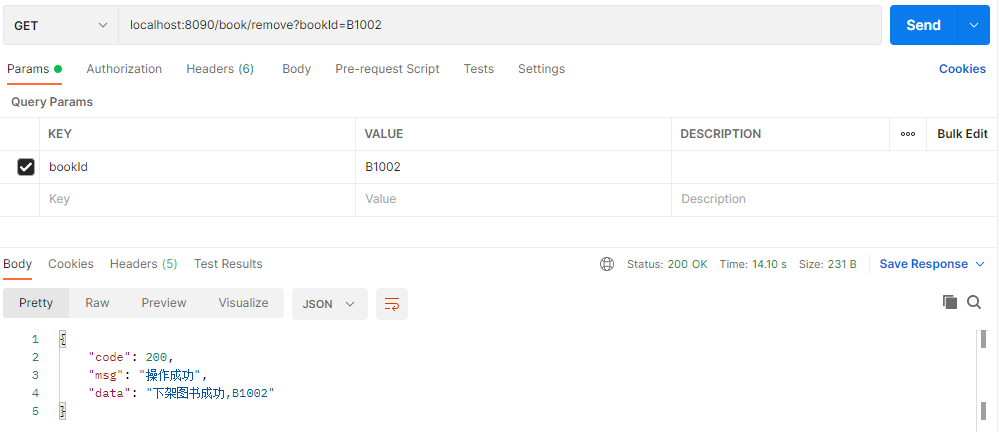

     * 下架图书信息
     */
    @GetMapping("/remove")
    public Result removeBook(String bookId){
        try{
            bookService.removeBook(bookId);
        }catch (Exception e){
            return Result.error(e.getMessage());
        }
        return Result.success("下架图书成功," + bookId);
    }
    /**

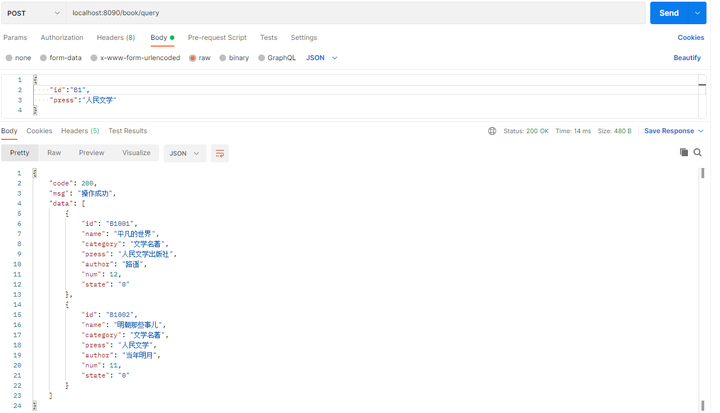

     * 查询图书信息
     */
    @PostMapping("/query")
    public Result queryBook(@RequestBody Book book) {
        List<Book> bookList;
        try{
            bookList = bookService.queryBook(book);
        }catch (Exception e){
            return Result.error(e.getMessage());
        }
        return Result.success(bookList);
    }
}

4.4.3 创建BookService接口

com.wfit.boot.service目录下创建BookService.java。

public interface BookService {

    public void addBook(Book book) throws Exception;

    public void updateBook(Book book) throws Exception;

    public void removeBook(String id) throws Exception;

    public List<Book> queryBook(Book book) throws Exception;
}

4.4.4 创建BookServiceImpl类

com.wfit.boot.service.impl目录下创建BookServiceImpl.java。

@Service
public class BookServiceImpl implements BookService {

    @Resource
    private BookMapper bookMapper;

    @Resource
    private BorrowMapper borrowMapper;

    /**
     * 新增图书
     * @param book
     */
    @Override
    public void addBook(Book book) throws Exception{
        //查询图书是否已存在
        int num = bookMapper.queryBookNum(book.getId());
        if(num >= 0){    //如果已存在则更新图书数量
            bookMapper.updateBookNum(book.getId(),book.getNum());
        }else {         //否则，新增图书信息
            book.setState(Constants.BOOK_STATE_NORMAL);
            bookMapper.saveBook(book);
        }
    }

    /**
     * 修改图书
     * @param book
     */
    @Override
    public void updateBook(Book book) throws Exception{
        bookMapper.updateBook(book);
    }

    /**
     * 下架图书
     * @param bookId
     */
    @Override
    public void removeBook(String bookId) throws Exception{
        //下架图书校验是否有正在借阅中的图书
        int num = borrowMapper.queryBorrowNum(null,bookId);
        if(num > 0){
            throw new Exception("尚有未归还图书，不允许下架操作！");
        }else{  //执行下架操作
            bookMapper.removeBook(bookId);
        }
    }

    /**
     * 查询图书信息
     * @param book
     * @return
     * @throws Exception
     */
    @Override
    public List<Book> queryBook(Book book) throws Exception {
        return bookMapper.queryBook(book);
    }

}

4.4.5 创建BookMapper接口

com.wfit.boot.mapper目录下创建BookMapper.java。

@Mapper
public interface BookMapper {
    /**
     * 查询图书数量
     * @param id
     * @return
     */
    public int queryBookNum(String id);

    /**
     * 新增图书
     * @param book
     */
    public void saveBook(Book book);


    /**
     * 更新图书库存
     * @param id
     * @param num
     */
    public void updateBookNum(@Param("id") String id,@Param("num") int num);

    /**
     * 修改图书
     * @param book
     */
    public void updateBook(Book book);

    /**
     * 下架图书
     * @param id
     */
    public void removeBook(String id);

    /**
     * 查询图书信息
     * @param book
     * @return
     */
    public List<Book> queryBook(Book book);

}

4.4.6 创建BookMapper.xml文件

resources.mapper目录下创建BookMapper.xml。

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.wfit.boot.mapper.BookMapper">
    <!--查询图书库存-->
    <select id="queryBookNum" parameterType="java.lang.String" resultType="java.lang.Integer">
        select if(count(*) = 0 , -1 , sum(num)) num
        from t_book
        where id = #{id}
        and state = '0'
    </select>

    <!--新增图书信息-->
    <insert id="saveBook" parameterType="com.wfit.boot.pojo.Book">
        insert into t_book values(
            #{id},
            #{name},
            #{category},
            #{author},
            #{press},
            #{num},
            #{state}
        )
    </insert>

    <!--更新图书库存-->
    <update id="updateBookNum">
        update t_book
        set num = num + #{num}
        where id = #{id}
        and state = '0'
    </update>

    <!--修改图书信息-->
    <update id="updateBook" parameterType="com.wfit.boot.pojo.Book">
        update t_book
        <set>
            <if test="name != null and name != ''">
                name = #{name},
            </if>
            <if test="category != null and category != ''">
                category = #{category},
            </if>
            <if test="press != null and press != ''">
                press = #{press},
            </if>
            <if test="author != null and author != ''">
                author = #{author},
            </if>
            <if test="num != null">
                num = #{num},
            </if>
        </set>
        where id = #{id}
        and state = '0'
    </update>
    <!--下架图书-->
    <update id="removeBook" parameterType="java.lang.String">
        update t_book
        set state = '1',num = 0
        where id = #{id}
        and state = '0'
    </update>
    <!--查询图书信息-->
    <select id="queryBook" parameterType="com.wfit.boot.pojo.Book"
            resultType="com.wfit.boot.pojo.Book">
        select *
        from t_book
        <where>
            state = '0'
            <if test="id != null and id != ''">
                and id like concat('%',#{id},'%')
            </if>
            <if test="name != null and name != ''">
                and name like concat('%',#{name},'%')
            </if>
            <if test="author != null and author != ''">
                and author like concat('%',#{author},'%')
            </if>
            <if test="press != null and press != ''">
                and press like concat('%',#{press},'%')
            </if>
        </where>
    </select>
</mapper>

4.5 Borrow模块

4.5.1 创建Borrow实体类

com.wfit.boot.pojo目录下创建Borrow.java。

@Data
public class Borrow implements Serializable {

    private String id;           //借阅记录ID
    private String studentId;    //学生学号
    private String bookId;       //图书ISBN
    private String borrowTime;   //借阅时间
    private String borrowState;  //借阅状态(0借阅中，1已归还)
    private String backTime;     //归还时间
    //借阅图书详细信息
    private String bookName;     //图书名称
    //学生详细信息
    private String studentName;  //学生姓名
}

4.5.2 创建BorrowController类

com.wfit.boot.controller目录下创建BorrowController.java。

/**
 * 借阅图书
 */
@RestController
@RequestMapping("/borrow")
public class BorrowController {

    @Autowired
    private BorrowService borrowService;

    /**
     * 借阅图书
     */
    @PostMapping("/borrow")
    public Result borrowBook(@RequestBody Borrow borrow){
        try {
            borrowService.borrowBook(borrow);
        }catch (Exception e){
            return Result.error(e.getMessage());
        }
        return Result.success("借阅图书成功," + borrow);
    }

    /**
     * 归还图书
     */
    @PostMapping("/back")
    public Result backBook(@RequestBody Borrow borrow){
        try {
            borrowService.backBook(borrow);
        }catch (Exception e){
            return Result.error(e.getMessage());
        }
        return Result.success("归还图书成功," + borrow);
    }

    /**
     * 查询借阅记录
     * @param borrow
     * @return
     */
    @PostMapping("/query")
    public Result queryBorrow(@RequestBody Borrow borrow){
        List<Borrow> borrowList;
        try {
            borrowList =  borrowService.queryBorrowInfo(borrow);
        }catch (Exception e){
            return Result.error(e.getMessage());
        }
        return Result.success(borrowList);
    }
}

4.5.3 创建BorrowService接口

com.wfit.boot.service目录下创建BorrowService.java。

public interface BorrowService {

    public void borrowBook(Borrow borrow) throws Exception;

    public void backBook(Borrow borrow) throws Exception;

    public List<Borrow> queryBorrowInfo(Borrow borrow) throws Exception;

}

4.5.4 创建BorrowServiceImpl类

com.wfit.boot.service.impl目录下创建BorrowServiceImpl.java。

@Service
public class BorrowServiceImpl implements BorrowService {

    @Resource
    private BookMapper bookMapper;

    @Resource
    private BorrowMapper borrowMapper;

    /**
     * 借阅图书
     * @param borrow
     * @throws Exception
     */
    @Override
    public void borrowBook(Borrow borrow) throws Exception{
        //查询图书是否存在以及是否库存充足
        int num = bookMapper.queryBookNum(borrow.getBookId());
        if(num > 0){    //如果图书存在
            //借阅图书，库存数量更新 -1
            bookMapper.updateBookNum(borrow.getBookId(),-1);
            //新增借阅记录
            borrow.setId(UuidUtil.getUUID());
            borrow.setBorrowTime(DateTimeUtil.now());
            borrow.setBorrowState(Constants.BORROW_STATE_BORROW);
            borrowMapper.borrowBook(borrow);
        }else {         //否则，返回图书不存在或数量不足不能借阅
            throw new Exception("图书不存在或数量不足！");
        }

    }

    /**
     * 归还图书
     * @param borrow
     * @throws Exception
     */
    @Override
    public void backBook(Borrow borrow) throws Exception {
        //查询此学生是否有借阅图书
        int num = borrowMapper.queryBorrowNum(borrow.getStudentId(),borrow.getBookId());
        if(num <= 0){
            throw new Exception("不存在未归还图书信息！");
        }else{  //执行归还图书操作
            //归还图书，库存数量更新 +1
            bookMapper.updateBookNum(borrow.getBookId(),1);
            //修改借阅记录为归还状态
            borrow.setBorrowState(Constants.BORROW_STATE_BACK);
            borrow.setBackTime(DateTimeUtil.now());
            borrowMapper.backBook(borrow);
        }
    }

    /**
     * 查询借阅记录
     * @param borrow
     * @throws Exception
     */
    @Override
    public List<Borrow> queryBorrowInfo(Borrow borrow) throws Exception {
        return borrowMapper.queryBorrowInfo(borrow);
    }

}

4.5.5 创建BorrowMapper接口

com.wfit.boot.mapper目录下创建BorrowMapper.java。

@Mapper
public interface BorrowMapper {

    public void borrowBook(Borrow borrow);

    public void backBook(Borrow borrow);

    public int queryBorrowNum(@Param("studentId") String studentId,@Param("bookId") String bookId);

    public List<Borrow> queryBorrowInfo(Borrow borrow);
}

4.5.6 创建BorrowMapper.xml文件

resources.mapper目录下创建BorrowMapper.xml。

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.wfit.boot.mapper.BorrowMapper">

    <!--借阅记录信息-->
    <resultMap id="BorrowMap" type="com.wfit.boot.pojo.Borrow">
        <id column="id" property="id"/>
        <result column="sid" property="studentId"/>
        <result column="bid" property="bookId"/>
        <result column="sname" property="studentName"/>
        <result column="bname" property="bookName"/>
        <result column="borrow_time" property="borrowTime"/>
        <result column="borrow_state" property="borrowState"/>
        <result column="back_time" property="backTime"/>
    </resultMap>

    <!--查询借阅图书数量-->
    <select id="queryBorrowNum" resultType="java.lang.Integer">
        select count(*) num
        from t_borrow
        where borrow_state = '0'
        <if test="studentId != null and studentId !=''">
            and sid = #{studentId}
        </if>
        <if test="bookId != null and bookId !=''">
            and bid = #{bookId}
        </if>
    </select>

    <!--新增借阅图书记录-->
    <insert id="borrowBook" parameterType="com.wfit.boot.pojo.Borrow">
        insert into t_borrow(id,sid,bid,borrow_time,borrow_state) values(
                                     #{id},
                                     #{studentId},
                                     #{bookId},
                                     #{borrowTime},
                                     #{borrowState}
                                 )
    </insert>

    <!--修改借阅记录为归还状态-->
    <update id="backBook" parameterType="com.wfit.boot.pojo.Borrow">
        update t_borrow
        set borrow_state = #{borrowState}, back_time = #{backTime}
        where sid = #{studentId}
        and bid = #{bookId}
    </update>

    <!--查询借阅记录信息-->
    <select id="queryBorrowInfo" parameterType="com.wfit.boot.pojo.Borrow" resultMap="BorrowMap">
        select t.id,
               t.sid,
               t.bid,
               b.name bname,
               s.name sname,
               t.borrow_time,
               t.borrow_state,
               t.back_time
        from t_borrow t,t_book b,t_student s
        where t.bid = b.id
        and t.sid = s.id
        <if test="studentId != null and studentId !=''">
            and t.sid = #{studentId}
        </if>
    </select>
</mapper>
