目标网址：
https://sale.1688.com/factory/category.html?spm=a260k.22464671.home2019category.1.69517a6eFclvLv&mainId=10166
爬取目标：
- 工厂名称
- 地点等等
网页解析
打开开发者工具，按F12刷新网页，然后再网络中搜索字段深圳市龙岗区馨衣舍服饰厂。
发现可以搜索到对应的数据包。

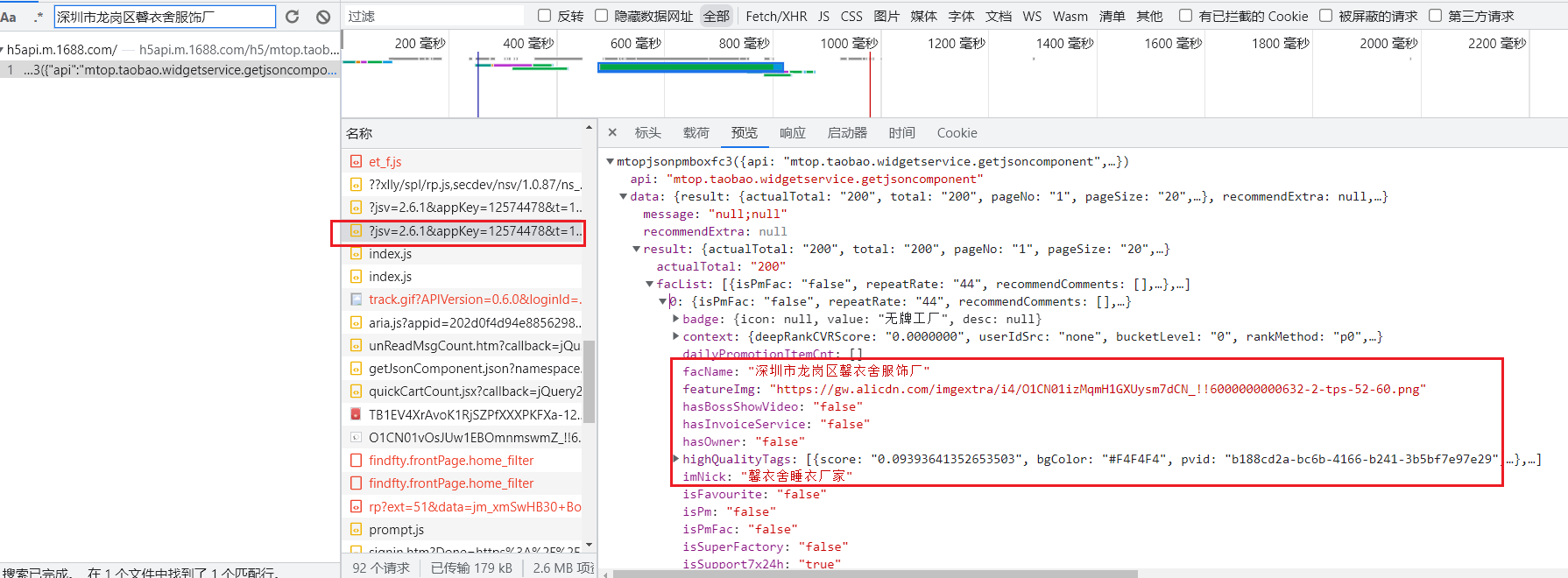

打开数据包，点击预览查看数据。
在该数据包中能够找到对应目标数据。
接下来只需要能够顺利请求到该数据包即可。

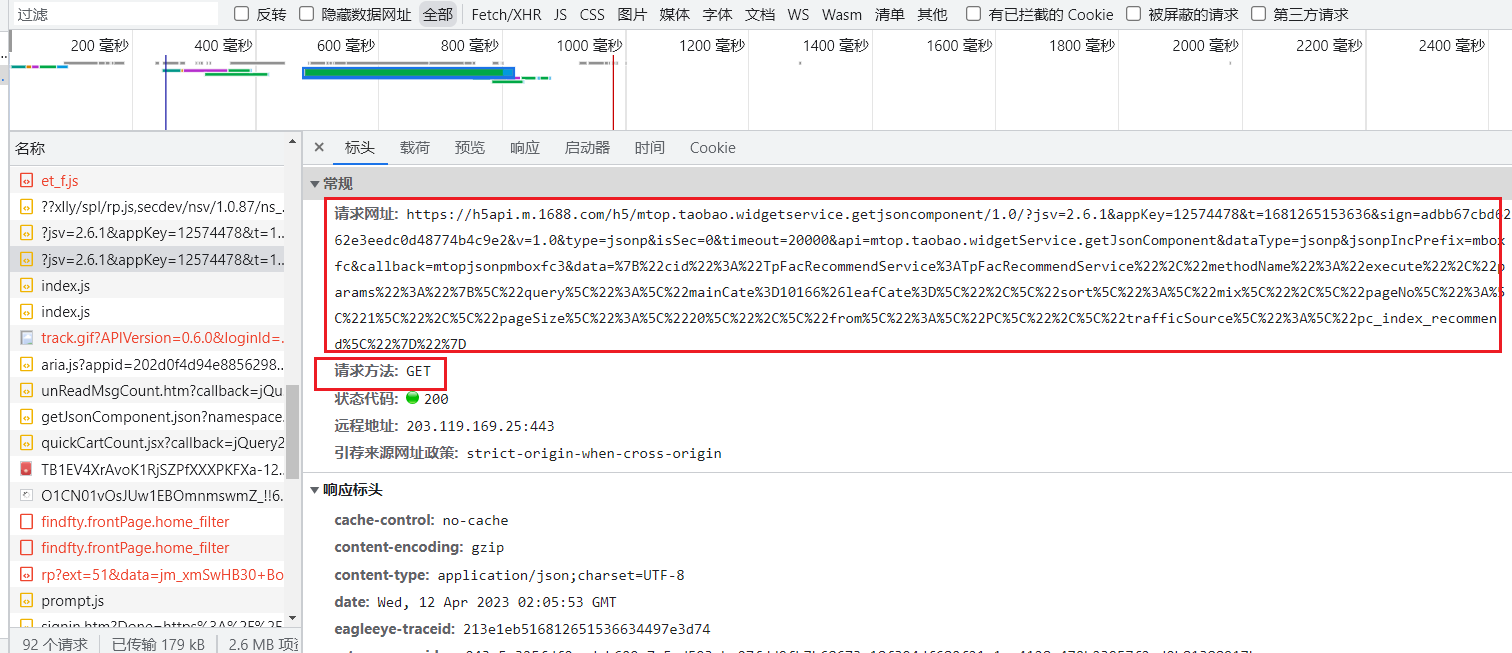

点击该数据包的标头查看数据包的请求方式。
发现该数据包的请求信息如下：
请求API：https://h5api.m.1688.com/h5/mtop.taobao.widgetservice.getjsoncomponent/1.0/
请求方法：GET请求

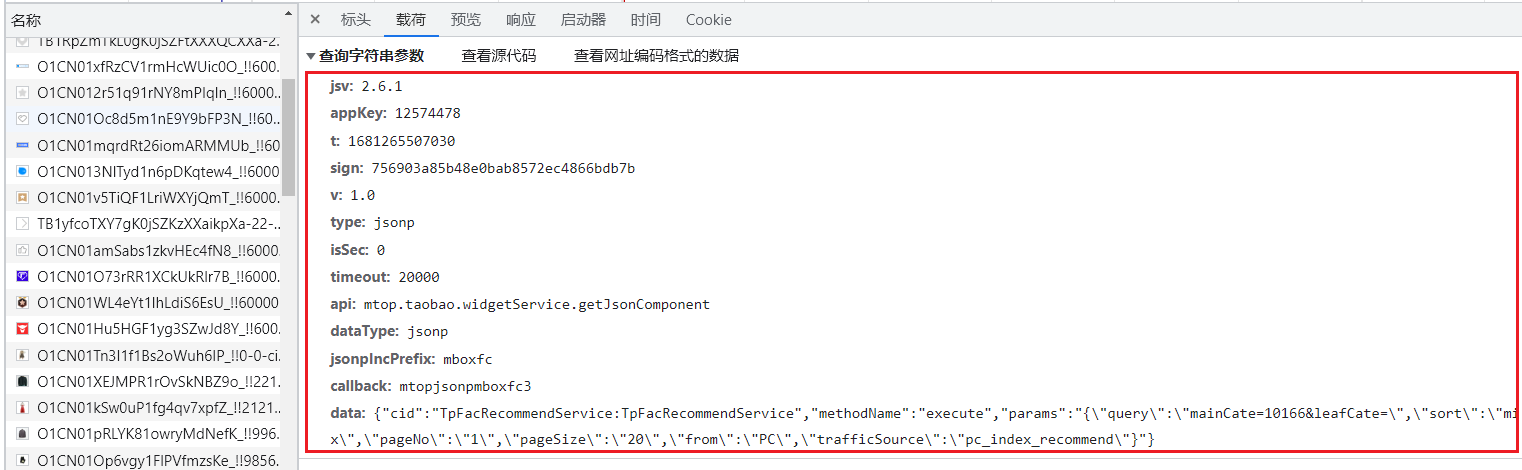

接下来查看该数据包在发送GET请求时需要传输的参数。
初步看了一下，该数据包传输的参数较多，为了便于后续的进一步分析，还需要搞清楚这些参数中哪些是固定的，哪些是变化的。

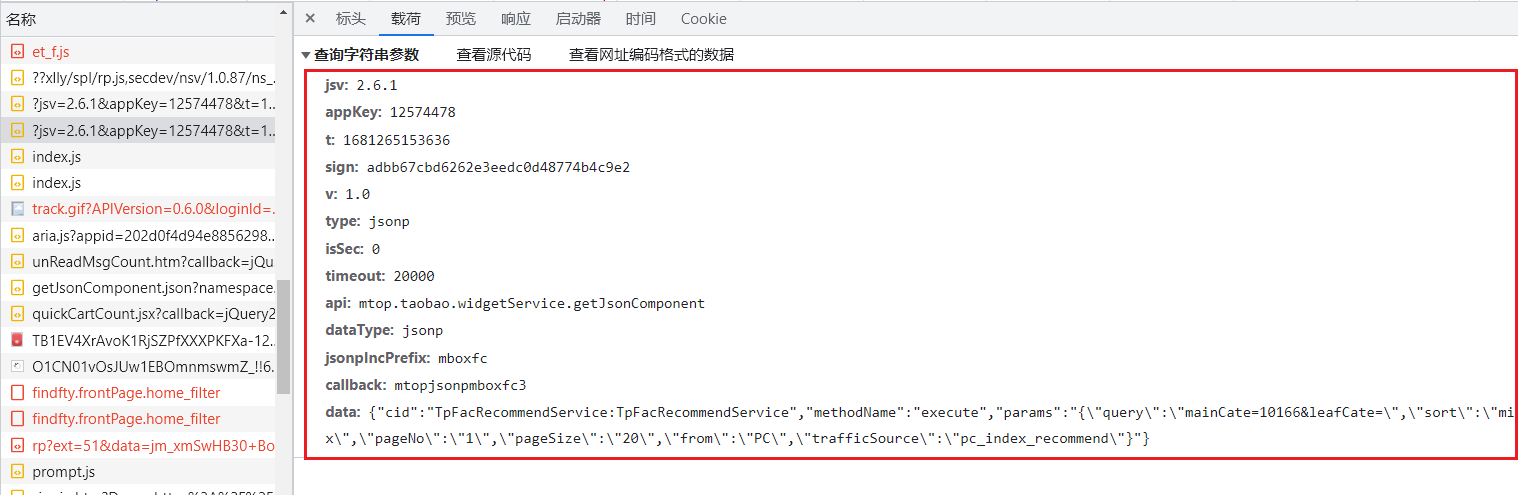

刷新网页再次查看该数据包的参数。
经过对比发现两次请求中只有参数t和sign发生了变化，其他内容都是固定值。
t很明显是一个13位的时间戳数据，sign则需要进一步分析。

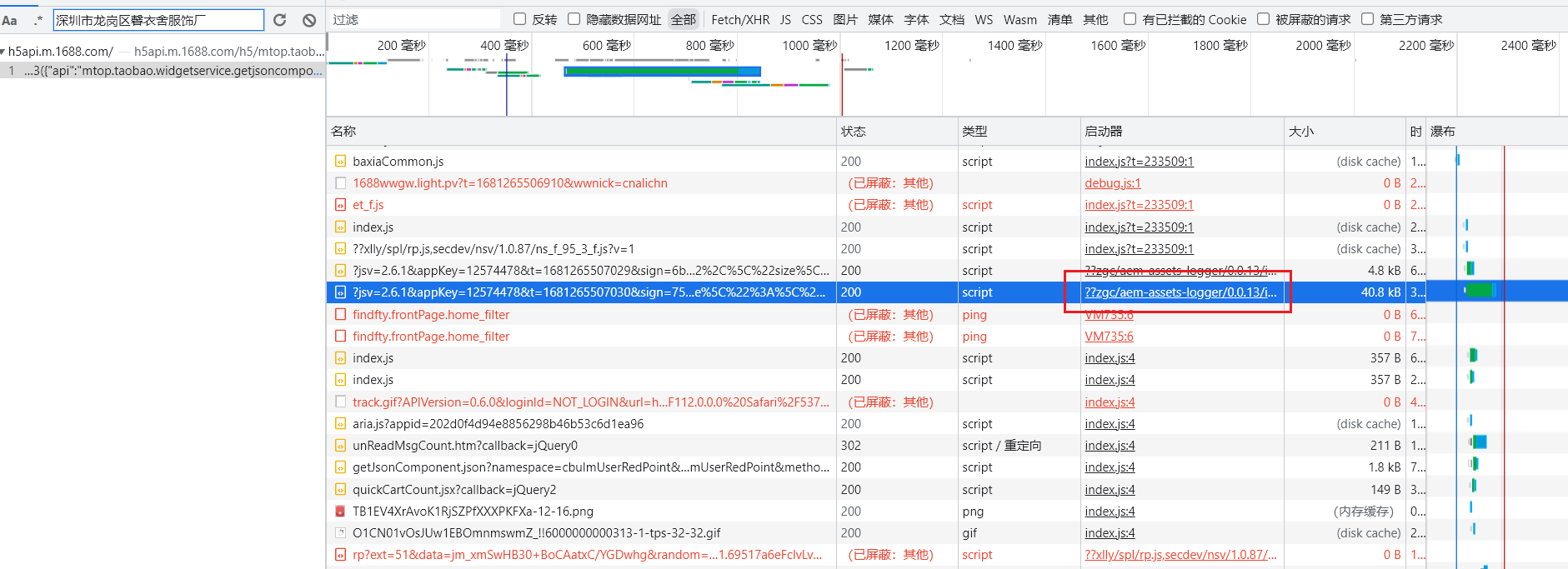

在网络数据包列表中找到该数据包，然后点击启动器，进入JS文件。
在JS文件中搜索sign。

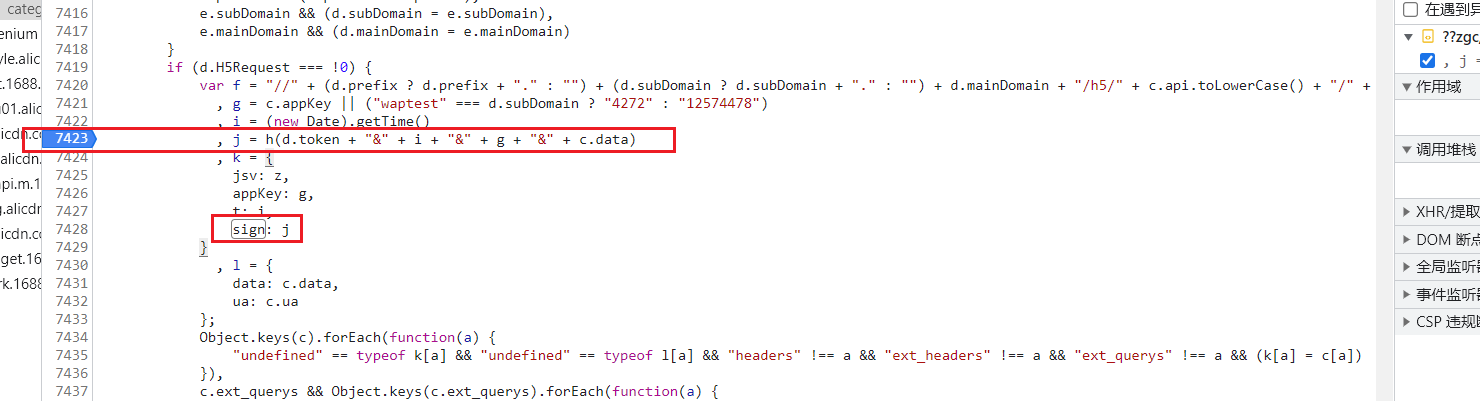

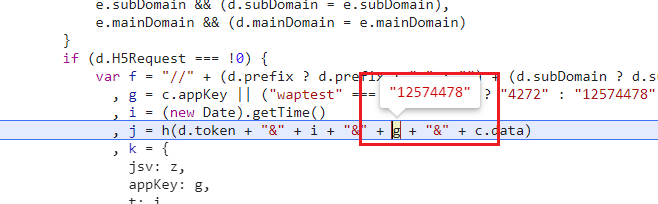

找到图中所示内容，在j附近打上断点。刷新网页。
可以看到sign=j，j是由后面的内容拼接而成后作用在h函数上。
拼接的内容为：d.token + "&" + i + "&" + g + "&" + c.data
其中：

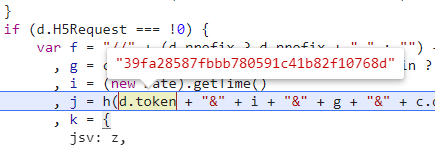

d.token为固定值39fa28587fbbb780591c41b82f10768d

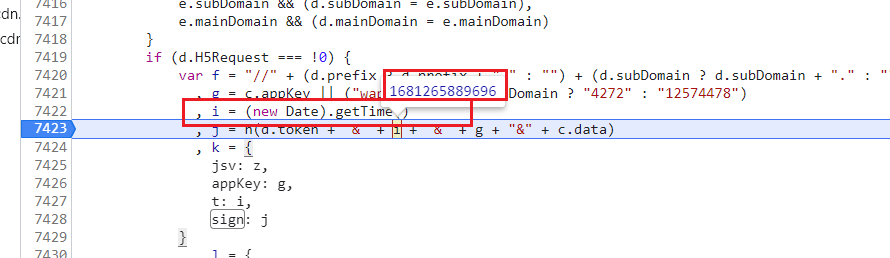

i为13位时间戳
g为固定值12574478
c.data为固定值，该值刚开始的时候会有一个初始值，在后续生成j的时候会进一步发生变化。

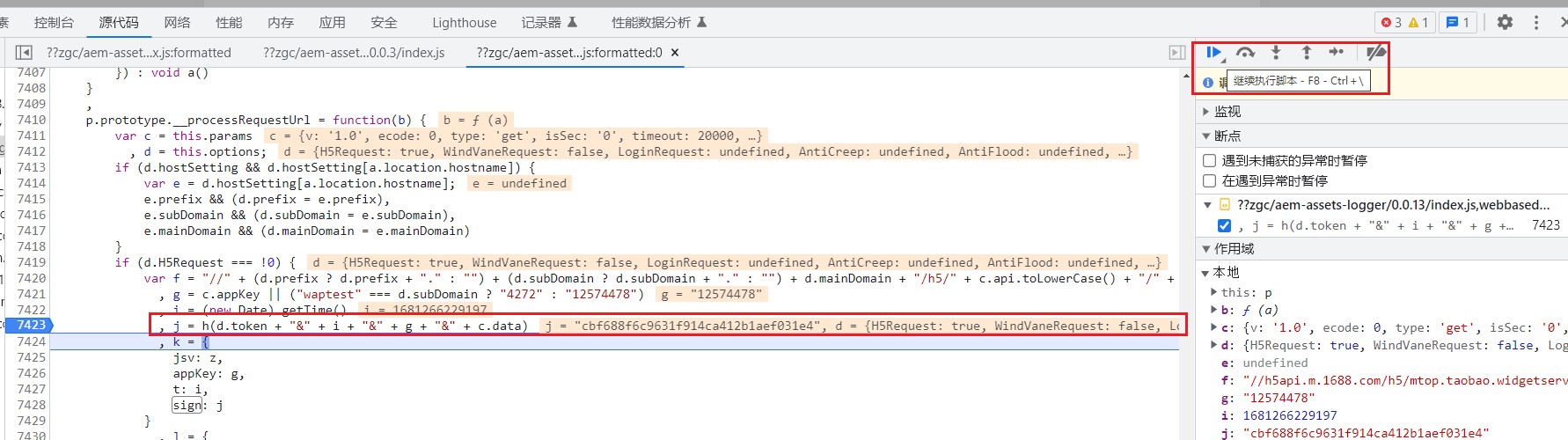

点击继续执行脚本，直到j的内容被完全生成。

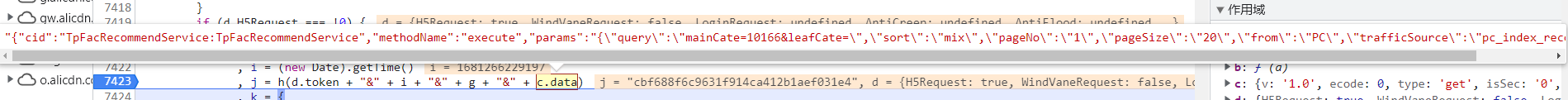

这个时候再查看c.data的值。
在控制台中打印出c.data值
'{"cid":"TpFacRecommendService:TpFacRecommendService","methodName":"execute","params":"{\\"query\\":\\"mainCate=10166&leafCate=\\",\\"sort\\":\\"mix\\",\\"pageNo\\":\\"1\\",\\"pageSize\\":\\"20\\",\\"from\\":\\"PC\\",\\"trafficSource\\":\\"pc_index_recommend\\"}"}'
接下来使用Python代码模拟该数据生成。
import time
# 模拟sign参数
token = '39fa28587fbbb780591c41b82f10768d'
i = int(time.time() * 1000)
g = '12574478'
data = '{"cid":"TpFacRecommendService:TpFacRecommendService","methodName":"execute","params":"{\\"query\\":\\"mainCate=10166&leafCate=\\",\\"sort\\":\\"mix\\",\\"pageNo\\":\\"1\\",\\"pageSize\\":\\"20\\",\\"from\\":\\"PC\\",\\"trafficSource\\":\\"pc_index_recommend\\"}"}'
sign_key = token + "&" + str(i) + "&" + g + "&" + data
print(sign_key)
98db12d56bb5e26159c2c0e16743d0c0&1681266707233&12574478&{"cid":"TpFacRecommendService:TpFacRecommendService","methodName":"execute","params":"{\"query\":\"mainCate=10166&leafCate=\",\"sort\":\"mix\",\"pageNo\":\"1\",\"pageSize\":\"20\",\"from\":\"PC\",\"trafficSource\":\"pc_index_recommend\"}"}

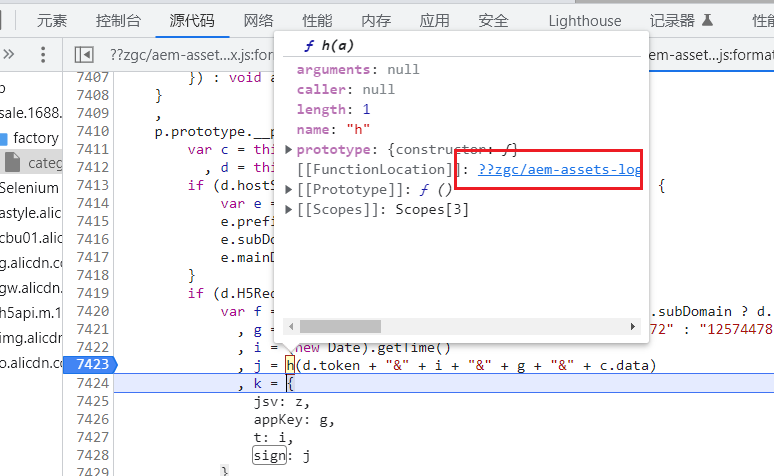

接下来再看h函数，光标放到h函数上方点击函数路径进入函数。
新建JS文件，将h函数内容复制到JS文件中
function h(a) {
function b(a, b) {
return a << b | a >>> 32 - b
}
function c(a, b) {
var c, d, e, f, g;
return e = 2147483648 & a,
f = 2147483648 & b,
c = 1073741824 & a,
d = 1073741824 & b,
g = (1073741823 & a) + (1073741823 & b),
c & d ? 2147483648 ^ g ^ e ^ f : c | d ? 1073741824 & g ? 3221225472 ^ g ^ e ^ f : 1073741824 ^ g ^ e ^ f : g ^ e ^ f
}
function d(a, b, c) {
return a & b | ~a & c
}
function e(a, b, c) {
return a & c | b & ~c
}
function f(a, b, c) {
return a ^ b ^ c
}
function g(a, b, c) {
return b ^ (a | ~c)
}
function h(a, e, f, g, h, i, j) {
return a = c(a, c(c(d(e, f, g), h), j)),
c(b(a, i), e)
}
function i(a, d, f, g, h, i, j) {
return a = c(a, c(c(e(d, f, g), h), j)),
c(b(a, i), d)
}
function j(a, d, e, g, h, i, j) {
return a = c(a, c(c(f(d, e, g), h), j)),
c(b(a, i), d)
}
function k(a, d, e, f, h, i, j) {
return a = c(a, c(c(g(d, e, f), h), j)),
c(b(a, i), d)
}
function l(a) {
for (var b, c = a.length, d = c + 8, e = (d - d % 64) / 64, f = 16 * (e + 1), g = new Array(f - 1), h = 0, i = 0; c > i; )
b = (i - i % 4) / 4,
h = i % 4 * 8,
g[b] = g[b] | a.charCodeAt(i) << h,
i++;
return b = (i - i % 4) / 4,
h = i % 4 * 8,
g[b] = g[b] | 128 << h,
g[f - 2] = c << 3,
g[f - 1] = c >>> 29,
g
}
function m(a) {
var b, c, d = "", e = "";
for (c = 0; 3 >= c; c++)
b = a >>> 8 * c & 255,
e = "0" + b.toString(16),
d += e.substr(e.length - 2, 2);
return d
}
function n(a) {
a = a.replace(/\r\n/g, "\n");
for (var b = "", c = 0; c < a.length; c++) {
var d = a.charCodeAt(c);
128 > d ? b += String.fromCharCode(d) : d > 127 && 2048 > d ? (b += String.fromCharCode(d >> 6 | 192),
b += String.fromCharCode(63 & d | 128)) : (b += String.fromCharCode(d >> 12 | 224),
b += String.fromCharCode(d >> 6 & 63 | 128),
b += String.fromCharCode(63 & d | 128))
}
return b
}
var o, p, q, r, s, t, u, v, w, x = [], y = 7, z = 12, A = 17, B = 22, C = 5, D = 9, E = 14, F = 20, G = 4, H = 11, I = 16, J = 23, K = 6, L = 10, M = 15, N = 21;
for (a = n(a),
x = l(a),
t = 1732584193,
u = 4023233417,
v = 2562383102,
w = 271733878,
o = 0; o < x.length; o += 16)
p = t,
q = u,
r = v,
s = w,
t = h(t, u, v, w, x[o + 0], y, 3614090360),
w = h(w, t, u, v, x[o + 1], z, 3905402710),
v = h(v, w, t, u, x[o + 2], A, 606105819),
u = h(u, v, w, t, x[o + 3], B, 3250441966),
t = h(t, u, v, w, x[o + 4], y, 4118548399),
w = h(w, t, u, v, x[o + 5], z, 1200080426),
v = h(v, w, t, u, x[o + 6], A, 2821735955),
u = h(u, v, w, t, x[o + 7], B, 4249261313),
t = h(t, u, v, w, x[o + 8], y, 1770035416),
w = h(w, t, u, v, x[o + 9], z, 2336552879),
v = h(v, w, t, u, x[o + 10], A, 4294925233),
u = h(u, v, w, t, x[o + 11], B, 2304563134),
t = h(t, u, v, w, x[o + 12], y, 1804603682),
w = h(w, t, u, v, x[o + 13], z, 4254626195),
v = h(v, w, t, u, x[o + 14], A, 2792965006),
u = h(u, v, w, t, x[o + 15], B, 1236535329),
t = i(t, u, v, w, x[o + 1], C, 4129170786),
w = i(w, t, u, v, x[o + 6], D, 3225465664),
v = i(v, w, t, u, x[o + 11], E, 643717713),
u = i(u, v, w, t, x[o + 0], F, 3921069994),
t = i(t, u, v, w, x[o + 5], C, 3593408605),
w = i(w, t, u, v, x[o + 10], D, 38016083),
v = i(v, w, t, u, x[o + 15], E, 3634488961),
u = i(u, v, w, t, x[o + 4], F, 3889429448),
t = i(t, u, v, w, x[o + 9], C, 568446438),
w = i(w, t, u, v, x[o + 14], D, 3275163606),
v = i(v, w, t, u, x[o + 3], E, 4107603335),
u = i(u, v, w, t, x[o + 8], F, 1163531501),
t = i(t, u, v, w, x[o + 13], C, 2850285829),
w = i(w, t, u, v, x[o + 2], D, 4243563512),
v = i(v, w, t, u, x[o + 7], E, 1735328473),
u = i(u, v, w, t, x[o + 12], F, 2368359562),
t = j(t, u, v, w, x[o + 5], G, 4294588738),
w = j(w, t, u, v, x[o + 8], H, 2272392833),
v = j(v, w, t, u, x[o + 11], I, 1839030562),
u = j(u, v, w, t, x[o + 14], J, 4259657740),
t = j(t, u, v, w, x[o + 1], G, 2763975236),
w = j(w, t, u, v, x[o + 4], H, 1272893353),
v = j(v, w, t, u, x[o + 7], I, 4139469664),
u = j(u, v, w, t, x[o + 10], J, 3200236656),
t = j(t, u, v, w, x[o + 13], G, 681279174),
w = j(w, t, u, v, x[o + 0], H, 3936430074),
v = j(v, w, t, u, x[o + 3], I, 3572445317),
u = j(u, v, w, t, x[o + 6], J, 76029189),
t = j(t, u, v, w, x[o + 9], G, 3654602809),
w = j(w, t, u, v, x[o + 12], H, 3873151461),
v = j(v, w, t, u, x[o + 15], I, 530742520),
u = j(u, v, w, t, x[o + 2], J, 3299628645),
t = k(t, u, v, w, x[o + 0], K, 4096336452),
w = k(w, t, u, v, x[o + 7], L, 1126891415),
v = k(v, w, t, u, x[o + 14], M, 2878612391),
u = k(u, v, w, t, x[o + 5], N, 4237533241),
t = k(t, u, v, w, x[o + 12], K, 1700485571),
w = k(w, t, u, v, x[o + 3], L, 2399980690),
v = k(v, w, t, u, x[o + 10], M, 4293915773),
u = k(u, v, w, t, x[o + 1], N, 2240044497),
t = k(t, u, v, w, x[o + 8], K, 1873313359),
w = k(w, t, u, v, x[o + 15], L, 4264355552),
v = k(v, w, t, u, x[o + 6], M, 2734768916),
u = k(u, v, w, t, x[o + 13], N, 1309151649),
t = k(t, u, v, w, x[o + 4], K, 4149444226),
w = k(w, t, u, v, x[o + 11], L, 3174756917),
v = k(v, w, t, u, x[o + 2], M, 718787259),
u = k(u, v, w, t, x[o + 9], N, 3951481745),
t = c(t, p),
u = c(u, q),
v = c(v, r),
w = c(w, s);
var O = m(t) + m(u) + m(v) + m(w);
return O.toLowerCase()
}
然后使用Python调用该JS文件对sign_key进行解析。
import execjs
# 读取JS文件
with open('demo1_sign加密.js', 'r', encoding='UTF-8') as f:
jscode = f.read()
sign = execjs.compile(jscode).call('h', sign_key)
print(sign)
9ab892292b22a6e1980824595087b7cd
生成的sign为9ab892292b22a6e1980824595087b7cd

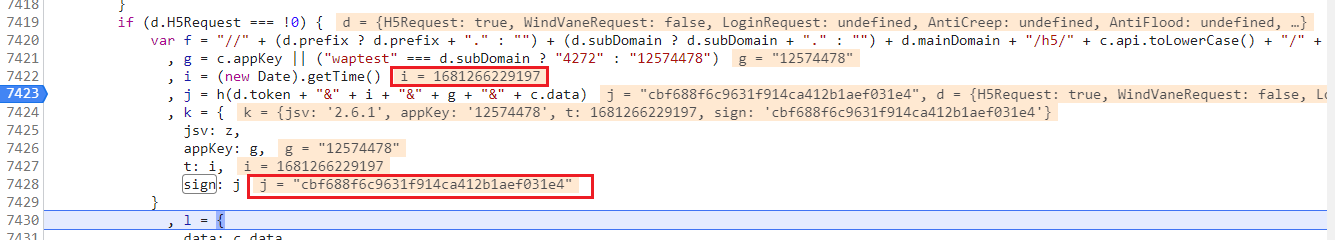

为了验证算法的正确性，可以把时间戳修改为和网页上的一致，将代码生成的sign与网页进行对比。
将时间戳修改为1681266229197，再次运行脚本，查看生成的sign
import time
import execjs
# 模拟sign参数
token = '39fa28587fbbb780591c41b82f10768d'
# i = int(time.time() * 1000)
i = 1681266229197
g = '12574478'
data = '{"cid":"TpFacRecommendService:TpFacRecommendService","methodName":"execute","params":"{\\"query\\":\\"mainCate=10166&leafCate=\\",\\"sort\\":\\"mix\\",\\"pageNo\\":\\"1\\",\\"pageSize\\":\\"20\\",\\"from\\":\\"PC\\",\\"trafficSource\\":\\"pc_index_recommend\\"}"}'
sign_key = token + "&" + str(i) + "&" + g + "&" + data
# 读取JS文件
with open('demo1_sign加密.js', 'r', encoding='UTF-8') as f:
jscode = f.read()
sign = execjs.compile(jscode).call('h', sign_key)
print(sign)
cbf688f6c9631f914ca412b1aef031e4
发现与网页中的sign一致。
网页数据采集
获取到sign数据后就可以直接发送GET请求去获取数据了。
# 接下来使用sign参数获取数据
import requests
# 请求API
url = 'https://h5api.m.1688.com/h5/mtop.taobao.widgetservice.getjsoncomponent/1.0/'
params = {
'jsv': '2.6.1',
'appKey': '12574478',
't': i,
'sign': sign_key,
'v': '1.0',
'type': 'jsonp',
'isSec': 0,
'timeout': 20000,
'api': 'mtop.taobao.widgetService.getJsonComponent',
'dataType': 'jsonp',
'jsonpIncPrefix': 'mboxfc',
'callback': 'mtopjsonpmboxfc3',
'data': data,
}
headers = {
'cookie': 'lid=luo736704198; alicnweb=touch_tb_at%3D1680934612278; _m_h5_tk=98db12d56bb5e26159c2c0e16743d0c0_1681220346823; _m_h5_tk_enc=fb7429c7b227adfe55c512741839e415; cookie1=BxSpHzb8GFsmSZHfbbB2adm%2FkInUN6kmS5LxVyBbwTk%3D; cookie2=166d0849c545842eeffd74dfaf147c9c; cookie17=UUGiHQt0GQ%2BU%2FQ%3D%3D; sgcookie=E10075e0oW6bDw5X8dlaQDOiIR0vgWI%2BpmsqdF%2FlAo9M6UlMoIqVMOxCAs7TF5EHvCnYNssyu8aagDM0vx7nDQHHjLvE801aXHKdHiP9xlB2Zck%3D; t=73833a3ac4c852d0f5656f3778fb2fff; _tb_token_=333efe5eee54b; sg=85d; csg=5e2d3c90; unb=2906023675; uc4=nk4=0%40DfV%2FByDhGKnRdwQiYyWpvjxAjEKwc6o%3D&id4=0%40U2OVFc7GR%2FBF8IuOJ%2FZPP0%2Fk2IT8; __cn_logon__=true; __cn_logon_id__=luo736704198; ali_apache_track=c_mid=b2b-2906023675ae282|c_lid=luo736704198|c_ms=1; ali_apache_tracktmp=c_w_signed=Y; _nk_=luo736704198; last_mid=b2b-2906023675ae282; _csrf_token=1681213129057; __mwb_logon_id__=luo736704198; mwb=ng; x5sec=7b226d746f703b32223a22656661303666666434383563396433376463376165353361303661353332303243494b5131614547454e663671746134745a587068774561444449354d4459774d6a4d324e7a55374d544362396657592f762f2f2f2f384251414d3d227d; cna=6QwQGjcvqQ0CAatxtqzgPaAk; l=fBMhOOe4NSPHmkzvXOfaFurza77OSIRYYuPzaNbMi9fP9k1B5yUcW1g7-A86C3GVFsdkR3o-P8F6BeYBq3xonxvtjsx8SPDmndLHR35..; isg=BAUFck8ezbE5senoi1gnyHIBFEE_wrlUWmfejgdqwTxLniUQzxLJJJN4qMJo3tEM',
'referer': 'https://sale.1688.com/',
'user-agent': 'Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/111.0.0.0 Safari/537.36'
}
res = requests.get(url, params=params, headers=headers)
print(res.text)

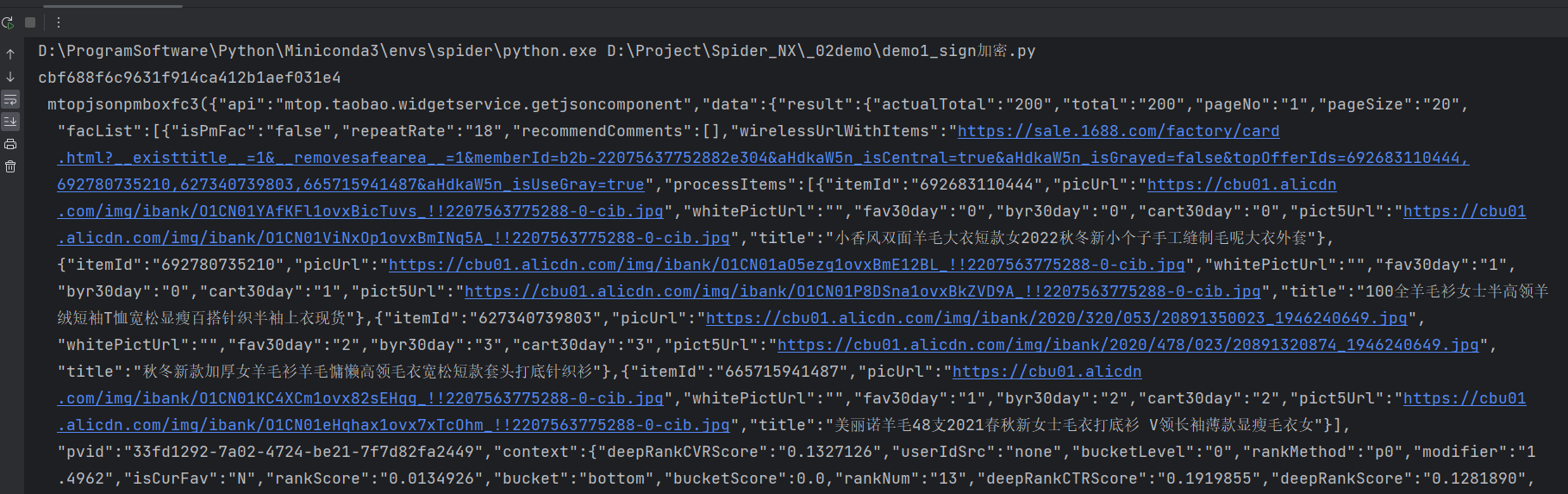

现在已经能够正常请求数据。
