Notification : 通知
一 使用大纲
1 获取通知栏管理
NotificationManager manager = (NotificationManager)getSystemService(NOTIFICATION_SERVICE);
2 实例化通知栏构造器
Notification notification = new NotificationCompat.Builder()
.setContentTitle()
.setContentText()
.setSmallIcon()
.setLargeIcon()
.setColor()
.setContentIntent()
.setAutoCancel()
.build();
3 发送通知 / 取消通知
manager.notify(1,notification)
manager.cancel(1)
二 代码
step1 activity_main.xml
两个按钮,对应 发送通知 和 取消通知 这个两个事件
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:orientation="vertical">
<Button
android:text="发出通知"
android:onClick="sendMessage"
android:layout_width="wrap_content"
android:layout_height="wrap_content"/>
<Button
android:text="取消通知"
android:onClick="cancelMessage"
android:layout_width="wrap_content"
android:layout_height="wrap_content"/>
</LinearLayout>
step2 MyNotificationActivity.java
setContentIntent 设置通知的意图,跳转到这里的
package com.example.mynotification;
import android.os.Bundle;
import android.util.Log;
public class MyNotificationActivity extends MainActivity{
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);

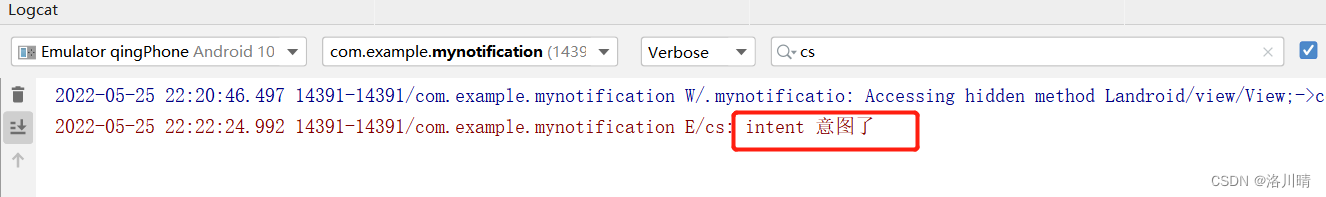

Log.e("cs","intent 意图了");
}
}

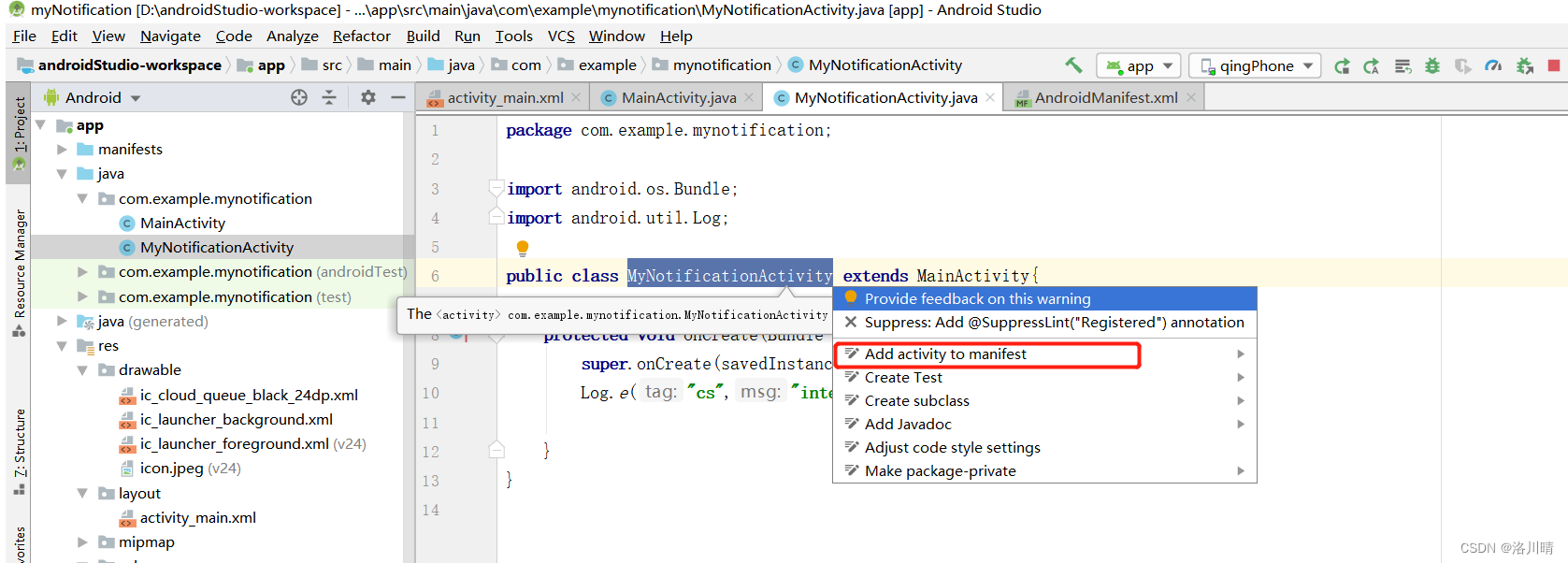

注意要注册一下: (否则执行不了这里的代码)
选中类名,alt + enter 快捷键,点 add activity to mainfest
step3 MainActivity.java
package com.example.mynotification;
import androidx.appcompat.app.AppCompatActivity;
import androidx.core.app.NotificationCompat;
import android.app.Notification;
import android.app.NotificationChannel;
import android.app.NotificationManager;
import android.app.PendingIntent;
import android.content.Intent;
import android.graphics.BitmapFactory;
import android.graphics.Color;
import android.os.Build;
import android.os.Bundle;
import android.view.View;
public class MainActivity extends AppCompatActivity {
//通知的管理类,负责发通知,清除通知等操作
NotificationManager manager;
//通知信息类,对应通知栏的各种属性
Notification notification;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
//step1 获取通知栏管理
//NotificationManager 是一个系统 Service
manager = (NotificationManager)getSystemService(NOTIFICATION_SERVICE);
//版本号 如果大于等于 8
//NotificationManager.IMPORTANCE_HIGH :重要程度高
if(Build.VERSION.SDK_INT >= Build.VERSION_CODES.O){
NotificationChannel channel = new NotificationChannel("cs","测试通知",NotificationManager.IMPORTANCE_HIGH);
manager.createNotificationChannel(channel);
}
//setContentIntent 的准备工作
//通知的意图
//MyNotificationActivity :自己写的 通知的意图类
Intent myIntent = new Intent(MainActivity.this , MyNotificationActivity.class);
PendingIntent pendingIntent = PendingIntent.getActivity(MainActivity.this,0,myIntent,0);
//step2 实例化通知栏构造器
//新建通知,设置通知
//setSmallIcon 设置小图标:注意图片不能带颜色
//setColor 设置小图标的颜色
//setContentIntent : 设置通知的意图
//setAutoCancel(true) :点击通知后通知就消除了
notification = new NotificationCompat.Builder(this,"cs")
.setContentTitle("官方通知:")
.setContentText("通知你的女朋友到了,快过来领")
.setSmallIcon(R.drawable.ic_cloud_queue_black_24dp)
.setLargeIcon(BitmapFactory.decodeResource(getResources(),R.drawable.icon))
.setColor(Color.parseColor("#ff0000"))
.setContentIntent(pendingIntent)
.setAutoCancel(true)
.build();
}
//按钮 触发 发送通知事件
public void sendMessage(View view) {
manager.notify(1,notification);
}
//按钮 触发 取消通知事件
public void cancelMessage(View view) {
manager.cancel(1);
}
}

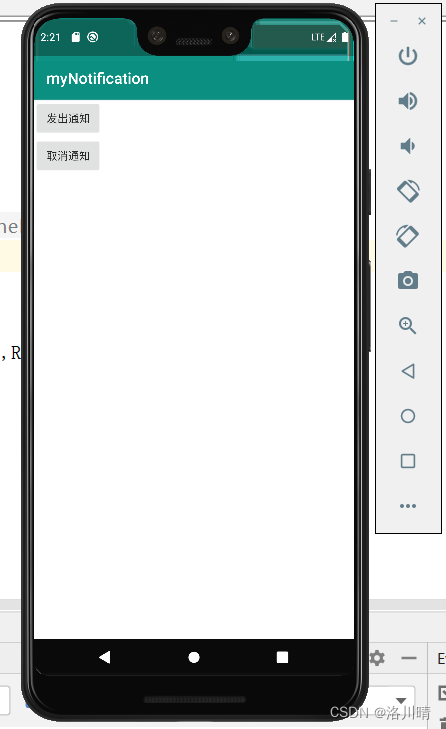

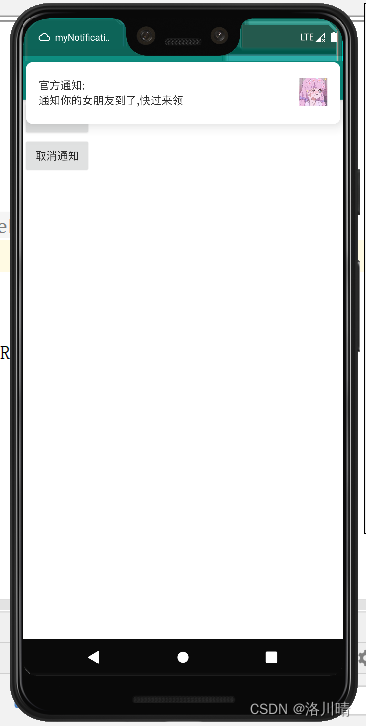

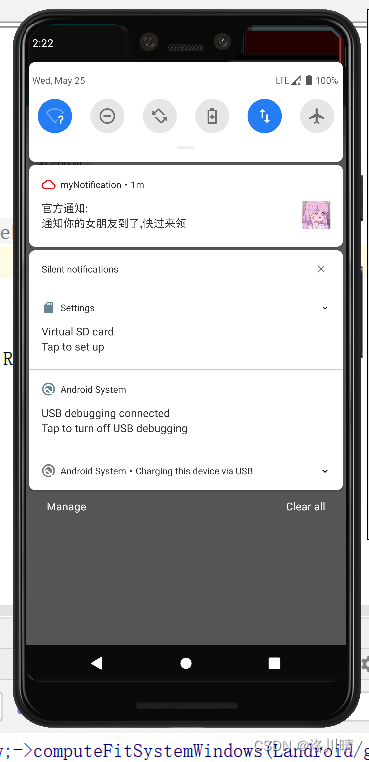

效果
