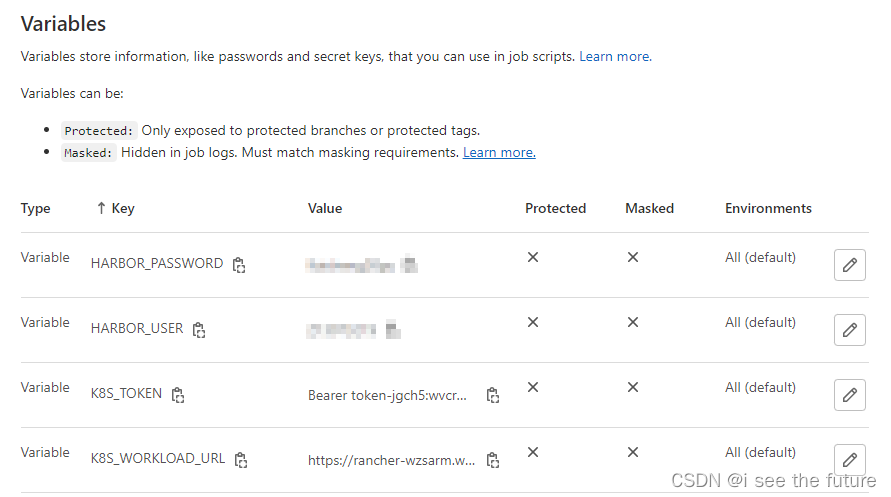

gitlab设定CICD的变量

在这里插入图片描述

  1. HARBOR_PASSWORD：密码
  2. HARBOR_USER：工号

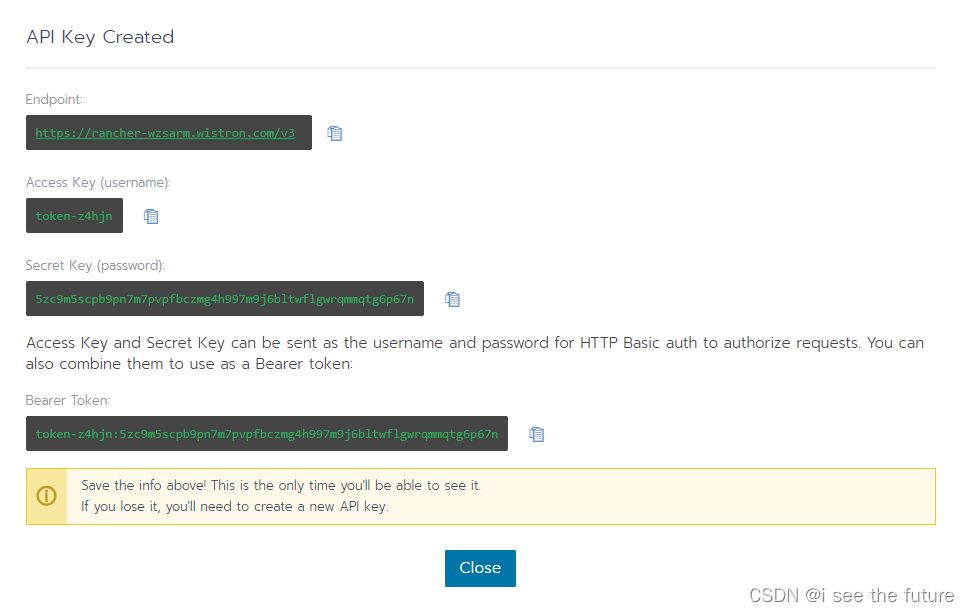

  3. K8S_TOKEN：Bearer + rancher key
    在这里插入图片描述

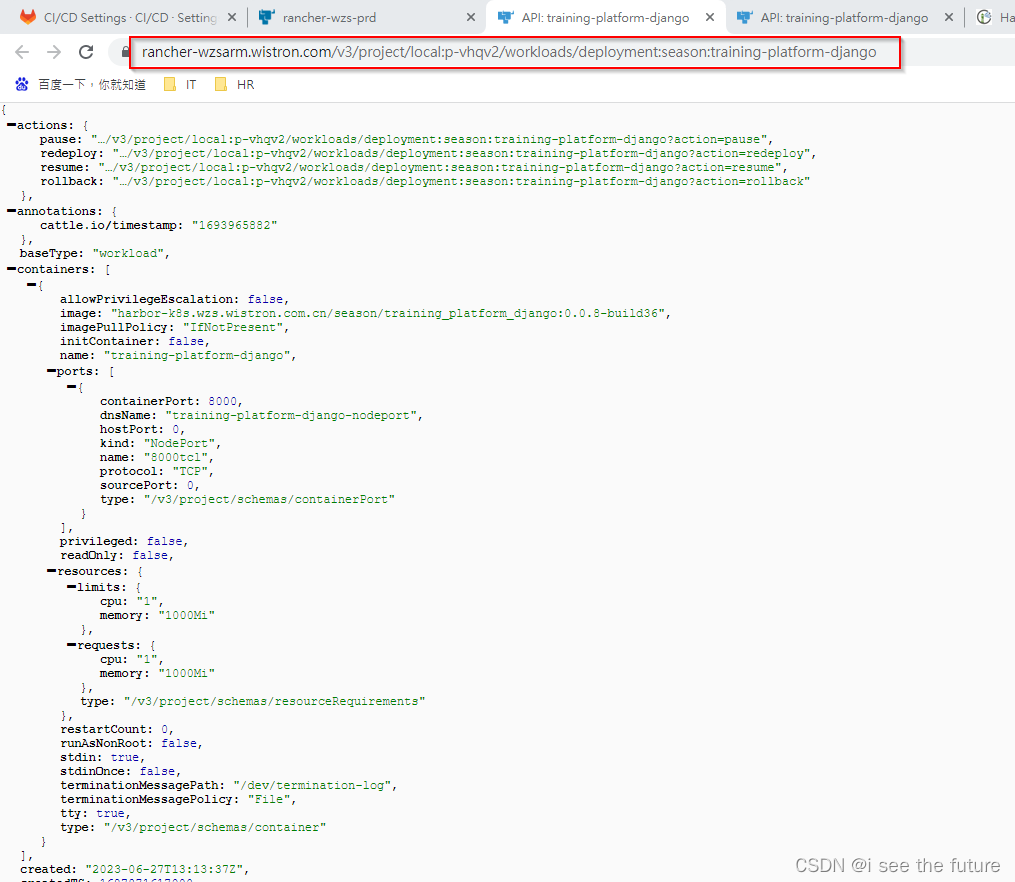

  4. K8S_WORKLOAD_URL：选择【View in API】的URL，并非workload的URL。
    如果是新版rancher，则使用/g回去旧版界面。
    在这里插入图片描述
    在这里插入图片描述

准备json.txt方法1（W公司SOP，但是可能失效）

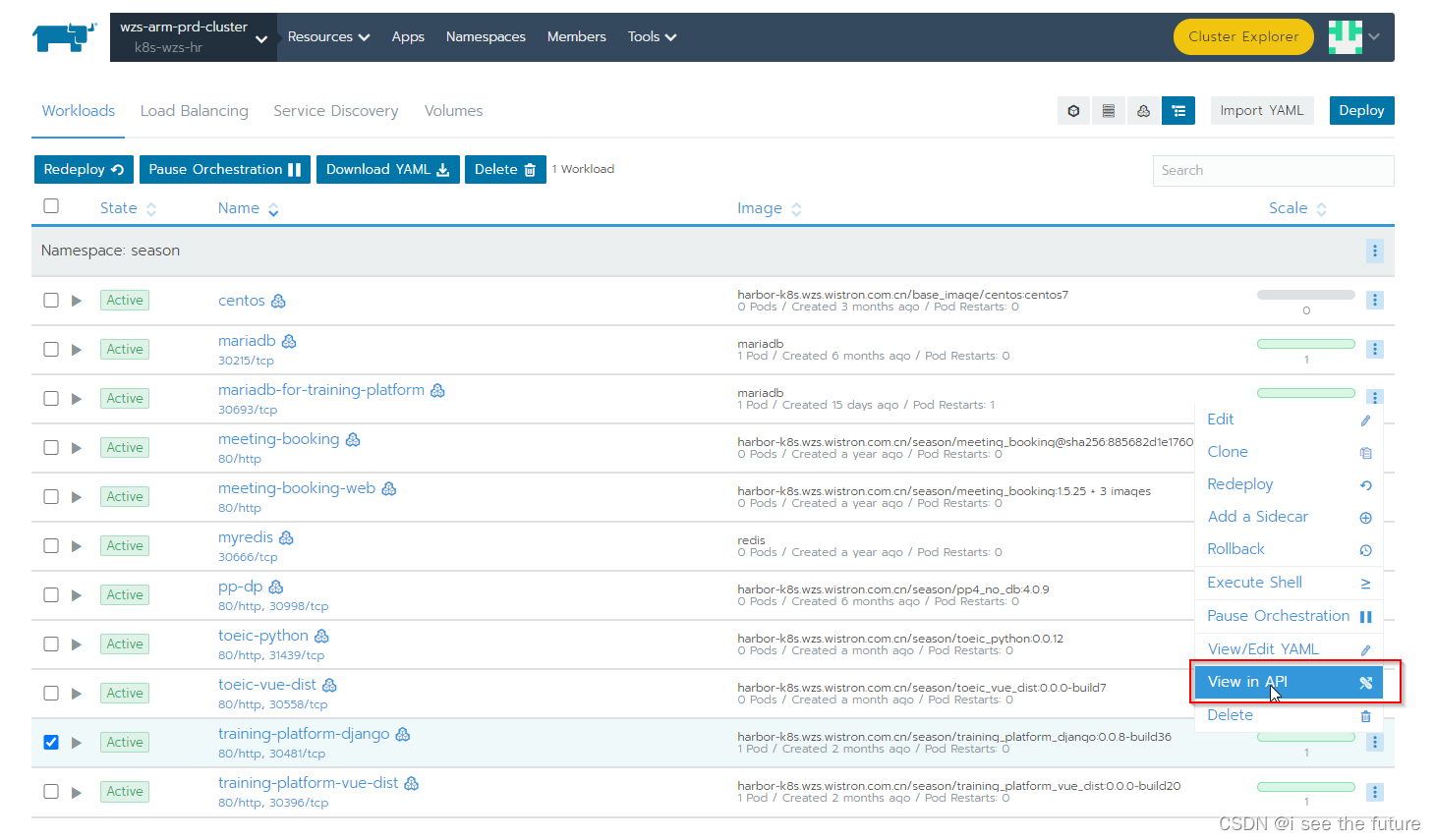

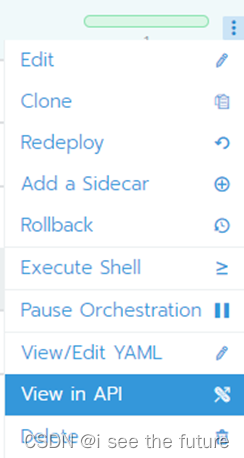

  1. 选择workload，进入【View in API】
    在这里插入图片描述

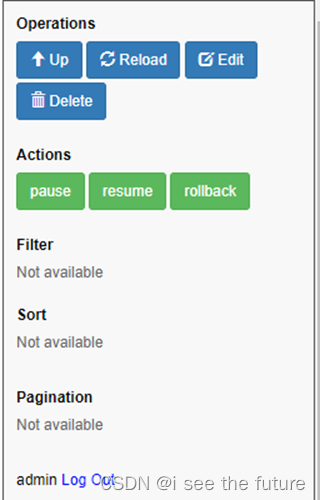

  2. right panel >> click edit
    在这里插入图片描述

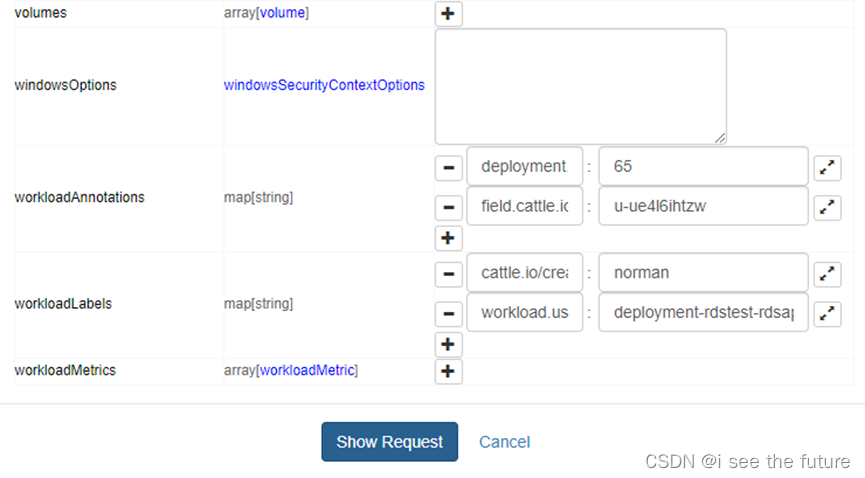

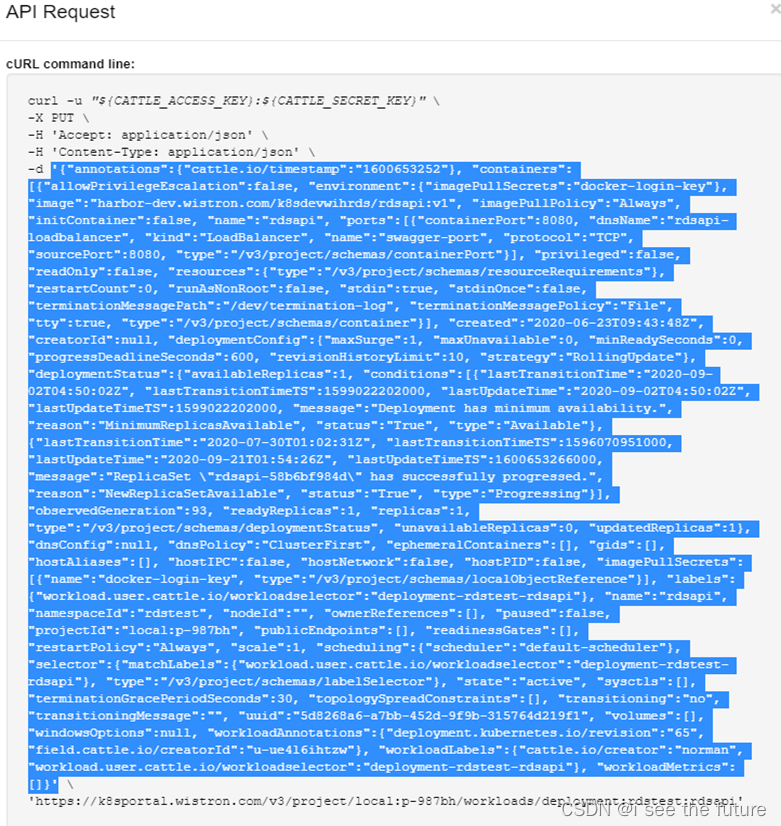

  3. Move to buttom , and click “Show Request”
    在这里插入图片描述

  4. Copy the highlight area from “-d” parameter content
    在这里插入图片描述

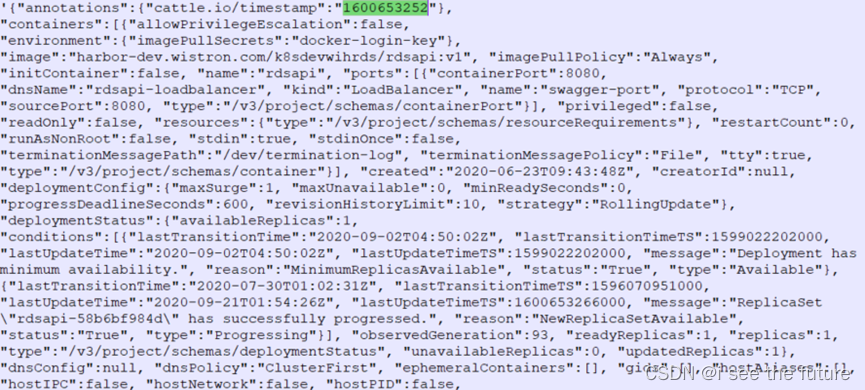

  5. Create json.txt file and paste the content
    在这里插入图片描述

  6. 记得修改image tag和 “cattle.io/timestamp”: “CHANGEME”。

{
    "actions": {
        "pause": "https://rancher-wzsarm.wistron.com/v3/project/local:p-vhqv2/workloads/deployment:season:training-platform-django?action=pause",
        "redeploy": "https://rancher-wzsarm.wistron.com/v3/project/local:p-vhqv2/workloads/deployment:season:training-platform-django?action=redeploy",
        "resume": "https://rancher-wzsarm.wistron.com/v3/project/local:p-vhqv2/workloads/deployment:season:training-platform-django?action=resume",
        "rollback": "https://rancher-wzsarm.wistron.com/v3/project/local:p-vhqv2/workloads/deployment:season:training-platform-django?action=rollback"
    },
    "annotations": {
        "cattle.io/timestamp": "CHANGEME"
    },
    "baseType": "workload",
    "containers": [
        {
            "allowPrivilegeEscalation": false,
            "image": "harbor-k8s.wzs.wistron.com.cn/season/training_platform_django:0.0.8-build36",
            "imagePullPolicy": "IfNotPresent",
            "initContainer": false,
            "name": "training-platform-django",
            "ports": [
                {
                    "containerPort": 8000,
                    "dnsName": "training-platform-django-nodeport",
                    "hostPort": 0,
                    "kind": "NodePort",
                    "name": "8000tcl",
                    "protocol": "TCP",
                    "sourcePort": 0,
                    "type": "/v3/project/schemas/containerPort"
                }
            ],
            "privileged": false,
            "readOnly": false,
            "resources": {
                "limits": {
                    "cpu": "1",
                    "memory": "1000Mi"
                },
                "requests": {
                    "cpu": "1",
                    "memory": "1000Mi"
                },
                "type": "/v3/project/schemas/resourceRequirements"
            },
            "restartCount": 0,
            "runAsNonRoot": false,
            "stdin": true,
            "stdinOnce": false,
            "terminationMessagePath": "/dev/termination-log",
            "terminationMessagePolicy": "File",
            "tty": true,
            "type": "/v3/project/schemas/container"
        }
    ],
    "created": "2023-06-27T13:13:37Z",
    "createdTS": 1687871617000,
    "creatorId": null,
    "deploymentConfig": {
        "maxSurge": 1,
        "maxUnavailable": 0,
        "minReadySeconds": 0,
        "progressDeadlineSeconds": 600,
        "revisionHistoryLimit": 10,
        "strategy": "RollingUpdate"
    },
    "deploymentStatus": {
        "availableReplicas": 1,
        "conditions": [
            {
                "lastTransitionTime": "2023-06-27T13:13:37Z",
                "lastTransitionTimeTS": 1687871617000,
                "lastUpdateTime": "2023-08-24T05:46:46Z",
                "lastUpdateTimeTS": 1692856006000,
                "message": "ReplicaSet \"training-platform-django-5dc8b9dc9c\" has successfully progressed.",
                "reason": "NewReplicaSetAvailable",
                "status": "True",
                "type": "Progressing"
            },
            {
                "lastTransitionTime": "2023-09-05T09:48:01Z",
                "lastTransitionTimeTS": 1693907281000,
                "lastUpdateTime": "2023-09-05T09:48:01Z",
                "lastUpdateTimeTS": 1693907281000,
                "message": "Deployment has minimum availability.",
                "reason": "MinimumReplicasAvailable",
                "status": "True",
                "type": "Available"
            }
        ],
        "observedGeneration": 67,
        "readyReplicas": 1,
        "replicas": 1,
        "type": "/v3/project/schemas/deploymentStatus",
        "unavailableReplicas": 0,
        "updatedReplicas": 1
    },
    "dnsConfig": {
        "type": "/v3/project/schemas/podDNSConfig"
    },
    "dnsPolicy": "ClusterFirst",
    "hostIPC": false,
    "hostNetwork": false,
    "hostPID": false,
    "id": "deployment:season:training-platform-django",
    "labels": {
        "workload.user.cattle.io/workloadselector": "deployment-season-training-platform-django"
    },
    "links": {
        "remove": "https://rancher-wzsarm.wistron.com/v3/project/local:p-vhqv2/workloads/deployment:season:training-platform-django",
        "revisions": "https://rancher-wzsarm.wistron.com/v3/project/local:p-vhqv2/workloads/deployment:season:training-platform-django/revisions",
        "self": "https://rancher-wzsarm.wistron.com/v3/project/local:p-vhqv2/workloads/deployment:season:training-platform-django",
        "update": "https://rancher-wzsarm.wistron.com/v3/project/local:p-vhqv2/workloads/deployment:season:training-platform-django",
        "yaml": "https://rancher-wzsarm.wistron.com/v3/project/local:p-vhqv2/workloads/deployment:season:training-platform-django/yaml"
    },
    "name": "training-platform-django",
    "namespaceId": "season",
    "paused": false,
    "projectId": "local:p-vhqv2",
    "publicEndpoints": [
        {
            "addresses": [
                "10.41.241.111",
                "10.41.241.112",
                "10.41.241.113",
                "10.41.241.114",
                "10.41.241.115",
                "10.41.241.116"
            ],
            "allNodes": false,
            "hostname": "training-platform-django.k8sprd-wzs.k8s.wistron.com.cn",
            "ingressId": "season:training-platform-django-ingress",
            "nodeId": null,
            "podId": null,
            "port": 80,
            "protocol": "HTTP",
            "serviceId": "season:ingress-053ebdc075a82cf5efbe1ac16b822ab4"
        },
        {
            "addresses": [
                "10.41.241.111"
            ],
            "allNodes": true,
            "ingressId": null,
            "nodeId": null,
            "podId": null,
            "port": 30481,
            "protocol": "TCP",
            "serviceId": "season:training-platform-django-nodeport"
        }
    ],
    "restartPolicy": "Always",
    "scale": 1,
    "scheduling": {
        "scheduler": "default-scheduler"
    },
    "selector": {
        "matchLabels": {
            "workload.user.cattle.io/workloadselector": "deployment-season-training-platform-django"
        },
        "type": "/v3/project/schemas/labelSelector"
    },
    "state": "active",
    "terminationGracePeriodSeconds": 30,
    "transitioning": "no",
    "transitioningMessage": "",
    "type": "deployment",
    "uuid": "ab30eb79-f594-4de1-a615-b042b011b02f",
    "workloadAnnotations": {
        "deployment.kubernetes.io/revision": "12",
        "field.cattle.io/creatorId": "u-mp27e6gufb"
    },
    "workloadLabels": {
        "cattle.io/creator": "norman",
        "workload.user.cattle.io/workloadselector": "deployment-season-training-platform-django"
    }
}

准备json.txt方法2（Vincent Wen方法）

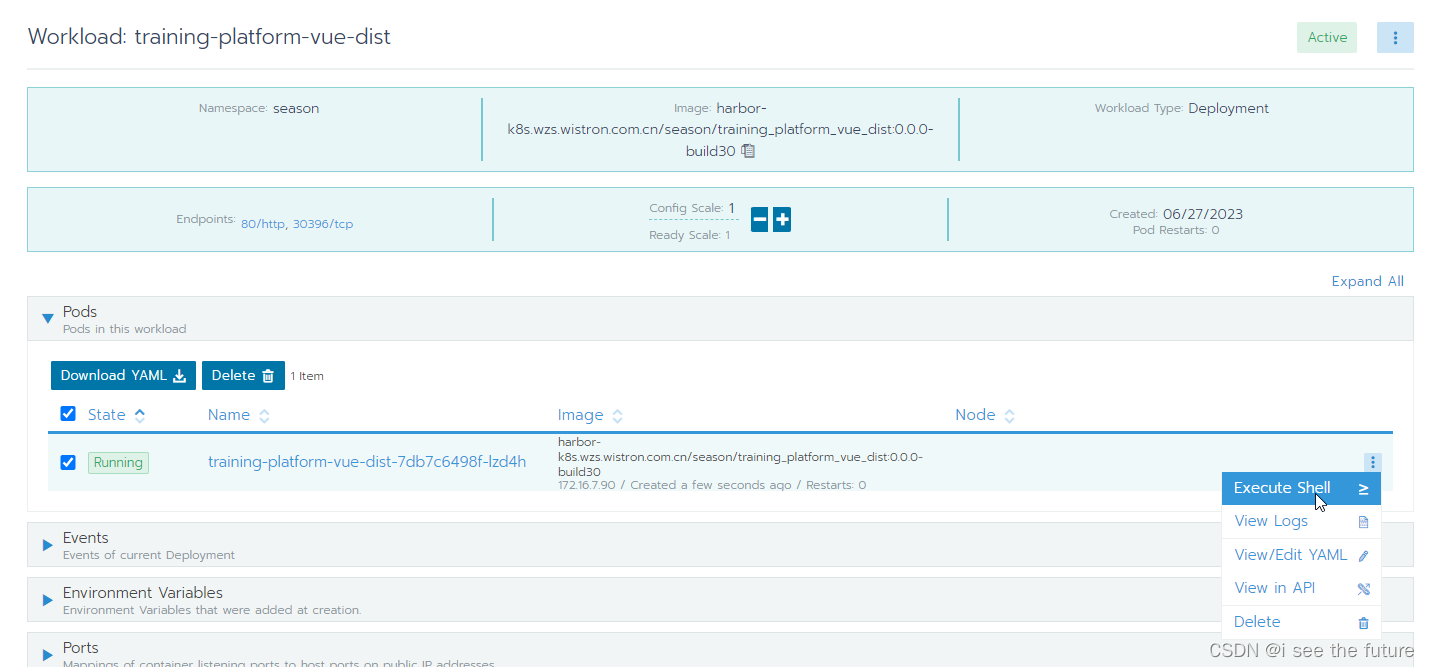

1.获取token
在这里插入图片描述

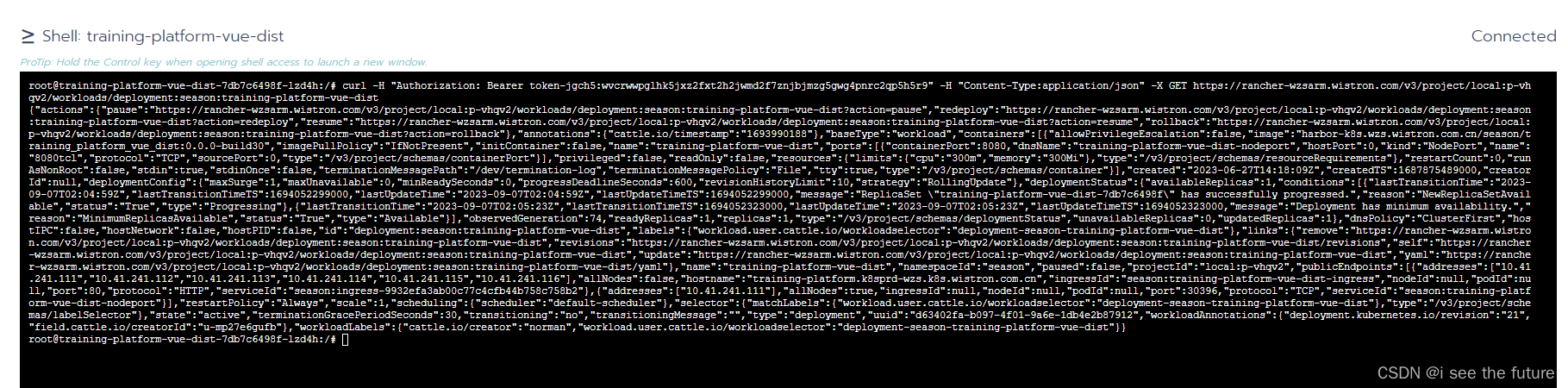

输入curl -H "Authorization: Bearer token-jgch5:wvcrwwpglhk5jxz2fxt2h2jwmd2f7znjbjmzg5gwg4pnrc2qp5h5r9" -H "Content-Type:application/json" -X GET https://rancher-wzsarm.wistron.com/v3/project/local:p-vhqv2/workloads/deployment:season:training-platform-vue-dist

相当于是 curl -H "Authorization:${K8S_TOKEN}" -H "Content-Type:application/json" -X GET ${K8S_WORKLOAD_URL}
在这里插入图片描述
2. 复制并写入json.txt中。

{
	"actions": {
		"pause": "https://rancher-wzsarm.wistron.com/v3/project/local:p-vhqv2/workloads/deployment:season:training-platform-vue-dist?action=pause",
		"redeploy": "https://rancher-wzsarm.wistron.com/v3/project/local:p-vhqv2/workloads/deployment:season:training-platform-vue-dist?action=redeploy",
		"resume": "https://rancher-wzsarm.wistron.com/v3/project/local:p-vhqv2/workloads/deployment:season:training-platform-vue-dist?action=resume",
		"rollback": "https://rancher-wzsarm.wistron.com/v3/project/local:p-vhqv2/workloads/deployment:season:training-platform-vue-dist?action=rollback"
	},
	"annotations": {
		"cattle.io/timestamp": "1693990188"
	},
	"baseType": "workload",
	"containers": [{
		"allowPrivilegeEscalation": false,
		"image": "harbor-k8s.wzs.wistron.com.cn/season/training_platform_vue_dist:0.0.0-build30",
		"imagePullPolicy": "IfNotPresent",
		"initContainer": false,
		"name": "training-platform-vue-dist",
		"ports": [{
			"containerPort": 8080,
			"dnsName": "training-platform-vue-dist-nodeport",
			"hostPort": 0,
			"kind": "NodePort",
			"name": "8080tcl",
			"protocol": "TCP",
			"sourcePort": 0,
			"type": "/v3/project/schemas/containerPort"
		}],
		"privileged": false,
		"readOnly": false,
		"resources": {
			"limits": {
				"cpu": "300m",
				"memory": "300Mi"
			},
			"type": "/v3/project/schemas/resourceRequirements"
		},
		"restartCount": 0,
		"runAsNonRoot": false,
		"stdin": true,
		"stdinOnce": false,
		"terminationMessagePath": "/dev/termination-log",
		"terminationMessagePolicy": "File",
		"tty": true,
		"type": "/v3/project/schemas/container"
	}],
	"created": "2023-06-27T14:18:09Z",
	"createdTS": 1687875489000,
	"creatorId": null,
	"deploymentConfig": {
		"maxSurge": 1,
		"maxUnavailable": 0,
		"minReadySeconds": 0,
		"progressDeadlineSeconds": 600,
		"revisionHistoryLimit": 10,
		"strategy": "RollingUpdate"
	},
	"deploymentStatus": {
		"availableReplicas": 1,
		"conditions": [{
			"lastTransitionTime": "2023-09-07T02:04:59Z",
			"lastTransitionTimeTS": 1694052299000,
			"lastUpdateTime": "2023-09-07T02:04:59Z",
			"lastUpdateTimeTS": 1694052299000,
			"message": "ReplicaSet \"training-platform-vue-dist-7db7c6498f\" has successfully progressed.",
			"reason": "NewReplicaSetAvailable",
			"status": "True",
			"type": "Progressing"
		}, {
			"lastTransitionTime": "2023-09-07T02:05:23Z",
			"lastTransitionTimeTS": 1694052323000,
			"lastUpdateTime": "2023-09-07T02:05:23Z",
			"lastUpdateTimeTS": 1694052323000,
			"message": "Deployment has minimum availability.",
			"reason": "MinimumReplicasAvailable",
			"status": "True",
			"type": "Available"
		}],
		"observedGeneration": 74,
		"readyReplicas": 1,
		"replicas": 1,
		"type": "/v3/project/schemas/deploymentStatus",
		"unavailableReplicas": 0,
		"updatedReplicas": 1
	},
	"dnsPolicy": "ClusterFirst",
	"hostIPC": false,
	"hostNetwork": false,
	"hostPID": false,
	"id": "deployment:season:training-platform-vue-dist",
	"labels": {
		"workload.user.cattle.io/workloadselector": "deployment-season-training-platform-vue-dist"
	},
	"links": {
		"remove": "https://rancher-wzsarm.wistron.com/v3/project/local:p-vhqv2/workloads/deployment:season:training-platform-vue-dist",
		"revisions": "https://rancher-wzsarm.wistron.com/v3/project/local:p-vhqv2/workloads/deployment:season:training-platform-vue-dist/revisions",
		"self": "https://rancher-wzsarm.wistron.com/v3/project/local:p-vhqv2/workloads/deployment:season:training-platform-vue-dist",
		"update": "https://rancher-wzsarm.wistron.com/v3/project/local:p-vhqv2/workloads/deployment:season:training-platform-vue-dist",
		"yaml": "https://rancher-wzsarm.wistron.com/v3/project/local:p-vhqv2/workloads/deployment:season:training-platform-vue-dist/yaml"
	},
	"name": "training-platform-vue-dist",
	"namespaceId": "season",
	"paused": false,
	"projectId": "local:p-vhqv2",
	"publicEndpoints": [{
		"addresses": ["10.41.241.111", "10.41.241.112", "10.41.241.113", "10.41.241.114", "10.41.241.115", "10.41.241.116"],
		"allNodes": false,
		"hostname": "training-platform.k8sprd-wzs.k8s.wistron.com.cn",
		"ingressId": "season:training-platform-vue-dist-ingress",
		"nodeId": null,
		"podId": null,
		"port": 80,
		"protocol": "HTTP",
		"serviceId": "season:ingress-9932efa3ab00c77c4cfb44b758c758b2"
	}, {
		"addresses": ["10.41.241.111"],
		"allNodes": true,
		"ingressId": null,
		"nodeId": null,
		"podId": null,
		"port": 30396,
		"protocol": "TCP",
		"serviceId": "season:training-platform-vue-dist-nodeport"
	}],
	"restartPolicy": "Always",
	"scale": 1,
	"scheduling": {
		"scheduler": "default-scheduler"
	},
	"selector": {
		"matchLabels": {
			"workload.user.cattle.io/workloadselector": "deployment-season-training-platform-vue-dist"
		},
		"type": "/v3/project/schemas/labelSelector"
	},
	"state": "active",
	"terminationGracePeriodSeconds": 30,
	"transitioning": "no",
	"transitioningMessage": "",
	"type": "deployment",
	"uuid": "d63402fa-b097-4f01-9a6e-1db4e2b87912",
	"workloadAnnotations": {
		"deployment.kubernetes.io/revision": "21",
		"field.cattle.io/creatorId": "u-mp27e6gufb"
	},
	"workloadLabels": {
		"cattle.io/creator": "norman",
		"workload.user.cattle.io/workloadselector": "deployment-season-training-platform-vue-dist"
	}
}
  1. 记得修改json.txt中image tag和 “cattle.io/timestamp”: “CHANGEME”。
{
	"actions": {
		"pause": "https://rancher-wzsarm.wistron.com/v3/project/local:p-vhqv2/workloads/deployment:season:training-platform-vue-dist?action=pause",
		"redeploy": "https://rancher-wzsarm.wistron.com/v3/project/local:p-vhqv2/workloads/deployment:season:training-platform-vue-dist?action=redeploy",
		"resume": "https://rancher-wzsarm.wistron.com/v3/project/local:p-vhqv2/workloads/deployment:season:training-platform-vue-dist?action=resume",
		"rollback": "https://rancher-wzsarm.wistron.com/v3/project/local:p-vhqv2/workloads/deployment:season:training-platform-vue-dist?action=rollback"
	},
	"annotations": {
		"cattle.io/timestamp": "CHANGEME"
	},
	"baseType": "workload",
	"containers": [{
		"allowPrivilegeEscalation": false,
		"image": "harbor-k8s.wzs.wistron.com.cn/season/training_platform_vue_dist:0.0.0-buildCI_PIPELINE_IID", #(image需要修订版本号)
		"imagePullPolicy": "IfNotPresent",
		"initContainer": false,
		"name": "training-platform-vue-dist",
		"ports": [{
			"containerPort": 8080,
			"dnsName": "training-platform-vue-dist-nodeport",
			"hostPort": 0,
			"kind": "NodePort",
			"name": "8080tcl",
			"protocol": "TCP",
			"sourcePort": 0,
			"type": "/v3/project/schemas/containerPort"
		}],
		"privileged": false,
		"readOnly": false,
		"resources": {
			"limits": {
				"cpu": "300m",
				"memory": "300Mi"
			},
			"type": "/v3/project/schemas/resourceRequirements"
		},
		"restartCount": 0,
		"runAsNonRoot": false,
		"stdin": true,
		"stdinOnce": false,
		"terminationMessagePath": "/dev/termination-log",
		"terminationMessagePolicy": "File",
		"tty": true,
		"type": "/v3/project/schemas/container"
	}],
	"created": "2023-06-27T14:18:09Z",
	"createdTS": 1687875489000,
	"creatorId": null,
	"deploymentConfig": {
		"maxSurge": 1,
		"maxUnavailable": 0,
		"minReadySeconds": 0,
		"progressDeadlineSeconds": 600,
		"revisionHistoryLimit": 10,
		"strategy": "RollingUpdate"
	},
	"deploymentStatus": {
		"availableReplicas": 1,
		"conditions": [{
			"lastTransitionTime": "2023-09-07T02:04:59Z",
			"lastTransitionTimeTS": 1694052299000,
			"lastUpdateTime": "2023-09-07T02:04:59Z",
			"lastUpdateTimeTS": 1694052299000,
			"message": "ReplicaSet \"training-platform-vue-dist-7db7c6498f\" has successfully progressed.",
			"reason": "NewReplicaSetAvailable",
			"status": "True",
			"type": "Progressing"
		}, {
			"lastTransitionTime": "2023-09-07T02:05:23Z",
			"lastTransitionTimeTS": 1694052323000,
			"lastUpdateTime": "2023-09-07T02:05:23Z",
			"lastUpdateTimeTS": 1694052323000,
			"message": "Deployment has minimum availability.",
			"reason": "MinimumReplicasAvailable",
			"status": "True",
			"type": "Available"
		}],
		"observedGeneration": 74,
		"readyReplicas": 1,
		"replicas": 1,
		"type": "/v3/project/schemas/deploymentStatus",
		"unavailableReplicas": 0,
		"updatedReplicas": 1
	},
	"dnsPolicy": "ClusterFirst",
	"hostIPC": false,
	"hostNetwork": false,
	"hostPID": false,
	"id": "deployment:season:training-platform-vue-dist",
	"labels": {
		"workload.user.cattle.io/workloadselector": "deployment-season-training-platform-vue-dist"
	},
	"links": {
		"remove": "https://rancher-wzsarm.wistron.com/v3/project/local:p-vhqv2/workloads/deployment:season:training-platform-vue-dist",
		"revisions": "https://rancher-wzsarm.wistron.com/v3/project/local:p-vhqv2/workloads/deployment:season:training-platform-vue-dist/revisions",
		"self": "https://rancher-wzsarm.wistron.com/v3/project/local:p-vhqv2/workloads/deployment:season:training-platform-vue-dist",
		"update": "https://rancher-wzsarm.wistron.com/v3/project/local:p-vhqv2/workloads/deployment:season:training-platform-vue-dist",
		"yaml": "https://rancher-wzsarm.wistron.com/v3/project/local:p-vhqv2/workloads/deployment:season:training-platform-vue-dist/yaml"
	},
	"name": "training-platform-vue-dist",
	"namespaceId": "season",
	"paused": false,
	"projectId": "local:p-vhqv2",
	"publicEndpoints": [{
		"addresses": ["10.41.241.111", "10.41.241.112", "10.41.241.113", "10.41.241.114", "10.41.241.115", "10.41.241.116"],
		"allNodes": false,
		"hostname": "training-platform.k8sprd-wzs.k8s.wistron.com.cn",
		"ingressId": "season:training-platform-vue-dist-ingress",
		"nodeId": null,
		"podId": null,
		"port": 80,
		"protocol": "HTTP",
		"serviceId": "season:ingress-9932efa3ab00c77c4cfb44b758c758b2"
	}, {
		"addresses": ["10.41.241.111"],
		"allNodes": true,
		"ingressId": null,
		"nodeId": null,
		"podId": null,
		"port": 30396,
		"protocol": "TCP",
		"serviceId": "season:training-platform-vue-dist-nodeport"
	}],
	"restartPolicy": "Always",
	"scale": 1,
	"scheduling": {
		"scheduler": "default-scheduler"
	},
	"selector": {
		"matchLabels": {
			"workload.user.cattle.io/workloadselector": "deployment-season-training-platform-vue-dist"
		},
		"type": "/v3/project/schemas/labelSelector"
	},
	"state": "active",
	"terminationGracePeriodSeconds": 30,
	"transitioning": "no",
	"transitioningMessage": "",
	"type": "deployment",
	"uuid": "d63402fa-b097-4f01-9a6e-1db4e2b87912",
	"workloadAnnotations": {
		"deployment.kubernetes.io/revision": "21",
		"field.cattle.io/creatorId": "u-mp27e6gufb"
	},
	"workloadLabels": {
		"cattle.io/creator": "norman",
		"workload.user.cattle.io/workloadselector": "deployment-season-training-platform-vue-dist"
	}
}

修改.gitlab-ci.yml

format

update:
  stage: deploy
  image: harbor.wistron.com/base_image/alpine:3.10
  before_script:
    - apk add curl
    - export CI_JOB_TIMESTAMP=$(date +"%s")
  tags:
    - prd-runner02  # select your runner
  script:
    - MOVE TO YOUR JSON.TXT PATH
    - sed -i s/CHANGEME/$CI_JOB_TIMESTAMP/g json.txt
    - sed -i s/CI_PIPELINE_IID/$CI_PIPELINE_IID/g json.txt
    - curl -H "Authorization:${K8S_TOKEN}" -H "Content-Type:application/json" -d "@json.txt" -X PUT ${K8S_WORKLOAD_URL}

我的代码.gitlab-ci.yml

variables:
  DOCKER_IMAGE_NAME: training_platform_django
  DOCKER_IMAGE_TAG: 0.0.8



services:
  - name: harbor-k8s.wzs.wistron.com.cn/base_image/docker:stable
    entrypoint: []
    command: ["--insecure-registry=harbor-k8s.wistron.com.cn"]

stages:
  - docker_build
  - docker-update

docker-build:
  image: harbor-k8s.wzs.wistron.com.cn/base_image/docker:stable
  stage: docker_build
  tags:
    - wzs-runner01
  script:
    - docker info
    - echo $DOCKER_IMAGE_NAME
    - echo $DOCKER_IMAGE_TAG
    - docker build -t $DOCKER_IMAGE_NAME:$DOCKER_IMAGE_TAG .
    - docker tag $DOCKER_IMAGE_NAME:$DOCKER_IMAGE_TAG harbor-k8s.wzs.wistron.com.cn/season/$DOCKER_IMAGE_NAME:$DOCKER_IMAGE_TAG-build$CI_PIPELINE_IID
    - echo "$HARBOR_PASSWORD" | docker login -u "$HARBOR_USER"  --password "$HARBOR_PASSWORD" harbor-k8s.wzs.wistron.com.cn
    - docker push harbor-k8s.wzs.wistron.com.cn/season/$DOCKER_IMAGE_NAME:$DOCKER_IMAGE_TAG-build$CI_PIPELINE_IID



docker-update:
  stage: docker-update
  image: harbor.wistron.com/base_image/alpine:3.10
  before_script:
    - apk add curl
    - export CI_JOB_TIMESTAMP=$(date +"%s")
  tags:
    - wzs-runner01
  script:
    - sed -i s/CHANGEME/$CI_JOB_TIMESTAMP/g json.txt
    - sed -i s/CI_PIPELINE_IID/$CI_PIPELINE_IID/g json.txt
    - curl -H "Authorization:${K8S_TOKEN}" -H "Content-Type:application/json" -d "@json.txt" -X PUT ${K8S_WORKLOAD_URL}

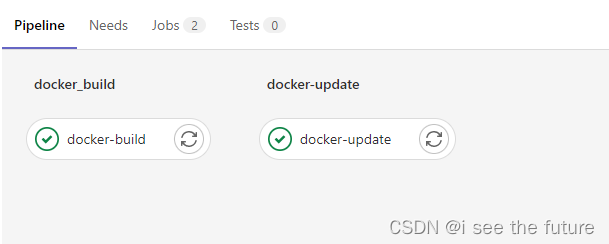

gitlab pipeline

显示成功
在这里插入图片描述

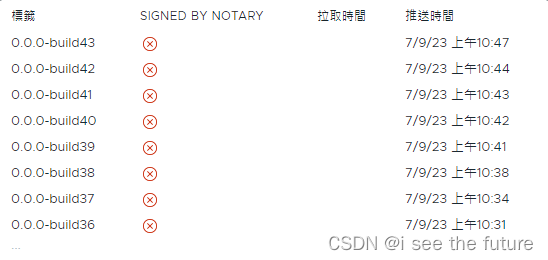

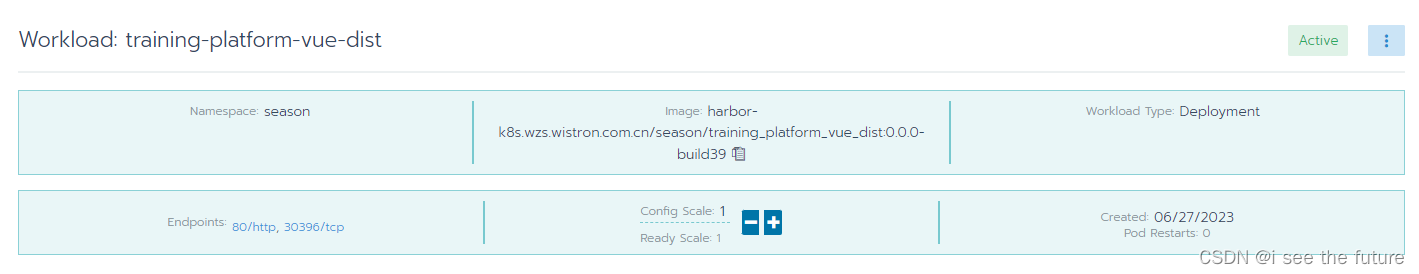

自动更新
在这里插入图片描述
在这里插入图片描述

i see the future
关注
  • 0
    点赞
  • 踩
  • 0
    收藏
    觉得还不错? 一键收藏
  • 0
    评论
专栏目录
Rancher2.7 + Jenkins CI/CD全流程保姆级最佳实践
qq_45567067的博客
03-16 3121
CI方面，官方推荐的视频教程等多是使用极狐Gitlab CI，但社区版极狐每月仅400分钟构造时间，而私有化部署极狐Gitlab对比部署使用Jenkins，具有更高的成本、更狭窄的适用面，且并不比Gitee可靠。 CD方面，官方推荐使用内置的Fleet，但其模型和文档比较晦涩，而直接使用Jenkins脚本调取Rancher Server的API更为方便，故采取的解决方案为后者。
通过rancher2.6管理工具在k8s上部署应用（通过CICD部署）
qq_37928540的博客
02-13 673
亲测可行
Kubernetes 基于 Rancher 流水线 CI/CD 实现自动构建前后端项目
weixin_43354218的博客
11-28 642
第六章 Kubernetes 基于 Rancher 流水线 CI/CD 实现自动构建前后端项目 文章目录第六章 Kubernetes 基于 Rancher 流水线 CI/CD 实现自动构建前后端项目前言一、pandas是什么？二、使用步骤1.引入库2.读入数据总结 前言 提示：这里可以添加本文要记录的大概内容： 例如：随着人工智能的不断发展，机器学习这门技术也越来越重要，很多人都开启了学习机器学习，本文就介绍了机器学习的基础内容。 提示：以下是本篇文章正文内容，下面案例可供参考 一、pandas是什么
基于rancher部署k8s及使用
热门推荐
jaco
11-06 1万+
K8s概述 k8s全称kubernetes，这个名字大家应该都不陌生，k8s是为容器服务而生的一个可移植容器的编排管理工具，越来越多的公司正在拥抱k8s，并且当前k8s已经主导了云业务流程，推动了微服务架构等热门技术的普及和落地，正在如火如荼的发展。 那么，K8S实现了什么？ 从架构设计层面，我们关注的可用性，伸缩性都可以结合k8s得到很好的解决，如果你想使用微服务架构，搭配k8s，真的是完美，再从部署运维层面，服务部署，服务监控，应用扩容和故障处理，k8s都提供了很好的解决方案。 具体来说，主要包括以下几
host 修改rancher_Rancher2.4.3 Rest API修改镜像地址
weixin_39839726的博客
12-21 538
一、概述Rancher提供了api给我们调用，从而实现不用通过访问Rancher UI 或使用 Rancher CLI 来对应用服务进行例如启动，停止，创建，升级等一系列的操作；API权限认证 (AUTHENTICATION)在访问控制(Access Control)生效时，进行API 请求需要包含认证信息，在Rancher UI 创建使用 API Keys的步骤如下：API KEYS FOR A...
基于Docker的CI/CD流水线实践
02-25
那么该篇内容主要讲解如何借助开源工具结合CI/CD的场景，将Docker融入到部署单元中去，进行持续集成、测试到最终的持续部署，开发人员最终只需要去关注业务的访问入口就可以知道业务是否正常，并可以通过一系列的...
vagrant-rancher-ci：基于Vagrant的Rancher Drone CICD开发环境
02-06
Rancher Drone CI / CD开发环境使用Vagrant自动化本地Rancher环境安装git clone https://github.com/feffi/vagrant-rancher-ci.gitcd vagrant-rancher-civagrant up如果使用默认值，请浏览至以访问已安装的Rancher...
gaucho：用于Rancher API的Python CLI工具
02-04
当我使用Rancher 1.x时，该工具非常有用-但是从那时起，我就开始使用Kubernetes迁移到Rancher 2，并且不再使用它。 随时使用此工具，创建项目并进行改进。 如果有人想获得它的所有权，请让我知道（打开一个问题）...
码头工人
01-31
码头工人
rancher-deploy-action:操作确实在Rancher上部署（重新部署）映像
05-27
Github使用Rancher API在Rancher中部署映像的操作 环境 RANCHER_ACCESS_KEY 在Rancher中创建的必需的API访问密钥。 RANCHER_SECRET_KEY 在Rancher中创建的必需的API密钥。 RANCHER_URL_API 牧场者项目工作负载的必需API网址。 SERVICE_NAME 您想要部署的群集上服务的必填名称。 DOCKER_IMAGE DOCKER图像的必需URL（例如：AWS或DOCKER REGISTRY）。 DOCKER_IMAGE_LATEST 带有最新标签的DOCKER图像的可选URL。 用法示例 - name: Rancher Deploy uses: yantadeu/rancher-deploy-action@v0.0.2 env: RANCHER_ACCESS_KEY: '
使用rancher在k8s上完成第一个CI/CD的项目_.NET篇
wangxin123wangxin的博客
02-21 1247
基于net项目在rancher和k8s中进行ci/cd
修改rancher_24 启用Rancher 里的 CI/CD
weixin_28746213的博客
12-11 185
CICD 场景在某个 Project 里选择 pipeline 栏目，并选择 configure repositories选择 Autorize & Fetch Your Own Repositories 按照这个页面中的提示做好gihub的配置信息，并获取client id和client secret，最后点击 Authenticate在随后的Repositories的页面中，选择pip...
基于 Rancher 的企业 CICD 环境搭建
Rancher
12-15 4678
原文来源：Rancher LabsCI(Continuous Integration)持续集成，CD(Continuous Delivery) 持续交付（当然也有叫 Continuous Deployment）通常会采用一些软件如Jenkins、Drone、Travis、Gocd等来辅助我们。它们能够与Git SVN等代码管理仓库集成，帮助我们实现一些自动化任务。CI/CD软件很多，再加上代码仓库不
rancher 2.0 文档和几个视频
freewebsys的专栏
11-28 3002
前言 本文的原文连接是: https://blog.csdn.net/freewebsys/article/details/81665552 未经博主允许不得转载。 博主地址是：http://blog.csdn.net/freewebsys 1，关于rancher 使用kubernetes 原生的dashboard不太好用。 可以使用 rancher 进行界面的管理和进行二次开发。 中文文档：...
Docker学习笔记_08使用Rancher pipeline搭建基于容器的CICD
weixin_30952535的博客
05-31 312
CICD概述 CI-持续集成(Continuous Integration)：频繁地将代码集成到主干的一种开发实践，每次集成都通过自动化的构建（包括编译，发布，自动化测试）来验证，从而尽早地发现集成错误。 CD-持续部署(Continuous Deployment)：从代码提交，自动化完成测试、构建及到生产环境的部署 在Rancher中做CI/CD的方法 配合第三方工具，Dro...
Rancher 构建 CI/CD 自动化流程 - 动态配置 Jenkins-slave（一）
weixin_30885111的博客
08-16 804
一、说明 1）需求： Rancher 上部署 Jenkins-master，服务采用 Jenkins-slave 发布，发布完成后 Jenkins-slave 自动销毁。 2）环境： Rancher 2.2.7 （部署Rancher参考之前文章：离线安装 Rancher2.2.4 HA 集群） Jenkins2.176.2 二、安装 Jenkins 2.1 安装 ...
如何使用GitLab和Rancher构建CI/CD流水线 – Part 2
weixin_33922672的博客
08-03 407
这是我们使用GitLab和Rancher构建CI/CD流水线系列教程的第二部分。第一部分的内容介绍了如何部署、配置和确保GitLab在Rancher的运行。这一部分中，我们将介绍如何使用GitLab CI Multi-Runner构建容器，以及如何使用GitLab容器registry配置项目。除此之外，我们还将涉及如何用GitLab CI建立容器并部署到Rancher上。使用...
Rancher Pipeline发布：开源、极简、强大的CI/CD
weixin_33895016的博客
11-12 442
来自硅谷的企业级容器管理平台提供商Rancher Labs今日正式发布与Rancher企业级容器管理平台集成的Rancher Pipeline，极简的操作体验，强大的功能整合，完全开源，助力CI/CD在企业的真正落地使用。 云计算技术的广泛采用和容器技术的日趋成熟已经改变了传统的IT交付方式，在以快为先的时代，产品快速迭代的重要性不言而喻，完全手动的、基...
关于lspci命令的相关使用
最新发布
weixin_36476763的博客
06-16 479
【代码】【无标题】about lspci。
rancher-pipeline.yml
07-28
.rancher-pipeline.yml是Rancher pipeline的配置文件，用于定义CI/CD流程中的各个阶段和步骤。在这个文件中，可以定义多个阶段（stages），每个阶段包含多个步骤（steps）。每个步骤可以是运行脚本、构建镜像、发布镜像或应用YAML配置等操作。\[2\] 在这个文件中，你可以定义编译（compile）、发布（publish）和部署（deploy）等阶段，并在每个阶段中定义相应的步骤。例如，在编译阶段中，可以使用maven插件运行脚本来进行项目的清理和打包。在发布阶段中，可以使用publishImageConfig来构建镜像并将其推送到指定的镜像仓库。在部署阶段中，可以使用applyYamlConfig来应用YAML配置文件进行部署。\[2\] 此外，你还需要在项目根目录下添加三个文件：.rancher-pipeline.yml、Dockerfile和deployment.yaml。这些文件分别用于定义Rancher pipeline的配置、构建镜像的Dockerfile和部署的YAML配置文件。\[3\] 通过配置.rancher-pipeline.yml文件，你可以实现SpringBoot工程的CI/CD自动化部署。 #### 引用[.reference_title] - *1* *2* [Rancher pipeline 实践](https://blog.csdn.net/weixin_30408739/article/details/95595777)[target="_blank" data-report-click={"spm":"1018.2226.3001.9630","extra":{"utm_source":"vip_chatgpt_common_search_pc_result","utm_medium":"distribute.pc_search_result.none-task-cask-2~all~insert_cask~default-1-null.142^v91^control,239^v3^insert_chatgpt"}} ] [.reference_item] - *3* [K8s微服务自动化部署容器(Rancher流水线)](https://blog.csdn.net/u013431141/article/details/115131234)[target="_blank" data-report-click={"spm":"1018.2226.3001.9630","extra":{"utm_source":"vip_chatgpt_common_search_pc_result","utm_medium":"distribute.pc_search_result.none-task-cask-2~all~insert_cask~default-1-null.142^v91^control,239^v3^insert_chatgpt"}} ] [.reference_item] [ .reference_list ]

“相关推荐”对你有帮助么？

  • 非常没帮助
  • 没帮助
  • 一般
  • 有帮助
  • 非常有帮助
提交
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
