添加参考点并获取位置

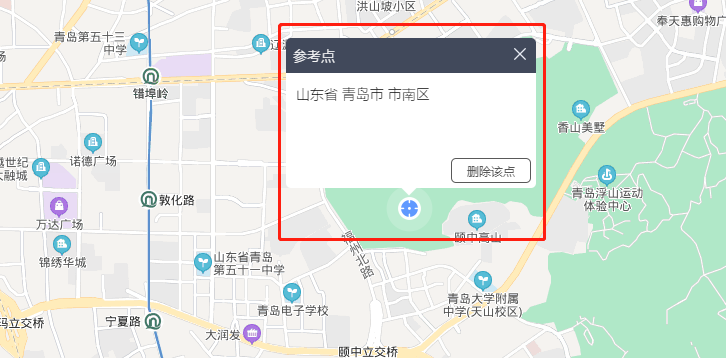

话不多说,看图说话
分析一下此点和弹窗的组成:
1、上图的蓝色图标为一个marker
2、生成一个marker需要point,生成point需要两个坐标(经纬度)
3、上方的弹窗是依赖于marker生成的(弹窗自定义样式下面会有整理)
// 参考点
referencePoint(e: any) {
const point = new BMap.Point(e.point.lng, e.point.lat); // 创建point
const poiIcon = new BMap.Icon(
'../../../../../assets/font/poi_marker.png',
new BMap.Size(50, 50)
); // 增加图标图
const marker = new BMap.Marker(point, {
width: '40px',
height: '40px',
offset: new BMap.Size(0, 0),
icon: poiIcon,
}); // 创建marker
this.refPoint.push(point); // 记录的方法,忽略
this.refMarker.push(marker); // 记录的方法,忽略
this.map.addOverlay(marker); // 将标注添加到地图中
// 绑定图标的点击事件,当点击时弹出弹窗
marker.addEventListener('click', (ev: any) => {
this.refMarker.forEach((el: any, index: number) => {
if (el === marker) {
this.refPointPop(index); // 弹窗事件(在下方)
}
});
});
this.refMarker.forEach((el: any, index: number) => {
if (el === marker) {
this.refPointPop(index); // 弹窗事件(在下方)
}
});
}
注意:Size属性要慎用,参考点的Size(50,50) 平移了很小范围还好,如果大了的话 在地图上会有阴影遮盖,会导致点不到地图。
弹窗:
// 添加参考点的弹窗
refPointPop(clickIndex: number) {
// 创建地址解析器实例
const myGeo = new BMap.Geocoder();
myGeo.getLocation(this.refPoint[clickIndex], (rs: any) => {
const address_ref =
rs.addressComponents.province +
' ' +
rs.addressComponents.city +
' ' +
rs.addressComponents.district +
' ' +
rs.addressComponents.street;
const content = `<div class="title_ref">
<span>参考点</span></div>
<div class="address_ref">${address_ref}</div>
<button id="del_button_ref" class="button">删除该点</button>`;
// 让弹窗单例展示
if (this.refInfoWindow) {
this.refMarker.forEach((ele: any) => {
this.refInfoWindow.close(ele);
});
}
this.refInfoWindow = new BMapLib.InfoBox(this.map, content, {
boxStyle: {
background: '#fff',
borderRadius: '5px',
width: '250px',
height: '150px',
},
closeIconUrl: '../../../../../assets/font/close.png',
closeIconMargin: '10px 10px 0 0',
align: INFOBOX_AT_TOP,
offset: new BMap.Size(0, 20),
}); // 创建信息窗口对象
this.refInfoWindow.open(this.refMarker[clickIndex]);
setTimeout(() => {
const delBtn = document.getElementById('del_button_ref');
// 删除参考点按钮监听
delBtn.addEventListener('click', (event: any) => {
this.map.removeOverlay(this.refMarker[clickIndex]); // 移除点
this.refMarker.splice(clickIndex, 1);
this.refPoint.splice(clickIndex, 1);
this.refInfoWindow.close();
});
});
});
}
Geocoder:用于获取用户的地址解析。也就是我们框框中的地址
myGeo.getLocation的回调中有点击点的坐标,但不是精确坐标,如果需要精确坐标需要后台解析,或前端另外解析。
content :里面放着弹窗的内容,弹窗的样式如果在自己的.scss文件中无法修改,到总得css文件中修改样式
BMapLib.InfoBox:使用infoBox生成的弹窗是可以自定义样式的。 是需要引入的
<script src="http://api.map.baidu.com/library/InfoBox/1.2/src/InfoBox.js"></script>
InfoBox的使用详解请点击
offset:偏移值,不建议修改过多,会有阴影影响点击
弹窗中的事件需要用原生js来写获取,弹窗加载到页面上会有延迟,所以使用了个setTimeout来处理,可能会有更好的方式。
