💙本学习笔记参考B站视频,在笔记里加了一些个人想法可能与原视频讲解内容有所差异。
因作者能力精力有限无法做到完美,若有不足和错误请大佬批评指正。
2025/3/6 纠错+补充
一、内存
1.1 内存四区
C++程序在执行时,将内存大致分为4个区域:代码区,全局区,栈区,堆区
- 代码区:存放函数体的的二进制代码,操作系统管理。
🔵特点:①共享 :对于频繁被执行的程序,只需要在内存中有一份代码即可。
②只读:目的是防止程序意外地修改了它的指令。
- 全局区:存放全局变量、静态变量和常量(除了const修饰的局部变量)。程序结束时由操作系统释放。
//全局变量
int g_a = 10;
const int c_g_a = 10;
int main()
{
int l_a = 10;
//静态变量
static int s_a = 10;
//常量:字符串常量/const修饰的变量(全局/局部变量)
const char* a = "hello";
const int c_l_a = 10;

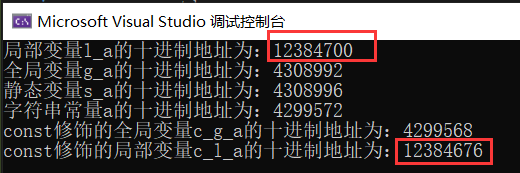

cout << "局部变量l_a的十进制地址为:" << (int)&l_a << endl;
cout << "全局变量g_a的十进制地址为:" << (int)&g_a << endl;
cout << "静态变量s_a的十进制地址为:" << (int)&s_a << endl;
cout << "字符串常量a的十进制地址为:" << (int)a << endl;
cout << "const修饰的全局变量c_g_a的十进制地址为:" << (int)&c_g_a << endl;
cout << "const修饰的局部变量c_l_a的十进制地址为:" << (int)&c_l_a << endl;
return 0;
}
- 栈区:存放函数的参数值、局部变量。由编译器自动分配和释放。
🔴注意:不要返回局部变量的地址。
int* funcation()
{
int a = 10;//存放在栈区,栈区的数据在函数执行完后自动释放
return &a;
}
int main()
{
int* p = funcation();
cout <<"局部变量a的值为:"<< *p << endl; //第一次正常打印,因为编译器做了保留
cout << "局部变量a的值为:" << *p << endl;
return 0;
}
- 堆区:由程序员分配(
new
)和释放(delete
),若程序员不释放,程序结束时由操作系统回收。
int* funcation()
{
//new关键字,可以将数据开辟到堆区上
//指针本质上也是局部变量,存放在栈区上,但是保存的数据在堆区
int* p = new int(10);
return p;
}
int main()
{
int* p = funcation();
cout << *p << endl;
cout << *p << endl;
return 0;
}
Tip:
- 程序运行前分为:代码区,全局区
- 程序运行后分为:栈区,堆区
[注]: 关于内存更详细的知识👉深度剖析数据在内存中的存储👉几分钟让你了解什么是函数栈帧的创建和销毁
1.2 new操作符
//new的基本用法
int* p = new int(10);//在堆区创建整型变量,返回该变量的地址
delete p;//释放
int* parr = new int[10];//在堆区创建一个元素为10的整型数组,返回数组首元素的地址
delete[] arr;//释放一个数组
测试delete
int* funcation()
{
int* p = new int(10);
return p;
}
int main()
{
int* p = funcation();
cout << *p << endl;
cout << *p << endl;
delete p;
cout << *p << endl;
return 0;
}


二、引用
2.1 引用基本使用和注意事项
作用:给变量起个别名。
语法:数据类型
&
别名
=原名
本质:指针常量
//eg.
int a = 10;
int& b = a;
🔴注意:
①引用必须初始化。
②引用一旦初始化就不可以更改了(如下的例子相当于int *const b=&a
)
//①引用必须初始化
int a = 10;
int& b;//错了!!!
//②引用一旦初始化就不可以更改了
int a = 10;
int c = 20;
int& b = a;
int& b = c; //错了!!!
2.2 引用做函数参数
//eg.
/*实现数值交换*/
//1.传址交换
void swap1(int* a, int* b)
{
int temp = *a;
*a = *b;
*b = temp;
}
//2.引用
void swap2(int& a, int& b)//起别名可以和原名一样
{
int temp = a;
a = b;
b = temp;
}
int main()
{
int a = 10;
int b = 20;
swap1(&a, &b);
swap2(a, b);
return 0;
}
2.3 引用函数返回值
🔴注意:
①不要返回局部变量的引用。函数返回时,局部变量会被释放,引用或指针指向的内容会失效
②函数的调用可以作为左值。
//eg.
//①不要返回局部变量的引用
int& test1()
{
int a = 10;
return a;
}
int main()
{
int& ret = test1();
cout << "ret=" << ret << endl;
cout << "ret=" << ret << endl;
return 0;
}
- 局部变量
a
在函数test1
执行完毕后会被销毁,其内存空间会被释放。 - 返回局部变量的引用会导致悬空引用(Dangling Reference),即引用指向的内存已经无效。
- 访问悬空引用会导致未定义行为(Undefined Behavior),程序可能会崩溃或输出错误的结果。
ret
是一个悬空引用,指向已经被销毁的局部变量a
。- 第一次输出
ret
时,可能还能输出10
,因为内存尚未被覆盖。 - 第二次输出
ret
时,内存可能已经被其他数据覆盖,导致输出错误的值。
//eg.
//①不要返回局部变量的引用
int& test1()
{
int a = 10;
return a;
}
int main()
{
int& ret = test1();
cout << "ret=" << ret << endl;
cout << "ret=" << ret << endl;
test1() = 20; //②如果函数的返回值为引用,函数的调用可以作为左值
cout << "ret=" << ret << endl;
cout << "ret=" << ret << endl;
return 0;
}
2.3 常量引用
目的:用来修饰形参,防止误操作。
int &ret=10; //错了!,引用本身需要一个合法的内存空间。
/*
相当于编译器先创建一个临时变量:int temp=10;
然后进行起别名:int& ret=temp;
*/
const int& ret = 10;
🔴注意:用常量引用之后不可以更改数据。
//eg.
int main()
{
const int& ret = 10;
ret = 100;//err
cout << "ret=" << ret << endl;
return 0;
}
C++推荐引用,因为语法方便,编译器帮我们做了指针的内容。
三、函数提高
3.1 函数默认参数
语法:返回类型
函数名
(参数 =默认值)
{}
用法:如果自己传入数据就用自己的,如果没有就用默认值。

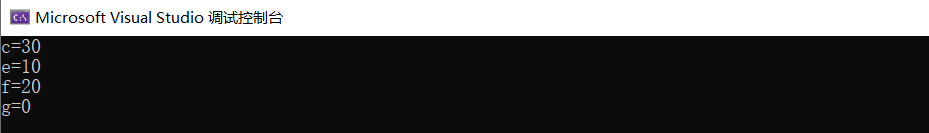

int Add(int a = 0, int b = 0)
{
return a + b;
}
int main()
{
int a = 10;
int b = 20;
int c = Add(a, b);
int e = Add(a);
int f = Add(b);
int g = Add();
cout << "c=" << c << endl;
cout << "e=" << e << endl;
cout << "f=" << f << endl;
cout << "g=" << g << endl;
return 0;
}
🔴注意:
①默认值必须放在右边。
int test(int a, int b = 10, int c);//err
②声明和实现,有且只能有一个有默认参数。否则可能出现二义。如果函数有声明,通常将默认参数放在声明中,而不是实现中。这是因为声明是函数的接口,调用者需要知道默认参数的值。
// 声明
void func(int a = 10);
// 实现
void func(int a = 20) // 错误:默认参数在声明和实现中都提供
{
cout << "a = " << a << endl;
}
int main()
{
func(); // 编译器无法确定使用 10 还是 20
return 0;
}
// 声明
void func(int a);
// 实现
void func(int a = 20) // 正确:默认参数只在实现中提供
{
cout << "a = " << a << endl;
}
int main()
{
func(); // 输出 a = 20
return 0;
}
3.2 函数占位参数
语法:返回类型
函数名
(数据类型)
{}
//eg.
void test1(int a, int)
{
cout << "haha" << endl;
}
void test2(int a, int b=10)//占位参数可以有默认参数
{
cout << "haha" << endl;
}
int main()
{
test1(1);//err
test1(1, 1);
test2(1);
test2(1, 1);
return 0;
}
-
占位参数只有类型,没有参数名。
-
占位参数的作用是占位,通常用于:①未来扩展函数参数。②保持函数签名的一致性(例如重载运算符时)。
3.3 函数重载
作用:函数名可以相同,提高复用率。
满足条件:
①同一个作用域。
②函数名称相同。
③参数类型不同/个数不同/顺序不同。
//eg.
//在全局作用域
void test()
{
cout << "调用test( )" << endl;
}
void test(int a)
{
cout << "调用test(int a)" << endl;
}
void test(double a)
{
cout << "调用test(double a)" << endl;
}
void test(int a, int b)
{
cout << "调用test(int a, int b)" << endl;
}
void test(int a, double b)
{
cout << "调用test(int a, double b)" << endl;
}
void test(double a, int b)
{
cout << "调用test(double a, int b)" << endl;
}

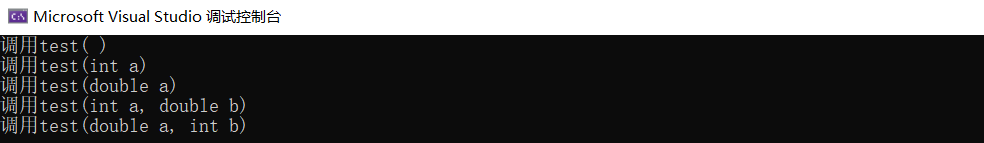

int main()
{
test();
test(1);
test(3.14);
test(1,3.14);
test(3.14, 1);
return 0;
}
🔴注意:
①函数的返回值不可以作为函数重载的条件!出现二义。
//eg.
void test(int a)
{
cout << "调用test(int a)" << endl;
}
int test(int a)
{
cout << "调用test(int a)" << endl;
}
②引用作为重载条件
//eg.
//引用作为重载条件
void test(int &a)
{
cout << "调用test(int &a)" << endl;
}
void test(const int& b)
{
cout << "调用test(const int& b)" << endl;
}
int main()
{
int a = 10;
const int b = 10;
test(a);
test(b);
return 0;
}
③函数重载碰到默认参数
//eg.
//函数重载碰到默认参数
void test(int a,int b=10)
{
cout << "调用test(int &a)" << endl;
}
void test(int a)
{
cout << "调用test(const int& b)" << endl;
}
int main()
{
test(10);//err,出现二义
return 0;
}
四、类与对象
C++面向对象三大特性:封装、继承、多态
4.1 封装
🟦意义:
①将属性和行为作为一个整体。(放在一个class
里面)
②将属性和行为加以权限控制。
权限 | 类内访问 | 派生类访问 | 类外访问 |
---|---|---|---|
public | ✔️ | ✔️ | ✔️ |
protected | ✔️ | ✔️ | ❌ |
private | ✔️ | ❌ | ❌ |
//eg.1定义一个圆类
#define PI 3.14
//class 定义一个类 circle是类的名字
class circle
{
//访问权限:公共权限
public:
//属性
int r;
//行为
double circumference( )
{
return r * PI * 2;
}
};
int main()
{
circle c1;//创建具体的圆(对象)(实例化)
c1.r = 10;//给具体的圆的属性赋值
cout << "圆的周长为:" << c1.circumference() << endl;
return 0;
}
//eg.2设计一个学生类
class student
{
public:
//属性
string name;//string 类处理起字符串来会方便很多,完全可以代替C语言中的字符数组或字符串指针。
int id;
//行为
void show() {
cout << "姓名:" << name << "学号:" << id << endl;
}
};
int main()
{
student s1;
s1.name = "xiyang";
s1.id = 1;
s1.show();
return 0;
}
//eg.3 公共权限,私有权限,保护权限访问的例子
class person
{
public:
string name;
protected:
string car;
private:
int password;
public:
void test()
{
name = "xiaoming";
car = "ofo";
password = 123;
}
};
int main()
{
person p1;
p1.name = "xiyang";
p1.car = "ufo"; //err
p1.password = 456;//err
return 0;
}
🔴注意:
struct
与class
的区别:
struct
默认权限为:共有
class
默认权限为:私有
4.1.1 成员属性设置为私有
🟦意义:
①可以直接控制读写的权限。
②对于写可以检测数据的有效性。
//eg.
class person
{
private:
string name;//可读写
int age;//只读
string lover;//只写
public:
void SetName(string s)
{
name = s;
}
string GetName()
{
return name;
}
int GetAge()
{
age = 18;
return age;
}
void SetLover(string s)
{
lover = s;
}
};
int main()
{
person p1;
p1.SetName("xiyang");
p1.SetLover("xiaoming");
cout << "姓名为:" << p1.GetName() << endl;
cout << "年龄为:" << p1.GetAge() << endl;
return 0;
}
设计案例1:立方体类
/*
要求:
1.设计一个立方体类
2.求出立方体的面积和体积
3.分别用全局函数和成员函数判断两个立方体是否相等
*/
class cube
{
private:
//属性
int L;
int W;
int H;
public:
//行为
//设置 获取长,宽,高
void SetL(int a)
{
L = a;
}
int GetL()
{
return L;
}
void SetW(int a)
{
W = a;
}
int GetW()
{
return W;
}
void SetH(int a)
{
H = a;
}
int GetH()
{
return H;
}
//获得面积
int S()
{
return 2 * ((L * W) + (L * H) + (W * H));
}
//获得体积
int V()
{
return L * W * H;
}
//成员函数判断
bool isSameByClass(cube& c)
{
if (c.GetL() == L && c.GetW() ==W && c.GetH() == H)
return true;
else
return false;
}
};
//全局函数判断
bool isSame(cube& c1, cube& c2)
{
if (c1.GetL() == c2.GetL() && c1.GetW() == c2.GetW() && c1.GetH() == c2.GetH())
return true;
else
return false;
}
int main()
{
cube c1,c2;
c1.SetL(10);
c1.SetW(10);
c1.SetH(10);
c2.SetL(10);
c2.SetW(5);
c2.SetH(5);

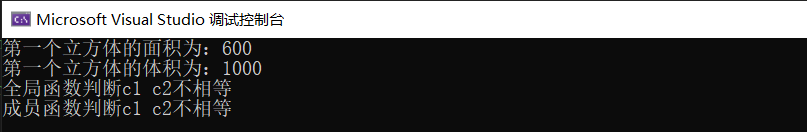

cout << "第一个立方体的面积为:" << c1.S() << endl;
cout << "第一个立方体的体积为:" << c1.V() << endl;
bool ret1 = isSame(c1, c2);
if (ret1)
{
cout << "全局函数判断c1 c2相等" << endl;
}
else
cout << "全局函数判断c1 c2不相等" << endl;
bool ret2 = c1.isSameByClass(c2);
if (ret2)
{
cout << "成员函数判断c1 c2相等" << endl;
}
else
cout << "成员函数判断c1 c2不相等" << endl;
return 0;
}
设计案例2:点和圆的关系
/*要求:
1.设计一个圆形类和一个点类
2.计算点和圆的关系
*/
//由简单的数学可知:一个点(x,y)和圆的(x,y,r)的关系有三种:
//1.点在圆内:点到圆心的距离d < r
//2.点在圆上:d=r
//3.点在圆外:d>r
class circle
{
private:
int r;//写+读
int x;//写+读
int y;//写+读
public:
void SetX(int a)
{
x = a;
}
int GetX()
{
return x;
}
void SetY(int a)
{
y = a;
}
int GetY()
{
return y;
}
void SetR(int a)
{
r = a;
}
int GetR()
{
return r;
}
};
class point
{
private:
int x;//写
int y;//写
public:
void SetX(int a)
{
x = a;
}
void SetY(int a)
{
y = a;
}
int location(circle& c)
{
if ((x - c.GetX()) * (x - c.GetX()) + (y - c.GetY()) * (y - c.GetY()) == c.GetR() * c.GetR())
return 0;
else if ((x - c.GetX()) * (x - c.GetX()) + (y - c.GetY()) * (y - c.GetY()) > c.GetR() * c.GetR())
return 1;
else
return -1;
}
};
int main()
{
circle c;
point p;
c.SetX(0);
c.SetY(0);
c.SetR(1);
p.SetX(0);
p.SetY(0);
int ret = p.location(c);
if (ret == 1)
{
cout << "点在圆外" << endl;
}
else if(ret == -1)
{
cout << "点在圆内" << endl;
}
else
{
cout << "点在圆上" << endl;
}
return 0;
}
优化:因为圆类里面包含点类(转到目录4.3.2.4类对象作为类的成员)
4.2 对象的初始化和清理
C++利用构造函数和析构函数解决了对象的初始化和清理。对象的初始化和清理工作是编译器强制要求我们做的事情,因此就算我们不提供构造和析构,编译器也会提供,只不过编译器提供的是构造函数和析构函数的空实现。
4.2.1 构造函数
定义:主要作用在创建对象时为对象的成员属性赋值,构造函数由编译器自动调用,无须手动调用。
语法:类名
()
{ }
分类:按参数分:有参,无参;按类型分:普通构造,拷贝构造。
调用方式:括号法,显示法,隐式转换法.
🔴注意:
①构造函数可以有参数,因此可以重载。
②程序在调用对象时会自动调用构造,无须手动调用,且只用调用一次。
//构造的分类和调用
class person
{
public:
//无参(普通构造)(默认构造)
person()
{
cout << "无参构造函数调用" << endl;
}
//有参(普通构造)
person(int a)
{
cout << "有参构造函数调用" << endl;
}
//拷贝构造函数
person(const person &p)
{
age = p.age;//克隆数据
cout << "拷贝构造函数的调用" << endl;
}
public:
int age;
};
int main()
{
//括号法
person p1;//叫括号法,但是不能加(),加了()编译器会认为是一个函数声明
person p2(10); //p2的年龄初始化为10
person p3(p2);
//显示法
person p4 = person();
person p5 = person(10);
person p6 = person(p5);
//person()为匿名对象,没有名字,但创建了对象
//不要用拷贝构造函数初始化匿名对象,如person(p3),等价于person p3
//隐式转换法
person p7 = 10;//转换为:person p7=person(10)
}
4.2.1.1 构造函数的调用规则
构造函数的调用规则:
创建一个类,C++至少给每一个类添加4个函数:默认构造(空实现),析构函数(空实现),拷贝构造(值拷贝),赋值运算符Operator=对属性进行值拷贝(4.5.4中介绍)
①如果用户定义一个有参构造函数,C++不会提供默认构造函数,但是会提供拷贝构造函数。
②如果用户定义一个拷贝构造函数,C++不会提供别的构造函数。
用户定义的构造函数 | 编译器生成的函数 |
---|---|
无(默认情况) | 默认构造函数、析构函数、拷贝构造函数、赋值运算符 |
有参构造函数 | 不生成默认构造函数; 生成拷贝构造函数和赋值运算符 |
拷贝构造函数 | 不生成默认构造函数、有参构造函数和赋值运算符 |
赋值运算符 operator= | 不生成默认构造函数、有参构造函数和拷贝构造函数 |
//①如果用户定义一个有参构造函数,C++不会提供默认构造函数,但是会提供拷贝构造函数。
class MyClass {
public:
int value;
// 用户定义的有参构造函数
MyClass(int v) : value(v) {}
// 编译器不会生成默认构造函数
// MyClass() {} // 错误:默认构造函数被删除
};
int main() {
// MyClass obj1; // 错误:默认构造函数被删除
MyClass obj2(10); // 正确:调用有参构造函数
MyClass obj3 = obj2; // 正确:调用编译器生成的拷贝构造函数
return 0;
}
class MyClass {
public:
int value;
// 用户定义的拷贝构造函数
MyClass(const MyClass& other) : value(other.value) {}
// 编译器不会生成默认构造函数
// MyClass() {} // 错误:默认构造函数被删除
};
int main() {
// MyClass obj1; // 错误:默认构造函数被删除
// MyClass obj2(10); // 错误:有参构造函数被删除
MyClass obj3; // 错误:默认构造函数被删除
MyClass obj4 = obj3; // 正确:调用用户定义的拷贝构造函数
return 0;
}
4.2.1.2 拷贝函数调用的时机
C++中拷贝函数调用一般有三种情况:
①使用一个已创建完毕的对象来初始化一个新对象。
②值传递的方式给函数参数传值。当以值传递的方式将对象传递给函数时,会调用拷贝构造函数来创建参数的副本。
③以值的方式返回局部对象。当函数返回一个局部对象时,会调用拷贝构造函数来创建返回值的副本。
//使用一个已创建完毕的对象来初始化一个新对象。
class MyClass {
public:
int value;
// 构造函数
MyClass(int v) : value(v) {
cout << "Constructor called" << endl;
}
// 拷贝构造函数
MyClass(const MyClass& other) : value(other.value) {
cout << "Copy Constructor called" << endl;
}
};
int main() {
MyClass obj1(10); // 调用普通构造函数
MyClass obj2 = obj1; // 调用拷贝构造函数
cout << "obj2.value = " << obj2.value << endl; // 输出 10
return 0;
}
输出
Constructor called
Copy Constructor called
obj2.value = 10
//值传递的方式给函数参数传值。
class MyClass {
public:
int value;
// 构造函数
MyClass(int v) : value(v) {
cout << "Constructor called" << endl;
}
// 拷贝构造函数
MyClass(const MyClass& other) : value(other.value) {
cout << "Copy Constructor called" << endl;
}
};
// 值传递的方式传递对象
void printValue(MyClass obj) {
cout << "Value = " << obj.value << endl;
}
int main() {
MyClass obj(10); // 调用普通构造函数
printValue(obj); // 调用拷贝构造函数
return 0;
}
输出
Constructor called
Copy Constructor called
Value = 10
#include <iostream>
using namespace std;
class MyClass {
public:
int value;
// 构造函数
MyClass(int v) : value(v) {
cout << "Constructor called" << endl;
}
// 拷贝构造函数
MyClass(const MyClass& other) : value(other.value) {
cout << "Copy Constructor called" << endl;
}
};
// 返回局部对象
MyClass createObject(int v) {
MyClass obj(v); // 调用普通构造函数
return obj; // 调用拷贝构造函数
}
int main() {
MyClass obj = createObject(10); // 调用拷贝构造函数
cout << "obj.value = " << obj.value << endl; // 输出 10
return 0;
}
输出
Constructor called
Copy Constructor called
obj.value = 10
4.2.2 析构函数
定义:主要作用在于对象销毁前系统自动调用,执行一些清理工作。
语法:~类名
()
{ }
🔴注意:
①析构函数不可以有参数,因此不可以重载。
②程序在对象销毁前会自动调用析构,无须手动调用,且只用调用一次。
//eg. 构造函数和析构函数例子
class person
{
public:
person()
{
cout << "构造函数的调用" << endl;
}
~person()
{
cout << "析构函数的调用" << endl;
}
};
int main()
{
person p;//创建在栈上,在对象销毁前自动调用析构函数
return 0;
}

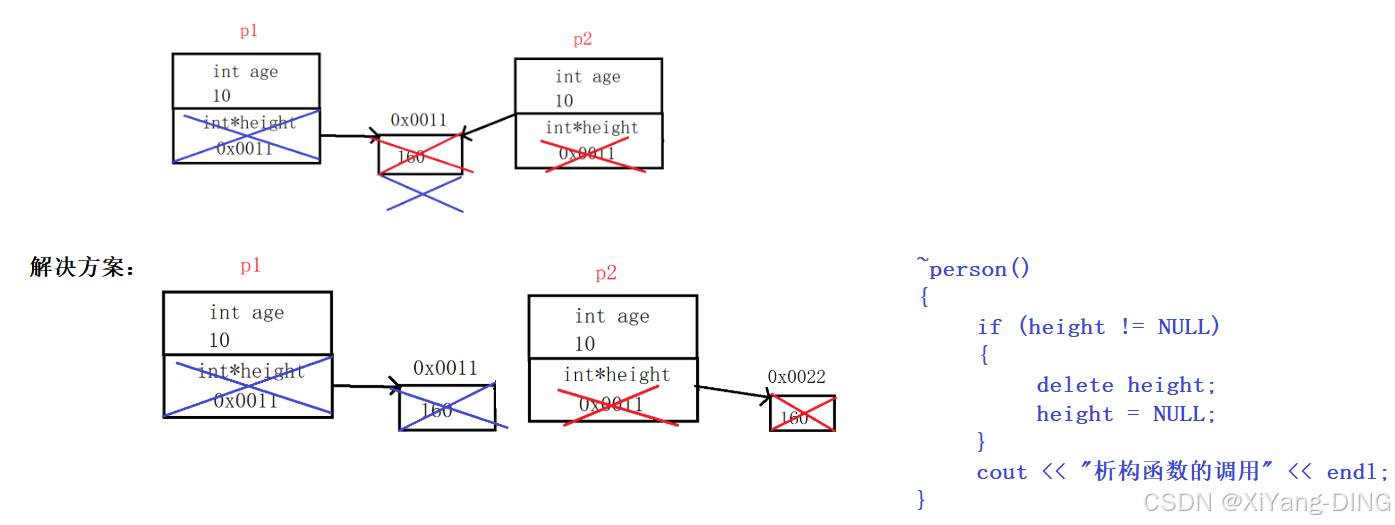

4.3.2.1 深拷贝与浅拷贝
- 浅拷贝:简单的赋值拷贝。默认的拷贝构造函数和赋值运算符是浅拷贝。
- 深拷贝:在堆区重新申请空间,进行拷贝。
❗ 浅拷贝存在的问题:堆区内容重复释放。
//eg.
class person
{
public:
person(int a,int h)
{
age = a;
height = new int(h);
cout << "有参构造函数的调用" << endl;
}
person(const person& p)
{
age = p.age;
//height=p.height;//编译器默认实现
height = new int(*(p.height));
cout << "拷贝构造函数的调用" << endl;
}
~person()
{
if (height != NULL)
{
delete height;
height = NULL;
}
cout << "析构函数的调用" << endl;
}
int GetAge()
{
return age;
}
int GetHeight()
{
return *height;
}
private:
int age;
int *height;
};
int main()
{
person p1(18, 160);
cout << "p1的年龄为:" << p1.GetAge() << " p1的身高为:" << p1.GetHeight() << endl;
person p2(p1);
cout << "p2的年龄为:" << p2.GetAge() << " p2的身高为:" << p2.GetHeight() << endl;
return 0;
}
4.2.3 初始化列表
//eg.
class person
{
public:
//初始化列表初始化属性
person() :age(10), key(123), height(160)
{
}
person(int a, int b, int c) :age(a), key(b), height(c)
{
}
int age;
int key;
int height;
};
int main()
{
person p1;
person p2(18, 456, 180);
cout << "p1的年龄,密码,身高为:\n" << p1.age << p1.key << p1.height<<endl;
cout << "p2的年龄,密码,身高为:\n" << p2.age << p2.key << p2.height<<endl;
return 0;
}
4.2.4 类对象作为类的成员
//eg.
class phone
{
public:
phone(string p):PhoneName(p)
{
}
string PhoneName;
};
class person
{
public:
person(string s,string p) : name(s),Phone(p)
{
}
string name;
phone Phone;
};
int main()
{
person p1("xiyang", "huawei");
cout << "名字:" << p1.name << "手机:" << p1.Phone.PhoneName << endl;
return 0;
}

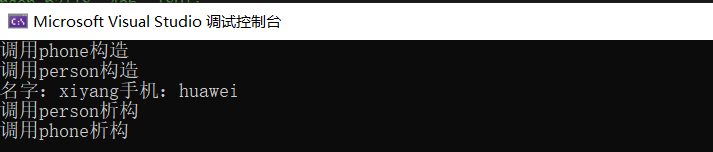

🔴注意:若class
里面有其他类,则先构造其他类,再构造自身。析构相反。
//eg
class phone
{
public:
phone(string p):PhoneName(p)
{
cout << "调用phone构造" << endl;
}
~phone()
{
cout << "调用phone析构" << endl;
}
string PhoneName;
};
class person
{
public:
person(string s,string p) : name(s),Phone(p)
{
cout << "调用person构造" << endl;
}
~person()
{
cout << "调用person析构" << endl;
}
string name;
phone Phone;
};
int main()
{
person p1("xiyang", "huawei");
cout << "名字:" << p1.name << "手机:" << p1.Phone.PhoneName << endl;
return 0;
}
4.2.5 静态成员
4.2.5.1 静态成员变量
🔵特点:
①所有对象共享一份数据。
②在编译阶段分配内存。
③类内声明,类外初始化。
//eg.
class person
{
public:
static int a;//类内声明
};
int person::a = 100;//类外初始化
int main()
{
person p1;
cout << "p1的值为:" << p1.a << endl;
person p2;
p2.a = 200;
cout << "p1的值为:" << p1.a << endl;
return 0;
}
🔴注意:
① 静态成员变量不属于某一个对象。因此有两种访问方式:①类名访问,②对象访问。
class person
{
public:
static int a;
};
int person::a = 100;
int main()
{
//对象访问
person p1;
cout << p1.a << endl;
//类名访问
cout << person::a << endl;
return 0;
}
②静态成员变量也有访问权限。
4.2.5.2 静态成员函数
🔵特点:
①所有对象共享一个函数。
②静态成员函数只能访问静态成员变量。
🔴注意:静态成员函数也有访问权限。
//静态成员函数的访问
class person
{
public:
static void test()
{
cout << "static void test()调用" << endl;
}
};
int main()
{
//对象访问
person p;
p.test();
//成员访问
person::test();
return 0;
}
//静态成员函数只能访问静态成员函数
class person
{
public:
static void test()
{
a = 200;
b = 200;//err,对象不明
cout << "static void test()调用" << endl;
}
static int a;//静态成员函数访问静态成员变量
int b;//非静态成员函数
};
int person::a = 100;
int main()
{
person p;
p.test();
return 0;
}
4.3 C++对象模型和this指针
4.3.1 成员变量和成员函数分开存储
在C++中,类的成员变量和成员函数分开存储,只有非静态成员变量才属于类的对象上。
//eg.
class person1
{
};
class person2
{
int a;//非静态成员变量
};
class person3
{
int a;
static int b;//静态成员变量
};
class person4
{
int a;
static int b;//静态成员变量
void test()//非静态成员函数
{
}
};
int main()
{
//空对象占用内存是 1
//C++会给每一个空对象分配一个字节的内存空间,为了区分空对象占内存的位置
//每一个空对象也应该有一个独一无二的内存地址
person1 p1;
cout << "sizeof(p)=" << sizeof(p1) << endl;//1
//虽然空对象有一个字节,但是一旦类里面不为空就跟着类中字节走
person2 p2;
cout << "sizeof(p)=" << sizeof(p2) << endl;//4
//静态成员变量不属于类对象上的
person3 p3;
cout << "sizeof(p)=" << sizeof(p3) << endl;//4
//类的成员变量和成员函数分开存储
person4 p4;
cout << "sizeof(p)=" << sizeof(p4) << endl;//4
return 0;
}
4.3.2 this指针概念
定义:this指针指向被调用的成员函数所属的对象。
🔵特点:
①this指针隐含在每一个非静态成员函数内的一种指针。
②this指针不需要定义,可直接使用。
🟦意义:
①当形参和成员变量同名时,可以用this指针来区分。
②在类的非静态成员函数中返回对象本身,可以用retrun *this

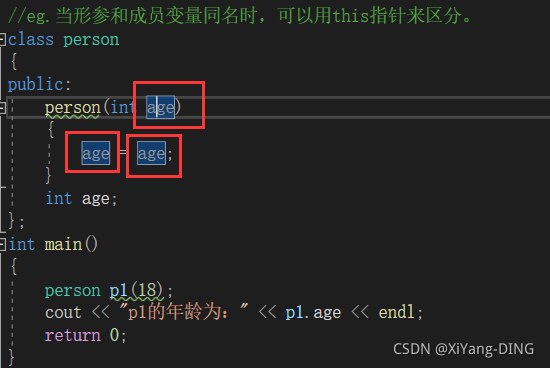

❗形参和成员变量名字相同:
✅解决方案:

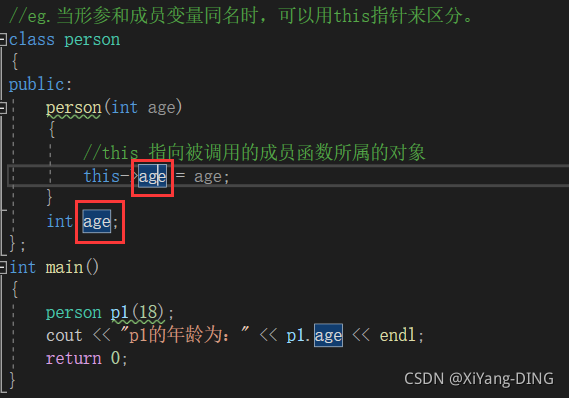

//eg.当形参和成员变量同名时,可以用this指针来区分。
class person
{
public:
person(int age)
{
//this 指向被调用的成员函数所属的对象
this->age = age;
}
int age;
};
int main()
{
person p1(18);
cout << "p1的年龄为:" << p1.age << endl;
return 0;
}

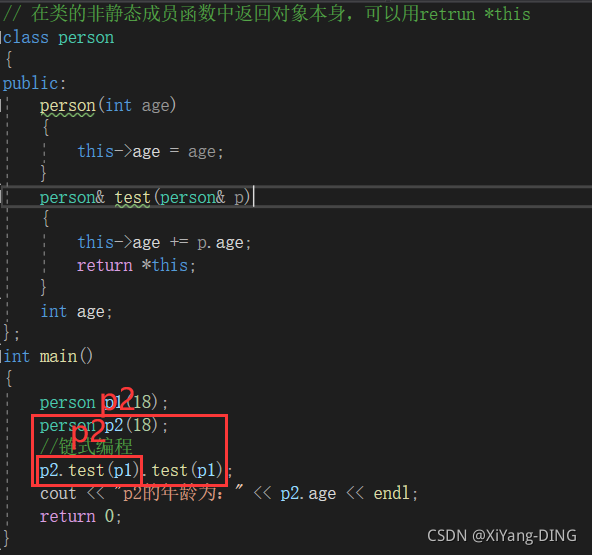

// 在类的非静态成员函数中返回对象本身,可以用retrun *this
class person
{
public:
person(int age)
{
this->age = age;
}
person& test(person p)//person一定要加&,使用本体
{
this->age += p.age;
return *this;
}
int age;
};
int main()
{
person p1(18);
person p2(18);
//链式编程
p2.test(p1).test(p1);
cout << "p2的年龄为:" << p2.age << endl;
return 0;
}
4.3.3 空指针访问成员函数
C++中空指针可以调用成员函数
class person
{
public:
void test1()
{
cout << "test1" << endl;
}
void test2()
{
cout << "age="<<this->age<< endl;//err,传入的指针为空
}
int age;
};
int main()
{
person *p=NULL;
p->test1();
p->test2();
return 0;
}
- 改进思路
检查空指针: 在访问成员变量之前,检查this
是否为空指针。如果this
为空指针,直接返回或抛出异常。
void test2()
{
if(this->age==NULL)
return;//提高代码的健壮性
cout << "age="<<this->age<< endl;
}
4.3.4 const修饰成员函数
4.3.4.1 常函数
常函数:成员函数后const
🔵特点:
①常函数内不可以修改成员属性。 在常函数中,this
指针被隐式地转换为 const this
,即 const person* this
。 因此,常函数内不能修改任何非 mutable
的成员变量。
②mutable
成员变量可以在常函数中修改.如果成员变量被声明为 mutable
,即使在常函数中也可以修改它的值。
成员变量类型 | 普通函数中是否可修改 | 常函数中是否可修改 |
---|---|---|
普通成员变量 | ✔️ | ❌ |
const 成员变量 | ❌ | ❌ |
mutable 成员变量 | ✔️ | ✔️ |
class person
{
public:
person() : a(0), b(0), c(0) {} // 初始化成员变量
void test2()
{
a = 100; // 正确:普通函数可以修改成员变量
// b = 200; // 错误:b 是常量,不能修改
c = 300; // 正确:c 是 mutable,可以修改
cout << "test2: a=" << a << ", c=" << c << endl;
}
// 常函数
void test1() const
{
// a = 100; // 错误:常函数不能修改非 mutable 成员变量
// b = 200; // 错误:b 是常量,不能修改
c = 300; // 正确:c 是 mutable,可以修改
cout << "test1: c=" << c << endl;
}
private:
int a; // 普通成员变量
const int b; // 常量成员变量
mutable int c; // mutable 成员变量
};
int main()
{
person p;
p.test1(); // 调用常函数
p.test2(); // 调用普通函数
return 0;
}
输出结果
test1: c=300
test2: a=100, c=300
4.3.4.2 常对象
常对象:声明对象前加const
🔵特点:
① 常对象的状态不能被修改。常对象的成员变量不能被修改,除非成员变量被声明为 mutable
。
② 常对象只能调用常函数。常对象只能调用常函数(const
成员函数),因为常函数保证不会修改对象的状态。
对象类型 | 能否修改普通成员变量 | 能否修改 mutable 成员变量 | 能否调用普通函数 | 能否调用常函数 |
---|---|---|---|---|
普通对象 | ✔️ | ✔️ | ✔️ | ✔️ |
常对象 | ❌ | ✔️ | ❌ | ✔️ |
//eg.
class person
{
public:
void test1()
{
}
void test2() const
{
}
int a;
const int b;
mutable int c;
};
int main()
{
const person p;//不能修改指针指向的值
//p.a = 100;//err,常对象的状态不能被修改
//p.b = 200;//err
p.c = 300;
//p.test1();//err 常对象只能调用常函数
p.test2();
}
4.4 友元
目的:让一个函数或类,访问另一个类中的私有成员。
关键字:friend
实现:
①全局函数做友元:通过在类中声明friend
函数,该函数可以访问类的私有成员。
②类做友元:通过在类中声明friend
类,该类的所有成员函数都可以访问另一个类的私有成员。
③成员函数做友元:通过在类中声明friend
成员函数,该成员函数可以访问另一个类的私有成员
//全局函数做友元
class building
{
friend void test2(building* b);//声明友元函数
private:
string bedroom;
public:
building()
{
bedroom = "卧室";
livingroom = "客厅";
}
string livingroom;
};
void test1(building* b)
{
cout << "访问" << b->livingroom << endl;
cout << "访问" << b->bedroom<< endl;//err 不可访问私有成员
}
void test2(building* b)
{
cout << "访问" << b->livingroom << endl;
cout << "访问" << b->bedroom << endl;
}
int main()
{
building b1;
test1(&b1);
test2(&b1);
return 0;
}
//类做友元
class building
{
friend class gay2;
public:
building();
string livingroom;
private:
string bedroom;
};
building::building()
{
bedroom = "卧室";
livingroom = "客厅";
}
//非友元
class gay1
{
public:
gay1();
void vist();
building* b;
};
gay1::gay1()
{
b = new building;
}
void gay1::vist()
{
cout << "朋友在访问" << b->livingroom << endl;
cout<< "朋友在访问" << b->bedroom << endl;//err 没有访问权限
}
//友元
class gay2
{
public:
gay2();
void vist();
building* b;
};
gay2::gay2()
{
b = new building;
}
void gay2::vist()
{
cout << "朋友在访问" << b->livingroom << endl;
cout << "朋友在访问" << b->bedroom << endl;
}
int main()
{
gay1 g1;
g1.vist();
gay2 g2;
g2.vist();
return 0;
}
//成员函数做友元
class building;//当用到友元成员函数时,需注意友元声明与友元定义之间的互相依赖。
class gay
{
public:
gay();
void test1();
void test2();
building* b;
};
gay::gay()
{
b = new building;
}
void gay::test1()
{
cout << "正在访问" << b->livingroom <<endl;
//cout << "正在访问" << b->bedroom << endl;//err
}
void gay::test2()
{
cout << "正在访问" << b->livingroom << endl;
cout << "正在访问" << b->bedroom << endl;
}
class building
{
public:
building();
string livingroom;
friend void gay::test2();
private:
string bedroom;
};
building::building()
{
bedroom = "卧室";
livingroom = "客厅";
}
int main()
{
gay g1;
g1.test1();
g1.test2();
return 0;
}
4.5 运算符重载
运算符重载对已有的运算符重新定义,赋予另一种功能,以适应不同的数据类型。
4.5.1 加号运算符重载
作用:实现两个自定义数据类型相加的运算。
//eg.
//加号运算符重载
class person
{
public:
person(int x, int y) :a(x), b(y)
{
}
//重载运算符operator
//成员函数重载+号
person operator+(person& p)
{
person temp(0, 0);
temp.a = this->a + p.a;
temp.b = this->b + p.b;
return temp;
}
int a;
int b;
};
//全局函数重载+号
person operator+(person& p1, person& p2)
{
person temp(0, 0);
temp.a = p1.a + p2.a;
temp.b = p1.b + p2.b;
return temp;
}
int main()
{
person p1(10, 10);
person p2(10, 10);
person p3 = p1+p2;//方法一(若用此方法需要屏蔽上面一种重载方式,避免多个运算符+与操作数匹配)
person p3 = p1.operator+(p2);//方法二
person p3 = operator+(p1, p2);//方法三
}
🔴注意:不要滥用运算重载符。
4.5.2 左移运算符重载
作用:可以输出自定义类型。
//eg
class person
{
public:
//舍弃成员函数重载,p.operator<<cout相当于p<<cout与期望不相符
//void operator<<(cout)
//{
//}
person(int x) :a(x)
{
}
int a;
int b;
};
//全局函数重载左移运算符
//cout属于标准输出流ostream类型
//返回ostream是链式编程思想,返回后cout<<p<<...后面可以再利用
ostream& operator<<(ostream& cout, person& p)
{
cout <<"p中a的值为:"<< p.a<<"p中b的值为:"<< p.b<<endl;
return cout;
}
int main()
{
person p(10);
cout << p;//方法一
operator<<(cout, p);//方法二
return 0;
}
4.5.3 递增运算符重载
//重载递增运算符
class MyInt
{
friend ostream& operator<<(ostream& cout, MyInt m);
public:
MyInt()
{
num = 0;
}
//前置++
//&的作用是对同一个数据进行递增
MyInt& operator++()
{
//先++
num++;
//再返回
return *this;
}
//后置++
//int是占位参数
MyInt operator++(int)
{
//先暂存
MyInt temp = *this;
//再++
num++;
//返回暂存的数据
return temp;
}
private:
int num;
};
ostream& operator<<(ostream& cout, MyInt m)
{
cout << m.num;
return cout;
}
int main()
{
MyInt m;
cout << ++m << endl;
cout <<m++<< endl;
return 0;
}
🔴注意:前置++,返回是引用。后置++,返回的是值。
4.5.4 赋值运算符重载
创建一个类,C++至少给每一个类添加4个函数:默认构造(空实现),析构函数(空实现),拷贝构造(值拷贝),赋值运算符Operator=对属性进行值拷贝
//赋值运算符的重载
class person
{
public:
person(int a)
{
age=new int(a);
}
~person()
{
if (age != NULL)
{
delete age;
age = NULL;
}
}
//重载赋值运算符以避免浅拷贝带来的问题
person& operator=(person& p)
{
//age=p.age;//编译器默认实现
if (age != NULL)
{
delete age;
age = NULL;
}
age = new int(*p.age);
//返回自身
return *this;
}
int *age;
};
int main()
{
person p1(10);
person p2(20);
person p3(30);
p3=p2 = p1;
cout << *(p2.age) << endl;//10
cout << *(p3.age) << endl;//10
return 0;
}
4.5.5 关系运算符重载
作用:重载关系运算符,可以让两个自定义类型对象进行对比操作。
//关系运算符重载 == !=
class person
{
public:
person(string s,int a):name(s),age(a)
{
}
bool operator==(person& p)
{
if (this->name == p.name && this->age == p.age)
{
return true;
}
else
return false;
}
string name;
int age;
};
int main()
{
person p1("xi",10);
person p2("xi",20);
if (p1 == p2)
{
cout << "p1和p2相等" << endl;
}
else
cout << "p1和p2不相等" << endl;
return 0;
}
4.5.6 函数调用运算符重载(仿函数)
//函数调用运算符重载
class MyPrint
{
public:
void operator()(string text)//与函数调用长得差不多,所以被称为仿函数
{
cout << text << endl;
}
};
void print(string text)
{
cout << text << endl;
}
int main()
{
MyPrint m1,m2;
m1("xiyang");
m2("xiyang");
return 0;
}
4.6 继承
4.6.1 继承的基本语法
例如我们看到很多网站中,都有公共的头部,公共的底部,甚至公共的左侧列表,只有中心内容不同。接下来我们分别利用普通写法和继承的写法来实现网页中的内容,看一下继承存在的意义以及好处。
//普通实现页面
class java
{
public:
void head()
{
cout << "首页、公开课、登录、注册...(公共头部)" << endl;
}
void foot()
{
cout << "帮助中心、交流合作、站内地图...(公共底部)" << endl;
}
void left()
{
cout << "Java,Python,C++...(公共分类列表)" << endl;
}
void content()
{
cout << "JAVA学科视频" << endl;
}
};
class cpp
{
public:
void head()
{
cout << "首页、公开课、登录、注册...(公共头部)" << endl;
}
void foot()
{
cout << "帮助中心、交流合作、站内地图...(公共底部)" << endl;
}
void left()
{
cout << "Java,Python,C++...(公共分类列表)" << endl;
}
void content()
{
cout << "CPP学科视频" << endl;
}
};
class python
{
public:
void head()
{
cout << "首页、公开课、登录、注册...(公共头部)" << endl;
}
void foot()
{
cout << "帮助中心、交流合作、站内地图...(公共底部)" << endl;
}
void left()
{
cout << "Java,Python,C++...(公共分类列表)" << endl;
}
void content()
{
cout << "python学科视频" << endl;
}
};
void test1()
{
cout << "java下载视频页面如下:" << endl;
java j;
j.head();
j.foot();
j.left();
j.content();
cout << "--------------------" << endl;
}
void test2()
{
cout << "cpp下载视频页面如下:" << endl;
cpp c;
c.head();
c.foot();
c.left();
c.content();
cout << "--------------------" << endl;
}
void test3()
{
cout << "python下载视频页面如下:" << endl;
python p;
p.head();
p.foot();
p.left();
p.content();
cout << "--------------------" << endl;
}
int main()
{
test1();
test2();
test3();
return 0;
}
//继承写法
class BasePage
{
public:
void head()
{
cout << "首页、公开课、登录、注册...(公共头部)" << endl;
}
void foot()
{
cout << "帮助中心、交流合作、站内地图...(公共底部)" << endl;
}
void left()
{
cout << "Java,Python,C++...(公共分类列表)" << endl;
}
void content()
{
cout << "python学科视频" << endl;
}
};
class java :public BasePage
{
void content()
{
cout << "java学科视频" << endl;
}
};
class cpp :public BasePage
{
void content()
{
cout << "cpp学科视频" << endl;
}
};
class python :public BasePage
{
void content()
{
cout << "python学科视频" << endl;
}
};
优势:减少重复代码
语法:class 子类 : 继承方式
4.6.2 继承方式
一共有三中继承方式: ①公共继承②保护继承③私有继承
4.6.2.1 公共继承
- 特点:
- 父类的
public
成员在子类中仍然是public
。 - 父类的
protected
成员在子类中仍然是protected
。 - 父类的
private
成员在子类中不可访问。
- 父类的
class father {
public:
int a;
protected:
int b;
private:
int c;
};
// 公共继承
class son1 : public father {
public:
void test1() {
a = 10; // 父类的 public 成员,子类中仍然是 public
b = 10; // 父类的 protected 成员,子类中仍然是 protected
// c = 10; // err: 父类的 private 成员,子类无法访问
}
};
void test11() {
son1 s;
s.a; // 可以访问,因为 a 是 public
// s.b; // err: b 是 protected,类外无法访问
}
4.6.2.2 保护继承
- 特点:
- 父类的
public
成员在子类中变为protected
。 - 父类的
protected
成员在子类中仍然是protected
。 - 父类的
private
成员在子类中不可访问。
- 父类的
// 保护继承
class son2 : protected father {
public:
void test2() {
a = 10; // 父类的 public 成员,子类中变为 protected
b = 10; // 父类的 protected 成员,子类中仍然是 protected
// c = 10; // err: 父类的 private 成员,子类无法访问
}
};
void test22() {
son2 s;
// s.a; // err: a 在子类中是 protected,类外无法访问
// s.b; // err: b 在子类中是 protected,类外无法访问
}
4.6.2.3 私有继承
- 特点:
- 父类的
public
成员在子类中变为private
。 - 父类的
protected
成员在子类中变为private
。 - 父类的
private
成员在子类中不可访问。
- 父类的
// 私有继承
class son3 : private father {
public:
void test3() {
a = 10; // 父类的 public 成员,子类中变为 private
b = 10; // 父类的 protected 成员,子类中变为 private
// c = 10; // err: 父类的 private 成员,子类无法访问
}
};
void test33() {
son3 s;
// s.a; // err: a 在子类中是 private,类外无法访问
// s.b; // err: b 在子类中是 private,类外无法访问
}
继承方式 | 父类 public 成员 | 父类 protected 成员 | 父类 private 成员 |
---|---|---|---|
公共继承 | 子类 public | 子类 protected | 不可访问 |
保护继承 | 子类 protected | 子类 protected | 不可访问 |
私有继承 | 子类 private | 子类 private | 不可访问 |
4.6.3 继承中的对象模型
❗ Q:从父类继承过来的成员,哪些属于子类对象中?
- 子类对象中包含父类的所有非静态成员变量,包括
public
、protected
和private
成员。 - 父类的
private
成员虽然被子类继承,但子类无法直接访问。 - 父类的静态成员变量不会被继承到子类对象中。
//eg
class father
{
public:
int a;
static int d;//不继承
protected:
int b;
private:
int c;
};
class son :public father
{
public:
int e;
};
int main()
{
//父类中的所有非静态成员属性都会被子类继承
//父类的私有成员被编译器隐藏,访问不到但是被继承
cout << "size of(son)=" << sizeof(son) << endl;//16
return 0;
}

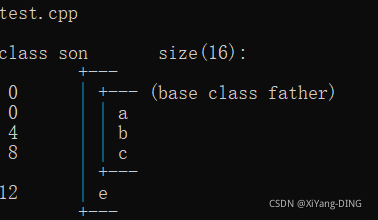

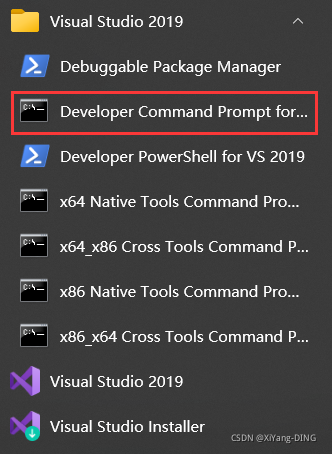

用工具查看:
cl /d1 reportSingleClassLayout查看的类名 所属文件名

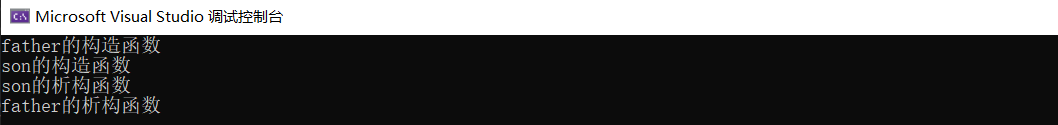

4.6.4 继承中构造和析构顺序
//eg
class father
{
public:
father()
{
cout << "father的构造函数" << endl;
}
~father()
{
cout << "father的析构函数" << endl;
}
};
class son :public father
{
public:
son()
{
cout << "son的构造函数" << endl;
}
~son()
{
cout << "son的析构函数" << endl;
}
};
int main()
{
son s;
return 0;
}
4.6.5 继承同名成员处理方式
在C++中,当子类和父类中存在同名的成员变量或成员函数时,编译器会优先访问子类的成员。如果需要访问父类的同名成员,必须通过作用域解析运算符 ::
显式指定父类的作用域。
成员类型 | 访问子类成员 | 访问父类成员 |
---|---|---|
非静态成员变量 | 直接访问 s.a | 使用作用域 s.father::a |
成员函数 | 直接调用 s.test() | 使用作用域 s.father::test() |
静态成员变量 | 直接访问 s.b 或 son::b | 使用作用域 s.father::b 或 son::father::b |
//同名非静态成员变量
class father {
public:
father() {
a = 10;
}
int a;
};
class son : public father {
public:
son() {
a = 20; // 子类的 a
}
int a; // 与父类同名的成员变量
};
int main() {
son s;
cout << "son中a = " << s.a << endl; // 访问子类的 a,输出 20
cout << "father中a = " << s.father::a << endl; // 访问父类的 a,输出 10
return 0;
}
//同名成员函数
class father {
public:
void test() {
cout << "father中的test()函数调用" << endl;
}
};
class son : public father {
public:
void test() {
cout << "son中的test()函数调用" << endl;
}
};
int main() {
son s;
s.test(); // 调用子类的 test(),输出 "son中的test()函数调用"
s.father::test(); // 调用父类的 test(),输出 "father中的test()函数调用"
return 0;
}
//同名静态成员变量
class father {
public:
void test() {
cout << "father中的test()函数调用" << endl;
}
};
class son : public father {
public:
void test() {
cout << "son中的test()函数调用" << endl;
}
};
int main() {
son s;
s.test(); // 调用子类的 test(),输出 "son中的test()函数调用"
s.father::test(); // 调用父类的 test(),输出 "father中的test()函数调用"
return 0;
}
4.6.6 多继承语法
语法:class 子类 :继承方式 父类1,继承方式 父类2,...
//eg .用法与上面的大同小异,多继承可能会引发父类中有同名成员出现,需要加作用域区分
class father1
{
public:
father1()
{
a = 10;
}
int a;
};
class father2
{
public:
father2()
{
b = 10;
}
int b;
};
class son :public father1, public father2
{
public:
son()
{
c = 10;
d = 20;
}
int c;
int d;
};
int main()
{
son s;
cout << "sizeof (son)=" << sizeof(son) << endl;
cout << "father1中a的值" << s.a << endl;
}
🔴注意:C++实际开发中不建议用多继承
4.6.7 菱形继承
定义:两个派生类继承同一个基类,又有某个类同时继承者两个派生类。
❗Q:菱形继承带来的主要问题是子类继承两份相同的数据,导致资源浪费以及毫无意义
✅:虚继承可以解决菱形继承问题
//eg.
class animal
{
public:
int age;
};
//关键字virtual将yang变成虚继承
class yang:virtual public animal{};
class tuo:virtual public animal{};
class YangTuo :public yang, public tuo{};
int main()
{
YangTuo yt;
yt.yang::age = 10;
yt.tuo::age = 20;
//数据只有一份
cout << yt.yang::age << endl;//20
cout << yt.tuo::age << endl;//20
cout << yt.age << endl;//20
}
4.7 多态
4.7.1 多态的基本概念
分类:
①静态多态:函数重载 和 运算符重载
②动态多态:派生类和虚函数实现运行时多态
4.7.1.1 静态多态
静态多态是指在编译时确定函数的具体实现,主要包括:
- 函数重载:在同一作用域内,函数名相同但参数列表不同。
- 运算符重载:通过重载运算符,使自定义类型支持特定的操作。
🔵特点:
- 函数地址在编译阶段确定(早绑定)。
- 性能较高,因为不需要运行时查找函数地址。
#include <iostream>
using namespace std;
// 函数重载
void print(int a) {
cout << "整数: " << a << endl;
}
void print(double a) {
cout << "浮点数: " << a << endl;
}
int main() {
print(10); // 调用 void print(int a)
print(3.14); // 调用 void print(double a)
return 0;
}

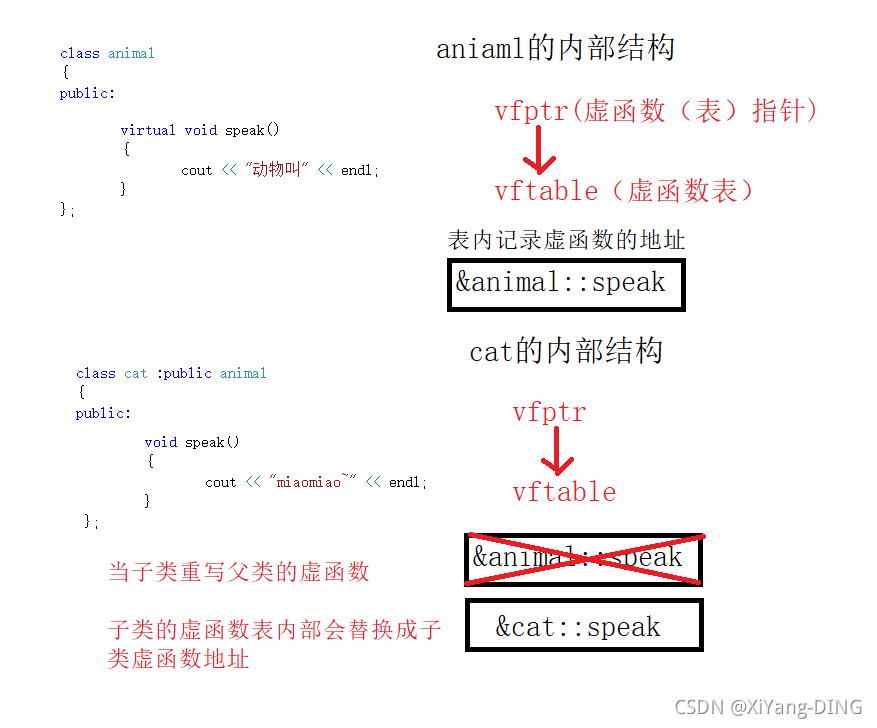

4.7.1.2 动态多态
动态多态是指在运行时确定函数的具体实现,主要通过虚函数和继承来实现。
🔵特点:
- 函数地址在运行时确定(晚绑定)。
- 需要基类的指针或引用来调用子类的重写函数。
🔴动态多态满足条件:
- 有继承关系:子类继承父类。
- 子类重写父类的虚函数:父类的函数用
virtual
关键字声明,子类重写该函数。 - 使用父类的指针或引用调用子类对象:通过父类的指针或引用调用虚函数时,实际调用的是子类的重写函数。
class animal {
public:
// 普通函数
void breathe() {
cout << "动物呼吸" << endl;
}
// 虚函数
virtual void speak() {
cout << "动物叫" << endl;
}
};
class cat : public animal {
public:
// 重写父类的 breathe 函数(非虚函数,不会触发多态)
void breathe() {
cout << "喵呼吸" << endl;
}
// 重写父类的虚函数
void speak() override {
cout << "miaomiao~" << endl;
}
};
// 地址早绑定,编译时确定函数地址
void DoBreathe(animal& a) {
a.breathe(); // 调用的是 animal::breathe()
}
// 地址晚绑定,运行时确定函数地址
void DoSpeak(animal& a) {
a.speak(); // 调用的是 cat::speak()
}
int main() {
cat c;
DoBreathe(c); // 输出:动物呼吸(静态多态)
DoSpeak(c); // 输出:miaomiao~(动态多态)
return 0;
}
特性 | 静态多态 | 动态多态 |
---|---|---|
绑定时间 | 编译时(早绑定) | 运行时(晚绑定) |
实现方式 | 函数重载、运算符重载 | 虚函数、继承 |
性能 | 较高 | 较低(需要查找虚函数表) |
使用场景 | 编译时确定函数调用 | 运行时确定函数调用 |
4.7.2 多态原理剖析(图解)
动态多态是通过 虚函数表(vtable)实现的:
- 当一个类包含虚函数时,编译器会为该类生成一个虚函数表。
- 虚函数表中存储了虚函数的地址。
- 每个对象中包含一个指向虚函数表的指针(vptr)。
- 在运行时,通过 vptr 找到虚函数表,并根据实际对象类型调用正确的函数。
多态案例一:计算器类
案例描述:
分别利用普通写法和多态技术,设计实现两个操作数进行运算的计算器类
//普通写法 + - * /
class calculator
{
public:
int GetResult(string s)
{
if (s == "+")
return a + b;
else if (s == "-")
return a - b;
else if (s == "*")
return a * b;
else if (s == "/")
return a / b;
}
int a;
int b;
};
int main()
{
calculator c;
string s;
cout << "输入两个整型数字的+-*/运算:" << endl;;
cin >> c.a >>s>> c.b;
cout << "=" << c.GetResult(s) << endl;
return 0;
}
❗局限:扩展新的功能,需要修改源码。
✅:
//多态写法
class AbstractCalculator
{
public:
virtual int GetResult()
{
return 0;
}
int a;
int b;
};
//加法计算器类
class Add :public AbstractCalculator
{
public:
int GetResult()
{
return a + b;
}
};
//减法计算器类
class Sub :public AbstractCalculator
{
public:
int GetResult()
{
return a - b;
}
};
//乘法计算器类
class Mul :public AbstractCalculator
{
public:
int GetResult()
{
return a * b;
}
};
//除法计算器类
class Div:public AbstractCalculator
{
public:
int GetResult()
{
return a / b;
}
};
void Do(AbstractCalculator& ac2)
{
ac2.GetResult();
}
int main()
{
//加法
//父类的指针或引用,执行子类对象
AbstractCalculator* ac = new Add;
ac->a = 10;
ac->b = 20;
cout << ac->a << "+" << ac->b << "=" << ac->GetResult() << endl;
//记得销毁
delete ac;
//减法
ac = new Sub;
ac->a = 10;
ac->b = 20;
cout << ac->a << "-" << ac->b << "=" << ac->GetResult() << endl;
//记得销毁
delete ac;
//乘法除法同理
}
多态优势:
①组织结构清晰,可读性强。
②对于前期和后期扩展及维护性高。
4.7.3 纯虚函数和抽象类
在多态中,通常父类中虚函数的实现是毫无意义的,主要都是调用子类重写的内容,因此可以将虚函数改为纯虚函数
纯虚函数定义:virtual 返回值类型 函数名 (参数列表)= 0 ;
抽象类定义:当类中有了纯虚函数,这个类也称为抽象类
🔵抽象类的特点:
①无法实例化对象:抽象类不能直接创建对象。
②子类必须重写纯虚函数:如果子类没有重写纯虚函数,那么子类也会成为抽象类,无法实例化对象。
特性 | 纯虚函数 | 抽象类 |
---|---|---|
定义 | virtual 返回值类型 函数名(参数列表) = 0; | 包含至少一个纯虚函数的类 |
实例化 | 无 | 不能实例化对象 |
派生类要求 | 必须重写纯虚函数 | 必须重写纯虚函数,否则也是抽象类 |
// 抽象类
class base {
public:
// 纯虚函数
virtual void func() = 0;
};
// 子类1:未重写纯虚函数,仍然是抽象类
class son1 : public base {
public:
// 未重写 func(),son1 也是抽象类
};
// 子类2:重写了纯虚函数,可以实例化对象
class son2 : public base {
public:
void func() override {
cout << "son2 实现了 func()" << endl;
}
};
int main() {
// base b; // err: 抽象类无法实例化对象
// new base; // err: 抽象类无法实例化对象
// son1 s; // err: son1 未重写纯虚函数,仍然是抽象类
son2 s; // 正确:son2 重写了纯虚函数,可以实例化对象
s.func(); // 输出:son2 实现了 func()
return 0;
}
多态案例二:制作饮品
案例描述:
制作饮品的大致流程为:煮水 - 冲泡 - 倒入杯中 - 加入辅料。
利用多态技术实现本案例,提供抽象制作饮品基类,提供子类制作咖啡和茶叶。
class AbstractDrinking
{
public:
//煮水
virtual void BoilWater() = 0;
//冲泡
virtual void Brew() = 0 ;
//倒入杯中
virtual void IntoCup() = 0;
//加入辅料
virtual void PutSomeing() = 0;
//制作饮品
void Make()
{
BoilWater();
Brew();
IntoCup();
PutSomeing();
}
};
class Tea :public AbstractDrinking
{
//煮水
virtual void BoilWater()
{
cout << "煮500ml水" << endl;
}
//冲泡
virtual void Brew()
{
cout << "加入10g茶叶" << endl;
}
//倒入杯中
virtual void IntoCup()
{
cout<<"倒入杯子里"<<endl;
}
//加入辅料
virtual void PutSomeing()
{
cout << "加入柠檬" << endl;
}
};
class Coffee :public AbstractDrinking
{
//煮水
virtual void BoilWater()
{
cout << "煮500ml水" << endl;
}
//冲泡
virtual void Brew()
{
cout << "加入一勺咖啡" << endl;
}
//倒入杯中
virtual void IntoCup()
{
cout << "倒入杯子里" << endl;
}
//加入辅料
virtual void PutSomeing()
{
cout << "加入牛奶" << endl;
}
};
void DoMake(AbstractDrinking* ad)
{
ad->Make();
delete ad;//记得销毁
}
int main()
{
//做一杯茶
DoMake(new Tea);
//做一杯咖啡
DoMake(new Coffee);
}
4.7.4 虚析构函数和纯虚析构函数
在多态的使用中,如果子类中有属性分配在堆区(即使用 new
动态分配内存),而父类指针在释放时无法调用子类的析构函数,会导致子类的资源无法正确释放,从而引发内存泄漏。为了解决这个问题,可以将父类的析构函数声明为虚析构函数或纯虚析构函数。
情况 | 析构函数调用顺序 | 是否内存泄漏 |
---|---|---|
非虚析构函数 | 只调用父类的析构函数 | 是 |
虚析构函数 | 先调用子类的析构函数,再调用父类的析构函数 | 否 |
4.7.4.1 虚析构函数
虚析构函数的作用是确保通过父类指针删除子类对象时,能够正确调用子类的析构函数,从而释放子类中分配的资源。
语法:
virtual ~类名() {}
#include <iostream>
#include <string>
using namespace std;
class Animal {
public:
Animal() {
cout << "Animal构造函数的调用" << endl;
}
// 虚析构函数
virtual ~Animal() {
cout << "Animal虚析构函数的调用" << endl;
}
virtual void speak() = 0; // 纯虚函数
};
class Cat : public Animal {
public:
Cat(string n) {
cout << "Cat的构造函数的调用" << endl;
name = new string(n);
}
void speak() override {
cout << *name << " miao~" << endl;
}
~Cat() {
cout << "Cat的析构函数的调用" << endl;
if (name != nullptr) {
delete name;
name = nullptr;
}
}
private:
string* name;
};
int main() {
Animal* a = new Cat("mimi");
a->speak();
delete a; // 正确调用 Cat 的析构函数
return 0;
}
输出:
Animal构造函数的调用
Cat的构造函数的调用
mimi miao~
Cat的析构函数的调用
Animal虚析构函数的调用
- 由于
Animal
的析构函数是虚函数,delete a
时会先调用Cat
的析构函数,再调用Animal
的析构函数。 - 如果没有虚析构函数,
delete a
只会调用Animal
的析构函数,导致Cat
中分配的内存泄漏。
4.7.4.2 虚析构函数
纯虚析构函数是一种特殊的纯虚函数,它要求派生类必须实现析构函数。同时,纯虚析构函数本身也需要提供实现。
语法:
virtual ~类名() = 0; // 声明
类名::~类名() {} // 实现
示例:
#include <iostream>
#include <string>
using namespace std;
class Animal {
public:
Animal() {
cout << "Animal构造函数的调用" << endl;
}
// 纯虚析构函数
virtual ~Animal() = 0;
virtual void speak() = 0; // 纯虚函数
};
// 纯虚析构函数的实现
Animal::~Animal() {
cout << "Animal纯虚析构函数的调用" << endl;
}
class Cat : public Animal {
public:
Cat(string n) {
cout << "Cat的构造函数的调用" << endl;
name = new string(n);
}
void speak() override {
cout << *name << " miao~" << endl;
}
~Cat() {
cout << "Cat的析构函数的调用" << endl;
if (name != nullptr) {
delete name;
name = nullptr;
}
}
private:
string* name;
};
int main() {
Animal* a = new Cat("mimi");
a->speak();
delete a; // 正确调用 Cat 的析构函数
return 0;
}
输出:
Animal构造函数的调用
Cat的构造函数的调用
mimi miao~
Cat的析构函数的调用
Animal纯虚析构函数的调用
- 纯虚析构函数的作用与虚析构函数类似,确保通过父类指针删除子类对象时,能够正确调用子类的析构函数。
- 纯虚析构函数使
Animal
成为抽象类,无法实例化对象。
特性 | 虚析构函数 | 纯虚析构函数 |
---|---|---|
语法 | virtual ~类名() {} | virtual ~类名() = 0; 和 类名::~类名() {} |
是否抽象类 | 不是抽象类 | 是抽象类 |
是否需要实现 | 需要实现 | 需要实现 |
使用场景 | 基类可能被实例化 | 基类必须是抽象类 |
多态案例三:电脑组装
案例描述:
电脑主要组成部件为 CPU(用于计算),显卡(用于显示),内存条(用于存储)
将每个零件封装出抽象基类,并且提供不同的厂商生产不同的零件,例如Intel厂商和Lenovo厂商
创建电脑类提供让电脑工作的函数,并且调用每个零件工作的接口
测试时组装三台不同的电脑进行工作
class CPU
{
public:
virtual void calulate() = 0;
};
class VideoCard
{
public:
virtual void display() = 0;
};
class Memory
{
public:
virtual void storage() = 0;
};
//intel 厂商
class IntelCPU :public CPU
{
void calulate()
{
cout << "Intel的CPU工作啦!" << endl;
}
};
class IntelVideoCard :public VideoCard
{
void display()
{
cout << "Intel的VideoCard工作啦!" << endl;
}
};
class IntelMemory :public Memory
{
void storage()
{
cout << "Intel的Memory工作啦!" << endl;
}
};
//XiaoMi厂商
class XiaoMiCPU :public CPU
{
void calulate()
{
cout << "XiaoMi的CPU工作啦!" << endl;
}
};
class XiaoMiVideoCard :public VideoCard
{
void display()
{
cout << "XiaoMi的VideoCard工作啦!" << endl;
}
};
class XiaoMiMemory :public Memory
{
void storage()
{
cout << "XiaoMi的Memory工作啦!" << endl;
}
};
class Computer
{
public:
Computer(CPU* cpu, VideoCard* videpcard, Memory* memory)
{
this->cpu = cpu;
this->videpcard = videpcard;
this->memory = memory;
}
void DoWork()
{
cpu->calulate();
videpcard->display();
memory->storage();
}
~Computer()
{
if (cpu!= NULL)
{
delete cpu;
cpu = NULL;
}
if (videpcard!= NULL)
{
delete videpcard;
videpcard = NULL;
}
if (memory!= NULL)
{
delete memory;
memory = NULL;
}
}
private:
CPU* cpu;
VideoCard* videpcard;
Memory* memory;
};

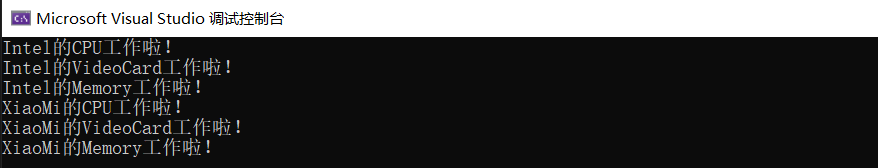

int main()
{
CPU* intel_cpu = new IntelCPU;
VideoCard* intel_vc = new IntelVideoCard;
Memory* intel_m = new IntelMemory;
Computer c1(intel_cpu, intel_vc, intel_m);
c1.DoWork();
CPU* xiaomi_cpu = new XiaoMiCPU;
VideoCard* xiaomi_vc = new XiaoMiVideoCard;
Memory* xiaomi_m = new XiaoMiMemory;
Computer c2(xiaomi_cpu, xiaomi_vc, xiaomi_m);
c2.DoWork();
}
五、文件
5.1 文本文件
程序运行时产生的数据都属于临时数据,程序一旦运行结束都会被释放,通过文件可以将数据持久化
C++中对文件操作需要包含头文件 < fstream >
文件类型分为两种:
①文本文件 - 文件以文本的ASCII码形式存储在计算机中
②二进制文件 - 文件以文本的二进制形式存储在计算机中,用户一般不能直接读懂它们
操作文件的三大类:
①ofstream:写操作
②ifstream: 读操作
③fstream : 读写操作
5.1.1 写文件
写文件步骤如下:
- 包含头文件:
#include <fstream>
- 创建流对象:
ofstream ofs;
- 打开文件:
ofs.open(“文件路径”,打开方式);
- 写数据:
ofs << "写入的数据";
- 关闭文件:
ofs.close();
文件打开方式:
打开方式 | 解释 |
---|---|
ios::in | 为读文件而打开文件 |
ios::out | 为写文件而打开文件 |
ios::ate | 初始位置:文件尾 |
ios::app | 追加方式写文件 |
ios::trunc | 如果文件存在先删除,再创建 |
ios::binary | 二进制方式 |
🔴注意:文件打开方式可以配合使用,利用|
操作符。

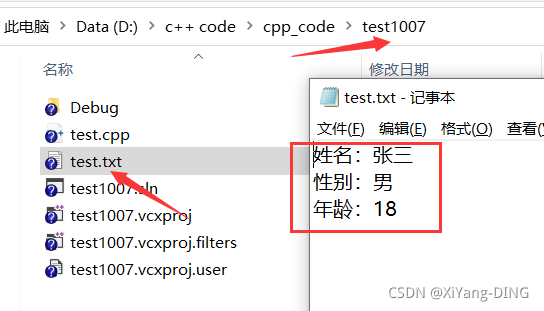

//eg.
#include <fstream>
int main()
{
//1.头文件
//2.创建流对象
ofstream ofs;
//3.打开文件,方式为:为写
ofs.open("test.txt", ios::out);
//4.写数据
ofs << "姓名:张三" << endl;
ofs << "性别:男" << endl;
ofs << "年龄:18" << endl;
//5.关闭文件
ofs.close();
return 0;
}
5.1.2 读文件
读文件步骤如下:
- 包含头文件:
#include <fstream>
- 创建流对象:
ifstream ifs;
- 打开文件并判断文件是否打开成功:
ifs.open(“文件路径”,打开方式);
- 读数据: 四种方式读取
- 关闭文件:
ifs.close();
//eg.
#include <fstream>
#include <string>
void test()
{
//1.包含头文件
//2.创建流对象
ifstream ifs;
//3.打开文件并判断文件是否打开成功
ifs.open("test.txt", ios::in);
if (!ifs.is_open())
{
cout << "文件打开失败" << endl;
return;
}
//4.读数据
//第一种方式
char buf[1024] = { 0 };
while (ifs >> buf)
{
cout << buf << endl;
}
//第二种
char buf[1024] = { 0 };
while (ifs.getline(buf,sizeof(buf)))
{
cout << buf << endl;
}
//第三种
string buf;
while (getline(ifs, buf))
{
cout << buf << endl;
}
//第四种
char c;
while ((c = ifs.get()) != EOF)//end of file
{
cout << c;
}
//5.关闭文件
ifs.close();
}
int main()
{
test();
return 0;
}
5.2 二进制文件
以二进制的方式对文件进行读写操作打开方式要指定为 ios::binary
5.2.1 写文件
二进制方式写文件主要利用流对象调用成员函数write
函数原型 :ostream& write(const char * buffer,int len);
参数解释:字符指针buffer
指向内存中一段存储空间。len
是读写的字节数
#include <fstream>
#include <string>
class Person
{
public:
char m_Name[64];
int m_Age;
};

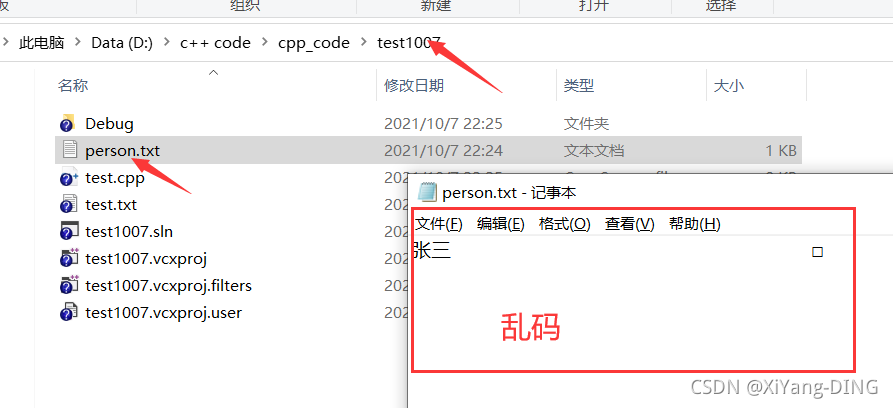

void test01()
{
//1、包含头文件
//2、创建输出流对象
ofstream ofs("person.txt", ios::out | ios::binary);
//3、打开文件
//ofs.open("person.txt", ios::out | ios::binary);
Person p = { "张三" , 18 };
//4、写文件
ofs.write((const char*)&p, sizeof(p));
//5、关闭文件
ofs.close();
}
int main()
{
test01();
return 0;
}
5.2.2 读文件
二进制方式读文件主要利用流对象调用成员函数read
函数原型:istream& read(char *buffer,int len);
参数解释:字符指针buffer
指向内存中一段存储空间。len
是读写的字节数
#include <fstream>
#include <string>
class Person
{
public:
char m_Name[64];
int m_Age;
};
void test01()
{
//1.包含头文件
//2.创建流对象
//3.打开文件并判断文件是否打开成功
ifstream ifs("person.txt", ios::in | ios::binary);
if (!ifs.is_open())
{
cout << "文件打开失败" << endl;
return;
}
//4.读文件(读到的是正常的不是乱码)
Person p;
ifs.read((char*)&p, sizeof(p));
cout << "姓名: " << p.m_Name << " 年龄: " << p.m_Age << endl;
//5.关闭文件
ifs.close();
}
int main()
{
test01();
return 0;
}
