本文详细介绍了颗粒包装机自动供料系统的设计，包括物料和包装材料的供送机构。设计中采用了象鼻成型器和改进的转鼓式计量装置，以提高包装性能，强调了结构的简化、轻量化和操作便利性。此外，还涵盖了机械部分如计量装置、引导装置和轴的设计计算，以及电机的选择和其他零件的设计，旨在提升生产效率并降低人工劳动强度。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

摘要

本设计是关于颗粒包装机自动供料系统的设计。颗粒包装机是将小颗粒产品通过计量装入包装袋内，再进行封装的包装机械。能较大提高生产效率、降低人工劳动强度。

本设计主要研究物料供送系统的结构设计和包装材料供送机构的设计。首先由包装机的生产能力确定计量装置的大小来完成物料的计量，从而完成物料的供送。其次由包装材料的传送路线确定引导辊的位置来完成包装材料的供送。

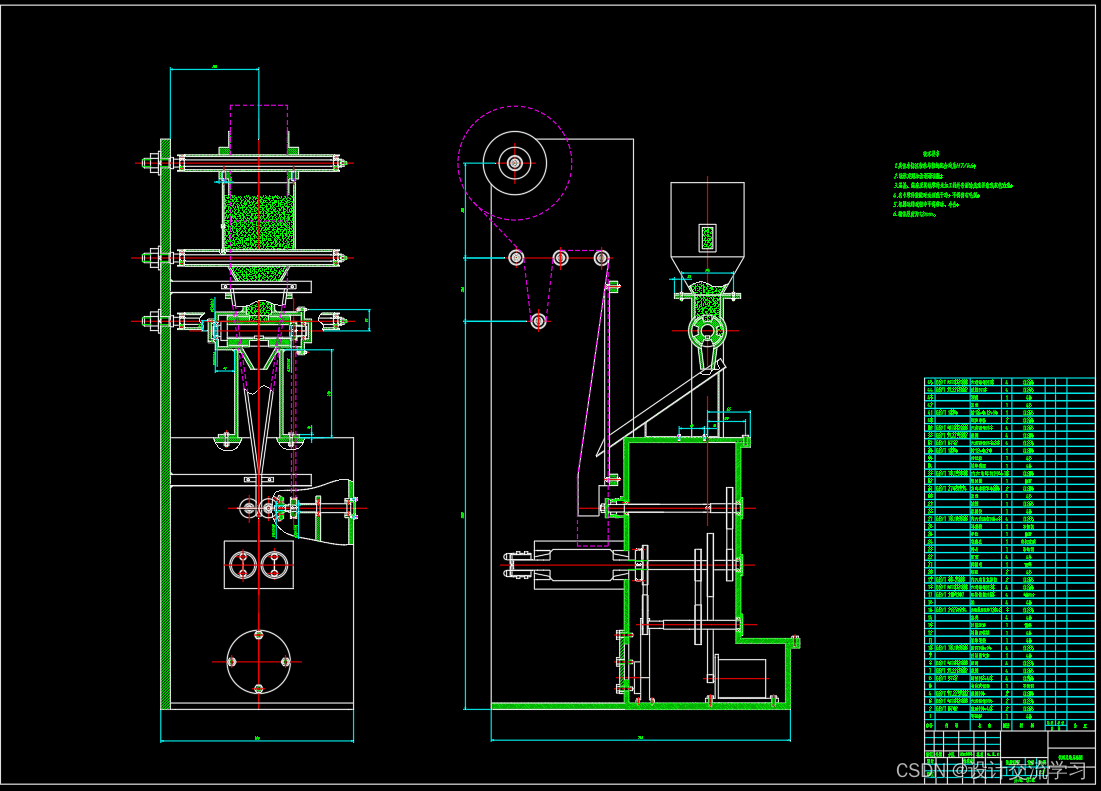

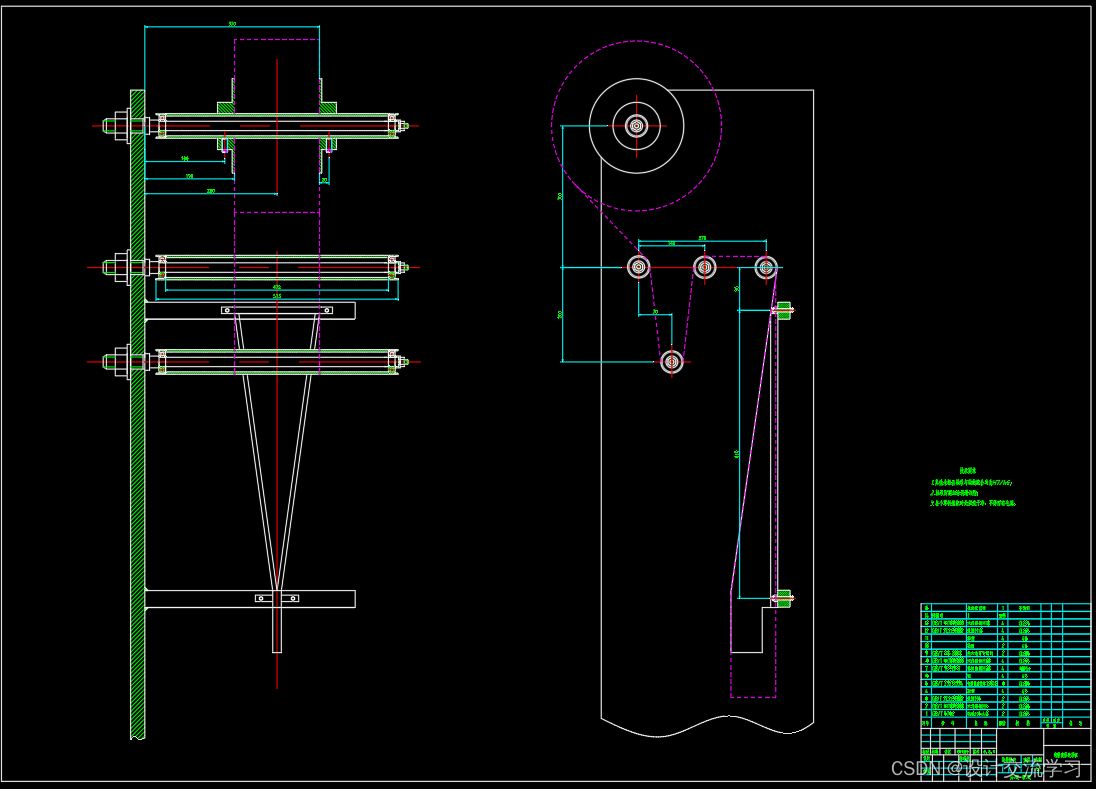

本设计主要设计颗粒包装机的包装材料成型与供送系统，包括供送包装材料的辊子，引导辊，成型器；物料供给系统，包括料斗，计量器，导流槽；以及计量器的传动系统。本次设计采用了象鼻成型器和改进后的转鼓式计量装置。

本设计能进一步提高其包装性能，结构简单、重量轻、外形尺寸小、设备费用低、运转安全，操作方便、便于维修和管理。

关键词：颗粒包装机；成型器；计量器

A design of the automatically feeding system for Granule packing machine

Abstract

This design is about automatic feeding system of packaging machine. Granule packaging machine feeds small products through the measurement into the packing bag, and then packaging system to finish packing. It could greatly improve the production efficiency,and reduce labor intensity.

This design mainly research materials for structure design and packaging material feeding system. Determined firstly by packing machine production capacity to complete material metering device size, thus completing the material supply. To determine the route followed by packaging materials to finished packaging material guide roller position feeding.

Packaging material forming the main design particles this design packaging machine and feeding system, including the supply roller, and sent packing material guide roller, forming device; material supply system, including the hopper, measuring device, guide groove; and the metering transmission system. This design uses a drum type metering device for trunk shaper and it improved better than any other types which exist in this society.

This design can improve the packaging performance, such as simple structure, light weight, small size, low cost of equipment, operation safety, convenient operation, and easy to repair and management for users.
