1700冷轧机组卷取机设计

关注 m0_52376787

于 2023-05-24 12:03:04 发布

阅读量337

点赞数

分类专栏：机械模具数控夹具车辆 PLC /设计文章标签：制造科技文档资料

原文链接：https://blog.csdn.net/m0_52376787/article/details/129159561?spm=1001.2014.3001.5501

版权

机械模具数控夹具车辆 PLC /设计专栏收录该内容

1449 篇文章

订阅专栏

该设计详细阐述了1700冷轧机组卷取机的方案选择，采用了四棱锥卷筒结构和液压缸驱动的斜楔胀缩方式，优化了卷筒加工和维护。通过对卷筒、传动系统、轴承和润滑方法的计算与设计，确保了设备的强度和效率，旨在提高带钢质量和生产效率。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

摘要

卷取机是轧钢成卷生产不可少的设备。保证卷取机顺利工作对提高轧机生产率有很重要意义。冷轧机组中，卷取机用于卷取带钢成钢卷。采用恒张力轧制，可以提高带钢质量。这次设计是1700冷轧机组卷取机设计，其用于二机架冷轧机组中。首先，选择卷取机的设计方案，并对设计方案进行评述。由于冷带钢卷取张力大，采用四棱锥卷筒结构。用液压缸移动斜楔进行胀缩。将四棱锥体单独加工装在卷筒轴上，这样改进，加工方便。当锥体磨损后可以单独更换。这样，可以降低设备维修费用。另外，四个扇形块边采用搭接技术，防止卷筒胀开后出现空隙，减少钢卷局部压扁，提高钢卷质量。去掉钳口，采用助卷器卡紧带钢头部，方便卸卷。这次设计，进行主电机容量的计算和选择。对斜楔进行受力分析。计算带钢卷取过程中对卷筒的压力并计算卷取轴弯曲强度，对传动齿轮进行设计计算。对支承轴承进行选择和校核。采用合理的润滑方案、润滑方法和控制技术，使卷取机技术先进，经济合理。强度足够，有广泛的使用价值，可用于酸洗、热处理、镀锌和镀锌机组中。

关键词：卷取机，斜楔胀缩，助卷

1700 cold rolling unit coiler design

Abstract

The coiler is rolls steel the volume production not to be possible the few equipment. Guaranteed the coiler smooth work to enhances the rolling mill productivity to have the very vital significance. In the cold rolling unit, the coiler uses in the volume taking hoop Cheng Gangjuan. Uses the permanent tensity rolling, may improve the hoop quality.

The lap machine design of 1700 cold calendar units to used for two expansions of cold calendar units. First of all, choice the design project of lap machine, and carry on a comment towards it. In that the cold strips of lap tensile force is big, adopt four rib awls roll structures. Using the hydraulic cylinder to move the oblique wedge to expansion and contracting. It is convenience that processing four rib awls alone and setting on the roll. When the awls wear away, we can replace it alone. So it will reduce the maintenance costs of equipments. In addition, four fan-shaped piece side adoptions taking the lap laying lap work technique for avoiding appearing interstice after rolling expansion, reducing the steel roll parts to staving and enhancing quality of strips. To throw away the pliers , taking auxiliary roll machine to take the strips tightly for unloads strips conveniently.

The design of task is that calculation and choice of the main electrical engineering capacity. To analyze force of the oblique wedge. The calculation that the roll stress of taking strips and flection intensity of the roll shaft, and transmission gears. Choice and checking bearings. Taking reasonable project and method of lubricating ,and control technique, in order to the lap machine has advanced technique, reasonable economy ,the intensity is enough and extensive using value. It can be used for sour wash, hot processing, galvanization and galvanization units.

Keyword: lap machine, the oblique wedge expansion and contracting, auxiliary roll

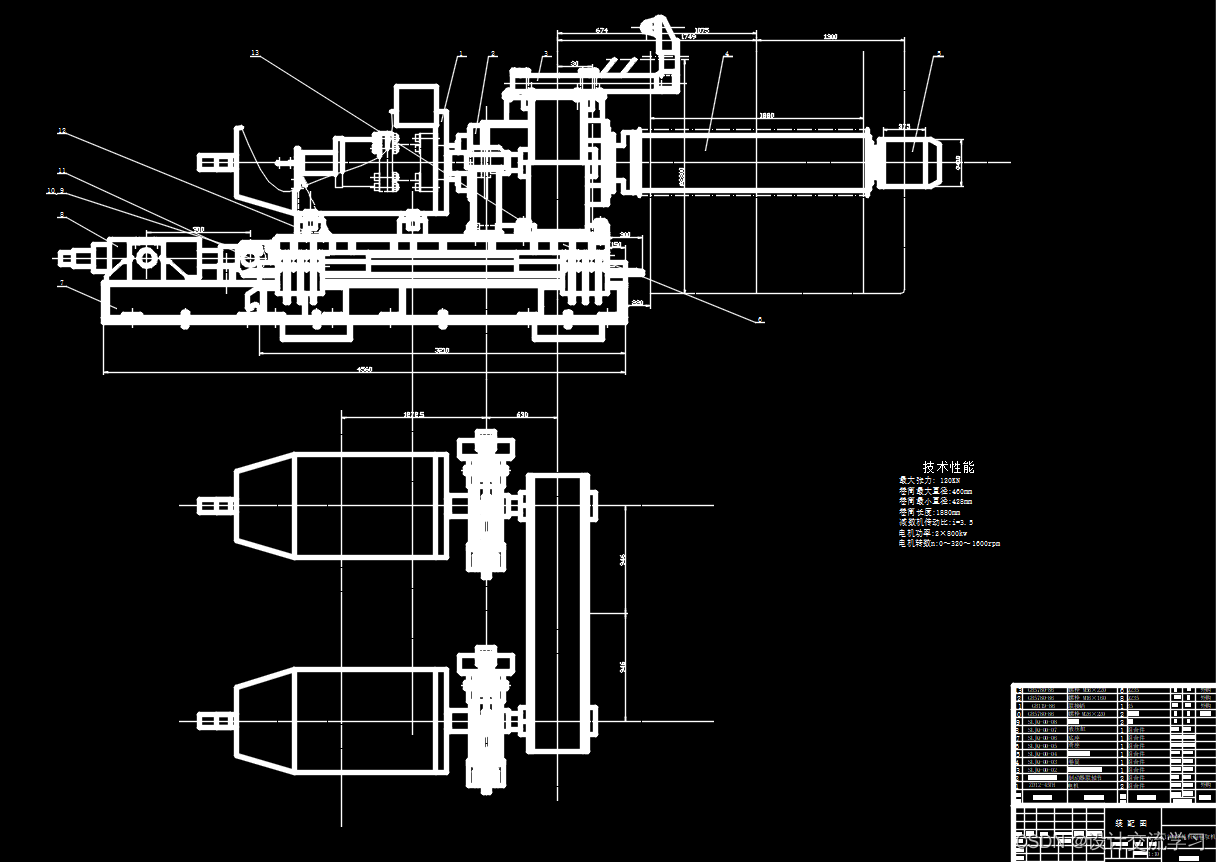

1.3.1冷轧机组平面布置图，卷取机的作用 2
