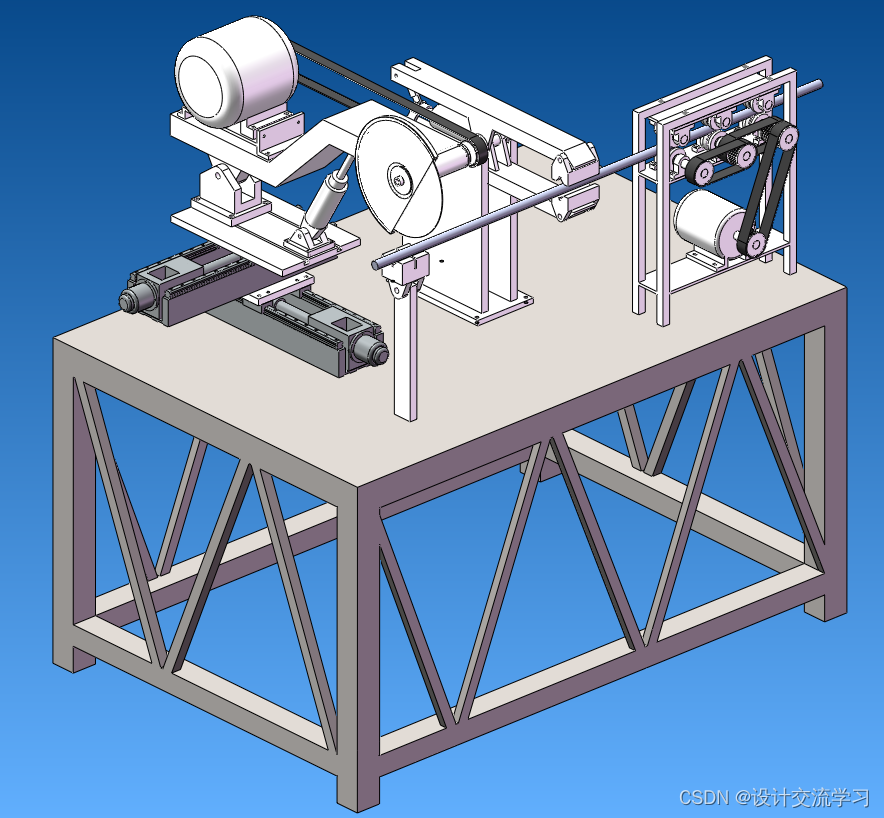

圆钢棒料剪切机的设计

摘要

本文设计的题目是圆钢棒料剪切机的机械机构设计。圆钢棒料截断机是通过皮带传动的带轮，通过带轮传动，通过切割装置下降后，能够逐渐碰到圆钢棒料上面，当他们拉达到极限开关位置时，限位开关会再开关打它会监测控制转移到停止信号。在这种情况下，停止转动牵引系统和聚焦系统的发动机，两个电动机驱动切断系统和输送设备开始旋转。当需要关闭操作时，关闭移动方向时刀具接触圆钢棒料的刀片将被运动，直至截止。

本文件的内容：

（1）圆钢棒料切断装置的整体结构设计。

（2）圆钢棒料截断的设备性能分析。

（3）选择发动机。

（4）圆钢棒料截断机的传动系统、执行元件及机架设计。

（5）设计元件计算分析及校核。

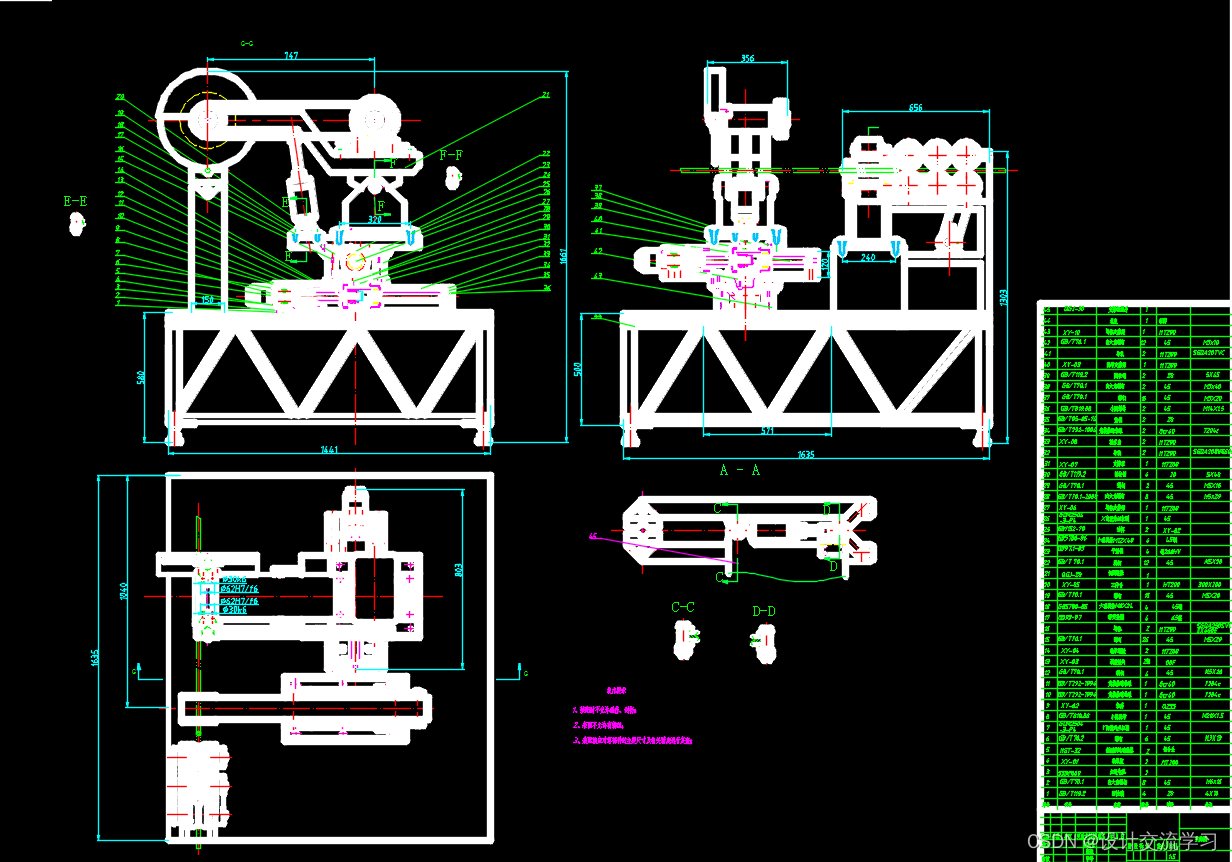

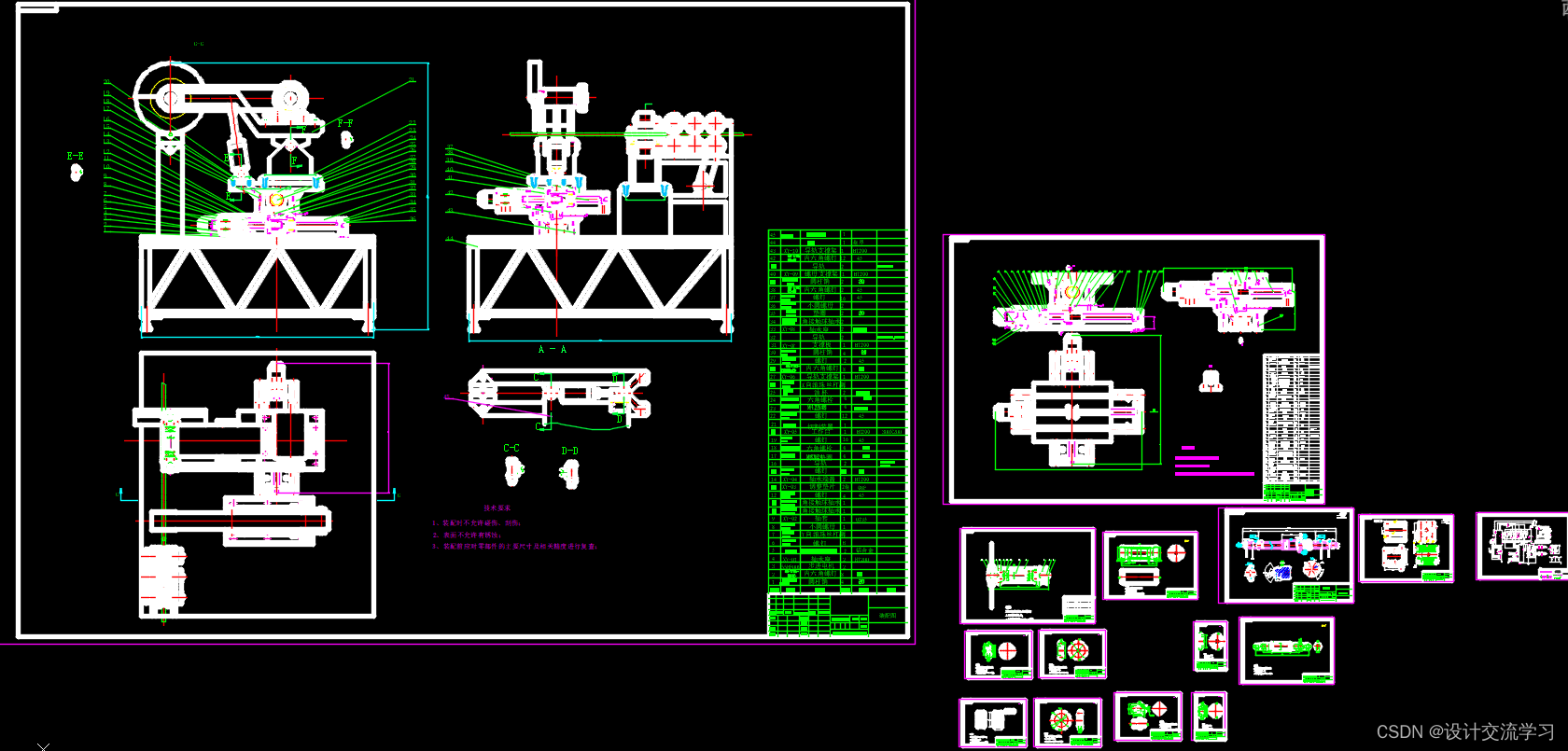

（6）制出总装，部装图及零件图。

关键词：圆钢棒料剪切机;联轴器;滚珠丝杠

Abstract

This design is reinforced truncated device design. Reinforced guillotine is a motor via a belt drive, driven pull rolls, reinforced by pulling straight into the transfer roller bar straightening after falling into the feeder, when it reaches the limit switch position, it will touch the limit switch, and then the trip switch It will signal the control system transfers control to stop the motor. In this case, the traction system and straightening system motor stops rotating, the two motors are driven by screw cut-off system and the tool begins to turn. Steel screw driven stage to close the direction of movement when the tool touches the wheel of reinforced steel will be cut until the cut-off.

Contents of this paper:

(1) overall structural design of reinforced cut-off device.

(2) Reinforced truncated equipment performance analysis.

(3) Select the motor.

(4) Reinforced truncated equipment rack design and execution unit.

(5) Calculation of design parts design analysis and verification.

(6) to draw the whole assembly drawings and assembly drawings important component part drawing and design components.

Keywords: reinforced cut-off device; coupling; ball screw
