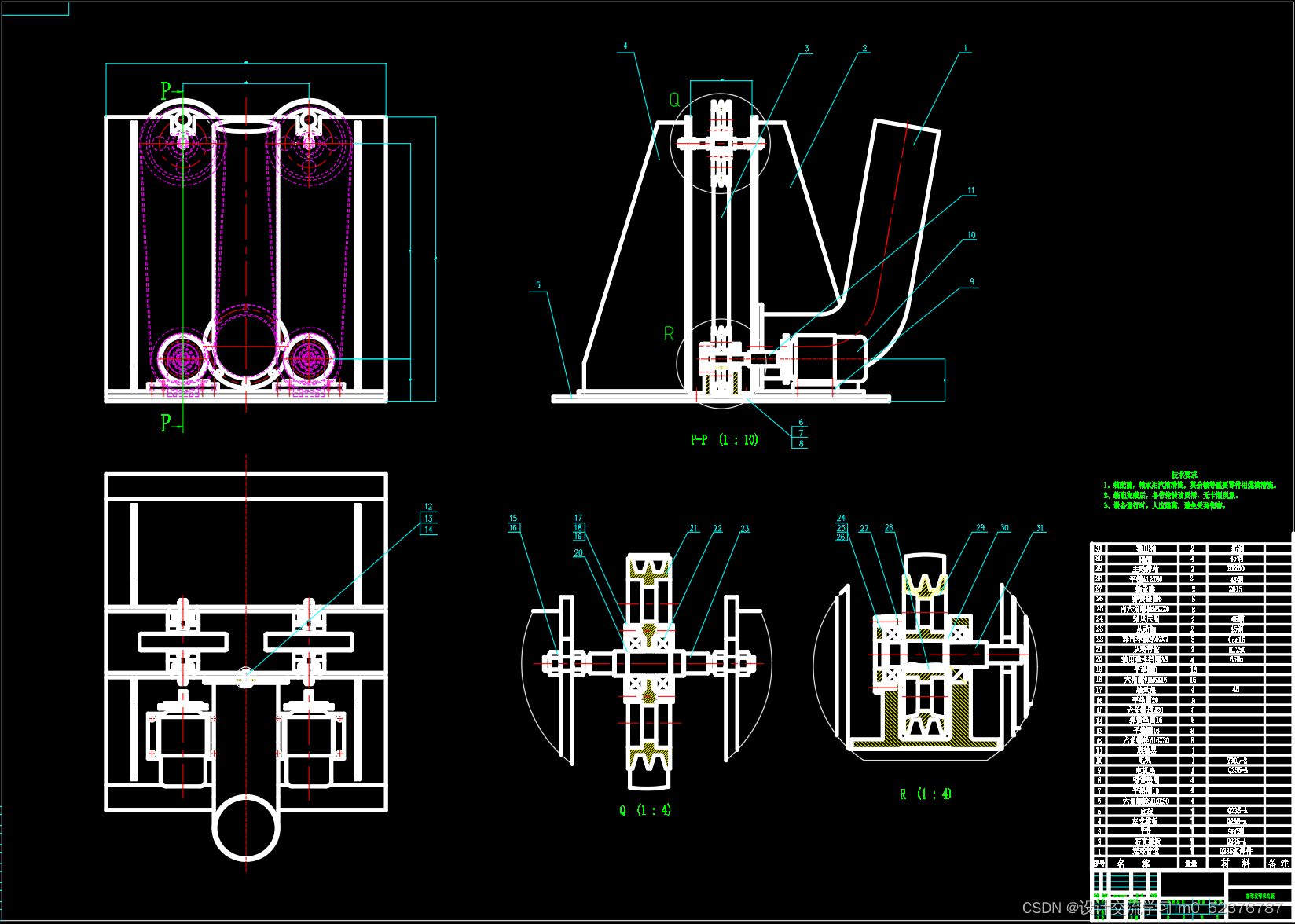

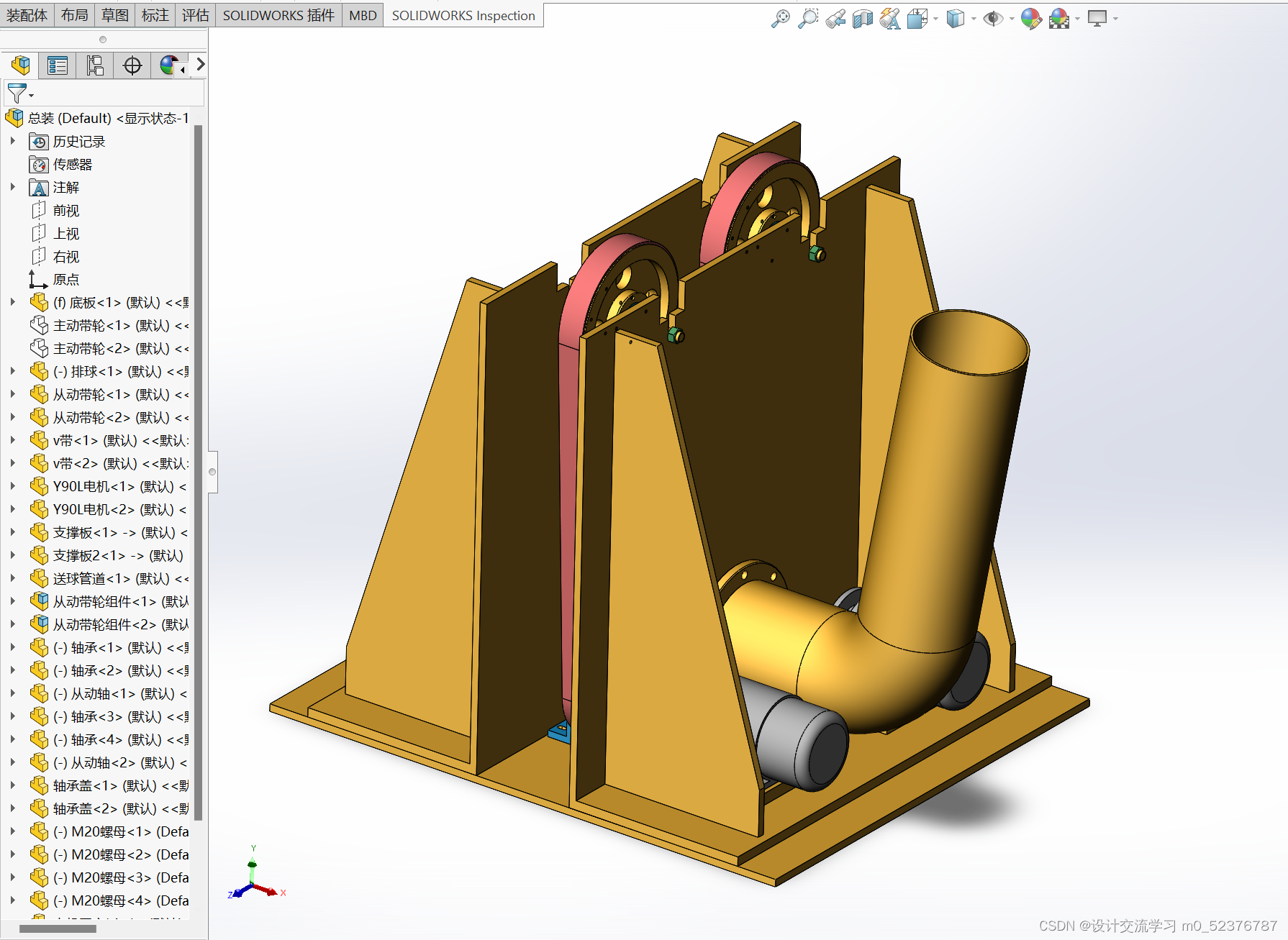

排球发球机的设计【论文+CAD图纸+SW三维图+IGS x_t】

关注 m0_52376787

于 2024-04-25 11:46:33 发布

阅读量226

点赞数

分类专栏：机械模具数控夹具车辆 PLC /设计文章标签：毕业设计

原文链接：https://blog.csdn.net/m0_52376787/article/details/129011436?spm=1001.2014.3001.5502

版权

机械模具数控夹具车辆 PLC /设计专栏收录该内容

1481 篇文章

订阅专栏

本文研究了基于摩擦轮式发球器的改进，提出使用带传动机制以提高排球出球速度和稳定性。通过力学分析，探讨了发球过程中的运动速度和受力情况，并对比了带传动发球器与原有设备的差异，为完善发球器设计提供方案。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

摘要

本文在第一代排球扣、发球装置机器的基础上，对发球器改进设计并在提高排球的出球速度上进行分析。

首先对国内外排球发球机的现状进行了简单的分析和研究，在此基础上明确发球器的发球原理。接着以摩擦轮式发球器为例，针对提高其出球速度、旋转方面的特性，提出了用带传动式机构来替代摩擦轮式装置，使得排球在发出球前受力时间加长，运动更加平稳。最后对带传动结构进行力学分析，重点是排球发球的过程，即进入传送带到出球这个过程的运动速度和受力分析。

本文最后总结了带传动发球器和原有的摩擦轮发球器的差异，对进一步完善发球器装置提出了改进方案。

关键词：发球装置带传动出球速度摩擦轮力学分析

Abstract

On the basis of the first generation of smashing tee device machine serve is to improve the design and analysis improve volleyball ball speed.

First, a simple analysis and research on the current situation of the domestic and international volleyball ball machine, based on a clear principle of serve serve. Followed by a friction wheel tee, for example, targeted to improve the speed of the ball, the rotation characteristics, the belt drive mechanism to replace the friction wheel device, making volleyball in force issued before the ball longer, exercise more stable. Finally, the mechanical structure of the belt drive, the focus is to the volleyball serve the process, that is, into the conveyor belt to the speed and force analysis of the movement of the ball this process.

Finally, summed up the difference with the Transmission tee and the original friction wheel serve to further perfect tee device improvement program.

Keywords: Serve device；Belt drive；The ball speed；Friction wheel；Mechanical analysis
