本文是仿12306项目实战第（二）章——项目实现的第三篇，本篇为12306基础功能的实现，包括会员数据，火车基础数据等的增删改查；讲解如何使用自制前后端代码生成器提高开发效率

一、会员基础功能的实现

1.详解乘车人表的设计

增加乘车人表

sql/member.sql

drop table if exists `passenger`;
create table `passenger` (
                             `id` bigint not null comment 'id',
                             `member_id` bigint not null comment '会员id',
                             `name` varchar(20) not null comment '姓名',
                             `id_card` varchar(18) not null comment '身份证',
                             `type` char(1) not null comment '旅客类型|枚举[PassengerTypeEnum]',
                             `create_time` datetime(3) comment '新增时间',
                             `update_time` datetime(3) comment '修改时间',
                             primary key (`id`),
                             index `member_id_index` (`member_id`)
) engine=innodb default charset=utf8mb4 comment='乘车人';

注意：这里旅客类型type，在后面代码会使用到一个枚举类去表示旅客类型

生成代码

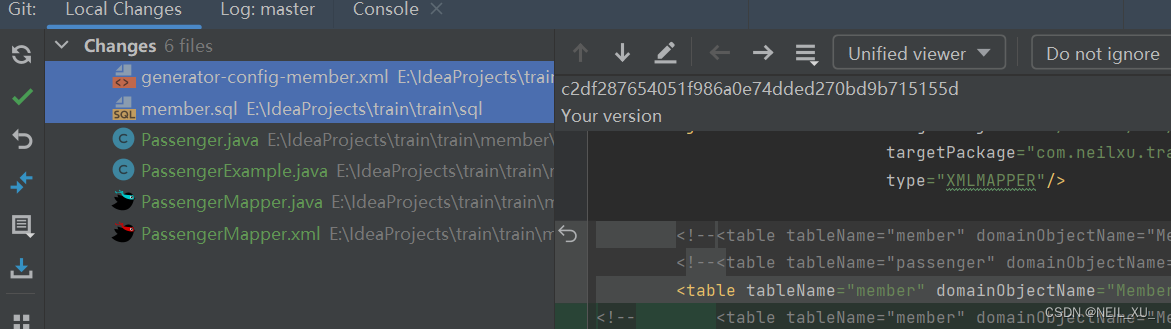

修改生成器配置

generator/src/main/resources/generator-config-member.xml

<!--        <table tableName="member" domainObjectName="Member"/>-->
        <table tableName="passenger" domainObjectName="Passenger"/>

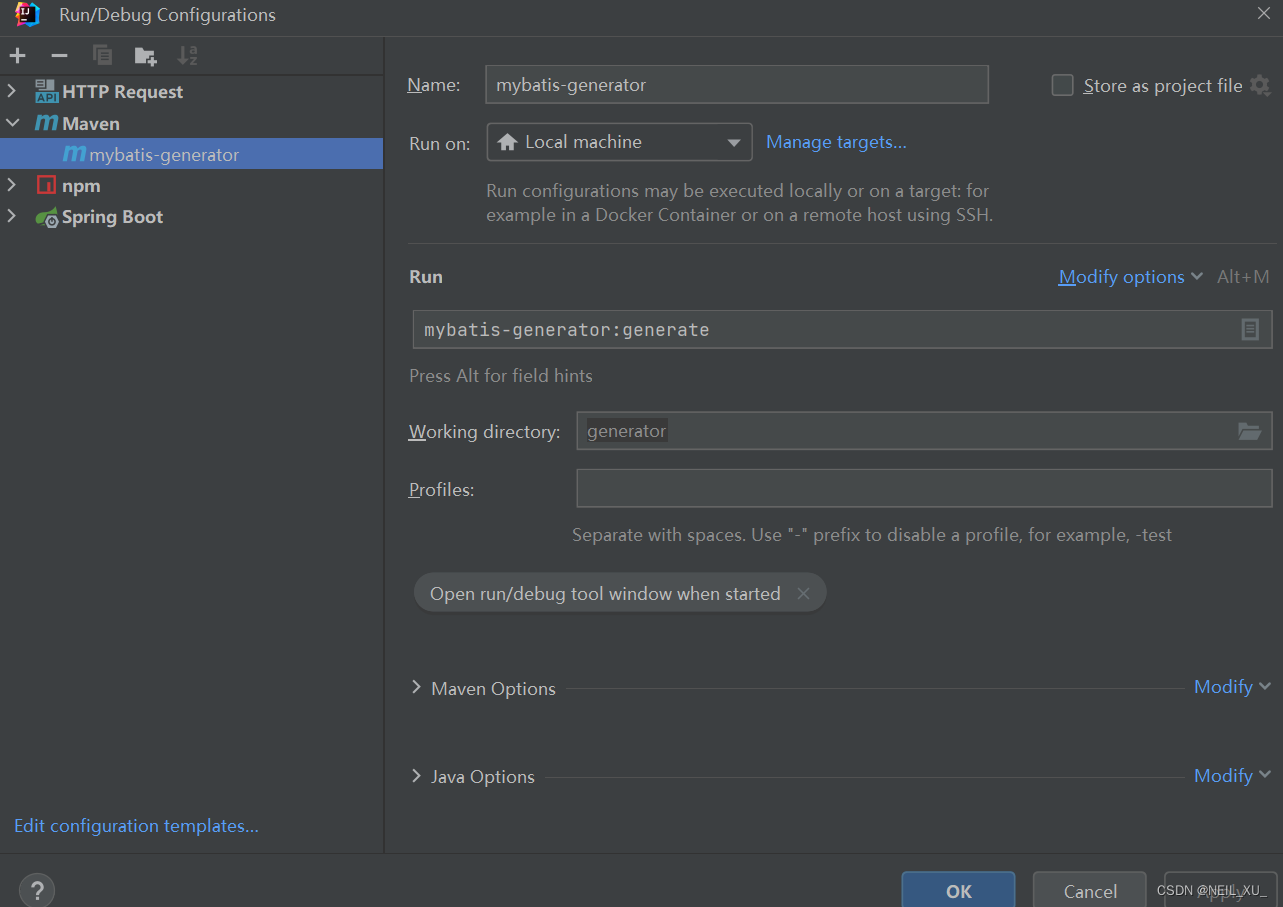

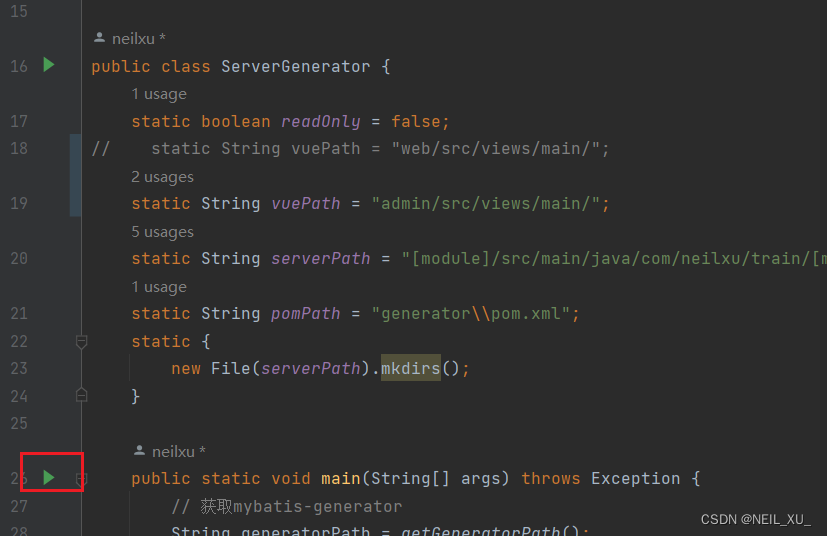

配置maven命令快捷指令

在这里插入图片描述

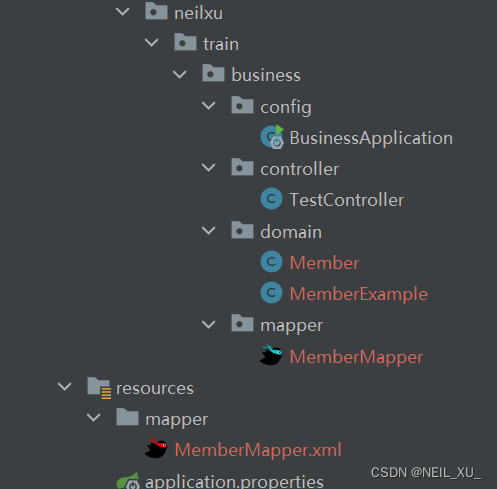

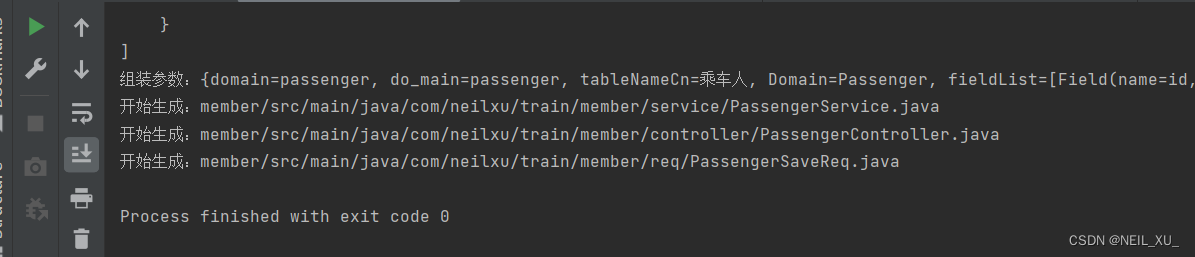

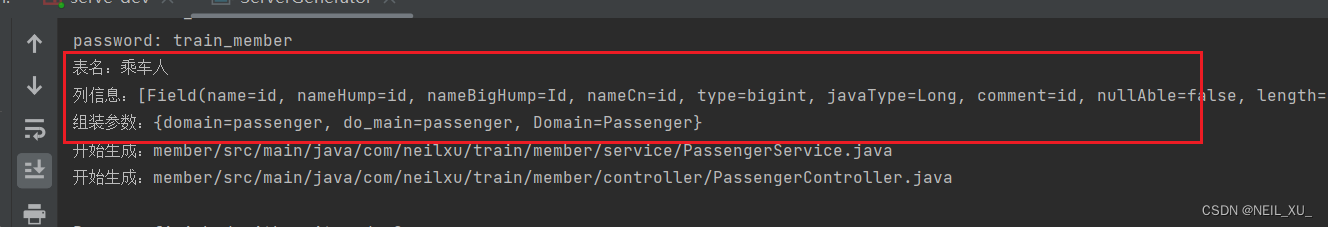

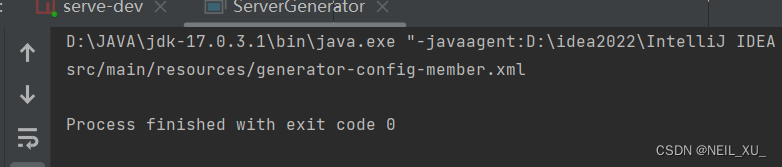

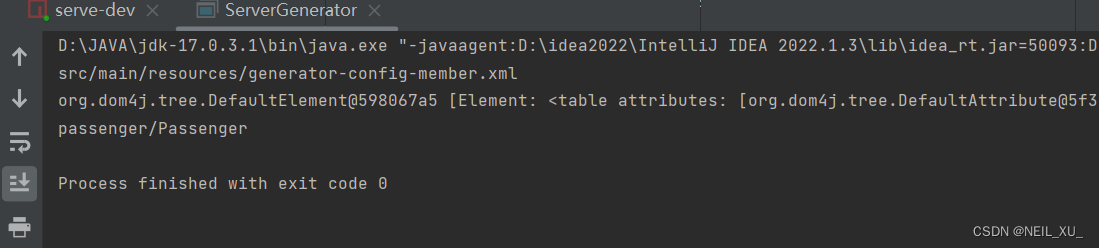

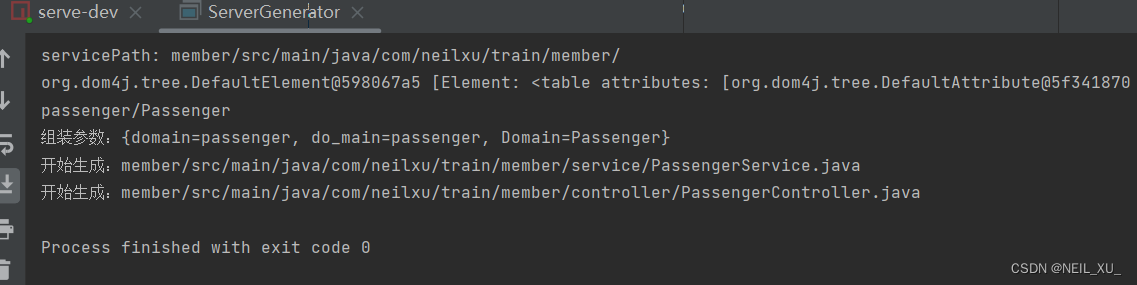

点击生成代码：

在这里插入图片描述

增加乘车人类型枚举类

com.neilxu.train.member.enums.PassengerTypeEnum

package com.neilxu.train.member.enums;

import java.util.ArrayList;
import java.util.EnumSet;
import java.util.HashMap;
import java.util.List;

public enum PassengerTypeEnum {

    ADULT("1", "成人"),
    CHILD("2", "儿童"),
    STUDENT("3", "学生");

    private String code;

    private String desc;

    PassengerTypeEnum(String code, String desc) {
        this.code = code;
        this.desc = desc;
    }

    public String getCode() {
        return code;
    }

    public void setCode(String code) {
        this.code = code;
    }

    public void setDesc(String desc) {
        this.desc = desc;
    }

    public String getDesc() {
        return desc;
    }

    public static List<HashMap<String,String>> getEnumList() {
        List<HashMap<String, String>> list = new ArrayList<>();
        for (PassengerTypeEnum anEnum : EnumSet.allOf(PassengerTypeEnum.class)) {
            HashMap<String, String> map = new HashMap<>();
            map.put("code",anEnum.code);
            map.put("desc",anEnum.desc);
            list.add(map);
        }
        return list;
    }
}

2.增加乘车人新增接口

增加请求实体类

com.neilxu.train.member.req.PassengerSaveReq

lombok和自己写的方法重名时，自己写的优先级更高

package com.neilxu.train.member.req;

import jakarta.validation.constraints.NotBlank;
import jakarta.validation.constraints.NotNull;
import lombok.Data;

import java.util.Date;

@Data
public class PassengerSaveReq {
    private Long id;

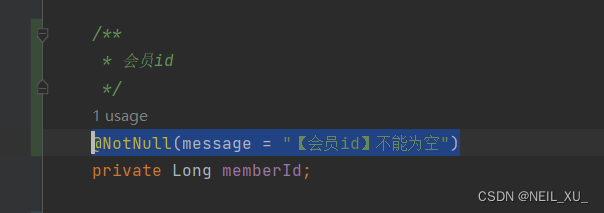

    @NotNull(message = "【会员ID】不能为空")
    private Long memberId;

    @NotBlank(message = "【名字】不能为空")
    private String name;

    @NotBlank(message = "【身份证】不能为空")
    private String idCard;

    @NotBlank(message = "【旅客类型】不能为空")
    private String type;

    private Date createTime;

    private Date updateTime;

    @Override
    public String toString() {
        StringBuilder sb = new StringBuilder();
        sb.append(getClass().getSimpleName());
        sb.append(" [");
        sb.append("Hash = ").append(hashCode());
        sb.append(", id=").append(id);
        sb.append(", memberId=").append(memberId);
        sb.append(", name=").append(name);
        sb.append(", idCard=").append(idCard);
        sb.append(", type=").append(type);
        sb.append(", createTime=").append(createTime);
        sb.append(", updateTime=").append(updateTime);
        sb.append("]");
        return sb.toString();
    }
}

service

com.neilxu.train.member.service.PassengerService

package com.neilxu.train.member.service;

import cn.hutool.core.bean.BeanUtil;
import cn.hutool.core.date.DateTime;
import com.neilxu.train.common.util.SnowUtil;
import com.neilxu.train.member.domain.Passenger;
import com.neilxu.train.member.mapper.PassengerMapper;
import com.neilxu.train.member.req.PassengerSaveReq;
import jakarta.annotation.Resource;
import org.springframework.stereotype.Service;

@Service
public class PassengerService {

    @Resource
    private PassengerMapper passengerMapper;

    public void save(PassengerSaveReq req) {
        DateTime now = DateTime.now();
        Passenger passenger = BeanUtil.copyProperties(req, Passenger.class);
        passenger.setId(SnowUtil.getSnowflakeNextId());
        passenger.setCreateTime(now);
        passenger.setUpdateTime(now);
        passengerMapper.insert(passenger);
    }
}

这里注意请求参数没有带的值，后端插入表之前要先set

controller

com.neilxu.train.member.controller.PassengerController

package com.neilxu.train.member.controller;

import com.neilxu.train.common.resp.CommonResp;
import com.neilxu.train.member.req.PassengerSaveReq;
import com.neilxu.train.member.service.PassengerService;
import jakarta.annotation.Resource;
import jakarta.validation.Valid;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

@RestController
@RequestMapping("/passenger")
public class PassengerController {

    @Resource
    private PassengerService passengerService;

    @PostMapping("/save")
    public CommonResp<Object> save(@Valid @RequestBody PassengerSaveReq req) {
        passengerService.save(req);
        return new CommonResp<>();
    }

}

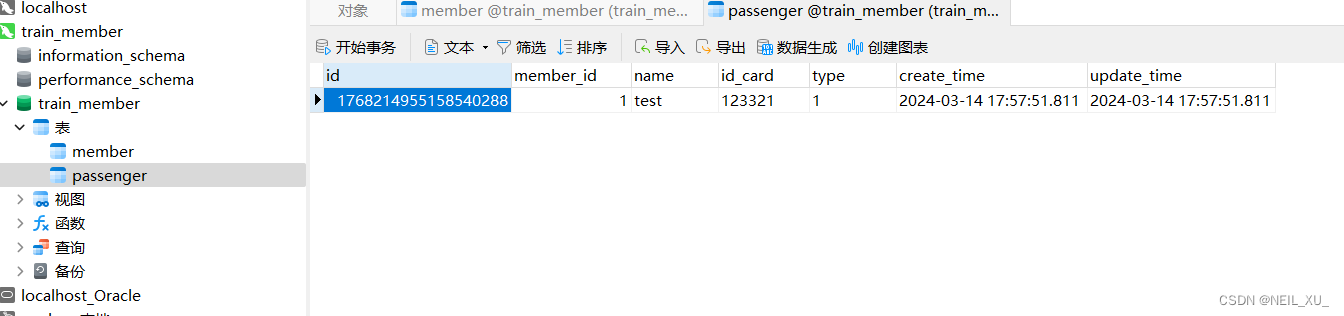

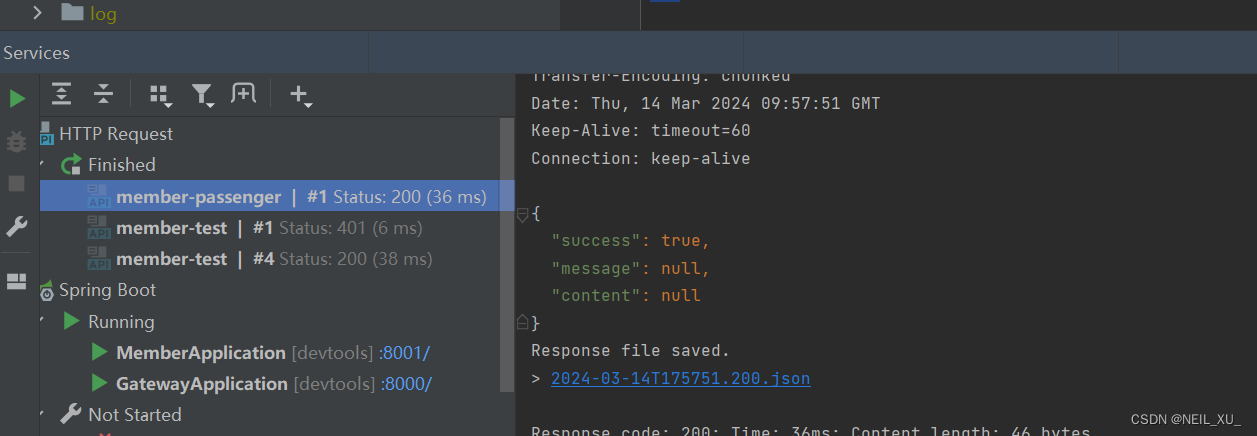

测试

http/member-passenger.http

POST http://localhost:8001/member/passenger/save
Content-Type: application/json

{
  "memberId": "1",
  "name": "test",
  "idCard": "123321",
  "type": "1"
}

###

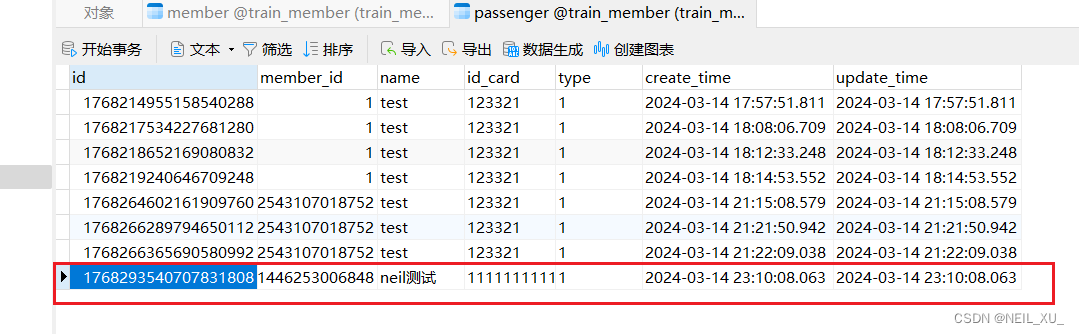

在这里插入图片描述

3.使用IDEA自带的HttpClient记住登录信息

增加全局变量

登录后保存token到全局变量token

http/member-test.http

POST http://localhost:8000/member/member/login
Content-Type: application/json

{
  "mobile": "13000000001",
  "code": "8888"
}

> {%
client.log(JSON.stringify(response.body));
client.log(JSON.stringify(response.body.content.token));
client.global.set("token", response.body.content.token);
%}

###

修改其他需要登录的测试接口

{{token}} 获取全局变量token

POST http://localhost:8000/member/passenger/save
Content-Type: application/json
token: {{token}}

{
  "memberId": "1",
  "name": "test",
  "idCard": "123321",
  "type": "1"
}

###

测试‘

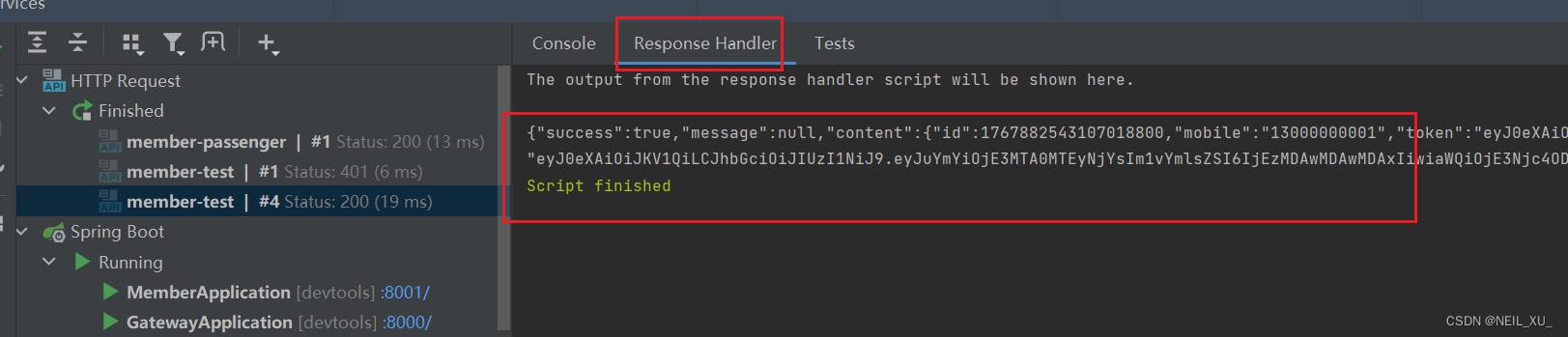

先调用登录

在这里插入图片描述

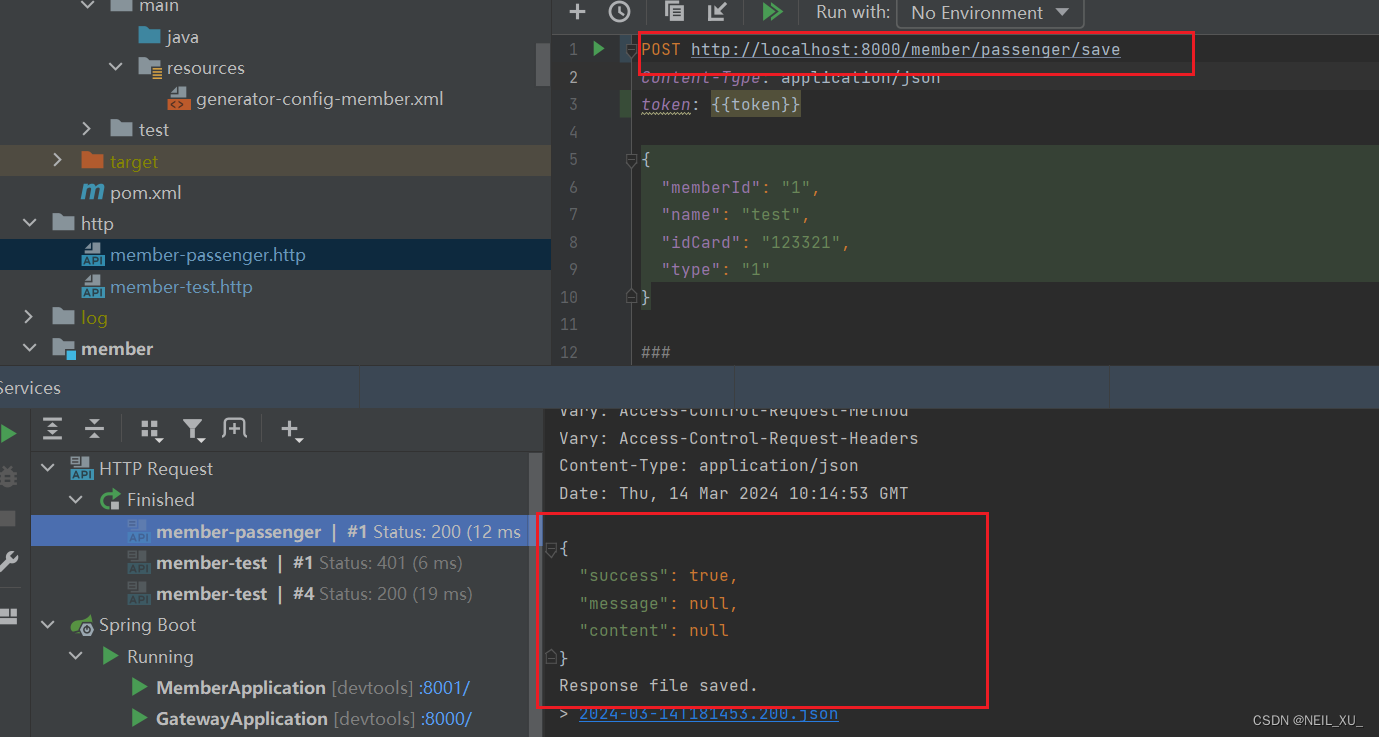

网关8000端口访问save接口

在这里插入图片描述

4.使用线程本地变量存储会员信息

common新建类来使用本地变量

com.neilxu.train.common.context.LoginMemberContext

package com.neilxu.train.common.context;

import com.neilxu.train.common.resp.MemberLoginResp;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

public class LoginMemberContext {
    private static final Logger LOG = LoggerFactory.getLogger(LoginMemberContext.class);

    private static ThreadLocal<MemberLoginResp> member = new ThreadLocal<>();

    public static MemberLoginResp getMember() {
        return member.get();
    }

    public static void setMember(MemberLoginResp member) {
        LoginMemberContext.member.set(member);
    }

    public static Long getId() {
        try {
            return member.get().getId();
        } catch (Exception e) {
            LOG.error("获取登录会员信息异常", e);
            throw e;
        }
    }

}

**注意：**这里将MemberLoginResp.java复制了一份到common中

配置拦截器

新增拦截器类

com.neilxu.train.common.interceptor.MemberInterceptor

package com.neilxu.train.common.interceptor;

import cn.hutool.core.util.StrUtil;
import cn.hutool.json.JSONObject;
import cn.hutool.json.JSONUtil;
import com.neilxu.train.common.util.JwtUtil;
import com.neilxu.train.common.context.LoginMemberContext;
import com.neilxu.train.common.resp.MemberLoginResp;
import jakarta.servlet.http.HttpServletRequest;
import jakarta.servlet.http.HttpServletResponse;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.stereotype.Component;
import org.springframework.web.servlet.HandlerInterceptor;

/**
 * 拦截器：Spring框架特有的，常用于登录校验，权限校验，请求日志打印
 */
@Component
public class MemberInterceptor implements HandlerInterceptor {

    private static final Logger LOG = LoggerFactory.getLogger(MemberInterceptor.class);

    @Override
    public boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler) throws Exception {
        //获取header的token参数
        String token = request.getHeader("token");
        if (StrUtil.isNotBlank(token)) {
            LOG.info("获取会员登录token：{}", token);
            JSONObject loginMember = JwtUtil.getJSONObject(token);
            LOG.info("当前登录会员：{}", loginMember);
            MemberLoginResp member = JSONUtil.toBean(loginMember, MemberLoginResp.class);
            LoginMemberContext.setMember(member);
        }
        return true;
    }

}

开启拦截器

com.neilxu.train.common.config.SpringMvcConfig

package com.neilxu.train.common.config;

import com.neilxu.train.common.interceptor.MemberInterceptor;
import jakarta.annotation.Resource;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.servlet.config.annotation.InterceptorRegistry;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurer;

@Configuration
public class SpringMvcConfig implements WebMvcConfigurer {

    @Resource
    MemberInterceptor memberInterceptor;

    @Override
    public void addInterceptors(InterceptorRegistry registry) {
        registry.addInterceptor(memberInterceptor)
                .addPathPatterns("/**")
                .excludePathPatterns(
                        "/member/hello",
                        "/member/member/send-code",
                        "/member/member/login"
                );
    }
}

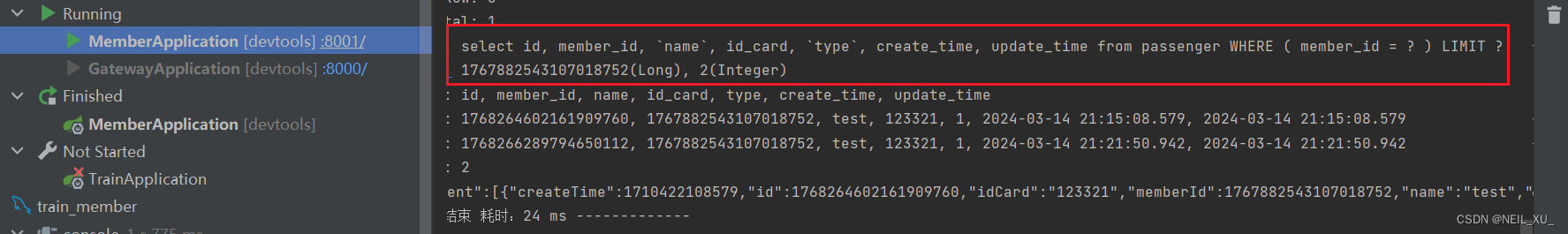

测试

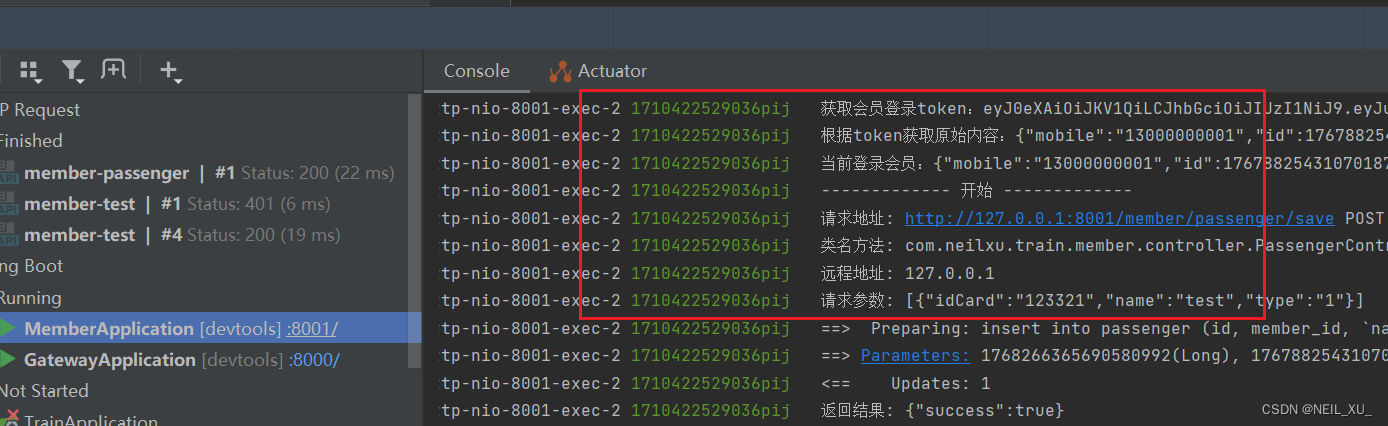

最终效果：save乘客的时候，无需再传递memberId，而是从线程本地变量获取

http/member-passenger.http

POST http://localhost:8000/member/passenger/save
Content-Type: application/json
token: {{token}}

{
  "name": "test",
  "idCard": "123321",
  "type": "1"
}

###

在这里插入图片描述

解决拦截器没有日志流水号的问题

由于拦截器先拦截，之后再走的aop，所以没有日志流水号

解决办法：增加日志拦截器

com.neilxu.train.common.interceptor.LogInterceptor

package com.neilxu.train.common.interceptor;

import cn.hutool.core.util.RandomUtil;
import jakarta.servlet.http.HttpServletRequest;
import jakarta.servlet.http.HttpServletResponse;
import org.slf4j.MDC;
import org.springframework.stereotype.Component;
import org.springframework.web.servlet.HandlerInterceptor;

/**
 * 日志拦截器
 */
@Component
public class LogInterceptor implements HandlerInterceptor {

    @Override
    public boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler) throws Exception {
        // 增加日志流水号
        MDC.put("LOG_ID", System.currentTimeMillis() + RandomUtil.randomString(3));
        return true;
    }

}

开启日志拦截器

com.neilxu.train.common.config.SpringMvcConfig

package com.neilxu.train.common.config;

import com.neilxu.train.common.interceptor.LogInterceptor;
import com.neilxu.train.common.interceptor.MemberInterceptor;
import jakarta.annotation.Resource;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.servlet.config.annotation.InterceptorRegistry;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurer;

@Configuration
public class SpringMvcConfig implements WebMvcConfigurer {

    @Resource
    LogInterceptor logInterceptor;

    @Resource
    MemberInterceptor memberInterceptor;

    @Override
    public void addInterceptors(InterceptorRegistry registry) {
        registry.addInterceptor(logInterceptor);

        registry.addInterceptor(memberInterceptor)
                .addPathPatterns("/**")
                .excludePathPatterns(
                        "/member/hello",
                        "/member/member/send-code",
                        "/member/member/login"
                );
    }
}

去掉aop里的增加日志流水号逻辑

com.neilxu.train.common.aspect.LogAspect

//        // 增加日志流水号
//        MDC.put("LOG_ID", System.currentTimeMillis() + RandomUtil.randomString(3));

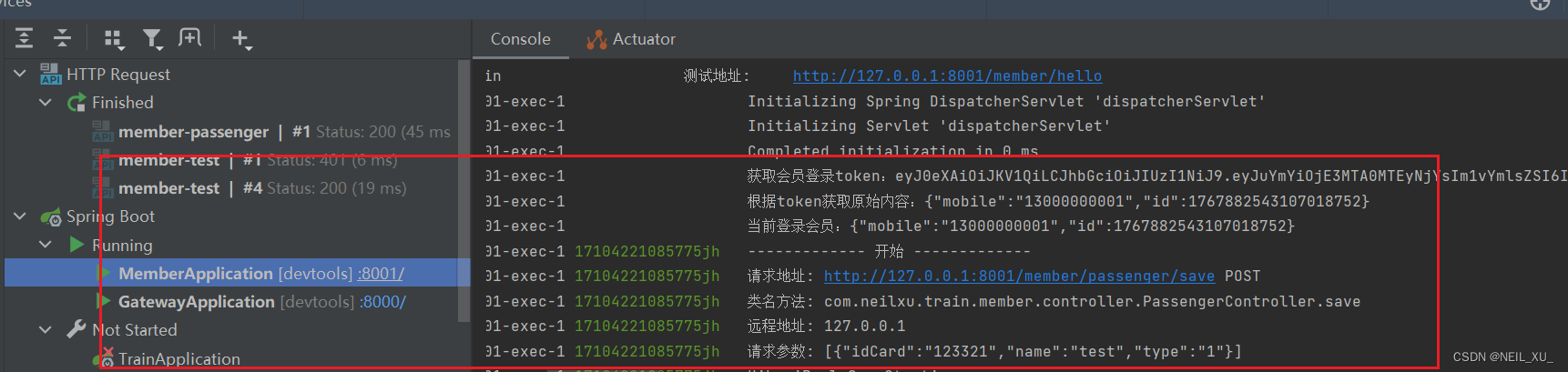

测试效果：

在这里插入图片描述

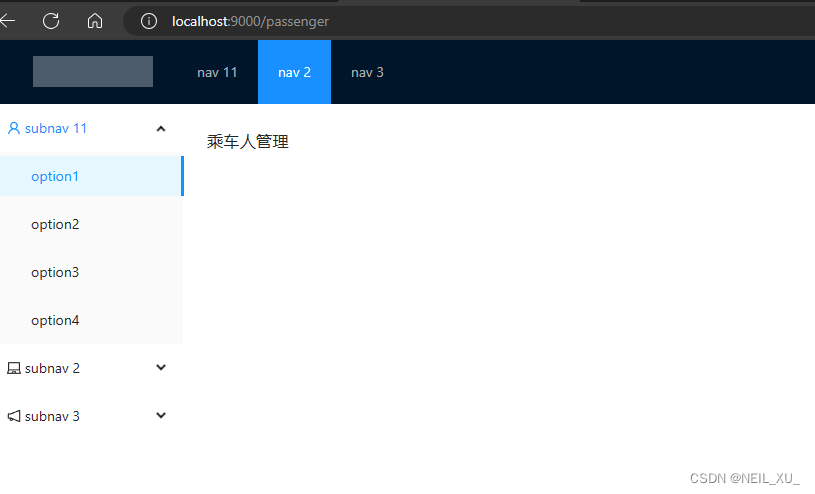

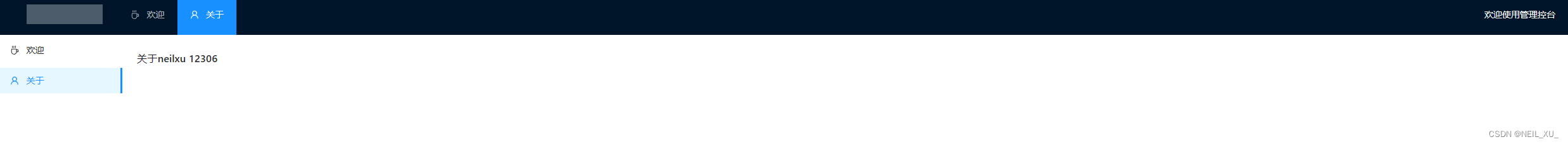

5.前端二级路由页面开发

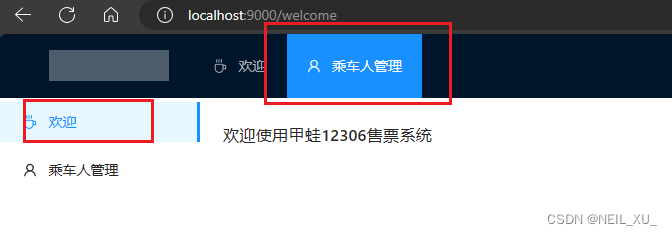

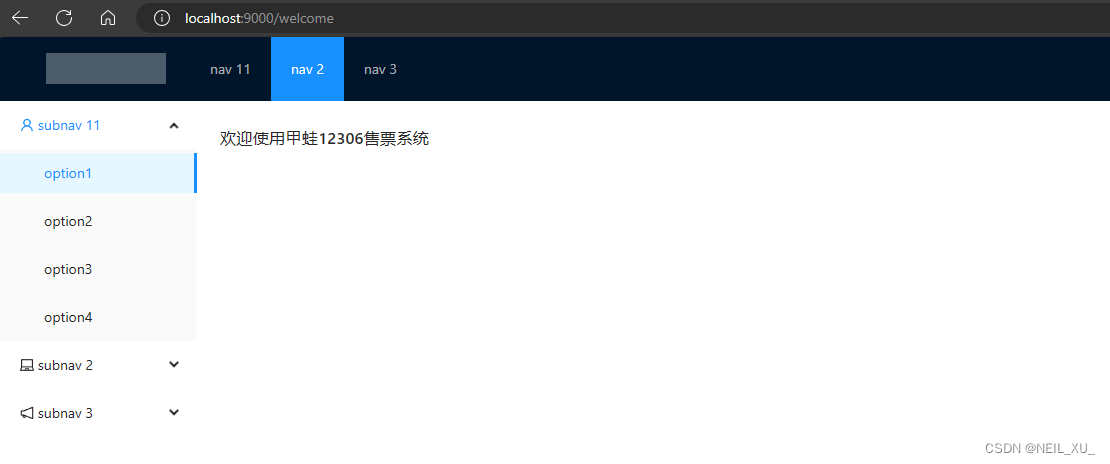

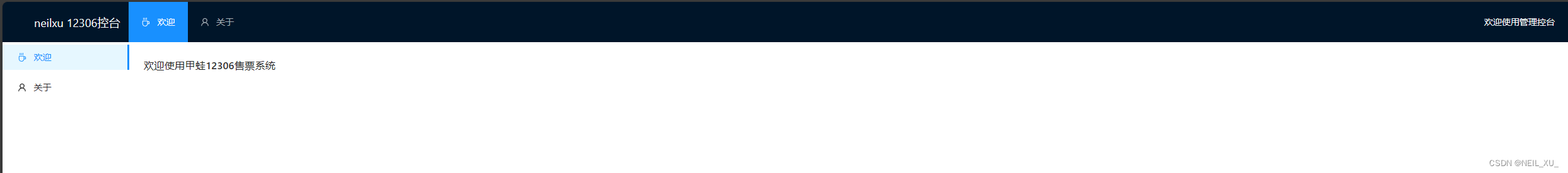

制作欢迎页面

修改路由

web/src/router/index.js

const routes = [
  {
    path: '/login',
    component: () => import('../views/login.vue')
  },
  {
    path: '/',
    component: () => import('../views/main.vue'),
    meta: {
      loginRequire: true
    },
    children: [{
      path: 'welcome',
      component: () => import('../views/main/welcome.vue'),
    }]
  },
  {
    path: '',
    redirect: '/welcome'
  },
]

修改main.vue，只保留header和sider，内容空出，放动态页面

web/src/views/main.vue

<template>
  <a-layout id="components-layout-demo-top-side-2">
    <the-header-view></the-header-view>
    <a-layout>
      <the-sider-view></the-sider-view>
      <a-layout-content
          :style="{ background: '#fff', padding: '24px', margin: 0, minHeight: '280px' }"
      >
        <router-view></router-view>
      </a-layout-content>
    </a-layout>
  </a-layout>
</template>
<script>
import { defineComponent } from 'vue';
import TheHeaderView from "@/components/the-header";
import TheSiderView from "@/components/the-sider";

export default defineComponent({
  components: {
    TheSiderView,
    TheHeaderView,
  },
  setup() {
    return {
    };
  },
});
</script>
<style>
#components-layout-demo-top-side-2 .logo {
  float: left;
  width: 120px;
  height: 31px;
  margin: 16px 24px 16px 0;
  background: rgba(255, 255, 255, 0.3);
}

.ant-row-rtl #components-layout-demo-top-side-2 .logo {
  float: right;
  margin: 16px 0 16px 24px;
}

.site-layout-background {
  background: #fff;
}
</style>

增加welcome.vue

web/src/views/main/welcome.vue

<template>
  <h1>欢迎使用甲蛙12306售票系统</h1>
</template>
<script>
import { defineComponent } from 'vue';

export default defineComponent({
  setup() {
    return {
    };
  },
});
</script>
<style>
</style>

修改login.vue

web/src/views/login.vue

const login = () => {
  axios.post("/member/member/login", loginForm).then(response => {
    let data = response.data;
    if (data.success) {
      notification.success({ description: '登录成功！' });
      // 登录成功，跳到控台主页
      router.push("/welcome");
      // store保存登录信息
      store.commit("setMember", data.content);
    } else {
      notification.error({ description: data.message });
    }
  })
};

这里改不改都可以（上面已经将访问根路径“/”重定向到了welcom）

测试效果

在这里插入图片描述

增加乘车人管理页面

修改路由

web/src/router/index.js

import { createRouter, createWebHistory } from 'vue-router'
import store from "@/store";
import {notification} from "ant-design-vue";

const routes = [{
  path: '/login',
  component: () => import('../views/login.vue')
}, {
  path: '/',
  component: () => import('../views/main.vue'),
  meta: {
    loginRequire: true
  },
  children: [{
    path: 'welcome',
    component: () => import('../views/main/welcome.vue'),
  }, {
    path: 'passenger',
    component: () => import('../views/main/passenger.vue'),
  }]
}, {
  path: '',
  redirect: '/welcome'
}];

const router = createRouter({
  history: createWebHistory(process.env.BASE_URL),
  routes
})

// 路由登录拦截
router.beforeEach((to, from, next) => {
  // 要不要对meta.loginRequire属性做监控拦截
  if (to.matched.some(function (item) {
    console.log(item, "是否需要登录校验：", item.meta.loginRequire || false);
    return item.meta.loginRequire
  })) {
    const _member = store.state.member;
    console.log("页面登录校验开始：", _member);
    if (!_member.token) {
      console.log("用户未登录或登录超时！");
      notification.error({ description: "未登录或登录超时" });
      next('/login');
    } else {
      next();
    }
  } else {
    next();
  }
});

export default router

增加passenger.vue

web/src/views/main/passenger.vue

<template>
  <h1>乘车人管理</h1>
</template>
<script>
import { defineComponent } from 'vue';

export default defineComponent({
  setup() {
    return {
    };
  },
});
</script>
<style>
</style>

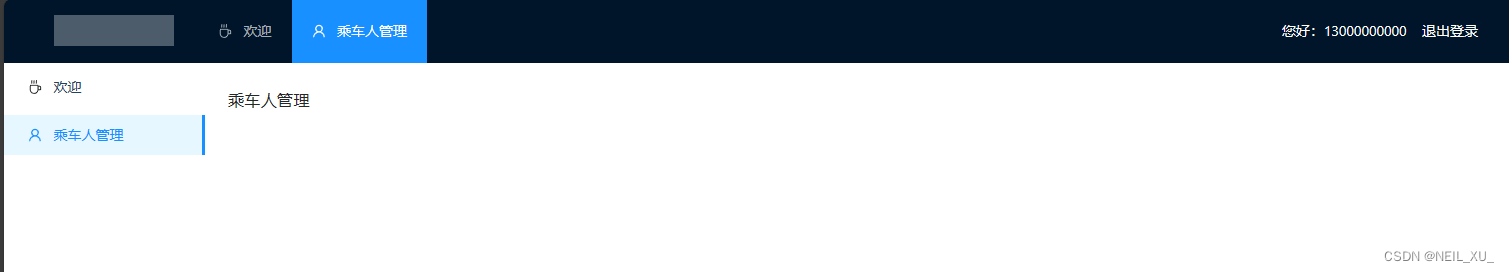

测试效果

在这里插入图片描述

修改菜单，实现页面切换

修改the-header.vue

<template>
  <a-layout-header class="header">
    <div class="logo" />
    <div style="float: right; color: white;">
      您好：{{member.mobile}} &nbsp;&nbsp;
      <router-link to="/login" style="color: white;">
        退出登录
      </router-link>
    </div>
    <a-menu
        theme="dark"
        mode="horizontal"
        :style="{ lineHeight: '64px' }"
    >
      <a-menu-item key="/welcome">
        <router-link to="/welcome">
          <coffee-outlined /> &nbsp; 欢迎
        </router-link>
      </a-menu-item>
      <a-menu-item key="/passenger">
        <router-link to="/passenger">
          <user-outlined /> &nbsp; 乘车人管理
        </router-link>
      </a-menu-item>
    </a-menu>
  </a-layout-header>
</template>

<script>
import {defineComponent} from 'vue';
import store from "@/store";

export default defineComponent({
  name: "the-header-view",
  setup() {
    let member = store.state.member;

    return {
      member
    };
  },
});
</script>

<!-- Add "scoped" attribute to limit CSS to this component only -->
<style scoped>

</style>

修改the-sider.vue

<template>
  <a-layout-sider width="200" style="background: #fff">
    <a-menu
        mode="inline"
        :style="{ height: '100%', borderRight: 0 }"
    >
      <a-menu-item key="/welcome">
        <router-link to="/welcome">
          <coffee-outlined /> &nbsp; 欢迎
        </router-link>
      </a-menu-item>
      <a-menu-item key="/passenger">
        <router-link to="/passenger">
          <user-outlined /> &nbsp; 乘车人管理
        </router-link>
      </a-menu-item>
    </a-menu>
  </a-layout-sider>
</template>

<script>
import {defineComponent} from 'vue';

export default defineComponent({
  name: "the-sider-view",
  setup() {

    return {
    };
  },
});
</script>

<!-- Add "scoped" attribute to limit CSS to this component only -->
<style scoped>

</style>

测试效果

在这里插入图片描述

问题：可以跳转，但是导航栏和侧边栏的激活状态不同步

实现菜单同步激活

声明响应式变量：

ref用来声明基本的数据类型
reactive用来声明对象或对象数组

对ref变量的取值、赋值都必须加：.value

**原理：**监听路由变化，来给selectedKeys赋值

the-header.vue

<template>
  <a-layout-header class="header">
    <div class="logo" />
    <div style="float: right; color: white;">
      您好：{{member.mobile}} &nbsp;&nbsp;
      <router-link to="/login" style="color: white;">
        退出登录
      </router-link>
    </div>
    <a-menu
        v-model:selectedKeys="selectedKeys"
        theme="dark"
        mode="horizontal"
        :style="{ lineHeight: '64px' }"
    >
      <a-menu-item key="/welcome">
        <router-link to="/welcome">
          <coffee-outlined /> &nbsp; 欢迎
        </router-link>
      </a-menu-item>
      <a-menu-item key="/passenger">
        <router-link to="/passenger">
          <user-outlined /> &nbsp; 乘车人管理
        </router-link>
      </a-menu-item>
    </a-menu>
  </a-layout-header>
</template>

<script>
import {defineComponent, ref, watch} from 'vue';
import store from "@/store";
import router from '@/router'

export default defineComponent({
  name: "the-header-view",
  setup() {
    let member = store.state.member;
    const selectedKeys = ref([]);

    watch(() => router.currentRoute.value.path, (newValue) => {
      console.log('watch', newValue);
      selectedKeys.value = [];
      selectedKeys.value.push(newValue);
    }, {immediate: true});
    return {
      member,
      selectedKeys
    };
  },
});
</script>

<!-- Add "scoped" attribute to limit CSS to this component only -->
<style scoped>

</style>

the-sider.vue

<template>
  <a-layout-sider width="200" style="background: #fff">
    <a-menu
        v-model:selectedKeys="selectedKeys"
        mode="inline"
        :style="{ height: '100%', borderRight: 0 }"
    >
      <a-menu-item key="/welcome">
        <router-link to="/welcome">
          <coffee-outlined /> &nbsp; 欢迎
        </router-link>
      </a-menu-item>
      <a-menu-item key="/passenger">
        <router-link to="/passenger">
          <user-outlined /> &nbsp; 乘车人管理
        </router-link>
      </a-menu-item>
    </a-menu>
  </a-layout-sider>
</template>

<script>
import {defineComponent, ref, watch} from 'vue';
import router from "@/router";

export default defineComponent({
  name: "the-sider-view",
  setup() {
    const selectedKeys = ref([]);

    watch(() => router.currentRoute.value.path, (newValue) => {
      console.log('watch', newValue);
      selectedKeys.value = [];
      selectedKeys.value.push(newValue);
    }, {immediate: true});
    return {
      selectedKeys
    };
  },
});
</script>

<!-- Add "scoped" attribute to limit CSS to this component only -->
<style scoped>

</style>

测试效果

在这里插入图片描述

6.乘车人新增界面开发

此节为纯前端，直接放代码

web/src/views/main/passenger.vue

<template>
  <a-button type="primary" @click="showModal">新增</a-button>
  <a-modal v-model:visible="visible" title="乘车人" @ok="handleOk"
           ok-text="确认" cancel-text="取消">
    <a-form :model="passenger" :label-col="{span: 4}" :wrapper-col="{ span: 20 }">
      <a-form-item label="姓名">
        <a-input v-model:value="passenger.name" />
      </a-form-item>
      <a-form-item label="身份证">
        <a-input v-model:value="passenger.idCard" />
      </a-form-item>
      <a-form-item label="类型">
        <a-select v-model:value="passenger.type">
          <a-select-option value="1">成人</a-select-option>
          <a-select-option value="2">儿童</a-select-option>
          <a-select-option value="3">学生</a-select-option>
        </a-select>
      </a-form-item>
    </a-form>
  </a-modal>
</template>
<script>
import { defineComponent, ref, reactive } from 'vue';
import {notification} from "ant-design-vue";
import axios from "axios";

export default defineComponent({
  setup() {
    const visible = ref(false);

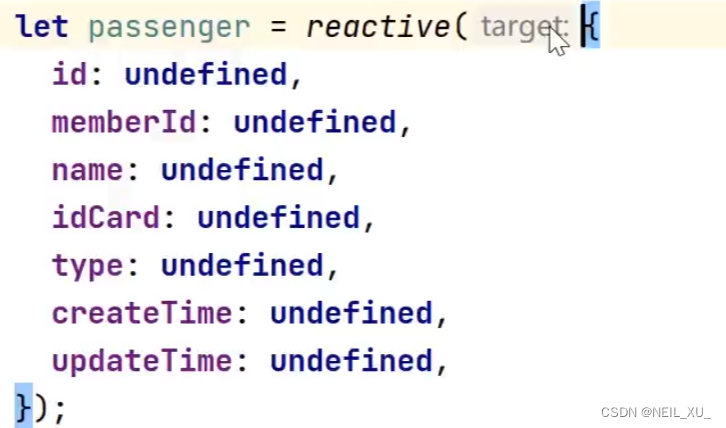

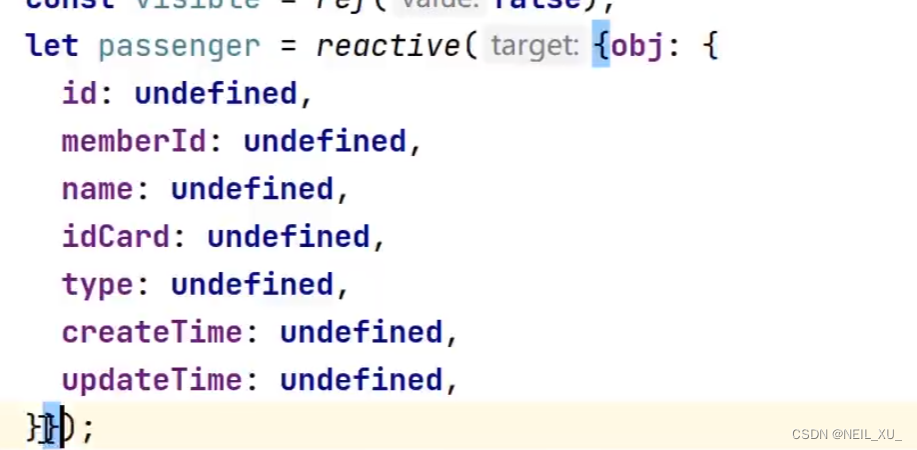

    const passenger = reactive({
      id: undefined,
      memberId: undefined,
      name: undefined,
      idCard: undefined,
      type: undefined,
      createTime: undefined,
      updateTime: undefined,
    });

    const showModal = () => {
      visible.value = true;
    };

    const handleOk = () => {
      axios.post("/member/passenger/save", passenger).then((response) => {
        let data = response.data;
        if (data.success) {
          notification.success({description: "保存成功！"});
          visible.value = false;
        } else {
          notification.error({description: data.message});
        }
      });
    };

    return {
      passenger,
      visible,
      showModal,
      handleOk,
    };
  },
});
</script>
<style>
</style>

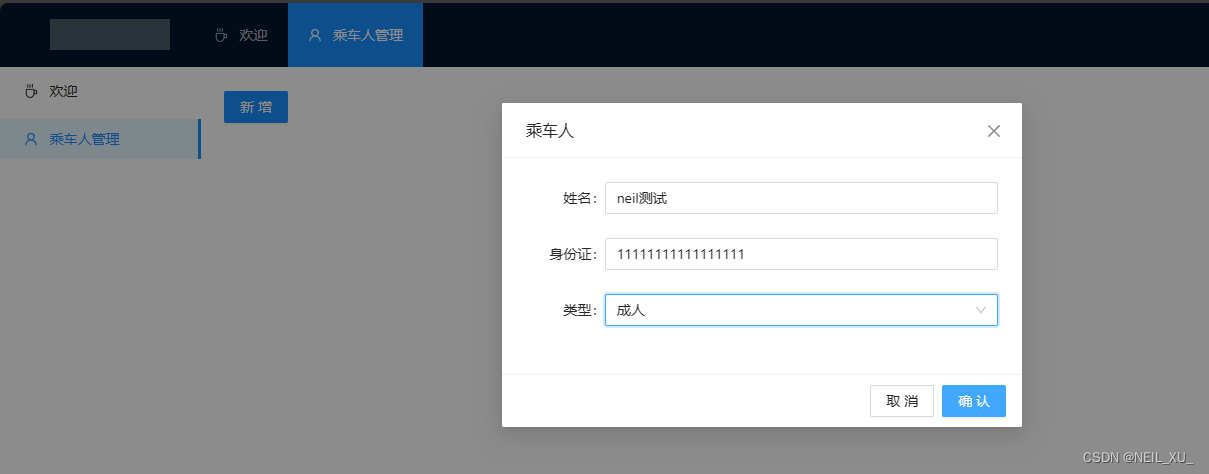

效果

在这里插入图片描述

7.乘车人列表查询接口开发

新增查询乘客请求实体类

com.neilxu.train.member.req.PassengerQueryReq

package com.neilxu.train.member.req;

import lombok.Data;

@Data
public class PassengerQueryReq {

    private Long memberId;

}

新增查询乘客返回结果类

com.neilxu.train.member.resp.PassengerQueryResp

package com.neilxu.train.member.resp;

import lombok.Data;

import java.util.Date;

@Data
public class PassengerQueryResp {
    private Long id;

    private Long memberId;

    private String name;

    private String idCard;

    private String type;

    private Date createTime;

    private Date updateTime;

}

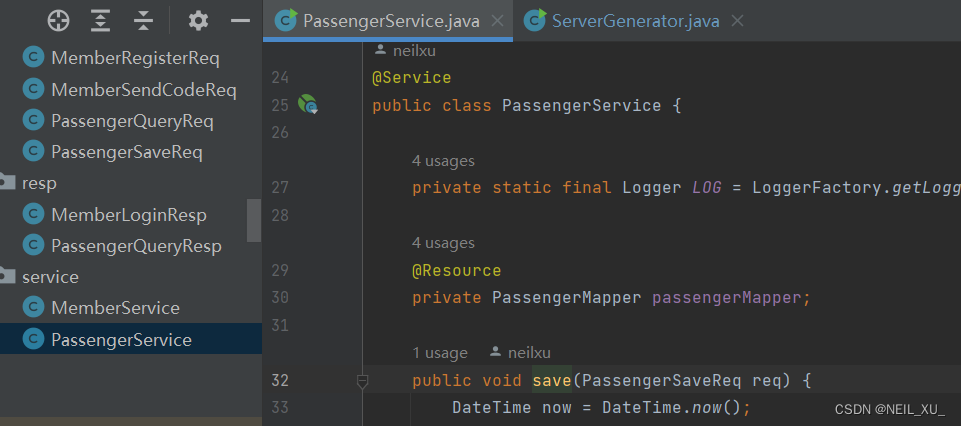

service方法

com.neilxu.train.member.service.PassengerService

public List<PassengerQueryResp> queryList(PassengerQueryReq req) {
    PassengerExample passengerExample = new PassengerExample();
    PassengerExample.Criteria criteria = passengerExample.createCriteria();
    if (ObjectUtil.isNotNull(req.getMemberId())) {
        criteria.andMemberIdEqualTo(req.getMemberId());
    }
    List<Passenger> passengerList = passengerMapper.selectByExample(passengerExample);
    return BeanUtil.copyToList(passengerList, PassengerQueryResp.class);
}

这里注意passengerExample只能createCriteria一次，所以需要提取出来到if外面

controller

com.neilxu.train.member.controller.PassengerController

@GetMapping("/query-list")
public CommonResp<List<PassengerQueryResp>> queryList(@Valid PassengerQueryReq req) {
    req.setMemberId(LoginMemberContext.getId());
    List<PassengerQueryResp> list = passengerService.queryList(req);
    return new CommonResp<>(list);
}

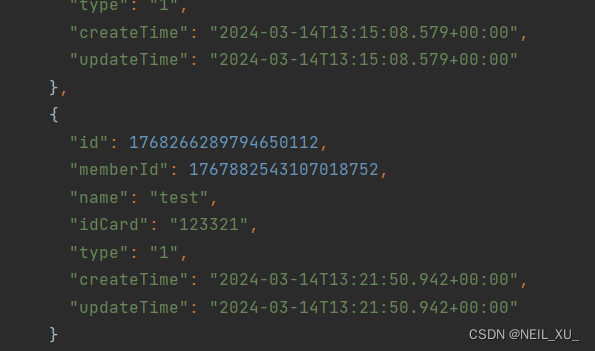

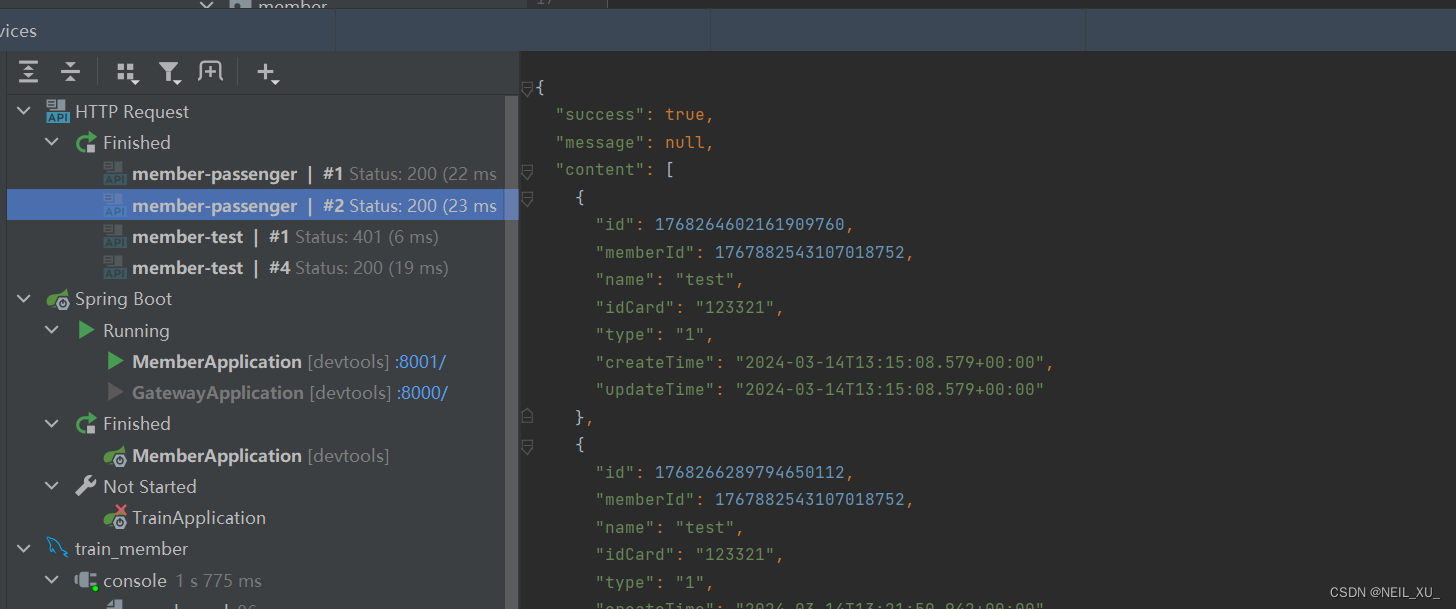

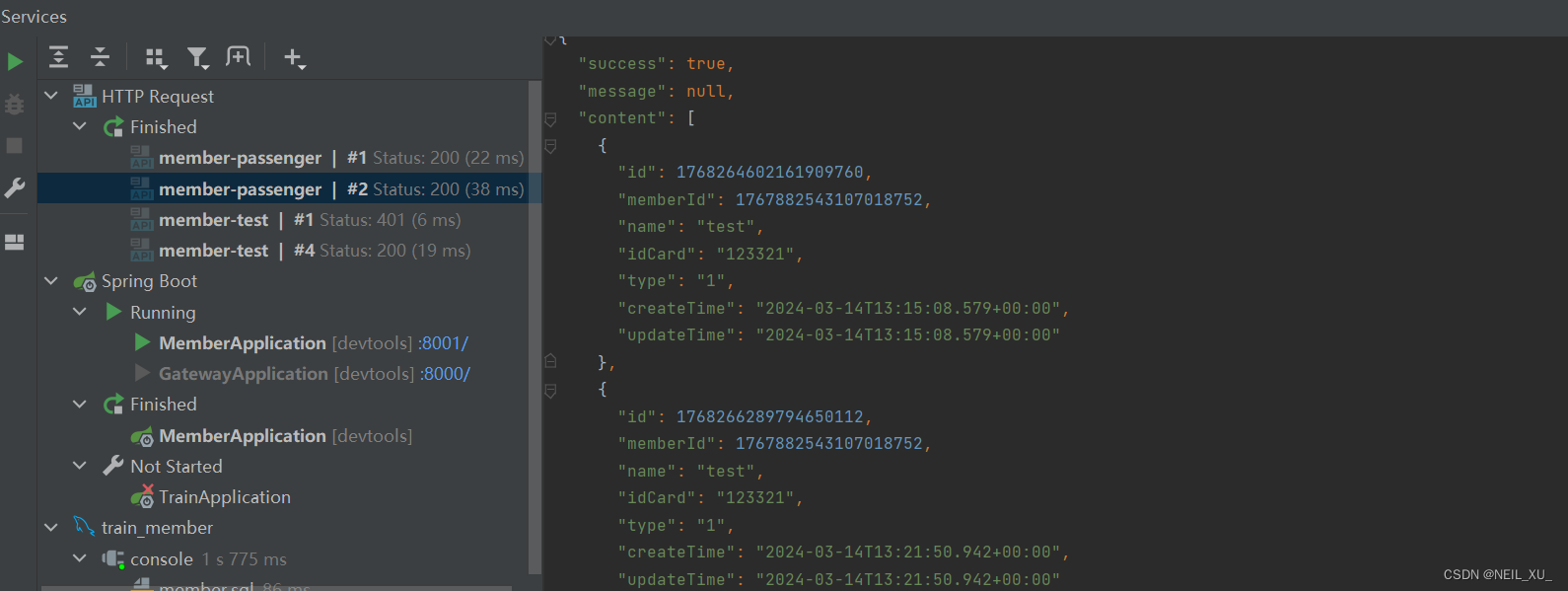

测试

http/member-passenger.http

GET http://localhost:8000/member/passenger/query-list
Accept: application/json
token: {{token}}

###

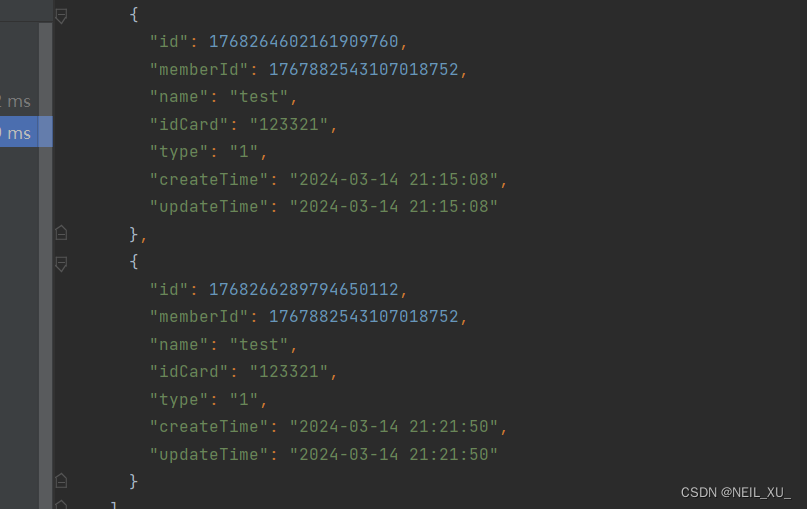

在这里插入图片描述

8.集成PageHelper实现后端分页，封装分页请求参数和返回结果

MyBatis PageHelper是一个用于在MyBatis中实现分页功能的工具库。它通过拦截器的方式来对SQL语句进行拦截和修改，从而实现分页功能。其原理主要包括以下几个步骤：

拦截器机制：PageHelper通过实现MyBatis的拦截器接口，在SQL语句执行前对其进行拦截和修改。这样可以在不修改业务代码的情况下，实现对SQL语句的分页处理。
解析分页参数：PageHelper拦截器在执行前会解析传入的分页参数，如页码和每页数据条数等，确定需要分页的SQL语句以及分页参数的值。
修改SQL语句：根据解析得到的分页参数，PageHelper会修改原始的SQL语句，添加对应的分页逻辑，通常是在原始SQL语句的末尾添加LIMIT（MySQL）或者ROWNUM（Oracle）等关键字来限制结果集的返回条数。
执行分页查询：修改后的SQL语句会被执行，从数据库中查询数据。由于修改后的SQL语句包含了分页逻辑，因此只会返回符合分页条件的数据。
返回分页结果：查询结果会被封装成分页对象，并返回给调用方。这个分页对象通常包含了总记录数、当前页码、总页数以及查询结果等信息，方便业务代码进行分页展示和处理。

总的来说，MyBatis PageHelper的原理就是通过拦截器机制，在SQL语句执行前对其进行修改，添加分页逻辑，从而实现对查询结果的分页处理。

-------------------来自ChatGPT的回答

集成PageHelper，实现sql分页功能

common增加依赖

父pom

<dependency>
    <groupId>com.github.pagehelper</groupId>
    <artifactId>pagehelper-spring-boot-starter</artifactId>
    <version>1.4.6</version>
</dependency>

common的 pom文件

<!-- 分页插件pagehelper -->
<dependency>
    <groupId>com.github.pagehelper</groupId>
    <artifactId>pagehelper-spring-boot-starter</artifactId>
</dependency>

修改service方法

com.neilxu.train.member.service.PassengerService

public List<PassengerQueryResp> queryList(PassengerQueryReq req) {
    PassengerExample passengerExample = new PassengerExample();
    PassengerExample.Criteria criteria = passengerExample.createCriteria();
    if (ObjectUtil.isNotNull(req.getMemberId())) {
        criteria.andMemberIdEqualTo(req.getMemberId());
    }
    PageHelper.startPage(1, 2);
    List<Passenger> passengerList = passengerMapper.selectByExample(passengerExample);
    return BeanUtil.copyToList(passengerList, PassengerQueryResp.class);
}

测试

在这里插入图片描述

封装分页请求参数

PageReq.java

com.neilxu.train.common.req.PageReq

package com.neilxu.train.common.req;

import jakarta.validation.constraints.Max;
import jakarta.validation.constraints.NotNull;

public class PageReq {

    @NotNull(message = "【页码】不能为空")
    private Integer page;

    @NotNull(message = "【每页条数】不能为空")
    @Max(value = 100, message = "【每页条数】不能超过100")
    private Integer size;

    public Integer getPage() {
        return page;
    }

    public void setPage(Integer page) {
        this.page = page;
    }

    public Integer getSize() {
        return size;
    }

    public void setSize(Integer size) {
        this.size = size;
    }

    @Override
    public String toString() {
        return "PageReq{" +
                "page=" + page +
                ", size=" + size +
                '}';
    }
}

修改PassengerQueryReq.java

com.neilxu.train.member.req.PassengerQueryReq

@Data
public class PassengerQueryReq extends PageReq {

    private Long memberId;

}

修改service

com.neilxu.train.member.service.PassengerService

public List<PassengerQueryResp> queryList(PassengerQueryReq req) {
    PassengerExample passengerExample = new PassengerExample();
    PassengerExample.Criteria criteria = passengerExample.createCriteria();
    if (ObjectUtil.isNotNull(req.getMemberId())) {
        criteria.andMemberIdEqualTo(req.getMemberId());
    }
    PageHelper.startPage(req.getPage(), req.getSize());
    List<Passenger> passengerList = passengerMapper.selectByExample(passengerExample);
    return BeanUtil.copyToList(passengerList, PassengerQueryResp.class);
}

测试

http/member-passenger.http

GET http://localhost:8000/member/passenger/query-list?page=2&size=200
Accept: application/json
token: {{token}}

###

在这里插入图片描述

封装分页返回结果

PageResp.java

com.neilxu.train.common.resp.PageResp

package com.neilxu.train.common.resp;

import java.io.Serializable;
import java.util.List;

public class PageResp<T> implements Serializable {

    /**
     * 总条数
     */
    private Long total;

    /**
     * 当前页的列表
     */
    private List<T> list;

    public Long getTotal() {
        return total;
    }

    public void setTotal(Long total) {
        this.total = total;
    }

    public List<T> getList() {
        return list;
    }

    public void setList(List<T> list) {
        this.list = list;
    }

    @Override
    public String toString() {
        return "PageResp{" +
                "total=" + total +
                ", list=" + list +
                '}';
    }
}

修改service

com.neilxu.train.member.service.PassengerService

public PageResp<PassengerQueryResp> queryList(PassengerQueryReq req) {
    PassengerExample passengerExample = new PassengerExample();
    PassengerExample.Criteria criteria = passengerExample.createCriteria();
    if (ObjectUtil.isNotNull(req.getMemberId())) {
        criteria.andMemberIdEqualTo(req.getMemberId());
    }

    LOG.info("查询页码：{}", req.getPage());
    LOG.info("每页条数：{}", req.getSize());
    PageHelper.startPage(req.getPage(), req.getSize());
    List<Passenger> passengerList = passengerMapper.selectByExample(passengerExample);

    PageInfo<Passenger> pageInfo = new PageInfo<>(passengerList);
    LOG.info("总行数：{}", pageInfo.getTotal());
    LOG.info("总页数：{}", pageInfo.getPages());

    List<PassengerQueryResp> list = BeanUtil.copyToList(passengerList, PassengerQueryResp.class);

    PageResp<PassengerQueryResp> pageResp = new PageResp<>();
    pageResp.setTotal(pageInfo.getTotal());
    pageResp.setList(list);
    return pageResp;
}

修改controller

com.neilxu.train.member.controller.PassengerController

@GetMapping("/query-list")
public CommonResp<PageResp<PassengerQueryResp>> queryList(@Valid PassengerQueryReq req) {
    req.setMemberId(LoginMemberContext.getId());
    PageResp<PassengerQueryResp> list = passengerService.queryList(req);
    return new CommonResp<>(list);
}

测试

在这里插入图片描述

格式化返回的日期字段

修改PassengerQueryResp.java

@JsonFormat(pattern = "yyyy-MM-dd HH:mm:ss", timezone = "GMT+8")
private Date createTime;

@JsonFormat(pattern = "yyyy-MM-dd HH:mm:ss", timezone = "GMT+8")
private Date updateTime;

效果：

从

在这里插入图片描述

变成

在这里插入图片描述

9.乘车人列表查询界面开发

乘车人列表查询界面开发，引入表格组件

修改passenger.vue

web/src/views/main/passenger.vue

<template>
  <p>
    <a-button type="primary" @click="showModal">新增</a-button>
  </p>
  <a-table :dataSource="dataSource" :columns="columns" />
  <a-modal v-model:visible="visible" title="乘车人" @ok="handleOk"
           ok-text="确认" cancel-text="取消">
    <a-form :model="passenger" :label-col="{span: 4}" :wrapper-col="{ span: 20 }">
      <a-form-item label="姓名">
        <a-input v-model:value="passenger.name" />
      </a-form-item>
      <a-form-item label="身份证">
        <a-input v-model:value="passenger.idCard" />
      </a-form-item>
      <a-form-item label="类型">
        <a-select v-model:value="passenger.type">
          <a-select-option value="1">成人</a-select-option>
          <a-select-option value="2">儿童</a-select-option>
          <a-select-option value="3">学生</a-select-option>
        </a-select>
      </a-form-item>
    </a-form>
  </a-modal>
</template>
<script>
import { defineComponent, ref, reactive } from 'vue';
import {notification} from "ant-design-vue";
import axios from "axios";

export default defineComponent({
  setup() {
    const visible = ref(false);
    const passenger = reactive({
      id: undefined,
      memberId: undefined,
      name: undefined,
      idCard: undefined,
      type: undefined,
      createTime: undefined,
      updateTime: undefined,
    });
    const dataSource = [{
      key: '1',
      name: '胡彦斌',
      age: 32,
      address: '西湖区湖底公园1号',
    }, {
      key: '2',
      name: '胡彦祖',
      age: 42,
      address: '西湖区湖底公园1号',
    }];
    const columns = [{
      title: '姓名',
      dataIndex: 'name',
      key: 'name',
    }, {
      title: '年龄',
      dataIndex: 'age',
      key: 'age',
    }, {
      title: '住址',
      dataIndex: 'address',
      key: 'address',
    }];

    const showModal = () => {
      visible.value = true;
    };

    const handleOk = () => {
      axios.post("/member/passenger/save", passenger).then((response) => {
        let data = response.data;
        if (data.success) {
          notification.success({description: "保存成功！"});
          visible.value = false;
        } else {
          notification.error({description: data.message});
        }
      });
    };

    return {
      passenger,
      visible,
      showModal,
      handleOk,
      dataSource,
      columns
    };
  },
});
</script>
<style>
</style>

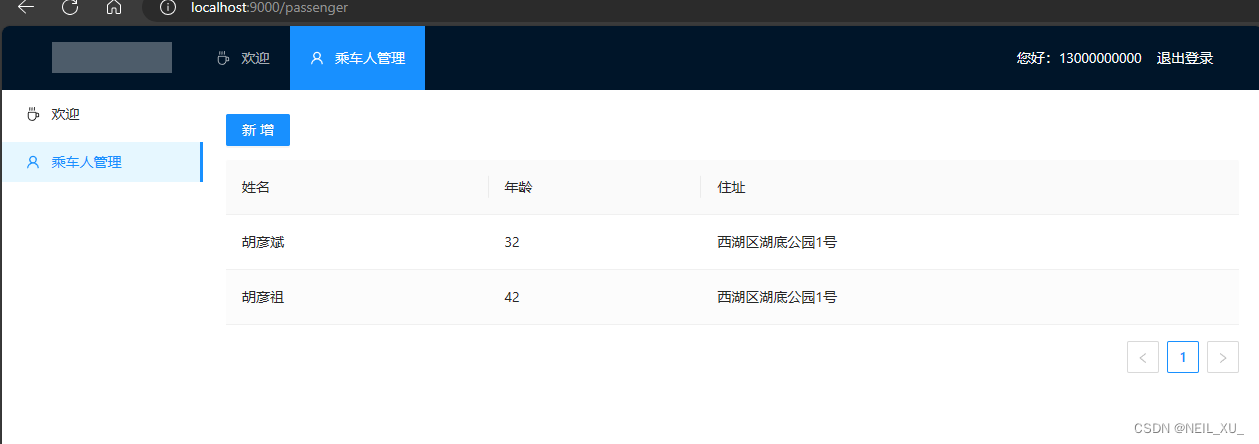

效果

在这里插入图片描述

乘车人列表查询界面开发，使用axios调用后端查询接口

修改passenger.vue

web/src/views/main/passenger.vue

<template>
  <p>
    <a-button type="primary" @click="showModal">新增</a-button>
  </p>
  <a-table :dataSource="passengers" :columns="columns" />
  <a-modal v-model:visible="visible" title="乘车人" @ok="handleOk"
           ok-text="确认" cancel-text="取消">
    <a-form :model="passenger" :label-col="{span: 4}" :wrapper-col="{ span: 20 }">
      <a-form-item label="姓名">
        <a-input v-model:value="passenger.name" />
      </a-form-item>
      <a-form-item label="身份证">
        <a-input v-model:value="passenger.idCard" />
      </a-form-item>
      <a-form-item label="类型">
        <a-select v-model:value="passenger.type">
          <a-select-option value="1">成人</a-select-option>
          <a-select-option value="2">儿童</a-select-option>
          <a-select-option value="3">学生</a-select-option>
        </a-select>
      </a-form-item>
    </a-form>
  </a-modal>
</template>
<script>
import { defineComponent, ref, reactive, onMounted } from 'vue';
import {notification} from "ant-design-vue";
import axios from "axios";

export default defineComponent({
  setup() {
    const visible = ref(false);
    const passenger = reactive({
      id: undefined,
      memberId: undefined,
      name: undefined,
      idCard: undefined,
      type: undefined,
      createTime: undefined,
      updateTime: undefined,
    });
    const passengers = ref([]);
    const columns = [{
      title: '姓名',
      dataIndex: 'name',
      key: 'name',
    }, {
      title: '身份证',
      dataIndex: 'idCard',
      key: 'idCard',
    }, {
      title: '类型',
      dataIndex: 'type',
      key: 'type',
    }];

    const showModal = () => {
      visible.value = true;
    };

    const handleOk = () => {
      axios.post("/member/passenger/save", passenger).then((response) => {
        let data = response.data;
        if (data.success) {
          notification.success({description: "保存成功！"});
          visible.value = false;
        } else {
          notification.error({description: data.message});
        }
      });
    };

    const handleQuery = (param) => {
      axios.get("/member/passenger/query-list", {
        params: {
          page: param.page,
          size: param.size
        }
      }).then((response) => {
        let data = response.data;
        if (data.success) {
          passengers.value = data.content.list;
        } else {
          notification.error({description: data.message});
        }
      });
    };

    onMounted(() => {
      handleQuery({
        page: 1,
        size: 2
      });
    });

    return {
      passenger,
      visible,
      showModal,
      handleOk,
      passengers,
      columns
    };
  },
});
</script>
<style>
</style>

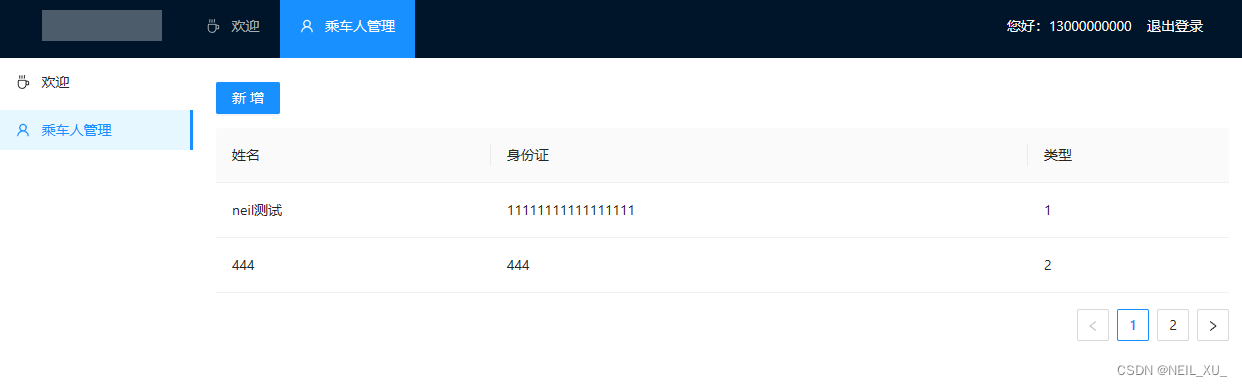

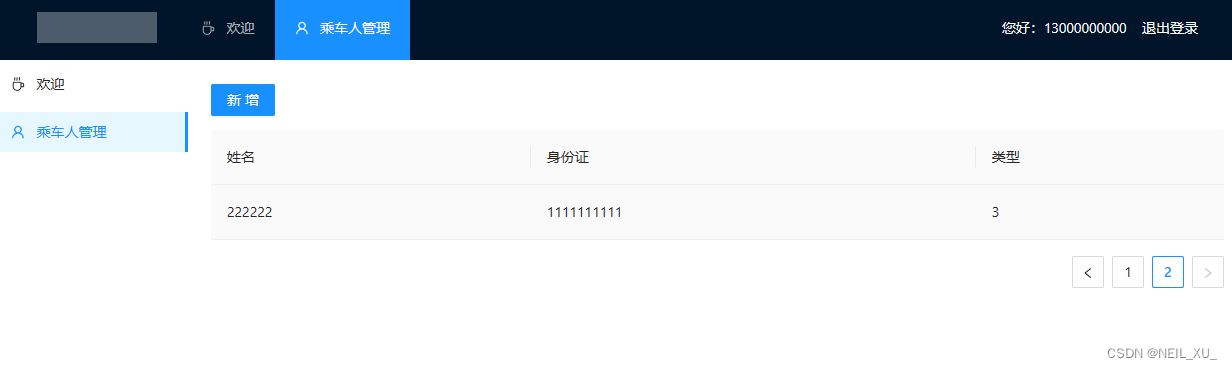

效果

在这里插入图片描述

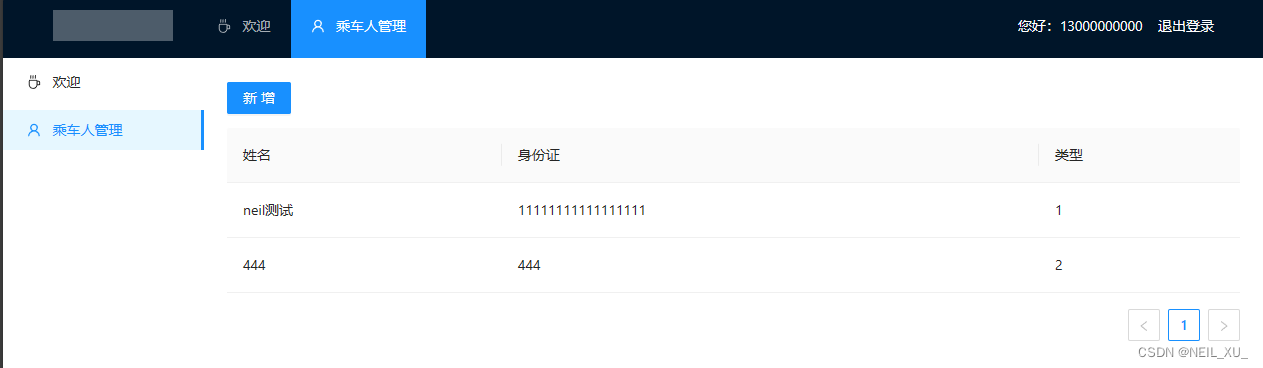

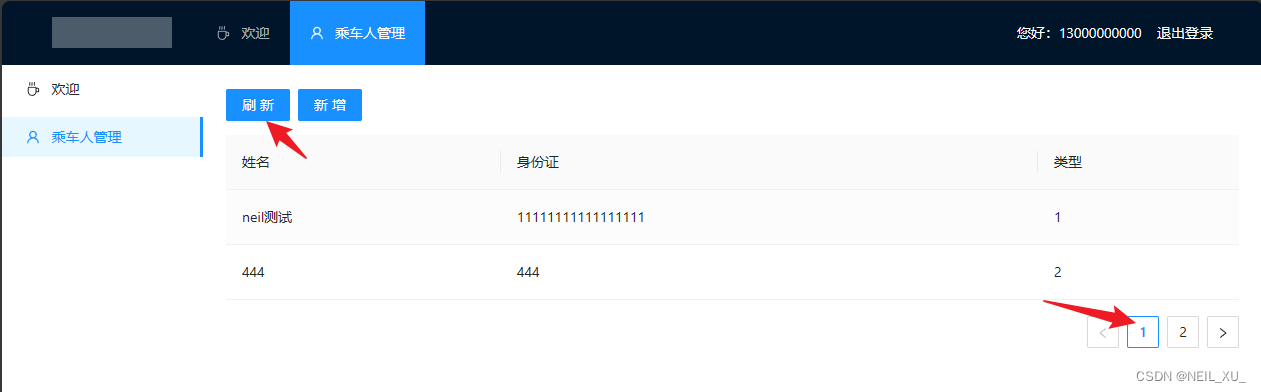

乘车人列表查询界面开发，显示分页页码

修改passenger.vue

web/src/views/main/passenger.vue

<template>
  <p>
    <a-button type="primary" @click="showModal">新增</a-button>
  </p>
  <a-table :dataSource="passengers" :columns="columns" :pagination="pagination"/>
  <a-modal v-model:visible="visible" title="乘车人" @ok="handleOk"
           ok-text="确认" cancel-text="取消">
    <a-form :model="passenger" :label-col="{span: 4}" :wrapper-col="{ span: 20 }">
      <a-form-item label="姓名">
        <a-input v-model:value="passenger.name" />
      </a-form-item>
      <a-form-item label="身份证">
        <a-input v-model:value="passenger.idCard" />
      </a-form-item>
      <a-form-item label="类型">
        <a-select v-model:value="passenger.type">
          <a-select-option value="1">成人</a-select-option>
          <a-select-option value="2">儿童</a-select-option>
          <a-select-option value="3">学生</a-select-option>
        </a-select>
      </a-form-item>
    </a-form>
  </a-modal>
</template>
<script>
import { defineComponent, ref, reactive, onMounted } from 'vue';
import {notification} from "ant-design-vue";
import axios from "axios";

export default defineComponent({
  setup() {
    const visible = ref(false);
    const passenger = reactive({
      id: undefined,
      memberId: undefined,
      name: undefined,
      idCard: undefined,
      type: undefined,
      createTime: undefined,
      updateTime: undefined,
    });
    const passengers = ref([]);
    // 分页的三个属性名是固定的
    const pagination = reactive({
      total: 0,
      current: 1,
      pageSize: 2,
    });
    const columns = [{
      title: '姓名',
      dataIndex: 'name',
      key: 'name',
    }, {
      title: '身份证',
      dataIndex: 'idCard',
      key: 'idCard',
    }, {
      title: '类型',
      dataIndex: 'type',
      key: 'type',
    }];

    const showModal = () => {
      visible.value = true;
    };

    const handleOk = () => {
      axios.post("/member/passenger/save", passenger).then((response) => {
        let data = response.data;
        if (data.success) {
          notification.success({description: "保存成功！"});
          visible.value = false;
        } else {
          notification.error({description: data.message});
        }
      });
    };

    const handleQuery = (param) => {
      axios.get("/member/passenger/query-list", {
        params: {
          page: param.page,
          size: param.size
        }
      }).then((response) => {
        let data = response.data;
        if (data.success) {
          passengers.value = data.content.list;
          pagination.total = data.content.total;
        } else {
          notification.error({description: data.message});
        }
      });
    };

    onMounted(() => {
      handleQuery({
        page: 1,
        size: 2
      });
    });

    return {
      passenger,
      visible,
      showModal,
      handleOk,
      passengers,
      pagination,
      columns
    };
  },
});
</script>
<style>
</style>

效果

在这里插入图片描述

乘车人列表查询界面开发，增加表格分页点击事件

修改passenger.vue

web/src/views/main/passenger.vue

<template>
  <p>
    <a-button type="primary" @click="showModal">新增</a-button>
  </p>
  <a-table :dataSource="passengers" :columns="columns" :pagination="pagination" @change="handleTableChange"/>
  <a-modal v-model:visible="visible" title="乘车人" @ok="handleOk"
           ok-text="确认" cancel-text="取消">
    <a-form :model="passenger" :label-col="{span: 4}" :wrapper-col="{ span: 20 }">
      <a-form-item label="姓名">
        <a-input v-model:value="passenger.name" />
      </a-form-item>
      <a-form-item label="身份证">
        <a-input v-model:value="passenger.idCard" />
      </a-form-item>
      <a-form-item label="类型">
        <a-select v-model:value="passenger.type">
          <a-select-option value="1">成人</a-select-option>
          <a-select-option value="2">儿童</a-select-option>
          <a-select-option value="3">学生</a-select-option>
        </a-select>
      </a-form-item>
    </a-form>
  </a-modal>
</template>
<script>
import { defineComponent, ref, reactive, onMounted } from 'vue';
import {notification} from "ant-design-vue";
import axios from "axios";

export default defineComponent({
  setup() {
    const visible = ref(false);
    const passenger = reactive({
      id: undefined,
      memberId: undefined,
      name: undefined,
      idCard: undefined,
      type: undefined,
      createTime: undefined,
      updateTime: undefined,
    });
    const passengers = ref([]);
    // 分页的三个属性名是固定的
    const pagination = reactive({
      total: 0,
      current: 1,
      pageSize: 2,
    });
    const columns = [{
      title: '姓名',
      dataIndex: 'name',
      key: 'name',
    }, {
      title: '身份证',
      dataIndex: 'idCard',
      key: 'idCard',
    }, {
      title: '类型',
      dataIndex: 'type',
      key: 'type',
    }];

    const showModal = () => {
      visible.value = true;
    };

    const handleOk = () => {
      axios.post("/member/passenger/save", passenger).then((response) => {
        let data = response.data;
        if (data.success) {
          notification.success({description: "保存成功！"});
          visible.value = false;
        } else {
          notification.error({description: data.message});
        }
      });
    };

    const handleQuery = (param) => {
      axios.get("/member/passenger/query-list", {
        params: {
          page: param.page,
          size: param.size
        }
      }).then((response) => {
        let data = response.data;
        if (data.success) {
          passengers.value = data.content.list;
          // 设置分页控件的值
          pagination.current = param.page;
          pagination.total = data.content.total;
        } else {
          notification.error({description: data.message});
        }
      });
    };

    const handleTableChange = (pagination) => {
      // console.log("看看自带的分页参数都有啥：" + pagination);
      handleQuery({
        page: pagination.current,
        size: pagination.pageSize
      });
    };

    onMounted(() => {
      handleQuery({
        page: 1,
        size: pagination.pageSize
      });
    });

    return {
      passenger,
      visible,
      showModal,
      handleOk,
      passengers,
      pagination,
      columns,
      handleTableChange
    };
  },
});
</script>
<style>
</style>

效果

在这里插入图片描述

乘车人列表查询界面开发，增加刷新按钮，点击查询第1页

同上

<template>
  <p>
    <a-space>
      <a-button type="primary" @click="handleQuery()">刷新</a-button>
      <a-button type="primary" @click="showModal">新增</a-button>
    </a-space>
  </p>
  <a-table :dataSource="passengers" :columns="columns" :pagination="pagination" @change="handleTableChange"/>
  <a-modal v-model:visible="visible" title="乘车人" @ok="handleOk"
           ok-text="确认" cancel-text="取消">
    <a-form :model="passenger" :label-col="{span: 4}" :wrapper-col="{ span: 20 }">
      <a-form-item label="姓名">
        <a-input v-model:value="passenger.name" />
      </a-form-item>
      <a-form-item label="身份证">
        <a-input v-model:value="passenger.idCard" />
      </a-form-item>
      <a-form-item label="类型">
        <a-select v-model:value="passenger.type">
          <a-select-option value="1">成人</a-select-option>
          <a-select-option value="2">儿童</a-select-option>
          <a-select-option value="3">学生</a-select-option>
        </a-select>
      </a-form-item>
    </a-form>
  </a-modal>
</template>
<script>
import { defineComponent, ref, reactive, onMounted } from 'vue';
import {notification} from "ant-design-vue";
import axios from "axios";

export default defineComponent({
  setup() {
    const visible = ref(false);
    const passenger = reactive({
      id: undefined,
      memberId: undefined,
      name: undefined,
      idCard: undefined,
      type: undefined,
      createTime: undefined,
      updateTime: undefined,
    });
    const passengers = ref([]);
    // 分页的三个属性名是固定的
    const pagination = reactive({
      total: 0,
      current: 1,
      pageSize: 2,
    });
    const columns = [{
      title: '姓名',
      dataIndex: 'name',
      key: 'name',
    }, {
      title: '身份证',
      dataIndex: 'idCard',
      key: 'idCard',
    }, {
      title: '类型',
      dataIndex: 'type',
      key: 'type',
    }];

    const showModal = () => {
      visible.value = true;
    };

    const handleOk = () => {
      axios.post("/member/passenger/save", passenger).then((response) => {
        let data = response.data;
        if (data.success) {
          notification.success({description: "保存成功！"});
          visible.value = false;
        } else {
          notification.error({description: data.message});
        }
      });
    };

    const handleQuery = (param) => {
      if (!param) {
        param = {
          page: 1,
          size: pagination.pageSize
        };
      }
      axios.get("/member/passenger/query-list", {
        params: {
          page: param.page,
          size: param.size
        }
      }).then((response) => {
        let data = response.data;
        if (data.success) {
          passengers.value = data.content.list;
          // 设置分页控件的值
          pagination.current = param.page;
          pagination.total = data.content.total;
        } else {
          notification.error({description: data.message});
        }
      });
    };

    const handleTableChange = (pagination) => {
      // console.log("看看自带的分页参数都有啥：" + pagination);
      handleQuery({
        page: pagination.current,
        size: pagination.pageSize
      });
    };

    onMounted(() => {
      handleQuery({
        page: 1,
        size: pagination.pageSize
      });
    });

    return {
      passenger,
      visible,
      showModal,
      handleOk,
      passengers,
      pagination,
      columns,
      handleTableChange,
      handleQuery
    };
  },
});
</script>
<style>
</style>

效果

在这里插入图片描述

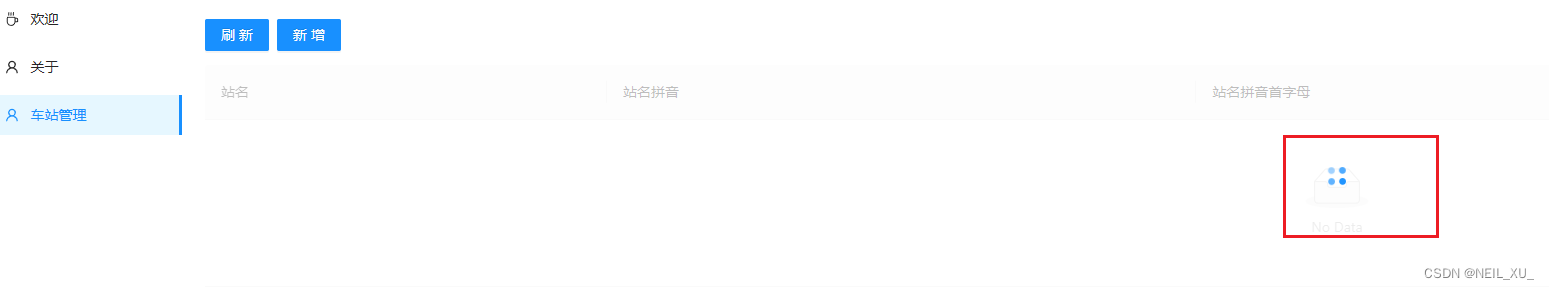

乘车人列表查询界面开发，增加loading效果

同上

<template>
  <p>
    <a-space>
      <a-button type="primary" @click="handleQuery()">刷新</a-button>
      <a-button type="primary" @click="showModal">新增</a-button>
    </a-space>
  </p>
  <a-table :dataSource="passengers"
           :columns="columns"
           :pagination="pagination"
           @change="handleTableChange"
           :loading="loading"/>
  <a-modal v-model:visible="visible" title="乘车人" @ok="handleOk"
           ok-text="确认" cancel-text="取消">
    <a-form :model="passenger" :label-col="{span: 4}" :wrapper-col="{ span: 20 }">
      <a-form-item label="姓名">
        <a-input v-model:value="passenger.name" />
      </a-form-item>
      <a-form-item label="身份证">
        <a-input v-model:value="passenger.idCard" />
      </a-form-item>
      <a-form-item label="类型">
        <a-select v-model:value="passenger.type">
          <a-select-option value="1">成人</a-select-option>
          <a-select-option value="2">儿童</a-select-option>
          <a-select-option value="3">学生</a-select-option>
        </a-select>
      </a-form-item>
    </a-form>
  </a-modal>
</template>
<script>
import { defineComponent, ref, reactive, onMounted } from 'vue';
import {notification} from "ant-design-vue";
import axios from "axios";

export default defineComponent({
  setup() {
    const visible = ref(false);
    const passenger = reactive({
      id: undefined,
      memberId: undefined,
      name: undefined,
      idCard: undefined,
      type: undefined,
      createTime: undefined,
      updateTime: undefined,
    });
    const passengers = ref([]);
    // 分页的三个属性名是固定的
    const pagination = reactive({
      total: 0,
      current: 1,
      pageSize: 2,
    });
    let loading = ref(false);
    const columns = [{
      title: '姓名',
      dataIndex: 'name',
      key: 'name',
    }, {
      title: '身份证',
      dataIndex: 'idCard',
      key: 'idCard',
    }, {
      title: '类型',
      dataIndex: 'type',
      key: 'type',
    }];

    const showModal = () => {
      visible.value = true;
    };

    const handleOk = () => {
      axios.post("/member/passenger/save", passenger).then((response) => {
        let data = response.data;
        if (data.success) {
          notification.success({description: "保存成功！"});
          visible.value = false;
        } else {
          notification.error({description: data.message});
        }
      });
    };

    const handleQuery = (param) => {
      if (!param) {
        param = {
          page: 1,
          size: pagination.pageSize
        };
      }
      loading.value = true;
      axios.get("/member/passenger/query-list", {
        params: {
          page: param.page,
          size: param.size
        }
      }).then((response) => {
        loading.value = false;
        let data = response.data;
        if (data.success) {
          passengers.value = data.content.list;
          // 设置分页控件的值
          pagination.current = param.page;
          pagination.total = data.content.total;
        } else {
          notification.error({description: data.message});
        }
      });
    };

    const handleTableChange = (pagination) => {
      // console.log("看看自带的分页参数都有啥：" + pagination);
      handleQuery({
        page: pagination.current,
        size: pagination.pageSize
      });
    };

    onMounted(() => {
      handleQuery({
        page: 1,
        size: pagination.pageSize
      });
    });

    return {
      passenger,
      visible,
      showModal,
      handleOk,
      passengers,
      pagination,
      columns,
      handleTableChange,
      handleQuery,
      loading
    };
  },
});
</script>
<style>
</style>

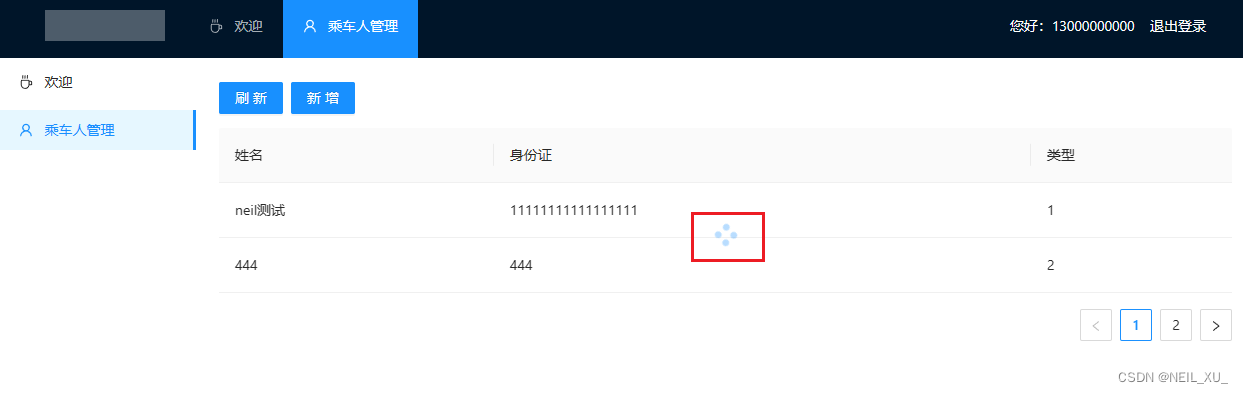

效果

在这里插入图片描述

乘车人列表查询界面开发，保存成功后刷新列表

修改passenger.vue

web/src/views/main/passenger.vue

const handleOk = () => {
  axios.post("/member/passenger/save", passenger).then((response) => {
    let data = response.data;
    if (data.success) {
      notification.success({description: "保存成功！"});
      visible.value = false;
      handleQuery({
        page: pagination.current,
        size: pagination.pageSize
      });
    } else {
      notification.error({description: data.message});
    }
  });
};

修改service方法（按时间顺序倒序排列，方便测试效果）

com.neilxu.train.member.service.PassengerService

public PageResp<PassengerQueryResp> queryList(PassengerQueryReq req) {
    PassengerExample passengerExample = new PassengerExample();
    passengerExample.setOrderByClause("id desc");

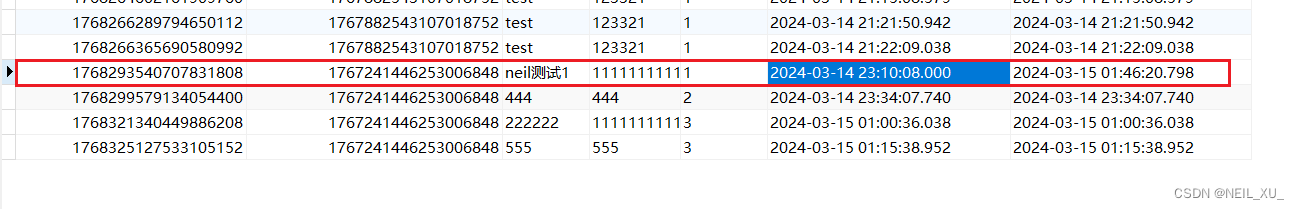

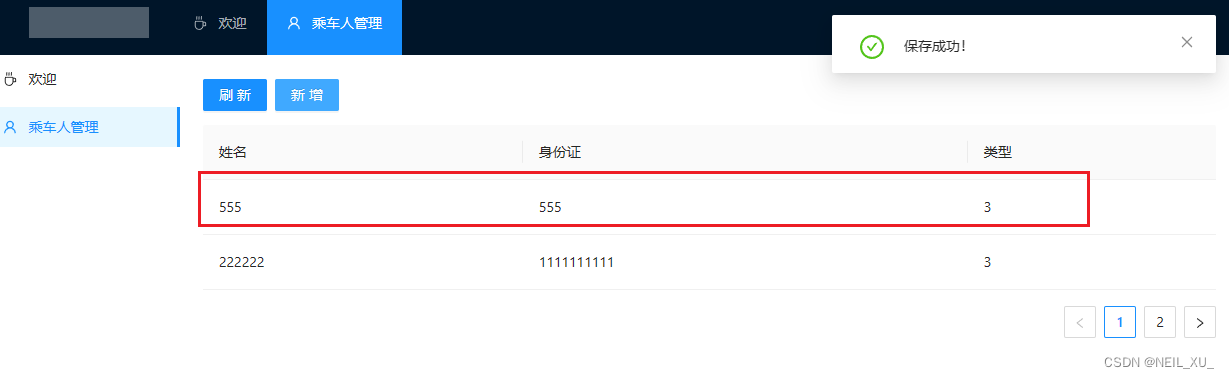

效果

在这里插入图片描述

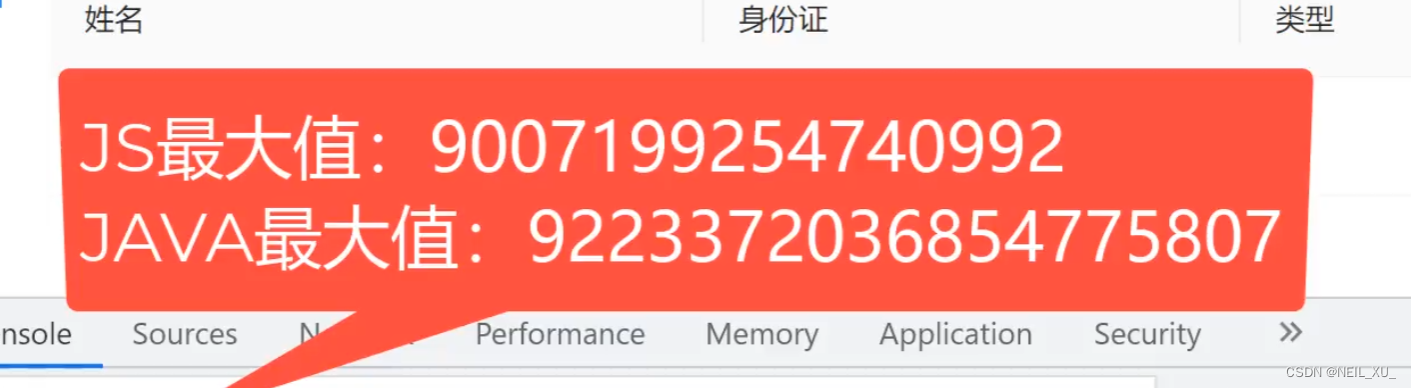

10.解决Long类型精度丢失的问题

不同的语言，虽然都有int long等类型，但他们的精度不太一样，在数据传递时需要特别注意精度丢失。
解决方法：将long传成string

对于Long类型

方式一：全局配置Long转成String

这种方式前端会有警告，不推荐

common增加 JacksonConfig.java

方式二：为每个返回结果类单独配置

修改PassengerQueryResp.java

com.neilxu.train.member.resp.PassengerQueryResp

package com.neilxu.train.member.resp;

import com.fasterxml.jackson.annotation.JsonFormat;
import com.fasterxml.jackson.databind.annotation.JsonSerialize;
import com.fasterxml.jackson.databind.ser.std.ToStringSerializer;
import lombok.Data;

import java.util.Date;

@Data
public class PassengerQueryResp {
    @JsonSerialize(using= ToStringSerializer.class)
    private Long id;

    @JsonSerialize(using= ToStringSerializer.class)
    private Long memberId;

    private String name;

    private String idCard;

    private String type;

    @JsonFormat(pattern = "yyyy-MM-dd HH:mm:ss", timezone = "GMT+8")
    private Date createTime;

    @JsonFormat(pattern = "yyyy-MM-dd HH:mm:ss", timezone = "GMT+8")
    private Date updateTime;

}

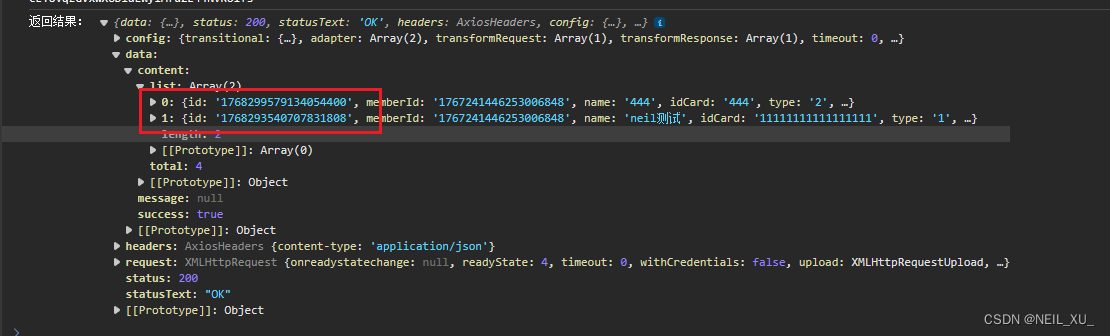

效果：

在这里插入图片描述

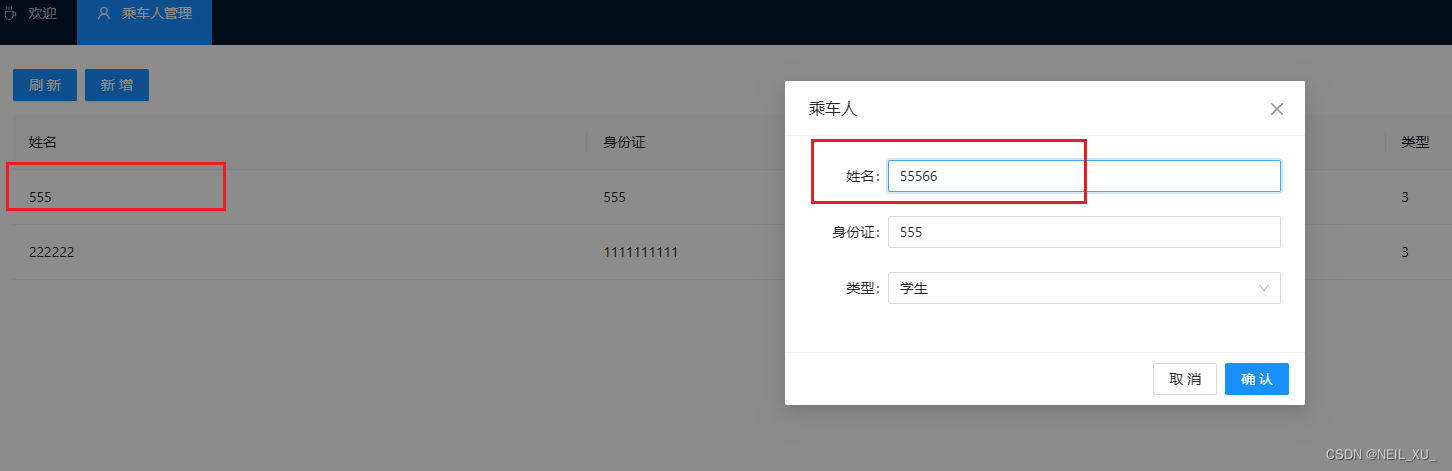

11.乘车人编辑接口开发

修改service方法

判断前端有无传id，没有则是新增，否则是更新

com.neilxu.train.member.service.PassengerService

public void save(PassengerSaveReq req) {
    DateTime now = DateTime.now();
    Passenger passenger = BeanUtil.copyProperties(req, Passenger.class);
    if (ObjectUtil.isNull(passenger.getId())) {
        passenger.setMemberId(LoginMemberContext.getId());
        passenger.setId(SnowUtil.getSnowflakeNextId());
        passenger.setCreateTime(now);
        passenger.setUpdateTime(now);
        passengerMapper.insert(passenger);
    } else {
        passenger.setUpdateTime(now);
        passengerMapper.updateByPrimaryKey(passenger);
    }
}

测试

POST http://localhost:8000/member/passenger/save
Content-Type: application/json
token: {{token}}

{
  "id": 1768293540707831808,
  "memberId": 1767241446253006848,
  "name": "neil测试1",
  "idCard": "11111111111111111",
  "type": "1",
  "createTime": "2024-03-14 23:10:08"
}

###

注意点：

需要修改保存请求实体类PassengerSaveReq.java，格式化接收的时间格式，否则上面的请求会报错

@JsonFormat(pattern = "yyyy-MM-dd HH:mm:ss", timezone = "GMT+8")
private Date createTime;

@JsonFormat(pattern = "yyyy-MM-dd HH:mm:ss", timezone = "GMT+8")
private Date updateTime;

最终修改成功：

在这里插入图片描述

12.乘车人编辑界面开发

修改passenger.vue

web/src/views/main/passenger.vue

<template>
  <p>
    <a-space>
      <a-button type="primary" @click="handleQuery()">刷新</a-button>
      <a-button type="primary" @click="onAdd">新增</a-button>
    </a-space>
  </p>
  <a-table :dataSource="passengers"
           :columns="columns"
           :pagination="pagination"
           @change="handleTableChange"
           :loading="loading">
    <template #bodyCell="{ column, record }">
      <template v-if="column.dataIndex === 'operation'">
        <a-space>
          <a @click="onEdit(record)">编辑</a>
        </a-space>
      </template>
    </template>
  </a-table>
  <a-modal v-model:visible="visible" title="乘车人" @ok="handleOk"
           ok-text="确认" cancel-text="取消">
    <a-form :model="passenger" :label-col="{span: 4}" :wrapper-col="{ span: 20 }">
      <a-form-item label="姓名">
        <a-input v-model:value="passenger.name" />
      </a-form-item>
      <a-form-item label="身份证">
        <a-input v-model:value="passenger.idCard" />
      </a-form-item>
      <a-form-item label="类型">
        <a-select v-model:value="passenger.type">
          <a-select-option value="1">成人</a-select-option>
          <a-select-option value="2">儿童</a-select-option>
          <a-select-option value="3">学生</a-select-option>
        </a-select>
      </a-form-item>
    </a-form>
  </a-modal>
</template>
<script>
import { defineComponent, ref, onMounted } from 'vue';
import {notification} from "ant-design-vue";
import axios from "axios";

export default defineComponent({
  setup() {
    const visible = ref(false);
    let passenger = ref({
      id: undefined,
      memberId: undefined,
      name: undefined,
      idCard: undefined,
      type: undefined,
      createTime: undefined,
      updateTime: undefined,
    });
    const passengers = ref([]);
    // 分页的三个属性名是固定的
    const pagination = ref({
      total: 0,
      current: 1,
      pageSize: 2,
    });
    let loading = ref(false);
    const columns = [{
      title: '姓名',
      dataIndex: 'name',
      key: 'name',
    }, {
      title: '身份证',
      dataIndex: 'idCard',
      key: 'idCard',
    }, {
      title: '类型',
      dataIndex: 'type',
      key: 'type',
    }, {
      title: '操作',
      dataIndex: 'operation'
    }];

    const onAdd = () => {
      visible.value = true;
    };

    const onEdit = (record) => {
      passenger.value = record;
      visible.value = true;
    };

    const handleOk = () => {
      axios.post("/member/passenger/save", passenger.value).then((response) => {
        let data = response.data;
        if (data.success) {
          notification.success({description: "保存成功！"});
          visible.value = false;
          handleQuery({
            page: pagination.value.current,
            size: pagination.value.pageSize
          });
        } else {
          notification.error({description: data.message});
        }
      });
    };

    const handleQuery = (param) => {
      if (!param) {
        param = {
          page: 1,
          size: pagination.value.pageSize
        };
      }
      loading.value = true;
      axios.get("/member/passenger/query-list", {
        params: {
          page: param.page,
          size: param.size
        }
      }).then((response) => {
        loading.value = false;
        let data = response.data;
        if (data.success) {
          passengers.value = data.content.list;
          // 设置分页控件的值
          pagination.value.current = param.page;
          pagination.value.total = data.content.total;
        } else {
          notification.error({description: data.message});
        }
      });
    };

    const handleTableChange = (pagination) => {
      // console.log("看看自带的分页参数都有啥：" + pagination);
      handleQuery({
        page: pagination.current,
        size: pagination.pageSize
      });
    };

    onMounted(() => {
      handleQuery({
        page: 1,
        size: pagination.value.pageSize
      });
    });

    return {
      passenger,
      visible,
      onAdd,
      handleOk,
      passengers,
      pagination,
      columns,
      handleTableChange,
      handleQuery,
      loading,
      onEdit
    };
  },
});
</script>
<style>
</style>

注意点：

这里为了方便，将reactive改为ref，如果用reactive需要再封装一层属性才能实现双向绑定（或者对属性赋值）

例如
在这里插入图片描述

在这里插入图片描述

或者

在这里插入图片描述

效果

在这里插入图片描述

这里有修改了没点确定，但是页面数据已经变化的问题；还有点击新增，会把前面填写的表单历史内容赋值上

解决上述问题

引入tool.js

web/public/js/tool.js

Tool = {
    /**
     * 空校验 null或""都返回true
     */
    isEmpty: (obj) => {
        if ((typeof obj === 'string')) {
            return !obj || obj.replace(/\s+/g, "") === ""
        } else {
            return (!obj || JSON.stringify(obj) === "{}" || obj.length === 0);
        }
    },

    /**
     * 非空校验
     */
    isNotEmpty: (obj) => {
        return !Tool.isEmpty(obj);
    },

    /**
     * 对象复制
     * @param obj
     */
    copy: (obj) => {
        if (Tool.isNotEmpty(obj)) {
            return JSON.parse(JSON.stringify(obj));
        }
    },

    /**
     * 使用递归将数组转为树形结构
     * 父ID属性为parent
     */
    array2Tree: (array, parentId) => {
        if (Tool.isEmpty(array)) {
            return [];
        }

        const result = [];
        for (let i = 0; i < array.length; i++) {
            const c = array[i];
            // console.log(Number(c.parent), Number(parentId));
            if (Number(c.parent) === Number(parentId)) {
                result.push(c);

                // 递归查看当前节点对应的子节点
                const children = Tool.array2Tree(array, c.id);
                if (Tool.isNotEmpty(children)) {
                    c.children = children;
                }
            }
        }
        return result;
    },

    /**
     * 随机生成[len]长度的[radix]进制数
     * @param len
     * @param radix 默认62
     * @returns {string}
     */
    uuid: (len, radix = 62) => {
        const chars = '0123456789ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz'.split('');
        const uuid = [];
        radix = radix || chars.length;

        for (let i = 0; i < len; i++) {
            uuid[i] = chars[0 | Math.random() * radix];
        }

        return uuid.join('');
    }
};

web/public/index.html

<script src="<%= BASE_URL %>js/tool.js"></script>

修改passenger.vue
```
const onAdd = () => {
  passenger.value = {};
  visible.value = true;
};

const onEdit = (record) => {
  passenger.value = window.Tool.copy(record);
  visible.value = true;
};
```
新增的时候，先将passenger清空，则不会出现历史数据；编辑的时候，将行数据复制一个新的对象，修改弹窗里的新的对象，只要不点击确定，则不会修改页面的数据
效果

在这里插入图片描述

13.乘车人删除接口开发

service

com.neilxu.train.member.service.PassengerService

public void delete(Long id) {
    passengerMapper.deleteByPrimaryKey(id);
}

controller

com.neilxu.train.member.controller.PassengerController

@DeleteMapping("/delete/{id}")
public CommonResp<Object> delete(@PathVariable Long id) {
    passengerService.delete(id);
    return new CommonResp<>();
}

测试

DELETE http://localhost:8000/member/passenger/delete/1768484775556943872
Accept: application/json
token: {{token}}

###

调用后成功删除

14.乘车人删除界面开发

修改passenger.vue

<template>
  <p>
    <a-space>
      <a-button type="primary" @click="handleQuery()">刷新</a-button>
      <a-button type="primary" @click="onAdd">新增</a-button>
    </a-space>
  </p>
  <a-table :dataSource="passengers"
           :columns="columns"
           :pagination="pagination"
           @change="handleTableChange"
           :loading="loading">
    <template #bodyCell="{ column, record }">
      <template v-if="column.dataIndex === 'operation'">
        <a-space>
          <a-popconfirm
              title="删除后不可恢复，确认删除?"
              @confirm="onDelete(record)"
              ok-text="确认" cancel-text="取消">
            <a style="color: red">删除</a>
          </a-popconfirm>
          <a @click="onEdit(record)">编辑</a>
        </a-space>
      </template>
    </template>
  </a-table>
  <a-modal v-model:visible="visible" title="乘车人" @ok="handleOk"
           ok-text="确认" cancel-text="取消">
    <a-form :model="passenger" :label-col="{span: 4}" :wrapper-col="{ span: 20 }">
      <a-form-item label="姓名">
        <a-input v-model:value="passenger.name" />
      </a-form-item>
      <a-form-item label="身份证">
        <a-input v-model:value="passenger.idCard" />
      </a-form-item>
      <a-form-item label="类型">
        <a-select v-model:value="passenger.type">
          <a-select-option value="1">成人</a-select-option>
          <a-select-option value="2">儿童</a-select-option>
          <a-select-option value="3">学生</a-select-option>
        </a-select>
      </a-form-item>
    </a-form>
  </a-modal>
</template>
<script>
import { defineComponent, ref, onMounted } from 'vue';
import {notification} from "ant-design-vue";
import axios from "axios";

export default defineComponent({
  setup() {
    const visible = ref(false);
    let passenger = ref({
      id: undefined,
      memberId: undefined,
      name: undefined,
      idCard: undefined,
      type: undefined,
      createTime: undefined,
      updateTime: undefined,
    });
    const passengers = ref([]);
    // 分页的三个属性名是固定的
    const pagination = ref({
      total: 0,
      current: 1,
      pageSize: 2,
    });
    let loading = ref(false);
    const columns = [{
      title: '姓名',
      dataIndex: 'name',
      key: 'name',
    }, {
      title: '身份证',
      dataIndex: 'idCard',
      key: 'idCard',
    }, {
      title: '类型',
      dataIndex: 'type',
      key: 'type',
    }, {
      title: '操作',
      dataIndex: 'operation'
    }];

    const onAdd = () => {
      passenger.value = {};
      visible.value = true;
    };

    const onEdit = (record) => {
      passenger.value = window.Tool.copy(record);
      visible.value = true;
    };

    const onDelete = (record) => {
      axios.delete("/member/passenger/delete/" + record.id).then((response) => {
        const data = response.data;
        if (data.success) {
          notification.success({description: "删除成功！"});
          handleQuery({
            page: pagination.value.current,
            size: pagination.value.pageSize,
          });
        } else {
          notification.error({description: data.message});
        }
      });
    };

    const handleOk = () => {
      axios.post("/member/passenger/save", passenger.value).then((response) => {
        let data = response.data;
        if (data.success) {
          notification.success({description: "保存成功！"});
          visible.value = false;
          handleQuery({
            page: pagination.value.current,
            size: pagination.value.pageSize
          });
        } else {
          notification.error({description: data.message});
        }
      });
    };

    const handleQuery = (param) => {
      if (!param) {
        param = {
          page: 1,
          size: pagination.value.pageSize
        };
      }
      loading.value = true;
      axios.get("/member/passenger/query-list", {
        params: {
          page: param.page,
          size: param.size
        }
      }).then((response) => {
        loading.value = false;
        let data = response.data;
        if (data.success) {
          passengers.value = data.content.list;
          // 设置分页控件的值
          pagination.value.current = param.page;
          pagination.value.total = data.content.total;
        } else {
          notification.error({description: data.message});
        }
      });
    };

    const handleTableChange = (pagination) => {
      // console.log("看看自带的分页参数都有啥：" + pagination);
      handleQuery({
        page: pagination.current,
        size: pagination.pageSize
      });
    };

    onMounted(() => {
      handleQuery({
        page: 1,
        size: pagination.value.pageSize
      });
    });

    return {
      passenger,
      visible,
      onAdd,
      handleOk,
      passengers,
      pagination,
      columns,
      handleTableChange,
      handleQuery,
      loading,
      onEdit,
      onDelete
    };
  },
});
</script>
<style>
</style>

效果

在这里插入图片描述

15.前端枚举展示的解决方案

目前问题：列表里乘客类型显示是数字，需要改成对应的中文名称；同时，前端枚举需要与后端枚举保持同步，所以需要做个关联

将下拉框的值提取成常量数组

修改passenger.vue

<template>
  <p>
    <a-space>
      <a-button type="primary" @click="handleQuery()">刷新</a-button>
      <a-button type="primary" @click="onAdd">新增</a-button>
    </a-space>
  </p>
  <a-table :dataSource="passengers"
           :columns="columns"
           :pagination="pagination"
           @change="handleTableChange"
           :loading="loading">
    <template #bodyCell="{ column, record }">
      <template v-if="column.dataIndex === 'operation'">
        <a-space>
          <a-popconfirm
              title="删除后不可恢复，确认删除?"
              @confirm="onDelete(record)"
              ok-text="确认" cancel-text="取消">
            <a style="color: red">删除</a>
          </a-popconfirm>
          <a @click="onEdit(record)">编辑</a>
        </a-space>
      </template>
    </template>
  </a-table>
  <a-modal v-model:visible="visible" title="乘车人" @ok="handleOk"
           ok-text="确认" cancel-text="取消">
    <a-form :model="passenger" :label-col="{span: 4}" :wrapper-col="{ span: 20 }">
      <a-form-item label="姓名">
        <a-input v-model:value="passenger.name" />
      </a-form-item>
      <a-form-item label="身份证">
        <a-input v-model:value="passenger.idCard" />
      </a-form-item>
      <a-form-item label="类型">
        <a-select v-model:value="passenger.type">
          <a-select-option v-for="item in PASSENGER_TYPE_ARRAY" :key="item.key" :value="item.key">{{item.value}}</a-select-option>
        </a-select>
      </a-form-item>
    </a-form>
  </a-modal>
</template>
<script>
import { defineComponent, ref, onMounted } from 'vue';
import {notification} from "ant-design-vue";
import axios from "axios";

export default defineComponent({
  setup() {
    const PASSENGER_TYPE_ARRAY = [{key: "1", value: "成人1"}, {key: "2", value: "儿童"}, {key: "3", value: "学生"}];
    const visible = ref(false);
    let passenger = ref({
      id: undefined,
      memberId: undefined,
      name: undefined,
      idCard: undefined,
      type: undefined,
      createTime: undefined,
      updateTime: undefined,
    });
    const passengers = ref([]);
    // 分页的三个属性名是固定的
    const pagination = ref({
      total: 0,
      current: 1,
      pageSize: 2,
    });
    let loading = ref(false);
    const columns = [{
      title: '姓名',
      dataIndex: 'name',
      key: 'name',
    }, {
      title: '身份证',
      dataIndex: 'idCard',
      key: 'idCard',
    }, {
      title: '类型',
      dataIndex: 'type',
      key: 'type',
    }, {
      title: '操作',
      dataIndex: 'operation'
    }];

    const onAdd = () => {
      passenger.value = {};
      visible.value = true;
    };

    const onEdit = (record) => {
      passenger.value = window.Tool.copy(record);
      visible.value = true;
    };

    const onDelete = (record) => {
      axios.delete("/member/passenger/delete/" + record.id).then((response) => {
        const data = response.data;
        if (data.success) {
          notification.success({description: "删除成功！"});
          handleQuery({
            page: pagination.value.current,
            size: pagination.value.pageSize,
          });
        } else {
          notification.error({description: data.message});
        }
      });
    };

    const handleOk = () => {
      axios.post("/member/passenger/save", passenger.value).then((response) => {
        let data = response.data;
        if (data.success) {
          notification.success({description: "保存成功！"});
          visible.value = false;
          handleQuery({
            page: pagination.value.current,
            size: pagination.value.pageSize
          });
        } else {
          notification.error({description: data.message});
        }
      });
    };

    const handleQuery = (param) => {
      if (!param) {
        param = {
          page: 1,
          size: pagination.value.pageSize
        };
      }
      loading.value = true;
      axios.get("/member/passenger/query-list", {
        params: {
          page: param.page,
          size: param.size
        }
      }).then((response) => {
        loading.value = false;
        let data = response.data;
        if (data.success) {
          passengers.value = data.content.list;
          // 设置分页控件的值
          pagination.value.current = param.page;
          pagination.value.total = data.content.total;
        } else {
          notification.error({description: data.message});
        }
      });
    };

    const handleTableChange = (pagination) => {
      // console.log("看看自带的分页参数都有啥：" + pagination);
      handleQuery({
        page: pagination.current,
        size: pagination.pageSize
      });
    };

    onMounted(() => {
      handleQuery({
        page: 1,
        size: pagination.value.pageSize
      });
    });

    return {
      PASSENGER_TYPE_ARRAY,
      passenger,
      visible,
      onAdd,
      handleOk,
      passengers,
      pagination,
      columns,
      handleTableChange,
      handleQuery,
      loading,
      onEdit,
      onDelete
    };
  },
});
</script>
<style>
</style>

这里是演示将写死的下拉框改成从一个常量中获取

解决表格中枚举字段的显示

修改passenger.vue

<template>
  <p>
    <a-space>
      <a-button type="primary" @click="handleQuery()">刷新</a-button>
      <a-button type="primary" @click="onAdd">新增</a-button>
    </a-space>
  </p>
  <a-table :dataSource="passengers"
           :columns="columns"
           :pagination="pagination"
           @change="handleTableChange"
           :loading="loading">
    <template #bodyCell="{ column, record }">
      <template v-if="column.dataIndex === 'operation'">
        <a-space>
          <a-popconfirm
              title="删除后不可恢复，确认删除?"
              @confirm="onDelete(record)"
              ok-text="确认" cancel-text="取消">
            <a style="color: red">删除</a>
          </a-popconfirm>
          <a @click="onEdit(record)">编辑</a>
        </a-space>
      </template>
      <template v-else-if="column.dataIndex === 'type'">
        <span v-for="item in PASSENGER_TYPE_ARRAY" :key="item.key">
          <span v-if="item.key === record.type">
            {{item.value}}
          </span>
        </span>
      </template>
    </template>
  </a-table>
  <a-modal v-model:visible="visible" title="乘车人" @ok="handleOk"
           ok-text="确认" cancel-text="取消">
    <a-form :model="passenger" :label-col="{span: 4}" :wrapper-col="{ span: 20 }">
      <a-form-item label="姓名">
        <a-input v-model:value="passenger.name" />
      </a-form-item>
      <a-form-item label="身份证">
        <a-input v-model:value="passenger.idCard" />
      </a-form-item>
      <a-form-item label="类型">
        <a-select v-model:value="passenger.type">
          <a-select-option v-for="item in PASSENGER_TYPE_ARRAY" :key="item.key" :value="item.key">{{item.value}}</a-select-option>
        </a-select>
      </a-form-item>
    </a-form>
  </a-modal>
</template>
<script>
import { defineComponent, ref, onMounted } from 'vue';
import {notification} from "ant-design-vue";
import axios from "axios";

export default defineComponent({
  setup() {
    const PASSENGER_TYPE_ARRAY = [{key: "1", value: "成人"}, {key: "2", value: "儿童"}, {key: "3", value: "学生"}];
    const visible = ref(false);
    let passenger = ref({
      id: undefined,
      memberId: undefined,
      name: undefined,
      idCard: undefined,
      type: undefined,
      createTime: undefined,
      updateTime: undefined,
    });
    const passengers = ref([]);
    // 分页的三个属性名是固定的
    const pagination = ref({
      total: 0,
      current: 1,
      pageSize: 2,
    });
    let loading = ref(false);
    const columns = [{
      title: '姓名',
      dataIndex: 'name',
      key: 'name',
    }, {
      title: '身份证',
      dataIndex: 'idCard',
      key: 'idCard',
    }, {
      title: '类型',
      dataIndex: 'type',
      key: 'type',
    }, {
      title: '操作',
      dataIndex: 'operation'
    }];

    const onAdd = () => {
      passenger.value = {};
      visible.value = true;
    };

    const onEdit = (record) => {
      passenger.value = window.Tool.copy(record);
      visible.value = true;
    };

    const onDelete = (record) => {
      axios.delete("/member/passenger/delete/" + record.id).then((response) => {
        const data = response.data;
        if (data.success) {
          notification.success({description: "删除成功！"});
          handleQuery({
            page: pagination.value.current,
            size: pagination.value.pageSize,
          });
        } else {
          notification.error({description: data.message});
        }
      });
    };

    const handleOk = () => {
      axios.post("/member/passenger/save", passenger.value).then((response) => {
        let data = response.data;
        if (data.success) {
          notification.success({description: "保存成功！"});
          visible.value = false;
          handleQuery({
            page: pagination.value.current,
            size: pagination.value.pageSize
          });
        } else {
          notification.error({description: data.message});
        }
      });
    };

    const handleQuery = (param) => {
      if (!param) {
        param = {
          page: 1,
          size: pagination.value.pageSize
        };
      }
      loading.value = true;
      axios.get("/member/passenger/query-list", {
        params: {
          page: param.page,
          size: param.size
        }
      }).then((response) => {
        loading.value = false;
        let data = response.data;
        if (data.success) {
          passengers.value = data.content.list;
          // 设置分页控件的值
          pagination.value.current = param.page;
          pagination.value.total = data.content.total;
        } else {
          notification.error({description: data.message});
        }
      });
    };

    const handleTableChange = (pagination) => {
      // console.log("看看自带的分页参数都有啥：" + pagination);
      handleQuery({
        page: pagination.current,
        size: pagination.pageSize
      });
    };

    onMounted(() => {
      handleQuery({
        page: 1,
        size: pagination.value.pageSize
      });
    });

    return {
      PASSENGER_TYPE_ARRAY,
      passenger,
      visible,
      onAdd,
      handleOk,
      passengers,
      pagination,
      columns,
      handleTableChange,
      handleQuery,
      loading,
      onEdit,
      onDelete
    };
  },
});
</script>
<style>
</style>

效果

在这里插入图片描述

为了后续能通过后端生成枚举常量给前端，现在再进一步将常量写成一个独立的js文件

新增enums.js

web/src/assets/js/enums.js

PASSENGER_TYPE_ARRAY = [{key: "1", value: "成人"}, {key: "2", value: "儿童"}, {key: "3", value: "学生"}];

引入文件
- 修改main.js
```
import './assets/js/enums';
```
- 修改package.json
```
"rules": {
    "vue/multi-word-component-names": 0,
    "no-undef": 0
}
```
  这里是解决后面passenger.vue使用window.PASSENGER_TYPE_ARRAY;获取对象报错的问题

  自定义的js放在src下和放在public下的区别：

  放在src下会统一打包成一个js，

  public下的则独立打包

修改passenger.vue

<template>
  <p>
    <a-space>
      <a-button type="primary" @click="handleQuery()">刷新</a-button>
      <a-button type="primary" @click="onAdd">新增</a-button>
    </a-space>
  </p>
  <a-table :dataSource="passengers"
           :columns="columns"
           :pagination="pagination"
           @change="handleTableChange"
           :loading="loading">
    <template #bodyCell="{ column, record }">
      <template v-if="column.dataIndex === 'operation'">
        <a-space>
          <a-popconfirm
              title="删除后不可恢复，确认删除?"
              @confirm="onDelete(record)"
              ok-text="确认" cancel-text="取消">
            <a style="color: red">删除</a>
          </a-popconfirm>
          <a @click="onEdit(record)">编辑</a>
        </a-space>
      </template>
      <template v-else-if="column.dataIndex === 'type'">
        <span v-for="item in PASSENGER_TYPE_ARRAY" :key="item.key">
          <span v-if="item.key === record.type">
            {{item.value}}
          </span>
        </span>
      </template>
    </template>
  </a-table>
  <a-modal v-model:visible="visible" title="乘车人" @ok="handleOk"
           ok-text="确认" cancel-text="取消">
    <a-form :model="passenger" :label-col="{span: 4}" :wrapper-col="{ span: 20 }">
      <a-form-item label="姓名">
        <a-input v-model:value="passenger.name" />
      </a-form-item>
      <a-form-item label="身份证">
        <a-input v-model:value="passenger.idCard" />
      </a-form-item>
      <a-form-item label="类型">
        <a-select v-model:value="passenger.type">
          <a-select-option v-for="item in PASSENGER_TYPE_ARRAY" :key="item.key" :value="item.key">{{item.value}}</a-select-option>
        </a-select>
      </a-form-item>
    </a-form>
  </a-modal>
</template>
<script>
import { defineComponent, ref, onMounted } from 'vue';
import {notification} from "ant-design-vue";
import axios from "axios";

export default defineComponent({
  setup() {
    const PASSENGER_TYPE_ARRAY = window.PASSENGER_TYPE_ARRAY;
    const visible = ref(false);
    let passenger = ref({
      id: undefined,
      memberId: undefined,
      name: undefined,
      idCard: undefined,
      type: undefined,
      createTime: undefined,
      updateTime: undefined,
    });
    const passengers = ref([]);
    // 分页的三个属性名是固定的
    const pagination = ref({
      total: 0,
      current: 1,
      pageSize: 2,
    });
    let loading = ref(false);
    const columns = [{
      title: '姓名',
      dataIndex: 'name',
      key: 'name',
    }, {
      title: '身份证',
      dataIndex: 'idCard',
      key: 'idCard',
    }, {
      title: '类型',
      dataIndex: 'type',
      key: 'type',
    }, {
      title: '操作',
      dataIndex: 'operation'
    }];

    const onAdd = () => {
      passenger.value = {};
      visible.value = true;
    };

    const onEdit = (record) => {
      passenger.value = window.Tool.copy(record);
      visible.value = true;
    };

    const onDelete = (record) => {
      axios.delete("/member/passenger/delete/" + record.id).then((response) => {
        const data = response.data;
        if (data.success) {
          notification.success({description: "删除成功！"});
          handleQuery({
            page: pagination.value.current,
            size: pagination.value.pageSize,
          });
        } else {
          notification.error({description: data.message});
        }
      });
    };

    const handleOk = () => {
      axios.post("/member/passenger/save", passenger.value).then((response) => {
        let data = response.data;
        if (data.success) {
          notification.success({description: "保存成功！"});
          visible.value = false;
          handleQuery({
            page: pagination.value.current,
            size: pagination.value.pageSize
          });
        } else {
          notification.error({description: data.message});
        }
      });
    };

    const handleQuery = (param) => {
      if (!param) {
        param = {
          page: 1,
          size: pagination.value.pageSize
        };
      }
      loading.value = true;
      axios.get("/member/passenger/query-list", {
        params: {
          page: param.page,
          size: param.size
        }
      }).then((response) => {
        loading.value = false;
        let data = response.data;
        if (data.success) {
          passengers.value = data.content.list;
          // 设置分页控件的值
          pagination.value.current = param.page;
          pagination.value.total = data.content.total;
        } else {
          notification.error({description: data.message});
        }
      });
    };

    const handleTableChange = (pagination) => {
      // console.log("看看自带的分页参数都有啥：" + pagination);
      handleQuery({
        page: pagination.current,
        size: pagination.pageSize
      });
    };

    onMounted(() => {
      handleQuery({
        page: 1,
        size: pagination.value.pageSize
      });
    });

    return {
      PASSENGER_TYPE_ARRAY,
      passenger,
      visible,
      onAdd,
      handleOk,
      passengers,
      pagination,
      columns,
      handleTableChange,
      handleQuery,
      loading,
      onEdit,
      onDelete
    };
  },
});
</script>
<style>
</style>

效果

在这里插入图片描述

二、自制前后端代码生成器，提高开发效率

以乘车人增删改查为模板，自制单表管理，前后端代码生成器，生成controller，service，req，resp，enum，vue

实际项目中目前使用mybatis-plus相关插件也是可以做到类似的生成后端代码效果，这里学习下课程里的方法

在这里插入图片描述

生成器原理

使用freemarker，利用模板，生成java、vue等项目文件。
freemarker是老牌模板引擎，以前常用于页面开发，和thymeleaf类似，有需要批量生成格式固定的一类文件的需求，都可以使用freemarker来完成。

冷门知识点：excel可以另存为xml。
复杂excel导出：可以先设计好复制excel，转成xml，用xml来制作模板，再生成excel

1.引入依赖，测试使用freemarker生成代码

修改generator下的pom文件

<dependencies>
    <!-- 模板引擎freemarker -->
    <dependency>
        <groupId>org.freemarker</groupId>
        <artifactId>freemarker</artifactId>
    </dependency>
</dependencies>

新增FreemarkerUtil.java

com.neilxu.train.generator.util.FreemarkerUtil

package com.neilxu.train.generator.util;

import freemarker.template.Configuration;
import freemarker.template.DefaultObjectWrapper;
import freemarker.template.Template;
import freemarker.template.TemplateException;

import java.io.BufferedWriter;
import java.io.File;
import java.io.FileWriter;
import java.io.IOException;
import java.util.Map;

public class FreemarkerUtil {

    static String ftlPath = "generator\\src\\main\\java\\com\\neilxu\\train\\generator\\ftl\\";

    static Template temp;

    /**
     * 读模板
     */
    public static void initConfig(String ftlName) throws IOException {
        Configuration cfg = new Configuration(Configuration.VERSION_2_3_31);
        cfg.setDirectoryForTemplateLoading(new File(ftlPath));
        cfg.setObjectWrapper(new DefaultObjectWrapper(Configuration.VERSION_2_3_31));
        temp = cfg.getTemplate(ftlName);
    }

    /**
     * 根据模板，生成文件
     */
    public static void generator(String fileName, Map<String, Object> map) throws IOException, TemplateException {
        FileWriter fw = new FileWriter(fileName);
        BufferedWriter bw = new BufferedWriter(fw);
        temp.process(map, bw);
        bw.flush();
        fw.close();
    }
}

新增ServerGenerator.java

com.neilxu.train.generator.server.ServerGenerator

package com.neilxu.train.generator.server;

import com.neilxu.train.generator.util.FreemarkerUtil;
import freemarker.template.TemplateException;

import java.io.File;
import java.io.IOException;
import java.util.HashMap;
import java.util.Map;

public class ServerGenerator {
    static String toPath = "generator\\src\\main\\java\\com\\neilxu\\train\\generator\\test\\";
    static {
        new File(toPath).mkdirs();
    }

    public static void main(String[] args) throws IOException, TemplateException {
        FreemarkerUtil.initConfig("test.ftl");
        Map<String, Object> param = new HashMap<>();
        param.put("domain", "Test1");
        FreemarkerUtil.generator(toPath + "Test1.java", param);
    }
}

新增ftl模板

package com.neilxu.train.generator.test;

public class ${domain} {

private String name;
}

测试

执行ServerGenerator的main方法

在这里插入图片描述

2.集成DOM4j读取xml

由于我们后续生成代码需要与原来的generator代码生成器xml配置文件相结合，所以这里引入dom4j来读取xml

新增依赖

修改 generator下的 pom.xml

<!-- 读xml -->
<dependency>
    <groupId>org.dom4j</groupId>
    <artifactId>dom4j</artifactId>
    <version>2.1.3</version>
</dependency>

<!-- https://mvnrepository.com/artifact/jaxen/jaxen -->
<dependency>
    <groupId>jaxen</groupId>
    <artifactId>jaxen</artifactId>
    <version>1.2.0</version>
</dependency>

<plugin>
    <groupId>org.mybatis.generator</groupId>
    <artifactId>mybatis-generator-maven-plugin</artifactId>
    <version>1.4.0</version>
    <configuration>
        <!--这里注意后面会有其他模块的代码生成器配置文件，每次只能生成一个模块的-->
        <configurationFile>src/main/resources/generator-config-member.xml</configurationFile>
        <!--<configurationFile>src/main/resources/generator-config-business.xml</configurationFile>-->
        <overwrite>true</overwrite>
        <verbose>true</verbose>
    </configuration>
    <dependencies>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>8.0.22</version>
        </dependency>
    </dependencies>
</plugin>

先新增generator-config-business.xml，以后会用到

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE generatorConfiguration
        PUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN"
        "http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd">

<generatorConfiguration>
    <context id="Mysql" targetRuntime="MyBatis3" defaultModelType="flat">

        <!-- 自动检查关键字，为关键字增加反引号 -->
        <property name="autoDelimitKeywords" value="true"/>
        <property name="beginningDelimiter" value="`"/>
        <property name="endingDelimiter" value="`"/>

        <!--覆盖生成XML文件-->
        <plugin type="org.mybatis.generator.plugins.UnmergeableXmlMappersPlugin" />
        <!-- 生成的实体类添加toString()方法 -->
        <plugin type="org.mybatis.generator.plugins.ToStringPlugin"/>

        <!-- 不生成注释 -->
        <commentGenerator>
            <property name="suppressAllComments" value="true"/>
        </commentGenerator>

        <!-- 配置数据源，需要根据自己的项目修改 -->
        <jdbcConnection driverClass="com.mysql.cj.jdbc.Driver"
                        connectionURL="jdbc:mysql://localhost/train_business?serverTimezone=Asia/Shanghai"
                        userId="train_business"
                        password="Business123">
        </jdbcConnection>

        <!-- domain类的位置 targetProject是相对pom.xml的路径-->
        <javaModelGenerator targetProject="..\member\src\main\java"
                            targetPackage="com.neilxu.train.member.domain"/>

        <!-- mapper xml的位置 targetProject是相对pom.xml的路径 -->
        <sqlMapGenerator targetProject="..\member\src\main\resources"
                         targetPackage="mapper"/>

        <!-- mapper类的位置 targetProject是相对pom.xml的路径 -->
        <javaClientGenerator targetProject="..\member\src\main\java"
                             targetPackage="com.neilxu.train.member.mapper"
                             type="XMLMAPPER"/>

        <!--<table tableName="member" domainObjectName="Member"/>-->
        <table tableName="passenger" domainObjectName="Passenger"/>
    </context>
</generatorConfiguration>

修改ServerGenerator.java

com.neilxu.train.generator.server.ServerGenerator

package com.neilxu.train.generator.server;

import org.dom4j.Document;
import org.dom4j.Node;
import org.dom4j.io.SAXReader;

import java.io.File;
import java.util.HashMap;
import java.util.Map;

public class ServerGenerator {
    static String toPath = "generator\\src\\main\\java\\com\\neilxu\\train\\generator\\test\\";
    static String pomPath = "generator\\pom.xml";
    static {
        new File(toPath).mkdirs();
    }

    public static void main(String[] args) throws Exception {
        SAXReader saxReader = new SAXReader();
        Map<String, String> map = new HashMap<String, String>();
        map.put("pom", "http://maven.apache.org/POM/4.0.0");
        saxReader.getDocumentFactory().setXPathNamespaceURIs(map);
        Document document = saxReader.read(pomPath);
        Node node = document.selectSingleNode("//pom:configurationFile");
        System.out.println(node.getText());

        // FreemarkerUtil.initConfig("test.ftl");
        // Map<String, Object> param = new HashMap<>();
        // param.put("domain", "Test1");
        // FreemarkerUtil.generator(toPath + "Test1.java", param);
    }
}

执行main方法：

在这里插入图片描述

继续修改ServerGenerator.java，读取当前持久层的xml文件，得到表名和实体名

com.neilxu.train.generator.server.ServerGenerator

package com.neilxu.train.generator.server;

import org.dom4j.Document;
import org.dom4j.DocumentException;
import org.dom4j.Node;
import org.dom4j.io.SAXReader;

import java.io.File;
import java.util.HashMap;
import java.util.Map;

public class ServerGenerator {
    static String toPath = "generator\\src\\main\\java\\com\\neilxu\\train\\generator\\test\\";
    static String pomPath = "generator\\pom.xml";
    static {
        new File(toPath).mkdirs();
    }


    public static void main(String[] args) throws Exception {
        String generatorPath = getGeneratorPath();

        Document document = new SAXReader().read("generator/" + generatorPath);
        Node table = document.selectSingleNode("//table");
        System.out.println(table);
        Node tableName = table.selectSingleNode("@tableName");
        Node domainObjectName = table.selectSingleNode("@domainObjectName");
        System.out.println(tableName.getText() + "/" + domainObjectName.getText());

        // FreemarkerUtil.initConfig("test.ftl");
        // Map<String, Object> param = new HashMap<>();
        // param.put("domain", "Test1");
        // FreemarkerUtil.generator(toPath + "Test1.java", param);
    }

    private static String getGeneratorPath() throws DocumentException {
        SAXReader saxReader = new SAXReader();
        Map<String, String> map = new HashMap<String, String>();
        map.put("pom", "http://maven.apache.org/POM/4.0.0");
        saxReader.getDocumentFactory().setXPathNamespaceURIs(map);
        Document document = saxReader.read(pomPath);
        Node node = document.selectSingleNode("//pom:configurationFile");
        System.out.println(node.getText());
        return node.getText();
    }
}

执行main方法：

在这里插入图片描述

3.详解Service生成器

将现有的PassengerService.java改造成ftl模板文件

generator/src/main/java/com/neilxu/train/generator/ftl/service.ftl

package com.neilxu.train.member.service;

import cn.hutool.core.bean.BeanUtil;
import cn.hutool.core.date.DateTime;
import cn.hutool.core.util.ObjectUtil;
import com.github.pagehelper.PageHelper;
import com.github.pagehelper.PageInfo;
import com.neilxu.train.common.context.LoginMemberContext;
import com.neilxu.train.common.resp.PageResp;
import com.neilxu.train.common.util.SnowUtil;
import com.neilxu.train.member.domain.${Domain};
import com.neilxu.train.member.domain.${Domain}Example;
import com.neilxu.train.member.mapper.${Domain}Mapper;
import com.neilxu.train.member.req.${Domain}QueryReq;
import com.neilxu.train.member.req.${Domain}SaveReq;
import com.neilxu.train.member.resp.${Domain}QueryResp;
import jakarta.annotation.Resource;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.stereotype.Service;

import java.util.List;

@Service
public class ${Domain}Service {

    private static final Logger LOG = LoggerFactory.getLogger(${Domain}Service.class);

    @Resource
    private ${Domain}Mapper ${domain}Mapper;

    public void save(${Domain}SaveReq req) {
        DateTime now = DateTime.now();
        ${Domain} ${domain} = BeanUtil.copyProperties(req, ${Domain}.class);
        if (ObjectUtil.isNull(${domain}.getId())) {
            ${domain}.setMemberId(LoginMemberContext.getId());
            ${domain}.setId(SnowUtil.getSnowflakeNextId());
            ${domain}.setCreateTime(now);
            ${domain}.setUpdateTime(now);
            ${domain}Mapper.insert(${domain});
        } else {
            ${domain}.setUpdateTime(now);
            ${domain}Mapper.updateByPrimaryKey(${domain});
        }
    }

    public PageResp<${Domain}QueryResp> queryList(${Domain}QueryReq req) {
        ${Domain}Example ${domain}Example = new ${Domain}Example();
        ${domain}Example.setOrderByClause("id desc");
        ${Domain}Example.Criteria criteria = ${domain}Example.createCriteria();
        if (ObjectUtil.isNotNull(req.getMemberId())) {
            criteria.andMemberIdEqualTo(req.getMemberId());
        }

        LOG.info("查询页码：{}", req.getPage());
        LOG.info("每页条数：{}", req.getSize());
        PageHelper.startPage(req.getPage(), req.getSize());
        List<${Domain}> ${domain}List = ${domain}Mapper.selectByExample(${domain}Example);

        PageInfo<${Domain}> pageInfo = new PageInfo<>(${domain}List);
        LOG.info("总行数：{}", pageInfo.getTotal());
        LOG.info("总页数：{}", pageInfo.getPages());

        List<${Domain}QueryResp> list = BeanUtil.copyToList(${domain}List, ${Domain}QueryResp.class);

        PageResp<${Domain}QueryResp> pageResp = new PageResp<>();
        pageResp.setTotal(pageInfo.getTotal());
        pageResp.setList(list);
        return pageResp;
    }

    public void delete(Long id) {
        ${domain}Mapper.deleteByPrimaryKey(id);
    }
}

修改ServerGenerator.java

com.neilxu.train.generator.server.ServerGenerator

package com.neilxu.train.generator.server;

import com.neilxu.train.generator.util.FreemarkerUtil;
import org.dom4j.Document;
import org.dom4j.DocumentException;
import org.dom4j.Node;
import org.dom4j.io.SAXReader;

import java.io.File;
import java.util.HashMap;
import java.util.Map;

public class ServerGenerator {
    static String servicePath = "[module]/src/main/java/com/neilxu/train/[module]/service/";
    static String pomPath = "generator\\pom.xml";
    static {
        new File(servicePath).mkdirs();
    }

    public static void main(String[] args) throws Exception {
        // 获取mybatis-generator
        String generatorPath = getGeneratorPath();
        // 比如generator-config-member.xml，得到module = member
        String module = generatorPath.replace("src/main/resources/generator-config-", "").replace(".xml", "");
        System.out.println("module: " + module);
        servicePath = servicePath.replace("[module]", module);
        // new File(servicePath).mkdirs();
        System.out.println("servicePath: " + servicePath);

        // 读取table节点
        Document document = new SAXReader().read("generator/" + generatorPath);
        Node table = document.selectSingleNode("//table");
        System.out.println(table);
        Node tableName = table.selectSingleNode("@tableName");
        Node domainObjectName = table.selectSingleNode("@domainObjectName");
        System.out.println(tableName.getText() + "/" + domainObjectName.getText());

        // 示例：表名 jiawa_test
        // Domain = JiawaTest
        String Domain = domainObjectName.getText();
        // domain = jiawaTest
        String domain = Domain.substring(0, 1).toLowerCase() + Domain.substring(1);
        // do_main = jiawa-test
        String do_main = tableName.getText().replaceAll("_", "-");

        // 组装参数
        Map<String, Object> param = new HashMap<>();
        param.put("Domain", Domain);
        param.put("domain", domain);
        param.put("do_main", do_main);
        System.out.println("组装参数：" + param);

        FreemarkerUtil.initConfig("service.ftl");
        FreemarkerUtil.generator(servicePath + Domain + "Service.java", param);
    }

    private static String getGeneratorPath() throws DocumentException {
        SAXReader saxReader = new SAXReader();
        Map<String, String> map = new HashMap<String, String>();
        map.put("pom", "http://maven.apache.org/POM/4.0.0");
        saxReader.getDocumentFactory().setXPathNamespaceURIs(map);
        Document document = saxReader.read(pomPath);
        Node node = document.selectSingleNode("//pom:configurationFile");
        System.out.println(node.getText());
        return node.getText();
    }
}

执行效果

改一下原service类

在这里插入图片描述

再试着重新生成这个类

在这里插入图片描述

生成覆盖后和原来一样，说明代码生成成功

4.详解Controller生成器

方法同service

制作controller模板

generator/src/main/java/com/neilxu/train/generator/ftl/controller.ftl

package com.neilxu.train.member.controller;

import com.neilxu.train.common.context.LoginMemberContext;
import com.neilxu.train.common.resp.CommonResp;
import com.neilxu.train.common.resp.PageResp;
import com.neilxu.train.member.req.${Domain}QueryReq;
import com.neilxu.train.member.req.${Domain}SaveReq;
import com.neilxu.train.member.resp.${Domain}QueryResp;
import com.neilxu.train.member.service.${Domain}Service;
import jakarta.annotation.Resource;
import jakarta.validation.Valid;
import org.springframework.web.bind.annotation.*;

@RestController
@RequestMapping("/${do_main}")
public class ${Domain}Controller {

    @Resource
    private ${Domain}Service ${domain}Service;

    @PostMapping("/save")
    public CommonResp<Object> save(@Valid @RequestBody ${Domain}SaveReq req) {
        ${domain}Service.save(req);
        return new CommonResp<>();
    }

    @GetMapping("/query-list")
    public CommonResp<PageResp<${Domain}QueryResp>> queryList(@Valid ${Domain}QueryReq req) {
        req.setMemberId(LoginMemberContext.getId());
        PageResp<${Domain}QueryResp> list = ${domain}Service.queryList(req);
        return new CommonResp<>(list);
    }

    @DeleteMapping("/delete/{id}")
    public CommonResp<Object> delete(@PathVariable Long id) {
        ${domain}Service.delete(id);
        return new CommonResp<>();
    }

}

修改ServerGenerator.java

package com.neilxu.train.generator.server;

import com.neilxu.train.generator.util.FreemarkerUtil;
import freemarker.template.TemplateException;
import org.dom4j.Document;
import org.dom4j.DocumentException;
import org.dom4j.Node;
import org.dom4j.io.SAXReader;

import java.io.File;
import java.io.IOException;
import java.util.HashMap;
import java.util.Map;

public class ServerGenerator {
    static String serverPath = "[module]/src/main/java/com/neilxu/train/[module]/";
    static String pomPath = "generator\\pom.xml";
    static {
        new File(serverPath).mkdirs();
    }

    public static void main(String[] args) throws Exception {
        // 获取mybatis-generator
        String generatorPath = getGeneratorPath();
        // 比如generator-config-member.xml，得到module = member
        String module = generatorPath.replace("src/main/resources/generator-config-", "").replace(".xml", "");
        System.out.println("module: " + module);
        serverPath = serverPath.replace("[module]", module);
        // new File(servicePath).mkdirs();
        System.out.println("servicePath: " + serverPath);

        // 读取table节点
        Document document = new SAXReader().read("generator/" + generatorPath);
        Node table = document.selectSingleNode("//table");
        System.out.println(table);
        Node tableName = table.selectSingleNode("@tableName");
        Node domainObjectName = table.selectSingleNode("@domainObjectName");
        System.out.println(tableName.getText() + "/" + domainObjectName.getText());

        // 示例：表名 neilxu_test
        // Domain = neilxuTest
        String Domain = domainObjectName.getText();
        // domain = neilxuTest
        String domain = Domain.substring(0, 1).toLowerCase() + Domain.substring(1);
        // do_main = neilxu-test
        String do_main = tableName.getText().replaceAll("_", "-");

        // 组装参数
        Map<String, Object> param = new HashMap<>();
        param.put("Domain", Domain);
        param.put("domain", domain);
        param.put("do_main", do_main);
        System.out.println("组装参数：" + param);

        gen(Domain, param, "service");
        gen(Domain, param, "controller");
    }

    private static void gen(String Domain, Map<String, Object> param, String target) throws IOException, TemplateException {
        FreemarkerUtil.initConfig(target + ".ftl");
        String toPath = serverPath + target + "/";
        new File(toPath).mkdirs();
        String Target = target.substring(0, 1).toUpperCase() + target.substring(1);
        String fileName = toPath + Domain + Target + ".java";
        System.out.println("开始生成：" + fileName);
        FreemarkerUtil.generator(fileName, param);
    }

    private static String getGeneratorPath() throws DocumentException {
        SAXReader saxReader = new SAXReader();
        Map<String, String> map = new HashMap<String, String>();
        map.put("pom", "http://maven.apache.org/POM/4.0.0");
        saxReader.getDocumentFactory().setXPathNamespaceURIs(map);
        Document document = saxReader.read(pomPath);
        Node node = document.selectSingleNode("//pom:configurationFile");
        System.out.println(node.getText());
        return node.getText();
    }
}

测试

在这里插入图片描述

生成后覆盖原有文件，并无变化，表示成功

5.增加DbUtil，获取表字段信息

generator增加依赖

generator/pom.xml

<dependency>
    <groupId>cn.hutool</groupId>
    <artifactId>hutool-all</artifactId>
</dependency>
<dependency>
    <groupId>mysql</groupId>
    <artifactId>mysql-connector-java</artifactId>
</dependency>
<dependency>
    <groupId>org.projectlombok</groupId>
    <artifactId>lombok</artifactId>
    <scope>compile</scope>
</dependency>

新增Field.java

这个类用来存储数据库字段的信息

com.neilxu.train.generator.util.Field

package com.neilxu.train.generator.util;

import lombok.Data;

@Data
public class Field {
    private String name; // 字段名：course_id
    private String nameHump; // 字段名小驼峰：courseId
    private String nameBigHump; // 字段名大驼峰：CourseId
    private String nameCn; // 中文名：课程
    private String type; // 字段类型：char(8)
    private String javaType; // java类型：String
    private String comment; // 注释：课程|ID
    private Boolean nullAble; // 是否可为空
    private Integer length; // 字符串长度
    private Boolean enums; // 是否是枚举
    private String enumsConst; // 枚举常量 COURSE_LEVEL

}

注意其中的枚举常量属性enumsConst，这个后续会用在生成前端的文件

新增DbUtil.java

配置数据源，连接数据库之后，通过sql查询数据库信息，获取表名，获取字段信息映射到java类。

package com.neilxu.train.generator.util;

import cn.hutool.core.util.StrUtil;

import java.sql.*;
import java.util.ArrayList;
import java.util.List;
import java.util.regex.Matcher;
import java.util.regex.Pattern;

public class DbUtil {

    public static String url = "";
    public static String user = "";
    public static String password = "";

    public static Connection getConnection() {
        Connection conn = null;
        try {
            Class.forName("com.mysql.cj.jdbc.Driver");
            String url = DbUtil.url;
            String user = DbUtil.user;
            String password = DbUtil.password;
            conn = DriverManager.getConnection(url, user, password);
        } catch (ClassNotFoundException e) {
            e.printStackTrace();
        } catch (SQLException e) {
            e.printStackTrace();
        }
        return conn;
    }

    /**
     * 获得表注释
     * @param tableName
     * @return
     * @throws Exception
     */
    public static String getTableComment(String tableName) throws Exception {
        Connection conn = getConnection();
        Statement stmt = conn.createStatement();
        ResultSet rs = stmt.executeQuery("select table_comment from information_schema.tables Where table_name = '" + tableName + "'");
        String tableNameCH = "";
        if (rs != null) {
            while(rs.next()) {
                tableNameCH = rs.getString("table_comment");
                break;
            }
        }
        rs.close();
        stmt.close();
        conn.close();
        System.out.println("表名：" + tableNameCH);
        return tableNameCH;
    }

    /**
     * 获得所有列信息
     * @param tableName
     * @return
     * @throws Exception
     */
    public static List<Field> getColumnByTableName(String tableName) throws Exception {
        List<Field> fieldList = new ArrayList<>();
        Connection conn = getConnection();
        Statement stmt = conn.createStatement();
        ResultSet rs = stmt.executeQuery("show full columns from `" + tableName + "`");
        if (rs != null) {
            while(rs.next()) {
                String columnName = rs.getString("Field");
                String type = rs.getString("Type");
                String comment = rs.getString("Comment");
                String nullAble = rs.getString("Null"); //YES NO
                Field field = new Field();
                field.setName(columnName);
                field.setNameHump(lineToHump(columnName));
                field.setNameBigHump(lineToBigHump(columnName));
                field.setType(type);
                field.setJavaType(DbUtil.sqlTypeToJavaType(rs.getString("Type")));
                field.setComment(comment);
                if (comment.contains("|")) {
                    field.setNameCn(comment.substring(0, comment.indexOf("|")));
                } else {
                    field.setNameCn(comment);
                }
                field.setNullAble("YES".equals(nullAble));
                if (type.toUpperCase().contains("varchar".toUpperCase())) {
                    String lengthStr = type.substring(type.indexOf("(") + 1, type.length() - 1);
                    field.setLength(Integer.valueOf(lengthStr));
                } else {
                    field.setLength(0);
                }
                if (comment.contains("枚举")) {
                    field.setEnums(true);

                    // 以课程等级为例：从注释中的“枚举[CourseLevelEnum]”，得到enumsConst = COURSE_LEVEL
                    int start = comment.indexOf("[");
                    int end = comment.indexOf("]");
                    String enumsName = comment.substring(start + 1, end); // CourseLevelEnum
                    String enumsConst = StrUtil.toUnderlineCase(enumsName)
                            .toUpperCase().replace("_ENUM", "");
                    field.setEnumsConst(enumsConst);
                } else {
                    field.setEnums(false);
                }
                fieldList.add(field);
            }
        }
        rs.close();
        stmt.close();
        conn.close();
        System.out.println("列信息：" + fieldList);
        return fieldList;
    }

    /**
     * 下划线转小驼峰：member_id 转成 memberId
     */
    public static String lineToHump(String str){
        Pattern linePattern = Pattern.compile("_(\\w)");
        str = str.toLowerCase();
        Matcher matcher = linePattern.matcher(str);
        StringBuffer sb = new StringBuffer();
        while(matcher.find()){
            matcher.appendReplacement(sb, matcher.group(1).toUpperCase());
        }
        matcher.appendTail(sb);
        return sb.toString();
    }

    /**
     * 下划线转大驼峰：member_id 转成 MemberId
     */
    public static String lineToBigHump(String str){
        String s = lineToHump(str);
        return s.substring(0, 1).toUpperCase() + s.substring(1);
    }

    /**
     * 数据库类型转为Java类型
     */
    public static String sqlTypeToJavaType(String sqlType) {
        if (sqlType.toUpperCase().contains("varchar".toUpperCase())
                || sqlType.toUpperCase().contains("char".toUpperCase())
                || sqlType.toUpperCase().contains("text".toUpperCase())) {
            return "String";
        } else if (sqlType.toUpperCase().contains("datetime".toUpperCase())) {
            return "Date";
        } else if (sqlType.toUpperCase().contains("bigint".toUpperCase())) {
            return "Long";
        } else if (sqlType.toUpperCase().contains("int".toUpperCase())) {
            return "Integer";
        } else if (sqlType.toUpperCase().contains("long".toUpperCase())) {
            return "Long";
        } else if (sqlType.toUpperCase().contains("decimal".toUpperCase())) {
            return "BigDecimal";
        } else if (sqlType.toUpperCase().contains("boolean".toUpperCase())) {
            return "Boolean";
        } else {
            return "String";
        }
    }
}

修改ServerGenerator.java

com.neilxu.train.generator.server.ServerGenerator

package com.neilxu.train.generator.server;

import com.neilxu.train.generator.util.DbUtil;
import com.neilxu.train.generator.util.Field;
import com.neilxu.train.generator.util.FreemarkerUtil;
import freemarker.template.TemplateException;
import org.dom4j.Document;
import org.dom4j.DocumentException;
import org.dom4j.Node;
import org.dom4j.io.SAXReader;

import java.io.File;
import java.io.IOException;
import java.util.HashMap;
import java.util.List;
import java.util.Map;

public class ServerGenerator {
    static String serverPath = "[module]/src/main/java/com/neilxu/train/[module]/";
    static String pomPath = "generator\\pom.xml";
    static {
        new File(serverPath).mkdirs();
    }

    public static void main(String[] args) throws Exception {
        // 获取mybatis-generator
        String generatorPath = getGeneratorPath();
        // 比如generator-config-member.xml，得到module = member
        String module = generatorPath.replace("src/main/resources/generator-config-", "").replace(".xml", "");
        System.out.println("module: " + module);
        serverPath = serverPath.replace("[module]", module);
        // new File(servicePath).mkdirs();
        System.out.println("servicePath: " + serverPath);

        // 读取table节点
        Document document = new SAXReader().read("generator/" + generatorPath);
        Node table = document.selectSingleNode("//table");
        System.out.println(table);
        Node tableName = table.selectSingleNode("@tableName");
        Node domainObjectName = table.selectSingleNode("@domainObjectName");
        System.out.println(tableName.getText() + "/" + domainObjectName.getText());

        // 为DbUtil设置数据源
        Node connectionURL = document.selectSingleNode("//@connectionURL");
        Node userId = document.selectSingleNode("//@userId");
        Node password = document.selectSingleNode("//@password");
        System.out.println("url: " + connectionURL.getText());
        System.out.println("user: " + userId.getText());
        System.out.println("password: " + password.getText());
        DbUtil.url = connectionURL.getText();
        DbUtil.user = userId.getText();
        DbUtil.password = password.getText();

        // 示例：表名 jiawa_test
        // Domain = JiawaTest
        String Domain = domainObjectName.getText();
        // domain = jiawaTest
        String domain = Domain.substring(0, 1).toLowerCase() + Domain.substring(1);
        // do_main = jiawa-test
        String do_main = tableName.getText().replaceAll("_", "-");
        // 表中文名
        String tableNameCn = DbUtil.getTableComment(tableName.getText());
        List<Field> fieldList = DbUtil.getColumnByTableName(tableName.getText());

        // 组装参数
        Map<String, Object> param = new HashMap<>();
        param.put("Domain", Domain);
        param.put("domain", domain);
        param.put("do_main", do_main);
        System.out.println("组装参数：" + param);

        gen(Domain, param, "service");
        gen(Domain, param, "controller");
    }

    private static void gen(String Domain, Map<String, Object> param, String target) throws IOException, TemplateException {
        FreemarkerUtil.initConfig(target + ".ftl");
        String toPath = serverPath + target + "/";
        new File(toPath).mkdirs();
        String Target = target.substring(0, 1).toUpperCase() + target.substring(1);
        String fileName = toPath + Domain + Target + ".java";
        System.out.println("开始生成：" + fileName);
        FreemarkerUtil.generator(fileName, param);
    }

    private static String getGeneratorPath() throws DocumentException {
        SAXReader saxReader = new SAXReader();
        Map<String, String> map = new HashMap<String, String>();
        map.put("pom", "http://maven.apache.org/POM/4.0.0");
        saxReader.getDocumentFactory().setXPathNamespaceURIs(map);
        Document document = saxReader.read(pomPath);
        Node node = document.selectSingleNode("//pom:configurationFile");
        System.out.println(node.getText());
        return node.getText();
    }
}

测试

在这里插入图片描述

6.详解实体类生成器

优化DbUtil.java

美化json打印

com.neilxu.train.generator.util.DbUtil

System.out.println("列信息：" + JSONUtil.toJsonPrettyStr(fieldList));

新建模板saveReq.ftl

package com.neilxu.train.member.req;

<#list typeSet as type>
<#if type=='Date'>
import java.util.Date;
import com.fasterxml.jackson.annotation.JsonFormat;
</#if>
<#if type=='BigDecimal'>
import java.math.BigDecimal;
</#if>
</#list>

import jakarta.validation.constraints.NotBlank;
import jakarta.validation.constraints.NotNull;

@Data
public class ${Domain}SaveReq {

    <#list fieldList as field>
    /**
     * ${field.comment}
     */
    <#if field.javaType=='Date'>
    @JsonFormat(pattern = "yyyy-MM-dd HH:mm:ss",timezone = "GMT+8")
    </#if>
    <#if field.name!="id" && field.nameHump!="createdAt" && field.nameHump!="updatedAt">
        <#if !field.nullAble>
            <#if field.javaType=='String'>
    @NotBlank(message = "【${field.nameCn}】不能为空")
            <#else>
    @NotNull(message = "【${field.nameCn}】不能为空")
            </#if>
        </#if>
    </#if>
    private ${field.javaType} ${field.nameHump};

    </#list>

    @Override
    public String toString() {
        StringBuilder sb = new StringBuilder();
        sb.append(getClass().getSimpleName());
        sb.append(" [");
        sb.append("Hash = ").append(hashCode());
        <#list fieldList as field>
        sb.append(", ${field.nameHump}=").append(${field.nameHump});
        </#list>
        sb.append("]");
        return sb.toString();
    }
}

修改ServerGenerator.java

com.neilxu.train.generator.server.ServerGenerator

package com.neilxu.train.generator.server;

import com.neilxu.train.generator.util.DbUtil;
import com.neilxu.train.generator.util.Field;
import com.neilxu.train.generator.util.FreemarkerUtil;
import freemarker.template.TemplateException;
import org.dom4j.Document;
import org.dom4j.DocumentException;
import org.dom4j.Node;
import org.dom4j.io.SAXReader;

import java.io.File;
import java.io.IOException;
import java.util.*;

public class ServerGenerator {
    static String serverPath = "[module]/src/main/java/com/neilxu/train/[module]/";
    static String pomPath = "generator\\pom.xml";
    static {
        new File(serverPath).mkdirs();
    }

    public static void main(String[] args) throws Exception {
        // 获取mybatis-generator
        String generatorPath = getGeneratorPath();
        // 比如generator-config-member.xml，得到module = member
        String module = generatorPath.replace("src/main/resources/generator-config-", "").replace(".xml", "");
        System.out.println("module: " + module);
        serverPath = serverPath.replace("[module]", module);
        // new File(servicePath).mkdirs();
        System.out.println("servicePath: " + serverPath);

        // 读取table节点
        Document document = new SAXReader().read("generator/" + generatorPath);
        Node table = document.selectSingleNode("//table");
        System.out.println(table);
        Node tableName = table.selectSingleNode("@tableName");
        Node domainObjectName = table.selectSingleNode("@domainObjectName");
        System.out.println(tableName.getText() + "/" + domainObjectName.getText());

        // 为DbUtil设置数据源
        Node connectionURL = document.selectSingleNode("//@connectionURL");
        Node userId = document.selectSingleNode("//@userId");
        Node password = document.selectSingleNode("//@password");
        System.out.println("url: " + connectionURL.getText());
        System.out.println("user: " + userId.getText());
        System.out.println("password: " + password.getText());
        DbUtil.url = connectionURL.getText();
        DbUtil.user = userId.getText();
        DbUtil.password = password.getText();

        // 示例：表名 neilxu_test
        // Domain = neilxuTest
        String Domain = domainObjectName.getText();
        // domain = neilxuTest
        String domain = Domain.substring(0, 1).toLowerCase() + Domain.substring(1);
        // do_main = neilxu-test
        String do_main = tableName.getText().replaceAll("_", "-");
        // 表中文名
        String tableNameCn = DbUtil.getTableComment(tableName.getText());
        List<Field> fieldList = DbUtil.getColumnByTableName(tableName.getText());
        Set<String> typeSet = getJavaTypes(fieldList);

        // 组装参数
        Map<String, Object> param = new HashMap<>();
        param.put("Domain", Domain);
        param.put("domain", domain);
        param.put("do_main", do_main);
        param.put("tableNameCn", tableNameCn);
        param.put("fieldList", fieldList);
        param.put("typeSet", typeSet);
        System.out.println("组装参数：" + param);

        gen(Domain, param, "service", "service");
        gen(Domain, param, "controller", "controller");
        gen(Domain, param, "req", "saveReq");
    }

    private static void gen(String Domain, Map<String, Object> param, String packageName, String target) throws IOException, TemplateException {
        FreemarkerUtil.initConfig(target + ".ftl");
        String toPath = serverPath + packageName + "/";
        new File(toPath).mkdirs();
        String Target = target.substring(0, 1).toUpperCase() + target.substring(1);
        String fileName = toPath + Domain + Target + ".java";
        System.out.println("开始生成：" + fileName);
        FreemarkerUtil.generator(fileName, param);
    }

    private static String getGeneratorPath() throws DocumentException {
        SAXReader saxReader = new SAXReader();
        Map<String, String> map = new HashMap<String, String>();
        map.put("pom", "http://maven.apache.org/POM/4.0.0");
        saxReader.getDocumentFactory().setXPathNamespaceURIs(map);
        Document document = saxReader.read(pomPath);
        Node node = document.selectSingleNode("//pom:configurationFile");
        System.out.println(node.getText());
        return node.getText();
    }

    /**
     * 获取所有的Java类型，使用Set去重
     */
    private static Set<String> getJavaTypes(List<Field> fieldList) {
        Set<String> set = new HashSet<>();
        for (int i = 0; i < fieldList.size(); i++) {
            Field field = fieldList.get(i);
            set.add(field.getJavaType());
        }
        return set;
    }
}

测试

在这里插入图片描述

生成的req实体类和原来对比，代码逻辑不变，加了注释，这里注意memberId不需要校验，单独去掉

在这里插入图片描述

7.优化模版，按模块生成

controller.ftl

package com.neilxu.train.${module}.controller;

import com.neilxu.train.common.context.LoginMemberContext;
import com.neilxu.train.common.resp.CommonResp;
import com.neilxu.train.common.resp.PageResp;
import com.neilxu.train.${module}.req.${Domain}QueryReq;
import com.neilxu.train.${module}.req.${Domain}SaveReq;
import com.neilxu.train.${module}.resp.${Domain}QueryResp;
import com.neilxu.train.${module}.service.${Domain}Service;
import jakarta.annotation.Resource;
import jakarta.validation.Valid;
import org.springframework.web.bind.annotation.*;

saveReq.ftl

package com.neilxu.train.${module}.req;

service.ftl

package com.neilxu.train.${module}.service;

import cn.hutool.core.bean.BeanUtil;
import cn.hutool.core.date.DateTime;
import cn.hutool.core.util.ObjectUtil;
import com.github.pagehelper.PageHelper;
import com.github.pagehelper.PageInfo;
import com.neilxu.train.common.context.LoginMemberContext;
import com.neilxu.train.common.resp.PageResp;
import com.neilxu.train.common.util.SnowUtil;
import com.neilxu.train.${module}.domain.${Domain};
import com.neilxu.train.${module}.domain.${Domain}Example;
import com.neilxu.train.${module}.mapper.${Domain}Mapper;
import com.neilxu.train.${module}.req.${Domain}QueryReq;
import com.neilxu.train.${module}.req.${Domain}SaveReq;
import com.neilxu.train.${module}.resp.${Domain}QueryResp;
import jakarta.annotation.Resource;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.stereotype.Service;

import java.util.List;

修改ServerGenerator.java

// 组装参数
Map<String, Object> param = new HashMap<>();
param.put("module", module);
param.put("Domain", Domain);
param.put("domain", domain);
param.put("do_main", do_main);
param.put("tableNameCn", tableNameCn);
param.put("fieldList", fieldList);
param.put("typeSet", typeSet);
System.out.println("组装参数：" + param);

测试

重新生成一次，覆盖后代码不变

8.制作queryReq.ftl模板

queryReq.ftl

generator/src/main/java/com/neilxu/train/generator/ftl/queryReq.ftl

package com.neilxu.train.${module}.req;

import com.neilxu.train.common.req.PageReq;

@Data
public class ${Domain}QueryReq extends PageReq {

}

减少service.ftl里特殊字段的部分，使其变得通用

在这里插入图片描述

9.制作queryResp.ftl模板

queryResp.ftl

generator/src/main/java/com/neilxu/train/generator/ftl/queryResp.ftl

package com.neilxu.train.${module}.resp;

import com.fasterxml.jackson.databind.annotation.JsonSerialize;
import com.fasterxml.jackson.databind.ser.std.ToStringSerializer;
<#list typeSet as type>
<#if type=='Date'>
import java.util.Date;
import com.fasterxml.jackson.annotation.JsonFormat;
</#if>
<#if type=='BigDecimal'>
import java.math.BigDecimal;
</#if>
</#list>

public class ${Domain}QueryResp {

    <#list fieldList as field>
    /**
     * ${field.comment}
     */
    <#if field.javaType=='Date'>
        <#if field.type=='time'>
    @JsonFormat(pattern = "HH:mm:ss",timezone = "GMT+8")
        <#elseif field.type=='date'>
    @JsonFormat(pattern = "yyyy-MM-dd",timezone = "GMT+8")
        <#else>
    @JsonFormat(pattern = "yyyy-MM-dd HH:mm:ss",timezone = "GMT+8")
        </#if>
    </#if>
    <#if field.name=='id' || field.name?ends_with('_id')>
    @JsonSerialize(using= ToStringSerializer.class)
    </#if>
    private ${field.javaType} ${field.nameHump};

    </#list>

}

修改ServerGenerator.java

gen(Domain, param, "req", "queryReq");
gen(Domain, param, "resp", "queryResp");

测试

生成都没问题，这里把新的resp（有注释）保留

10.详解vue界面生成器

制作vue.ftl模板

generator/src/main/java/com/neilxu/train/generator/ftl/vue.ftl

<template>
  <p>
    <a-space>
      <a-button type="primary" @click="handleQuery()">刷新</a-button>
      <#if !readOnly><a-button type="primary" @click="onAdd">新增</a-button></#if>
    </a-space>
  </p>
  <a-table :dataSource="${domain}s"
           :columns="columns"
           :pagination="pagination"
           @change="handleTableChange"
           :loading="loading">
    <template #bodyCell="{ column, record }">
      <template v-if="column.dataIndex === 'operation'">
        <#if !readOnly>
        <a-space>
          <a-popconfirm
              title="删除后不可恢复，确认删除?"
              @confirm="onDelete(record)"
              ok-text="确认" cancel-text="取消">
            <a style="color: red">删除</a>
          </a-popconfirm>
          <a @click="onEdit(record)">编辑</a>
        </a-space>
        </#if>
      </template>
      <#list fieldList as field>
        <#if field.enums>
      <template v-else-if="column.dataIndex === '${field.nameHump}'">
        <span v-for="item in ${field.enumsConst}_ARRAY" :key="item.key">
          <span v-if="item.key === record.${field.nameHump}">
            {{item.value}}
          </span>
        </span>
      </template>
        </#if>
      </#list>
    </template>
  </a-table>
  <#if !readOnly>
  <a-modal v-model:visible="visible" title="${tableNameCn}" @ok="handleOk"
           ok-text="确认" cancel-text="取消">
    <a-form :model="${domain}" :label-col="{span: 4}" :wrapper-col="{ span: 20 }">
      <#list fieldList as field>
        <#if field.name!="id" && field.nameHump!="createTime" && field.nameHump!="updateTime">
      <a-form-item label="${field.nameCn}">
        <#if field.enums>
        <a-select v-model:value="${domain}.${field.nameHump}">
          <a-select-option v-for="item in ${field.enumsConst}_ARRAY" :key="item.key" :value="item.key">
            {{item.value}}
          </a-select-option>
        </a-select>
        <#elseif field.javaType=='Date'>
          <#if field.type=='time'>
        <a-time-picker v-model:value="${domain}.${field.nameHump}" valueFormat="HH:mm:ss" placeholder="请选择时间" />
          <#elseif field.type=='date'>
        <a-date-picker v-model:value="${domain}.${field.nameHump}" valueFormat="YYYY-MM-DD" placeholder="请选择日期" />
          <#else>
        <a-date-picker v-model:value="${domain}.${field.nameHump}" valueFormat="YYYY-MM-DD HH:mm:ss" show-time placeholder="请选择日期" />
          </#if>
        <#else>
        <a-input v-model:value="${domain}.${field.nameHump}" />
        </#if>
      </a-form-item>
        </#if>
      </#list>
    </a-form>
  </a-modal>
  </#if>
</template>

<script>
import { defineComponent, ref, onMounted } from 'vue';
import {notification} from "ant-design-vue";
import axios from "axios";

export default defineComponent({
  name: "${do_main}-view",
  setup() {
    <#list fieldList as field>
    <#if field.enums>
    const ${field.enumsConst}_ARRAY = window.${field.enumsConst}_ARRAY;
    </#if>
    </#list>
    const visible = ref(false);
    let ${domain} = ref({
      <#list fieldList as field>
      ${field.nameHump}: undefined,
      </#list>
    });
    const ${domain}s = ref([]);
    // 分页的三个属性名是固定的
    const pagination = ref({
      total: 0,
      current: 1,
      pageSize: 10,
    });
    let loading = ref(false);
    const columns = [
    <#list fieldList as field>
      <#if field.name!="id" && field.nameHump!="createTime" && field.nameHump!="updateTime">
    {
      title: '${field.nameCn}',
      dataIndex: '${field.nameHump}',
      key: '${field.nameHump}',
    },
      </#if>
    </#list>
    <#if !readOnly>
    {
      title: '操作',
      dataIndex: 'operation'
    }
    </#if>
    ];

    <#if !readOnly>
    const onAdd = () => {
      ${domain}.value = {};
      visible.value = true;
    };

    const onEdit = (record) => {
      ${domain}.value = window.Tool.copy(record);
      visible.value = true;
    };

    const onDelete = (record) => {
      axios.delete("/${module}/${do_main}/delete/" + record.id).then((response) => {
        const data = response.data;
        if (data.success) {
          notification.success({description: "删除成功！"});
          handleQuery({
            page: pagination.value.current,
            size: pagination.value.pageSize,
          });
        } else {
          notification.error({description: data.message});
        }
      });
    };

    const handleOk = () => {
      axios.post("/${module}/${do_main}/save", ${domain}.value).then((response) => {
        let data = response.data;
        if (data.success) {
          notification.success({description: "保存成功！"});
          visible.value = false;
          handleQuery({
            page: pagination.value.current,
            size: pagination.value.pageSize
          });
        } else {
          notification.error({description: data.message});
        }
      });
    };
    </#if>

    const handleQuery = (param) => {
      if (!param) {
        param = {
          page: 1,
          size: pagination.value.pageSize
        };
      }
      loading.value = true;
      axios.get("/${module}/${do_main}/query-list", {
        params: {
          page: param.page,
          size: param.size
        }
      }).then((response) => {
        loading.value = false;
        let data = response.data;
        if (data.success) {
          ${domain}s.value = data.content.list;
          // 设置分页控件的值
          pagination.value.current = param.page;
          pagination.value.total = data.content.total;
        } else {
          notification.error({description: data.message});
        }
      });
    };

    const handleTableChange = (pagination) => {
      // console.log("看看自带的分页参数都有啥：" + pagination);
      handleQuery({
        page: pagination.current,
        size: pagination.pageSize
      });
    };

    onMounted(() => {
      handleQuery({
        page: 1,
        size: pagination.value.pageSize
      });
    });

    return {
      <#list fieldList as field>
      <#if field.enums>
      ${field.enumsConst}_ARRAY,
      </#if>
      </#list>
      ${domain},
      visible,
      ${domain}s,
      pagination,
      columns,
      handleTableChange,
      handleQuery,
      loading,
      <#if !readOnly>
      onAdd,
      handleOk,
      onEdit,
      onDelete
      </#if>
    };
  },
});
</script>

修改ServerGenerator.java

package com.neilxu.train.generator.server;

import com.neilxu.train.generator.util.DbUtil;
import com.neilxu.train.generator.util.Field;
import com.neilxu.train.generator.util.FreemarkerUtil;
import freemarker.template.TemplateException;
import org.dom4j.Document;
import org.dom4j.DocumentException;
import org.dom4j.Node;
import org.dom4j.io.SAXReader;

import java.io.File;
import java.io.IOException;
import java.util.*;

public class ServerGenerator {
    static boolean readOnly = false;
    static String vuePath = "web/src/views/main/";
    static String serverPath = "[module]/src/main/java/com/neilxu/train/[module]/";
    static String pomPath = "generator\\pom.xml";
    static {
        new File(serverPath).mkdirs();
    }

    public static void main(String[] args) throws Exception {
        // 获取mybatis-generator
        String generatorPath = getGeneratorPath();
        // 比如generator-config-member.xml，得到module = member
        String module = generatorPath.replace("src/main/resources/generator-config-", "").replace(".xml", "");
        System.out.println("module: " + module);
        serverPath = serverPath.replace("[module]", module);
        // new File(servicePath).mkdirs();
        System.out.println("servicePath: " + serverPath);

        // 读取table节点
        Document document = new SAXReader().read("generator/" + generatorPath);
        Node table = document.selectSingleNode("//table");
        System.out.println(table);
        Node tableName = table.selectSingleNode("@tableName");
        Node domainObjectName = table.selectSingleNode("@domainObjectName");
        System.out.println(tableName.getText() + "/" + domainObjectName.getText());

        // 为DbUtil设置数据源
        Node connectionURL = document.selectSingleNode("//@connectionURL");
        Node userId = document.selectSingleNode("//@userId");
        Node password = document.selectSingleNode("//@password");
        System.out.println("url: " + connectionURL.getText());
        System.out.println("user: " + userId.getText());
        System.out.println("password: " + password.getText());
        DbUtil.url = connectionURL.getText();
        DbUtil.user = userId.getText();
        DbUtil.password = password.getText();

        // 示例：表名 neilxu_test
        // Domain = neilxuTest
        String Domain = domainObjectName.getText();
        // domain = neilxuTest
        String domain = Domain.substring(0, 1).toLowerCase() + Domain.substring(1);
        // do_main = neilxu-test
        String do_main = tableName.getText().replaceAll("_", "-");
        // 表中文名
        String tableNameCn = DbUtil.getTableComment(tableName.getText());
        List<Field> fieldList = DbUtil.getColumnByTableName(tableName.getText());
        Set<String> typeSet = getJavaTypes(fieldList);

        // 组装参数
        Map<String, Object> param = new HashMap<>();
        param.put("module", module);
        param.put("Domain", Domain);
        param.put("domain", domain);
        param.put("do_main", do_main);
        param.put("tableNameCn", tableNameCn);
        param.put("fieldList", fieldList);
        param.put("typeSet", typeSet);
        param.put("readOnly", readOnly);
        System.out.println("组装参数：" + param);

//        gen(Domain, param, "service", "service");
//        gen(Domain, param, "controller", "controller");
//        gen(Domain, param, "req", "saveReq");
//        gen(Domain, param, "req", "queryReq");
//        gen(Domain, param, "resp", "queryResp");
        genVue(do_main, param);
    }

    private static void gen(String Domain, Map<String, Object> param, String packageName, String target) throws IOException, TemplateException {
        FreemarkerUtil.initConfig(target + ".ftl");
        String toPath = serverPath + packageName + "/";
        new File(toPath).mkdirs();
        String Target = target.substring(0, 1).toUpperCase() + target.substring(1);
        String fileName = toPath + Domain + Target + ".java";
        System.out.println("开始生成：" + fileName);
        FreemarkerUtil.generator(fileName, param);
    }

    private static void genVue(String do_main, Map<String, Object> param) throws IOException, TemplateException {
        FreemarkerUtil.initConfig("vue.ftl");
        new File(vuePath).mkdirs();
        String fileName = vuePath + do_main + ".vue";
        System.out.println("开始生成：" + fileName);
        FreemarkerUtil.generator(fileName, param);
    }

    private static String getGeneratorPath() throws DocumentException {
        SAXReader saxReader = new SAXReader();
        Map<String, String> map = new HashMap<String, String>();
        map.put("pom", "http://maven.apache.org/POM/4.0.0");
        saxReader.getDocumentFactory().setXPathNamespaceURIs(map);
        Document document = saxReader.read(pomPath);
        Node node = document.selectSingleNode("//pom:configurationFile");
        System.out.println(node.getText());
        return node.getText();
    }

    /**
     * 获取所有的Java类型，使用Set去重
     */
    private static Set<String> getJavaTypes(List<Field> fieldList) {
        Set<String> set = new HashSet<>();
        for (int i = 0; i < fieldList.size(); i++) {
            Field field = fieldList.get(i);
            set.add(field.getJavaType());
        }
        return set;
    }
}

测试

生成vue页面，覆盖原来的文件

web/src/views/main/passenger.vue

<template>
  <p>
    <a-space>
      <a-button type="primary" @click="handleQuery()">刷新</a-button>
      <a-button type="primary" @click="onAdd">新增</a-button>
    </a-space>
  </p>
  <a-table :dataSource="passengers"
           :columns="columns"
           :pagination="pagination"
           @change="handleTableChange"
           :loading="loading">
    <template #bodyCell="{ column, record }">
      <template v-if="column.dataIndex === 'operation'">
        <a-space>
          <a-popconfirm
              title="删除后不可恢复，确认删除?"
              @confirm="onDelete(record)"
              ok-text="确认" cancel-text="取消">
            <a style="color: red">删除</a>
          </a-popconfirm>
          <a @click="onEdit(record)">编辑</a>
        </a-space>
      </template>
      <template v-else-if="column.dataIndex === 'type'">
        <span v-for="item in PASSENGER_TYPE_ARRAY" :key="item.key">
          <span v-if="item.key === record.type">
            {{item.value}}
          </span>
        </span>
      </template>
    </template>
  </a-table>
  <a-modal v-model:visible="visible" title="乘车人" @ok="handleOk"
           ok-text="确认" cancel-text="取消">
    <a-form :model="passenger" :label-col="{span: 4}" :wrapper-col="{ span: 20 }">
      <a-form-item label="姓名">
        <a-input v-model:value="passenger.name" />
      </a-form-item>
      <a-form-item label="身份证">
        <a-input v-model:value="passenger.idCard" />
      </a-form-item>
      <a-form-item label="旅客类型">
        <a-select v-model:value="passenger.type">
          <a-select-option v-for="item in PASSENGER_TYPE_ARRAY" :key="item.key" :value="item.key">
            {{item.value}}
          </a-select-option>
        </a-select>
      </a-form-item>
    </a-form>
  </a-modal>
</template>

<script>
import { defineComponent, ref, onMounted } from 'vue';
import {notification} from "ant-design-vue";
import axios from "axios";

export default defineComponent({
  name: "passenger-view",
  setup() {
    const PASSENGER_TYPE_ARRAY = window.PASSENGER_TYPE_ARRAY;
    const visible = ref(false);
    let passenger = ref({
      id: undefined,
      memberId: undefined,
      name: undefined,
      idCard: undefined,
      type: undefined,
      createTime: undefined,
      updateTime: undefined,
    });
    const passengers = ref([]);
    // 分页的三个属性名是固定的
    const pagination = ref({
      total: 0,
      current: 1,
      pageSize: 10,
    });
    let loading = ref(false);
    const columns = [
    {
      title: '姓名',
      dataIndex: 'name',
      key: 'name',
    },
    {
      title: '身份证',
      dataIndex: 'idCard',
      key: 'idCard',
    },
    {
      title: '旅客类型',
      dataIndex: 'type',
      key: 'type',
    },
    {
      title: '操作',
      dataIndex: 'operation'
    }
    ];

    const onAdd = () => {
      passenger.value = {};
      visible.value = true;
    };

    const onEdit = (record) => {
      passenger.value = window.Tool.copy(record);
      visible.value = true;
    };

    const onDelete = (record) => {
      axios.delete("/member/passenger/delete/" + record.id).then((response) => {
        const data = response.data;
        if (data.success) {
          notification.success({description: "删除成功！"});
          handleQuery({
            page: pagination.value.current,
            size: pagination.value.pageSize,
          });
        } else {
          notification.error({description: data.message});
        }
      });
    };

    const handleOk = () => {
      axios.post("/member/passenger/save", passenger.value).then((response) => {
        let data = response.data;
        if (data.success) {
          notification.success({description: "保存成功！"});
          visible.value = false;
          handleQuery({
            page: pagination.value.current,
            size: pagination.value.pageSize
          });
        } else {
          notification.error({description: data.message});
        }
      });
    };

    const handleQuery = (param) => {
      if (!param) {
        param = {
          page: 1,
          size: pagination.value.pageSize
        };
      }
      loading.value = true;
      axios.get("/member/passenger/query-list", {
        params: {
          page: param.page,
          size: param.size
        }
      }).then((response) => {
        loading.value = false;
        let data = response.data;
        if (data.success) {
          passengers.value = data.content.list;
          // 设置分页控件的值
          pagination.value.current = param.page;
          pagination.value.total = data.content.total;
        } else {
          notification.error({description: data.message});
        }
      });
    };

    const handleTableChange = (pagination) => {
      // console.log("看看自带的分页参数都有啥：" + pagination);
      handleQuery({
        page: pagination.current,
        size: pagination.pageSize
      });
    };

    onMounted(() => {
      handleQuery({
        page: 1,
        size: pagination.value.pageSize
      });
    });

    return {
      PASSENGER_TYPE_ARRAY,
      passenger,
      visible,
      passengers,
      pagination,
      columns,
      handleTableChange,
      handleQuery,
      loading,
      onAdd,
      handleOk,
      onEdit,
      onDelete
    };
  },
});
</script>

效果

在这里插入图片描述

测试功能没有问题

11.详解前端枚举代码生成器

修改前端枚举，将key/value改成code/desc，保持和后端一致

vue.ftl

<template>
  <p>
    <a-space>
      <a-button type="primary" @click="handleQuery()">刷新</a-button>
      <#if !readOnly><a-button type="primary" @click="onAdd">新增</a-button></#if>
    </a-space>
  </p>
  <a-table :dataSource="${domain}s"
           :columns="columns"
           :pagination="pagination"
           @change="handleTableChange"
           :loading="loading">
    <template #bodyCell="{ column, record }">
      <template v-if="column.dataIndex === 'operation'">
        <#if !readOnly>
        <a-space>
          <a-popconfirm
              title="删除后不可恢复，确认删除?"
              @confirm="onDelete(record)"
              ok-text="确认" cancel-text="取消">
            <a style="color: red">删除</a>
          </a-popconfirm>
          <a @click="onEdit(record)">编辑</a>
        </a-space>
        </#if>
      </template>
      <#list fieldList as field>
        <#if field.enums>
      <template v-else-if="column.dataIndex === '${field.nameHump}'">
        <span v-for="item in ${field.enumsConst}_ARRAY" :key="item.code">
          <span v-if="item.code === record.${field.nameHump}">
            {{item.desc}}
          </span>
        </span>
      </template>
        </#if>
      </#list>
    </template>
  </a-table>
  <#if !readOnly>
  <a-modal v-model:visible="visible" title="${tableNameCn}" @ok="handleOk"
           ok-text="确认" cancel-text="取消">
    <a-form :model="${domain}" :label-col="{span: 4}" :wrapper-col="{ span: 20 }">
      <#list fieldList as field>
        <#if field.name!="id" && field.nameHump!="createTime" && field.nameHump!="updateTime">
      <a-form-item label="${field.nameCn}">
        <#if field.enums>
        <a-select v-model:value="${domain}.${field.nameHump}">
          <a-select-option v-for="item in ${field.enumsConst}_ARRAY" :key="item.code" :value="item.code">
            {{item.desc}}
          </a-select-option>
        </a-select>
        <#elseif field.javaType=='Date'>
          <#if field.type=='time'>
        <a-time-picker v-model:value="${domain}.${field.nameHump}" valueFormat="HH:mm:ss" placeholder="请选择时间" />
          <#elseif field.type=='date'>
        <a-date-picker v-model:value="${domain}.${field.nameHump}" valueFormat="YYYY-MM-DD" placeholder="请选择日期" />
          <#else>
        <a-date-picker v-model:value="${domain}.${field.nameHump}" valueFormat="YYYY-MM-DD HH:mm:ss" show-time placeholder="请选择日期" />
          </#if>
        <#else>
        <a-input v-model:value="${domain}.${field.nameHump}" />
        </#if>
      </a-form-item>
        </#if>
      </#list>
    </a-form>
  </a-modal>
  </#if>
</template>

<script>
import { defineComponent, ref, onMounted } from 'vue';
import {notification} from "ant-design-vue";
import axios from "axios";

export default defineComponent({
  name: "${do_main}-view",
  setup() {
    <#list fieldList as field>
    <#if field.enums>
    const ${field.enumsConst}_ARRAY = window.${field.enumsConst}_ARRAY;
    </#if>
    </#list>
    const visible = ref(false);
    let ${domain} = ref({
      <#list fieldList as field>
      ${field.nameHump}: undefined,
      </#list>
    });
    const ${domain}s = ref([]);
    // 分页的三个属性名是固定的
    const pagination = ref({
      total: 0,
      current: 1,
      pageSize: 10,
    });
    let loading = ref(false);
    const columns = [
    <#list fieldList as field>
      <#if field.name!="id" && field.nameHump!="createTime" && field.nameHump!="updateTime">
    {
      title: '${field.nameCn}',
      dataIndex: '${field.nameHump}',
      key: '${field.nameHump}',
    },
      </#if>
    </#list>
    <#if !readOnly>
    {
      title: '操作',
      dataIndex: 'operation'
    }
    </#if>
    ];

    <#if !readOnly>
    const onAdd = () => {
      ${domain}.value = {};
      visible.value = true;
    };

    const onEdit = (record) => {
      ${domain}.value = window.Tool.copy(record);
      visible.value = true;
    };

    const onDelete = (record) => {
      axios.delete("/${module}/${do_main}/delete/" + record.id).then((response) => {
        const data = response.data;
        if (data.success) {
          notification.success({description: "删除成功！"});
          handleQuery({
            page: pagination.value.current,
            size: pagination.value.pageSize,
          });
        } else {
          notification.error({description: data.message});
        }
      });
    };

    const handleOk = () => {
      axios.post("/${module}/${do_main}/save", ${domain}.value).then((response) => {
        let data = response.data;
        if (data.success) {
          notification.success({description: "保存成功！"});
          visible.value = false;
          handleQuery({
            page: pagination.value.current,
            size: pagination.value.pageSize
          });
        } else {
          notification.error({description: data.message});
        }
      });
    };
    </#if>

    const handleQuery = (param) => {
      if (!param) {
        param = {
          page: 1,
          size: pagination.value.pageSize
        };
      }
      loading.value = true;
      axios.get("/${module}/${do_main}/query-list", {
        params: {
          page: param.page,
          size: param.size
        }
      }).then((response) => {
        loading.value = false;
        let data = response.data;
        if (data.success) {
          ${domain}s.value = data.content.list;
          // 设置分页控件的值
          pagination.value.current = param.page;
          pagination.value.total = data.content.total;
        } else {
          notification.error({description: data.message});
        }
      });
    };

    const handleTableChange = (pagination) => {
      // console.log("看看自带的分页参数都有啥：" + pagination);
      handleQuery({
        page: pagination.current,
        size: pagination.pageSize
      });
    };

    onMounted(() => {
      handleQuery({
        page: 1,
        size: pagination.value.pageSize
      });
    });

    return {
      <#list fieldList as field>
      <#if field.enums>
      ${field.enumsConst}_ARRAY,
      </#if>
      </#list>
      ${domain},
      visible,
      ${domain}s,
      pagination,
      columns,
      handleTableChange,
      handleQuery,
      loading,
      <#if !readOnly>
      onAdd,
      handleOk,
      onEdit,
      onDelete
      </#if>
    };
  },
});
</script>

web/src/assets/js/enums.js

PASSENGER_TYPE_ARRAY = [{code: "1", desc: "成人"}, {code: "2", desc: "儿童"}, {code: "3", desc: "学生"}];

增加枚举生成器EnumGenerator.java

generator引入member依赖

<dependency>
    <groupId>com.neilxu</groupId>
    <artifactId>member</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <scope>compile</scope>
</dependency>

EnumGenerator.java

package com.neilxu.train.generator.gen;

import cn.hutool.core.util.StrUtil;
import com.neilxu.train.member.enums.PassengerTypeEnum;

import java.io.FileOutputStream;
import java.io.OutputStreamWriter;
import java.lang.reflect.Method;

public class EnumGenerator {
    static String path = "web/src/assets/js/enums.js";

    public static void main(String[] args) {
        StringBuffer bufferObject = new StringBuffer();
        StringBuffer bufferArray = new StringBuffer();
        long begin = System.currentTimeMillis();
        try {
            toJson(PassengerTypeEnum.class, bufferObject, bufferArray);

            StringBuffer buffer = bufferObject.append("\r\n").append(bufferArray);
            writeJs(buffer);
        } catch (Exception e) {
            e.printStackTrace();
        }
        long end = System.currentTimeMillis();
        System.out.println("执行耗时:" + (end - begin) + " 毫秒");
    }

    private static void toJson(Class clazz, StringBuffer bufferObject, StringBuffer bufferArray) throws Exception {
        // enumConst：将YesNoEnum变成YES_NO
        String enumConst = StrUtil.toUnderlineCase(clazz.getSimpleName())
                .toUpperCase().replace("_ENUM", "");
        Object[] objects = clazz.getEnumConstants();
        Method name = clazz.getMethod("name");
        Method getDesc = clazz.getMethod("getDesc");
        Method getCode = clazz.getMethod("getCode");

        // 生成对象
        bufferObject.append(enumConst).append("={");
        for (int i = 0; i < objects.length; i++) {
            Object obj = objects[i];
            bufferObject.append(name.invoke(obj)).append(":{code:\"").append(getCode.invoke(obj)).append("\", desc:\"").append(getDesc.invoke(obj)).append("\"}");
            if (i < objects.length - 1) {
                bufferObject.append(",");
            }
        }
        bufferObject.append("};\r\n");

        // 生成数组
        bufferArray.append(enumConst).append("_ARRAY=[");
        for (int i = 0; i < objects.length; i++) {
            Object obj = objects[i];
            bufferArray.append("{code:\"").append(getCode.invoke(obj)).append("\", desc:\"").append(getDesc.invoke(obj)).append("\"}");
            if (i < objects.length - 1) {
                bufferArray.append(",");
            }
        }
        bufferArray.append("];\r\n");
    }

    /**
     * 写文件
     * @param stringBuffer
     */
    public static void writeJs(StringBuffer stringBuffer) {
        FileOutputStream out = null;
        try {
            out = new FileOutputStream(path);
            OutputStreamWriter osw = new OutputStreamWriter(out, "UTF-8");
            System.out.println(path);
            osw.write(stringBuffer.toString());
            osw.close();
        } catch (Exception e) {
            e.printStackTrace();
        }
        finally {
            try {
                out.close();
            } catch (Exception e) {
                e.printStackTrace();
            }

        }
    }

}

测试

生成新的enums.js

PASSENGER_TYPE={ADULT:{code:"1", desc:"成人"},CHILD:{code:"2", desc:"儿童"},STUDENT:{code:"3", desc:"学生"}};

PASSENGER_TYPE_ARRAY=[{code:"1", desc:"成人"},{code:"2", desc:"儿童"},{code:"3", desc:"学生"}];

三、利用代码生成器实现：火车基础数据管理功能

完成火车基础数据管理功能：车站、车次、车箱、座位

1.更换远程代码仓库

课程讲解了如何更换本地所关联的远程仓库，这里做下笔记

在这里插入图片描述

先移除原绑定的远程仓库，然后再绑定新的远程仓库

在这里插入图片描述

然后再将本地git push上去

在这里插入图片描述

2.项目中增加admin控台模块

后台一般不做注册，只做登录

新建admin文件夹

复制web文件夹除了library的部分到admin

然后修改几处地方 name是web的为admin，如图所示

在这里插入图片描述

最后npm install

在这里插入图片描述

测试启动

修改admin/package.json，改变端口

"scripts": {
  "serve-dev": "vue-cli-service serve --mode dev --port 9001",
  "serve-prod": "vue-cli-service serve --mode prod --port 9001",
  "build": "vue-cli-service build",
  "lint": "vue-cli-service lint"
},

在这里插入图片描述

admin去掉登录页面，去掉member和登录相关的拦截，去掉乘车人页面

the-header.vue

<template>
  <a-layout-header class="header">
    <div class="logo" />
    <div style="float: right; color: white;">
      欢迎使用管理控台
    </div>
    <a-menu
        v-model:selectedKeys="selectedKeys"
        theme="dark"
        mode="horizontal"
        :style="{ lineHeight: '64px' }"
    >
      <a-menu-item key="/welcome">
        <router-link to="/welcome">
          <coffee-outlined /> &nbsp; 欢迎
        </router-link>
      </a-menu-item>
      <a-menu-item key="/about">
        <router-link to="/about">
          <user-outlined /> &nbsp; 关于
        </router-link>
      </a-menu-item>
    </a-menu>
  </a-layout-header>
</template>

<script>
import {defineComponent, ref, watch} from 'vue';
import router from '@/router'

export default defineComponent({
  name: "the-header-view",
  setup() {
    const selectedKeys = ref([]);

    watch(() => router.currentRoute.value.path, (newValue) => {
      console.log('watch', newValue);
      selectedKeys.value = [];
      selectedKeys.value.push(newValue);
    }, {immediate: true});
    return {
      selectedKeys
    };
  },
});
</script>

<!-- Add "scoped" attribute to limit CSS to this component only -->
<style scoped>

</style>

the-sider.vue

<template>
  <a-layout-sider width="200" style="background: #fff">
    <a-menu
        v-model:selectedKeys="selectedKeys"
        mode="inline"
        :style="{ height: '100%', borderRight: 0 }"
    >
      <a-menu-item key="/welcome">
        <router-link to="/welcome">
          <coffee-outlined /> &nbsp; 欢迎
        </router-link>
      </a-menu-item>
      <a-menu-item key="/about">
        <router-link to="/about">
          <user-outlined /> &nbsp; 关于
        </router-link>
      </a-menu-item>
    </a-menu>
  </a-layout-sider>
</template>

<script>
import {defineComponent, ref, watch} from 'vue';
import router from "@/router";

export default defineComponent({
  name: "the-sider-view",
  setup() {
    const selectedKeys = ref([]);

    watch(() => router.currentRoute.value.path, (newValue) => {
      console.log('watch', newValue);
      selectedKeys.value = [];
      selectedKeys.value.push(newValue);
    }, {immediate: true});
    return {
      selectedKeys
    };
  },
});
</script>

<!-- Add "scoped" attribute to limit CSS to this component only -->
<style scoped>

</style>

main.js

import { createApp } from 'vue'
import App from './App.vue'
import router from './router'
import store from './store'
import Antd from 'ant-design-vue';
import 'ant-design-vue/dist/antd.css';
import * as Icons from '@ant-design/icons-vue';
import axios from 'axios';
import './assets/js/enums';

const app = createApp(App);
app.use(Antd).use(store).use(router).mount('#app');

// 全局使用图标
const icons = Icons;
for (const i in icons) {
    app.component(i, icons[i]);
}

/**
 * axios拦截器
 */
axios.interceptors.request.use(function (config) {
    console.log('请求参数：', config);
    return config;
}, error => {
    return Promise.reject(error);
});
axios.interceptors.response.use(function (response) {
    console.log('返回结果：', response);
    return response;
}, error => {
    console.log('返回错误：', error);
    return Promise.reject(error);
});
axios.defaults.baseURL = process.env.VUE_APP_SERVER;
console.log('环境：', process.env.NODE_ENV);
console.log('服务端：', process.env.VUE_APP_SERVER);

admin/src/router/index.js

import { createRouter, createWebHistory } from 'vue-router'

const routes = [{
  path: '/',
  component: () => import('../views/main.vue'),
  children: [{
    path: 'welcome',
    component: () => import('../views/main/welcome.vue'),
  }, {
    path: 'about',
    component: () => import('../views/main/about.vue'),
  }]
}, {
  path: '',
  redirect: '/welcome'
}];

const router = createRouter({
  history: createWebHistory(process.env.BASE_URL),
  routes
})

export default router

about.vue

<template>
  <h1>关于neilxu 12306</h1>
</template>
<script>
import { defineComponent } from 'vue';

export default defineComponent({
  setup() {
    return {
    };
  },
});
</script>
<style>
</style>

admin/src/router/index.js

import { createStore } from 'vuex'

export default createStore({
  state: {
  },
  getters: {
  },
  mutations: {
  },
  actions: {
  },
  modules: {
  }
})

效果

在这里插入图片描述

去掉没用的HelloWorld组件，修改logo区域

the-header.vue

<template>
  <a-layout-header class="header">
    <div class="logo">
      <router-link to="/welcome" style="color: white; font-size: 18px">
        neilxu 12306控台
      </router-link>
    </div>
    <div style="float: right; color: white;">
      欢迎使用管理控台
    </div>
    <a-menu
        v-model:selectedKeys="selectedKeys"
        theme="dark"
        mode="horizontal"
        :style="{ lineHeight: '64px' }"
    >
      <a-menu-item key="/welcome">
        <router-link to="/welcome">
          <coffee-outlined /> &nbsp; 欢迎
        </router-link>
      </a-menu-item>
      <a-menu-item key="/about">
        <router-link to="/about">
          <user-outlined /> &nbsp; 关于
        </router-link>
      </a-menu-item>
    </a-menu>
  </a-layout-header>
</template>

<script>
import {defineComponent, ref, watch} from 'vue';
import router from '@/router'

export default defineComponent({
  name: "the-header-view",
  setup() {
    const selectedKeys = ref([]);

    watch(() => router.currentRoute.value.path, (newValue) => {
      console.log('watch', newValue);
      selectedKeys.value = [];
      selectedKeys.value.push(newValue);
    }, {immediate: true});
    return {
      selectedKeys
    };
  },
});
</script>

<!-- Add "scoped" attribute to limit CSS to this component only -->
<style scoped>
.logo {
  float: left;
  height: 31px;
  width: 150px;
  color: white;
  font-size: 20px;
}
</style>

main.vue

<template>
  <a-layout id="components-layout-demo-top-side-2">
    <the-header-view></the-header-view>
    <a-layout>
      <the-sider-view></the-sider-view>
      <a-layout-content
          :style="{ background: '#fff', padding: '24px', margin: 0, minHeight: '280px' }"
      >
        <router-view></router-view>
      </a-layout-content>
    </a-layout>
  </a-layout>
</template>
<script>
import { defineComponent } from 'vue';
import TheHeaderView from "@/components/the-header";
import TheSiderView from "@/components/the-sider";

export default defineComponent({
  components: {
    TheSiderView,
    TheHeaderView,
  },
  setup() {
    return {
    };
  },
});
</script>
<style>

</style>

效果

在这里插入图片描述

3.项目中增加business业务模块

新建business模块

在这里插入图片描述

修改pom

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>train</artifactId>
        <groupId>com.neilxu</groupId>
        <version>0.0.1-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>business</artifactId>

    <properties>
        <maven.compiler.source>17</maven.compiler.source>
        <maven.compiler.target>17</maven.compiler.target>
    </properties>

    <dependencies>
        <dependency>
            <groupId>com.neilxu</groupId>
            <artifactId>common</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>

新增启动类

com.neilxu.train.business.config.BusinessApplication

package com.neilxu.train.business.config;

import org.mybatis.spring.annotation.MapperScan;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.context.annotation.ComponentScan;
import org.springframework.core.env.Environment;

@SpringBootApplication
@ComponentScan("com.neilxu")
@MapperScan("com.neilxu.train.*.mapper")
public class BusinessApplication {

    private static final Logger LOG = LoggerFactory.getLogger(BusinessApplication.class);

    public static void main(String[] args) {
        SpringApplication app = new SpringApplication(BusinessApplication.class);
        Environment env = app.run(args).getEnvironment();
        LOG.info("启动成功！！");
        LOG.info("测试地址: \thttp://127.0.0.1:{}{}/hello", env.getProperty("server.port"), env.getProperty("server.servlet.context-path"));
    }
}

新增TestController.java

com.neilxu.train.business.controller.TestController

package com.neilxu.train.business.controller;

import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;

@RestController
public class TestController {
    @GetMapping("/hello")
    public String hello() {
        return "Hello World! Business!";
    }
}

新增配置文件

business/src/main/resources/application.properties

server.port=8002
server.servlet.context-path=/business

# 数据库连接
spring.datasource.url=jdbc:mysql://localhost/train_business?characterEncoding=UTF8&autoReconnect=true&serverTimezone=Asia/Shanghai
spring.datasource.username=train_business
spring.datasource.password=train_business
spring.datasource.driver-class-name=com.mysql.cj.jdbc.Driver
# mybatis xml路径
mybatis.mapper-locations=classpath:/mapper/**/*.xml
logging.level.com.neilxu.train.business.mapper=trace

business/src/main/resources/logback-spring.xml

<?xml version="1.0" encoding="UTF-8"?>
<configuration>
    <!-- 修改一下路径-->
    <property name="PATH" value="./log/business"></property>

    <appender name="STDOUT" class="ch.qos.logback.core.ConsoleAppender">
        <encoder>
            <!--            <Pattern>%d{yyyy-MM-dd HH:mm:ss.SSS} %highlight(%-5level) %blue(%-50logger{50}:%-4line) %thread %green(%-18X{LOG_ID}) %msg%n</Pattern>-->
            <Pattern>%d{mm:ss.SSS} %highlight(%-5level) %blue(%-30logger{30}:%-4line) %thread %green(%-18X{LOG_ID}) %msg%n</Pattern>
        </encoder>
    </appender>

    <appender name="TRACE_FILE" class="ch.qos.logback.core.rolling.RollingFileAppender">
        <file>${PATH}/trace.log</file>
        <rollingPolicy class="ch.qos.logback.core.rolling.TimeBasedRollingPolicy">
            <FileNamePattern>${PATH}/trace.%d{yyyy-MM-dd}.%i.log</FileNamePattern>
            <timeBasedFileNamingAndTriggeringPolicy class="ch.qos.logback.core.rolling.SizeAndTimeBasedFNATP">
                <maxFileSize>10MB</maxFileSize>
            </timeBasedFileNamingAndTriggeringPolicy>
        </rollingPolicy>
        <layout>
            <pattern>%d{yyyy-MM-dd HH:mm:ss.SSS} %-5level %-50logger{50}:%-4line %green(%-18X{LOG_ID}) %msg%n</pattern>
        </layout>
    </appender>

    <appender name="ERROR_FILE" class="ch.qos.logback.core.rolling.RollingFileAppender">
        <file>${PATH}/error.log</file>
        <rollingPolicy class="ch.qos.logback.core.rolling.TimeBasedRollingPolicy">
            <FileNamePattern>${PATH}/error.%d{yyyy-MM-dd}.%i.log</FileNamePattern>
            <timeBasedFileNamingAndTriggeringPolicy class="ch.qos.logback.core.rolling.SizeAndTimeBasedFNATP">
                <maxFileSize>10MB</maxFileSize>
            </timeBasedFileNamingAndTriggeringPolicy>
        </rollingPolicy>
        <layout>
            <pattern>%d{yyyy-MM-dd HH:mm:ss.SSS} %-5level %-50logger{50}:%-4line %green(%-18X{LOG_ID}) %msg%n</pattern>
        </layout>
        <filter class="ch.qos.logback.classic.filter.LevelFilter">
            <level>ERROR</level>
            <onMatch>ACCEPT</onMatch>
            <onMismatch>DENY</onMismatch>
        </filter>
    </appender>

    <root level="ERROR">
        <appender-ref ref="ERROR_FILE" />
    </root>

    <root level="TRACE">
        <appender-ref ref="TRACE_FILE" />
    </root>

    <root level="INFO">
        <appender-ref ref="STDOUT" />
    </root>
</configuration>

修改gateway的application.properties

# 路由转发，将/business/...的请求转发了business模块
spring.cloud.gateway.routes[1].id=business
spring.cloud.gateway.routes[1].uri=http://127.0.0.1:8002
#spring.cloud.gateway.routes[1].uri=lb://business
spring.cloud.gateway.routes[1].predicates[0]=Path=/business/**

测试

http/business-test.http

GET http://localhost:8002/business/hello
Accept: application/json

###

GET http://localhost:8000/business/hello
Accept: application/json

###

在这里插入图片描述

4.为business模块配置持久层生成器

新增train_business数据库

在这里插入图片描述

执行sql

sql/business.sql

drop table if exists `member`;
create table `member` (
  `id` bigint not null comment 'id',
  `mobile` varchar(11) comment '手机号',
  primary key (`id`),
  unique key `mobile_unique` (`mobile`)
) engine=innodb default charset=utf8mb4 comment='会员';

修改generator/pom.xml

<!--<configurationFile>src/main/resources/generator-config-member.xml</configurationFile>-->
<configurationFile>src/main/resources/generator-config-business.xml</configurationFile>

修改generator-config-business.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE generatorConfiguration
        PUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN"
        "http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd">

<generatorConfiguration>
    <context id="Mysql" targetRuntime="MyBatis3" defaultModelType="flat">

        <!-- 自动检查关键字，为关键字增加反引号 -->
        <property name="autoDelimitKeywords" value="true"/>
        <property name="beginningDelimiter" value="`"/>
        <property name="endingDelimiter" value="`"/>

        <!--覆盖生成XML文件-->
        <plugin type="org.mybatis.generator.plugins.UnmergeableXmlMappersPlugin" />
        <!-- 生成的实体类添加toString()方法 -->
        <plugin type="org.mybatis.generator.plugins.ToStringPlugin"/>

        <!-- 不生成注释 -->
        <commentGenerator>
            <property name="suppressAllComments" value="true"/>
        </commentGenerator>

        <!-- 配置数据源，需要根据自己的项目修改 -->
        <jdbcConnection driverClass="com.mysql.cj.jdbc.Driver"
                        connectionURL="jdbc:mysql://localhost/train_business?serverTimezone=Asia/Shanghai"
                        userId="train_business"
                        password="train_business">
        </jdbcConnection>

        <!-- domain类的位置 targetProject是相对pom.xml的路径-->
        <javaModelGenerator targetProject="..\business\src\main\java"
                            targetPackage="com.neilxu.train.business.domain"/>

        <!-- mapper xml的位置 targetProject是相对pom.xml的路径 -->
        <sqlMapGenerator targetProject="..\business\src\main\resources"
                         targetPackage="mapper"/>

        <!-- mapper类的位置 targetProject是相对pom.xml的路径 -->
        <javaClientGenerator targetProject="..\business\src\main\java"
                             targetPackage="com.neilxu.train.business.mapper"
                             type="XMLMAPPER"/>

        <table tableName="member" domainObjectName="Member"/>
    </context>
</generatorConfiguration>

测试

这里注意：

在这里插入图片描述

如果member install 错误，先install train，再install member

执行代码生成：

在这里插入图片描述

5.快速生成车站基础数据

增加车站表，生成持久层代码及前后端代码

先将上节生成的member相关的类删除

business.sql

drop table if exists `station`;
create table `station` (
  `id` bigint not null comment 'id',
  `name` varchar(20) not null comment '站名',
  `name_pinyin` varchar(50) not null comment '站名拼音',
  `name_py` varchar(50) not null comment '站名拼音首字母',
  `create_time` datetime(3) comment '新增时间',
  `update_time` datetime(3) comment '修改时间',
  primary key (`id`),
  unique key `name_unique` (`name`)
) engine=innodb default charset=utf8mb4 comment='车站';

修改generator-config-business.xml

<!--        <table tableName="member" domainObjectName="Member"/>-->
        <table tableName="station" domainObjectName="Station"/>

修改controller.ftl（注意后面会改回来，新增一个adminController.ftl）

后面生成的接口是admin的，所以不需要memberId查询条件

下面的去掉

在这里插入图片描述

修改ServerGenerator.java

//    static String vuePath = "web/src/views/main/";
    static String vuePath = "admin/src/views/main/";

gen(Domain, param, "service", "service");
gen(Domain, param, "controller", "controller");
gen(Domain, param, "req", "saveReq");
gen(Domain, param, "req", "queryReq");
gen(Domain, param, "resp", "queryResp");
genVue(do_main, param);

生成持久层代码和前后端代码

在这里插入图片描述

手动改下前端代码，加上路由和侧边菜单

admin/src/components/the-sider.vue

<a-menu-item key="/station">
  <router-link to="/station">
    <user-outlined /> &nbsp; 车站管理
  </router-link>
</a-menu-item>

admin/src/router/index.js

const routes = [{
  path: '/',
  component: () => import('../views/main.vue'),
  children: [{
    path: 'welcome',
    component: () => import('../views/main/welcome.vue'),
  }, {
    path: 'about',
    component: () => import('../views/main/about.vue'),
  }, {
    path: 'station',
    component: () => import('../views/main/station.vue'),
  }]
}, {
  path: '',
  redirect: '/welcome'
}];

修改生成器，生成admin相关的代码，测试成功

发现进去后后端报错没有登录，原因是这些被拦截了，但是实际目前是需要将这些接口归入admin下的，不被之前LoginMemberFilter.java拦截才对

在这里插入图片描述

- **修改controller.ftl，新增generator/src/main/java/com/neilxu/train/generator/ftl/adminController.ftl**

  generator/src/main/java/com/neilxu/train/generator/ftl/controller.ftl

  改回去

  ```
  package com.neilxu.train.${module}.controller;

  import com.neilxu.train.common.context.LoginMemberContext;
  import com.neilxu.train.common.resp.CommonResp;
  import com.neilxu.train.common.resp.PageResp;
  import com.neilxu.train.${module}.req.${Domain}QueryReq;
  import com.neilxu.train.${module}.req.${Domain}SaveReq;
  import com.neilxu.train.${module}.resp.${Domain}QueryResp;
  import com.neilxu.train.${module}.service.${Domain}Service;
  import jakarta.annotation.Resource;
  import jakarta.validation.Valid;
  import org.springframework.web.bind.annotation.*;

  @RestController
  @RequestMapping("/${do_main}")
  public class ${Domain}Controller {

      @Resource
      private ${Domain}Service ${domain}Service;

      @PostMapping("/save")
      public CommonResp<Object> save(@Valid @RequestBody ${Domain}SaveReq req) {
          ${domain}Service.save(req);
          return new CommonResp<>();
      }

      @GetMapping("/query-list")
      public CommonResp<PageResp<${Domain}QueryResp>> queryList(@Valid ${Domain}QueryReq req) {
          req.setMemberId(LoginMemberContext.getId());
          PageResp<${Domain}QueryResp> list = ${domain}Service.queryList(req);
          return new CommonResp<>(list);
      }

      @DeleteMapping("/delete/{id}")
      public CommonResp<Object> delete(@PathVariable Long id) {
          ${domain}Service.delete(id);
          return new CommonResp<>();
      }
  }
  ```

  generator/src/main/java/com/neilxu/train/generator/ftl/adminController.ftl

  ```
  package com.neilxu.train.${module}.controller.admin;;

  import com.neilxu.train.common.context.LoginMemberContext;
  import com.neilxu.train.common.resp.CommonResp;
  import com.neilxu.train.common.resp.PageResp;
  import com.neilxu.train.${module}.req.${Domain}QueryReq;
  import com.neilxu.train.${module}.req.${Domain}SaveReq;
  import com.neilxu.train.${module}.resp.${Domain}QueryResp;
  import com.neilxu.train.${module}.service.${Domain}Service;
  import jakarta.annotation.Resource;
  import jakarta.validation.Valid;
  import org.springframework.web.bind.annotation.*;

  @RestController
  @RequestMapping("/admin/${do_main}")
  public class ${Domain}AdminController {

      @Resource
      private ${Domain}Service ${domain}Service;

      @PostMapping("/save")
      public CommonResp<Object> save(@Valid @RequestBody ${Domain}SaveReq req) {
          ${domain}Service.save(req);
          return new CommonResp<>();
      }

      @GetMapping("/query-list")
      public CommonResp<PageResp<${Domain}QueryResp>> queryList(@Valid ${Domain}QueryReq req) {
          PageResp<${Domain}QueryResp> list = ${domain}Service.queryList(req);
          return new CommonResp<>(list);
      }

      @DeleteMapping("/delete/{id}")
      public CommonResp<Object> delete(@PathVariable Long id) {
          ${domain}Service.delete(id);
          return new CommonResp<>();
      }
  }
  ```

- **修改vue.ftl**

  ```
  <template>
    <p>
      <a-space>
        <a-button type="primary" @click="handleQuery()">刷新</a-button>
        <#if !readOnly><a-button type="primary" @click="onAdd">新增</a-button></#if>
      </a-space>
    </p>
    <a-table :dataSource="${domain}s"
             :columns="columns"
             :pagination="pagination"
             @change="handleTableChange"
             :loading="loading">
      <template #bodyCell="{ column, record }">
        <template v-if="column.dataIndex === 'operation'">
          <#if !readOnly>
          <a-space>
            <a-popconfirm
                title="删除后不可恢复，确认删除?"
                @confirm="onDelete(record)"
                ok-text="确认" cancel-text="取消">
              <a style="color: red">删除</a>
            </a-popconfirm>
            <a @click="onEdit(record)">编辑</a>
          </a-space>
          </#if>
        </template>
        <#list fieldList as field>
          <#if field.enums>
        <template v-else-if="column.dataIndex === '${field.nameHump}'">
          <span v-for="item in ${field.enumsConst}_ARRAY" :key="item.code">
            <span v-if="item.code === record.${field.nameHump}">
              {{item.desc}}
            </span>
          </span>
        </template>
          </#if>
        </#list>
      </template>
    </a-table>
    <#if !readOnly>
    <a-modal v-model:visible="visible" title="${tableNameCn}" @ok="handleOk"
             ok-text="确认" cancel-text="取消">
      <a-form :model="${domain}" :label-col="{span: 4}" :wrapper-col="{ span: 20 }">
        <#list fieldList as field>
          <#if field.name!="id" && field.nameHump!="createTime" && field.nameHump!="updateTime">
        <a-form-item label="${field.nameCn}">
          <#if field.enums>
          <a-select v-model:value="${domain}.${field.nameHump}">
            <a-select-option v-for="item in ${field.enumsConst}_ARRAY" :key="item.code" :value="item.code">
              {{item.desc}}
            </a-select-option>
          </a-select>
          <#elseif field.javaType=='Date'>
            <#if field.type=='time'>
          <a-time-picker v-model:value="${domain}.${field.nameHump}" valueFormat="HH:mm:ss" placeholder="请选择时间" />
            <#elseif field.type=='date'>
          <a-date-picker v-model:value="${domain}.${field.nameHump}" valueFormat="YYYY-MM-DD" placeholder="请选择日期" />
            <#else>
          <a-date-picker v-model:value="${domain}.${field.nameHump}" valueFormat="YYYY-MM-DD HH:mm:ss" show-time placeholder="请选择日期" />
            </#if>
          <#else>
          <a-input v-model:value="${domain}.${field.nameHump}" />
          </#if>
        </a-form-item>
          </#if>
        </#list>
      </a-form>
    </a-modal>
    </#if>
  </template>

  <script>
  import { defineComponent, ref, onMounted } from 'vue';
  import {notification} from "ant-design-vue";
  import axios from "axios";

  export default defineComponent({
    name: "${do_main}-view",
    setup() {
      <#list fieldList as field>
      <#if field.enums>
      const ${field.enumsConst}_ARRAY = window.${field.enumsConst}_ARRAY;
      </#if>
      </#list>
      const visible = ref(false);
      let ${domain} = ref({
        <#list fieldList as field>
        ${field.nameHump}: undefined,
        </#list>
      });
      const ${domain}s = ref([]);
      // 分页的三个属性名是固定的
      const pagination = ref({
        total: 0,
        current: 1,
        pageSize: 10,
      });
      let loading = ref(false);
      const columns = [
      <#list fieldList as field>
        <#if field.name!="id" && field.nameHump!="createTime" && field.nameHump!="updateTime">
      {
        title: '${field.nameCn}',
        dataIndex: '${field.nameHump}',
        key: '${field.nameHump}',
      },
        </#if>
      </#list>
      <#if !readOnly>
      {
        title: '操作',
        dataIndex: 'operation'
      }
      </#if>
      ];

      <#if !readOnly>
      const onAdd = () => {
        ${domain}.value = {};
        visible.value = true;
      };

      const onEdit = (record) => {
        ${domain}.value = window.Tool.copy(record);
        visible.value = true;
      };

      const onDelete = (record) => {
        axios.delete("/${module}/admin/${do_main}/delete/" + record.id).then((response) => {
          const data = response.data;
          if (data.success) {
            notification.success({description: "删除成功！"});
            handleQuery({
              page: pagination.value.current,
              size: pagination.value.pageSize,
            });
          } else {
            notification.error({description: data.message});
          }
        });
      };

      const handleOk = () => {
        axios.post("/${module}/admin/${do_main}/save", ${domain}.value).then((response) => {
          let data = response.data;
          if (data.success) {
            notification.success({description: "保存成功！"});
            visible.value = false;
            handleQuery({
              page: pagination.value.current,
              size: pagination.value.pageSize
            });
          } else {
            notification.error({description: data.message});
          }
        });
      };
      </#if>

      const handleQuery = (param) => {
        if (!param) {
          param = {
            page: 1,
            size: pagination.value.pageSize
          };
        }
        loading.value = true;
        axios.get("/${module}/admin/${do_main}/query-list", {
          params: {
            page: param.page,
            size: param.size
          }
        }).then((response) => {
          loading.value = false;
          let data = response.data;
          if (data.success) {
            ${domain}s.value = data.content.list;
            // 设置分页控件的值
            pagination.value.current = param.page;
            pagination.value.total = data.content.total;
          } else {
            notification.error({description: data.message});
          }
        });
      };

      const handleTableChange = (pagination) => {
        // console.log("看看自带的分页参数都有啥：" + pagination);
        handleQuery({
          page: pagination.current,
          size: pagination.pageSize
        });
      };

      onMounted(() => {
        handleQuery({
          page: 1,
          size: pagination.value.pageSize
        });
      });

      return {
        <#list fieldList as field>
        <#if field.enums>
        ${field.enumsConst}_ARRAY,
        </#if>
        </#list>
        ${domain},
        visible,
        ${domain}s,
        pagination,
        columns,
        handleTableChange,
        handleQuery,
        loading,
        <#if !readOnly>
        onAdd,
        handleOk,
        onEdit,
        onDelete
        </#if>
      };
    },
  });
  </script>
  ```

- **修改ServerGenerator.java**

  ```java
          gen(Domain, param, "service", "service");
          gen(Domain, param, "controller/admin", "adminController");
  //        gen(Domain, param, "controller", "controller");
          gen(Domain, param, "req", "saveReq");
          gen(Domain, param, "req", "queryReq");
          gen(Domain, param, "resp", "queryResp");
          genVue(do_main, param);
  ```

- **测试**

  重新生成前后端代码

  生成成功

在这里插入图片描述

  增删改查都正常

5.1.注意：导入了common依赖，common加了lombok，这里却导不进来lombok的问题

在这里插入图片描述

将父pom的lombok 去掉，不然刷新maven刷新不进来，具体原因还不太清楚

在这里插入图片描述

6.快速生成火车基础数据管理功能

这里可以先把business库里的member表删除，已经没用了

增加火车表，生成持久层代码及前后端代码

business.sql

drop table if exists `train`;
create table `train` (
    `id` bigint not null comment 'id',
    `code` varchar(20) not null comment '车次编号',
    `type` char(1) not null comment '车次类型|枚举[TrainTypeEnum]',
    `start` varchar(20) not null comment '始发站',
    `start_pinyin` varchar(50) not null comment '始发站拼音',
    `start_time` time not null comment '出发时间',
    `end` varchar(20) not null comment '终点站',
    `end_pinyin` varchar(50) not null comment '终点站拼音',
    `end_time` time not null comment '到站时间',
    `create_time` datetime(3) comment '新增时间',
    `update_time` datetime(3) comment '修改时间',
    primary key (`id`),
    unique key `code_unique` (`code`)
) engine=innodb default charset=utf8mb4 comment='车次';

新增TrainTypeEnum.java

com.neilxu.train.business.enums.TrainTypeEnum

package com.neilxu.train.business.enums;

import java.math.BigDecimal;
import java.util.ArrayList;
import java.util.EnumSet;
import java.util.HashMap;
import java.util.List;

public enum TrainTypeEnum {

    G("G", "高铁", new BigDecimal("1.2")),
    D("D", "动车", new BigDecimal("1")),
    K("K", "快速", new BigDecimal("0.8"));

    private String code;

    private String desc;

    /**
     * 票价比例，例：1.1，则票价 = 1.1 * 每公里单价（SeatTypeEnum.price） * 公里（station.km）
     */
    private BigDecimal priceRate;

    TrainTypeEnum(String code, String desc, BigDecimal priceRate) {
        this.code = code;
        this.desc = desc;
        this.priceRate = priceRate;
    }

    @Override
    public String toString() {
        return "TrainTypeEnum{" +
                "code='" + code + '\'' +
                ", desc='" + desc + '\'' +
                ", priceRate=" + priceRate +
                "} " + super.toString();
    }

    public String getCode() {
        return code;
    }

    public void setCode(String code) {
        this.code = code;
    }

    public void setDesc(String desc) {
        this.desc = desc;
    }

    public String getDesc() {
        return desc;
    }

    public BigDecimal getPriceRate() {
        return priceRate;
    }

    public void setPriceRate(BigDecimal priceRate) {
        this.priceRate = priceRate;
    }

    public static List<HashMap<String,String>> getEnumList() {
        List<HashMap<String, String>> list = new ArrayList<>();
        for (TrainTypeEnum anEnum : EnumSet.allOf(TrainTypeEnum.class)) {
            HashMap<String, String> map = new HashMap<>();
            map.put("code",anEnum.code);
            map.put("desc",anEnum.desc);
            list.add(map);
        }
        return list;
    }
}

修改EnumGenerator.java

generator 的pom先引入business

<dependency>
    <groupId>com.neilxu</groupId>
    <artifactId>business</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <scope>compile</scope>
</dependency>

com.neilxu.train.generator.gen.EnumGenerator

package com.neilxu.train.generator.gen;

import cn.hutool.core.util.StrUtil;
import com.neilxu.train.business.enums.TrainTypeEnum;
import com.neilxu.train.member.enums.PassengerTypeEnum;

import java.io.FileOutputStream;
import java.io.OutputStreamWriter;
import java.lang.reflect.Method;

public class EnumGenerator {
//    static String path = "web/src/assets/js/enums.js";
    static String path = "admin/src/assets/js/enums.js";

    public static void main(String[] args) {
        StringBuffer bufferObject = new StringBuffer();
        StringBuffer bufferArray = new StringBuffer();
        long begin = System.currentTimeMillis();
        try {
            toJson(PassengerTypeEnum.class, bufferObject, bufferArray);
            toJson(TrainTypeEnum.class, bufferObject, bufferArray);

            StringBuffer buffer = bufferObject.append("\r\n").append(bufferArray);
            writeJs(buffer);
        } catch (Exception e) {
            e.printStackTrace();
        }
        long end = System.currentTimeMillis();
        System.out.println("执行耗时:" + (end - begin) + " 毫秒");
    }

    private static void toJson(Class clazz, StringBuffer bufferObject, StringBuffer bufferArray) throws Exception {
        // enumConst：将YesNoEnum变成YES_NO
        String enumConst = StrUtil.toUnderlineCase(clazz.getSimpleName())
                .toUpperCase().replace("_ENUM", "");
        Object[] objects = clazz.getEnumConstants();
        Method name = clazz.getMethod("name");
        Method getDesc = clazz.getMethod("getDesc");
        Method getCode = clazz.getMethod("getCode");

        // 生成对象
        bufferObject.append(enumConst).append("={");
        for (int i = 0; i < objects.length; i++) {
            Object obj = objects[i];
            bufferObject.append(name.invoke(obj)).append(":{code:\"").append(getCode.invoke(obj)).append("\", desc:\"").append(getDesc.invoke(obj)).append("\"}");
            if (i < objects.length - 1) {
                bufferObject.append(",");
            }
        }
        bufferObject.append("};\r\n");

        // 生成数组
        bufferArray.append(enumConst).append("_ARRAY=[");
        for (int i = 0; i < objects.length; i++) {
            Object obj = objects[i];
            bufferArray.append("{code:\"").append(getCode.invoke(obj)).append("\", desc:\"").append(getDesc.invoke(obj)).append("\"}");
            if (i < objects.length - 1) {
                bufferArray.append(",");
            }
        }
        bufferArray.append("];\r\n");
    }

    /**
     * 写文件
     * @param stringBuffer
     */
    public static void writeJs(StringBuffer stringBuffer) {
        FileOutputStream out = null;
        try {
            out = new FileOutputStream(path);
            OutputStreamWriter osw = new OutputStreamWriter(out, "UTF-8");
            System.out.println(path);
            osw.write(stringBuffer.toString());
            osw.close();
        } catch (Exception e) {
            e.printStackTrace();
        }
        finally {
            try {
                out.close();
            } catch (Exception e) {
                e.printStackTrace();
            }

        }
    }

}

生成admin/src/assets/js/enums.js

PASSENGER_TYPE={ADULT:{code:"1", desc:"成人"},CHILD:{code:"2", desc:"儿童"},STUDENT:{code:"3", desc:"学生"}};
TRAIN_TYPE={G:{code:"G", desc:"高铁"},D:{code:"D", desc:"动车"},K:{code:"K", desc:"快速"}};

PASSENGER_TYPE_ARRAY=[{code:"1", desc:"成人"},{code:"2", desc:"儿童"},{code:"3", desc:"学生"}];
TRAIN_TYPE_ARRAY=[{code:"G", desc:"高铁"},{code:"D", desc:"动车"},{code:"K", desc:"快速"}];

修改generator-config-business.xml

generator/src/main/resources/generator-config-business.xml

<!--        <table tableName="member" domainObjectName="Member"/>-->
<!--        <table tableName="station" domainObjectName="Station"/>-->
        <table tableName="train" domainObjectName="Train"/>

生成持久层代码和前后端代码

在这里插入图片描述

这里执行又报错，解决办法：先install train，再install business，再执行

在这里插入图片描述

这里注意到生成的代码一直需要import lombok，我们修改下模板，将这句话也写进去

在这里插入图片描述

生成成功

在这里插入图片描述

手动修改前端代码

同上，加路由、侧边栏

const routes = [{
  path: '/',
  component: () => import('../views/main.vue'),
  children: [{
    path: 'welcome',
    component: () => import('../views/main/welcome.vue'),
  }, {
    path: 'about',
    component: () => import('../views/main/about.vue'),
  }, {
    path: 'station',
    component: () => import('../views/main/station.vue'),
  }, {
    path: 'train',
    component: () => import('../views/main/train.vue'),
  }]
}, {
  path: '',
  redirect: '/welcome'
}];

<a-menu-item key="/train">
  <router-link to="/train">
    <user-outlined /> &nbsp; 火车管理
  </router-link>
</a-menu-item>

优化：针对date和time类型修改生成器

修改DbUtil.java

public static String sqlTypeToJavaType(String sqlType) {
    if (sqlType.toUpperCase().contains("varchar".toUpperCase())
            || sqlType.toUpperCase().contains("char".toUpperCase())
            || sqlType.toUpperCase().contains("text".toUpperCase())) {
        return "String";
    } else if (sqlType.toUpperCase().contains("datetime".toUpperCase())) {
        return "Date";
    } else if (sqlType.toUpperCase().contains("time".toUpperCase())) {
        return "Date";
    } else if (sqlType.toUpperCase().contains("date".toUpperCase())) {
        return "Date";
    } else if (sqlType.toUpperCase().contains("bigint".toUpperCase())) {
        return "Long";
    } else if (sqlType.toUpperCase().contains("int".toUpperCase())) {
        return "Integer";
    } else if (sqlType.toUpperCase().contains("long".toUpperCase())) {
        return "Long";
    } else if (sqlType.toUpperCase().contains("decimal".toUpperCase())) {
        return "BigDecimal";
    } else if (sqlType.toUpperCase().contains("boolean".toUpperCase())) {
        return "Boolean";
    } else {
        return "String";
    }
}

修改saveReq.ftl

<#if field.javaType=='Date'>
    <#if field.type=='time'>
@JsonFormat(pattern = "HH:mm:ss",timezone = "GMT+8")
    <#elseif field.type=='date'>
@JsonFormat(pattern = "yyyy-MM-dd",timezone = "GMT+8")
    <#else>
@JsonFormat(pattern = "yyyy-MM-dd HH:mm:ss",timezone = "GMT+8")
    </#if>
</#if>

重新生成前后端代码

在这里插入图片描述

测试

在这里插入图片描述

7.快速生成火车车站基础数据管理功能

火车——车站关联的功能

新增火车车站表

drop table if exists `train_station`;
create table `train_station` (
  `id` bigint not null comment 'id',
  `train_code` varchar(20) not null comment '车次编号',
  `index` int not null comment '站序',
  `name` varchar(20) not null comment '站名',
  `name_pinyin` varchar(50) not null comment '站名拼音',
  `in_time` time comment '进站时间',
  `out_time` time comment '出站时间',
  `stop_time` time comment '停站时长',
  `km` decimal(8, 2) not null comment '里程（公里）|从上一站到本站的距离',
  `create_time` datetime(3) comment '新增时间',
  `update_time` datetime(3) comment '修改时间',
  primary key (`id`),
  unique key `train_code_index_unique` (`train_code`, `index`),
  unique key `train_code_name_unique` (`train_code`, `name`)
) engine=innodb default charset=utf8mb4 comment='火车车站';

修改generator-config-business.xml

<!--<table tableName="station" domainObjectName="Station"/>-->
<!--<table tableName="train" domainObjectName="Train"/>-->
<table tableName="train_station" domainObjectName="TrainStation"/>

生成持久层代码和前后端代码

在这里插入图片描述

修改路由、菜单

同上

8.快速生成火车车厢基础数据管理功能

新增表

drop table if exists `train_carriage`;
create table `train_carriage` (
  `id` bigint not null comment 'id',
  `train_code` varchar(20) not null comment '车次编号',
  `index` int not null comment '厢号',
  `seat_type` char(1) not null comment '座位类型|枚举[SeatTypeEnum]',
  `seat_count` int not null comment '座位数',
  `row_count` int not null comment '排数',
  `col_count` int not null comment '列数',
  `create_time` datetime(3) comment '新增时间',
  `update_time` datetime(3) comment '修改时间',
  unique key `train_code_index_unique` (`train_code`, `index`),
  primary key (`id`)
) engine=innodb default charset=utf8mb4 comment='火车车厢';

注意：

column是mysql的关键字，使用他来做列号的话，正常使用mybatis是没问题，mybatis会自动为关键字加反引号``，但是在使用分布式事务seata时会有问题，所以还是避免使用关键字

新增枚举类

com.neilxu.train.business.enums.SeatTypeEnum

package com.neilxu.train.business.enums;

import java.math.BigDecimal;
import java.util.ArrayList;
import java.util.EnumSet;
import java.util.HashMap;
import java.util.List;

public enum SeatTypeEnum {

    YDZ("1", "一等座", new BigDecimal("0.4")),
    EDZ("2", "二等座", new BigDecimal("0.3")),
    RW("3", "软卧", new BigDecimal("0.6")),
    YW("4", "硬卧", new BigDecimal("0.5"));

    private String code;

    private String desc;

    /**
     * 基础票价 N元/公里，0.4即为0.4元/公里
     */
    private BigDecimal price;

    SeatTypeEnum(String code, String desc, BigDecimal price) {
        this.code = code;
        this.desc = desc;
        this.price = price;
    }

    public String getCode() {
        return code;
    }

    public String getDesc() {
        return desc;
    }

    public BigDecimal getPrice() {
        return price;
    }

    public void setPrice(BigDecimal price) {
        this.price = price;
    }

    public static List<HashMap<String,String>> getEnumList() {
        List<HashMap<String, String>> list = new ArrayList<>();
        for (SeatTypeEnum anEnum : EnumSet.allOf(SeatTypeEnum.class)) {
            HashMap<String, String> map = new HashMap<>();
            map.put("code",anEnum.code);
            map.put("desc",anEnum.desc);
            list.add(map);
        }
        return list;
    }

    public static SeatTypeEnum getEnumByCode(String code) {
        for (SeatTypeEnum enums : SeatTypeEnum.values()) {
            if (enums.getCode().equalsIgnoreCase(code)) {
                return enums;
            }
        }
        return null;
    }
}

生成持久层、前后端、枚举js

修改好generator-config-business.xml和EnumGenerator.java

生成步骤同上
修改路由、侧边栏

同上

9.快速生成火车座位基础数据管理功能

新增表

drop table if exists `train_seat`;
create table `train_seat` (
  `id` bigint not null comment 'id',
  `train_code` varchar(20) not null comment '车次编号',
  `carriage_index` int not null comment '厢序',
  `row` char(2) not null comment '排号|01, 02',
  `col` char(1) not null comment '列号|枚举[SeatColEnum]',
  `seat_type` char(1) not null comment '座位类型|枚举[SeatTypeEnum]',
  `carriage_seat_index` int not null comment '同车厢座序',
  `create_time` datetime(3) comment '新增时间',
  `update_time` datetime(3) comment '修改时间',
  primary key (`id`)
) engine=innodb default charset=utf8mb4 comment='座位';

同车厢座序：每个车厢座位都按1,2,3,4…排序

新增枚举类

com.neilxu.train.business.enums.SeatColEnum

package com.neilxu.train.business.enums;

import java.util.ArrayList;
import java.util.EnumSet;
import java.util.List;

public enum SeatColEnum {

    YDZ_A("A", "A", "1"),
    YDZ_C("C", "C", "1"),
    YDZ_D("D", "D", "1"),
    YDZ_F("F", "F", "1"),
    EDZ_A("A", "A", "2"),
    EDZ_B("B", "B", "2"),
    EDZ_C("C", "C", "2"),
    EDZ_D("D", "D", "2"),
    EDZ_F("F", "F", "2");

    private String code;

    private String desc;

    /**
     * 对应SeatTypeEnum.code
     */
    private String type;

    SeatColEnum(String code, String desc, String type) {
        this.code = code;
        this.desc = desc;
        this.type = type;
    }

    public String getCode() {
        return code;
    }

    public void setCode(String code) {
        this.code = code;
    }

    public void setDesc(String desc) {
        this.desc = desc;
    }

    public String getDesc() {
        return desc;
    }

    public String getType() {
        return type;
    }

    public void setType(String type) {
        this.type = type;
    }

    /**
     * 根据车箱的座位类型，筛选出所有的列，比如车箱类型是一等座，则筛选出columnList={ACDF}
     */
    public static List<SeatColEnum> getColsByType(String seatType) {
        List<SeatColEnum> colList = new ArrayList<>();
        EnumSet<SeatColEnum> seatColEnums = EnumSet.allOf(SeatColEnum.class);
        for (SeatColEnum anEnum : seatColEnums) {
            if (seatType.equals(anEnum.getType())) {
                colList.add(anEnum);
            }
        }
        return colList;
    }

}

生成持久层、前后端、枚举js

同上
修改路由、侧边栏

同上

由于篇幅太长，还差一截补在下篇
