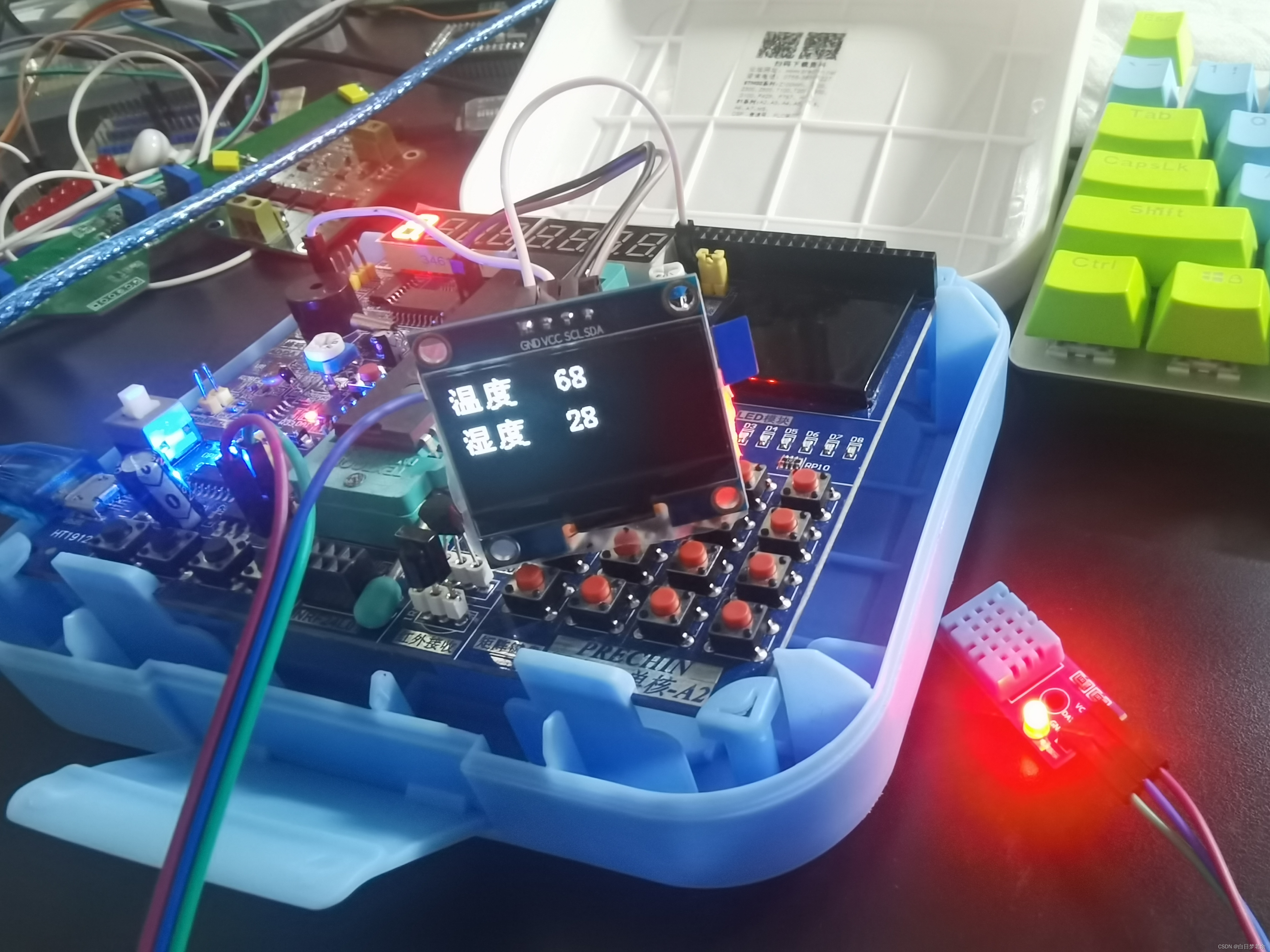

51单片机控制DHT11温湿度传感器，并使用OLED屏幕显示

最新推荐文章于 2024-04-02 11:59:38 发布
最新推荐文章于 2024-04-02 11:59:38 发布
阅读量1.3w 收藏 225
点赞数 21
文章标签： 单片机 51单片机
版权声明：本文为博主原创文章，遵循 CC 4.0 BY-SA 版权协议，转载请附上原文出处链接和本声明。
本文链接：https://blog.csdn.net/m0_53413766/article/details/124340527
版权

前言

        在各种智能家居，智能农业中经常可以看到有检测温湿度的传感器。对于温湿度传感器，大家见过的和使用得最多的，可能就是DHT11温湿度传感器。

        对于刚刚入门51单片机的萌新来说，DHT11温湿度传感器确实可以值得玩一玩，接下来就开始介绍介绍这个传感器以及代码控制。

一、MCU主控选型

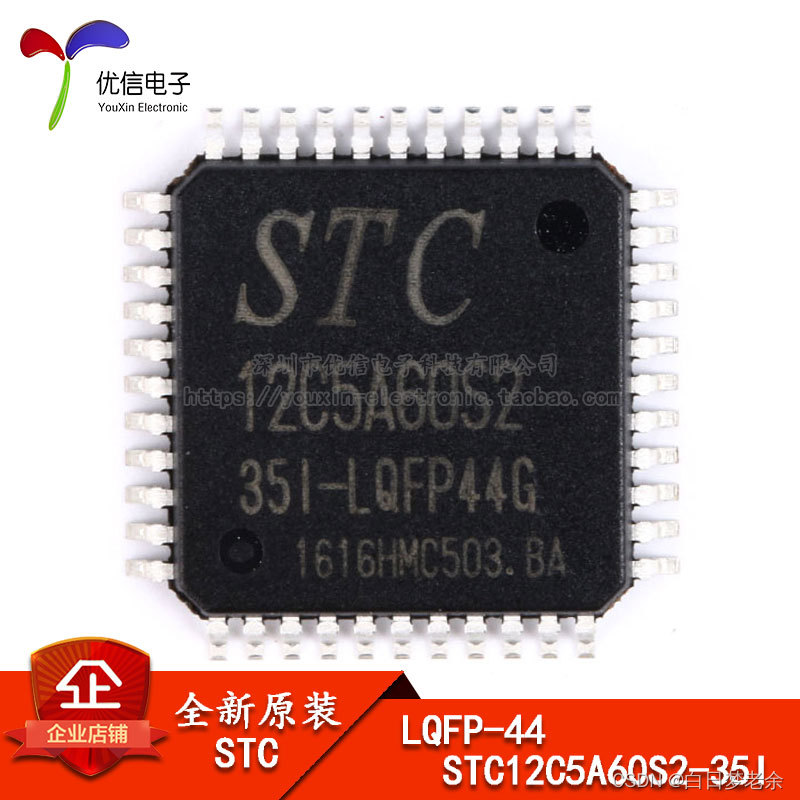

        首先是单片机主控方面，我使用STC12C5A60S2。当然有很多新生刚刚学51单片机的时候是接触89C52，不过不用担心，这款STC12单片机其实是89C52的升级版，完全兼容89C52的代码，IO口，以及最小系统的电路图和89C52一样，所以会用89C52就会用STC12

         贴片版本的STC12比直插版本的STC12多了几个P4的IO口。

二、DHT11温湿度传感器

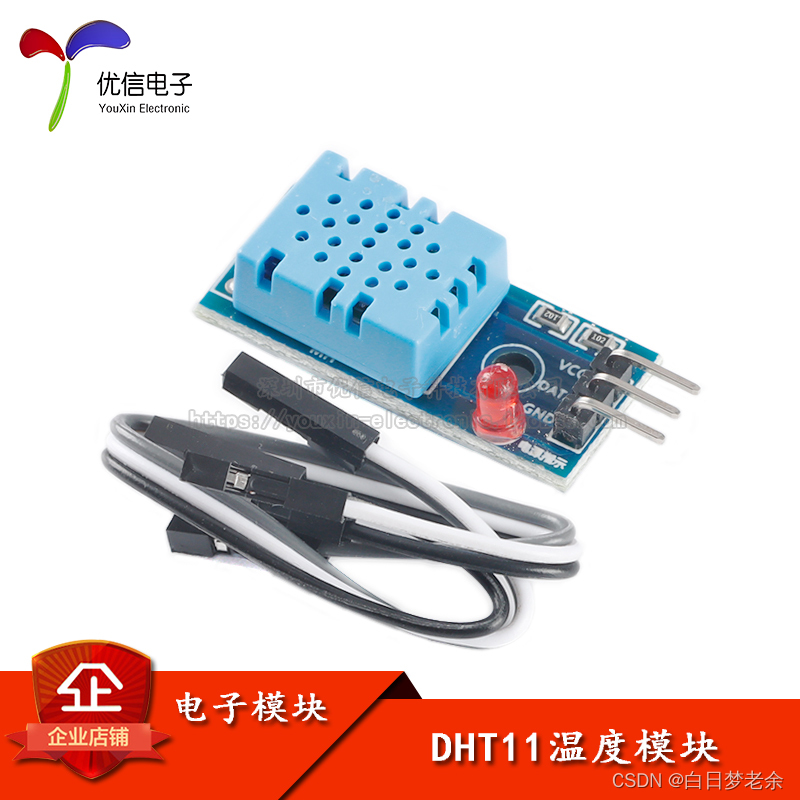

        1.模块介绍

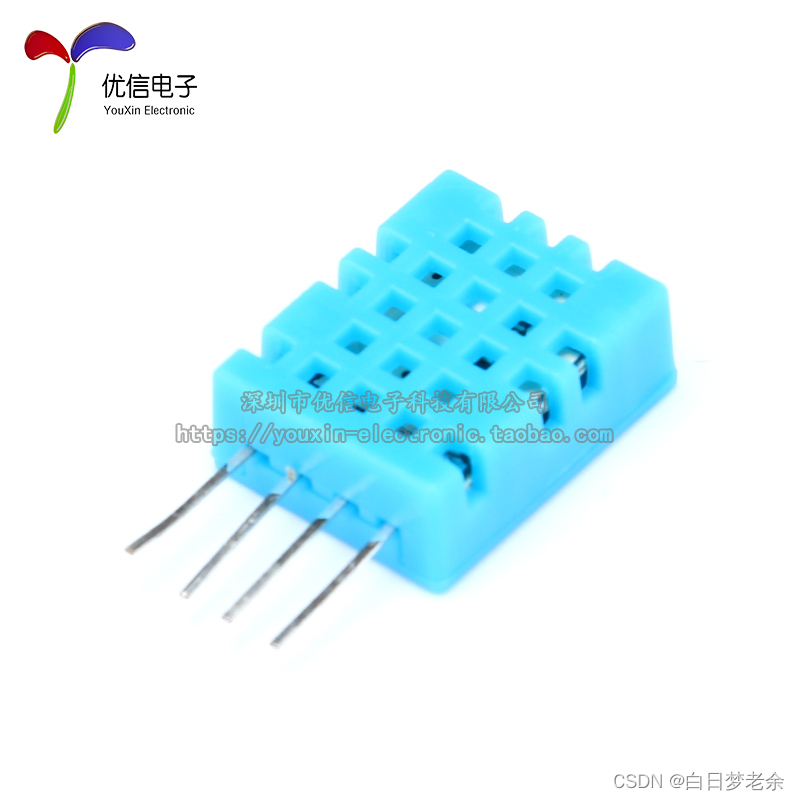

        DHT11数字温湿度传感器是一款含有已校准数字信号输出的温湿度复合传感器，它应用于专用的数字模块采集技术和温湿度传感技术，有着极高的可靠性和稳定性，抗干扰，响应快等优点。采用单线制串行接口，信号传输距离可达20M以上。

      供电电压是3.3-5.5V直流电，温度的测量范围为0-50度，湿度的测量范围是20-90%RH，测量的精度为温度为正负2度，湿度为正负5%RH，温度的分辨率为1度，湿度的分辨率非1%RH。

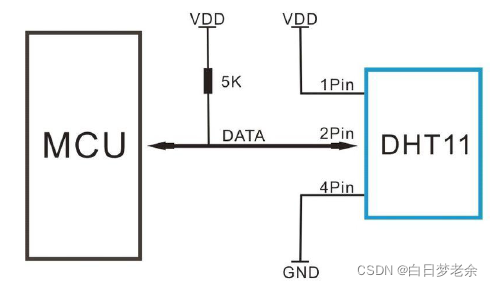

        这个模块的电路连接也非常简单（如图）

        2.软件实现

                DHT11.c

#include <STC12C5A60S2.H>
#include "Delay.H"
sbit DHT11_IO=P1^1;
char DHT11_dat[16];   //用于显示的接收数据数组
//DHT11起始信号

void DHT11_start()
{
	DHT11_IO=1;
	Delaynus(2);
	DHT11_IO=0;
	Delaynms(20);
	DHT11_IO=1;
	Delaynus(13);

}

//接收一个字节
unsigned char DHT11_rec_byte()
{

	unsigned char i,dat;


	for(i=0;i<8;i++)
	{
			while(!DHT11_IO);//度过54us低电平
		  Delaynus(16);//延时30us后判断高电平为1否则为零
			dat<<=1;
			if(DHT11_IO==1)
			{
				dat+=1;
			}
			while(DHT11_IO);
	}

	return dat;


}


//接收温湿度数据
void DHT11_get_Data()
{
	unsigned int R_H,R_L,T_H,T_L;
	unsigned char RH,RL,TH,TL,revise;

	DHT11_start();
//	Temp_data=1;
	if(DHT11_IO==0)//接收83us的应答信号，
	{
		while(DHT11_IO==0);   //等待拉高现在data为1
		    while(DHT11_IO);//退出通知单片机接受信号
        R_H=DHT11_rec_byte();    //接收湿度高八位
        R_L=DHT11_rec_byte();    //接收湿度低八位
        T_H=DHT11_rec_byte();    //接收温度高八位
        T_L=DHT11_rec_byte();    //接收温度低八位
        revise=DHT11_rec_byte(); //接收校正位

        Delaynus(25);    //结束

        if((R_H+R_L+T_H+T_L)==revise)      //校正
        {
            RH=R_H;
            RL=R_L;
            TH=T_H;
            TL=T_L;

        }
        /*数据处理，方便显示*/
        DHT11_dat[0]='0'+(RH/10);
        DHT11_dat[1]='0'+(RH%10);
	    DHT11_dat[2] =' ';
		DHT11_dat[3] = 'R' ;
		DHT11_dat[4] = 'H';
        DHT11_dat[5]=' ';
        DHT11_dat[6]=' ';
        DHT11_dat[7]=' ';
        DHT11_dat[8]=' ';
        DHT11_dat[9]='0'+(TH/10);
        DHT11_dat[10]='0'+(TH%10);
		DHT11_dat[11] =' ';
		DHT11_dat[12] = 'C';
		DHT11_dat[13] = ' ' ;
        DHT11_dat[14]=' ';
	}

}

                DHT11.h

#ifndef _dht11_h
#define _dht11_h

 //#include "dht11.h"
void DHT11_get_Data();

#endif

三、OLED显示屏

        1.模块介绍

        OLED为自发光材料，不需用到背光板(LCD屏幕就需要背光板)，同时视角广、画质均匀、反应速度快、较易彩色化、用简单驱动电路即可达到发光、制程简单、可制作成挠曲式面板，符合轻薄短小的原则，应用范围属于中小尺寸面板。

        大家购买OLED屏幕的时候肯定会看到有点OLED是四个排针，有的是七个排针，有什么区别呢？

        四排针OLED是通信协议使用IIC协议的OLED屏

        七排针OLED是通信协议使用SPI协议的OLED屏

        （我是比较推荐使用四排针OLED）

  • 尺寸：0.96寸
  • 控制芯片：SSD1306
  • 管脚数量：4
  • 引脚间距：2.54mm
  • 分辨率：128*64,可以显示汉字、ASCII、图案，对比度高
  • 可视角度：>160度
  • 无需背光（OLED屏的特点）
  • 供电：3V-5V

        2.软件实现

                OLED.c

#include <STC12C5A60S2.H>

#include "OLED_Font.h"
sbit SDA = P2^1;
sbit SCL = P2^0;
#define high   1;
#define low   0;

void Delayms(unsigned int xms)		//@11.0592MHz
{
	unsigned char i, j;
	while(xms)
	{
		i = 2;
		j = 199;
		do
		{
		  	while (--j);
		}	while (--i);

		xms=xms-1;
	}
}

void Delayus(unsigned int xus)		//@11.0592MHz
{
	unsigned char i;
	while(xus)
	{
	i = 43;
	while (--i);
		xus=xus-1;
	}
}
void IIC_Start()
{
   SCL = high;
   SDA = high;
   Delayus(1);
   SDA = low;
   Delayus(2);
   SCL = low;

}

/**********************************************
//IIC Stop
**********************************************/
void IIC_Stop()
{
   SDA = low;
   Delayus(1);
   SCL = high;
   Delayus(2);
   SDA = high;
}
/**********************************************
// IIC Write byte
**********************************************/
bit Write_IIC_Byte(unsigned char IIC_Byte)
{
	unsigned char i;
	bit Ack_Bit;                    //应答信号
	for(i=0;i<8;i++)
	{
		if(IIC_Byte & 0x80)
		{
			SDA=high;
		}
		else
		{
			SDA=low;
		}

		//Delay_us(1);
		SCL=high;
		Delayus(2);
		SCL=low;
		//Delay_us(1);
		IIC_Byte<<=1;			//loop
	}
	 SDA = high;		                //释放IIC SDA总线为主器件接收从器件产生应答信号
	Delayus(2);
	SCL = high;                     //第9个时钟周期
	Delayus(2);
	Ack_Bit = SDA;		            //读取应答信号
	SCL = low;
	return Ack_Bit;
}
/**********************************************
// IIC Write Command
**********************************************/
void Write_IIC_Command(unsigned char IIC_Command)
{
   IIC_Start();
   Write_IIC_Byte(0x78);            //Slave address,SA0=0
   Write_IIC_Byte(0x00);			//write command
   Write_IIC_Byte(IIC_Command);
   IIC_Stop();
}
/**********************************************
// IIC Write Data
**********************************************/
void Write_IIC_Data(unsigned char IIC_Data)
{
   IIC_Start();
   Write_IIC_Byte(0x78);
   Write_IIC_Byte(0x40);			//write data
   Write_IIC_Byte(IIC_Data);
   IIC_Stop();
}

void OLED_Init(void)
{
	Delayms(50); //这里的延时很重要

	Write_IIC_Command(0xAE); //关显示
	Write_IIC_Command(0x20);	//设置内存寻址模式
	Write_IIC_Command(0x10);	//00，水平寻址模式;01，垂直寻址模式;10，页面寻址模式(重置);11，无效
	Write_IIC_Command(0xb0);	//为页面寻址模式设置页面开始地址，0-7
	Write_IIC_Command(0xc8);	//设置COM输出扫描方向
	Write_IIC_Command(0x00); //---设置低列地址
	Write_IIC_Command(0x10); //---设置高列地址
	Write_IIC_Command(0x40); //--设置起始行地址
	Write_IIC_Command(0x81); //--set contrast control register
	Write_IIC_Command(0xff); //亮度调节 0x00~0xff
	Write_IIC_Command(0xa1); //--设置段重新映射0到127
	Write_IIC_Command(0xa6); //--设置正常显示
	Write_IIC_Command(0xa8); //--设置复用比(1 ~ 64)
	Write_IIC_Command(0x3F); //
	Write_IIC_Command(0xa4); //0xa4,输出遵循RAM内容;0xa5,Output忽略RAM内容
	Write_IIC_Command(0xd3); //-设置显示抵消
	Write_IIC_Command(0x00); //-not offset
	Write_IIC_Command(0xd5); //--设置显示时钟分频/振荡器频率
	Write_IIC_Command(0xf0); //--设置分率
	Write_IIC_Command(0xd9); //--设置pre-charge时期
	Write_IIC_Command(0x22); //
	Write_IIC_Command(0xda); //--设置com大头针硬件配置
	Write_IIC_Command(0x12);
	Write_IIC_Command(0xdb); //--设置vcomh
	Write_IIC_Command(0x20); //0x20,0.77xVcc
	Write_IIC_Command(0x8d); //--设置DC-DC
	Write_IIC_Command(0x14); //--打开电荷泵
	Write_IIC_Command(0xaf); //--打开oled面板
}

void OLED_SetPos(unsigned char x, unsigned char y) //设置起始点坐标
{
	Write_IIC_Command(0xb0+y);
	Write_IIC_Command(((x&0xf0)>>4)|0x10);
	Write_IIC_Command((x&0x0f)|0x01);
}
void OLED_Fill(unsigned char fill_Data)//全屏填充
{
	unsigned char m,n;
	for(m=0;m<8;m++)
	{
		Write_IIC_Command(0xb0+m);		//page0-page1
		Write_IIC_Command(0x00);		//low column start address
		Write_IIC_Command(0x10);		//high column start address
		for(n=0;n<128;n++)
			{
				Write_IIC_Data(fill_Data);
			}
	}
}
void OLED_CLEAR(void)//清屏
{
	OLED_Fill(0x00);
}
//--------------------------------------------------------------
//让OLED休眠 – 休眠模式下,OLED功耗不到10uA
void OLED_OFF(void)
{
	Write_IIC_Command(0X8D);  //设置电荷泵
	Write_IIC_Command(0X10);  //关闭电荷泵
	Write_IIC_Command(0XAE);  //OLED休眠
}
void OLED_ON(void)
{
	Write_IIC_Command(0X8D);  //设置电荷泵
	Write_IIC_Command(0X14);  //打开电荷泵
	Write_IIC_Command(0XAF);  //OLED启动
}

void OLED_ShowChar(unsigned char x,unsigned char y,unsigned char chr)
{
	unsigned char c=0,i=0;

		c=chr-' ';//得到偏移后的值
		if(x>128-1){x=0;y=y+2;}
		OLED_SetPos(x,y);
		for(i=0;i<8;i++)
			Write_IIC_Data(F8X16[c*16+i]);
		OLED_SetPos(x,y+1);
		for(i=0;i<8;i++)
			Write_IIC_Data(F8X16[c*16+i+8]);
}
void OLED_ShowString(unsigned char x,unsigned char y,unsigned char *chr)
{
	unsigned char j=0;
	while (chr[j]!='\0')
	{		OLED_ShowChar(x,y,chr[j]);
			x+=8;
		if(x>120){x=0;y+=2;}
			j++;
	}
}
unsigned long oled_pow(unsigned char m,unsigned char n)
{
	unsigned long result=1;
	while(n--)result*=m;
	return result;
}
void OLED_ShowNum( unsigned char x,unsigned char y,unsigned long num,unsigned char len,unsigned char size2)
{
	unsigned char t,temp;
	unsigned char enshow=0;
	for(t=0;t<len;t++)
	{
		temp=(num/oled_pow(10,len-t-1))%10;
		if(enshow==0&&t<(len-1))
		{
			if(temp==0)
			{
				OLED_ShowChar(x+(size2/2)*t,y,' ');
				continue;
			}else enshow=1;

		}
	 	OLED_ShowChar(x+(size2/2)*t,y,temp+'0');
	}
}
//--------------------------------------------------------------
// Prototype      : void OLED_ShowCN(unsigned char x, unsigned char y, unsigned char N)
// Calls          :
// Parameters     : x,y -- 起始点坐标(x:0~127, y:0~7); N:汉字在codetab.h中的索引
// Description    : 显示codetab.h中的汉字,16*16点阵
//--------------------------------------------------------------

void OLED_ShowCHinese(unsigned char x,unsigned char y,unsigned char no)
{
	unsigned char t,adder=0;
	OLED_SetPos(x,y);
    for(t=0;t<16;t++)
		{
				Write_IIC_Data(F16x16[2*no][t]);
				adder+=1;
     }
		OLED_SetPos(x,y+1);
    for(t=0;t<16;t++)
			{
				Write_IIC_Data(F16x16[2*no+1][t]);
				adder+=1;
      }
}
//--------------------------------------------------------------
// Prototype      : void OLED_DrawBMP(unsigned char x0,unsigned char y0,unsigned char x1,unsigned char y1,unsigned char BMP[]);
// Calls          :
// Parameters     : x0,y0 -- 起始点坐标(x0:0~127, y0:0~7); x1,y1 -- 起点对角线(结束点)的坐标(x1:1~128,y1:1~8)
// Description    : 显示BMP位图
//--------------------------------------------------------------
void OLED_DrawBMP(unsigned char x0,unsigned char y0,unsigned char x1,unsigned char y1,unsigned char BMP[])
{
	unsigned int   j=0;
	unsigned char x,y;

  if(y1%8==0)
		y = y1/8;
  else
		y = y1/8 + 1;
	for(y=y0;y<y1;y++)
	{
		OLED_SetPos(x0,y);
    for(x=x0;x<x1;x++)
		{
			Write_IIC_Data(BMP[j++]);
		}
	}
}

                OLED.h

#ifndef __OLED_H__
#define __OLED_H__
//#include "OLED.H"
//用户调用函数：
void IIC_Start();
void IIC_Stop();
bit Write_IIC_Byte(unsigned char IIC_Byte);
void Write_IIC_Command(unsigned char IIC_Command);
void Write_IIC_Data(unsigned char IIC_Data);
void OLED_Init(void);//OLED初始化
void OLED_SetPos(unsigned char x, unsigned char y); //设置起始点坐标
void OLED_Fill(unsigned char fill_Data);//全屏填充
void OLED_CLEAR(void);//清屏
void OLED_OFF(void);//OLED关
void OLED_ON(void);//OLED开
void OLED_ShowChar(unsigned char x,unsigned char y,unsigned char chr);
void OLED_ShowString(unsigned char x,unsigned char y,unsigned char *chr);
unsigned long oled_pow(unsigned char m,unsigned char n);
void OLED_ShowNum(unsigned char x,unsigned char y,unsigned long num,unsigned char len,unsigned char size2);
void OLED_ShowCHinese(unsigned char x,unsigned char y,unsigned char no);
void OLED_DrawBMP(unsigned char x0,unsigned char y0,unsigned char x1,unsigned char y1,unsigned char BMP[]);

#endif

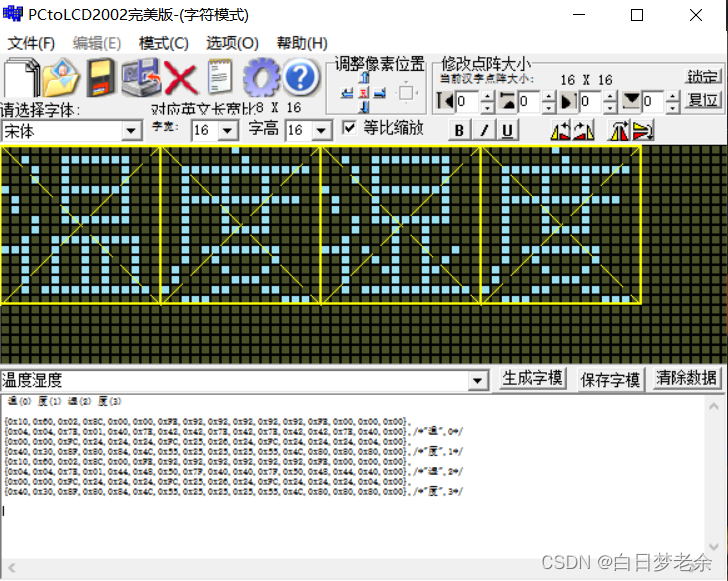

                OLED_Font.h(OLED的字库)

/************************************************************************************
*  Copyright (c), 2013, HelTec Automatic Technology co.,LTD.
*            All rights reserved.
* 1. 128*64点整OLED模块功能演示程序的字表，仅适用所售产品;
* 2. 字表由打包资料中的“取字软件”计算得出;

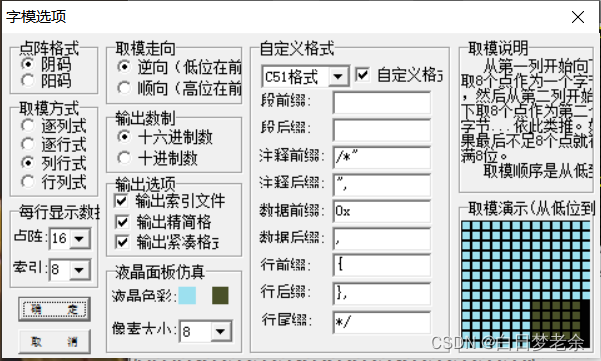

* 3. 取字方式 -- 共阴、列行式、逆向输出
*************************************************************************************/

/***************************16*16的点阵字体取模方式：共阴——列行式——逆向输出*********/
//const unsigned char F16x16[] =
unsigned char code F16x16[][32] =
{

{0x10,0x60,0x02,0x8C,0x00,0x00,0xFE,0x92,0x92,0x92,0x92,0x92,0xFE,0x00,0x00,0x00},
{0x04,0x04,0x7E,0x01,0x40,0x7E,0x42,0x42,0x7E,0x42,0x7E,0x42,0x42,0x7E,0x40,0x00},/*"温",0*/
{0x00,0x00,0xFC,0x24,0x24,0x24,0xFC,0x25,0x26,0x24,0xFC,0x24,0x24,0x24,0x04,0x00},
{0x40,0x30,0x8F,0x80,0x84,0x4C,0x55,0x25,0x25,0x25,0x55,0x4C,0x80,0x80,0x80,0x00},/*"度",1*/
{0x10,0x60,0x02,0x8C,0x00,0xFE,0x92,0x92,0x92,0x92,0x92,0x92,0xFE,0x00,0x00,0x00},
{0x04,0x04,0x7E,0x01,0x44,0x48,0x50,0x7F,0x40,0x40,0x7F,0x50,0x48,0x44,0x40,0x00},/*"湿",2*/
{0x00,0x00,0xFC,0x24,0x24,0x24,0xFC,0x25,0x26,0x24,0xFC,0x24,0x24,0x24,0x04,0x00},
{0x40,0x30,0x8F,0x80,0x84,0x4C,0x55,0x25,0x25,0x25,0x55,0x4C,0x80,0x80,0x80,0x00},/*"度",3*/

};


const unsigned char code F32x24[][48]=	{
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*" ",0*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF0,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x0F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x08,0x1C,0x1C,0x08,0x00,0x00,0x00,0x00,0x00,0x00,/*"!",1*/
0x00,0x00,0x80,0x60,0x30,0x18,0x1C,0x8C,0x60,0x30,0x18,0x1C,0x0C,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*""",2*/
0x00,0x00,0x00,0x00,0x80,0xF0,0x00,0x00,0x00,0x00,0x00,0xC0,0x70,0x00,0x00,0x00,
0x00,0x83,0x83,0x83,0xFF,0x83,0x83,0x83,0x83,0x83,0x83,0xFF,0x83,0x83,0x83,0x00,
0x00,0x01,0x01,0x1F,0x03,0x01,0x01,0x01,0x01,0x01,0x1F,0x01,0x01,0x01,0x01,0x00,/*"#",3*/
0x00,0x00,0x00,0xC0,0xC0,0x20,0x20,0xF8,0xF8,0x10,0x20,0xE0,0xC0,0x00,0x00,0x00,
0x00,0x00,0x00,0x03,0x07,0x0E,0x0C,0xFF,0xFF,0x30,0x61,0xE1,0xC1,0x00,0x00,0x00,
0x00,0x00,0x07,0x0F,0x0B,0x10,0x10,0x7F,0x7F,0x10,0x08,0x0F,0x07,0x00,0x00,0x00,/*"$",4*/
0x80,0xE0,0x20,0x10,0x10,0xE0,0xC0,0x00,0x00,0x00,0x80,0x60,0x00,0x00,0x00,0x00,
0x03,0x0F,0x10,0x10,0x10,0x1F,0xC7,0x30,0x0C,0xE3,0x20,0x10,0x10,0x60,0xC0,0x00,
0x00,0x00,0x00,0x18,0x04,0x03,0x00,0x00,0x00,0x0F,0x08,0x10,0x10,0x0C,0x07,0x00,/*"%",5*/
0x00,0x00,0x00,0xC0,0x20,0x10,0x10,0x10,0xE0,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0xC0,0x20,0x1F,0x3E,0x78,0xE8,0x86,0x03,0x01,0x08,0xF0,0x10,0x00,0x00,0x00,
0x03,0x07,0x0C,0x18,0x10,0x10,0x11,0x0B,0x0F,0x0E,0x0F,0x18,0x10,0x10,0x08,0x04,/*"&",6*/
0x00,0x00,0x8C,0x4C,0x7C,0x3C,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"'",7*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0xC0,0x30,0x10,0x08,0x04,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFE,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0x07,0x0C,0x10,0x20,0x40,0x00,0x00,/*"(",8*/
0x00,0x00,0x04,0x08,0x10,0x60,0xC0,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x01,0xFF,0x7E,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x40,0x40,0x20,0x10,0x0C,0x07,0x03,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*")",9*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0xC6,0xC6,0x46,0x6C,0x28,0x28,0xFF,0xD7,0x28,0x2C,0x64,0xC6,0xC6,0xC2,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0x03,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"*",10*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0xFF,0x10,0x10,0x10,0x10,0x10,0x10,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"+",11*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x8C,0x4C,0x7C,0x3C,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*",",12*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"-",13*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x08,0x1C,0x1C,0x08,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*".",14*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0x20,0x18,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0x30,0x18,0x06,0x01,0x00,0x00,0x00,0x00,0x00,
0x00,0x40,0x30,0x08,0x06,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"/",15*/
0x00,0x00,0x00,0xC0,0xC0,0x60,0x20,0x10,0x10,0x20,0x20,0xC0,0xC0,0x00,0x00,0x00,
0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0x00,0x00,
0x00,0x00,0x01,0x07,0x0E,0x08,0x10,0x10,0x10,0x10,0x08,0x0E,0x07,0x01,0x00,0x00,/*"0",16*/
0x00,0x00,0x00,0x00,0x00,0x40,0x40,0xE0,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x10,0x10,0x10,0x1F,0x1F,0x18,0x10,0x10,0x10,0x00,0x00,0x00,/*"1",17*/
0x00,0x00,0x80,0xC0,0x20,0x20,0x10,0x10,0x10,0x10,0x20,0x60,0xC0,0x80,0x00,0x00,
0x00,0x00,0x03,0x03,0x03,0x00,0x80,0x40,0x60,0x30,0x18,0x0E,0x07,0x03,0x00,0x00,
0x00,0x00,0x1C,0x1E,0x1A,0x19,0x18,0x18,0x18,0x18,0x18,0x18,0x1C,0x06,0x00,0x00,/*"2",18*/
0x00,0x00,0x80,0xC0,0xA0,0x10,0x10,0x10,0x10,0x20,0x60,0xE0,0xC0,0x00,0x00,0x00,
0x00,0x00,0x00,0x01,0x01,0x00,0x00,0x10,0x18,0x18,0x1C,0x67,0xE3,0x80,0x00,0x00,
0x00,0x00,0x06,0x0F,0x0A,0x10,0x10,0x10,0x10,0x10,0x08,0x0C,0x07,0x03,0x00,0x00,/*"3",19*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0xE0,0xF0,0xF0,0x00,0x00,0x00,0x00,
0x00,0x80,0xC0,0xB0,0x98,0x84,0x82,0x81,0x80,0xFF,0xFF,0xFF,0x80,0x80,0x80,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x10,0x10,0x1F,0x1F,0x1F,0x10,0x10,0x10,0x00,/*"4",20*/
0x00,0x00,0x00,0xE0,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x00,0x00,0x00,
0x00,0x00,0x00,0x1F,0x08,0x08,0x04,0x04,0x04,0x04,0x08,0x18,0xF0,0xE0,0x00,0x00,
0x00,0x00,0x07,0x0F,0x0B,0x10,0x10,0x10,0x10,0x10,0x08,0x0C,0x07,0x03,0x00,0x00,/*"5",21*/
0x00,0x00,0x00,0x80,0xC0,0x20,0x20,0x10,0x10,0x10,0x10,0xE0,0xE0,0x00,0x00,0x00,
0x00,0x00,0xFF,0xFF,0x10,0x08,0x08,0x08,0x04,0x04,0x08,0x18,0xF8,0xF0,0x00,0x00,
0x00,0x00,0x03,0x07,0x0C,0x08,0x10,0x10,0x10,0x10,0x10,0x08,0x07,0x03,0x00,0x00,/*"6",22*/
0x00,0x00,0xC0,0x60,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0xA0,0x60,0x20,0x00,0x00,
0x00,0x00,0x01,0x00,0x00,0x00,0x80,0xE0,0x70,0x0C,0x02,0x01,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x1F,0x1F,0x0C,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"7",23*/
0x00,0x00,0xC0,0xC0,0x20,0x20,0x10,0x10,0x10,0x10,0x20,0x20,0xC0,0x80,0x00,0x00,
0x00,0x00,0xC3,0x67,0x2C,0x1C,0x18,0x18,0x10,0x30,0x38,0x64,0xC7,0x83,0x00,0x00,
0x00,0x03,0x07,0x0C,0x08,0x10,0x10,0x10,0x10,0x10,0x10,0x08,0x0F,0x07,0x00,0x00,/*"8",24*/
0x00,0x00,0xC0,0xC0,0x20,0x20,0x10,0x10,0x10,0x20,0x20,0xE0,0xC0,0x00,0x00,0x00,
0x00,0x07,0x1F,0x3F,0x20,0x60,0x40,0x40,0x40,0x20,0x30,0x98,0xFF,0xFF,0x00,0x00,
0x00,0x00,0x00,0x0C,0x1C,0x10,0x10,0x10,0x10,0x08,0x0C,0x07,0x03,0x00,0x00,0x00,/*"9",25*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x0C,0x0E,0x0C,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x18,0x1C,0x1C,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*":",26*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x0C,0x0C,0x0C,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x18,0x78,0x38,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*";",27*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x80,0x40,0x20,0x30,0x10,0x00,0x00,
0x00,0x00,0x10,0x38,0x2C,0x44,0x82,0x81,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x01,0x02,0x04,0x0C,0x08,0x00,0x00,0x00,/*"<",28*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x40,0x44,0x44,0x44,0x44,0x44,0x44,0x44,0x44,0x44,0x44,0x44,0x44,0x40,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"=",29*/
0x00,0x00,0x10,0x30,0x20,0x40,0x80,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x81,0x82,0x44,0x2C,0x38,0x10,0x00,0x00,
0x00,0x00,0x00,0x08,0x0C,0x04,0x02,0x01,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*">",30*/
0x00,0x00,0xC0,0x60,0x20,0x10,0x10,0x10,0x10,0x10,0x10,0x20,0xE0,0xC0,0x00,0x00,
0x00,0x00,0x03,0x03,0x02,0x00,0x00,0xE0,0x30,0x10,0x18,0x0C,0x0F,0x07,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x18,0x1D,0x1C,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"?",31*/
0x00,0x00,0x00,0x80,0x40,0x20,0x20,0x10,0x10,0x90,0x90,0xA0,0xA0,0xC0,0x80,0x00,
0x00,0x7C,0xFF,0x01,0x00,0xF8,0x1E,0x03,0x01,0xC0,0xFC,0x1F,0x00,0x80,0x7F,0x00,
0x00,0x00,0x03,0x07,0x0C,0x08,0x11,0x11,0x11,0x10,0x11,0x09,0x09,0x04,0x02,0x00,/*"@",32*/
0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0x20,0xF0,0x80,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x80,0x70,0x4E,0x41,0x40,0x41,0x5F,0xFC,0xE0,0x00,0x00,0x00,0x00,
0x10,0x10,0x1C,0x13,0x10,0x00,0x00,0x00,0x00,0x00,0x10,0x1F,0x1F,0x18,0x10,0x00,/*"A",33*/
0x00,0x00,0x20,0xE0,0xE0,0x20,0x20,0x20,0x20,0x20,0x20,0x60,0xC0,0x80,0x00,0x00,
0x00,0x00,0x00,0xFF,0xFF,0x10,0x10,0x10,0x10,0x08,0x18,0x14,0xE7,0xE3,0x80,0x00,
0x10,0x10,0x10,0x1F,0x1F,0x10,0x10,0x10,0x10,0x10,0x10,0x08,0x0F,0x07,0x03,0x00,/*"B",34*/
0x00,0x00,0x00,0xC0,0xC0,0x20,0x20,0x10,0x10,0x10,0x10,0x20,0x20,0xE0,0x80,0x00,
0x00,0xFC,0xFF,0x87,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x00,
0x00,0x00,0x03,0x07,0x0C,0x08,0x10,0x10,0x10,0x10,0x10,0x08,0x08,0x06,0x01,0x00,/*"C",35*/
0x00,0x00,0x20,0xE0,0xE0,0x20,0x20,0x20,0x20,0x20,0x20,0xC0,0xC0,0x80,0x00,0x00,
0x00,0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0x7E,0x00,
0x00,0x10,0x10,0x1F,0x1F,0x10,0x10,0x10,0x10,0x08,0x08,0x06,0x07,0x03,0x00,0x00,/*"D",36*/
0x00,0x00,0x20,0xE0,0xE0,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x60,0x80,0x00,
0x00,0x00,0x00,0xFF,0xFF,0x10,0x10,0x10,0x10,0x10,0x18,0x7E,0x00,0x00,0x00,0x00,
0x00,0x10,0x10,0x1F,0x1F,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x18,0x1C,0x02,0x00,/*"E",37*/
0x00,0x00,0x20,0xE0,0xE0,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x60,0xC0,0x00,
0x00,0x00,0x00,0xFF,0xFF,0x10,0x10,0x10,0x10,0x10,0x10,0x7C,0x00,0x00,0x00,0x00,
0x00,0x10,0x10,0x1F,0x1F,0x10,0x10,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"F",38*/
0x00,0x00,0x80,0xC0,0x60,0x20,0x20,0x10,0x10,0x10,0x20,0x60,0xF0,0x00,0x00,0x00,
0x00,0xFE,0xFF,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x20,0xC0,0xC0,0x41,0x00,0x00,
0x00,0x00,0x03,0x07,0x0C,0x08,0x10,0x10,0x10,0x10,0x10,0x0F,0x0F,0x00,0x00,0x00,/*"G",39*/
0x00,0x00,0xE0,0xE0,0x20,0x00,0x00,0x00,0x00,0x00,0x00,0x20,0xE0,0xE0,0x00,0x00,
0x00,0x00,0xFF,0xFF,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0xFF,0xFF,0x00,0x00,
0x10,0x10,0x1F,0x1F,0x10,0x10,0x00,0x00,0x00,0x00,0x10,0x10,0x1F,0x1F,0x10,0x00,/*"H",40*/
0x00,0x00,0x00,0x00,0x20,0x20,0x20,0xE0,0xE0,0x20,0x20,0x20,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x10,0x10,0x10,0x10,0x1F,0x1F,0x10,0x10,0x10,0x10,0x00,0x00,0x00,/*"I",41*/
0x00,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x20,0xE0,0xE0,0x20,0x20,0x20,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,
0x00,0x60,0x60,0xE0,0x80,0x80,0x80,0x40,0x40,0x3F,0x1F,0x00,0x00,0x00,0x00,0x00,/*"J",42*/
0x00,0x00,0x20,0xE0,0xE0,0x20,0x00,0x00,0x00,0x00,0xE0,0x60,0x20,0x20,0x00,0x00,
0x00,0x00,0x00,0xFF,0xFF,0x10,0x08,0x1C,0x7A,0xE1,0x80,0x00,0x00,0x00,0x00,0x00,
0x00,0x10,0x10,0x1F,0x1F,0x10,0x10,0x00,0x00,0x00,0x13,0x1F,0x1C,0x18,0x10,0x00,/*"K",43*/
0x00,0x00,0x20,0xE0,0xE0,0x20,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x10,0x10,0x1F,0x1F,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x18,0x1C,0x06,0x00,/*"L",44*/
0x00,0x20,0xE0,0xE0,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0xE0,0xE0,0x20,0x00,
0x00,0x00,0xFF,0x01,0x1F,0xFC,0xC0,0x00,0xC0,0x38,0x07,0x00,0xFF,0xFF,0x00,0x00,
0x10,0x10,0x1F,0x10,0x00,0x00,0x0F,0x1E,0x01,0x00,0x10,0x10,0x1F,0x1F,0x10,0x10,/*"M",45*/
0x00,0x20,0xE0,0x60,0xE0,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x20,0xE0,0x20,0x00,
0x00,0x00,0xFF,0x00,0x00,0x03,0x07,0x1E,0x38,0xF0,0xC0,0x80,0x00,0xFF,0x00,0x00,
0x10,0x10,0x1F,0x10,0x10,0x00,0x00,0x00,0x00,0x00,0x01,0x07,0x0E,0x1F,0x00,0x00,/*"N",46*/
0x00,0x00,0x80,0xC0,0x60,0x20,0x10,0x10,0x10,0x10,0x20,0x60,0xC0,0x80,0x00,0x00,
0x00,0x7C,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0xFF,0xFE,0x00,
0x00,0x00,0x03,0x07,0x0C,0x08,0x10,0x10,0x10,0x10,0x08,0x08,0x07,0x03,0x00,0x00,/*"O",47*/
0x00,0x00,0x20,0xE0,0xE0,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0xE0,0xC0,0x80,0x00,
0x00,0x00,0x00,0xFF,0xFF,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x0C,0x0F,0x03,0x00,
0x00,0x10,0x10,0x1F,0x1F,0x10,0x10,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"P",48*/
0x00,0x00,0x80,0xC0,0x60,0x20,0x10,0x10,0x10,0x10,0x20,0x60,0xC0,0x80,0x00,0x00,
0x00,0xFE,0xFF,0x83,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x83,0xFF,0xFE,0x00,
0x00,0x00,0x03,0x07,0x0E,0x09,0x11,0x11,0x13,0x1E,0x3C,0x7C,0x67,0x23,0x00,0x00,/*"Q",49*/
0x00,0x00,0x20,0xE0,0xE0,0x20,0x20,0x20,0x20,0x20,0x20,0x60,0xE0,0xC0,0x00,0x00,
0x00,0x00,0x00,0xFF,0xFF,0x10,0x10,0x10,0x30,0xF0,0xC8,0x0C,0x07,0x03,0x00,0x00,
0x00,0x10,0x10,0x1F,0x1F,0x10,0x10,0x00,0x00,0x00,0x03,0x0F,0x1C,0x10,0x10,0x00,/*"R",50*/
0x00,0x00,0xC0,0x60,0x20,0x10,0x10,0x10,0x10,0x10,0x20,0x60,0xE0,0x00,0x00,0x00,
0x00,0x00,0x07,0x06,0x0C,0x08,0x18,0x18,0x10,0x30,0x30,0x60,0xE0,0x80,0x00,0x00,
0x00,0x01,0x1E,0x0C,0x08,0x10,0x10,0x10,0x10,0x10,0x10,0x08,0x0F,0x03,0x00,0x00,/*"S",51*/
0x00,0xC0,0x60,0x20,0x20,0x20,0x20,0xE0,0xE0,0x20,0x20,0x20,0x20,0x60,0x80,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x10,0x10,0x1F,0x1F,0x10,0x10,0x00,0x00,0x00,0x00,0x00,/*"T",52*/
0x00,0x20,0xE0,0xE0,0x20,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0x20,0x00,0x00,
0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,
0x00,0x00,0x03,0x0F,0x0C,0x10,0x10,0x10,0x10,0x10,0x08,0x08,0x07,0x00,0x00,0x00,/*"U",53*/
0x00,0x20,0x20,0xE0,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0x20,0x00,0x00,
0x00,0x00,0x00,0x03,0x1F,0xFE,0xF0,0x00,0x00,0xE0,0x18,0x07,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x07,0x1F,0x07,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"V",54*/
0x00,0x20,0xE0,0xA0,0x00,0x00,0x00,0xE0,0xE0,0x00,0x00,0x00,0x00,0xE0,0x20,0x00,
0x00,0x00,0x07,0xFF,0xF0,0x00,0xF0,0x0E,0x1F,0xFE,0xC0,0xC0,0x3C,0x03,0x00,0x00,
0x00,0x00,0x00,0x00,0x1F,0x0F,0x00,0x00,0x00,0x03,0x1F,0x03,0x00,0x00,0x00,0x00,/*"W",55*/
0x00,0x00,0x20,0x60,0xE0,0x80,0x00,0x00,0x00,0x00,0x00,0xE0,0x20,0x20,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x03,0xCF,0x3C,0x78,0xE6,0x81,0x00,0x00,0x00,0x00,0x00,
0x00,0x10,0x10,0x18,0x16,0x11,0x00,0x00,0x00,0x01,0x13,0x1F,0x1C,0x18,0x10,0x00,/*"X",56*/
0x00,0x00,0x20,0xE0,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,0xA0,0x60,0x20,0x00,0x00,
0x00,0x00,0x00,0x00,0x03,0x0F,0x3C,0xF0,0xE0,0x18,0x06,0x01,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x10,0x10,0x1F,0x1F,0x10,0x10,0x00,0x00,0x00,0x00,0x00,/*"Y",57*/
0x00,0x00,0xC0,0x60,0x20,0x20,0x20,0x20,0x20,0x20,0xA0,0xE0,0xE0,0x20,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0xC0,0xE0,0x70,0x1C,0x0E,0x03,0x01,0x00,0x00,0x00,0x00,
0x00,0x10,0x18,0x1E,0x17,0x11,0x10,0x10,0x10,0x10,0x10,0x18,0x18,0x0E,0x00,0x00,/*"Z",58*/
0x00,0x00,0x00,0x00,0x00,0x00,0xFC,0xFC,0x04,0x04,0x04,0x04,0x04,0x04,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x7F,0x7F,0x40,0x40,0x40,0x40,0x40,0x40,0x00,0x00,/*"[",59*/
0x00,0x00,0x00,0x30,0xE0,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x01,0x07,0x1C,0x70,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x07,0x1C,0x70,0xC0,0x00,0x00,/*"\",60*/
0x00,0x00,0x04,0x04,0x04,0x04,0x04,0x04,0xFC,0xFC,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x40,0x40,0x40,0x40,0x40,0x40,0x7F,0x7F,0x00,0x00,0x00,0x00,0x00,0x00,/*"]",61*/
0x00,0x00,0x00,0x00,0x08,0x08,0x04,0x04,0x04,0x04,0x08,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"^",62*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,/*"_",63*/
0x00,0x00,0x00,0x00,0x04,0x04,0x04,0x08,0x08,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"`",64*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x18,0x98,0x84,0x84,0x44,0x44,0x44,0x44,0x44,0xF8,0xF0,0x00,0x00,0x00,
0x00,0x06,0x0F,0x0F,0x10,0x10,0x10,0x10,0x10,0x08,0x08,0x0F,0x1F,0x10,0x08,0x00,/*"a",65*/
0x00,0x00,0x20,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0xFF,0x30,0x08,0x04,0x04,0x04,0x04,0x04,0x0C,0xF8,0xF0,0x00,0x00,
0x00,0x00,0x00,0x0F,0x0C,0x08,0x10,0x10,0x10,0x10,0x10,0x08,0x07,0x03,0x00,0x00,/*"b",66*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0xE0,0xF0,0x18,0x0C,0x04,0x04,0x04,0x04,0x04,0x18,0x18,0x00,0x00,0x00,
0x00,0x00,0x03,0x07,0x0C,0x08,0x10,0x10,0x10,0x10,0x10,0x08,0x0C,0x02,0x00,0x00,/*"c",67*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0xE0,0xF0,0x00,0x00,0x00,
0x00,0x00,0xE0,0xF0,0x18,0x0C,0x04,0x04,0x04,0x04,0x08,0xFF,0xFF,0x00,0x00,0x00,
0x00,0x00,0x03,0x07,0x0C,0x08,0x10,0x10,0x10,0x08,0x08,0x1F,0x0F,0x08,0x08,0x00,/*"d",68*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0xE0,0xF0,0x98,0x84,0x84,0x84,0x84,0x84,0x84,0x88,0x78,0x70,0x00,0x00,
0x00,0x00,0x03,0x07,0x0C,0x08,0x10,0x10,0x10,0x10,0x10,0x08,0x04,0x00,0x00,0x00,/*"e",69*/
0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0x60,0x20,0x20,0x20,0x20,0x20,0x60,0x60,0x00,
0x00,0x00,0x04,0x04,0x04,0x04,0xFF,0x04,0x04,0x04,0x04,0x04,0x04,0x00,0x00,0x00,
0x00,0x00,0x10,0x10,0x10,0x10,0x1F,0x10,0x10,0x10,0x10,0x10,0x00,0x00,0x00,0x00,/*"f",70*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x70,0xD8,0x04,0x04,0x04,0x04,0x04,0x88,0xF8,0x24,0x0C,0x0C,0x00,
0x00,0x00,0x70,0x56,0x8D,0x85,0x8D,0x8D,0x8D,0x89,0x88,0x88,0x78,0x70,0x00,0x00,/*"g",71*/
0x00,0x00,0x10,0xF0,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0xFF,0xFF,0x08,0x04,0x04,0x04,0x04,0x04,0xFC,0xF8,0x00,0x00,0x00,
0x00,0x10,0x10,0x1F,0x1F,0x10,0x00,0x00,0x00,0x00,0x10,0x1F,0x1F,0x10,0x10,0x00,/*"h",72*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x70,0x70,0x20,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x04,0x04,0x04,0x04,0xFC,0xFC,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x10,0x10,0x10,0x10,0x1F,0x1F,0x10,0x10,0x10,0x10,0x00,0x00,0x00,/*"i",73*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x60,0x70,0x20,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0x04,0x04,0x04,0xFC,0x00,0x00,0x00,0x00,
0x00,0x00,0x40,0xC0,0xC0,0x80,0x80,0x80,0x80,0x80,0x60,0x3F,0x00,0x00,0x00,0x00,/*"j",74*/
0x00,0x00,0x10,0xF0,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0xFF,0xFF,0x80,0x40,0x60,0xE0,0x94,0x0C,0x04,0x04,0x04,0x00,0x00,
0x00,0x10,0x10,0x1F,0x1F,0x10,0x00,0x00,0x00,0x03,0x17,0x1C,0x18,0x10,0x10,0x00,/*"k",75*/
0x00,0x00,0x00,0x00,0x10,0x10,0x10,0xF0,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x10,0x10,0x10,0x10,0x1F,0x1F,0x10,0x10,0x10,0x10,0x00,0x00,0x00,/*"l",76*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x04,0x04,0xFC,0x08,0x04,0x04,0x04,0xFC,0xF8,0x08,0x04,0x04,0x04,0xFC,0xF8,0x00,
0x10,0x10,0x1F,0x10,0x10,0x00,0x10,0x1F,0x1F,0x10,0x00,0x00,0x10,0x1F,0x1F,0x10,/*"m",77*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x04,0x04,0xFC,0xFC,0x08,0x04,0x04,0x04,0x04,0x04,0xFC,0xF8,0x00,0x00,0x00,
0x00,0x10,0x10,0x1F,0x1F,0x10,0x00,0x00,0x00,0x00,0x10,0x1F,0x1F,0x10,0x10,0x00,/*"n",78*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0xE0,0xF8,0x08,0x04,0x04,0x04,0x04,0x04,0x04,0x08,0xF8,0xF0,0x00,0x00,
0x00,0x00,0x03,0x07,0x08,0x10,0x10,0x10,0x10,0x10,0x10,0x08,0x07,0x03,0x00,0x00,/*"o",79*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x04,0x04,0xFC,0xFC,0x08,0x04,0x04,0x04,0x04,0x04,0x08,0xF8,0xF0,0x00,0x00,
0x00,0x00,0x80,0xFF,0xFF,0x88,0x10,0x10,0x10,0x10,0x08,0x08,0x0F,0x07,0x00,0x00,/*"p",80*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0xF0,0xF8,0x08,0x04,0x04,0x04,0x04,0x04,0x08,0xF8,0xFC,0x00,0x00,0x00,
0x00,0x00,0x07,0x0F,0x08,0x10,0x10,0x10,0x10,0x10,0x88,0xFF,0xFF,0x80,0x00,0x00,/*"q",81*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x04,0x04,0x04,0x04,0xFC,0x20,0x10,0x08,0x04,0x04,0x04,0x0C,0x0C,0x08,0x00,
0x00,0x10,0x10,0x10,0x10,0x1F,0x10,0x10,0x10,0x10,0x00,0x00,0x00,0x00,0x00,0x00,/*"r",82*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x30,0x78,0x44,0x44,0xC4,0x84,0x84,0x84,0x8C,0x1C,0x00,0x00,0x00,
0x00,0x00,0x00,0x1C,0x08,0x10,0x10,0x10,0x10,0x10,0x11,0x09,0x0F,0x06,0x00,0x00,/*"s",83*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x04,0x04,0x04,0x06,0xFF,0xFF,0x04,0x04,0x04,0x04,0x04,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x0F,0x0F,0x10,0x10,0x10,0x08,0x08,0x04,0x00,0x00,/*"t",84*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x04,0x04,0xFC,0x00,0x00,0x00,0x00,0x00,0x04,0x04,0xFC,0xFC,0x00,0x00,0x00,
0x00,0x00,0x00,0x0F,0x0C,0x18,0x10,0x10,0x10,0x08,0x08,0x1F,0x0F,0x08,0x08,0x00,/*"u",85*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x04,0x04,0x0C,0x7C,0xE4,0x84,0x00,0x00,0x00,0xC4,0x34,0x0C,0x04,0x04,0x00,
0x00,0x00,0x00,0x00,0x00,0x01,0x07,0x1E,0x0C,0x03,0x00,0x00,0x00,0x00,0x00,0x00,/*"v",86*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x04,0x04,0x3C,0xF4,0x84,0x00,0x84,0x7C,0xFC,0xC4,0x00,0x00,0xE4,0x1C,0x04,0x04,
0x00,0x00,0x00,0x01,0x0F,0x1C,0x03,0x00,0x00,0x07,0x1E,0x07,0x00,0x00,0x00,0x00,/*"w",87*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x04,0x04,0x0C,0x1C,0x34,0xE0,0xC0,0x24,0x14,0x0C,0x04,0x04,0x00,0x00,
0x00,0x10,0x10,0x18,0x1C,0x16,0x01,0x00,0x01,0x13,0x16,0x1C,0x18,0x10,0x10,0x00,/*"x",88*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x04,0x04,0x0C,0x3C,0xF4,0xC4,0x00,0x00,0x00,0xE4,0x3C,0x0C,0x04,0x04,0x00,
0x00,0x00,0x80,0xC0,0x80,0x80,0x43,0x3F,0x0C,0x03,0x00,0x00,0x00,0x00,0x00,0x00,/*"y",89*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x10,0x0C,0x04,0x04,0x84,0xC4,0x64,0x34,0x1C,0x0C,0x04,0x00,0x00,0x00,
0x00,0x00,0x10,0x18,0x1C,0x17,0x13,0x10,0x10,0x10,0x10,0x18,0x1C,0x02,0x00,0x00,/*"z",90*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0xF8,0x04,0x04,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x18,0xEF,0xC7,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0x3F,0x40,0x40,0x40,0x00,0x00,/*"{",91*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"|",92*/
0x00,0x00,0x00,0x04,0x04,0xF8,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0xC7,0xEF,0x18,0x10,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x40,0x40,0x40,0x3F,0x07,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"}",93*/
0x00,0x08,0x04,0x02,0x02,0x02,0x02,0x04,0x0C,0x18,0x10,0x10,0x10,0x08,0x04,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"~",94*/
};
/************************************6*8的点阵************************************/
const unsigned char code F6x8[][6] =
{
0x00, 0x00, 0x00, 0x00, 0x00, 0x00,// sp
0x00, 0x00, 0x00, 0x2f, 0x00, 0x00,// !
0x00, 0x00, 0x07, 0x00, 0x07, 0x00,// "
0x00, 0x14, 0x7f, 0x14, 0x7f, 0x14,// #
0x00, 0x24, 0x2a, 0x7f, 0x2a, 0x12,// $
0x00, 0x62, 0x64, 0x08, 0x13, 0x23,// %
0x00, 0x36, 0x49, 0x55, 0x22, 0x50,// &
0x00, 0x00, 0x05, 0x03, 0x00, 0x00,// '
0x00, 0x00, 0x1c, 0x22, 0x41, 0x00,// (
0x00, 0x00, 0x41, 0x22, 0x1c, 0x00,// )
0x00, 0x14, 0x08, 0x3E, 0x08, 0x14,// *
0x00, 0x08, 0x08, 0x3E, 0x08, 0x08,// +
0x00, 0x00, 0x00, 0xA0, 0x60, 0x00,// ,
0x00, 0x08, 0x08, 0x08, 0x08, 0x08,// -
0x00, 0x00, 0x60, 0x60, 0x00, 0x00,// .
0x00, 0x20, 0x10, 0x08, 0x04, 0x02,// /
0x00, 0x3E, 0x51, 0x49, 0x45, 0x3E,// 0
0x00, 0x00, 0x42, 0x7F, 0x40, 0x00,// 1
0x00, 0x42, 0x61, 0x51, 0x49, 0x46,// 2
0x00, 0x21, 0x41, 0x45, 0x4B, 0x31,// 3
0x00, 0x18, 0x14, 0x12, 0x7F, 0x10,// 4
0x00, 0x27, 0x45, 0x45, 0x45, 0x39,// 5
0x00, 0x3C, 0x4A, 0x49, 0x49, 0x30,// 6
0x00, 0x01, 0x71, 0x09, 0x05, 0x03,// 7
0x00, 0x36, 0x49, 0x49, 0x49, 0x36,// 8
0x00, 0x06, 0x49, 0x49, 0x29, 0x1E,// 9
0x00, 0x00, 0x36, 0x36, 0x00, 0x00,// :
0x00, 0x00, 0x56, 0x36, 0x00, 0x00,// ;
0x00, 0x08, 0x14, 0x22, 0x41, 0x00,// <
0x00, 0x14, 0x14, 0x14, 0x14, 0x14,// =
0x00, 0x00, 0x41, 0x22, 0x14, 0x08,// >
0x00, 0x02, 0x01, 0x51, 0x09, 0x06,// ?
0x00, 0x32, 0x49, 0x59, 0x51, 0x3E,// @
0x00, 0x7C, 0x12, 0x11, 0x12, 0x7C,// A
0x00, 0x7F, 0x49, 0x49, 0x49, 0x36,// B
0x00, 0x3E, 0x41, 0x41, 0x41, 0x22,// C
0x00, 0x7F, 0x41, 0x41, 0x22, 0x1C,// D
0x00, 0x7F, 0x49, 0x49, 0x49, 0x41,// E
0x00, 0x7F, 0x09, 0x09, 0x09, 0x01,// F
0x00, 0x3E, 0x41, 0x49, 0x49, 0x7A,// G
0x00, 0x7F, 0x08, 0x08, 0x08, 0x7F,// H
0x00, 0x00, 0x41, 0x7F, 0x41, 0x00,// I
0x00, 0x20, 0x40, 0x41, 0x3F, 0x01,// J
0x00, 0x7F, 0x08, 0x14, 0x22, 0x41,// K
0x00, 0x7F, 0x40, 0x40, 0x40, 0x40,// L
0x00, 0x7F, 0x02, 0x0C, 0x02, 0x7F,// M
0x00, 0x7F, 0x04, 0x08, 0x10, 0x7F,// N
0x00, 0x3E, 0x41, 0x41, 0x41, 0x3E,// O
0x00, 0x7F, 0x09, 0x09, 0x09, 0x06,// P
0x00, 0x3E, 0x41, 0x51, 0x21, 0x5E,// Q
0x00, 0x7F, 0x09, 0x19, 0x29, 0x46,// R
0x00, 0x46, 0x49, 0x49, 0x49, 0x31,// S
0x00, 0x01, 0x01, 0x7F, 0x01, 0x01,// T
0x00, 0x3F, 0x40, 0x40, 0x40, 0x3F,// U
0x00, 0x1F, 0x20, 0x40, 0x20, 0x1F,// V
0x00, 0x3F, 0x40, 0x38, 0x40, 0x3F,// W
0x00, 0x63, 0x14, 0x08, 0x14, 0x63,// X
0x00, 0x07, 0x08, 0x70, 0x08, 0x07,// Y
0x00, 0x61, 0x51, 0x49, 0x45, 0x43,// Z
0x00, 0x00, 0x7F, 0x41, 0x41, 0x00,// [
0x00, 0x55, 0x2A, 0x55, 0x2A, 0x55,// 55
0x00, 0x00, 0x41, 0x41, 0x7F, 0x00,// ]
0x00, 0x04, 0x02, 0x01, 0x02, 0x04,// ^
0x00, 0x40, 0x40, 0x40, 0x40, 0x40,// _
0x00, 0x00, 0x01, 0x02, 0x04, 0x00,// '
0x00, 0x20, 0x54, 0x54, 0x54, 0x78,// a
0x00, 0x7F, 0x48, 0x44, 0x44, 0x38,// b
0x00, 0x38, 0x44, 0x44, 0x44, 0x20,// c
0x00, 0x38, 0x44, 0x44, 0x48, 0x7F,// d
0x00, 0x38, 0x54, 0x54, 0x54, 0x18,// e
0x00, 0x08, 0x7E, 0x09, 0x01, 0x02,// f
0x00, 0x18, 0xA4, 0xA4, 0xA4, 0x7C,// g
0x00, 0x7F, 0x08, 0x04, 0x04, 0x78,// h
0x00, 0x00, 0x44, 0x7D, 0x40, 0x00,// i
0x00, 0x40, 0x80, 0x84, 0x7D, 0x00,// j
0x00, 0x7F, 0x10, 0x28, 0x44, 0x00,// k
0x00, 0x00, 0x41, 0x7F, 0x40, 0x00,// l
0x00, 0x7C, 0x04, 0x18, 0x04, 0x78,// m
0x00, 0x7C, 0x08, 0x04, 0x04, 0x78,// n
0x00, 0x38, 0x44, 0x44, 0x44, 0x38,// o
0x00, 0xFC, 0x24, 0x24, 0x24, 0x18,// p
0x00, 0x18, 0x24, 0x24, 0x18, 0xFC,// q
0x00, 0x7C, 0x08, 0x04, 0x04, 0x08,// r
0x00, 0x48, 0x54, 0x54, 0x54, 0x20,// s
0x00, 0x04, 0x3F, 0x44, 0x40, 0x20,// t
0x00, 0x3C, 0x40, 0x40, 0x20, 0x7C,// u
0x00, 0x1C, 0x20, 0x40, 0x20, 0x1C,// v
0x00, 0x3C, 0x40, 0x30, 0x40, 0x3C,// w
0x00, 0x44, 0x28, 0x10, 0x28, 0x44,// x
0x00, 0x1C, 0xA0, 0xA0, 0xA0, 0x7C,// y
0x00, 0x44, 0x64, 0x54, 0x4C, 0x44,// z
0x14, 0x14, 0x14, 0x14, 0x14, 0x14,// horiz lines
};


/****************************************8*16的点阵************************************/
const unsigned char code F8X16[]=
{
  0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,// 0
  0x00,0x20,0x20,0x30,0xF8,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,0x0F,0x0F,0x00,0x00,//! 1
  0x00,0x10,0x0C,0x06,0x10,0x0C,0x06,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//" 2
  0x40,0xC0,0x78,0x40,0xC0,0x78,0x40,0x00,0x04,0x3F,0x04,0x04,0x3F,0x04,0x04,0x00,//# 3
  0x00,0x70,0x88,0xFC,0x08,0x30,0x00,0x00,0x00,0x18,0x20,0xFF,0x21,0x1E,0x00,0x00,//$ 4
  0xF0,0x08,0xF0,0x00,0xE0,0x18,0x00,0x00,0x00,0x21,0x1C,0x03,0x1E,0x21,0x1E,0x00,//% 5
  0x00,0xF0,0x08,0x88,0x70,0x00,0x00,0x00,0x1E,0x21,0x23,0x24,0x19,0x27,0x21,0x10,//& 6
  0x10,0x16,0x0E,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//' 7
  0x00,0x00,0x00,0xE0,0x18,0x04,0x02,0x00,0x00,0x00,0x00,0x07,0x18,0x20,0x40,0x00,//( 8
  0x00,0x02,0x04,0x18,0xE0,0x00,0x00,0x00,0x00,0x40,0x20,0x18,0x07,0x00,0x00,0x00,//) 9
  0x40,0x40,0x80,0xF0,0x80,0x40,0x40,0x00,0x02,0x02,0x01,0x0F,0x01,0x02,0x02,0x00,//* 10
  0x00,0x00,0x00,0xF0,0x00,0x00,0x00,0x00,0x01,0x01,0x01,0x1F,0x01,0x01,0x01,0x00,//+ 11
  0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0xB0,0x70,0x00,0x00,0x00,0x00,0x00,//, 12
  0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x01,0x01,0x01,0x01,0x01,0x01,//- 13
  0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x30,0x00,0x00,0x00,0x00,0x00,//. 14
  0x00,0x00,0x00,0x00,0x80,0x60,0x18,0x04,0x00,0x60,0x18,0x06,0x01,0x00,0x00,0x00,/// 15
  0x00,0xE0,0x10,0x08,0x08,0x10,0xE0,0x00,0x00,0x0F,0x10,0x20,0x20,0x10,0x0F,0x00,//0 16
  0x00,0x10,0x10,0xF8,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//1 17
  0x00,0x70,0x08,0x08,0x08,0x88,0x70,0x00,0x00,0x30,0x28,0x24,0x22,0x21,0x30,0x00,//2 18
  0x00,0x30,0x08,0x88,0x88,0x48,0x30,0x00,0x00,0x18,0x20,0x20,0x20,0x11,0x0E,0x00,//3 19
  0x00,0x00,0xC0,0x20,0x10,0xF8,0x00,0x00,0x00,0x07,0x04,0x24,0x24,0x3F,0x24,0x00,//4 20
  0x00,0xF8,0x08,0x88,0x88,0x08,0x08,0x00,0x00,0x19,0x21,0x20,0x20,0x11,0x0E,0x00,//5 21
  0x00,0xE0,0x10,0x88,0x88,0x18,0x00,0x00,0x00,0x0F,0x11,0x20,0x20,0x11,0x0E,0x00,//6 22
  0x00,0x38,0x08,0x08,0xC8,0x38,0x08,0x00,0x00,0x00,0x00,0x3F,0x00,0x00,0x00,0x00,//7 23
  0x00,0x70,0x88,0x08,0x08,0x88,0x70,0x00,0x00,0x1C,0x22,0x21,0x21,0x22,0x1C,0x00,//8 24
  0x00,0xE0,0x10,0x08,0x08,0x10,0xE0,0x00,0x00,0x00,0x31,0x22,0x22,0x11,0x0F,0x00,//9 25
  0x00,0x00,0x00,0xC0,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x30,0x00,0x00,0x00,//: 26
  0x00,0x00,0x00,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x60,0x00,0x00,0x00,0x00,//; 27
  0x00,0x00,0x80,0x40,0x20,0x10,0x08,0x00,0x00,0x01,0x02,0x04,0x08,0x10,0x20,0x00,//< 28
  0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x00,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x00,//= 29
  0x00,0x08,0x10,0x20,0x40,0x80,0x00,0x00,0x00,0x20,0x10,0x08,0x04,0x02,0x01,0x00,//> 30
  0x00,0x70,0x48,0x08,0x08,0x08,0xF0,0x00,0x00,0x00,0x00,0x30,0x36,0x01,0x00,0x00,//? 31
  0xC0,0x30,0xC8,0x28,0xE8,0x10,0xE0,0x00,0x07,0x18,0x27,0x24,0x23,0x14,0x0B,0x00,//@ 32
  0x00,0x00,0xC0,0x38,0xE0,0x00,0x00,0x00,0x20,0x3C,0x23,0x02,0x02,0x27,0x38,0x20,//A 33
  0x08,0xF8,0x88,0x88,0x88,0x70,0x00,0x00,0x20,0x3F,0x20,0x20,0x20,0x11,0x0E,0x00,//B 34
  0xC0,0x30,0x08,0x08,0x08,0x08,0x38,0x00,0x07,0x18,0x20,0x20,0x20,0x10,0x08,0x00,//C 35
  0x08,0xF8,0x08,0x08,0x08,0x10,0xE0,0x00,0x20,0x3F,0x20,0x20,0x20,0x10,0x0F,0x00,//D 36
  0x08,0xF8,0x88,0x88,0xE8,0x08,0x10,0x00,0x20,0x3F,0x20,0x20,0x23,0x20,0x18,0x00,//E 37
  0x08,0xF8,0x88,0x88,0xE8,0x08,0x10,0x00,0x20,0x3F,0x20,0x00,0x03,0x00,0x00,0x00,//F 38
  0xC0,0x30,0x08,0x08,0x08,0x38,0x00,0x00,0x07,0x18,0x20,0x20,0x22,0x1E,0x02,0x00,//G 39
  0x08,0xF8,0x08,0x00,0x00,0x08,0xF8,0x08,0x20,0x3F,0x21,0x01,0x01,0x21,0x3F,0x20,//H 40
  0x00,0x08,0x08,0xF8,0x08,0x08,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//I 41
  0x00,0x00,0x08,0x08,0xF8,0x08,0x08,0x00,0xC0,0x80,0x80,0x80,0x7F,0x00,0x00,0x00,//J 42
  0x08,0xF8,0x88,0xC0,0x28,0x18,0x08,0x00,0x20,0x3F,0x20,0x01,0x26,0x38,0x20,0x00,//K 43
  0x08,0xF8,0x08,0x00,0x00,0x00,0x00,0x00,0x20,0x3F,0x20,0x20,0x20,0x20,0x30,0x00,//L 44
  0x08,0xF8,0xF8,0x00,0xF8,0xF8,0x08,0x00,0x20,0x3F,0x00,0x3F,0x00,0x3F,0x20,0x00,//M 45
  0x08,0xF8,0x30,0xC0,0x00,0x08,0xF8,0x08,0x20,0x3F,0x20,0x00,0x07,0x18,0x3F,0x00,//N 46
  0xE0,0x10,0x08,0x08,0x08,0x10,0xE0,0x00,0x0F,0x10,0x20,0x20,0x20,0x10,0x0F,0x00,//O 47
  0x08,0xF8,0x08,0x08,0x08,0x08,0xF0,0x00,0x20,0x3F,0x21,0x01,0x01,0x01,0x00,0x00,//P 48
  0x00,0x20,0x20,0x30,0xF8,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,0x0F,0x0F,0x00,0x00,//Q 49
  0x08,0xF8,0x88,0x88,0x88,0x88,0x70,0x00,0x20,0x3F,0x20,0x00,0x03,0x0C,0x30,0x20,//R 50
  0x00,0x70,0x88,0x08,0x08,0x08,0x38,0x00,0x00,0x38,0x20,0x21,0x21,0x22,0x1C,0x00,//S 51
  0x18,0x08,0x08,0xF8,0x08,0x08,0x18,0x00,0x00,0x00,0x20,0x3F,0x20,0x00,0x00,0x00,//T 52
  0x08,0xF8,0x08,0x00,0x00,0x08,0xF8,0x08,0x00,0x1F,0x20,0x20,0x20,0x20,0x1F,0x00,//U 53
  0x08,0x78,0x88,0x00,0x00,0xC8,0x38,0x08,0x00,0x00,0x07,0x38,0x0E,0x01,0x00,0x00,//V 54
  0xF8,0x08,0x00,0xF8,0x00,0x08,0xF8,0x00,0x03,0x3C,0x07,0x00,0x07,0x3C,0x03,0x00,//W 55
  0x08,0x18,0x68,0x80,0x80,0x68,0x18,0x08,0x20,0x30,0x2C,0x03,0x03,0x2C,0x30,0x20,//X 56
  0x08,0x38,0xC8,0x00,0xC8,0x38,0x08,0x00,0x00,0x00,0x20,0x3F,0x20,0x00,0x00,0x00,//Y 57
  0x10,0x08,0x08,0x08,0xC8,0x38,0x08,0x00,0x20,0x38,0x26,0x21,0x20,0x20,0x18,0x00,//Z 58
  0x00,0x00,0x00,0xFE,0x02,0x02,0x02,0x00,0x00,0x00,0x00,0x7F,0x40,0x40,0x40,0x00,//[ 59
  0x00,0x0C,0x30,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x06,0x38,0xC0,0x00,//\ 60
  0x00,0x02,0x02,0x02,0xFE,0x00,0x00,0x00,0x00,0x40,0x40,0x40,0x7F,0x00,0x00,0x00,//] 61
  0x00,0x00,0x04,0x02,0x02,0x02,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//^ 62
  0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,//_ 63
  0x00,0x02,0x02,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//` 64
  0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x19,0x24,0x22,0x22,0x22,0x3F,0x20,//a 65
  0x08,0xF8,0x00,0x80,0x80,0x00,0x00,0x00,0x00,0x3F,0x11,0x20,0x20,0x11,0x0E,0x00,//b 66
  0x00,0x00,0x00,0x80,0x80,0x80,0x00,0x00,0x00,0x0E,0x11,0x20,0x20,0x20,0x11,0x00,//c 67
  0x00,0x00,0x00,0x80,0x80,0x88,0xF8,0x00,0x00,0x0E,0x11,0x20,0x20,0x10,0x3F,0x20,//d 68
  0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x1F,0x22,0x22,0x22,0x22,0x13,0x00,//e 69
  0x00,0x80,0x80,0xF0,0x88,0x88,0x88,0x18,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//f 70
  0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x6B,0x94,0x94,0x94,0x93,0x60,0x00,//g 71
  0x08,0xF8,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x3F,0x21,0x00,0x00,0x20,0x3F,0x20,//h 72
  0x00,0x80,0x98,0x98,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//i 73
  0x00,0x00,0x00,0x80,0x98,0x98,0x00,0x00,0x00,0xC0,0x80,0x80,0x80,0x7F,0x00,0x00,//j 74
  0x08,0xF8,0x00,0x00,0x80,0x80,0x80,0x00,0x20,0x3F,0x24,0x02,0x2D,0x30,0x20,0x00,//k 75
  0x00,0x08,0x08,0xF8,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//l 76
  0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x00,0x20,0x3F,0x20,0x00,0x3F,0x20,0x00,0x3F,//m 77
  0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x3F,0x21,0x00,0x00,0x20,0x3F,0x20,//n 78
  0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x1F,0x20,0x20,0x20,0x20,0x1F,0x00,//o 79
  0x80,0x80,0x00,0x80,0x80,0x00,0x00,0x00,0x80,0xFF,0xA1,0x20,0x20,0x11,0x0E,0x00,//p 80
  0x00,0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x0E,0x11,0x20,0x20,0xA0,0xFF,0x80,//q 81
  0x80,0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x20,0x20,0x3F,0x21,0x20,0x00,0x01,0x00,//r 82
  0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x33,0x24,0x24,0x24,0x24,0x19,0x00,//s 83
  0x00,0x80,0x80,0xE0,0x80,0x80,0x00,0x00,0x00,0x00,0x00,0x1F,0x20,0x20,0x00,0x00,//t 84
  0x80,0x80,0x00,0x00,0x00,0x80,0x80,0x00,0x00,0x1F,0x20,0x20,0x20,0x10,0x3F,0x20,//u 85
  0x80,0x80,0x80,0x00,0x00,0x80,0x80,0x80,0x00,0x01,0x0E,0x30,0x08,0x06,0x01,0x00,//v 86
  0x80,0x80,0x00,0x80,0x00,0x80,0x80,0x80,0x0F,0x30,0x0C,0x03,0x0C,0x30,0x0F,0x00,//w 87
  0x00,0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x31,0x2E,0x0E,0x31,0x20,0x00,//x 88
  0x80,0x80,0x80,0x00,0x00,0x80,0x80,0x80,0x80,0x81,0x8E,0x70,0x18,0x06,0x01,0x00,//y 89
  0x00,0x80,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x21,0x30,0x2C,0x22,0x21,0x30,0x00,//z 90
  0x00,0x00,0x00,0x00,0x80,0x7C,0x02,0x02,0x00,0x00,0x00,0x00,0x00,0x3F,0x40,0x40,//{ 91
  0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,//| 92
  0x00,0x02,0x02,0x7C,0x80,0x00,0x00,0x00,0x00,0x40,0x40,0x3F,0x00,0x00,0x00,0x00,//} 93
  0x00,0x06,0x01,0x01,0x02,0x02,0x04,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//~ 94
};

        3.OLED注意事项

                字库中汉字的生成

        要使用PCtoLCD2002这个软件来生成汉字（如图）

                 烧录时单片机内存问题

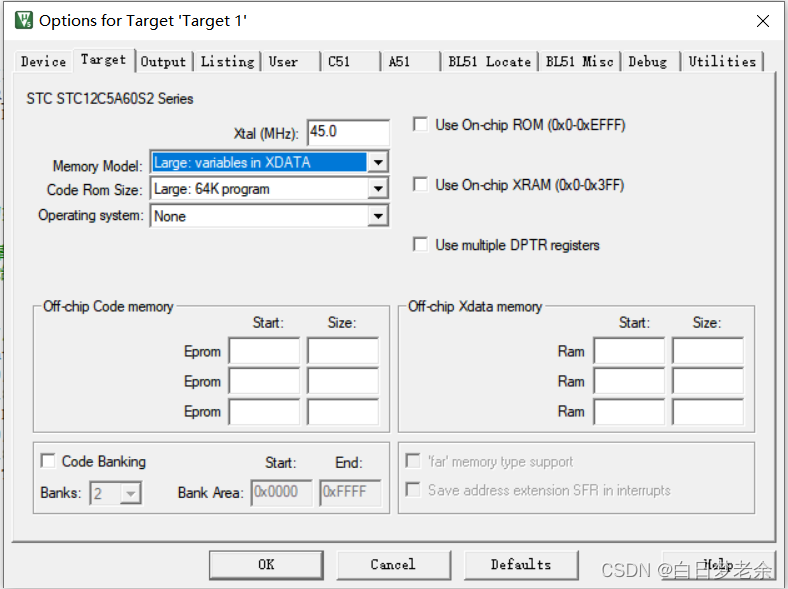

        OLED的字库占用STC12内存是比较大的，可能在烧录时会出现这个情况，建议把这里修改修改（如图）

四、整体工程

         这里附上主函数的代码

        main.c

#include <STC12C5A60S2.H>
#include "Delay.H"
#include "Timer.H"
#include "Uart.H"
#include "dht11.h"
#include "OLED.h"
extern char DHT11_dat[16];   //用于显示的接收数据数组
extern	unsigned int R_H,R_L,T_H,T_L;
extern	unsigned char RH,RL,TH,TL,revise;

void main()
{
	Delaynms(1000);
	OLED_Init();//OLED初始化
	OLED_ON();//OLED开启
	OLED_CLEAR();//OLED清屏
	UartInit();//串口初始化
	while(1)
	{
		DHT11_get_Data();//获取温湿度
		send_buff(DHT11_dat);//串口发送温湿度
		OLED_ShowCHinese(0,0,0);//OLED显示中文 “温”
        OLED_ShowCHinese(18,0,1);//OLED显示中文 “度”
		OLED_ShowNum(50,0,RH,3,15);//OLED显示温度数字
        OLED_ShowCHinese(0,3,2);//OLED显示中文 “湿”
        OLED_ShowCHinese(18,3,3);//OLED显示中文 “度”
		OLED_ShowNum(50,3,TH,3,15);//OLED显示湿度数字
		Delaynms(1000);
	}
}

        效果图

        相关知识点

                extern

        它的作用是，让你的主函数可以使用定义在其他.C文件里的变量，比如在我DHT11.c中定义了这些变量（图1），那我主函数需要使用这些变量应该就这样做（图2）

图1
图2

         但是需要注意，extern后面的变量不能给它赋值，比如extern    unsigned int R_H=1；是不可以的

                数字转字符串

                可到我另外一篇文章的最后部分了解

        https://blog.csdn.net/m0_53413766/article/details/123631532

        整体工程资源和字模取样软件我已上传CSDN：51单片机控制DHT11温湿度传感器，并使用OLED屏幕显示-单片机文档类资源-CSDN下载

白日梦老余
关注
  • 21
    点赞
  • 踩
  • 225
    收藏
    觉得还不错? 一键收藏
  • 打赏
    打赏
  • 7
    评论
基于51的单片机DHT11使用
12-23
基于51的单片机DHT11使用，实现12864显示温度湿度
51单片机 温湿度传感器DHT11
07-25
本文给大家分享了51单片机 温湿度传感器DHT11代码。
51单片机之温湿度检测系统（DTH11、OLED、LCD1602）
weixin_54076783的博客
09-29 1万+
向OLED写入指令0x0x和0x1x，即b（0000 xxxx）或b（0001 xxxx），例如选择第1列时，写入指令0x00，即b（0000 0000）和写入指令0x10即b（0001 0000）。向OLED写入指令0x20后，继续写入指令0x0x，即b（0000 00xx），例如选择页寻址时，写入指令0x02，即b（000 0010）。向OLED写入指令0xBx，即b（1011 0xxx），例如选择Page 3时，写入指令0xB3，即b（1011 0011）。同为低电平时可以写入指令或者显示地址，当。
基于51单片机的温湿度检测系统
最新发布
m0_70988817的博客
04-02 2055
温度的总体趋势是在下降的，所以从时间序列来看，从23日——27日这5天的温度在下降。而从湿度的时间序列来看，23日——27日这5天的湿度都呈现出上升的趋势，注意的是其中湿度达到99.9%的时间点，天气是大雾或者下小雨，这从数据的准确性来看我们的测量温湿度的系统的准确的。从整体柱状图的呈现来看，温度和湿度呈负相关，即温度越高，湿度越低，而且不难看出这5天湿度整体上升，而温度整体下降，从单一日期来看一天的温湿度变化，温度从上午开始上升，下午下降，图中早中晚的温度属中午最高。DHT11的供电电压为3－5.5V。
STC15F2K60S2单片机/DHT11/OLED12864/串口通信
Star19180325的博客
12-07 4005
STC15F2K60S2单片机…DHT11…OLED12864…串口通信 本节教程我们来重点讲一讲DHT11温湿度传感器的用法以及实现程序 一、先斩后奏，上程序！ 1、dh11.c /*****************************************DHT11温湿度传感器+OLED12864显示程序**********************************/ /*****...
基于51单片机+DHT11温湿度+LCD1602显示
热门推荐
weixin_47457689的博客
02-18 2万+
DHT温湿度1602显示DHT11温湿度相关介绍DHT11产品概述1.测量范围2.接口说明3.电源引脚4.串行接口 (单线双向)5.相关时序及代码6. DHT11引脚说明程序代码main.clcd1602.clcd1602.hdelay.cdelay.h项目展示 DHT11温湿度相关介绍 DHT11产品概述 DHT11数字温湿度传感器是一款含有已校准数字信号输出的温湿度复合传 感器。它应用专用的数字模块采集技术和温湿度传感技术，确保产品具有极高 的可靠性与卓越的长期稳定性。传感器包括一个电阻式感湿元件和一个
基于STM32单片机的DHT11 温湿度传感器+OLED显示程序
05-07
基于STM32单片机的DHT11 温湿度传感器+OLED显示程序，用于检测空气温湿度，并用OLED 显示
【无标题】基于51单片机和DHT11的温湿度检测系统
qq_58368021的博客
04-24 9368
基于51单片机的温湿度检测系统 摘 要：设计一款能够实时检测当前空气温度和湿度的装置。主控芯片采用STC12C5A60S2芯片，温湿度传感器采用DHT11数字温湿度传感器，显示屏幕采用OLED屏幕。整个设计采用模块化设计，分别为三大模块。分别为MCU模块，检测模块和显示模块。当环境中的温湿度发生变化时，DHT11温湿度传感器随着温度、湿度的变化而变化，然后将变化的电阻通过转换电路和转换信号检测为相对应变化的电压，然后把模拟电压信号由A/D转换器转换为数字信号并送入到单片机中，单片机处理之后控制OLE...
基于51单片机带温湿度显示的可调电子时钟
qq_53000374的博客
03-24 1807
基于51单片机带温湿度显示的电子时钟
51单片机（DHT11温湿度传感器）
m0_70987863的博客
03-28 5937
51单片机（DHT11温湿度传感器）
基于C51单片机的DHT11温湿度传感器驱动程序源代码.zip
06-09
基于C51单片机的DHT11温湿度传感器驱动程序源代码，基于C51单片机的DHT11温湿度传感器驱动程序源代码 void main() { TMOD = 0x20; //定时器T1使用工作方式2 TH1 = 253; // 设置初值 TL1 = 253; TR1 = 1; // 开始计时 SCON = 0x50; //工作方式1，波特率9600bps，允许接收 ES = 1; EA = 1; // 打开所以中断 TI = 0; RI = 0; SendData(str) ; //发送到串口 Delay(1); //延时100US（12M晶振) while(1) { RH(); //调用温湿度读取子程序 str[0]=RH_data_H; str[1]=RH_data_L; str[2]=T_data_H; str[3]=T_data_L; str[4]=checkdata; SendData(
基于51单片机 的DHT11温湿度控制系统
04-04
1、显示温湿度 2、按键设置温湿度上下限 3、温度高于温度上限，温度过高电机启动，进行降温 4、温度低于温度下限，温度过低电机启动，进行升温 5、湿度高于湿度上限，湿度过高电机启动，进行降湿 6、湿度低于湿度下限，湿度过低电机启动，进行加湿
DHT11.zip_51单片机DHT11_51单片机控制DHT11温湿度传感器_只需要一个引脚_温湿度DHT11_温湿度控制器
09-21
51单片机控制DHT11温湿度传感器，只需要一个引脚
51单片机OLED显示
qq_61580302的博客
01-26 8110
oled.c #include <REGX52.H> #include "OLED_Font.h" #define uint8_t unsigned char #define uint16_t unsigned int #define uint32_t unsigned long sbit OLED_SCL=P2^0;//SCL sbit OLED_SDIN=P2^1;//SDA //开始 void IIC_Start() { OLED_SCL = 1; OLED_SDIN
89C51使用0.96 OLED显示屏
青烨慕容
09-05 6503
89C51使用0.96 OLED显示屏1、电路原理2、代码2.1、关于字体图片取模3、显示效果4、下载链接   好长时间都没有使用51了，因为一些莫名的原因看了看51，瞬间感觉不忘初心啊，还是熟悉味道。这次是使用7脚OLED显示屏。因为51可以使用Proteus软件进行仿真，所以最后我会附上仿真和代码。   51单片机使用的LCD1602的显示屏相对来说是比较多的，需要LCD1602的可以看我这篇博客 https://blog.csdn.net/weixin_45488643/article/details
51单片机+oled+ds18b20检测并显示温度第三篇：配置温度检测ds18b20
linxinloningg的博客
07-06 6379
51单片机+oled+ds18b20检测并显示温度~
毕业设计 基于51单片机智能小区安防系统的设计
Nueve_Y的博客
11-07 775
序🔥 毕业设计和毕业答辩的要求和难度不断提升，传统的毕设题目缺少创新和亮点，往往达不到毕业答辩的要求，这两年不断有学弟学妹告诉学长自己做的项目系统达不到老师的要求。为了大家能够顺利以及最少的精力通过毕设，学长分享优质毕业设计项目，今天要分享的是：基于51单片机智能小区安防系统的设计报警器硬件由温度烟雾信号采集模块、煤气信号采集模块、防盗报警模块、光报警模块，键盘显示模块以及单片机与CAN总线模块组成。经过比较，作者决定使用常用、廉价的单片机AT89C51作为主控制器。
51单片机控制dht11温湿度传感器,并使用oled屏幕显示
05-12
为了使用51单片机控制DHT11温湿度传感器，并使用OLED屏幕显示测量结果，首先我们需要准备好相应的硬件和软件。硬件包括51单片机、DHT11传感器、OLED屏幕和相关连线。软件则需要在Keil C IDE中编写程序。 编写程序时，我们需要从DHT11传感器读取温度和湿度数据，并将其通过OLED屏幕显示出来。具体实现的步骤如下： 1. 配置51单片机的端口，使得DHT11传感器可以通过单片机读取到。 2. 编写DHT11传感器读取程序。DHT11传感器需要通过特定的协议来读取温度和湿度数据，我们需要编写相应的代码来实现这个协议。 3. 将读取到的温度和湿度数据存储到变量中。 4. 利用OLED屏幕的库函数将存储的温度和湿度数据显示到屏幕上。 在以上步骤中，需要特别注意DHT11传感器的读取。这个过程需要根据DHT11传感器的协议具体进行，不能出现误差。此外，OLED屏幕的控制也需要掌握相应的库函数。 在编写程序完成后，我们需要将其下载到51单片机中，并连接相应的硬件。该程序会实时读取温度和湿度数据，并显示到OLED屏幕上。如此，我们便成功地使用51单片机控制DHT11温湿度传感器，并使用OLED屏幕进行显示。

“相关推荐”对你有帮助么？

  • 非常没帮助
  • 没帮助
  • 一般
  • 有帮助
  • 非常有帮助
提交
评论 7
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包

打赏作者

白日梦老余

你的鼓励将是我创作的最大动力

¥1 ¥2 ¥4 ¥6 ¥10 ¥20
扫码支付：¥1
获取中
扫码支付

您的余额不足，请更换扫码支付或充值

打赏作者

实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
