用友YonBIP 参照开发

1、后端代码

介绍

参照类型不同继承不同Action

树型参照：DefaultTreeRefAction
表型参照：DefaultGridRefAction
树表参照：DefaultTreeRefAction，DefaultGridRefAction。(两次请求，一次请求走树形参照action，一次请求走表形参照action。)

代码示例：

表型参照:

注：我这里sql是作为表使用，所以使用了括号进行拼接

package nccloud.grid.ct.contructionpermit;

import nccloud.framework.web.processor.refgrid.RefQueryInfo;
import nccloud.framework.web.ui.meta.RefMeta;
import nccloud.web.refer.DefaultGridRefAction;

public class ContructionpermitXsHthTreeGrid extends DefaultGridRefAction{


	public ContructionpermitXsHthTreeGrid() {
		// TODO Auto-generated constructor stub
		super();
	}

	@Override
	public RefMeta getRefMeta(RefQueryInfo arg0) {
		// TODO Auto-generated method stub

		RefMeta refmeta = new RefMeta();
		//参照
		refmeta.setCodeField("code");//编码
		refmeta.setNameField("name");//名称
		refmeta.setPkField("id");//主键

		refmeta.setTableName(getExtableSql());//表名

		//查询的额外字段
		//合同号，合同名称，行号，物料编码，物料名称
		refmeta.setExtraFields(new String[] {"code","name","crowno","wlcode","wlname"});

		//参照是否需要多语
		refmeta.setMutilLangNameRef(false);

		return refmeta;
	}


	private String getExtableSql() {
		StringBuffer query = new StringBuffer();
		query.append("( ");

		query.append("select b.pk_ct_sale_b id,a.vbillcode code,a.ctname     name,b.crowno,c.code wlcode,c.name wlname \n");
		query.append("from ct_sale_b b \n");
		query.append("inner join ct_sale a on b.pk_ct_sale = a.pk_ct_sale \n");
		query.append("left join bd_material c on c.pk_material = b.pk_material \n");
		query.append("where b.dr = 0 and a.dr = 0 and c.dr = 0");


		query.append(" )");

		return query.toString();
	}

}

树形参照:

package nccloud.grid.ct.contructionpermit;

import java.util.Objects;

import nccloud.framework.web.container.SessionContext;
import nccloud.framework.web.processor.refgrid.RefQueryInfo;
import nccloud.framework.web.ui.meta.RefMeta;
import nccloud.framework.web.ui.meta.TreeRefMeta;
import nccloud.web.refer.DefaultTreeRefAction;

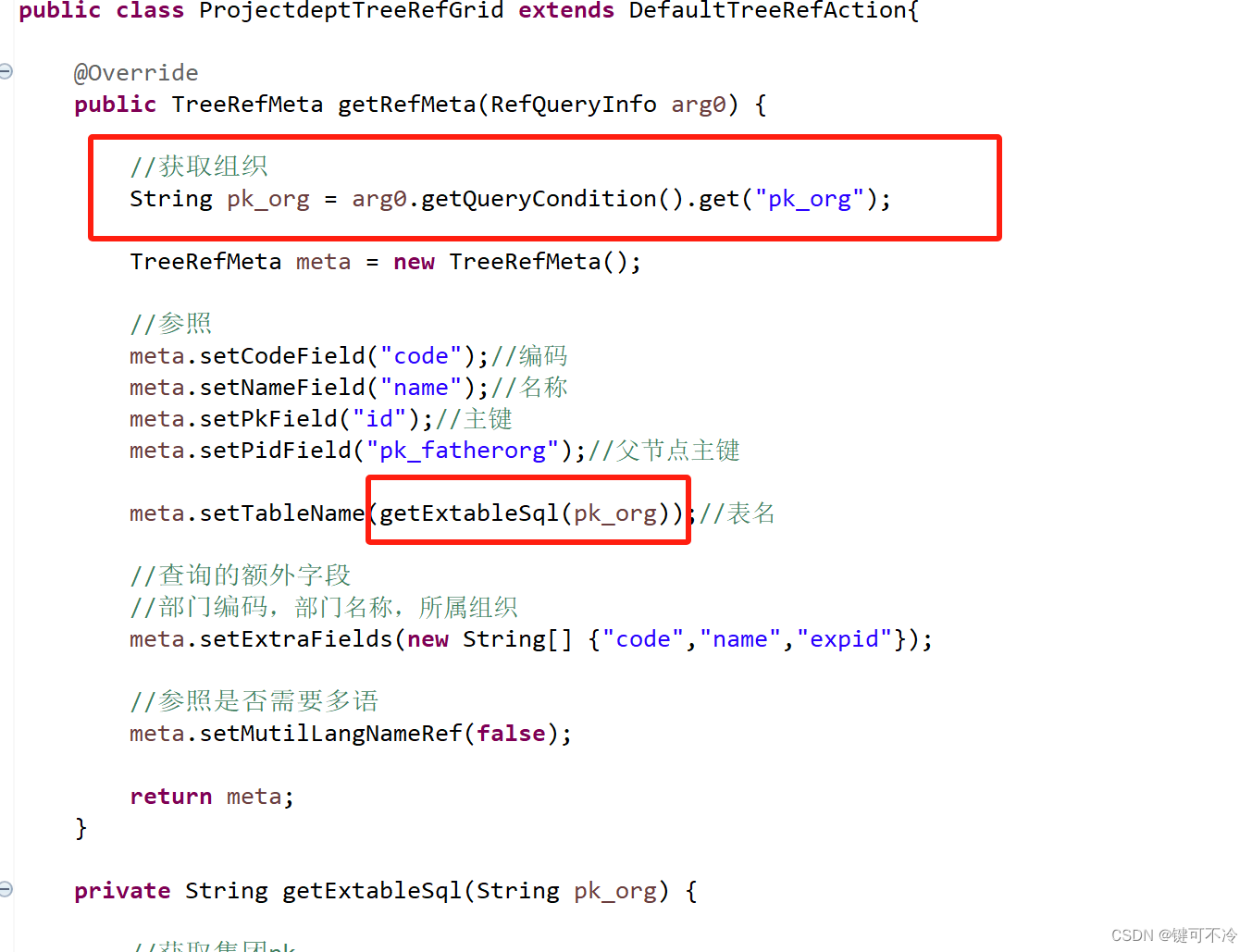

public class ProjectdeptTreeRefGrid extends DefaultTreeRefAction{

	@Override
	public TreeRefMeta getRefMeta(RefQueryInfo arg0) {

		//获取组织
		String pk_org = arg0.getQueryCondition().get("pk_org");

		TreeRefMeta meta = new TreeRefMeta();

		//参照
		meta.setCodeField("code");//编码
		meta.setNameField("name");//名称
		meta.setPkField("id");//主键
		meta.setPidField("pk_fatherorg");//父节点主键

		meta.setTableName(getExtableSql(pk_org));//表名

		//查询的额外字段
		//部门编码，部门名称，所属组织
		meta.setExtraFields(new String[] {"code","name","expid"});

		//参照是否需要多语
		meta.setMutilLangNameRef(false);

		return meta;
	}

	private String getExtableSql(String pk_org) {

		//获取集团pk
		String pk_group = SessionContext.getInstance().getClientInfo().getPk_group();//前端

		StringBuffer query = new StringBuffer();
		query.append("( ");

		query.append("SELECT case when dept.pk_fatherorg = '~' or dept.pk_fatherorg is null then dept.pk_dept \n");
		query.append("else v.pk_vid end pk_fatherorg, \n");
		query.append("dept.code, dept.name, dept.pk_vid id, dept.pk_org expid \n");
		query.append("FROM org_dept_v dept \n");
		query.append("LEFT JOIN ( \n");
		query.append("  SELECT pk_vid,pk_dept dept FROM org_dept_v \n");
		query.append("  WHERE pk_group = '"+pk_group+"' \n");

		if(!Objects.equals(pk_group, pk_org) && pk_org != null) {
			query.append(" and pk_org = '"+pk_org+"' \n");
		}

		query.append("  AND enablestate = 2 \n");
		query.append("  ) v ON v.dept = dept.pk_fatherorg \n");
		query.append("WHERE dept.pk_group = '"+pk_group+"' \n");
		query.append("AND dept.vstartdate = NVL ( \n");
		query.append("  (SELECT max (a.vstartdate) vstartdate \n");
		query.append("  FROM org_dept_v a \n");
		query.append("  WHERE vstartdate <= TO_CHAR(CURRENT_DATE, 'YYYY-MM-DD') || ' 23:59:59' \n");
		query.append("  AND a.pk_dept = dept.pk_dept ), \n");
		query.append("  (SELECT min (a.vstartdate) vstartdate \n");
		query.append("  FROM org_dept_v a \n");
		query.append("  WHERE vstartdate > TO_CHAR(CURRENT_DATE, 'YYYY-MM-DD') || ' 23:59:59' \n");
		query.append("  AND a.pk_dept = dept.pk_dept ) ) \n");
		query.append("AND dept.enablestate = 2 ");


		if(!Objects.equals(pk_group, pk_org) && pk_org != null) {
			query.append(" and dept.pk_org = '"+pk_org+"' \n");
		}

		query.append(" )");

		return query.toString();
	}

	@Override
	public String getOrderSql(RefQueryInfo refQueryInfo, RefMeta refMeta) {
		// TODO Auto-generated method stub
		return " order by code ";
	}



}

鉴权文件

<?xml version="1.0" encoding="UTF-8" standalone="no" ?>
<actions>
	<action>
		<name>ct.contructionpermit.ContructionpermitXsHthTreeGrid</name>
		<lable>项目合同号参照</lable>
		<clazz>nccloud.grid.ct.contructionpermit.ContructionpermitXsHthTreeGrid</clazz>
	</action>
	<action>
		<name>ct.contructionpermit.ProjectdeptTreeRefGrid</name>
		<lable>项目参与部门</lable>
		<clazz>nccloud.grid.ct.contructionpermit.ProjectdeptTreeRefGrid</clazz>
	</action>
</actions>

<?xml version="1.0" encoding="UTF-8" standalone="no" ?>
<authorizes>
	<authorize>
		<appcode>*</appcode>
		<actions>
			<action>ct.contructionpermit.ContructionpermitXsHthTreeGrid</action>
		</actions>
		<actions>
			<action>ct.contructionpermit.ProjectdeptTreeRefGrid</action>
		</actions>
	</authorize>
</authorizes>

2、前端代码

文件名必须是index.js

refType: 'grid',//参照类型 grid/tree/gridtree

refName: '销售合同号',//参照名称的多语码

refcode: 'nccloud.grid.ct.contructionpermit.ContructionpermitXsHthTreeGrid',//后端绝对路径

placeholder: '销售合同号',//默认提示多语码

queryGridUrl: '/nccloud/ct/contructionpermit/ContructionpermitXsHthTreeGrid.do',//接口

isMultiSelectedEnabled: true,//是否多选 默认false单选

showHistory: false//鼠标聚焦显示历史数据 默认true显示

表型参照：

import { high } from 'nc-lightapp-front';

const { Refer } = high

export default function (props = {}) {
    var conf = {
        refType: 'grid',
        refName: '销售合同号',
        refcode: 'nccloud.grid.ct.contructionpermit.ContructionpermitXsHthTreeGrid',
        placeholder: '销售合同号',
        queryGridUrl: '/nccloud/ct/contructionpermit/ContructionpermitXsHthTreeGrid.do',
        isMultiSelectedEnabled: true,
        columnConfig: [
            {
                code: ["code","name","crowno","wlcode","wlname"],
                name: ["合同号","合同名","行号","物料编码","物料名称"]
            }
        ]
    }
    return <Refer {...Object.assign(conf,props)}/>
}

树形参照：

import { high } from 'nc-lightapp-front';

const { Refer } = high

export default function (props = {}) {
    var conf = {
        refType: 'tree',
        refName: '项目参与部门',
        refcode: 'nccloud.grid.ct.contructionpermit.ProjectdeptTreeRefGrid',
        placeholder: '项目参与部门',
        queryTreeUrl: '/nccloud/ct/contructionpermit/ProjectdeptTreeRefGrid.do',
        isMultiSelectedEnabled: true,
        columnConfig: [
            {
                code: ["code","name","expid"],
                name: ["编码","名称","组织"]
            }
        ]
    }
    return <Refer {...Object.assign(conf,props)}/>
}

3、数据库脚本

CODE：参照编码。不可重复

METADATANAMESPACE：模块名。

METADATATYPENAME：元数据实体名

PK_REFINFO：主键，不可重复。

REFCLASS：后端类全路径。

REFPATH：前端参照路径(不带 .js)

REFTYPE：参照类型。(1:表型参照)

RESID：多语id。(可设为空)

RESIDPATH：多语路径。(可设为空)

TS：时间戳。

INSERT INTO bd_refinfo(code, dr, isTreelazyLoad, isneedpara, isspecialref, layer, metadatanamespace, metadatatypename, mobilerefpath, modulename, name, para1, para2, para3, pk_country, pk_industry, pk_refinfo, refclass, refpath, refsystem, reftype, reserv1, reserv2, reserv3, resid, residpath, ts, wherepart, workflowConditionUseUnitOrg) VALUES ('xshth', 0, 'Y', null, null, null, 'ct', null, null, 'ct', '销售合同号', null, null, null, null, null, '0001Z01000000001BVAA', 'nccloud.grid.ct.contructionpermit.ContructionpermitXsHthTreeGrid', 'ct/reportapproval/contructionpermit/refer/index', null, 1, null, null, null, '~', '~', '2022-02-19 13:11:28', null, null);

4、参照过滤

例如：只能查看当前组织下的数据，需要获取当前组织的pk_org主键

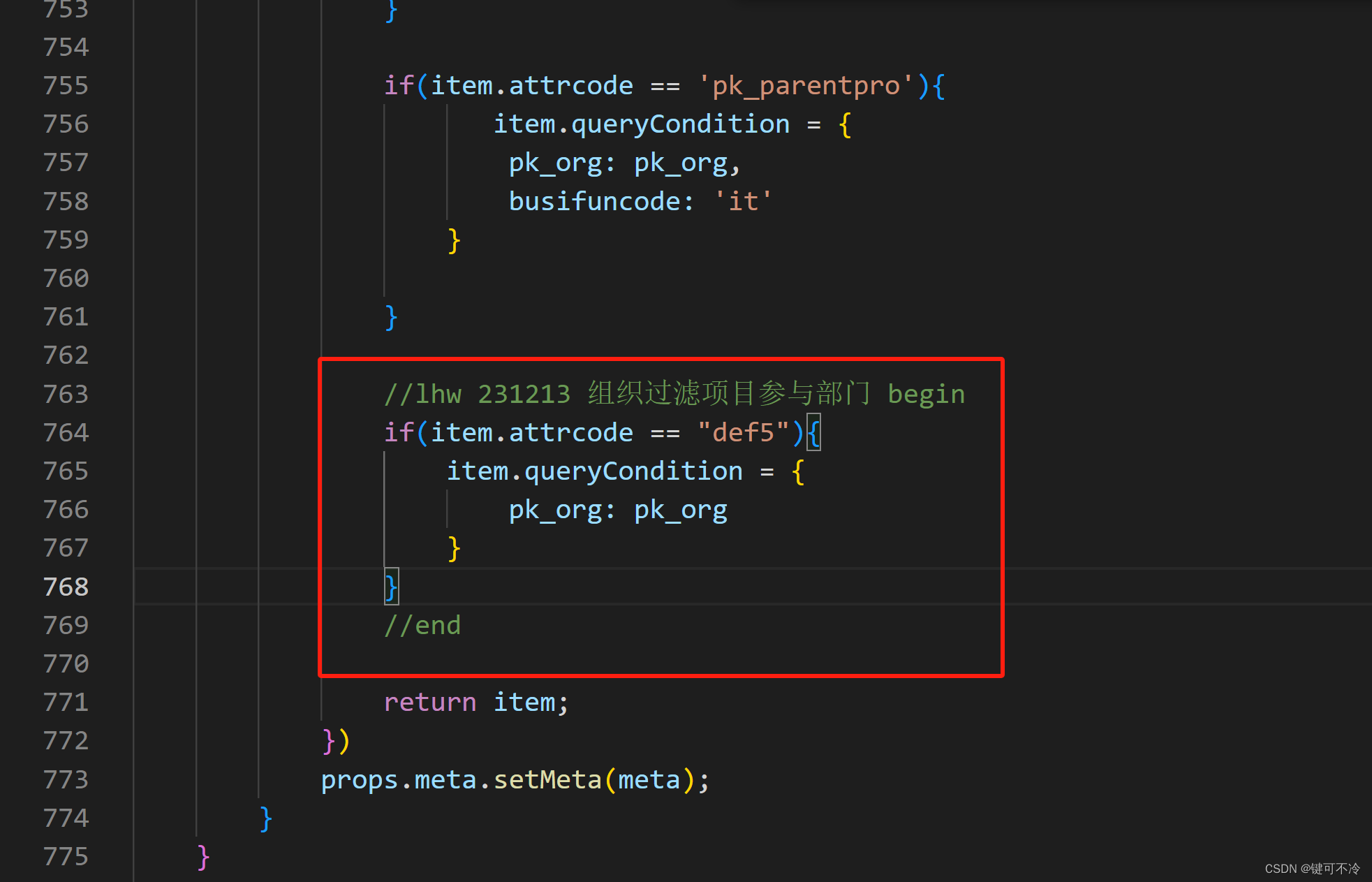

新增时，需要过滤，找到对应卡片态源码里面的afterEvent方法

在里面看情况添加(我是原有的编辑后里面成功回写的setDeptPsnRefCond方法里面加的条件)

在setDeptPsnRefCond方法里面添加我的代码，我参照使用的是自定义项5，当前台触发def5就将pk_org传递到后端action里面

后端代码获取pk_org，作为参数拼接到sql里面，完整代码在上面

5、效果图

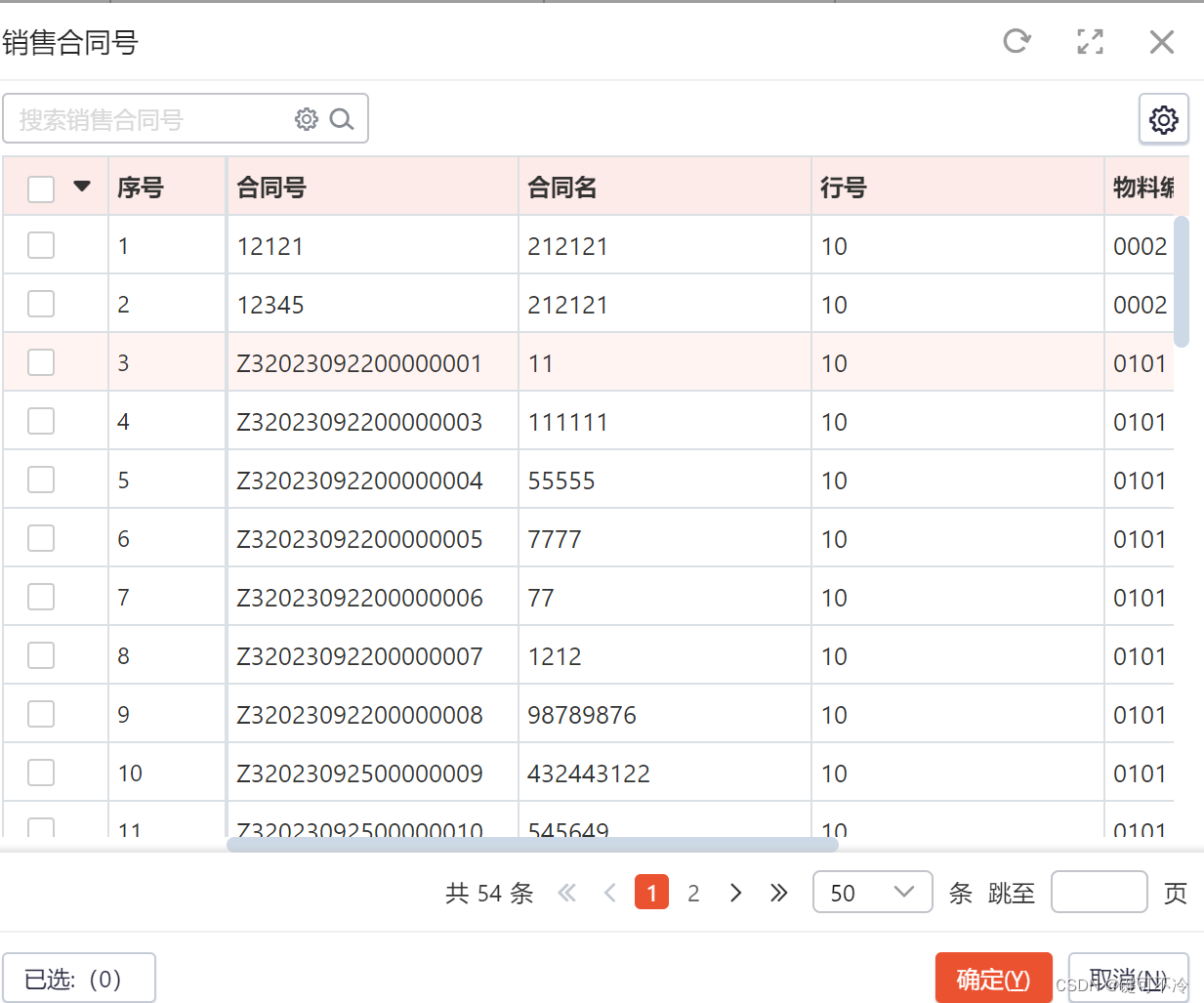

表型多选参照：

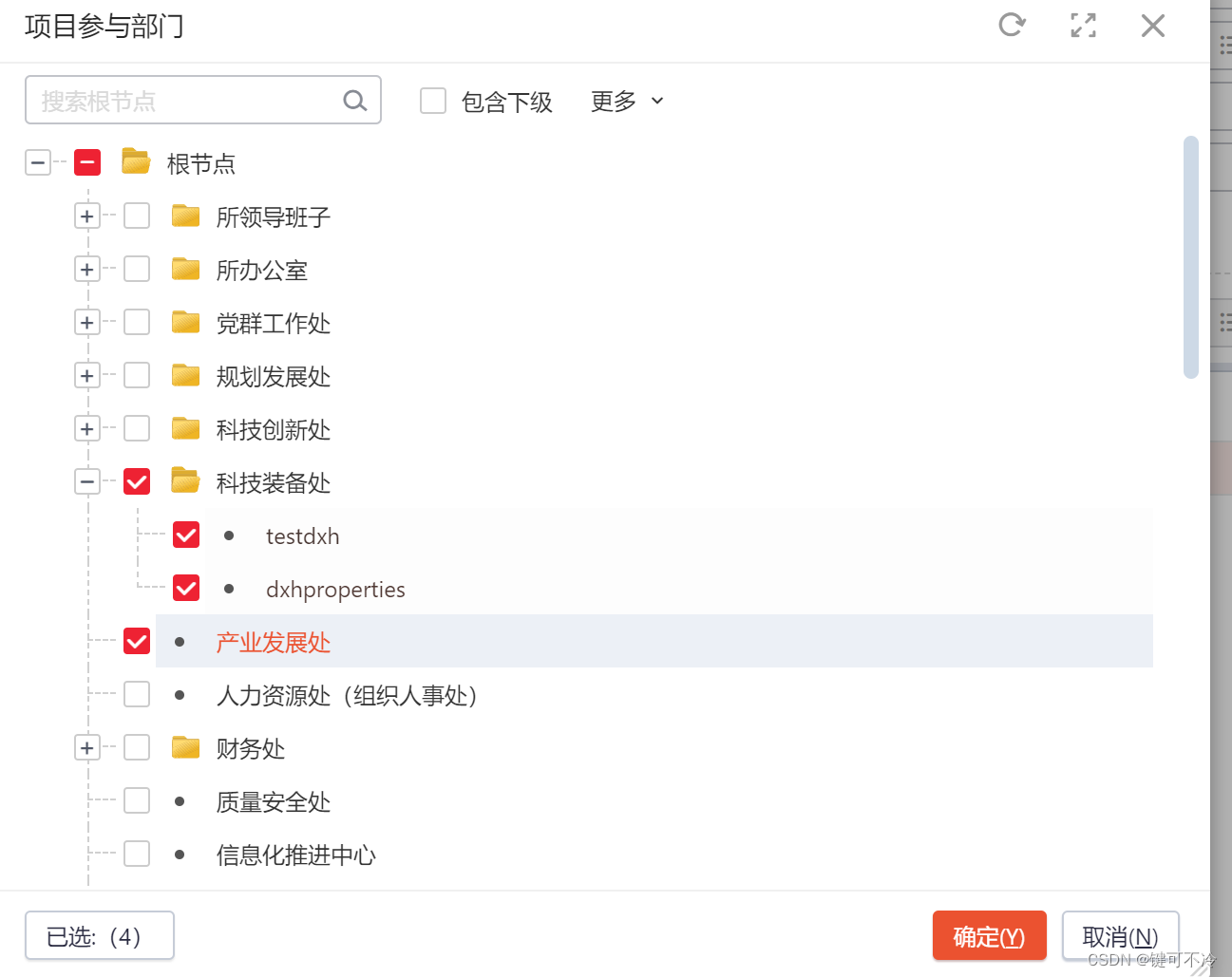

树形多选参照：

注：多选参照，后台保存会自动用“,”拼接

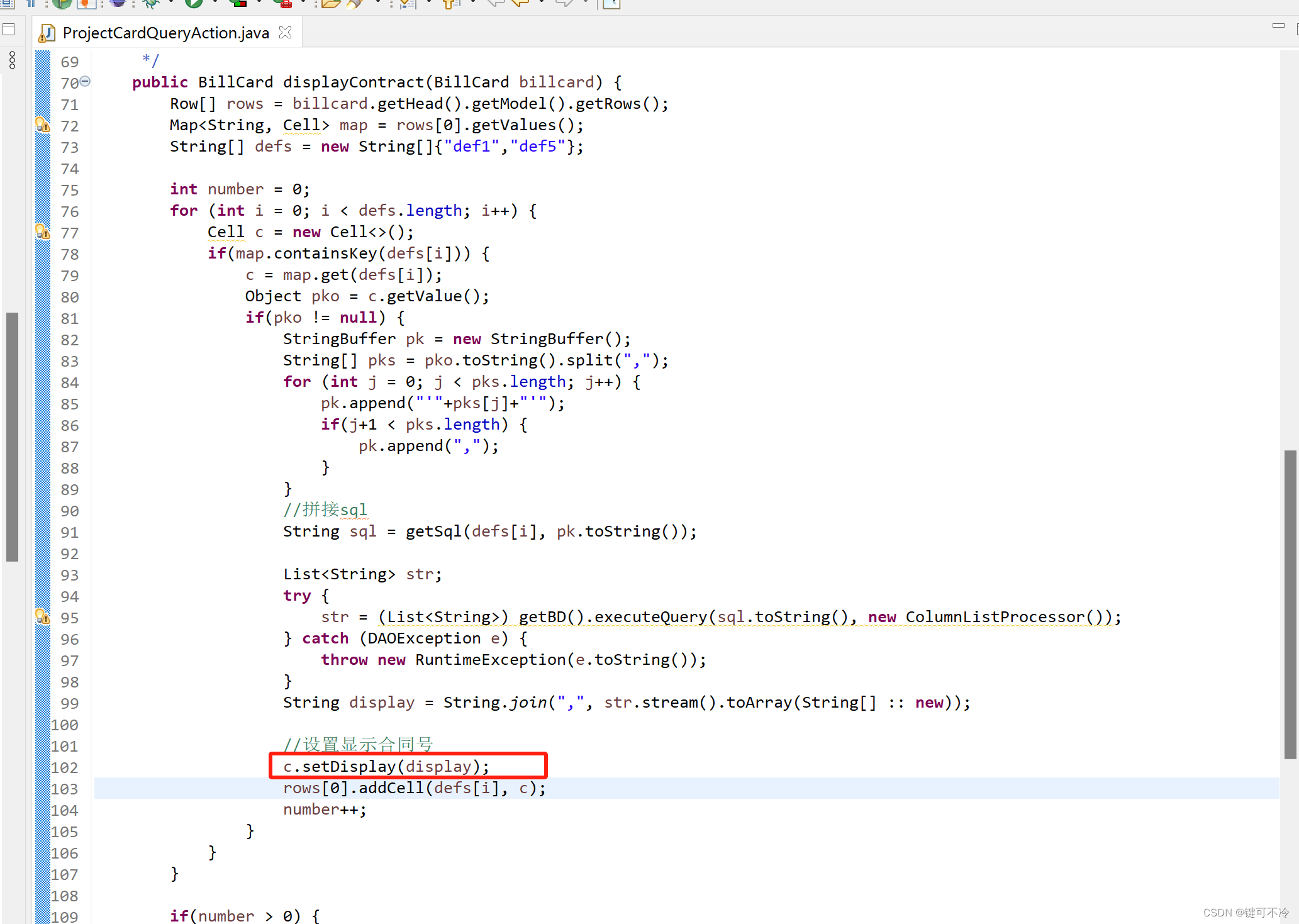

保存成功后，前端多选显示的问题，需要手动将节点的列表查询，卡片查询的actin进行修改

前端显示取的值是在display，需要手动改代码

常见问题：

开发环境显示正常，出补丁测试环境不显示

1、注意模板，配置

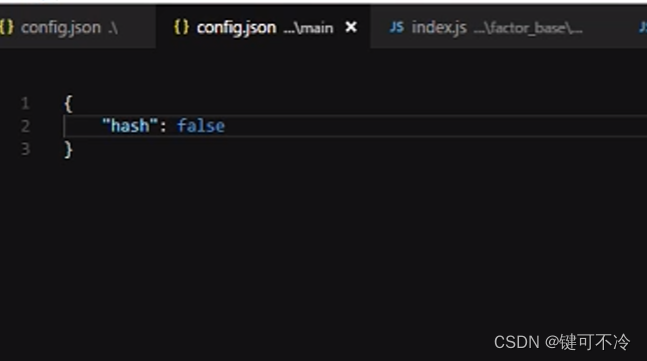

2、检查前端编译后的文件是否是index.js，默认编译是hash码，要在同级配置config.js关掉hash，再出补丁上测试
