前言

本项目使用litex创建了一个soc，包括VexRiscv+uart+ddr+led+flash，并在上面运行了linux操作系统。

litex的项目不原生支持该板子，需要自己写一个

一、运行环境

全部都在ubuntu 22.04运行：下载链接：https://mirrors.sdu.edu.cn/ubuntu-releases/22.04/ubuntu-22.04.5-desktop-amd64.iso山大镜像源

二、使用步骤(无linux)

1.完成基础配置

#创建虚拟环境
python3 -m venv acx
#进入虚拟环境
source acx/bin/activate
#下载litex_setup.py文件
wget https://raw.githubusercontent.com/enjoy-digital/litex/master/litex_setup.py
#增加可执行权限
chmod +x litex_setup.py
#运行该文件
./litex_setup.py --init --install

下面是终端信息：

jiao@jiao-virtual-machine:~/acx720$ python3 -m venv acx
jiao@jiao-virtual-machine:~/acx720$ source acx/bin/activate
(acx) jiao@jiao-virtual-machine:~/acx720$ wget https://raw.githubusercontent.com/enjoy-digital/litex/master/litex_setup.py
--2024-11-26 19:32:40--  https://raw.githubusercontent.com/enjoy-digital/litex/master/litex_setup.py
正在解析主机 raw.githubusercontent.com (raw.githubusercontent.com)... 185.199.108.133, 185.199.110.133, 185.199.111.133, ...
正在连接 raw.githubusercontent.com (raw.githubusercontent.com)|185.199.108.133|:443... 已连接。
已发出 HTTP 请求，正在等待回应... 200 OK
长度： 19705 (19K) [text/plain]
正在保存至: ‘litex_setup.py’

litex_setup.py.1   100%[================>]  19.24K  --.-KB/s    用时 0.02s

2024-11-26 19:32:41 (919 KB/s) - 已保存 ‘litex_setup.py’ [19705/19705])

(acx) jiao@jiao-virtual-machine:~/acx720$ chmod +x litex_setup.py
(acx) jiao@jiao-virtual-machine:~/acx720$ ./litex_setup.py --init --install

当执行./litex_setup.py --init --install出现下载失败时，请看看ubuntu系统下的浏览器是否可以连接到github，我也没下载下来，我用我之前下载的。

若能正常访问，请看ssh是否配置好，配置教程如下Git教程 SSH keys配置-CSDN博客

若出现其他问题，请自行解决，可询问chatgpt或网络。

2.工程编译

在我这个板子上的ddr与原理图的型号不一样，需要自己改一下atest2_t.py文件

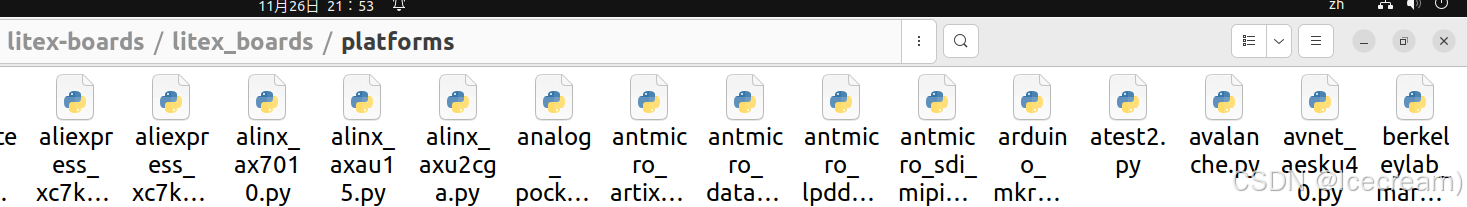

将atest2.py放在下载好的litex-boards/litex_boards/platforms文件夹下

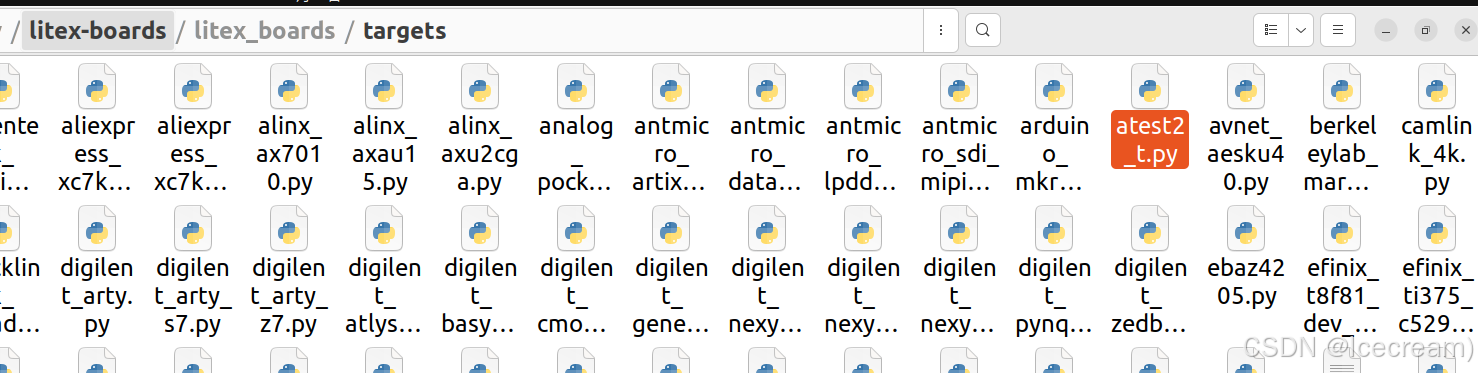

将atest2_t.py放在litex-boards/litex_boards/targets文件夹下

现在确保我们的终端处在虚拟环境下(acx)，输入以下命令

python3 -m litex-boards.litex_boards.targets.atest2_t --build

(acx)jiao-virtual-machine:~/acx720$ python3 -m litex-boards.litex_boards.targets.atest2_t --build
#最后会打印出的信息
===================================
Configuration Memory information
===================================
File Format        BIN
Interface          SPIX4
Size               16M
Start Address      0x00000000
End Address        0x00FFFFFF

Addr1         Addr2         Date                    File(s)
0x00000000    0x000E665B    Nov 26 21:45:23 2024    atest2.bit
0 Infos, 0 Warnings, 0 Critical Warnings and 0 Errors encountered.
write_cfgmem completed successfully
# quit
INFO: [Common 17-206] Exiting Vivado at Tue Nov 26 21:45:27 2024...

之后会在acx720文件夹下生成build文件，生成的比特流文件在build/gateware文件夹下。

3.工程传入

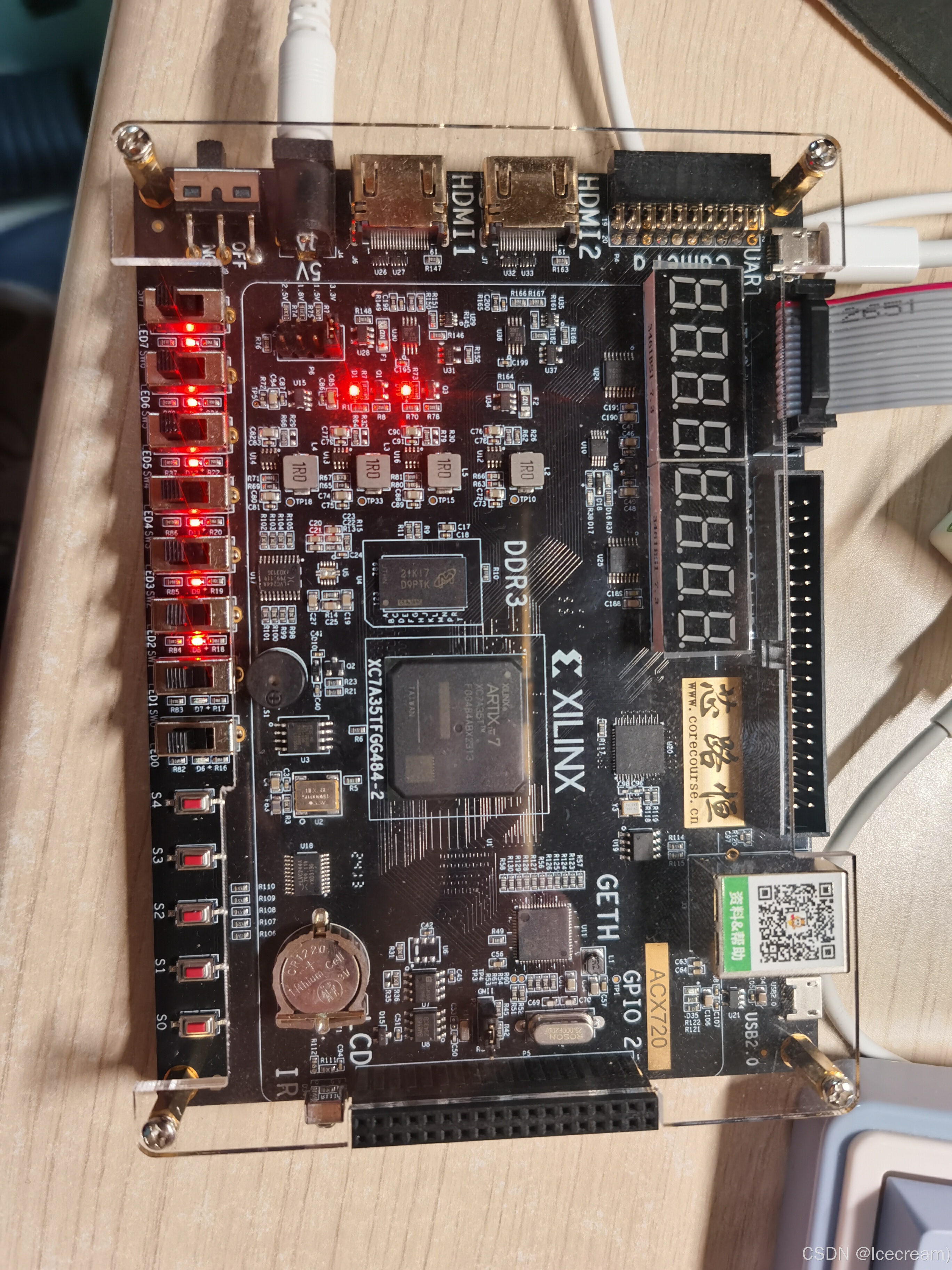

将bit文件通过vivado传到板子里，板子有两个micro-usb，接UART那个，接左边那个，接离数码管近的那个，接离以太网口远的那个。如下图所示：

之后打开一个新的终端，进入虚拟环境

#进入虚拟环境
source bin/activate
#假如找不到，在22.04上是由于一个软件导致的，解决方法如下链接
sudo chmod 777 /dev/ttyUSB0
#打开串口调试助手
litex_term /dev/ttyUSB0
#假如打开litex_term后没有信息出现，可能是ttyUSB没连对可能是ttyUSB1,2,3...
#也可能需要按板子上的S4键，即复位键。

ttyUSB找不到：ubuntu22.04 找不到串口，串口ttyusb时断时续的问题（拔插以后能检测到，过会儿就检测不到了）_ubuntu22.04不能识别串口-CSDN博客

下图是litex_term的信息，不知道输什么指令就输入help

oy-Digital
 (c) Copyright 2007-2015 M-Labs

 BIOS built on Nov 26 2024 21:37:58
 BIOS CRC passed (139586bd)

 LiteX git sha1: a350d2e90

--=============== SoC ==================--
CPU:		VexRiscv @ 100MHz
BUS:		wishbone 32-bit @ 4GiB
CSR:		32-bit data
ROM:		128.0KiB
SRAM:		8.0KiB
L2:		8.0KiB
FLASH:		16.0MiB
SDRAM:		256.0MiB 16-bit @ 800MT/s (CL-7 CWL-5)
MAIN-RAM:	256.0MiB

--========== Initialization ============--

Initializing SDRAM @0x40000000...
Switching SDRAM to software control.
Read leveling:
  m0, b00: |00000000000000000000000000000000| delays: -
  m0, b01: |00000000000000000000000000000000| delays: -
  m0, b02: |11111111000000000000000000000000| delays: 03+-03
  m0, b03: |00000000000011111111111000000000| delays: 17+-05
  m0, b04: |00000000000000000000000000001111| delays: 29+-01
  m0, b05: |00000000000000000000000000000000| delays: -
  m0, b06: |00000000000000000000000000000000| delays: -
  m0, b07: |00000000000000000000000000000000| delays: -
  best: m0, b03 delays: 17+-05
  m1, b00: |00000000000000000000000000000000| delays: -
  m1, b01: |00000000000000000000000000000000| delays: -
  m1, b02: |11111111100000000000000000000000| delays: 04+-04
  m1, b03: |00000000000011111111111110000000| delays: 18+-06
  m1, b04: |00000000000000000000000000001111| delays: 29+-01
  m1, b05: |00000000000000000000000000000000| delays: -
  m1, b06: |00000000000000000000000000000000| delays: -
  m1, b07: |00000000000000000000000000000000| delays: -
  best: m1, b03 delays: 18+-06
Switching SDRAM to hardware control.
Memtest at 0x40000000 (2.0MiB)...
  Write: 0x40000000-0x40200000 2.0MiB
   Read: 0x40000000-0x40200000 2.0MiB
Memtest OK
Memspeed at 0x40000000 (Sequential, 2.0MiB)...
  Write speed: 36.8MiB/s
   Read speed: 48.7MiB/s

Initializing mx25l12835f SPI Flash @0x01000000...
SPI Flash clk configured to 50 MHz
Memspeed at 0x1000000 (Sequential, 4.0KiB)...
   Read speed: 5.0MiB/s
Memspeed at 0x1000000 (Random, 4.0KiB)...
   Read speed: 2.3MiB/s

--============== Boot ==================--
Booting from serial...
Press Q or ESC to abort boot completely.
sL5DdSMmkekro
Timeout
No boot medium found

--============= Console ================--

litex> mem_test
mem_test <addr> [<maxsize>]
litex> mem_list
Available memory regions:
ROM       0x00000000 0x20000
SRAM      0x10000000 0x2000
MAIN_RAM  0x40000000 0x10000000
SPIFLASH  0x01000000 0x1000000
CSR       0xf0000000 0x10000

litex>

三、使用步骤（有linux）

在做完步骤2后，再进行该步骤

参考GitHub - litex-hub/linux-on-litex-vexriscv：LiteX-vexRiscv 上的 Linux的教程，大概下载一下我们上板所需要的东西。

#大概的需要的东西，具体看官方和后续步骤的报错
$ sudo apt install build-essential device-tree-compiler wget git python3-setuptools
$ git clone https://github.com/litex-hub/linux-on-litex-vexriscv
$ cd linux-on-litex-vexriscv
#在这个步骤Pre-built Bitstreams and Linux/OpenSBI images中
#这个下第一个文件，下载链接https://github.com/litex-hub/linux-on-litex-vexriscv/files/8331338/linux_2022_03_23.zip
#安装 RISC-V 工具链
$ wget https://static.dev.sifive.com/dev-tools/riscv64-unknown-elf-gcc-8.1.0-2019.01.0-x86_64-linux-ubuntu14.tar.gz
$ tar -xvf riscv64-unknown-elf-gcc-8.1.0-2019.01.0-x86_64-linux-ubuntu14.tar.gz
$ export PATH=$PATH:$PWD/riscv64-unknown-elf-gcc-8.1.0-2019.01.0-x86_64-linux-ubuntu14/bin/
#安装 OpenOCD
$ sudo apt install libtool automake pkg-config libusb-1.0-0-dev
$ git clone https://github.com/ntfreak/openocd.git
$ cd openocd
$ ./bootstrap
$ ./configure --enable-ftdi
$ make
$ sudo make install

下一步将boards.py替换掉官方的boards.py

打开新终端，进入虚拟环境，之后将终端的目录切换到刚下好的linux-on-litex-vexriscv的目录下

(acx)jiao@jiao-virtual-machine:*****/****/linux-on-litex-vexriscv$

#输入该指令：   ./make.py --board=atest2 --build
(acx) jiao@jiao-virtual-machine:~/env/linux/linux-on-litex-vexriscv$ ./make.py --board=atest2 --build

能够正常运行会有下面的信息，假如不能正常运行，就缺什么下什么。

INFO:SoC:       / /  (_) /____ | |/_/
INFO:SoC:      / /__/ / __/ -_)>  <
INFO:SoC:     /____/_/\__/\__/_/|_|
INFO:SoC:  Build your hardware, easily!
INFO:SoC:--------------------------------------------------------------------------------
INFO:SoC:Creating SoC... (2024-11-26 23:58:59)
INFO:SoC:--------------------------------------------------------------------------------
INFO:SoC:FPGA device : xc7a35t-fgg484-2.
INFO:SoC:System clock: 100.000MHz.
INFO:SoCBusHandler:Creating Bus Handler...
INFO:SoCBusHandler:32-bit wishbone Bus, 4.0GiB Address Space.
INFO:SoCBusHandler:Adding reserved Bus Regions...
INFO:SoCBusHandler:Bus Handler created.
INFO:SoCCSRHandler:Creating CSR Handler...
INFO:SoCCSRHandler:32-bit CSR Bus, 32-bit Aligned, 16.0KiB Address Space, 2048B Paging, big Ordering (Up to 32 Locations).
INFO:SoCCSRHandler:Adding reserved CSRs...
.........
===================================
Configuration Memory information
===================================
File Format        BIN
Interface          SPIX4
Size               16M
Start Address      0x00000000
End Address        0x00FFFFFF

Addr1         Addr2         Date                    File(s)
0x00000000    0x00105A87    Nov 27 00:08:25 2024    atest2.bit
0 Infos, 0 Warnings, 0 Critical Warnings and 0 Errors encountered.
write_cfgmem completed successfully
# quit
INFO: [Common 17-206] Exiting Vivado at Wed Nov 27 00:08:30 2024...

下一步打开vivado传入bit流，这里的bit文件在linux-on-litex-vexriscv的目录下的build文件夹下。

在完成bit流传入后，打开新的终端，先进虚拟环境，通过cd指令进到linux-on-litex-vexriscv的目录下，执行下面的指令

litex_term --images=images/boot.json /dev/ttyUSB0

如下面所示：，出现buildroot login: 输入 root

(acx) jiao@jiao-virtual-machine:~/env/linux/linux-on-litex-vexriscv$ litex_term --images=images/boot.json /dev/ttyUSB0

        __   _ __      _  __
       / /  (_) /____ | |/_/
      / /__/ / __/ -_)>  <
     /____/_/\__/\__/_/|_|
   Build your hardware, easily!

 (c) Copyright 2012-2024 Enjoy-Digital
 (c) Copyright 2007-2015 M-Labs

 BIOS CRC passed (4bf52990)

 LiteX git sha1: a350d2e90

--=============== SoC ==================--
CPU:		VexRiscv SMP-LINUX @ 100MHz
BUS:		wishbone 32-bit @ 4GiB
CSR:		32-bit data
ROM:		64.0KiB
SRAM:		6.0KiB
FLASH:		16.0MiB
SDRAM:		256.0MiB 16-bit @ 800MT/s (CL-7 CWL-5)
MAIN-RAM:	256.0MiB

--========== Initialization ============--

Initializing SDRAM @0x40000000...
Switching SDRAM to software control.
Read leveling:
  m0, b00: |00000000000000000000000000000000| delays: -
  m0, b01: |00000000000000000000000000000000| delays: -
  m0, b02: |11111111000000000000000000000000| delays: 03+-03
  m0, b03: |00000000000111111111111000000000| delays: 16+-05
  m0, b04: |00000000000000000000000000001111| delays: 29+-01
  m0, b05: |00000000000000000000000000000000| delays: -
  m0, b06: |00000000000000000000000000000000| delays: -
  m0, b07: |00000000000000000000000000000000| delays: -
  best: m0, b03 delays: 16+-05
  m1, b00: |00000000000000000000000000000000| delays: -
  m1, b01: |00000000000000000000000000000000| delays: -
  m1, b02: |11111111100000000000000000000000| delays: 04+-04
  m1, b03: |00000000000111111111111110000000| delays: 18+-06
  m1, b04: |00000000000000000000000000011111| delays: 29+-01
  m1, b05: |00000000000000000000000000000000| delays: -
  m1, b06: |00000000000000000000000000000000| delays: -
  m1, b07: |00000000000000000000000000000000| delays: -
  best: m1, b03 delays: 17+-06
Switching SDRAM to hardware control.
Memtest at 0x40000000 (2.0MiB)...
  Write: 0x40000000-0x40200000 2.0MiB
   Read: 0x40000000-0x40200000 2.0MiB
Memtest OK
Memspeed at 0x40000000 (Sequential, 2.0MiB)...
  Write speed: 161.1MiB/s
   Read speed: 77.8MiB/s

Initializing mx25l12835f SPI Flash @0x01000000...
SPI Flash clk configured to 50 MHz
Memspeed at 0x1000000 (Sequential, 4.0KiB)...
   Read speed: 5.0MiB/s
Memspeed at 0x1000000 (Random, 4.0KiB)...
   Read speed: 1.8MiB/s

--============== Boot ==================--
Booting from serial...
Press Q or ESC to abort boot completely.
sL5DdSMmkekro
[LITEX-TERM] Received firmware download request from the device.
[LITEX-TERM] Uploading images/Image to 0x40000000 (7531468 bytes)...
[LITEX-TERM] Upload calibration... (inter-frame: 10.00us, length: 64)
[LITEX-TERM] Upload complete (9.9KB/s).
[LITEX-TERM] Uploading images/rv32.dtb to 0x40ef0000 (2367 bytes)...
[LITEX-TERM] Upload calibration... (inter-frame: 10.00us, length: 64)
[LITEX-TERM] Upload complete (9.8KB/s).
[LITEX-TERM] Uploading images/rootfs.cpio to 0x41000000 (3781632 bytes)...
[LITEX-TERM] Upload calibration... (inter-frame: 10.00us, length: 64)
[LITEX-TERM] Upload complete (9.9KB/s).
[LITEX-TERM] Uploading images/opensbi.bin to 0x40f00000 (53640 bytes)...
[LITEX-TERM] Upload calibration... (inter-frame: 10.00us, length: 64)
[LITEX-TERM] Upload complete (9.9KB/s).
[LITEX-TERM] Booting the device.
[LITEX-TERM] Done.
Executing booted program at 0x40f00000

--============= Liftoff! ===============--

OpenSBI v0.8-1-gecf7701
   ____                    _____ ____ _____
  / __ \                  / ____|  _ \_   _|
 | |  | |_ __   ___ _ __ | (___ | |_) || |
 | |  | | '_ \ / _ \ '_ \ \___ \|  _ < | |
 | |__| | |_) |  __/ | | |____) | |_) || |_
  \____/| .__/ \___|_| |_|_____/|____/_____|
        | |
        |_|

Platform Name       : LiteX / VexRiscv-SMP
Platform Features   : timer,mfdeleg
Platform HART Count : 8
Boot HART ID        : 0
Boot HART ISA       : rv32imasu
BOOT HART Features  : pmp,time
BOOT HART PMP Count : 16
Firmware Base       : 0x40f00000
Firmware Size       : 124 KB
Runtime SBI Version : 0.2

MIDELEG : 0x00000222
MEDELEG : 0x0000b109
[    0.000000] Linux version 5.14.0 (florent@panda) (riscv32-buildroot-linux-gnu-gcc.br_real (Buildroot 2021.08-381-g279167ee8d) 10.3.0, GNU ld (GNU Binutils) 2.36.1) #1 SMP Tue Sep 21 12:57:31 CEST 2021
[    0.000000] Machine model: atest2
[    0.000000] earlycon: liteuart0 at I/O port 0x0 (options '')
[    0.000000] Malformed early option 'console'
[    0.000000] earlycon: liteuart0 at MMIO 0xf0001000 (options '')
[    0.000000] printk: bootconsole [liteuart0] enabled
[    0.000000] Zone ranges:
[    0.000000]   Normal   [mem 0x0000000040000000-0x000000004fffffff]
[    0.000000] Movable zone start for each node
[    0.000000] Early memory node ranges
[    0.000000]   node   0: [mem 0x0000000040000000-0x000000004fffffff]
[    0.000000] Initmem setup node 0 [mem 0x0000000040000000-0x000000004fffffff]
[    0.000000] SBI specification v0.2 detected
[    0.000000] SBI implementation ID=0x1 Version=0x8
[    0.000000] SBI TIME extension detected
[    0.000000] SBI IPI extension detected
[    0.000000] SBI RFENCE extension detected
[    0.000000] SBI v0.2 HSM extension detected
[    0.000000] riscv: ISA extensions aimp
[    0.000000] riscv: ELF capabilities aim
[    0.000000] percpu: Embedded 8 pages/cpu s11340 r0 d21428 u32768
[    0.000000] Built 1 zonelists, mobility grouping on.  Total pages: 65024
[    0.000000] Kernel command line: console=liteuart earlycon=liteuart,0xf0001000 rootwait root=/dev/ram0
[    0.000000] Dentry cache hash table entries: 32768 (order: 5, 131072 bytes, linear)
[    0.000000] Inode-cache hash table entries: 16384 (order: 4, 65536 bytes, linear)
[    0.000000] Sorting __ex_table...
[    0.000000] mem auto-init: stack:off, heap alloc:off, heap free:off
[    0.000000] Memory: 243572K/262144K available (5685K kernel code, 572K rwdata, 883K rodata, 209K init, 221K bss, 18572K reserved, 0K cma-reserved)
[    0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=1, Nodes=1
[    0.000000] rcu: Hierarchical RCU implementation.
[    0.000000] rcu: 	RCU restricting CPUs from NR_CPUS=8 to nr_cpu_ids=1.
[    0.000000] rcu: RCU calculated value of scheduler-enlistment delay is 25 jiffies.
[    0.000000] rcu: Adjusting geometry for rcu_fanout_leaf=16, nr_cpu_ids=1
[    0.000000] NR_IRQS: 64, nr_irqs: 64, preallocated irqs: 0
[    0.000000] riscv-intc: 32 local interrupts mapped
[    0.000000] plic: interrupt-controller@f0c00000: mapped 32 interrupts with 1 handlers for 2 contexts.
[    0.000000] random: get_random_bytes called from start_kernel+0x4ac/0x63c with crng_init=0
[    0.000000] riscv_timer_init_dt: Registering clocksource cpuid [0] hartid [0]
[    0.000000] clocksource: riscv_clocksource: mask: 0xffffffffffffffff max_cycles: 0x171024e7e0, max_idle_ns: 440795205315 ns
[    0.000018] sched_clock: 64 bits at 100MHz, resolution 10ns, wraps every 4398046511100ns
[    0.009281] Console: colour dummy device 80x25
[    0.013440] Calibrating delay loop (skipped), value calculated using timer frequency.. 200.00 BogoMIPS (lpj=400000)
[    0.024157] pid_max: default: 32768 minimum: 301
[    0.031689] Mount-cache hash table entries: 1024 (order: 0, 4096 bytes, linear)
[    0.038771] Mountpoint-cache hash table entries: 1024 (order: 0, 4096 bytes, linear)
[    0.067965] ASID allocator using 9 bits (512 entries)
[    0.074355] rcu: Hierarchical SRCU implementation.
[    0.083859] smp: Bringing up secondary CPUs ...
[    0.087748] smp: Brought up 1 node, 1 CPU
[    0.097041] devtmpfs: initialized
[    0.127044] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 7645041785100000 ns
[    0.136905] futex hash table entries: 256 (order: 2, 16384 bytes, linear)
[    0.150759] NET: Registered PF_NETLINK/PF_ROUTE protocol family
[    0.318408] pps_core: LinuxPPS API ver. 1 registered
[    0.322701] pps_core: Software ver. 5.3.6 - Copyright 2005-2007 Rodolfo Giometti <giometti@linux.it>
[    0.332176] PTP clock support registered
[    0.338861] FPGA manager framework
[    0.355403] clocksource: Switched to clocksource riscv_clocksource
[    0.528812] NET: Registered PF_INET protocol family
[    0.534493] IP idents hash table entries: 4096 (order: 3, 32768 bytes, linear)
[    0.550380] tcp_listen_portaddr_hash hash table entries: 512 (order: 0, 6144 bytes, linear)
[    0.559490] TCP established hash table entries: 2048 (order: 1, 8192 bytes, linear)
[    0.567615] TCP bind hash table entries: 2048 (order: 2, 16384 bytes, linear)
[    0.574745] TCP: Hash tables configured (established 2048 bind 2048)
[    0.581661] UDP hash table entries: 256 (order: 1, 8192 bytes, linear)
[    0.588252] UDP-Lite hash table entries: 256 (order: 1, 8192 bytes, linear)
[    0.613813] Unpacking initramfs...
[    0.708721] workingset: timestamp_bits=30 max_order=16 bucket_order=0
[    0.947690] io scheduler mq-deadline registered
[    0.951620] io scheduler kyber registered
[    1.255386] LiteX SoC Controller driver initialized
[    2.006172] Initramfs unpacking failed: invalid magic at start of compressed archive
[    2.076720] Freeing initrd memory: 8192K
[    2.765019] f0001000.serial: ttyLXU0 at MMIO 0x0 (irq = 0, base_baud = 0) is a liteuart
[    2.773234] printk: console [liteuart0] enabled
[    2.773234] printk: console [liteuart0] enabled
[    2.782024] printk: bootconsole [liteuart0] disabled
[    2.782024] printk: bootconsole [liteuart0] disabled
[    2.814827] i2c_dev: i2c /dev entries driver
[    2.859326] NET: Registered PF_INET6 protocol family
[    2.877381] Segment Routing with IPv6
[    2.880761] In-situ OAM (IOAM) with IPv6
[    2.885356] sit: IPv6, IPv4 and MPLS over IPv4 tunneling driver
[    2.904338] NET: Registered PF_PACKET protocol family
[    2.920176] Freeing unused kernel image (initmem) memory: 204K
[    2.925657] Kernel memory protection not selected by kernel config.
[    2.932153] Run /init as init process
Starting syslogd: OK
Starting klogd: OK
Running sysctl: OK
Saving random seed: [    5.226659] random: dd: uninitialized urandom read (512 bytes read)
OK
Starting network: OK

Welcome to Buildroot
buildroot login: acx
Password:
Login incorrect
login[69]: invalid password for 'UNKNOWN' on 'console'
buildroot login: root
                   __   _
                  / /  (_)__  __ ____ __
                 / /__/ / _ \/ // /\ \ /
                /____/_/_//_/\_,_//_\_\
                      / _ \/ _ \
   __   _ __      _  _\___/_//_/         ___  _
  / /  (_) /____ | |/_/__| | / /____ __ / _ \(_)__ _____  __
 / /__/ / __/ -_)>  </___/ |/ / -_) \ // , _/ (_-</ __/ |/ /
/____/_/\__/\__/_/|_|____|___/\__/_\_\/_/|_/_/___/\__/|___/
                  / __/  |/  / _ \
                 _\ \/ /|_/ / ___/
                /___/_/  /_/_/
  32-bit RISC-V Linux running on LiteX / VexRiscv-SMP.

login[69]: root login on 'console'
root@buildroot:~#

现在已经启动了linux系统。
