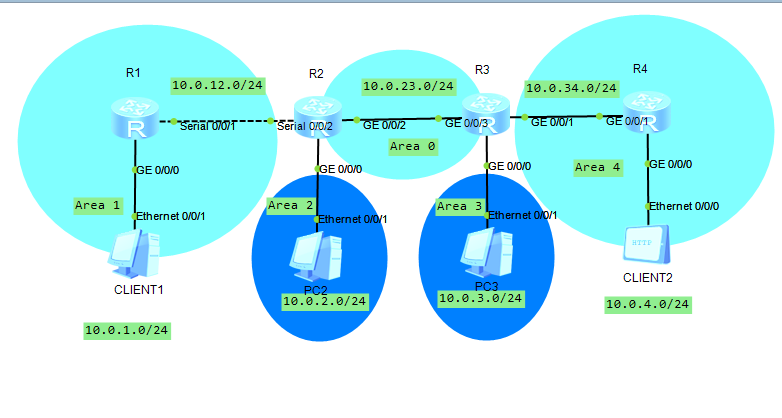

ospf练习实验和配置

1、R1

syst
sysn R1

int s0/0/1
ip add 10.0.12.1 24

int g0/0/0
ip add 10.0.1.1 24

int loopback0
ip add 1.1.1.1 32

dis ip int br          #查看接口与IP相关摘要信息
display ip routing-table  #查看路由表

ospf
area 1
network 10.0.0.0 0.255.255.255
quit

2、R2

syst
sysn R2
int g0/0/2
ip add 10.0.23.2 24

int s0/0/2
ip add 10.0.12.2 24

int g0/0/0
ip add 10.0.2.2 24

int loopback0
ip add 2.2.2.2 32

dis ip int br          #查看接口与IP相关摘要信息
display ip routing-table  #查看路由表

ospf
area 0
network 10.0.23.0 0.0.0.255
area 1
network 10.0.12.0 0.0.0.255
area 2
network 10.0.2.0 0.0.0.255
quit

3、R3

syst
sysn R3

int g0/0/3
ip add 10.0.23.3 24

int g0/0/0
ip add 10.0.3.3 24

int g0/0/1
ip add 10.0.34.3 24

int loopback0
ip add 3.3.3.3 32

dis ip int br          #查看接口与IP相关摘要信息
display ip routing-table  #查看路由表

ospf
area 0
network 10.0.23.0 0.0.0.255
area 3
network 10.0.3.0 0.0.0.255
area 4
network 10.0.34.0 0.0.0.255
quit

4、R4

syst
sysn R4

int g0/0/1
ip add 10.0.34.4 24

int g0/0/0
ip add 10.0.4.4 24

int loopback0
ip add 4.4.4.4 32

dis ip int br          #查看接口与IP相关摘要信息
display ip routing-table  #查看路由表

ospf
area 4
network 10.0.0.0 0.255.255.255
quit
