Flutter&Android 启动页（闪屏页）的加载流程和优化方案

MainActivity

---

整个flutter引擎的相关初始化工作在onCreate方法里开始的:

@Override

protected void onCreate(@Nullable Bundle savedInstanceState) {

switchLaunchThemeForNormalTheme();

super.onCreate(savedInstanceState);

lifecycle.handleLifecycleEvent(Lifecycle.Event.ON_CREATE);

delegate = new FlutterActivityAndFragmentDelegate(this);

///创建绑定引擎等

delegate.onAttach(this);

///用于插件、框架恢复状态

delegate.onActivityCreated(savedInstanceState);

///设置窗口背景透明，隐藏 status bar

configureWindowForTransparency();

///这里是咱们的入口

setContentView(createFlutterView());

configureStatusBarForFullscreenFlutterExperience();

}

setContentView大家很熟悉，我们直接看createFlutterView（） 这个方法：

@NonNull

private View createFlutterView() {

return delegate.onCreateView(

null /* inflater /, null / container /, null / savedInstanceState */);

}

FlutterActivityAndFragmentDelegate

---

flutter的初始化、启动等操作都是委托给它的。

我们继续看onCreateView，我将说明以注释的形式写在代码里

@NonNull

View onCreateView(

LayoutInflater inflater, @Nullable ViewGroup container, @Nullable Bundle savedInstanceState) {

Log.v(TAG, “Creating FlutterView.”);

ensureAlive();

if (host.getRenderMode() == RenderMode.surface) {

/// flutter 应用在surface上显示，所以会进入到这里

FlutterSurfaceView flutterSurfaceView =

new FlutterSurfaceView(

host.getActivity(), host.getTransparencyMode() == TransparencyMode.transparent);

// Allow our host to customize FlutterSurfaceView, if desired.

host.onFlutterSurfaceViewCreated(flutterSurfaceView);

// Create the FlutterView that owns the FlutterSurfaceView.

///用我们的flutterSurfaceView 初始化了一个 FlutterView

flutterView = new FlutterView(host.getActivity(), flutterSurfaceView);

} else {

FlutterTextureView flutterTextureView = new FlutterTextureView(host.getActivity());

// Allow our host to customize FlutterSurfaceView, if desired.

host.onFlutterTextureViewCreated(flutterTextureView);

// Create the FlutterView that owns the FlutterTextureView.

flutterView = new FlutterView(host.getActivity(), flutterTextureView);

}

// Add listener to be notified when Flutter renders its first frame.

flutterView.addOnFirstFrameRenderedListener(flutterUiDisplayListener);

/// 创建一个闪屏view - FlutterSplashView

flutterSplashView = new FlutterSplashView(host.getContext());

if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.JELLY_BEAN_MR1) {

flutterSplashView.setId(View.generateViewId());

} else {

// TODO(mattcarroll): Find a better solution to this ID. This is a random, static ID.

// It might conflict with other Views, and it means that only a single FlutterSplashView

// can exist in a View hierarchy at one time.

flutterSplashView.setId(486947586);

}

/// 显示闪屏页

flutterSplashView.displayFlutterViewWithSplash(flutterView, host.provideSplashScreen());

Log.v(TAG, “Attaching FlutterEngine to FlutterView.”);

///所创建surface 绑定到engine上

flutterView.attachToFlutterEngine(flutterEngine);

return flutterSplashView;

}

这里我们可以大致了解到，创建了一个FlutterSurfaceView 它继承自surfaceView(我们的flutter页面也是渲染在这个surface上的)。之后我们用它初始化一个FlutterView，

FlutterView继承自 FrameLayout

随后我们再创建一个FlutterSplashView （继承FrameLayout）并调用displayFlutterViewWithSplash（）方法。

public void displayFlutterViewWithSplash(

@NonNull FlutterView flutterView, @Nullable SplashScreen splashScreen) {

// If we were displaying a previous FlutterView, remove it.

if (this.flutterView != null) {

this.flutterView.removeOnFirstFrameRenderedListener(flutterUiDisplayListener);

removeView(this.flutterView);

}

// If we were displaying a previous splash screen View, remove it.

if (splashScreenView != null) {

removeView(splashScreenView);

}

// Display the new FlutterView.

this.flutterView = flutterView;

///添加flutterView

addView(flutterView);

this.splashScreen = splashScreen;

// Display the new splash screen, if needed.

if (splashScreen != null) {

if (isSplashScreenNeededNow()) {

Log.v(TAG, “Showing splash screen UI.”);

// This is the typical case. A FlutterEngine is attached to the FlutterView and we’re

// waiting for the first frame to render. Show a splash UI until that happens.

splashScreenView = splashScreen.createSplashView(getContext(), splashScreenState);

///添加 splashScreenView

addView(this.splashScreenView);

flutterView.addOnFirstFrameRenderedListener(flutterUiDisplayListener);

} else if (isSplashScreenTransitionNeededNow()) {

Log.v(

TAG,

“Showing an immediate splash transition to Flutter due to previously interrupted transition.”);

splashScreenView = splashScreen.createSplashView(getContext(), splashScreenState);

addView(splashScreenView);

transitionToFlutter();

} else if (!flutterView.isAttachedToFlutterEngine()) {

Log.v(

TAG,

“FlutterView is not yet attached to a FlutterEngine. Showing nothing until a FlutterEngine is attached.”);

flutterView.addFlutterEngineAttachmentListener(flutterEngineAttachmentListener);

}

}

}

这个方法对flutterView进行了保存（不用管这个），随后我们保存了一个 接口的实现类——splashScreen，这个实现类则是由FlutterActivity实现的(MainActivity)来提供的:

///host 是个接口，由FlutterActivity实现

回顾上面：flutterSplashView.displayFlutterViewWithSplash(flutterView, host.provideSplashScreen());

public SplashScreen provideSplashScreen() {

Drawable manifestSplashDrawable = getSplashScreenFromManifest();

if (manifestSplashDrawable != null) {

///DrawableSplashScreen 实现了 splashScreen的接口

return new DrawableSplashScreen(manifestSplashDrawable);

} else {

return null;

}

}

通过getSplashScreenFromManifest 初始化了一个drawable，我们看一下它内部：

@Nullable

@SuppressWarnings(“deprecation”)

private Drawable getSplashScreenFromManifest() {

try {

ActivityInfo activityInfo =

getPackageManager().getActivityInfo(getComponentName(), PackageManager.GET_META_DATA);

Bundle metadata = activityInfo.metaData;

///这里就是我们在 AndroidManifest.xml中设置启动页了

///SPLASH_SCREEN_META_DATA_KEY 的值 见下方

int splashScreenId = metadata != null ? metadata.getInt(SPLASH_SCREEN_META_DATA_KEY) : 0;

return splashScreenId != 0

? Build.VERSION.SDK_INT > Build.VERSION_CODES.LOLLIPOP

? getResources().getDrawable(splashScreenId, getTheme())

getResources().getDrawable(splashScreenId)

null;

} catch (PackageManager.NameNotFoundException e) {

// This is never expected to happen.

return null;

}

}

自我介绍一下，小编13年上海交大毕业，曾经在小公司待过，也去过华为、OPPO等大厂，18年进入阿里一直到现在。

深知大多数初中级安卓工程师，想要提升技能，往往是自己摸索成长，但自己不成体系的自学效果低效又漫长，而且极易碰到天花板技术停滞不前！

因此收集整理了一份《2024年最新Android移动开发全套学习资料》送给大家，初衷也很简单，就是希望能够帮助到想自学提升又不知道该从何学起的朋友，同时减轻大家的负担。

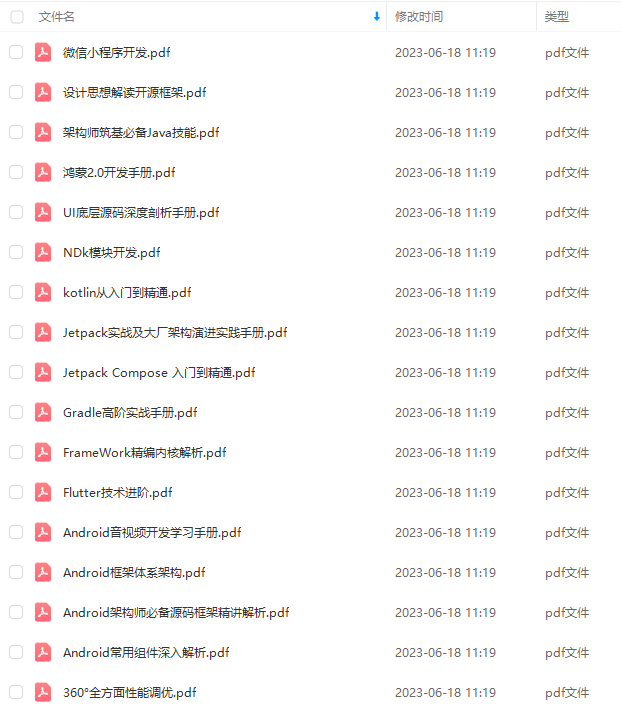

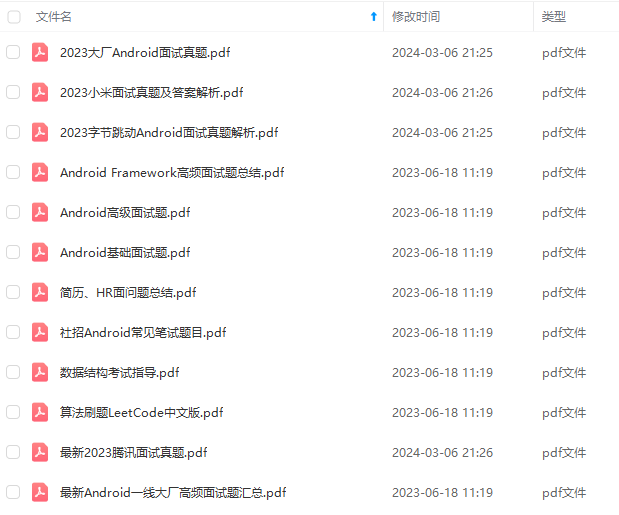

由于文件比较大，这里只是将部分目录截图出来，每个节点里面都包含大厂面经、学习笔记、源码讲义、实战项目、讲解视频
如果你觉得这些内容对你有帮助，可以添加下面V无偿领取！（备注Android）

总结

算法知识点繁多，企业考察的题目千变万化，面对越来越近的“金九银十”，我给大家准备好了一套比较完善的学习方法，希望能帮助大家在有限的时间里尽可能系统快速的恶补算法，通过高效的学习来提高大家面试中算法模块的通过率。

这一套学习资料既有文字档也有视频，里面不仅仅有关键知识点的整理，还有案例的算法相关部分的讲解，可以帮助大家更好更全面的进行学习，二者搭配起来学习效果会更好。

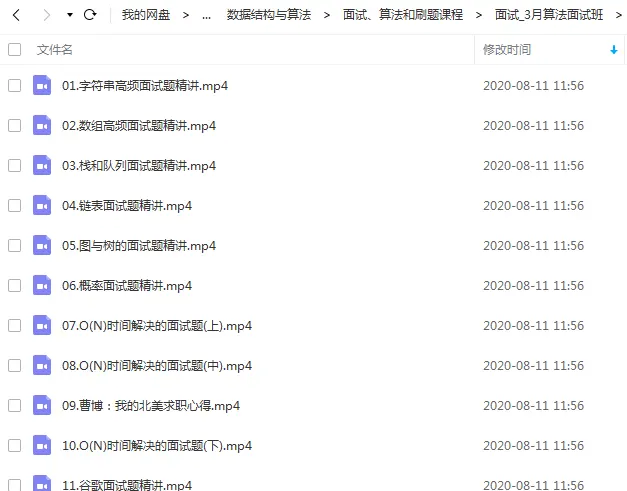

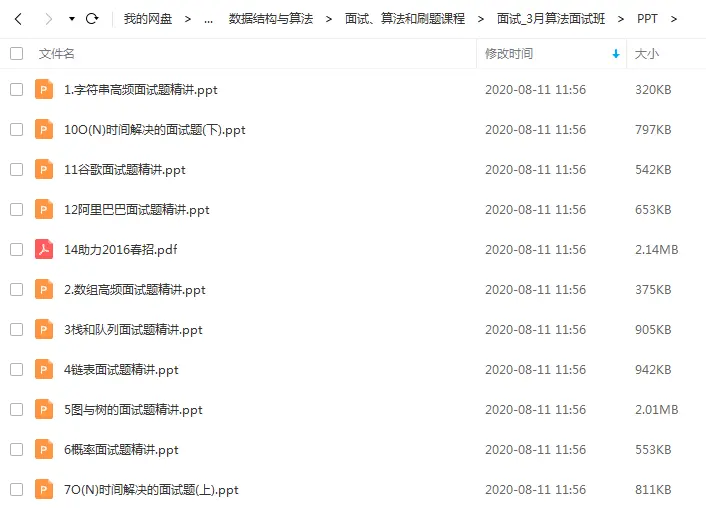

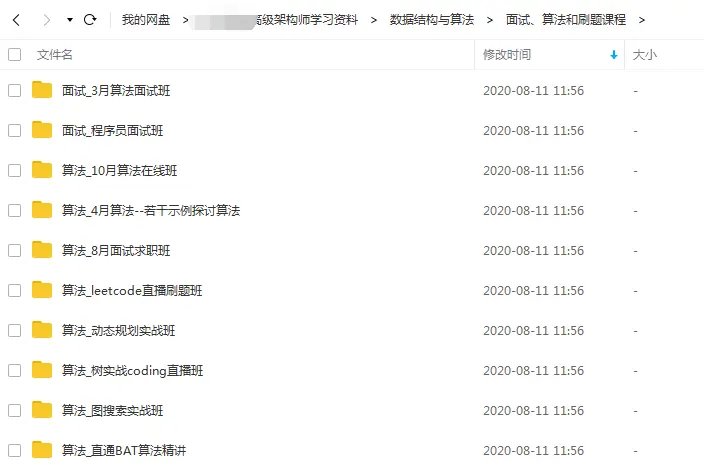

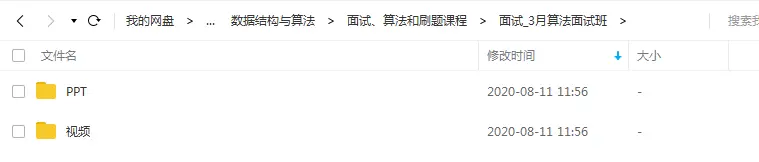

部分资料展示：
