1. 开发背景

今天使用Clion 开发 ESP32-C3

 2. 遇到的问题

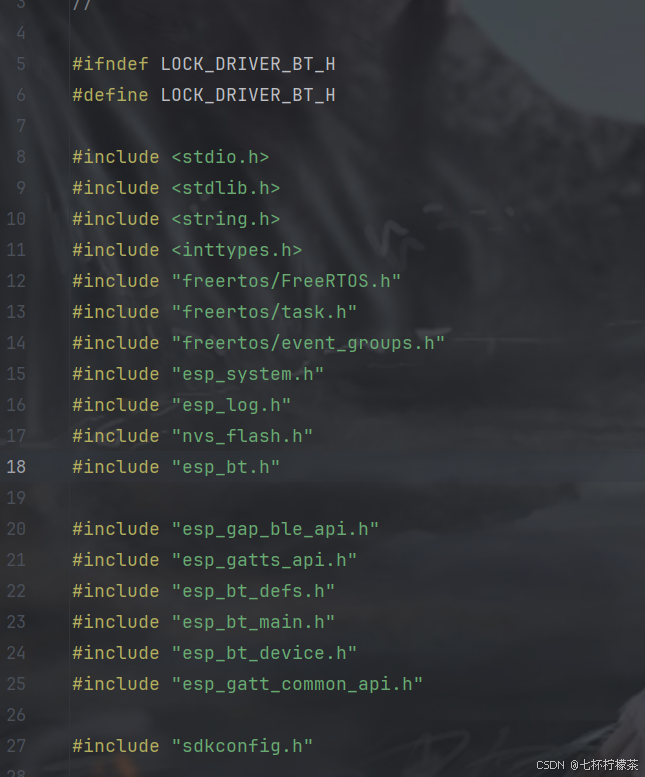

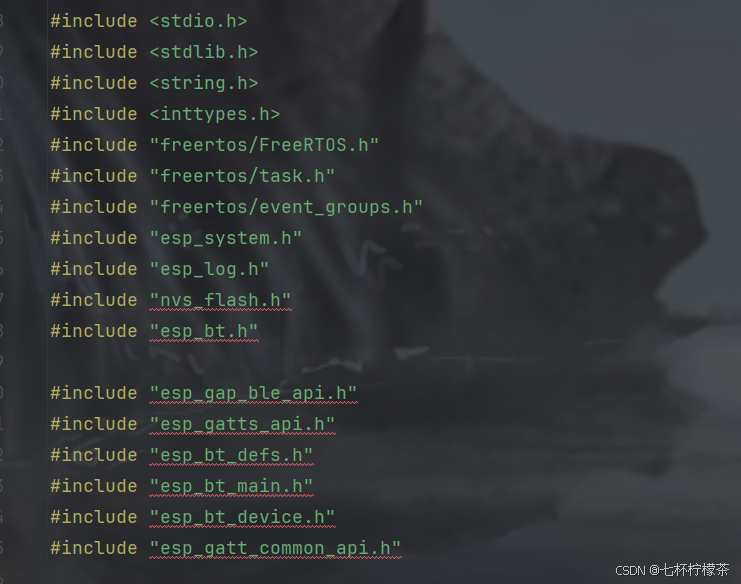

想要使用蓝牙模块 引入到clion后发现报错找不到蓝牙模块 引入报错

3. 解决方法

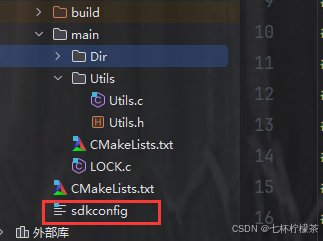

3.1 找到项目的sdkconfig

经过查找发现想要使用蓝牙模块需要在SDK里开启蓝牙模块等一些配置

3.2 ctrl + f 搜索 Bluetooth

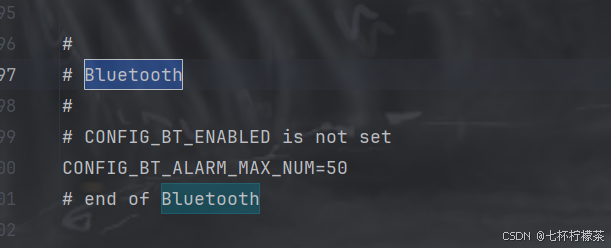

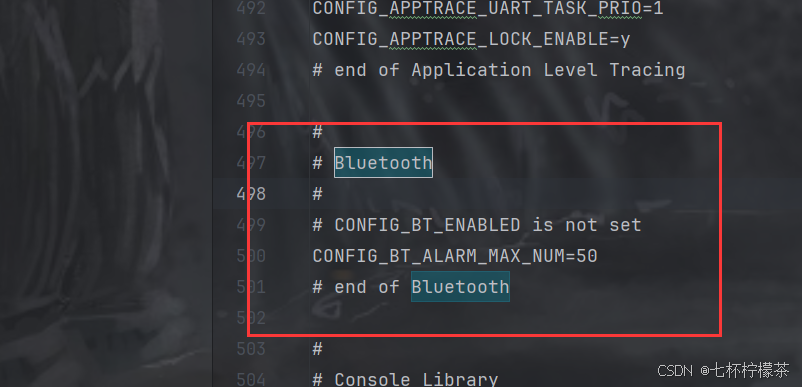

发现项目中并没有开启蓝牙模块的配置    这是我找到了官方的示例

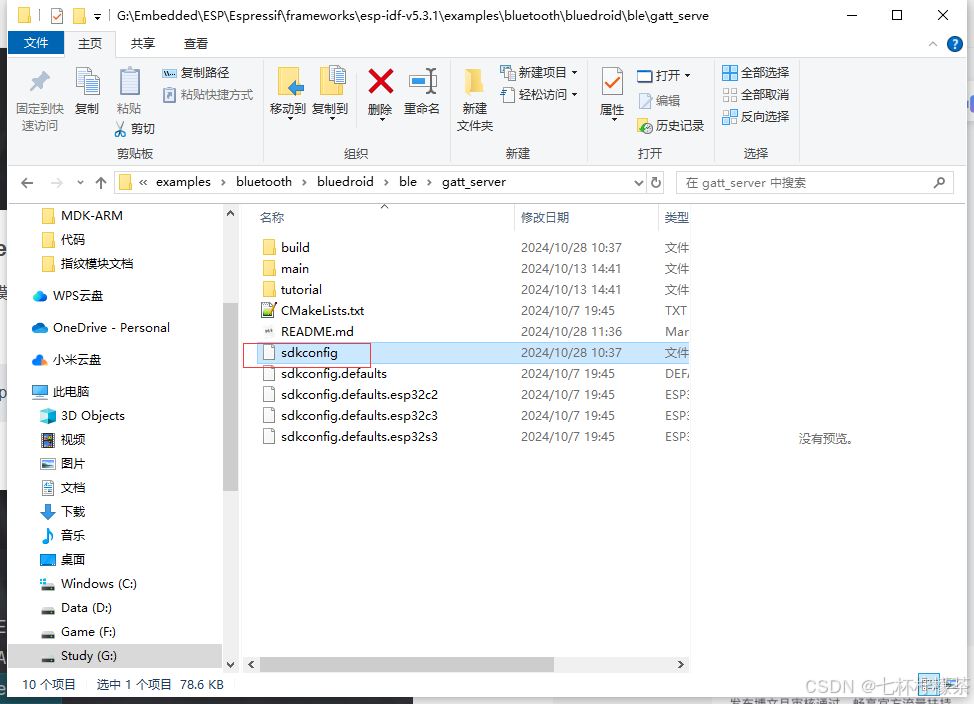

在我的目录为：

Espressif\frameworks\esp-idf-v5.3.1\examples\bluetooth\bluedroid\ble\gatt_server

 里面的

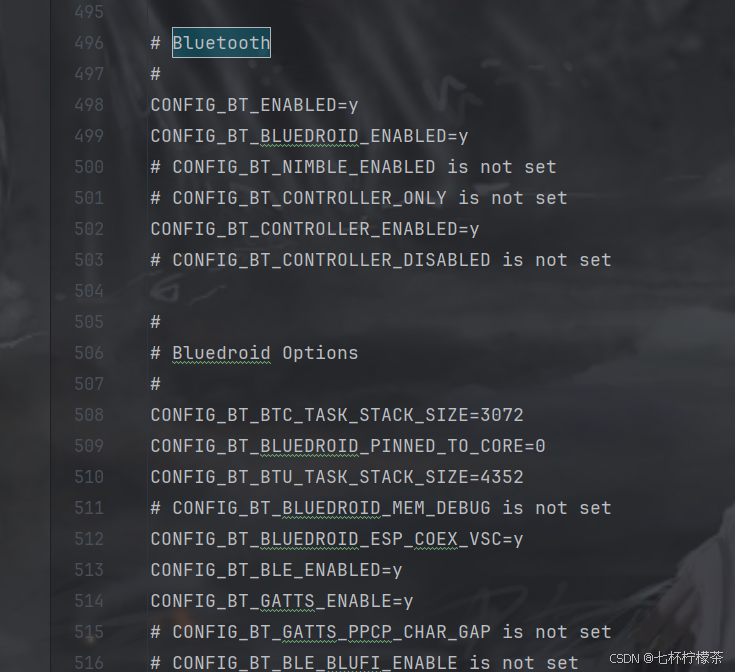

3.3 打开后发现里面进行了一系列的配置

这里我没关注他配置了什么 因为我也不会配置

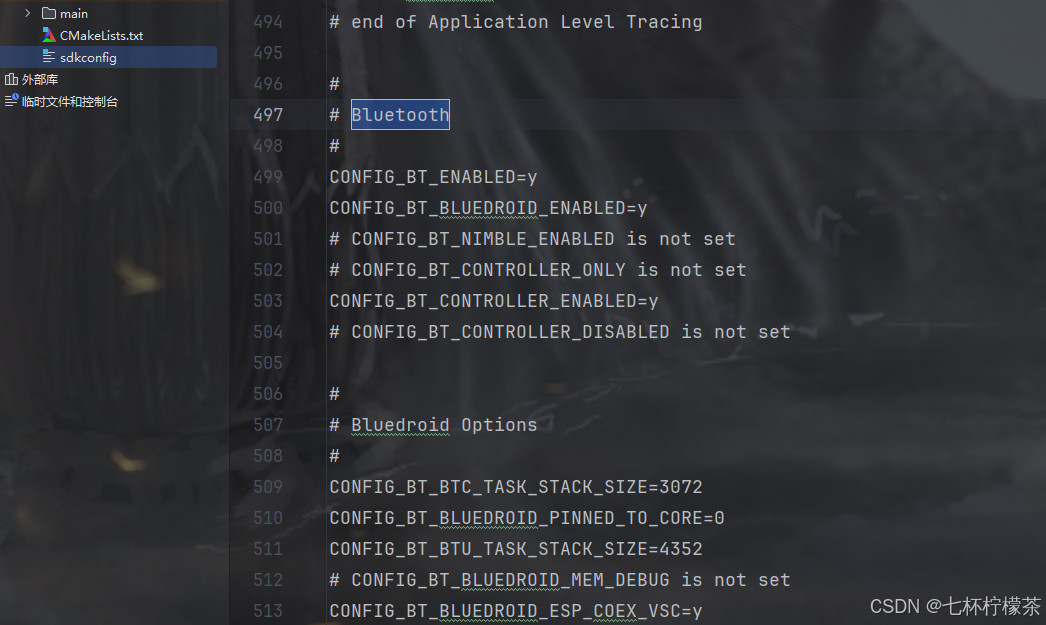

3.4 接着我们复制这部分配置到自己的项目(有兴趣可以自己研究)

# Bluetooth
#
CONFIG_BT_ENABLED=y
CONFIG_BT_BLUEDROID_ENABLED=y
# CONFIG_BT_NIMBLE_ENABLED is not set
# CONFIG_BT_CONTROLLER_ONLY is not set
CONFIG_BT_CONTROLLER_ENABLED=y
# CONFIG_BT_CONTROLLER_DISABLED is not set

#
# Bluedroid Options
#
CONFIG_BT_BTC_TASK_STACK_SIZE=3072
CONFIG_BT_BLUEDROID_PINNED_TO_CORE=0
CONFIG_BT_BTU_TASK_STACK_SIZE=4352
# CONFIG_BT_BLUEDROID_MEM_DEBUG is not set
CONFIG_BT_BLUEDROID_ESP_COEX_VSC=y
CONFIG_BT_BLE_ENABLED=y
CONFIG_BT_GATTS_ENABLE=y
# CONFIG_BT_GATTS_PPCP_CHAR_GAP is not set
# CONFIG_BT_BLE_BLUFI_ENABLE is not set
CONFIG_BT_GATT_MAX_SR_PROFILES=8
CONFIG_BT_GATT_MAX_SR_ATTRIBUTES=100
# CONFIG_BT_GATTS_SEND_SERVICE_CHANGE_MANUAL is not set
CONFIG_BT_GATTS_SEND_SERVICE_CHANGE_AUTO=y
CONFIG_BT_GATTS_SEND_SERVICE_CHANGE_MODE=0
# CONFIG_BT_GATTS_ROBUST_CACHING_ENABLED is not set
# CONFIG_BT_GATTS_DEVICE_NAME_WRITABLE is not set
# CONFIG_BT_GATTS_APPEARANCE_WRITABLE is not set
CONFIG_BT_GATTC_ENABLE=y
CONFIG_BT_GATTC_MAX_CACHE_CHAR=40
CONFIG_BT_GATTC_NOTIF_REG_MAX=5
# CONFIG_BT_GATTC_CACHE_NVS_FLASH is not set
CONFIG_BT_GATTC_CONNECT_RETRY_COUNT=3
CONFIG_BT_BLE_SMP_ENABLE=y
# CONFIG_BT_SMP_SLAVE_CON_PARAMS_UPD_ENABLE is not set
# CONFIG_BT_BLE_SMP_ID_RESET_ENABLE is not set
# CONFIG_BT_STACK_NO_LOG is not set

#
# BT DEBUG LOG LEVEL
#
# CONFIG_BT_LOG_HCI_TRACE_LEVEL_NONE is not set
# CONFIG_BT_LOG_HCI_TRACE_LEVEL_ERROR is not set
CONFIG_BT_LOG_HCI_TRACE_LEVEL_WARNING=y
# CONFIG_BT_LOG_HCI_TRACE_LEVEL_API is not set
# CONFIG_BT_LOG_HCI_TRACE_LEVEL_EVENT is not set
# CONFIG_BT_LOG_HCI_TRACE_LEVEL_DEBUG is not set
# CONFIG_BT_LOG_HCI_TRACE_LEVEL_VERBOSE is not set
CONFIG_BT_LOG_HCI_TRACE_LEVEL=2
# CONFIG_BT_LOG_BTM_TRACE_LEVEL_NONE is not set
# CONFIG_BT_LOG_BTM_TRACE_LEVEL_ERROR is not set
CONFIG_BT_LOG_BTM_TRACE_LEVEL_WARNING=y
# CONFIG_BT_LOG_BTM_TRACE_LEVEL_API is not set
# CONFIG_BT_LOG_BTM_TRACE_LEVEL_EVENT is not set
# CONFIG_BT_LOG_BTM_TRACE_LEVEL_DEBUG is not set
# CONFIG_BT_LOG_BTM_TRACE_LEVEL_VERBOSE is not set
CONFIG_BT_LOG_BTM_TRACE_LEVEL=2
# CONFIG_BT_LOG_L2CAP_TRACE_LEVEL_NONE is not set
# CONFIG_BT_LOG_L2CAP_TRACE_LEVEL_ERROR is not set
CONFIG_BT_LOG_L2CAP_TRACE_LEVEL_WARNING=y
# CONFIG_BT_LOG_L2CAP_TRACE_LEVEL_API is not set
# CONFIG_BT_LOG_L2CAP_TRACE_LEVEL_EVENT is not set
# CONFIG_BT_LOG_L2CAP_TRACE_LEVEL_DEBUG is not set
# CONFIG_BT_LOG_L2CAP_TRACE_LEVEL_VERBOSE is not set
CONFIG_BT_LOG_L2CAP_TRACE_LEVEL=2
# CONFIG_BT_LOG_RFCOMM_TRACE_LEVEL_NONE is not set
# CONFIG_BT_LOG_RFCOMM_TRACE_LEVEL_ERROR is not set
CONFIG_BT_LOG_RFCOMM_TRACE_LEVEL_WARNING=y
# CONFIG_BT_LOG_RFCOMM_TRACE_LEVEL_API is not set
# CONFIG_BT_LOG_RFCOMM_TRACE_LEVEL_EVENT is not set
# CONFIG_BT_LOG_RFCOMM_TRACE_LEVEL_DEBUG is not set
# CONFIG_BT_LOG_RFCOMM_TRACE_LEVEL_VERBOSE is not set
CONFIG_BT_LOG_RFCOMM_TRACE_LEVEL=2
# CONFIG_BT_LOG_SDP_TRACE_LEVEL_NONE is not set
# CONFIG_BT_LOG_SDP_TRACE_LEVEL_ERROR is not set
CONFIG_BT_LOG_SDP_TRACE_LEVEL_WARNING=y
# CONFIG_BT_LOG_SDP_TRACE_LEVEL_API is not set
# CONFIG_BT_LOG_SDP_TRACE_LEVEL_EVENT is not set
# CONFIG_BT_LOG_SDP_TRACE_LEVEL_DEBUG is not set
# CONFIG_BT_LOG_SDP_TRACE_LEVEL_VERBOSE is not set
CONFIG_BT_LOG_SDP_TRACE_LEVEL=2
# CONFIG_BT_LOG_GAP_TRACE_LEVEL_NONE is not set
# CONFIG_BT_LOG_GAP_TRACE_LEVEL_ERROR is not set
CONFIG_BT_LOG_GAP_TRACE_LEVEL_WARNING=y
# CONFIG_BT_LOG_GAP_TRACE_LEVEL_API is not set
# CONFIG_BT_LOG_GAP_TRACE_LEVEL_EVENT is not set
# CONFIG_BT_LOG_GAP_TRACE_LEVEL_DEBUG is not set
# CONFIG_BT_LOG_GAP_TRACE_LEVEL_VERBOSE is not set
CONFIG_BT_LOG_GAP_TRACE_LEVEL=2
# CONFIG_BT_LOG_BNEP_TRACE_LEVEL_NONE is not set
# CONFIG_BT_LOG_BNEP_TRACE_LEVEL_ERROR is not set
CONFIG_BT_LOG_BNEP_TRACE_LEVEL_WARNING=y
# CONFIG_BT_LOG_BNEP_TRACE_LEVEL_API is not set
# CONFIG_BT_LOG_BNEP_TRACE_LEVEL_EVENT is not set
# CONFIG_BT_LOG_BNEP_TRACE_LEVEL_DEBUG is not set
# CONFIG_BT_LOG_BNEP_TRACE_LEVEL_VERBOSE is not set
CONFIG_BT_LOG_BNEP_TRACE_LEVEL=2
# CONFIG_BT_LOG_PAN_TRACE_LEVEL_NONE is not set
# CONFIG_BT_LOG_PAN_TRACE_LEVEL_ERROR is not set
CONFIG_BT_LOG_PAN_TRACE_LEVEL_WARNING=y
# CONFIG_BT_LOG_PAN_TRACE_LEVEL_API is not set
# CONFIG_BT_LOG_PAN_TRACE_LEVEL_EVENT is not set
# CONFIG_BT_LOG_PAN_TRACE_LEVEL_DEBUG is not set
# CONFIG_BT_LOG_PAN_TRACE_LEVEL_VERBOSE is not set
CONFIG_BT_LOG_PAN_TRACE_LEVEL=2
# CONFIG_BT_LOG_A2D_TRACE_LEVEL_NONE is not set
# CONFIG_BT_LOG_A2D_TRACE_LEVEL_ERROR is not set
CONFIG_BT_LOG_A2D_TRACE_LEVEL_WARNING=y
# CONFIG_BT_LOG_A2D_TRACE_LEVEL_API is not set
# CONFIG_BT_LOG_A2D_TRACE_LEVEL_EVENT is not set
# CONFIG_BT_LOG_A2D_TRACE_LEVEL_DEBUG is not set
# CONFIG_BT_LOG_A2D_TRACE_LEVEL_VERBOSE is not set
CONFIG_BT_LOG_A2D_TRACE_LEVEL=2
# CONFIG_BT_LOG_AVDT_TRACE_LEVEL_NONE is not set
# CONFIG_BT_LOG_AVDT_TRACE_LEVEL_ERROR is not set
CONFIG_BT_LOG_AVDT_TRACE_LEVEL_WARNING=y
# CONFIG_BT_LOG_AVDT_TRACE_LEVEL_API is not set
# CONFIG_BT_LOG_AVDT_TRACE_LEVEL_EVENT is not set
# CONFIG_BT_LOG_AVDT_TRACE_LEVEL_DEBUG is not set
# CONFIG_BT_LOG_AVDT_TRACE_LEVEL_VERBOSE is not set
CONFIG_BT_LOG_AVDT_TRACE_LEVEL=2
# CONFIG_BT_LOG_AVCT_TRACE_LEVEL_NONE is not set
# CONFIG_BT_LOG_AVCT_TRACE_LEVEL_ERROR is not set
CONFIG_BT_LOG_AVCT_TRACE_LEVEL_WARNING=y
# CONFIG_BT_LOG_AVCT_TRACE_LEVEL_API is not set
# CONFIG_BT_LOG_AVCT_TRACE_LEVEL_EVENT is not set
# CONFIG_BT_LOG_AVCT_TRACE_LEVEL_DEBUG is not set
# CONFIG_BT_LOG_AVCT_TRACE_LEVEL_VERBOSE is not set
CONFIG_BT_LOG_AVCT_TRACE_LEVEL=2
# CONFIG_BT_LOG_AVRC_TRACE_LEVEL_NONE is not set
# CONFIG_BT_LOG_AVRC_TRACE_LEVEL_ERROR is not set
CONFIG_BT_LOG_AVRC_TRACE_LEVEL_WARNING=y
# CONFIG_BT_LOG_AVRC_TRACE_LEVEL_API is not set
# CONFIG_BT_LOG_AVRC_TRACE_LEVEL_EVENT is not set
# CONFIG_BT_LOG_AVRC_TRACE_LEVEL_DEBUG is not set
# CONFIG_BT_LOG_AVRC_TRACE_LEVEL_VERBOSE is not set
CONFIG_BT_LOG_AVRC_TRACE_LEVEL=2
# CONFIG_BT_LOG_MCA_TRACE_LEVEL_NONE is not set
# CONFIG_BT_LOG_MCA_TRACE_LEVEL_ERROR is not set
CONFIG_BT_LOG_MCA_TRACE_LEVEL_WARNING=y
# CONFIG_BT_LOG_MCA_TRACE_LEVEL_API is not set
# CONFIG_BT_LOG_MCA_TRACE_LEVEL_EVENT is not set
# CONFIG_BT_LOG_MCA_TRACE_LEVEL_DEBUG is not set
# CONFIG_BT_LOG_MCA_TRACE_LEVEL_VERBOSE is not set
CONFIG_BT_LOG_MCA_TRACE_LEVEL=2
# CONFIG_BT_LOG_HID_TRACE_LEVEL_NONE is not set
# CONFIG_BT_LOG_HID_TRACE_LEVEL_ERROR is not set
CONFIG_BT_LOG_HID_TRACE_LEVEL_WARNING=y
# CONFIG_BT_LOG_HID_TRACE_LEVEL_API is not set
# CONFIG_BT_LOG_HID_TRACE_LEVEL_EVENT is not set
# CONFIG_BT_LOG_HID_TRACE_LEVEL_DEBUG is not set
# CONFIG_BT_LOG_HID_TRACE_LEVEL_VERBOSE is not set
CONFIG_BT_LOG_HID_TRACE_LEVEL=2
# CONFIG_BT_LOG_APPL_TRACE_LEVEL_NONE is not set
# CONFIG_BT_LOG_APPL_TRACE_LEVEL_ERROR is not set
CONFIG_BT_LOG_APPL_TRACE_LEVEL_WARNING=y
# CONFIG_BT_LOG_APPL_TRACE_LEVEL_API is not set
# CONFIG_BT_LOG_APPL_TRACE_LEVEL_EVENT is not set
# CONFIG_BT_LOG_APPL_TRACE_LEVEL_DEBUG is not set
# CONFIG_BT_LOG_APPL_TRACE_LEVEL_VERBOSE is not set
CONFIG_BT_LOG_APPL_TRACE_LEVEL=2
# CONFIG_BT_LOG_GATT_TRACE_LEVEL_NONE is not set
# CONFIG_BT_LOG_GATT_TRACE_LEVEL_ERROR is not set
CONFIG_BT_LOG_GATT_TRACE_LEVEL_WARNING=y
# CONFIG_BT_LOG_GATT_TRACE_LEVEL_API is not set
# CONFIG_BT_LOG_GATT_TRACE_LEVEL_EVENT is not set
# CONFIG_BT_LOG_GATT_TRACE_LEVEL_DEBUG is not set
# CONFIG_BT_LOG_GATT_TRACE_LEVEL_VERBOSE is not set
CONFIG_BT_LOG_GATT_TRACE_LEVEL=2
# CONFIG_BT_LOG_SMP_TRACE_LEVEL_NONE is not set
# CONFIG_BT_LOG_SMP_TRACE_LEVEL_ERROR is not set
CONFIG_BT_LOG_SMP_TRACE_LEVEL_WARNING=y
# CONFIG_BT_LOG_SMP_TRACE_LEVEL_API is not set
# CONFIG_BT_LOG_SMP_TRACE_LEVEL_EVENT is not set
# CONFIG_BT_LOG_SMP_TRACE_LEVEL_DEBUG is not set
# CONFIG_BT_LOG_SMP_TRACE_LEVEL_VERBOSE is not set
CONFIG_BT_LOG_SMP_TRACE_LEVEL=2
# CONFIG_BT_LOG_BTIF_TRACE_LEVEL_NONE is not set
# CONFIG_BT_LOG_BTIF_TRACE_LEVEL_ERROR is not set
CONFIG_BT_LOG_BTIF_TRACE_LEVEL_WARNING=y
# CONFIG_BT_LOG_BTIF_TRACE_LEVEL_API is not set
# CONFIG_BT_LOG_BTIF_TRACE_LEVEL_EVENT is not set
# CONFIG_BT_LOG_BTIF_TRACE_LEVEL_DEBUG is not set
# CONFIG_BT_LOG_BTIF_TRACE_LEVEL_VERBOSE is not set
CONFIG_BT_LOG_BTIF_TRACE_LEVEL=2
# CONFIG_BT_LOG_BTC_TRACE_LEVEL_NONE is not set
# CONFIG_BT_LOG_BTC_TRACE_LEVEL_ERROR is not set
CONFIG_BT_LOG_BTC_TRACE_LEVEL_WARNING=y
# CONFIG_BT_LOG_BTC_TRACE_LEVEL_API is not set
# CONFIG_BT_LOG_BTC_TRACE_LEVEL_EVENT is not set
# CONFIG_BT_LOG_BTC_TRACE_LEVEL_DEBUG is not set
# CONFIG_BT_LOG_BTC_TRACE_LEVEL_VERBOSE is not set
CONFIG_BT_LOG_BTC_TRACE_LEVEL=2
# CONFIG_BT_LOG_OSI_TRACE_LEVEL_NONE is not set
# CONFIG_BT_LOG_OSI_TRACE_LEVEL_ERROR is not set
CONFIG_BT_LOG_OSI_TRACE_LEVEL_WARNING=y
# CONFIG_BT_LOG_OSI_TRACE_LEVEL_API is not set
# CONFIG_BT_LOG_OSI_TRACE_LEVEL_EVENT is not set
# CONFIG_BT_LOG_OSI_TRACE_LEVEL_DEBUG is not set
# CONFIG_BT_LOG_OSI_TRACE_LEVEL_VERBOSE is not set
CONFIG_BT_LOG_OSI_TRACE_LEVEL=2
# CONFIG_BT_LOG_BLUFI_TRACE_LEVEL_NONE is not set
# CONFIG_BT_LOG_BLUFI_TRACE_LEVEL_ERROR is not set
CONFIG_BT_LOG_BLUFI_TRACE_LEVEL_WARNING=y
# CONFIG_BT_LOG_BLUFI_TRACE_LEVEL_API is not set
# CONFIG_BT_LOG_BLUFI_TRACE_LEVEL_EVENT is not set
# CONFIG_BT_LOG_BLUFI_TRACE_LEVEL_DEBUG is not set
# CONFIG_BT_LOG_BLUFI_TRACE_LEVEL_VERBOSE is not set
CONFIG_BT_LOG_BLUFI_TRACE_LEVEL=2
# end of BT DEBUG LOG LEVEL

CONFIG_BT_ACL_CONNECTIONS=4
CONFIG_BT_MULTI_CONNECTION_ENBALE=y
# CONFIG_BT_ALLOCATION_FROM_SPIRAM_FIRST is not set
# CONFIG_BT_BLE_DYNAMIC_ENV_MEMORY is not set
# CONFIG_BT_BLE_HOST_QUEUE_CONG_CHECK is not set
CONFIG_BT_SMP_ENABLE=y
CONFIG_BT_SMP_MAX_BONDS=15
# CONFIG_BT_BLE_ACT_SCAN_REP_ADV_SCAN is not set
CONFIG_BT_BLE_ESTAB_LINK_CONN_TOUT=30
CONFIG_BT_MAX_DEVICE_NAME_LEN=32
CONFIG_BT_BLE_RPA_TIMEOUT=900
# CONFIG_BT_BLE_50_FEATURES_SUPPORTED is not set
CONFIG_BT_BLE_42_FEATURES_SUPPORTED=y
# CONFIG_BT_BLE_HIGH_DUTY_ADV_INTERVAL is not set
# end of Bluedroid Options

#
# Controller Options
#
CONFIG_BT_CTRL_MODE_EFF=1
CONFIG_BT_CTRL_BLE_MAX_ACT=6
CONFIG_BT_CTRL_BLE_MAX_ACT_EFF=6
CONFIG_BT_CTRL_BLE_STATIC_ACL_TX_BUF_NB=0
CONFIG_BT_CTRL_PINNED_TO_CORE=0
CONFIG_BT_CTRL_HCI_MODE_VHCI=y
# CONFIG_BT_CTRL_HCI_MODE_UART_H4 is not set
CONFIG_BT_CTRL_HCI_TL=1
CONFIG_BT_CTRL_ADV_DUP_FILT_MAX=30
CONFIG_BT_BLE_CCA_MODE_NONE=y
# CONFIG_BT_BLE_CCA_MODE_HW is not set
# CONFIG_BT_BLE_CCA_MODE_SW is not set
CONFIG_BT_BLE_CCA_MODE=0
CONFIG_BT_CTRL_HW_CCA_VAL=20
CONFIG_BT_CTRL_HW_CCA_EFF=0
CONFIG_BT_CTRL_CE_LENGTH_TYPE_ORIG=y
# CONFIG_BT_CTRL_CE_LENGTH_TYPE_CE is not set
# CONFIG_BT_CTRL_CE_LENGTH_TYPE_SD is not set
CONFIG_BT_CTRL_CE_LENGTH_TYPE_EFF=0
CONFIG_BT_CTRL_TX_ANTENNA_INDEX_0=y
# CONFIG_BT_CTRL_TX_ANTENNA_INDEX_1 is not set
CONFIG_BT_CTRL_TX_ANTENNA_INDEX_EFF=0
CONFIG_BT_CTRL_RX_ANTENNA_INDEX_0=y
# CONFIG_BT_CTRL_RX_ANTENNA_INDEX_1 is not set
CONFIG_BT_CTRL_RX_ANTENNA_INDEX_EFF=0
# CONFIG_BT_CTRL_DFT_TX_POWER_LEVEL_N24 is not set
# CONFIG_BT_CTRL_DFT_TX_POWER_LEVEL_N21 is not set
# CONFIG_BT_CTRL_DFT_TX_POWER_LEVEL_N18 is not set
# CONFIG_BT_CTRL_DFT_TX_POWER_LEVEL_N15 is not set
# CONFIG_BT_CTRL_DFT_TX_POWER_LEVEL_N12 is not set
# CONFIG_BT_CTRL_DFT_TX_POWER_LEVEL_N9 is not set
# CONFIG_BT_CTRL_DFT_TX_POWER_LEVEL_N6 is not set
# CONFIG_BT_CTRL_DFT_TX_POWER_LEVEL_N3 is not set
# CONFIG_BT_CTRL_DFT_TX_POWER_LEVEL_N0 is not set
# CONFIG_BT_CTRL_DFT_TX_POWER_LEVEL_P3 is not set
# CONFIG_BT_CTRL_DFT_TX_POWER_LEVEL_P6 is not set
CONFIG_BT_CTRL_DFT_TX_POWER_LEVEL_P9=y
# CONFIG_BT_CTRL_DFT_TX_POWER_LEVEL_P12 is not set
# CONFIG_BT_CTRL_DFT_TX_POWER_LEVEL_P15 is not set
# CONFIG_BT_CTRL_DFT_TX_POWER_LEVEL_P18 is not set
# CONFIG_BT_CTRL_DFT_TX_POWER_LEVEL_P21 is not set
CONFIG_BT_CTRL_DFT_TX_POWER_LEVEL_EFF=11
CONFIG_BT_CTRL_BLE_ADV_REPORT_FLOW_CTRL_SUPP=y
CONFIG_BT_CTRL_BLE_ADV_REPORT_FLOW_CTRL_NUM=100
CONFIG_BT_CTRL_BLE_ADV_REPORT_DISCARD_THRSHOLD=20
CONFIG_BT_CTRL_BLE_SCAN_DUPL=y
CONFIG_BT_CTRL_SCAN_DUPL_TYPE_DEVICE=y
# CONFIG_BT_CTRL_SCAN_DUPL_TYPE_DATA is not set
# CONFIG_BT_CTRL_SCAN_DUPL_TYPE_DATA_DEVICE is not set
CONFIG_BT_CTRL_SCAN_DUPL_TYPE=0
CONFIG_BT_CTRL_SCAN_DUPL_CACHE_SIZE=100
CONFIG_BT_CTRL_DUPL_SCAN_CACHE_REFRESH_PERIOD=0
# CONFIG_BT_CTRL_BLE_MESH_SCAN_DUPL_EN is not set
# CONFIG_BT_CTRL_COEX_PHY_CODED_TX_RX_TLIM_EN is not set
CONFIG_BT_CTRL_COEX_PHY_CODED_TX_RX_TLIM_DIS=y
CONFIG_BT_CTRL_COEX_PHY_CODED_TX_RX_TLIM_EFF=0

#
# MODEM SLEEP Options
#
# CONFIG_BT_CTRL_MODEM_SLEEP is not set
# end of MODEM SLEEP Options

CONFIG_BT_CTRL_SLEEP_MODE_EFF=0
CONFIG_BT_CTRL_SLEEP_CLOCK_EFF=0
CONFIG_BT_CTRL_HCI_TL_EFF=1
# CONFIG_BT_CTRL_AGC_RECORRECT_EN is not set
# CONFIG_BT_CTRL_SCAN_BACKOFF_UPPERLIMITMAX is not set
# CONFIG_BT_BLE_ADV_DATA_LENGTH_ZERO_AUX is not set
CONFIG_BT_CTRL_CHAN_ASS_EN=y
CONFIG_BT_CTRL_LE_PING_EN=y
# end of Controller Options

#
# Common Options
#
CONFIG_BT_ALARM_MAX_NUM=50
# end of Common Options

# CONFIG_BT_HCI_LOG_DEBUG_EN is not set
# end of Bluetooth

3.5 覆盖我们项目的配置

4.6 接着回到cmake重新刷新

刷新完后发现 不在报错

编译烧录都没有问题

至此问题解决

Clion配置ESP32开发，一文就够了
小浪宝宝的博客
09-10 2840
本文介绍了两种Clion开发ESP32的方法
ESP32-C3入门教程 问题篇⑦—— fatal error: esp_bt.h: No such file or directory 找不到esp_bt.h
06-22 3478
ESP32-C3入门教程 问题篇⑦—— fatal error: esp_bt.h: No such file or directory 找不到esp_bt.h
esp32 micropython蓝牙 搜不到_esp 使用几次后蓝牙搜索不到问题？
weixin_33185261的博客
12-24 2588
Post感谢您的回复，以下是我测试结果和打印信息，static esp_ble_adv_params_t adv_params = {.adv_int_min = 0x20,.adv_int_max = 0x40,.adv_type = ADV_TYPE_IND,.own_addr_type = BLE_ADDR_TYPE_PUBL...
【玩转esp32】11、编译报错分析：esp_bt.h:No such file or directory
热门推荐
freemote的博客
05-29 1万+
系列文章： 【玩转ESP32】1、开发环境搭建 【玩转ESP32】2、开发参考资料 【玩转ESP32】3、点亮LED，Blink，blink，blink 【玩转ESP32】4、ESP32驱动DHT11 【玩转ESP32】5、i2c-tools访问i2c设备 【玩转ESP32】6、驱动i2c设备—0.96 OLED 【玩转ESP32】7、ESP32连接wifi 【玩转ESP32】8、ESP32 Guru MeditationError报错分析 【玩转ESP32】9、ESP32 作为TCP客户端连接服务器（非
vscode小蜜蜂使用esp32c3 蓝牙问题
最新发布
m0_74239763的博客
03-20 94
在CMakeLists.txt末尾添加PRIV_REQUIRES bt nvs_flash即可。在配置ES PC上蓝牙的时候发现找不到esp_bt.h。
ESP32蓝牙键鼠库，编译报错error: ‘ringbuf_type_t‘ has not been declared
adstime的博客
03-09 926
利用ESP32蓝牙键鼠库进行编译时，出现以下报错，解决办法：删除Arduino IDE 库文件夹内的ESP32_BLE_ARDUINO文件夹。
ESP32-C3移植BLE蓝牙报错解决
qianmiaom的博客
03-08 691
esp32 ble蓝牙移植相关问题
【ESP32-BLE】esp_bt.h: No such file or directory
weixin_45880295的博客
01-22 1080
ESP32-C2 编译提示 esp_bt.h: No such file or directory
Clion配置ESP32开发环境 并运行helloworld（巨量图片手把手教学
幸运是努力好久发出的光！！
10-23 1380
简单介绍：是在不习惯VScode文本编译器的功能，虽然可以添加插件但还是对代码提示功能不太喜欢。所以提供这里clion的ESP32环境开发配置。
这是一个在CLion编辑器中开发GD32F407点灯模版代码。_gd32_template_clion_led.zip
09-01
在CLion编辑器中开发GD32F407点灯模版代码，首先需要了解GD32F407是一款由兆易创新科技有限公司生产的高性能、低功耗的32位通用微控制器，广泛应用于各种嵌入式系统开发。该微控制器采用ARM Cortex-M4核心，内置高达...
基于Clion开发STM32F407使用IIC驱动0.96寸OLED屏幕_4_1_OLED.zip
09-02
在嵌入式系统开发领域，使用集成开发环境（IDE）Clion进行编程已成为开发者的一个重要选择。Clion作为一个功能强大的跨平台C/C++集成开发环境，提供了智能代码编辑、代码质量分析、以及支持多种构建系统等特点，极...
intellij idea 中文语言包resources_zh_CN_IntelliJIDEA_2019.3_r1.jar
12-19
IntelliJ IDEA是java编程语言开发的集成环境，不过官方是英文版的，这是一个汉化包，下载后放至IntelliJ IDEA安装目录的lib目录下就行，重新启动程序就是中文了。
esp-AT esp_at.h API
u013550000的博客
05-23 816
目的：自定义AT命令的基础 结构体 esp_at_cmd_struct 该结构体用来定义AT命令 typedef struct { char *at_cmdName; /*!< at command name */ uint8_t (*at_testCmd)(uint8_t *cmd_name); ...
《ESP32调试异常集锦》之：程序编译失败,提示fatal error: nvs.h、esp_wifi.h、esp_bt.h等 No such file or directory
u013534357的博客
10-12 1878
程序编译失败,提示fatal error: nvs.h、esp_wifi.h、esp_bt.h等 No such file or directory
ESP32C3蓝牙连接时出现“静态断言失败，原因是 “please enable bluetooth in menuconfig to use esp_bt.h”的错误解决方法
Elpida_F的博客
08-14 1422
“please enable bluetooth in menuconfig to use esp_bt.h”的错误解决方法
ESP32蓝牙配网
cat_eat_fish
02-27 3739
esp32蓝牙配网流程以及部分功能实现。
蓝牙资料收集
平面到立体
06-26 185
https://www.cnblogs.com/playboysnow/articles/4811352.html linux bluez实现，看起来资料比较详实。
ESP32-S基于蓝牙配网方案
qq_52525445的博客
12-05 7809
ESP-32S WiFi 模块是由安信可科技自主设计研发，该模块核心处理器 ESP32提供了一套完整的802.11 b/g/n/e/i 无线局域网（WLAN）和蓝牙4.2解决方案，具有最小物理尺寸。此款芯片专为低功耗和移动消费电子设备、可穿戴和物联网设备而设计，片上集成了WLAN和蓝牙的所有功能，具有低成本、布局好的特点。ESP32同时提供了一个开放的平台，支持用户灵活地自定义功能，用于不同的应用场景。
CLion安装ESP32开发环境
01-09
### 如何在CLion中配置ESP32开发环境 #### 准备工作 为了成功配置ESP32的开发环境，在开始之前需确保已准备好必要的软件包和工具链。这包括但不限于Python、CMake以及特定版本的ESP-IDF框架[^1]。 #### 安装必要组件 安装过程中，首先应确认操作系统内已经正确部署了Python解释器及其依赖库；接着通过官方渠道获取适合当前系统的CMake版本并完成本地化设置；最后从Espressif官网上下载对应目标平台（如Windows/Linux/macOS）下的ESP-IDF SDK压缩文件，并解压至指定路径下保存以便后续调用[^2]。 #### 配置CLion项目结构 打开CLion后创建一个新的C/C++工程，选择“Empty Project”。之后进入项目的`CMakeLists.txt`文件编辑模式，按照如下模板编写基础构建脚本： ```cmake cmake_minimum_required(VERSION 3.16) set(CMAKE_SYSTEM_NAME Generic) set(CMAKE_SYSTEM_PROCESSOR xtensa) include($ENV{IDF_PATH}/tools/cmake/project.cmake) project(hello_world) ``` 此段代码定义了一个最小化的CMake需求声明，并指定了交叉编译的目标架构为Xtensa处理器系列，同时引入了来自环境变量`$IDF_PATH`指向位置处的ESP-IDF CMake辅助函数集来初始化整个工程项目[^3]。 #### 添加自定义工具链 前往CLion菜单栏中的`File -> Settings (Ctrl+Alt+S)`选项卡，在弹出窗口左侧列表里找到`Build, Execution, Deployment -> Toolchains`节点展开其子项。点击右上方加号按钮新增一条记录命名为“esp-idf”，随后依次填写对应的GCC Xtensa编译器可执行程序全路径以及其他关联资源的位置信息，比如OpenOCD调试服务器等。 #### 设置环境变量 对于某些情况下可能遇到的问题，可以通过向IDE内部注册额外的全局或局部作用域内的环境参数来进行规避处理。具体操作是在上述相同界面下方部分勾选启用“Environment variables”功能开关，再添加一对键值对分别为`IDF_PATH=/path/to/your/idf/installation` 和 `PATH=$PATH:/path/to/toolchain/bin` ，以此保证在整个会话期间都能顺利访问到所需的外部命令行工具和服务接口。 #### 测试验证 当以上各环节均无误完成后，尝试导入任一简单的示例源码作为测试对象，利用CLion内置终端模拟运行一次完整的编译流程观察是否存在异常提示。如果一切正常，则表明该套件现已可以正常使用开展进一步的研发活动了。
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
