SpringBoot整合Mybatis-plus 及代码生成器

本项目ORM框架

整合Mybatis-plus

1. pmo.xml依赖导入

   • Mybatis-plus 最新版依赖

   <dependency>
       <groupId>com.baomidou</groupId>
       <artifactId>mybatis-plus-boot-starter</artifactId>
       <version>3.5.6</version>
   </dependency>


   • 测试依赖 用于单元测试

   使用 mybatis-plus新版提供的测试注解 @MybatisPlusTest

   <dependency>
       <groupId>com.baomidou</groupId>
       <artifactId>mybatis-plus-boot-starter-test</artifactId>
       <version>3.5.6</version>
   </dependency>


   • 数据库连接依赖

   <dependency>
       <groupId>mysql</groupId>
       <artifactId>mysql-connector-java</artifactId>
       <version>8.0.26</version>
   </dependency>


2. application.properties配置数据库连接

   spring.application.name=work02
   spring.datasource.url=jdbc:mysql://localhost:3306/demo?useSSL=false&serverTimezone=UTC
   spring.datasource.username=developer-My
   spring.datasource.password=test
   spring.datasource.driver-class-name=com.mysql.cj.jdbc.Driver
   # MyBatis-Plus
   mybatis-plus.global-config.db-config.id-type=auto


新版代码生成器

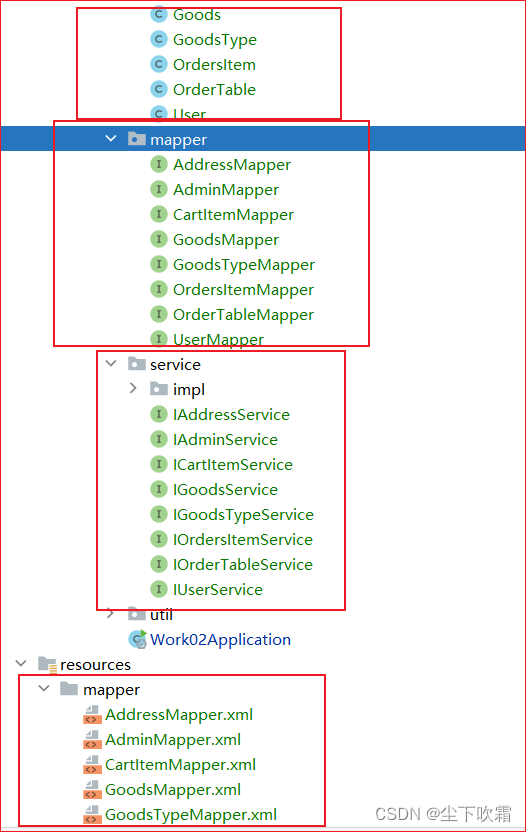

Mybatis-plus逆向工程 根据数据库表生成 对应 controller entity service mapper及其映射

详细介绍演示 – Mybatis-plus官方文档

1. 导入依赖

   <!--    逆向工程    -->
   <dependency>
       <groupId>com.baomidou</groupId>
       <artifactId>mybatis-plus-generator</artifactId>
       <version>3.5.4</version>
   </dependency>


   <!-- freemarke 模板 -->
   <dependency>
       <groupId>org.freemarker</groupId>
       <artifactId>freemarker</artifactId>
       <version>2.3.28</version>
       <scope>compile</scope>
   </dependency>


   <!--   实体类ApiModel注解    -->
   <dependency>
       <groupId>io.swagger</groupId>
       <artifactId>swagger-annotations</artifactId>
       <version>1.5.20</version>
   </dependency>


2. 构建生成器

   public class CodeGenerator {
       public static void main(String[] args) {
           String url= "jdbc:mysql://localhost:3306/demo?userSSL=false&useUnicode=true&characterEncoding=UTF-8&serverTimezone=UTC";
           String username = "developer-My";
           String password = "test";

           // 获取当前用户的目录
           String projectPath = System.getProperty("user.dir");

           // FastAutoGenerator 至少需要mybatis-plus-generator 3.5.4以上版本
           FastAutoGenerator.create(url, username, password)
                   .globalConfig(builder -> {
                       builder.author("cxcs")   // 设置作者
                               .enableSwagger() // 开启 swagger 模式
                               .fileOverride()   // 覆盖已生成文件
                               .outputDir(projectPath + "/work02/src/main/java"); // 指定输出目录
                   })
                   .dataSourceConfig(builder -> builder.typeConvertHandler((globalConfig, typeRegistry, metaInfo) -> {
                       int typeCode = metaInfo.getJdbcType().TYPE_CODE;
                       if (typeCode == Types.SMALLINT) {
                           // 自定义类型转换
                           return DbColumnType.INTEGER;
                       }
                       return typeRegistry.getColumnType(metaInfo);

                   }))
                   .packageConfig(builder -> {
                       builder.parent("com.example") // 设置父包名
                               .moduleName("work02") // 设置父包模块名
                               .pathInfo(Collections.singletonMap(OutputFile.xml, projectPath + "/work02/src/main/resources/mapper/")); // 设置mapperXml生成路径
                   })
                   .strategyConfig(builder -> {
                       builder.addInclude("user"); // 设置需要生成的表名
                       builder.addInclude("admin");
                       builder.addInclude("goods");
                       builder.addInclude("goods_type");
                       builder.addInclude("order_table");
                       builder.addInclude("orders_item");
                       builder.addInclude("cart_item");
                       builder.addInclude("address");
                   })
                   .templateEngine(new FreemarkerTemplateEngine()) // 使用Freemarker引擎模板，默认的是Velocity引擎模板
                   .execute();
       }
   }


运行出现的Bug

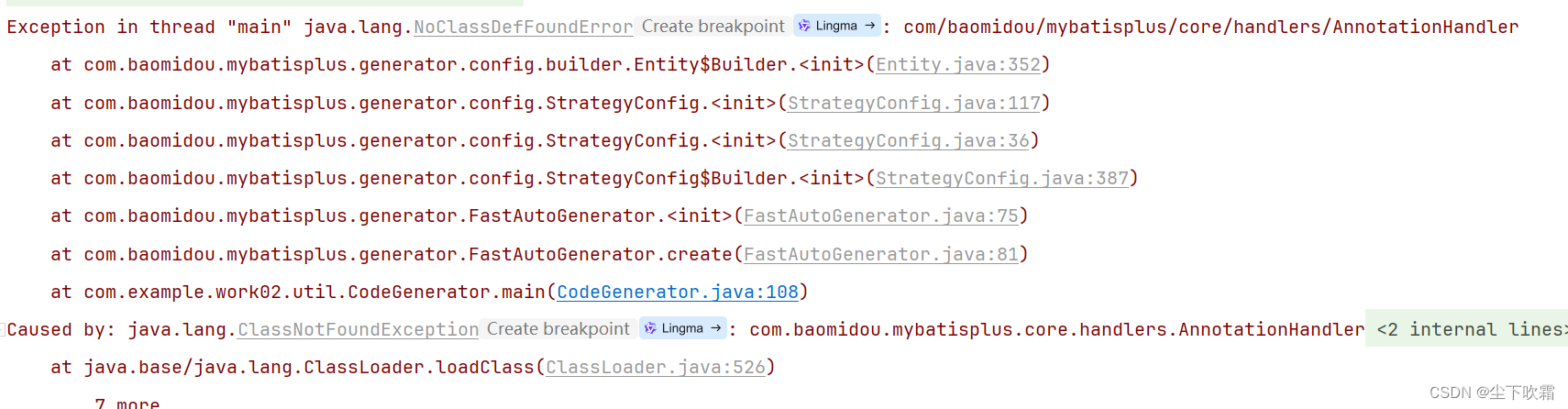

1. 代码生成器 启动报错: 找不到类

查看官方文档, 发现依赖版本较低, 将 mybatis-plus-generator 依赖更新为 3.5.4 以上, 成功运行

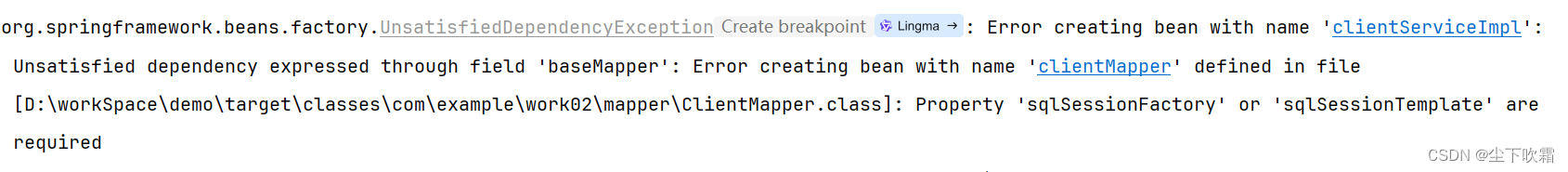

2. SpringBoot 整合Mybatis-plus后 启动报错

Error creating bean with name 'clientServiceImpl': Unsatisfied dependency expressed through field 'baseMapper': Error creating bean with name 'clientMapper' defined in file

• 发现扫描不到mapper层之后, 在 Application 启动类中添加注解

  @MapperScan("com.example.work02.mapper")


• 添加后仍然报该错误

• 注释部分依赖, 发现是 mybatis-plus-boot-starter-test 依赖的版本较低 3.4.2 更换为最新版 3.5.6

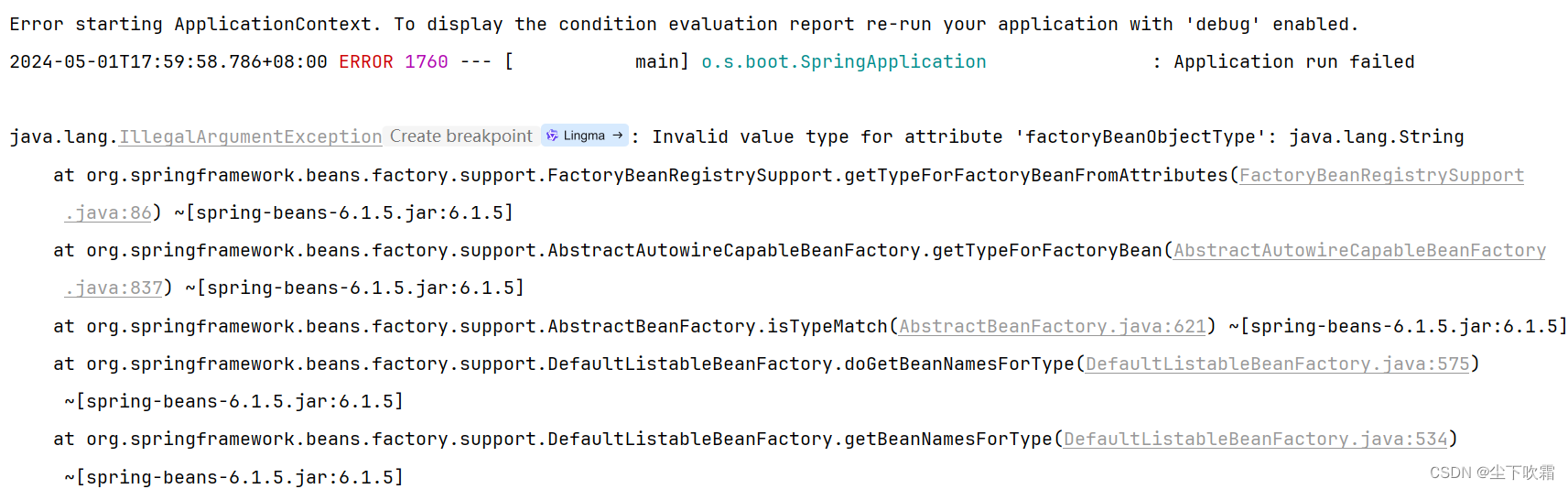

更换版本之后又出现另一个错误

Invalid value type for attribute 'factoryBeanObjectType': java.lang.String

• 解决方案: 参考网址 – CSDN

• 最后发现是 mybatis-plus-boot-starter-test 依赖包含的mybatis-spring版本较低

• 需要手动升级依赖

• <dependency>
      <groupId>com.baomidou</groupId>
      <artifactId>mybatis-plus-boot-starter</artifactId>
      <version>3.5.6</version>
      <exclusions>
          <exclusion>
              <artifactId>mybatis-spring</artifactId>
              <groupId>org.mybatis</groupId>
          </exclusion>
      </exclusions>
  </dependency>

  <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis-spring</artifactId>
      <version>3.0.3</version>
  </dependency>

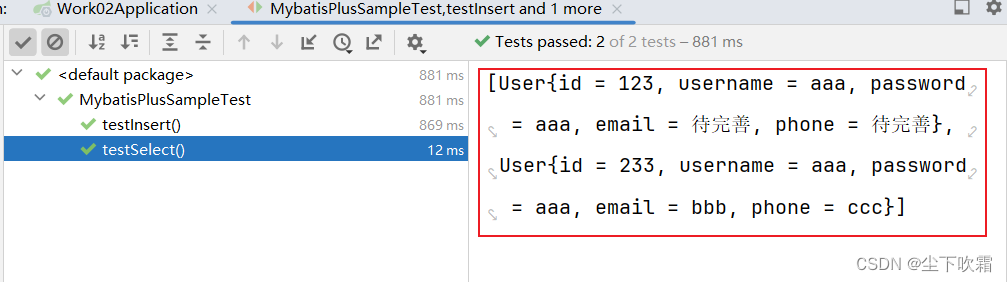

单元测试

详细示例 – 官方文档

单元测试中对 Mybatis-plus 进行快速测试

@MybatisPlusTest
@AutoConfigureTestDatabase(replace = AutoConfigureTestDatabase.Replace.NONE)
class MybatisPlusSampleTest {

    @Autowired
    private UserMapper userMapper;

    @Test  // 测试插入
    void testInsert() {
        User user = new User();
        user.setId(666);
        user.setUsername("zs");
        user.setPassword("1234");
        userMapper.insert(user);
        assertThat(user).isNotNull();
    }

    @Test   // 测试查询
    void testSelect() {
        List<User> user = userMapper.getAllNoTenant();
        System.out.println(user);
    }
}

前后端的交互

1. 导入 json 依赖

<!--  JSON依赖  -->
<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-json</artifactId>
    <version>3.2.0</version>
</dependency>

2. UserController.java

@RestController
@RequestMapping("/user")
public class UserController {

    @Autowired
    UserMapper userMapper;
    @RequestMapping("/select")
    public List<User> select()
    {
        List<User> userList = userMapper.getAllNoTenant();
        return userList;
    }
}

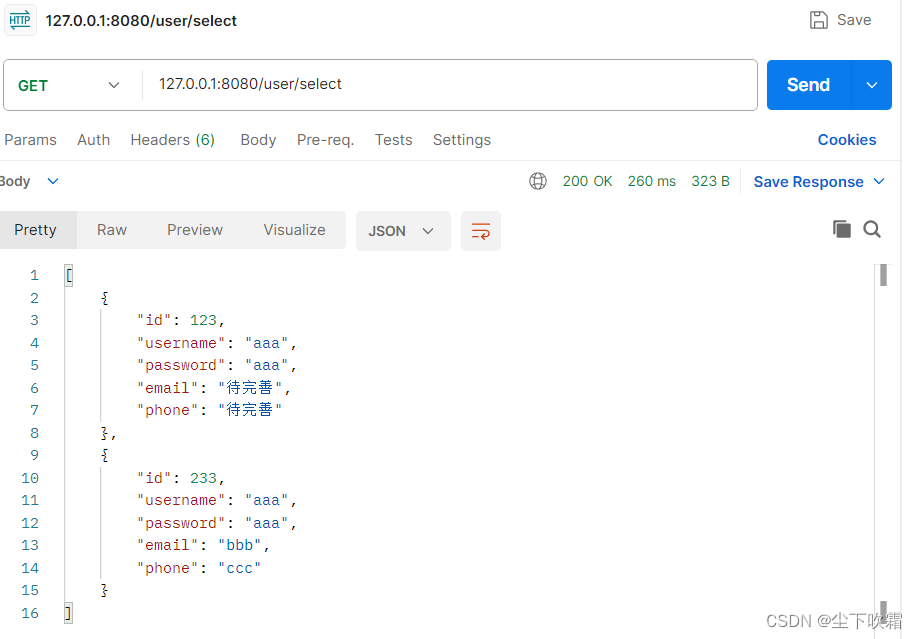

3. postman 访问测试
