如上图所示,解决办法,将ttc文字移到随便一个文件目录,用font指定即可:
from matplotlib import pyplot as plt
from matplotlib.font_manager import FontProperties
import numpy as np
# 设置字体
font = FontProperties(fname=r"data/data131368/msyh.ttc", size=10)
length = 20
x = [c for c,v in novelListSorted]
y = [v for c,v in novelListSorted]
plt.plot(np.arange(length),y[:length],color='r')
# plt.hist(np.arange(length),y[:length],color='r')
plt.xticks(np.arange(length),x[:length],fontProperties = font,rotation=-45)
plt.xlabel('词语', fontproperties=font)
plt.ylabel('词频', fontproperties=font)
plt.title('词频统计', fontproperties=font)
plt.show()

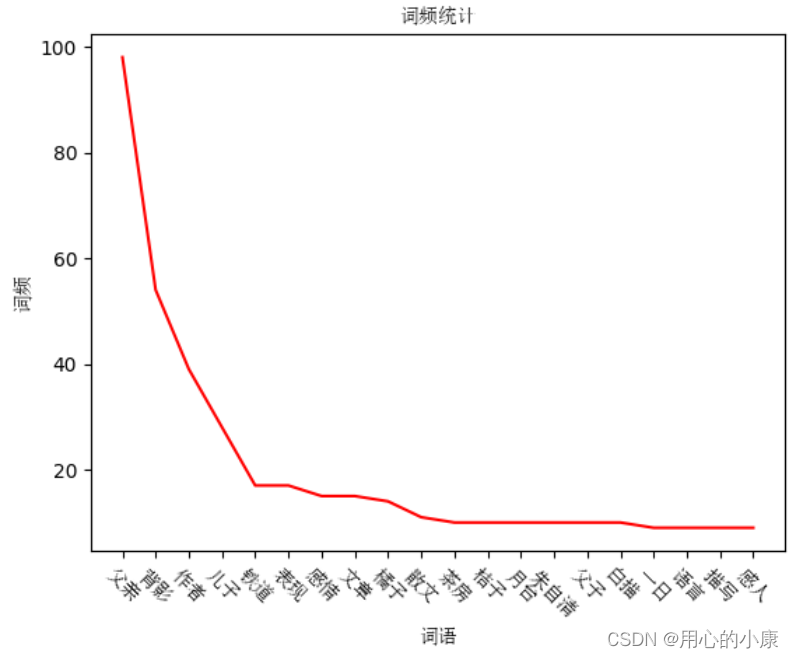

显示如下:
直方图显示代码:
from matplotlib import pyplot as plt
from matplotlib.font_manager import FontProperties
import numpy as np
# 设置字体
font = FontProperties(fname=r"data/data131368/msyh.ttc", size=10)
length = 30
x = [c for c,v in novelListSorted]
y = [v for c,v in novelListSorted]
plt.bar(np.arange(length),y[:length],color='b')
# plt.hist(np.arange(length),y[:length],color='r')
plt.xticks(np.arange(length),x[:length],fontProperties = font,rotation=-45)
plt.xlabel('词语', fontproperties=font)
plt.ylabel('词频', fontproperties=font)
plt.title('词频统计', fontproperties=font)
plt.show()

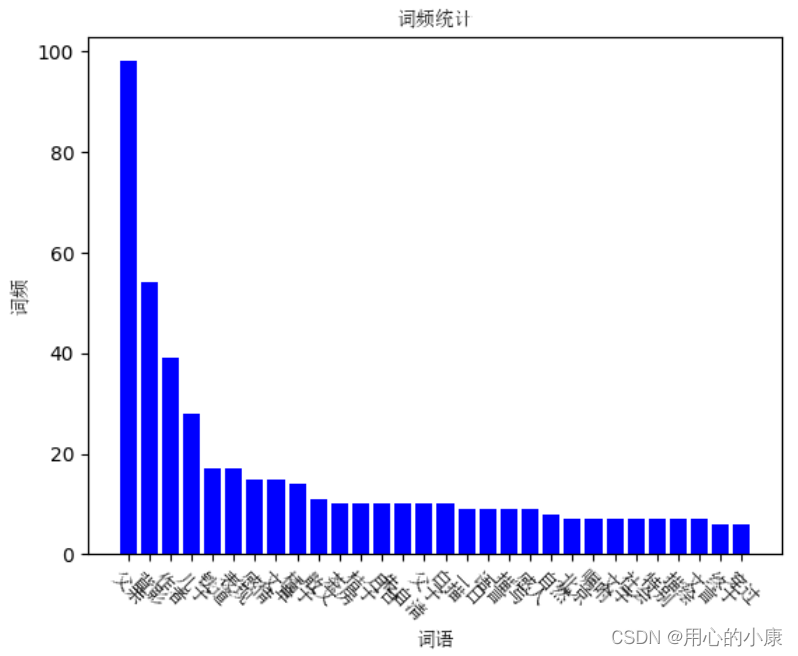

显示如下:
