Java接入微信小程序支付、退款、发货通知

手可摘鑫晨

已于 2024-04-02 21:21:33 修改

阅读量2.1k

点赞数 5

文章标签：小程序

于 2024-03-20 16:27:19 首次发布

本文链接：https://blog.csdn.net/m0_61562689/article/details/136873471

版权

一，准备工作

申请应用号：appid

申请商户号：mchid

设置APIV3密钥：apiV3Key

下载并配置商户证书，商户证书序列号：mchSerialNo ；商户API私钥路径：privateKey

详情流程可见微信支付官网

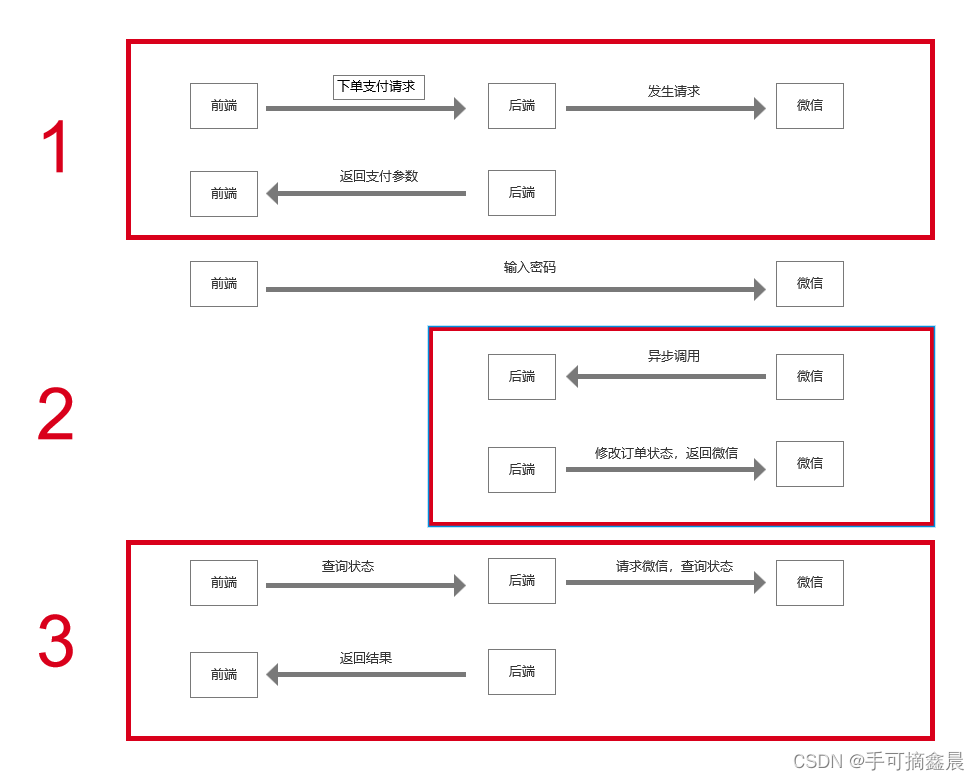

二，小程序支付流程

需要后端完成的一共有三个接口

1，拿到订单参数后，向微信发送请求支付消息，把拿到的参数返回给前端，用于用户付款

2，前端输入密码后，微信会异步回调一个接口，成功扣款后做对应业务处理

3，查询支付结果返回给前端

三，设置常量和基本配置信息

1，导入依赖

<!--微信小程序支付-->
<dependency>
    <groupId>com.github.wechatpay-apiv3</groupId>
    <artifactId>wechatpay-apache-httpclient</artifactId>
    <version>0.4.9</version>
</dependency>

2，加载配置信息到yml文件中

#  微信
wx:
  #  小程序支付
  pay:
    #  应用号
    appId: ********
    #  商户号
    mchId: ********
    #  商户APIV3密钥(32位)
    apiV3Key: ********************************
    #  商户证书序列号
    mchSerialNo: ****************
    #  支付成功回调 url 需要公网可访问
    notifyUrl: http://改成自己的回调地址/system/order/wechatPayCallback
    #  退款成功回调 url 需要公网可访问
    refundNotifyUrl: http://改成自己的回调地址/system/order/wechatRefundBack
    #  商户API私钥路径 【证书路径】
    privateKey: "**********"

3，用工具类来保存配置信息WeChatToolConfig

@Data
@Component
public class WeChatToolConfig {
    /**
     * 应用id
     */
    @Value("${wx.pay.appId}")
    private String appId;

    /**
     * 商户id
     */
    @Value("${wx.pay.mchId}")
    private String mchId;

    /**
     * 商户APIV3密钥
     */
    @Value("${wx.pay.apiV3Key}")
    private String apiV3Key;

    /**
     * 商户证书序列号
     */
    @Value("${wx.pay.mchSerialNo}")
    private String mchSerialNo;

    /**
     * 商户私钥
     */
    @Value("${wx.pay.privateKey}")
    private String privateKey;

    /**
     * 支付成功回调url
     */
    @Value("${wx.pay.notifyUrl}")
    private String notifyUrl;

     /**
     * 退款成功回调url
     */
    @Value("${wx.pay.refundNotifyUrl}")
    private String refundNotifyUrl;
}

4，定义一个枚举来保存微信支付API WxApiTypeEnum

public enum WxApiTypeEnum {
   /**
     * 小程序 下单API
     */
    CREATE_ORDER("https://api.mch.weixin.qq.com/v3/pay/transactions/jsapi"),

    /**
     * 申请退款API 通过 outTradeNo 商户订单号 退单
     */
    REFUND_ORDER("https://api.mch.weixin.qq.com/v3/refund/domestic/refunds"),

    /**
     * 查询支付订单API ONE{}=>outTradeNo – 商户订单号 系统生 TOW{}=>mchId商户的商户号，由微信支付生成并下发。
     */
    QUERY_CREATE_ORDER("https://api.mch.weixin.qq.com/v3/pay/transactions/out-trade-no/{}?mchid={}"),

    /**
     * 查询退款订单API {}=>outRefundNo 商户退款单号
     */
    QUERY_REFUND_ORDER("https://api.mch.weixin.qq.com/v3/refund/domestic/refunds/{}"),

    /**
     * 关闭订单API {}=>outTradeNo 商户订单号
     */
    CLOSE_ORDER("https://api.mch.weixin.qq.com/v3/pay/transactions/out-trade-no/{}/close"),

    /**
     * 货物录入
     */
    GOOD_ENTERING("https://api.weixin.qq.com/wxa/sec/order/upload_shipping_info?access_token={}"),

    /**
     * 接口调用凭证
     */
    API_VOUCHER("https://api.weixin.qq.com/cgi-bin/token?grant_type=client_credential&appid={}&secret={}");

    private final String value;

    WxApiTypeEnum(String value) {
        this.value = value;
    }

    public String getValue() {
        return value;
    }
}

5，定义一个类保存HTTP请求头常量 WechatPayHttpHeaders

public class WechatPayHttpHeaders {
    // 请求头配置
    public static final String ACCEPT = "Accept";

    public static final String CONTENT_TYPE = "Content-type";

    public static final String APPLICATION_JSON = "application/json";

    public static final String APPLICATION_JSON_UTF = "application/json; charset=utf-8";
    /**
     * 微信回调参数==>微信序列号
     */
    public static final String WECHATPAY_SERIAL = "Wechatpay-Serial";
    /**
     * 微信回调参数==>应答随机串
     */
    public static final String WECHATPAY_NONCE = "Wechatpay-Nonce";
    /**
     * 微信回调参数==>应答时间戳
     */
    public static final String WECHATPAY_TIMESTAMP = "Wechatpay-Timestamp";
    /**
     * 微信回调参数==>应答签名
     */
    public static final String WECHATPAY_SIGNATURE = "Wechatpay-Signature";

    private WechatPayHttpHeaders() {
        // Don't allow instantiation
    }
}

6，微信小程序支付工具类

public class WeChatUtil {
    private static final Logger log = LoggerFactory.getLogger(WeChatUtil.class);
    /**
     * 签名生成 计算签名
     *
     * @param message    签名体
     * @param privateKey 商户私钥
     * @return String
     */
    public static String sign(byte[] message, PrivateKey privateKey) throws NoSuchAlgorithmException, SignatureException, InvalidKeyException {
        Signature sign = Signature.getInstance("SHA256withRSA");
        sign.initSign(privateKey);
        sign.update(message);
        return Base64.getEncoder().encodeToString(sign.sign());
    }

    /**
     * 构造HttpClient 实现 微信申请接口 调用功能
     *
     * @param verifier 微信验签器
     * @return CloseableHttpClient
     */
    public static CloseableHttpClient getHttpClient(WeChatToolConfig config, Verifier verifier) {
        PrivateKey merchantPrivateKey = PemUtil.loadPrivateKey(new ByteArrayInputStream(config.getPrivateKey().getBytes(StandardCharsets.UTF_8)));
        // 通过WechatPayHttpClientBuilder构造的HttpClient，会自动的处理签名和验签
        WechatPayHttpClientBuilder builder = WechatPayHttpClientBuilder.create()
                .withMerchant(config.getMchId(), config.getMchSerialNo(), merchantPrivateKey)
                .withValidator(new WechatPay2Validator(verifier));
        return builder.build();
    }

    /**
     * 构造HttpClient 实现 微信申请接口 调用功能  不用微信签名认证 账单申请中可用到
     *
     * @param verifier 微信验签器
     * @return CloseableHttpClient
     */
    public static CloseableHttpClient getHttpClientNoSign(WeChatToolConfig config, Verifier verifier) {
        PrivateKey merchantPrivateKey = PemUtil.loadPrivateKey(new ByteArrayInputStream(config.getPrivateKey().getBytes(StandardCharsets.UTF_8)));
        // 通过WechatPayHttpClientBuilder构造的HttpClient，会自动的处理签名和验签
        WechatPayHttpClientBuilder builder = WechatPayHttpClientBuilder.create()
                .withMerchant(config.getMchId(), config.getMchSerialNo(), merchantPrivateKey)
                .withValidator(new WechatPay2Validator(verifier))
                .withValidator(response -> true);
        return builder.build();
    }

    /**
     * 获取验证功能
     *
     * @return Verifier 微信验签器
     */
    public static Verifier getVerifier(WeChatToolConfig config) {
        try {
            PrivateKey merchantPrivateKey = PemUtil.loadPrivateKey(new ByteArrayInputStream(config.getPrivateKey().getBytes(StandardCharsets.UTF_8)));
            // 定时更新平台证书功能
            // 获取证书管理器实例
            CertificatesManager certificatesManager = CertificatesManager.getInstance();
            // 向证书管理器增加需要自动更新平台证书的商户信息
            certificatesManager.putMerchant(config.getMchId(), new WechatPay2Credentials(config.getMchId(),
                    new PrivateKeySigner(config.getMchSerialNo(), merchantPrivateKey)), config.getApiV3Key().getBytes(StandardCharsets.UTF_8));
            // 从证书管理器中获取verifier=>验签器
            return certificatesManager.getVerifier(config.getMchId());
        } catch (Exception e) {
            log.warn("验证出错");
            throw new CustomException("微信证书出错 联系客服");
        }
    }


    /**
     * 回调验证
     *
     * @param request 微信回调请求
     * @return String
     */
    public static Notification verifyBack(HttpServletRequest request, WeChatToolConfig config) throws IOException, ValidationException, ParseException {
        // 应答报文主体
        BufferedReader br = request.getReader();
        String str;
        StringBuilder builder = new StringBuilder();
        while ((str = br.readLine()) != null) {
            builder.append(str);
        }
        // 构建request，传入必要参数
        // 参数 1.微信序列号 2.应答随机串 3.应答时间戳 4.应答签名 5.应答报文主体
        NotificationRequest notificationRequest = new NotificationRequest.Builder()
                .withSerialNumber(request.getHeader(WechatPayHttpHeaders.WECHATPAY_SERIAL))
                .withNonce(request.getHeader(WechatPayHttpHeaders.WECHATPAY_NONCE))
                .withTimestamp(request.getHeader(WechatPayHttpHeaders.WECHATPAY_TIMESTAMP))
                .withSignature(request.getHeader(WechatPayHttpHeaders.WECHATPAY_SIGNATURE))
                .withBody(builder.toString())
                .build();
        NotificationHandler handler = new NotificationHandler(WeChatUtil.getVerifier(config), config.getApiV3Key().getBytes(StandardCharsets.UTF_8));
        // 验签和解析请求体
        log.info("验签和解析请求体==============================开始验证==============================");
        return handler.parse(notificationRequest);
    }

    /**
     * 验证用户支付金额 场景 微信回调验证
     *
     * @param jsonObject 微信回调json 返回参数
     * @param total      数据库记录金额
     * @return Boolean
     */
    public static Boolean verifyMoney(JSONObject jsonObject, Integer total) {
        // 总金额计数值 用户支付计算
        int userPayTotal = WeChatPayParam.NUM_ZERO;
        // 1.验证订单金额
        // 用户支付金额
        int payerTotal = (int) jsonObject.getJSONObject(WeChatPayParam.AMOUNT).get(WeChatPayParam.AMOUNT_PAYER_TOTAL);
        userPayTotal += payerTotal;
        // CASH充值型代金券 要加上优惠金额 银行优惠 获取
        // 排空 如果没有优惠则跳过
        if (!ObjectUtil.isEmpty(jsonObject.get(WeChatPayParam.PROMOTION_DETAIL))) {
            JSONArray jsonArray = jsonObject.getJSONArray(WeChatPayParam.PROMOTION_DETAIL);
            for (Object object : jsonArray) {
                JSONObject json = (JSONObject) object;
                // 如果优惠类型为CASH 则要和 用户支付金额 累加
                if (WeChatPayParam.WX_DISCOUNT_TYPE.equals(json.get(WeChatPayParam.PROMOTION_DETAIL_TYPE).toString())) {
                    userPayTotal += (int) json.get(WeChatPayParam.AMOUNT);
                }
            }
        }
        // 2.总金额 预支付时的 金额 与 total 用户支付金额
        // 微信端返回的支付总金额
        int wxTotal = (int) jsonObject.getJSONObject(WeChatPayParam.AMOUNT).get(WeChatPayParam.AMOUNT_TOTAL);
        // 校验通知的信息是否与商户侧的信息一致，防止数据泄露导致出现“假通知”，造成资金损失。
        log.info("微信回调金额===比较=== " + "微信端返回的支付总金额" + jsonObject.getJSONObject(WeChatPayParam.AMOUNT).get(WeChatPayParam.AMOUNT_TOTAL) + "================用户支付总金额计算" + userPayTotal);
        return wxTotal == userPayTotal && total == wxTotal;
    }


    /**
     * 获取接口调用凭证
     */
    public static JSONObject getAccessToken(WeChatToolConfig config) throws Exception {
        log.info("initAccessToken:开始运行...");
        // 获取secret
        String secret = WxMaConfiguration.getMaService(config.getAppId()).getWxMaConfig().getSecret();
        // 获取url
        String url = StrFormatter.format(WxApiTypeEnum.API_VOUCHER.getValue(), config.getAppId(), secret);
        return getBodyAsJsonByGet(url, config);
    }

    /**
     * 调用微信支付 get请求 统一配置
     * 要微信签名认证
     *
     * @param url 请求url
     * @return JSONObject
     */
    public static JSONObject getBodyAsJsonByGet(String url, WeChatToolConfig config) throws IOException {
        // 1.构造httpGet请求
        HttpGet httpGet = new HttpGet(url);
        httpGet.addHeader(WechatPayHttpHeaders.ACCEPT, WechatPayHttpHeaders.APPLICATION_JSON);
        // 2.调起微信查询订单接口
        CloseableHttpResponse response = WeChatUtil.getHttpClient(config, WeChatUtil.getVerifier(config)).execute(httpGet);
        // 3.返回结果信息
        String bodyAsString = EntityUtils.toString(response.getEntity());
        // 转为JSON格式返回
        return JSON.parseObject(bodyAsString);
    }

    /**
     * 调用微信支付 post请求 统一配置
     * 要微信签名认证
     *
     * @param url          请求url
     * @param requestParam 请求参数
     * @param config       基本配置
     * @return JSONObject
     */
    public static JSONObject getBodyAsJsonByPost(String url, JSONObject requestParam, WeChatToolConfig config) throws Exception {
        // 1.设置请求url和请求头
        HttpPost httpPost = new HttpPost(url);
        httpPost.addHeader(WechatPayHttpHeaders.ACCEPT, WechatPayHttpHeaders.APPLICATION_JSON);
        httpPost.addHeader(WechatPayHttpHeaders.CONTENT_TYPE, WechatPayHttpHeaders.APPLICATION_JSON_UTF);

        // 2.传入参数
        String jsonString = JSON.toJSONString(requestParam);
        httpPost.setEntity(new StringEntity(jsonString, StandardCharsets.UTF_8));

        // 3.调用接口 获取预支付交易会话标识 prepay_id
        CloseableHttpResponse response = WeChatUtil.getHttpClient(config, WeChatUtil.getVerifier(config)).execute(httpPost);

        // 4.获取返回值 转为JSON
        String bodyAsString = EntityUtils.toString(response.getEntity());
        return JSON.parseObject(bodyAsString);
    }


    /**
     * 获取签名
     *
     * @param appId      appId
     * @param timestamp  时间戳
     * @param nonce      随机字符串
     * @param wxPackage  订单详情扩展字符串
     * @param privateKey 商户私钥
     */
    public static String getSign(String appId, String timestamp, String nonce, String wxPackage, String privateKey) throws Exception {
        // APP调起支付API 构造签名串
        // 应用id
        String builder = appId + "\n" +
                // 时间戳
                timestamp + "\n" +
                // 随机字符串
                nonce + "\n" +
                // 预支付交易会话标识 prepay_id=wx201410272009395522657a690389285100  必须以此格式
                wxPackage + "\n";

        // 读取privateKey商户私钥
        PrivateKey merchantPrivateKey = PemUtils.getPrivateKey(privateKey);
        // 计算签名
        return WeChatUtil.sign(builder.getBytes(StandardCharsets.UTF_8), merchantPrivateKey);
    }

}

7，微信支付参数 WeChatPayParam

public class WeChatPayParam {

    /**
     * 应用ID
     */
    public final static String APPID = "appid";

    /**
     * 直连商户号
     */
    public final static String MCHID = "mchid";

    /**
     * 用户支付状态
     */
    public final static String TRADE_STATE = "trade_state";

    /**
     * 用户退款状态
     */
    public final static String STATUS = "status";


    /**
     * 商品描述
     */
    public final static String DESCRIPTION = "description";

    /**
     * 通知地址
     */
    public final static String NOTIFY_URL = "notify_url";

    /**
     * 预支付交易会话标识
     */
    public final static String PREPAY_ID = "prepay_id";

    /**
     * 商户订单号
     */
    public final static String OUT_TRADE_NO = "out_trade_no";

    /**
     * 商户退款单号
     */
    public final static String OUT_REFUND_NO = "out_refund_no";

    /**
     * 微信支付系统生成的订单号
     */
    public final static String TRANSACTION_ID = "transaction_id";

    /**
     * 微信支付系统生成的订单号
     */
    public final static String REFUND_ID = "refund_id";
    /**
     * 订单金额
     */
    public final static String AMOUNT = "amount";
    /**
     * 总金额	下单时系统计算金额 单位为分
     */
    public final static String AMOUNT_TOTAL = "total";

    /**
     * 支付者
     */
    public final static String PAYER = "payer";

    /**
     * 用户在直连商户appid下的唯一标识。 下单前需获取到用户的Openid
     */
    public final static String OPENID = "openid";

    /**
     * 总金额	退款时 退款金额
     */
    public final static String AMOUNT_REFUND = "refund";

    /**
     * 总金额	退款时 币种
     */
    public final static String AMOUNT_CURRENCY = "currency";

    /**
     * 用户支付金额
     */
    public final static String AMOUNT_PAYER_TOTAL = "payer_total";
    /**
     * 优惠功能
     */
    public final static String PROMOTION_DETAIL = "promotion_detail";
    /**
     * 优惠类型
     */
    public final static String PROMOTION_DETAIL_TYPE = "type";
    /**
     * 微信优惠 CASH：充值型代金券
     */
    public final static String WX_DISCOUNT_TYPE = "CASH";

    /**
     * 下单回调给微信支付成功信息
     */
    public final static String WX_BACK_OK = "SUCCESS";

    /**
     * 退款回调 退款状态
     */
    public final static String REFUND_STATUS = "refund_status";


    /**
     * 微信回调 通知数据
     */
    public final static String RESOURCE = "resource";

    /**
     * 微信账单类型 交易账单
     */
    public final static String TRADE_BILL = "tradebill";
    /**
     * 微信账单类型 资金账单
     */
    public final static String FUND_FLOW_BILL = "fundflowbill";
    /**
     * 微信账单下载地址
     */
    public final static String DOWNLOAD_URL = "download_url";

    /**
     * 微信回调 通知数据=>数据密文
     */
    public final static String RESOURCE_CIPHERTEXT = "ciphertext";

    /**
     * 微信回调 通知数据=>附加数据
     */
    public final static String RESOURCE_ASSOCIATED_DATA = "associated_data";

    /**
     * 微信回调 通知数据=>随机串
     */
    public final static String RESOURCE_NONCE = "nonce";

    /**
     * 发货信息 状态码
     */
    public final static String ERR_CODE = "errcode";

    /**
     * 发货信息 状态信息
     */
    public final static String ERR_MSG = "errmsg";


    /**
     * 请求支付 错误状态码
     */
    public final static String CODE = "code";

    /**
     * 请求支付 状态信息
     */
    public final static String MESSAGE = "message";

    /**
     * 固定支付参数 package
     */
    public final static String WX_PACKAGE = "prepay_id=";

    /**
     * 币种 RMB
     */
    public final static String CURRENCY_RMB = "CNY";

    /**
     * 支付成功
     */
    public final static String PAY_SUCCESS = "支付成功";
    /**
     * 退款成功
     */
    public final static String REFUND_SUCCESS = "退款成功";

    /**
     * 订单单号类型
     */
    public final static String ORDER_NUMBER_TYPE = "order_number_type";

    /**
     * 商品信息
     */
    public final static String ITEM_DESC = "item_desc";

    /**
     * 订单
     */
    public final static String ORDER_KEY = "order_key";

    /**
     * 物流模式
     */
    public final static String LOGISTICS_TYPE = "logistics_type";

    /**
     * 发货模式
     */
    public final static String DELIVERY_MODE = "delivery_mode";

    /**
     * 物流信息列表
     */
    public final static String SHIPPING_LIST = "shipping_list";

    /**
     * 上传时间
     */
    public final static String UPLOAD_TIME = "upload_time";

    /**
     * 获取到的凭证
     */
    public final static String ACCESS_TOKEN = "access_token";


    /**
     * 数字 0~11
     */
    public final static int NUM_NEGATIVE_ONE = -1;
    public final static int NUM_ZERO = 0;
    public final static int NUM_ONE = 1;
    public final static int NUM_TWO = 2;
    public final static int NUM_THREE = 3;
    public final static int NUM_FOUR = 4;
    public final static int NUM_FIVE = 5;
    public final static int NUM_SIX = 6;
    public final static int NUM_SEVEN = 7;
    public final static int NUM_EIGHT = 8;
    public final static int NUM_NINE = 9;
    public final static int NUM_TEN = 10;
    public final static int NUM_ELEVEN = 11;
    public final static int NUM_15 = 15;
    public final static int NUM_16 = 16;
    public final static int NUM_19 = 19;
    public final static int NUM_TWENTY = 20;
    public final static int NUM_30 = 30;
    public final static int NUM_32 = 32;
    public final static int NUM_50 = 50;
    public final static int NUM_60 = 60;
    public final static int NUM_64 = 64;
    public final static int NUM_90 = 90;
    public final static int NUM_100 = 100;
    public final static int NUM_200 = 200;
    public final static int NUM_1024 = 1024;
    public final static int NUM_5000 = 5000;
    public final static int NUM_24_time = 86400; // 60*60*60*24 一天
}

四，微信支付请求下单接口

1，控制层拿到需要支付订单id进行一系列操作

    @Autowired
    private WaybillService waybillService;

    /**
     * 微信请求下单支付
     *
     * @param waybillId 运单id
     * @return 付款所需参数
     */
    @RepeatSubmit
    @GetMapping("/weChatCreateOrder/{waybillId}")
    @Operation(summary = "微信请求下单支付")
    public AjaxResult<CreateOrderVo> weChatCreateOrder(@PathVariable("waybillId") String waybillId) {
        return waybillService.weChatCreateOrder(waybillId);
    }

2，返回对象 CreateOrderVo 用户付款需要的参数

@Data
@AllArgsConstructor
@NoArgsConstructor
@EqualsAndHashCode(callSuper = false)
public class CreateOrderVo implements Serializable {

    //     微信小程序需要参数
    //    "appId": "wx499********7c70e",  // 微信开放平台 - 应用 - AppId，注意和微信小程序、公众号 AppId 可能不一致
    //    "timeStamp": 1597935292,        // 时间戳（单位：秒）
    //    "nonceStr": "c5sEwbaNPiXAF3iv", // 随机字符串
    //    "package": "wx202254********************fbe90000", // 小程序下单接口返回的prepay_id参数值，提交格式如：prepay_id=***;示例值：prepay_id=wx201410272009395522657a690389285100
    //    "signType": "RSA"    签名类型，默认为RSA，仅支持RSA。
    //    "paySign": "A842B45937F6EFF60DEC7A2EAA52D5A0" // 签名，这里用的 MD5/RSA 签名

    @Serial
    private static final long serialVersionUID = 1L;

    /**
     * 时间戳
     */
    @Schema(description = "时间戳")
    private String timeStamp;

    /**
     * 随机字符串
     */
    @Schema(description = "随机字符串")
    private String nonceStr;

    /**
     * 订单详情扩展字符串 package
     */
    @Schema(description = "订单详情扩展字符串 package")
    private String wxPackage;

    /**
     * 签名方式
     */
    @Schema(description = "签名方式")
    private String signType;

    /**
     * 签名
     */
    @Schema(description = "签名")
    private String paySign;

    /**
     * 运单号
     */
    @Schema(description = "运单号")
    private String outTradeNo;


}

3，业务层请求下单获取prepay_id构造签名

    // 第三节中保存的微信配置信息 注入进来
    @Autowired
    private WeChatToolConfig config;

    @Autowired
    private PayService payService;

    /**
     * 微信请求下单支付
     *
     * @param waybillId 运单id
     * @return 付款所需参数
     */
    @Override
    public AjaxResult<CreateOrderVo> weChatCreateOrder(String waybillId) {
        // 查询运单
        Waybill waybill = getById(waybillId, "运单id不存在");
        // 调用微信请求下单接口
        int total = waybill.getGoodTotalPrice().multiply(new BigDecimal("100.00")).intValue();
        // 获取付款所需参数
        CreateOrderVo createOrder = payService.createPayOrder(waybill.getGoodName(), waybillId, waybill.getOpenId(), total, config);
        log.info("支付返回" + createOrder);
        return AjaxResult.success(createOrder);
    }

    /**
     * 小程序请求下单
     *
     * @param description 商品描述
     * @param outTradeNo  商户订单号
     * @param openId      appid下的唯一标识
     * @param total       总金额
     * @param config      基本配置
     * @return 小程序下单前端Vo
     */
    @Override
    public CreateOrderVo createPayOrder(String description, String outTradeNo, String openId, int total, WeChatToolConfig config) {
        // 配置下单参数
        JSONObject requestParam = new JSONObject();
        // 商户id
        requestParam.put(WeChatPayParam.MCHID, config.getMchId());
        // 应用id
        requestParam.put(WeChatPayParam.APPID, config.getAppId());
        // 商品描述
        requestParam.put(WeChatPayParam.DESCRIPTION, description);
        // 回调地址
        requestParam.put(WeChatPayParam.NOTIFY_URL, config.getNotifyUrl());
        // 订单号
        requestParam.put(WeChatPayParam.OUT_TRADE_NO, outTradeNo);
        // 金额
        JSONObject amount = new JSONObject();
        // 金额 单位 分
        amount.put(WeChatPayParam.AMOUNT_TOTAL, "dev".equals(SpringUtils.getActiveProfile()) ? 1 : total);
        // 货币类型 人民币
        amount.put(WeChatPayParam.AMOUNT_CURRENCY, WeChatPayParam.CURRENCY_RMB);
        // 金额
        requestParam.put(WeChatPayParam.AMOUNT, amount);

        // 支付者
        JSONObject payer = new JSONObject();
        // 微信登录时生成的openid,创建订单时存入订单中
        payer.put(WeChatPayParam.OPENID, openId);
        // 支付者
        requestParam.put(WeChatPayParam.PAYER, payer);

        try {
            // 调用post请求
            JSONObject jsonObject = WeChatUtil.getBodyAsJsonByPost(WxApiTypeEnum.CREATE_ORDER.getValue(), requestParam, config);
            // 异常情况
            if (Objects.nonNull(jsonObject.get(WeChatPayParam.CODE))) {
                throw new CustomException(jsonObject.get(WeChatPayParam.MESSAGE).toString());
            }
            // 时间戳
            String timestamp = String.valueOf(DateUtil.currentSeconds());
            // 随机字符串
            String nonce = RandomUtil.randomString(WeChatPayParam.NUM_32);
            // 订单详情扩展字符串 prepay_id=wx201410272009395522657a690389285100  必须以此格式
            String wxPackage = WeChatPayParam.WX_PACKAGE + jsonObject.get(WeChatPayParam.PREPAY_ID);
            // 获取签名
            String sign = WeChatUtil.getSign(config.getAppId(), timestamp, nonce, wxPackage, config.getPrivateKey());

            return new CreateOrderVo(timestamp, nonce, wxPackage, "RSA", sign, outTradeNo);
        } catch (Exception e) {
            log.error("请求下单失败:" + outTradeNo);
            log.error(e.getMessage());
            throw new CustomException("请求下单失败:" + e.getMessage());
        }
    }

五，微信回调接口注：需使用工具解决内网穿透问题例：路由侠

1，控制层

    /**
     * 支付回调给微信确认
     */
    @Operation(summary = "支付回调给微信确认")
    @IgnoreAuth
    @PostMapping("/wechatPayCallback")
    public Map<String, String> wechatCallback(HttpServletRequest request) {
        Map<String, String> result = new HashMap<>(WeChatPayParam.NUM_TWO);
        // 判断支付是否成功
        if (waybillService.verifyCreateOrder(request)) {
            result.put(WeChatPayParam.CODE, WeChatPayParam.WX_BACK_OK);
        } else {
            result.put(WeChatPayParam.CODE, "FAIL");
            result.put(WeChatPayParam.MESSAGE, "失败");
        }
        return result;
    }

2，业务层判断验证是否成功

    /**
     * 微信支付回调验证判定 核对成功 数据异步入库
     */
    @Override
    @Transactional
    public Boolean verifyCreateOrder(HttpServletRequest request) {
        log.info("===================================进入微信支付回调核对订单中========================================");
        // 获取微信通知详情
        JSONObject decryptData = payService.getDecryptData(request, config);

        // 获取运单号
        String waybillId = decryptData.get(WeChatPayParam.OUT_TRADE_NO).toString();

        // 获取微信支付生成的订单号
        String transactionId = decryptData.get(WeChatPayParam.TRANSACTION_ID).toString();

        log.info(decryptData.get(WeChatPayParam.OUT_TRADE_NO).toString() + "订单回调信息记录:订单状态:" + waybillId);

        // 判断支付是否成功
        if (StrUtil.equals(WeChatPayParam.WX_BACK_OK, decryptData.get(WeChatPayParam.TRADE_STATE).toString())) {
            // 查询运单
            Waybill waybill = getById(waybillId, "运单id不存在");
            // 判断金额是否与数据库一致
            if (WeChatUtil.verifyMoney(decryptData, getAmountByOrderNo(waybillId))) {
                // 修改订单状态，保存微信支付订单号
                updateStatus(waybill, transactionId);
                // 判断发货是否成功
                if (payService.verifyDeliverGood(waybill.getGoodName(), waybill.getOpenId(), transactionId, config)) {
                    // 修改发货状态 确认
                    updateDeliverGood(waybill, ShipmentEnum.OK);
                } else {
                    // 修改发货状态 未确认
                    updateDeliverGood(waybill, ShipmentEnum.NOT);
                }
                return true;
            }
        }
        return false;
    }

    /**
     * 获取通知
     *
     * @param request 请求
     * @param config  微信配置
     * @return 通知详情
     */
    @Override
    public JSONObject getDecryptData(HttpServletRequest request, WeChatToolConfig config) {
        try {
            // 解析微信通知
            Notification notification = WeChatUtil.verifyBack(request, config);
            // 获取通知简要说明
            String summary = notification.getSummary();
            // 判断支付状态
            if (WeChatPayParam.PAY_SUCCESS.equals(summary) || WeChatPayParam.REFUND_SUCCESS.equals(summary)) {
                // 返回详情信息
                return JSON.parseObject(notification.getDecryptData());
            } else {
                // 支付失败
                throw new CustomException(summary);
            }
        } catch (Exception e) {
            log.error("回调失败验证" + e);
            e.printStackTrace();
            throw new CustomException("支付回调失败:" + e.getMessage());
        }
    }

    /**
     * 判断发货是否成功
     *
     * @param description   商品描述
     * @param openId        appid下的唯一标识
     * @param transactionId 微信支付生成订单号
     * @param config        基本配置
     * @return 是否成功
     */
    @Override
    public Boolean verifyDeliverGood(String description, String openId, String transactionId, WeChatToolConfig config) {
        try {
            // 获取接口调用凭证
            JSONObject jsonObject = WeChatUtil.getAccessToken(config);
            // 异常情况
            if (Objects.nonNull(jsonObject.get(WeChatPayParam.CODE))) {
                throw new CustomException(jsonObject.get(WeChatPayParam.MESSAGE).toString());
            }
            String accessToken = jsonObject.get(WeChatPayParam.ACCESS_TOKEN).toString();

            // 构建请求参数
            JSONObject requestParam = new JSONObject();

            // 订单
            JSONObject orderKey = new JSONObject();
            orderKey.put(WeChatPayParam.ORDER_NUMBER_TYPE, OrderNumberTypeEnum.WECHAT.getCode());
            orderKey.put(WeChatPayParam.TRANSACTION_ID, transactionId);
            requestParam.put(WeChatPayParam.ORDER_KEY, orderKey);
            // 物流模式 用户自提
            requestParam.put(WeChatPayParam.LOGISTICS_TYPE, LogisticsTypeEnum.VIRTUAL.getCode());
            // 发货模式 统一发货
            requestParam.put(WeChatPayParam.DELIVERY_MODE, DeliveryModeEnum.UNIFIED_DELIVERY.getCode());
            // 物流信息列表
            List<JSONObject> shippingLists = new ArrayList<>();
            Map<String, Object> map = new HashMap<>();
            map.put(WeChatPayParam.ITEM_DESC, description);
            shippingLists.add(new JSONObject(map));
            requestParam.put(WeChatPayParam.SHIPPING_LIST, shippingLists);
            // 上传时间
            requestParam.put(WeChatPayParam.UPLOAD_TIME, new SimpleDateFormat("yyyy-MM-dd'T'HH:mm:ss.SSSZ").format(new Date()));
            // 支付者
            JSONObject payer = new JSONObject();
            // 微信登录时生成的openid,创建订单时存入订单中
            payer.put(WeChatPayParam.OPENID, openId);
            requestParam.put(WeChatPayParam.PAYER, payer);
            // 设置请求url
            String url = StrFormatter.format(WxApiTypeEnum.GOOD_ENTERING.getValue(), accessToken);
            // 发送请求
            JSONObject object = WeChatUtil.getBodyAsJsonByPost(url, requestParam, config);
            // 发货失败
            if (!object.get(WeChatPayParam.ERR_CODE).equals(WeChatPayParam.NUM_ZERO)) {
                log.error("发货失败：" + object.get(WeChatPayParam.ERR_CODE) + " " + object.get(WeChatPayParam.ERR_MSG));
                return false;
            }
        } catch (Exception e) {
            e.printStackTrace();
            throw new CustomException(e.getMessage());
        }
        return true;
    }

    /**
     * 更新订单，运单状态 已完成
     *
     * @param waybill       运单
     * @param transactionId 微信支付订单号
     */
    public void updateStatus(Waybill waybill, String transactionId) {
        // 修改运单状态
        waybill.setWaybillStatus(WaybillStatusEnum.COMPLETED);
        waybill.setPayId(transactionId);
        updateById(waybill);

        // 新增散户流水
        individualAddFlow(waybill);

        // 查询订单
        final OrderService orderService = SpringUtils.getBean(OrderService.class);
        LambdaQueryWrapper<Order> queryWrapper = new LambdaQueryWrapper<>();
        queryWrapper.eq(Order::getId, waybill.getOrderId());
        Order order = orderService.getOne(queryWrapper);

        // 修改订单状态
        LambdaUpdateWrapper<Order> orderWrapper = new LambdaUpdateWrapper<>();
        orderWrapper.eq(Order::getId, waybill.getOrderId());
        orderWrapper.set(Order::getOrderStatus, OrderStatusEnum.COMPLETED);
        orderWrapper.set(Order::getGoodWeight, waybill.getNetWeight());
        orderWrapper.set(Order::getGoodTotalPrice, waybill.getNetWeight().multiply(order.getGoodPrice()));
        orderService.update(orderWrapper);
    }

    /**
     * 修改运单确认发货
     *
     * @param waybill  运单
     * @param shipment 确认发货枚举
     */
    private void updateDeliverGood(JkwlWaybill waybill, ShipmentEnum shipment) {
        waybill.setShipment(shipment);
        updateById(waybill);
    }

六，查询支付结果

1，控制层

    /**
     * 查询微信支付订单状态
     *
     * @param waybillId 运单id
     */
    @GetMapping("/getPayOrder/{waybillId}")
    @Operation(summary = "查询微信支付订单状态")
    public AjaxResult<Void> getPayOrder(@PathVariable("waybillId") String waybillId) {
        return waybillService.getPayOrder(waybillId);
    }

2，业务层

/**
 * 查询微信支付是否成功
 *
 * @param waybillId 运单id
 */
@Override
public AjaxResult<Void> getPayOrder(String waybillId) {
    try {
        // 查询微信支付信息
        JSONObject jsonObject = payService.getPayState(waybillId, config);
        // 返回查单结果信息
        final String res = jsonObject.get(WeChatPayParam.TRADE_STATE).toString();
        // 支付成功
        if (WeChatPayParam.WX_BACK_OK.equals(res)) {
        // 根据业务 该干嘛干嘛
        // 例： 修改订单
        // updateStatus(orderId);
        return AjaxResult.success("SUCCESS");
    } catch (Exception e) {
        log.error("支付查单失败" + orderId);
        e.printStackTrace();
    }
    return AjaxResult.error();
}

    /**
     * 获取支付状态
     *
     * @param waybillId 运单id
     * @param config    配置
     * @return 状态详情
     */
    @Override
    public JSONObject getPayState(String waybillId, WeChatToolConfig config) throws IOException {
        // 查单 微信接口 编辑 微信订单号 + 商户号
        String url = StrFormatter.format(WxApiTypeEnum.QUERY_CREATE_ORDER.getValue(), waybillId, config.getMchId());
        // 调用微信接口
        JSONObject jsonObject = WeChatUtil.getBodyAsJsonByGet(url, config);
        // 异常情况
        if (Objects.nonNull(jsonObject.get(WeChatPayParam.CODE))) {
            throw new CustomException(jsonObject.get(WeChatPayParam.MESSAGE).toString());
        }
        return jsonObject;
    }

七，微信退款

    /**
     * 微信退款
     *
     * @param waybillId 运单id
     */
    @RepeatSubmit
    @GetMapping("/weChatRefundOrder/{waybillId}/{amount}")
    @Operation(summary = "微信退款")
    @IgnoreAuth
    public AjaxResult<Void> weChatRefundOrder(@PathVariable("waybillId") String waybillId, @PathVariable("amount") int amount) {
        return waybillService.weChatRefundOrder(waybillId, amount);
    }

    /**
     * 微信退款
     *
     * @param waybillId 运单id
     */
    @Override
    public AjaxResult<Void> weChatRefundOrder(String waybillId, int amount) {
        // 非开发环境 输入多少退多少
        if (!"dev".equals(SpringUtils.getActiveProfile())) {
            // 从数据库获取运单退款金额
            amount = getAmountByOrderNo(waybillId);
        }
        // 调用微信退款接口
        JSONObject jsonObject = payService.refundOrder(waybillId, amount, config);
        // 获取微信退款状态
        String status = jsonObject.get(WeChatPayParam.STATUS).toString();

        return switch (status) {
            // 退款关闭
            case "CLOSED" -> AjaxResult.success("退款关闭");
            // 退款处理中
            case "PROCESSING" -> AjaxResult.success("退款处理中 请稍后");
            // 退款成功
            case "SUCCESS" -> {
                // 可拓展 退款成功后进行的操作 例：修改订单退款订单，运单状态 微信退款入数据库
                // updateStatus(orderId);
                yield AjaxResult.success("退款申请成功 注意退款查收");
            }
            // 退款异常
            default -> AjaxResult.error("退款账户异常 请联系管理人员");
        };
    }

    /**
     * 微信退款
     *
     * @param waybillId    运单id
     * @param refundAmount 退款金额
     * @param config       配置
     * @return 状态详情
     */
    @Override
    public JSONObject refundOrder(String waybillId, Integer refundAmount, WeChatToolConfig config) {
        // 配置参数
        JSONObject requestParam = new JSONObject();
        // 商户订单号 orderId
        requestParam.put(WeChatPayParam.OUT_TRADE_NO, waybillId);
        // 商户退款单号
        requestParam.put(WeChatPayParam.OUT_REFUND_NO, waybillId);
        // 退款回调地址
        requestParam.put(WeChatPayParam.NOTIFY_URL, config.getRefundNotifyUrl());
        // 金额信息 amount (单位都是分)
        JSONObject amount = new JSONObject();
        // 原订单金额 total
        amount.put(WeChatPayParam.AMOUNT_TOTAL, refundAmount);
        // 退款金额 refund
        amount.put(WeChatPayParam.AMOUNT_REFUND, refundAmount);
        // 退款币种 CNY 人民币
        amount.put(WeChatPayParam.AMOUNT_CURRENCY, WeChatPayParam.CURRENCY_RMB);
        // 金额信息 amount: 原订单金额 total 退款金额 refund (单位都是分)
        requestParam.put(WeChatPayParam.AMOUNT, amount);

        try {
            // 调用请求接口
            JSONObject jsonObject = WeChatUtil.getBodyAsJsonByPost(WxApiTypeEnum.REFUND_ORDER.getValue(), requestParam, config);
            // 异常情况
            if (Objects.nonNull(jsonObject.get(WeChatPayParam.CODE))) {
                throw new CustomException(jsonObject.get(WeChatPayParam.MESSAGE).toString());
            }
            log.info("微信申请退款返回结果" + "response:" + jsonObject);
            return jsonObject;
        } catch (Exception e) {
            log.info("微信退款" + waybillId + "失败");
            e.printStackTrace();
            throw new CustomException("退款失败:" + e.getMessage());
        }
    }

八、退款回调

    /**
     * 微信退款回调接口
     */
    @IgnoreAuth
    @Operation(summary = "微信退款回调接口")
    @PostMapping("/wechatRefundBack")
    public Map<String, String> wechatRefundBack(HttpServletRequest request) {
        Map<String, String> result = new HashMap<>(WeChatPayParam.NUM_TWO);
        // 根据退款返回结果 更新订单状态 返回结果
        if (waybillService.verifyRefundOrder(request)) {
            log.info("==============================微信退款成功订单=====================================");
            result.put(WeChatPayParam.CODE, WeChatPayParam.WX_BACK_OK);
        } else {
            result.put(WeChatPayParam.CODE, "FAIL");
            result.put(WeChatPayParam.MESSAGE, "失败");
        }
        return result;
    }

    @Override
    public Boolean verifyRefundOrder(HttpServletRequest request) {
        // 获取微信通知详情
        JSONObject decryptData = jkwlPayService.getDecryptData(request, config);
        // 商户退款单号
        String outRefundNo = decryptData.get(WeChatPayParam.OUT_REFUND_NO).toString();

        log.info("微信退款成功订单:" + outRefundNo);

        // 退款状态
        String refundStatus = decryptData.get(WeChatPayParam.REFUND_STATUS).toString();
        // 数据库核对 如果退款状态已退款说明已处理 直接返回即可
        if (WaybillStatusEnum.CANCELED.equals(getStatus(outRefundNo))) {
            return true;
        }
        return switch (refundStatus) {
            // 退款关闭
            case "CLOSED" -> Boolean.FALSE;
            // 退款成功
            case "SUCCESS" -> {
                // 修改订单退款订单，运单状态 微信退款入数据库
                // updateStatus(outRefundNo);
                yield Boolean.TRUE;
            }
            // 退款异常
            default -> Boolean.FALSE;
        };
    }

九，查询退款订单

    /**
     * 查询退款订单
     *
     * @param waybillId 运单id
     */
    @Operation(summary = "查询退款订单")
    @GetMapping("/getRefundOrder/{waybillId}")
    public AjaxResult<Void> getRefundOrder(@PathVariable("waybillId") String waybillId) {
        return waybillService.getRefundOrder(waybillId);
    }

    /**
     * 查询退款订单
     *
     * @param waybillId 运单id
     */
    @Override
    public AjaxResult<Void> getRefundOrder(String waybillId) {
        try {
            // 调用微信查询退款订单接口
            JSONObject jsonObject = payService.getRefundState(waybillId, config);
            // 获取退款状态
            String string = jsonObject.get(WeChatPayParam.STATUS).toString();

            return switch (string) {
                // 退款关闭
                case "CLOSED" -> AjaxResult.success("退款关闭");
                // 退款处理中
                case "PROCESSING" -> AjaxResult.success("退款处理中 请稍后");
                // 退款成功
                case "SUCCESS" -> AjaxResult.success("退款申请成功 注意退款查收");
                // 退款异常
                default -> AjaxResult.error("退款账户异常 请联系管理人员");
            };
        } catch (Exception e) {
            log.error("支付查单失败" + waybillId);
            e.printStackTrace();
        }
        return AjaxResult.error();
    }

    /**
     * 获取退款状态
     *
     * @param waybillId 运单id
     * @param config    配置
     * @return 状态详情
     */
    @Override
    public JSONObject getRefundState(String waybillId, WeChatToolConfig config) throws IOException {
        // 查单 微信接口 拼接url
        String url = StrFormatter.format(WxApiTypeEnum.QUERY_REFUND_ORDER.getValue(), waybillId);
        // 调用微信接口
        JSONObject jsonObject = WeChatUtil.getBodyAsJsonByGet(url, config);
        // 异常情况
        if (Objects.nonNull(jsonObject.get(WeChatPayParam.CODE))) {
            throw new CustomException(jsonObject.get(WeChatPayParam.MESSAGE).toString());
        }
        return jsonObject;
    }
