1.首先安装jenkins。

1.1编写Dockfile文件。

cat Dockfile

FROM jenkins/jenkins:2.414.3-jdk17
USER root
RUN apt-get update && apt-get install -y lsb-release
ADD sources.list /etc/apt/
RUN apt-get update && apt-get install -y software-properties-common
RUN curl -fsSL https://mirrors.huaweicloud.com/docker-ce/linux/debian/gpg | apt-key add -
RUN add-apt-repository "deb [arch=amd64] https://mirrors.huaweicloud.com/docker-ce/linux/debian $(lsb_release -cs) stable"
RUN apt-get update && apt-get install -y docker-ce-cli
USER jenkins
RUN jenkins-plugin-cli --plugins "blueocean docker-workflow"

1.2编写启动脚本

cat run.sh

docker run --name jenkins-blueocean -u root --restart=on-failure -itd --network jenkins --env DOCKER_HOST=tcp://docker:2376 --env DOCKER_CERT_PATH=/certs/client --env DOCKER_TLS_VERIFY=1 --publish 39412:8080 --publish 51206:50000 --volume /opt/jenkins/jenkins-data:/var/jenkins_home --volume /opt/jenkins/jenkins-docker-certs:/certs/client:ro myjenkins-blueocean:2.414.3-1

1.3编写sources.list文件

cat sources.list

deb https://mirrors.aliyun.com/debian/ bookworm main non-free non-free-firmware contrib
deb-src https://mirrors.aliyun.com/debian/ bookworm main non-free non-free-firmware contrib
deb https://mirrors.aliyun.com/debian-security/ bookworm-security main
deb-src https://mirrors.aliyun.com/debian-security/ bookworm-security main
deb https://mirrors.aliyun.com/debian/ bookworm-updates main non-free non-free-firmware contrib
deb-src https://mirrors.aliyun.com/debian/ bookworm-updates main non-free non-free-firmware contrib
deb https://mirrors.aliyun.com/debian/ bookworm-backports main non-free non-free-firmware contrib
deb-src https://mirrors.aliyun.com/debian/ bookworm-backports main non-free non-free-firmware contrib

2.首先安装docker-ce。

2.1通过阿里云镜像站安装，文档附上，根据系统版本进行安装。

docker-ce镜像_docker-ce下载地址_docker-ce安装教程-阿里巴巴开源镜像站

2.2 使用docker拉取jenkins镜像。

docker pull jenkins/jenkins:2.414.3-jdk17 # 拉取镜像

docker images # 查看镜像

docker network create jenkins # 安装jenkins所需网络服务

docker build -t myjenkins-blueocean:2.414.3-1 . #使用刚才的Dockerfile文件构建镜像

2.3启动构建的Jenkins镜像。

./run.sh #运行刚刚的脚本

docker ps #查看容器运行情况

netstat -nutlp #查看端口

2.4查看Jkenkins密码登录。

cat /opt/jenkins/jenkins-data/secrets/initialAdminPassword

账号为admin

IP+39412

2.5登录上jenkins后，修改密码并且安装必要的插件。

系统管理-插件管理-updates,搜索安装以下插件。

ssh server

GitLab

GitLab Authentication

Generic Webhook Trigger

2.6配置跨域，不然后续构建时会报错403相关无效的碎屑。

报错如下

WARNING hudson.security.csrf.CrumbFilter#doFilter: Found invalid crumb c0e527c9839db9e6e01a72ced74467cadec80c034df05525bd89ec032883f411. If you are calling this URL with a script, please use the API Token instead. More information: https://www.jenkins.io/redirect/crumb-cannot-be-used-for-script

WARNING hudson.security.csrf.CrumbFilter#doFilter: No valid crumb was included in request for /$stapler/bound/2c81919f-4aa1-4390-b361-c0ab2c945e46/render by admin. Returning 403.

具体解决方法如下：

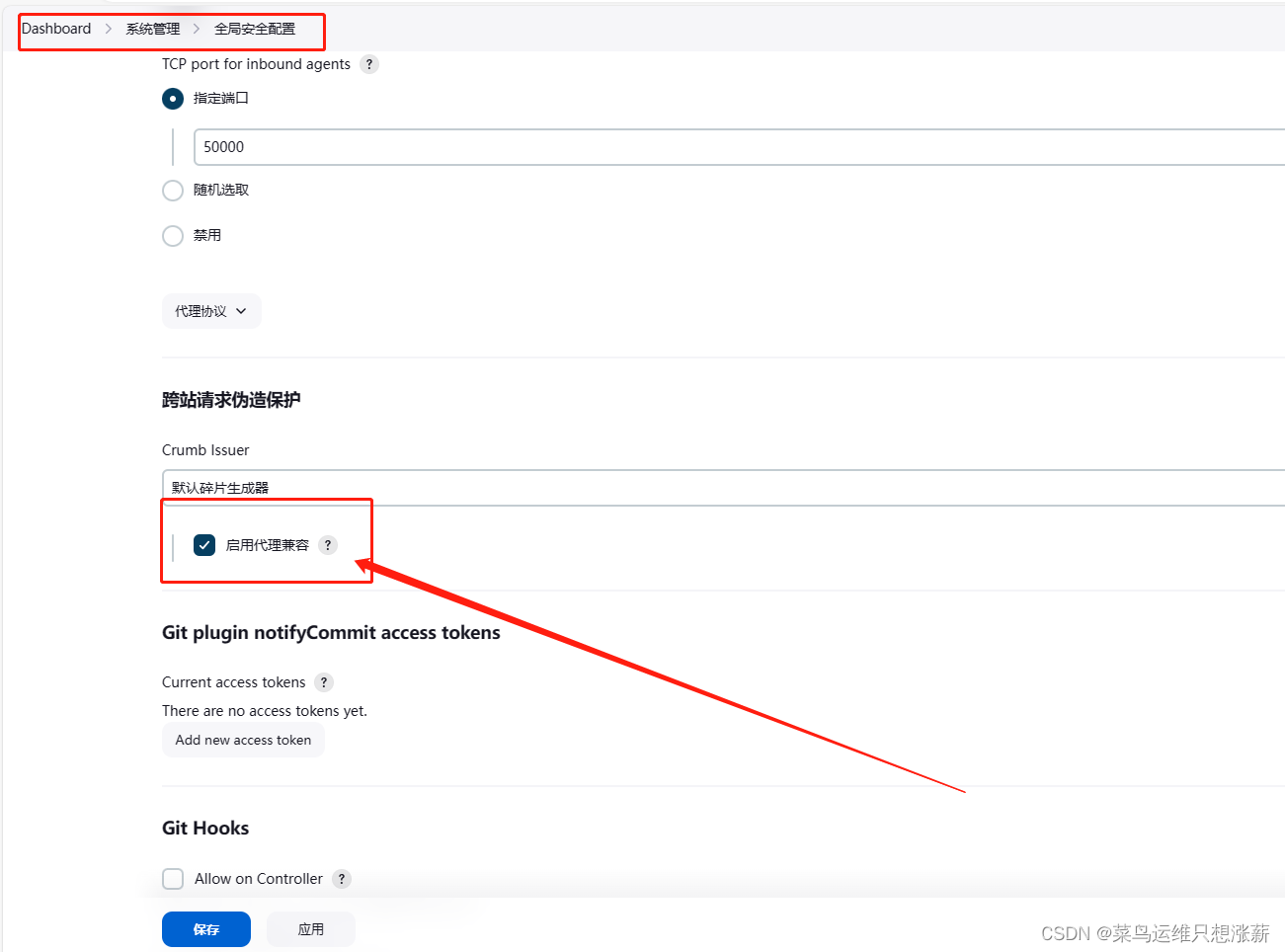

系统管理-全局安全配置-跨站请求伪造保护-启动代理兼容（此项勾选上即可）

2.7 以上jenkins 安装以及插件安装都已安装完成，后续安装完gitlab，会配置构建脚本参数等。

3.安装gitlab。

wget https://mirrors.tuna.tsinghua.edu.cn/gitlab-ce/yum/el7/gitlab-ce-16.4.1-ce.0.el7.x86_64.rpm

yum -y install local gitlab-ce-16.4.1-ce.0.el7.x86_64.rpm

3.1修改配置文件设置访问端口。

vi /etc/gitlab/gitlab.rb

external_url 'http://ip地址:9091'

# 公网内网都可以，后面是端口

3.2初始化安装并启动。

gitlab-ctl reconfigure #初始化

# 如果需要修改配置，修改完后需要重新初始化，否则无法生效。

gitlab-ctl start

gitlab-ctl status

3.3通过浏览器访问地址。

http://ip地址:9091'

登录账号为root

登录密码在

cat /etc/gitlab/initial_root_password

jenkins 我这边选择的为推荐安装，后续可按特定需求安装特定插件。

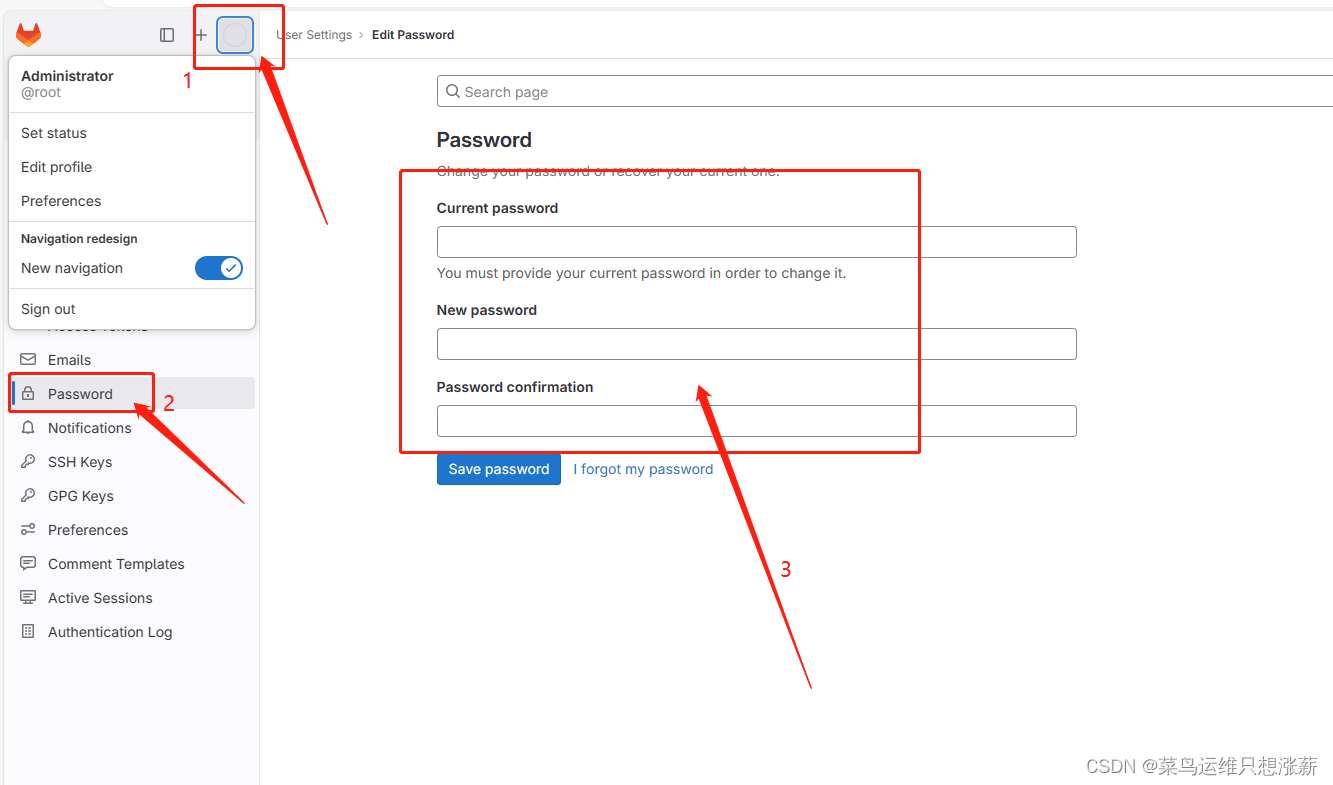

3.4设置gitlab，修改登录密码，配置jenkins免密登录的key，实现免密登录。

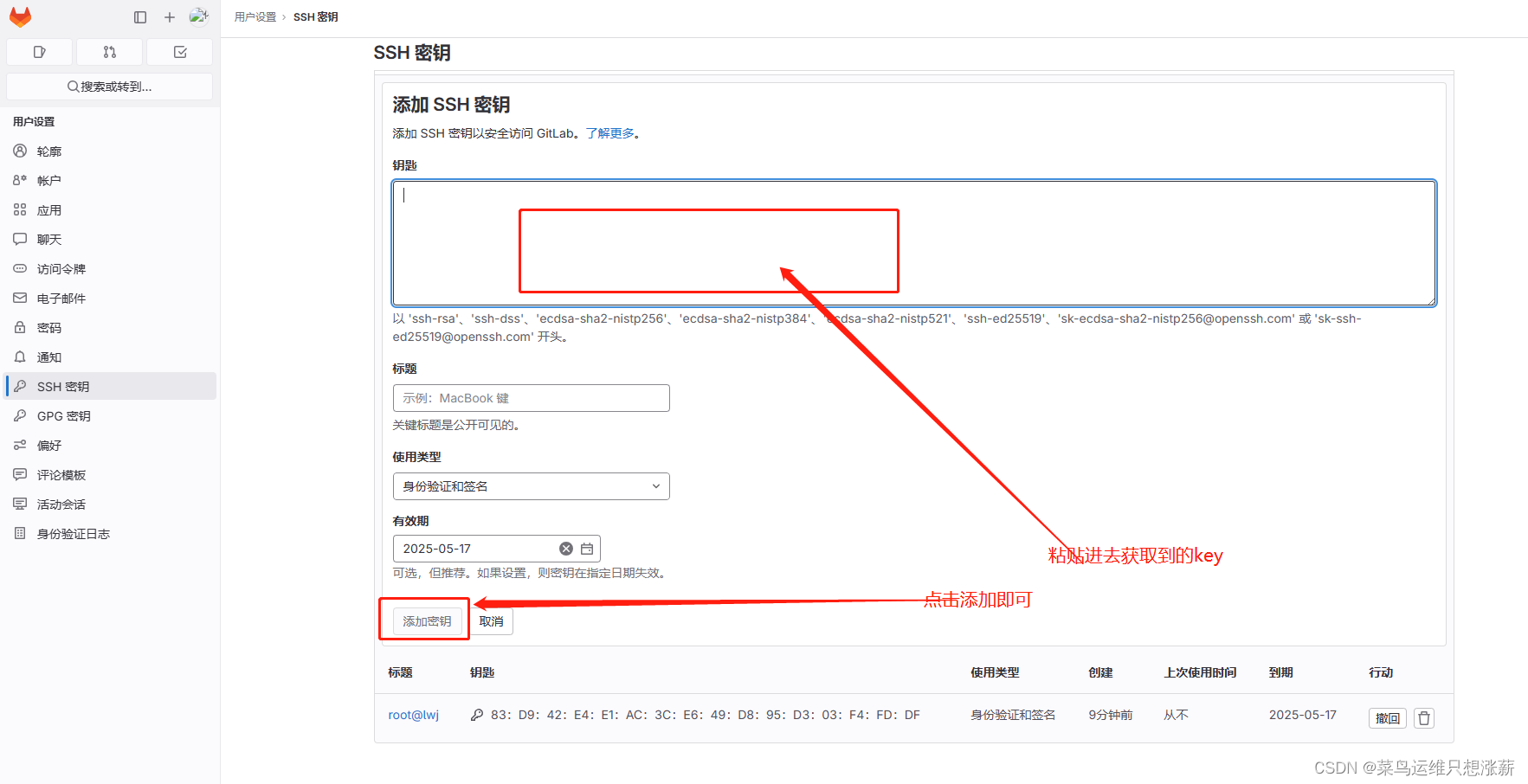

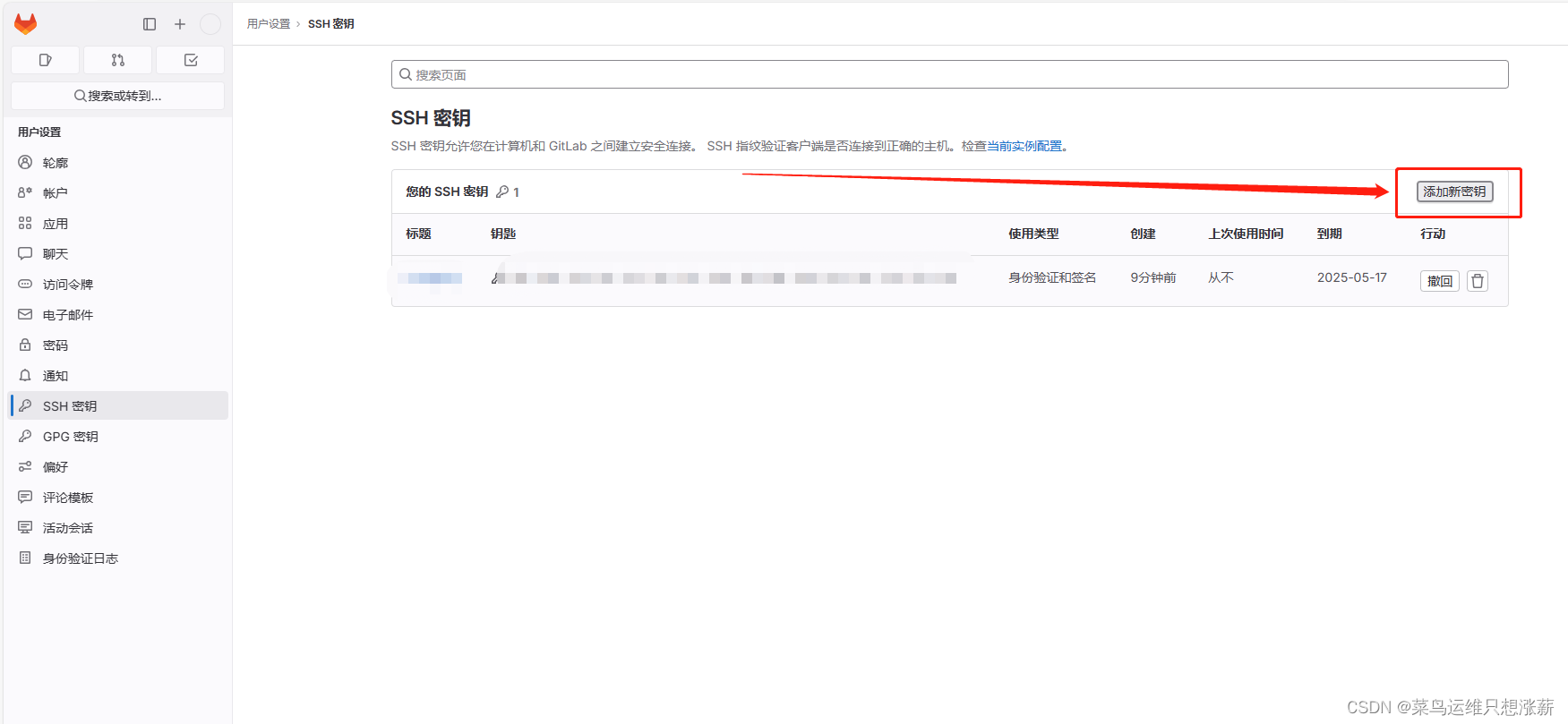

3.5 在jenkins容器服务器内，生成ssh免密文件，获取Key并添加到gitlab上。

docker ps
#查看容器运行情况

docker exec -it 容器id /bin/bash
#进入容器并指定解释器

ssh-keygen
#在jenkins容器内运行此命令，生成密钥文件，一路回车即可。

cd /root/.ssh/
#会看到两个文件 id_rsa id_rsa.pub

cat id_rsa.pub
#将获取到的key上传到gitlab。


ssh-copy-id root@ip

ssh  #刚刚的IP试一下 是否可以远程登录

#这里是将生成的密钥文件传到部署服务的服务器上
#ip为部署服务的服务器，也可以给容器服务器传，也可以给别的服务器传，主要实现免密。


#此步骤为Jenkins将编译好，打包好的代码服务，需要分发到部署服务器进行部署，此步骤是方便jenkins部署服务。

#由于jenkins，需要通过连接gitlab实现拉取代码，所以需要生成sshkey，并填写到gitlab上，实现拉取代码，打包操作。后续jenkins需要将打包好的代码发布到服务器，所以需要ssh-copy-id到每个部署服务的服务器上。

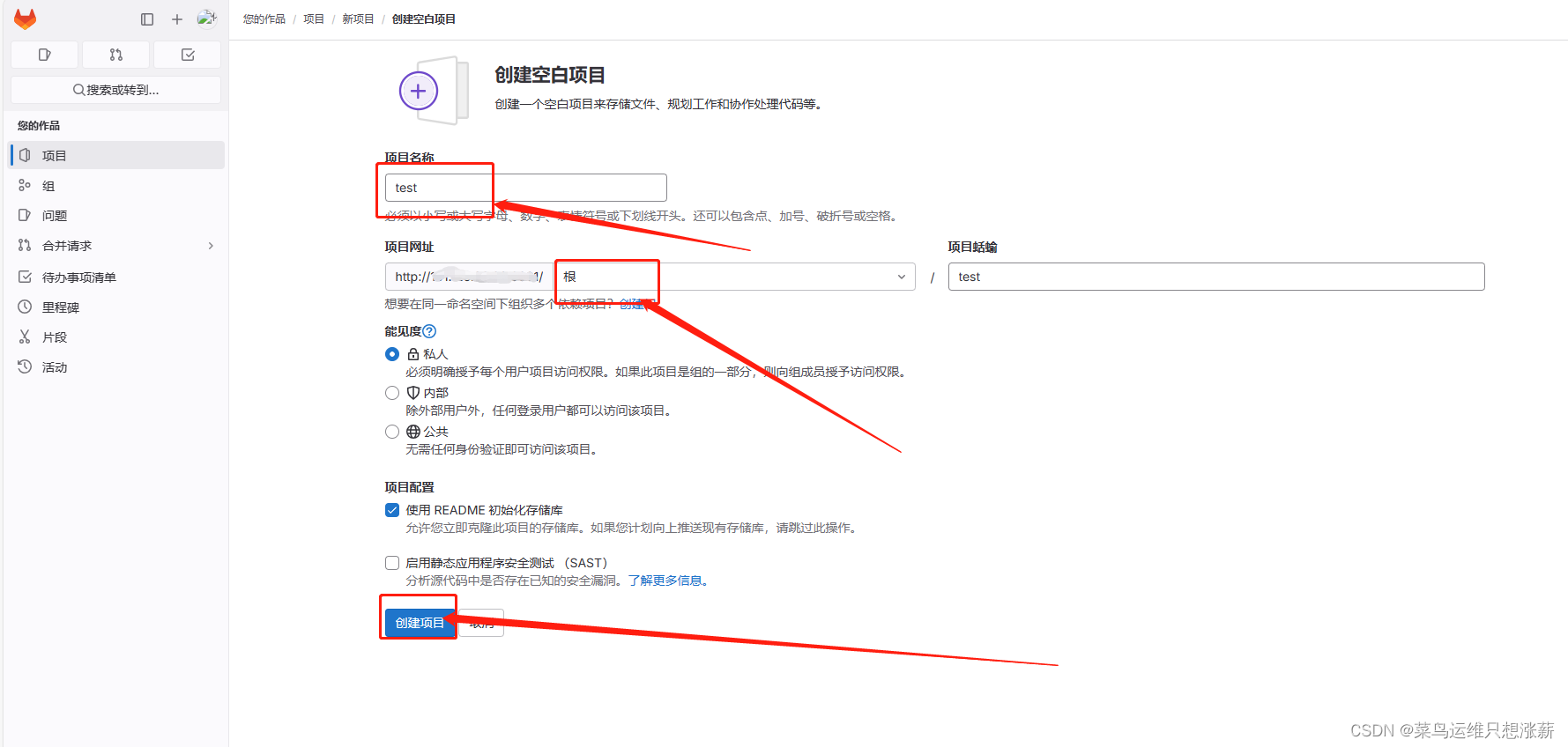

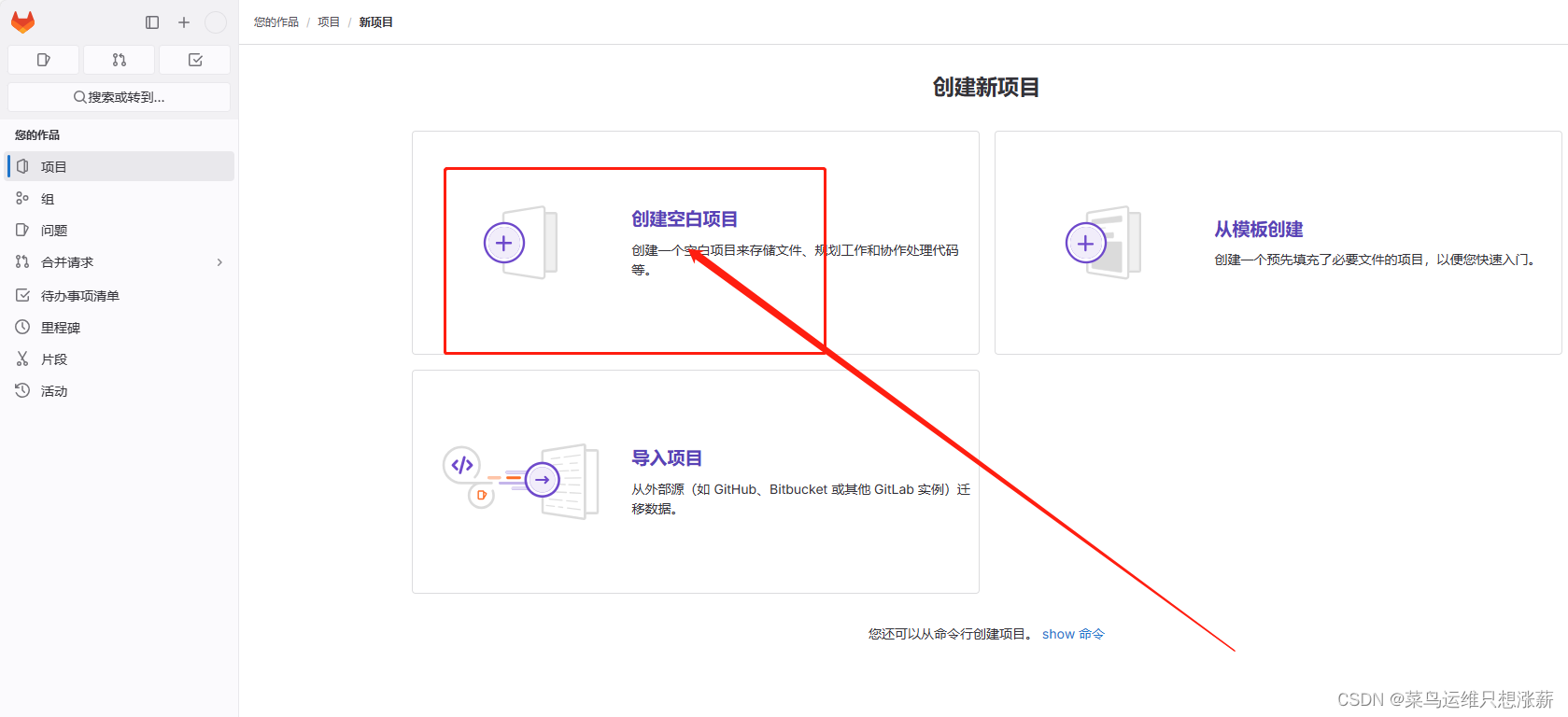

3.6创建新项目，并且发送给开发人员地址，他们即可提交代码到仓库，以下为图片教程。

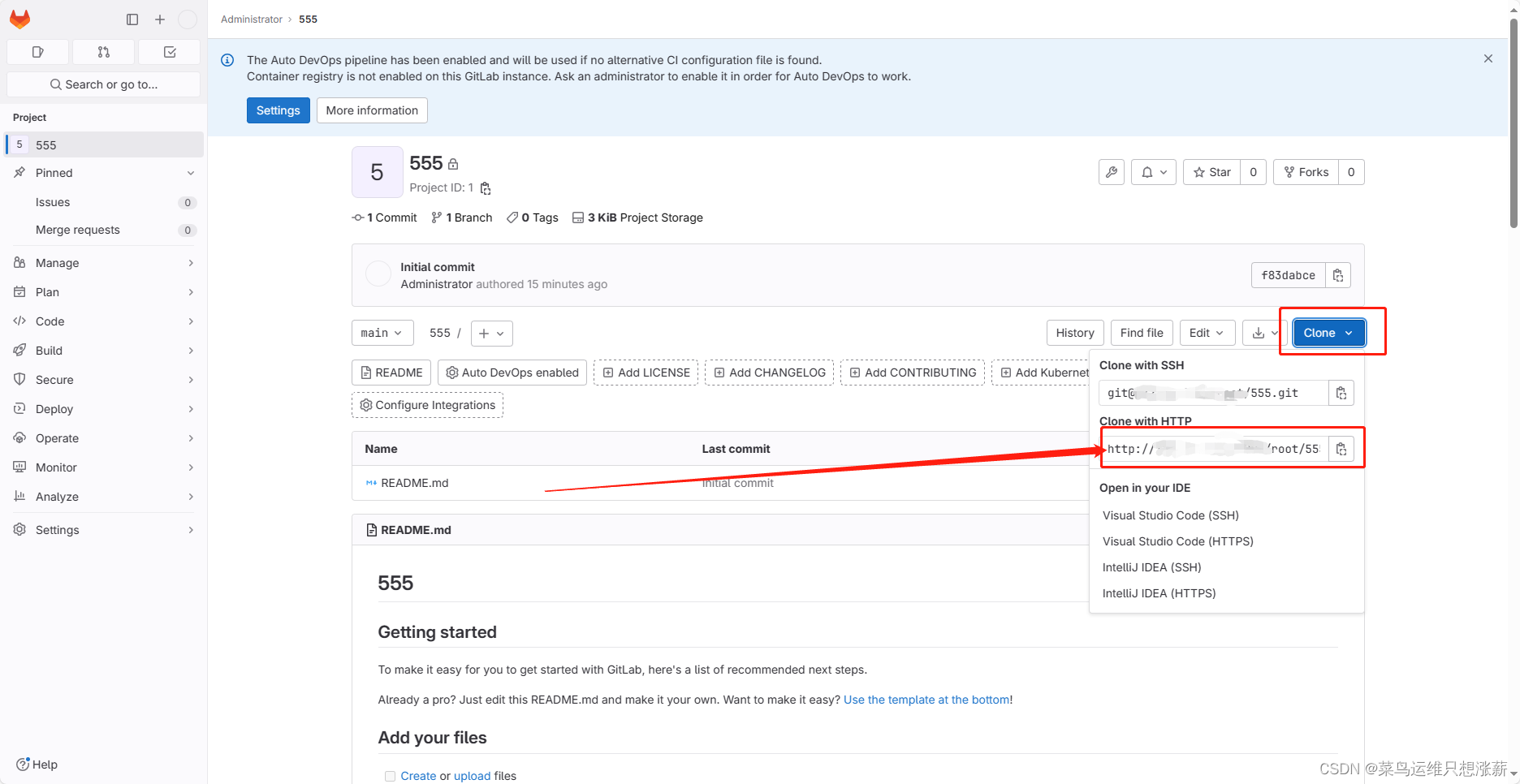

# 将获取到的git地址，连同登录账号密码，一并发送给开发人员，方便他们后续提交代码。

3.8在jenkins容器内配置，环境变量，方便后续打包发布。

配置容器环境变量。

vim /etc/profiles

export MAVEN_HOME=/var/jenkins_home/mvn/apache-maven-3.8.8
export PATH=${PATH}:${MAVEN_HOME}/bin
export JAVA_HOME=/var/jenkins_home/jdk1.8.0_341
export JRE_HOME=${JAVA_HOME}/jre
export CLASSPATH=.:${JAVA_HOME}/lib:${JRE_HOME}/lib:$CLASSPATH
export JAVA_PATH=${JAVA_HOME}/bin:${JRE_HOME}/bin
export PATH=$PATH:${JAVA_PATH}

# 以上目录为容器启动时的映射目录，如果Dockerfile文件改了，这里也需要更改。

# 另外需要自行下载准备maven和jdk 我这里版本号都有，可自行下载

# maven需要修改配置文件，文件详情如下：

settings.xml
<settings xmlns="http://maven.apache.org/SETTINGS/1.2.0"
          xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
          xsi:schemaLocation="http://maven.apache.org/SETTINGS/1.2.0 https://maven.apache.org/xsd/settings-1.2.0.xsd">



<localRepository>/var/jenkins_home/mvn/repo</localRepository>


 <mirror>
      <id>aliyunmaven</id>
      <mirrorOf>*</mirrorOf>
      <name>阿里云公共仓库</name>
      <url>https://maven.aliyun.com/repository/public</url>
    </mirror>
  </mirrors>
#退出容器，由于容器启动时定义了映射，所以需要在宿主机映射目录下，上传maven和jdk即可。

exit #退出容器

# 以下操作在宿主机进行

cd /opt/jenkins/jenkins-data #此目录为容器映射目录

mkdir mvn

mkdir mvn/repo

#repo 是因为maven会用到这个目录，正常创建即可。

#将maven 上传至 mvn ，将jdk上传至当前目录解压即可。

4.0 现在已经配置好环境变量，现在配置Jenkins的页面。

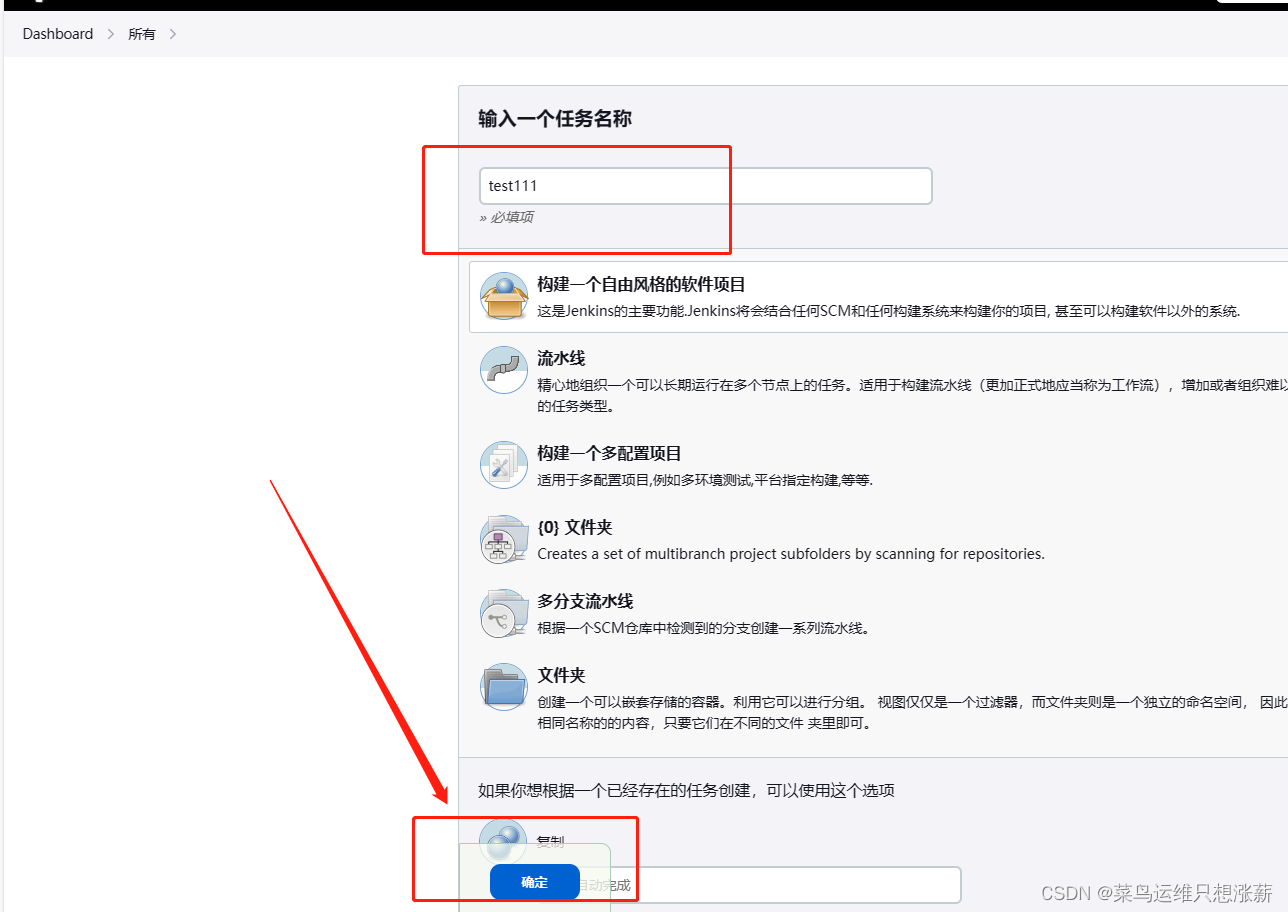

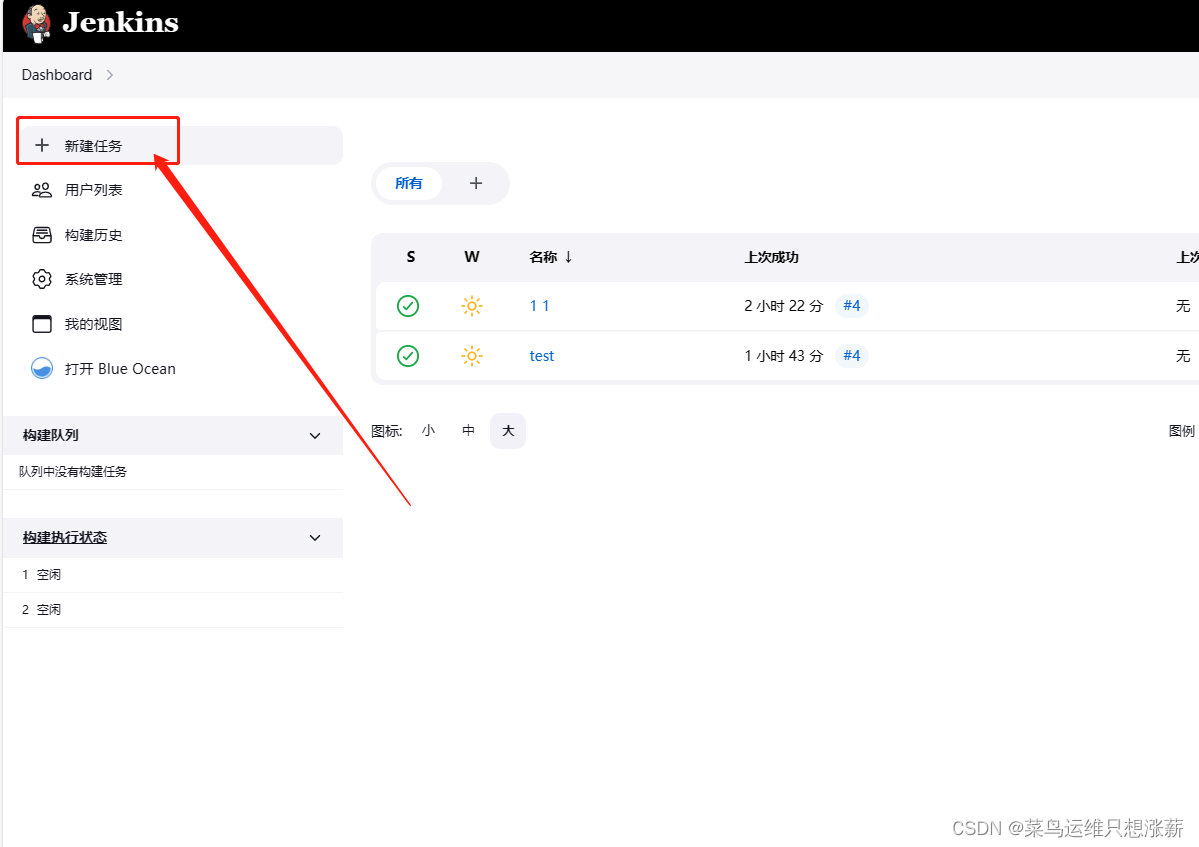

4.1通过jenkins,新建任务。

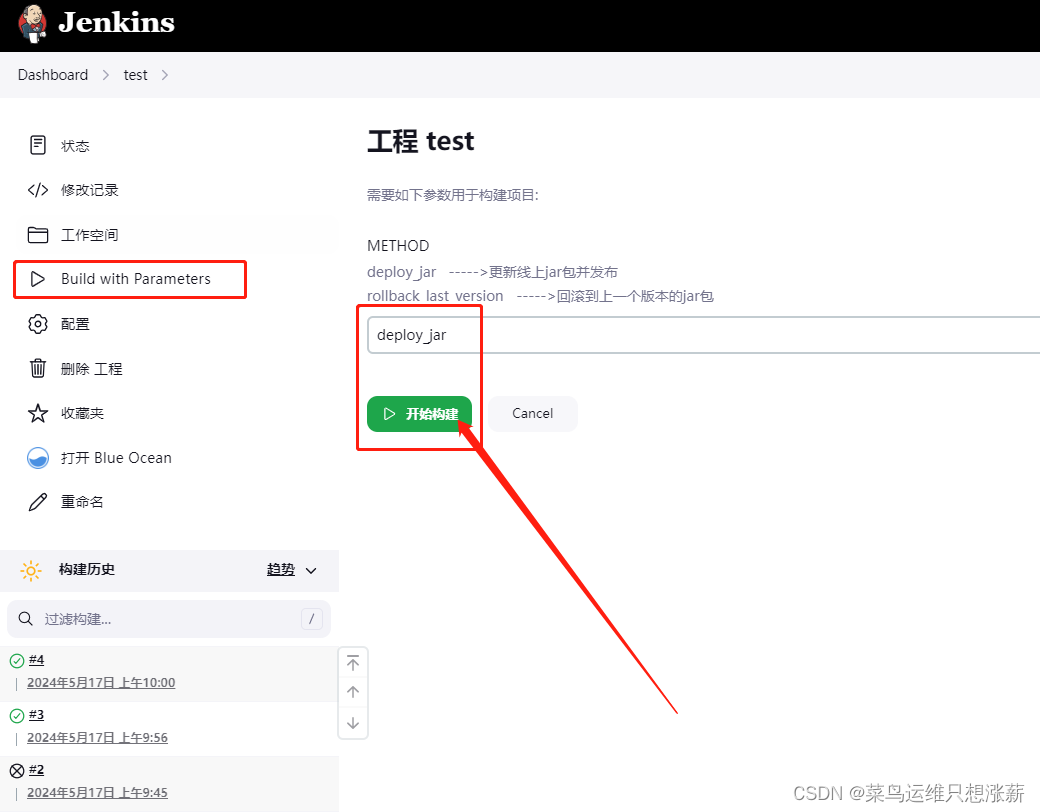

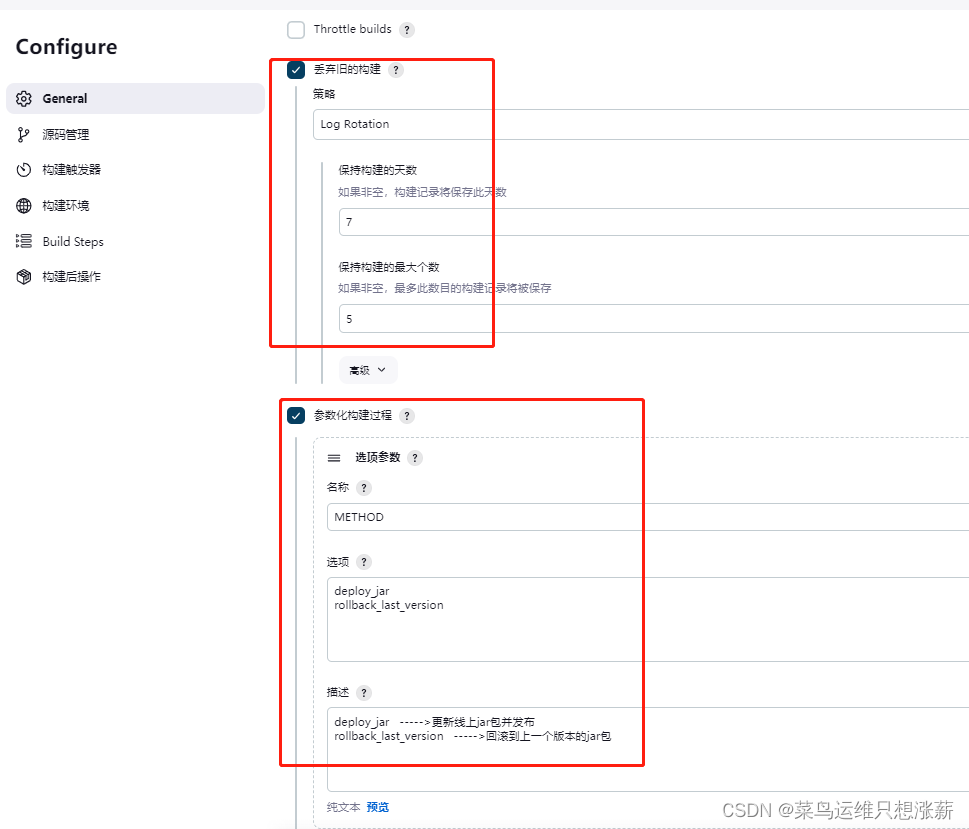

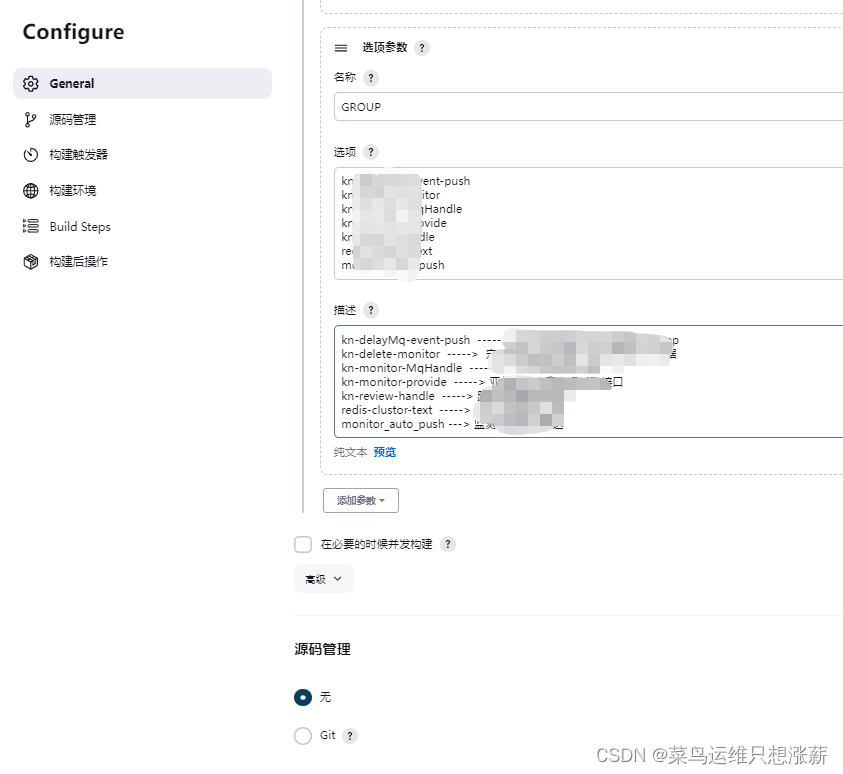

记住这个GROUP 和 METHOD 这是一个变量调用，后面脚本的脚本里会说到。

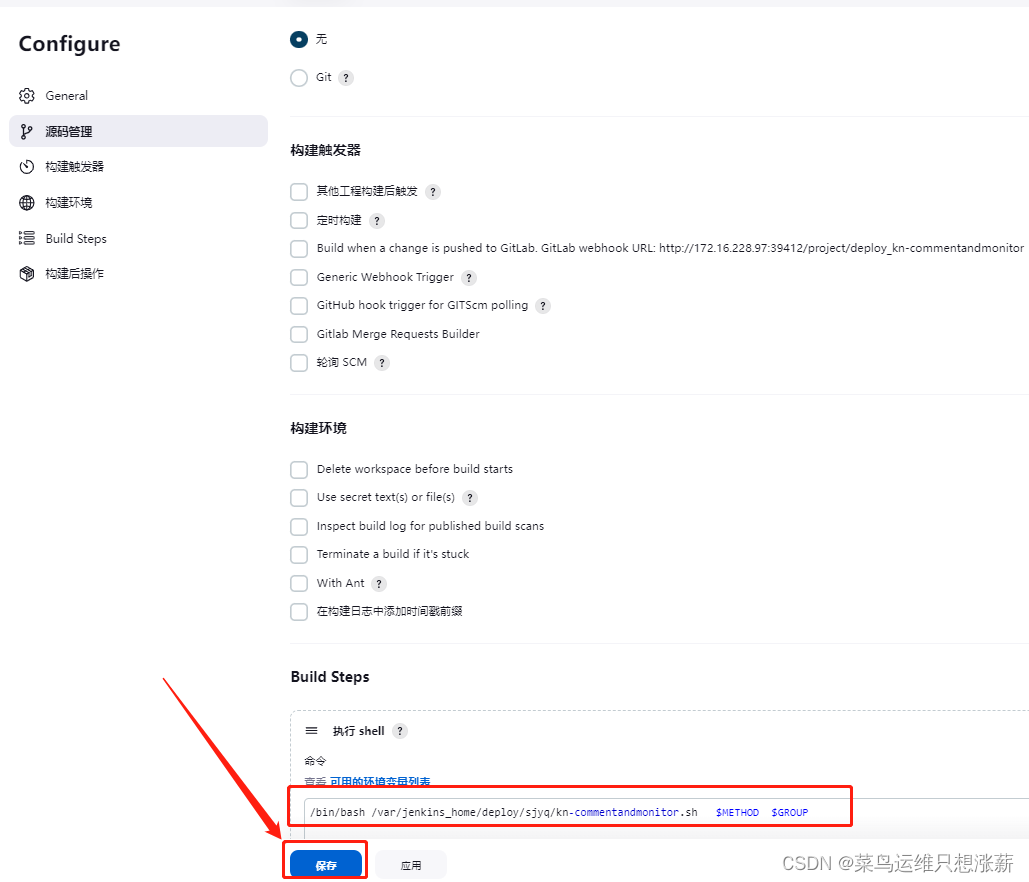

上图这个脚本的位置为jenkins容器内的位置，放置和更改脚本可直接在宿主机对应的映射目录上传脚本即可。

4.2下面来我这边来放这个脚本，供大家参考。

#!/bin/bash

DATE=`date +%Y-%m-%d_%H:%M:%S`
METHOD=$1
GROUP=$2

source /etc/profile
MAVEN_HOME=/var/jenkins_home/mvn/apache-maven-3.8.8
DOCKER_WOKER_HOME="/var/jenkins_home/deploy/sjyq"                            #脚本地址
DOCKER_WOKER_JAR_HOME="/var/jenkins_home/deploy/sjyq/xxx"                    #项目地址

function clone_code(){
    echo "开始clone代码..."
    cd  $DOCKER_WOKER_HOME ; rm -rf xxx          #项目名称
    git clone -b master git@xxx:root/xxx.git     #填写git地址
    echo "clone 代码完成..."
}

function code_maven(){
    echo "开始编译代码..."
    if [[ $GROUP == *"kn-delayMq-event-push"* ]];then
       cd  $DOCKER_WOKER_HOME/kn-commentandmonitor/kn-delayMq-event-push  && $MAVEN_HOME/bin/mvn clean package -Dmaven.test.skip=true
    elif [[ $GROUP == *"kn-delete-information"* ]];then
       cd  $DOCKER_WOKER_HOME/kn-commentandmonitor/kn-delete-information  && $MAVEN_HOME/bin/mvn clean package -Dmaven.test.skip=true
    elif [[ $GROUP == *"kn-delete-monitor"* ]];then
       cd  $DOCKER_WOKER_HOME/kn-commentandmonitor/kn-delete-monitor  && $MAVEN_HOME/bin/mvn clean package -Dmaven.test.skip=true
    elif [[ $GROUP == *"kn-delete-publicsentiment"* ]];then
       cd  $DOCKER_WOKER_HOME/kn-commentandmonitor/kn-delete-publicsentiment  && $MAVEN_HOME/bin/mvn clean package -Dmaven.test.skip=true
    elif [[ $GROUP == *"kn-monitor-MqHandle"* ]];then
       cd  $DOCKER_WOKER_HOME/kn-commentandmonitor/kn-monitor-MqHandle  && $MAVEN_HOME/bin/mvn clean package -Dmaven.test.skip=true
    elif [[ $GROUP == *"kn-monitor-isexist"* ]];then
       cd  $DOCKER_WOKER_HOME/kn-commentandmonitor/kn-monitor-isexist  && $MAVEN_HOME/bin/mvn clean package -Dmaven.test.skip=true
    elif [[ $GROUP == *"kn-monitor-provide"* ]];then
       cd  $DOCKER_WOKER_HOME/kn-commentandmonitor/kn-monitor-provide  && $MAVEN_HOME/bin/mvn clean package -Dmaven.test.skip=true
    elif [[ $GROUP == *"kn-review-handle"* ]];then
       cd  $DOCKER_WOKER_HOME/kn-commentandmonitor/kn-review-handle  && $MAVEN_HOME/bin/mvn clean package -Dmaven.test.skip=true
    elif [[ $GROUP == *"monitor-scheme-task"* ]];then
       cd  $DOCKER_WOKER_HOME/kn-commentandmonitor/monitor-scheme-task  && $MAVEN_HOME/bin/mvn clean package -Dmaven.test.skip=true
    elif [[ $GROUP == *"redis-clustor-text"* ]];then
       cd  $DOCKER_WOKER_HOME/kn-commentandmonitor/redis-clustor-text  && $MAVEN_HOME/bin/mvn clean package -Dmaven.test.skip=true
    elif [[ $GROUP == *"wx-master"* ]];then
       cd  $DOCKER_WOKER_HOME/kn-commentandmonitor/wx-master  && $MAVEN_HOME/bin/mvn clean package -Dmaven.test.skip=true
    elif [[ $GROUP == *"monitor_auto_push"* ]];then
       cd  $DOCKER_WOKER_HOME/kn-commentandmonitor/kn_monitor_auto_push  && $MAVEN_HOME/bin/mvn clean package -Dmaven.test.skip=true
    fi
    echo "代码编译完成..."
}

usage() {
    echo "Usage: sh java_demo.sh [deploy_jar|rollback_last_version] [jar]"
    exit 1
}

function scp_jar_file() {
    echo "开始删除旧包..."
    if [[ $GROUP == *"kn-delayMq-event-push"* ]];then
      ssh  root@ip地址1  "rm -rf /data/update/kn-delayMq-event-push-0.0.1-SNAPSHOT.jar"
    elif [[ $GROUP == *"kn-delete-information"* ]];then
       ssh  root@ip地址1  "rm -rf /data/update/kn-delete-information-1.0.jar"
    elif [[ $GROUP == *"kn-delete-monitor"* ]];then
       ssh  root@ip地址1  "rm -rf /data/update/kn-delete-monitor-0.0.1-SNAPSHOT.jar"
    elif [[ $GROUP == *"kn-delete-publicsentiment"* ]];then
       ssh  root@ip地址1  "rm -rf /data/update/kn-delete-publicsentiment-1.0.jar"
    elif [[ $GROUP == *"kn-monitor-MqHandle"* ]];then
       ssh  root@ip地址1  "rm -rf /data/update/kn-monitor-MqHandle-0.0.1-SNAPSHOT.jar"
    elif [[ $GROUP == *"kn-monitor-isexist"* ]];then
       ssh  root@ip地址1  "rm -rf /data/update/kn-monitor-isexist-0.0.1-SNAPSHOT.jar"
    elif [[ $GROUP == *"kn-monitor-provide"* ]];then
       ssh  root@ip地址1  "rm -rf /data/update/kn-monitor-provide-0.0.1-SNAPSHOT.jar"
    elif [[ $GROUP == *"kn-review-handle"* ]];then
       ssh  root@ip地址1  "rm -rf /data/update/kn-review-handle-0.0.1-SNAPSHOT.jar"
    elif [[ $GROUP == *"monitor-scheme-task"* ]];then
       ssh  root@ip地址1  "rm -rf /data/update/monitor-scheme-task-0.0.1-SNAPSHOT.jar"
    elif [[ $GROUP == *"redis-clustor-text"* ]];then
       ssh  root@ip地址1  "rm -rf /data/update/redis-clustor-text-0.0.1-SNAPSHOT.jar"
    elif [[ $GROUP == *"wx-master"* ]];then
       ssh  root@ip地址1  "rm -rf /data/update/wxproject-1-SNAPSHOT.jar"
    fi
    echo "远程服务器旧版本jar包删除完成..."

    echo "开始拷贝文件到远程服务器..."
    if [[ $GROUP == *"kn-delayMq-event-push"* ]];then
       scp ${DOCKER_WOKER_HOME}/kn-commentandmonitor/kn-delayMq-event-push/target/kn-delayMq-event-push-0.0.1-SNAPSHOT.jar  ip地址1:/data/update/
    elif [[ $GROUP == *"kn-delete-information"* ]];then
       scp ${DOCKER_WOKER_HOME}/kn-commentandmonitor/kn-delete-information/target/kn-delete-information-1.0.jar  ip地址1:/data/update/
    elif [[ $GROUP == *"kn-delete-monitor"* ]];then
       scp ${DOCKER_WOKER_HOME}/kn-commentandmonitor/kn-delete-monitor/target/kn-delete-monitor-0.0.1-SNAPSHOT.jar  ip地址1:/data/update/
    elif [[ $GROUP == *"kn-delete-publicsentiment"* ]];then
       scp ${DOCKER_WOKER_HOME}/kn-commentandmonitor/kn-delete-publicsentiment/target/kn-delete-publicsentiment-1.0.jar  ip地址1:/data/update/
    elif [[ $GROUP == *"kn-monitor-MqHandle"* ]];then
       scp ${DOCKER_WOKER_HOME}/kn-commentandmonitor/kn-monitor-MqHandle/target/kn-monitor-MqHandle-0.0.1-SNAPSHOT.jar  ip地址1:/data/update/
    elif [[ $GROUP == *"kn-monitor-isexist"* ]];then
       scp ${DOCKER_WOKER_HOME}/kn-commentandmonitor/kn-monitor-isexist/target/kn-monitor-isexist-0.0.1-SNAPSHOT.jar  ip地址1:/data/update/
    elif [[ $GROUP == *"kn-monitor-provide"* ]];then
       scp ${DOCKER_WOKER_HOME}/kn-commentandmonitor/kn-monitor-provide/target/kn-monitor-provide-0.0.1-SNAPSHOT.jar  ip地址1:/data/update/
    elif [[ $GROUP == *"kn-review-handle"* ]];then
       scp ${DOCKER_WOKER_HOME}/kn-commentandmonitor/kn-review-handle/target/kn-review-handle-0.0.1-SNAPSHOT.jar  ip地址1:/data/update/
    elif [[ $GROUP == *"monitor-scheme-task"* ]];then
       scp ${DOCKER_WOKER_HOME}/kn-commentandmonitor/monitor-scheme-task/target/monitor-scheme-task-0.0.1-SNAPSHOT.jar  ip地址1:/data/update/
    elif [[ $GROUP == *"redis-clustor-text"* ]];then
       scp ${DOCKER_WOKER_HOME}/kn-commentandmonitor/redis-clustor-text/target/redis-clustor-text-0.0.1-SNAPSHOT.jar  ip地址1:/data/update/
    elif [[ $GROUP == *"wx-master"* ]];then
       scp ${DOCKER_WOKER_HOME}/kn-commentandmonitor/wx-master/target/wxproject-1-SNAPSHOT.jar  ip地址1:/data/update/
    elif [[ $GROUP == *"monitor_auto_push"* ]];then
       scp ${DOCKER_WOKER_HOME}/kn-commentandmonitor/kn_monitor_auto_push/target/kn_monitor_auto_push-1.0.jar  ip地址2:/data/update/
    fi
}

function bak_jar() {
    echo "开始备份文件..."
    if [[ $GROUP == *"kn-delayMq-event-push"* ]];then
       ssh ip地址1 "mv /data/kn-delayMq-event-push/kn-delayMq-event-push-0.0.1-SNAPSHOT.jar  /data/kn-delayMq-event-push/kn-delayMq-event-push-0.0.1-SNAPSHOT.jar-${DATE}"
    elif [[ $GROUP == *"kn-delete-information"* ]];then
       #ssh ip地址1 "mv  ${DATE}"
       echo "404,server not found..."
    elif [[ $GROUP == *"kn-delete-monitor"* ]];then
       ssh ip地址1 "mv /data/delete-monitor/kn-delete-monitor-0.0.1-SNAPSHOT.jar /data/delete-monitor/kn-delete-monitor-0.0.1-SNAPSHOT.jar-${DATE}"
    elif [[ $GROUP == *"kn-delete-publicsentiment"* ]];then
       #ssh ip地址1 "mv  ${DATE}"
       echo "404,server not found..."
    elif [[ $GROUP == *"kn-monitor-MqHandle"* ]];then
       ssh ip地址1 "mv /data/MqHandle/kn-monitor-MqHandle-0.0.1-SNAPSHOT.jar /data/MqHandle/kn-monitor-MqHandle-0.0.1-SNAPSHOT.jar-${DATE}"
    elif [[ $GROUP == *"kn-monitor-isexist"* ]];then
       #ssh ip地址1 "mv  ${DATE}"
       echo "404,server not found..."
    elif [[ $GROUP == *"kn-monitor-provide"* ]];then
       ssh ip地址1 "mv /data/provide/kn-monitor-provide-0.0.1-SNAPSHOT.jar /data/provide/kn-monitor-provide-0.0.1-SNAPSHOT.jar-${DATE}"
    elif [[ $GROUP == *"kn-review-handle"* ]];then
       ssh ip地址1 "mv /data/review-handle/kn-review-handle-0.0.1-SNAPSHOT.jar /data/review-handle/kn-review-handle-0.0.1-SNAPSHOT.jar-${DATE}"
    elif [[ $GROUP == *"monitor-scheme-task"* ]];then
       #ssh ip地址1 "mv  ${DATE}"
       echo "404,server not found..."
    elif [[ $GROUP == *"redis-clustor-text"* ]];then
       ssh ip地址1 "mv /data/redis-clustor-text/redis-clustor-text-0.0.1-SNAPSHOT.jar /data/redis-clustor-text/redis-clustor-text-0.0.1-SNAPSHOT.jar-${DATE}"
    elif [[ $GROUP == *"wx-master"* ]];then
       #ssh ip地址1 "mv  ${DATE}"
       echo "404,server not found..."
    fi
}

function cp_jar_file() {
    echo "开始拷贝文件..."
    if [[ $GROUP == *"kn-delayMq-event-push"* ]];then
        ssh ip地址1 "cp /data/update/kn-delayMq-event-push-0.0.1-SNAPSHOT.jar  /data/kn-delayMq-event-push/kn-delayMq-event-push-0.0.1-SNAPSHOT.jar"
    elif [[ $GROUP == *"kn-delete-information"* ]];then
        echo "404,server not found..."
    elif [[ $GROUP == *"kn-delete-monitor"* ]];then
       ssh ip地址1  "cp /data/update/kn-delete-monitor-0.0.1-SNAPSHOT.jar  /data/delete-monitor/kn-delete-monitor-0.0.1-SNAPSHOT.jar"
    elif [[ $GROUP == *"kn-delete-publicsentiment"* ]];then
        echo "404,server not found..."
    elif [[ $GROUP == *"kn-monitor-MqHandle"* ]];then
       ssh ip地址1  "cp /data/update/kn-monitor-MqHandle-0.0.1-SNAPSHOT.jar  /data/MqHandle/kn-monitor-MqHandle-0.0.1-SNAPSHOT.jar"
    elif [[ $GROUP == *"kn-monitor-isexist"* ]];then
        echo "404,server not found..."
    elif [[ $GROUP == *"kn-monitor-provide"* ]];then
       ssh ip地址1  "cp /data/update/kn-monitor-provide-0.0.1-SNAPSHOT.jar  /data/provide/kn-monitor-provide-0.0.1-SNAPSHOT.jar"
    elif [[ $GROUP == *"kn-review-handle"* ]];then
       ssh ip地址1  "cp /data/update/kn-review-handle-0.0.1-SNAPSHOT.jar  /data/review-handle/kn-review-handle-0.0.1-SNAPSHOT.jar"
    elif [[ $GROUP == *"monitor-scheme-task"* ]];then
        echo "404,server not found..."
    elif [[ $GROUP == *"redis-clustor-text"* ]];then
       ssh ip地址1  "cp /data/update/redis-clustor-text-0.0.1-SNAPSHOT.jar  /data/redis-clustor-text/redis-clustor-text-0.0.1-SNAPSHOT.jar"
    elif [[ $GROUP == *"monitor_auto_push"* ]];then
       ssh ip地址2  "cp /data/update/kn_monitor_auto_push-1.0.jar  /data/monitor_auto_push/kn_monitor_auto_push-1.0.jar"
    elif [[ $GROUP == *"wx-master"* ]];then
        echo "404,server not found..."
    fi
    echo "拷贝文件执行结束..."
}

function delete_history_jar() {
    echo "开始删除历史版本..."
    if [[ $GROUP == *"kn-delayMq-event-push"* ]];then
        NUM=$(ssh ip地址1 "ls -l -d -rt /data/kn-delayMq-event-push/kn-delayMq-event-push-0.0.1-SNAPSHOT.jar* |wc -l")
        if [ ${NUM} -gt 3 ];then
                NAME=$(ssh ip地址1 "ls -l -d -rt /data/kn-delayMq-event-push/kn-delayMq-event-push-0.0.1-SNAPSHOT.jar* |head -n1 |awk '{print \$9}'")
                ssh ip地址1  "rm -rf ${NAME}"
		echo "删除历史版本${NAME}成功..."
        fi
    elif [[ $GROUP == *"kn-delete-information"* ]];then
        echo "404,server not found..."
    elif [[ $GROUP == *"kn-delete-monitor"* ]];then
        NUM=$(ssh ip地址1 "ls -l -d -rt /data/delete-monitor/kn-delete-monitor-0.0.1-SNAPSHOT.jar* |wc -l")
        if [ ${NUM} -gt 3 ];then
                NAME=$(ssh ip地址1 "ls -l -d -rt /data/delete-monitor/kn-delete-monitor-0.0.1-SNAPSHOT.jar* |head -n1 |awk '{print \$9}'")
                ssh ip地址1  "rm -rf ${NAME}"
                echo "删除历史版本${NAME}成功..."
        fi
    elif [[ $GROUP == *"kn-delete-publicsentiment"* ]];then
        echo "404,server not found..."
    elif [[ $GROUP == *"kn-monitor-MqHandle"* ]];then
        NUM=$(ssh ip地址1 "ls -l -d -rt /data/MqHandle/kn-monitor-MqHandle-0.0.1-SNAPSHOT.jar* |wc -l")
        if [ ${NUM} -gt 3 ];then
                NAME=$(ssh ip地址1 "ls -l -d -rt /data/MqHandle/kn-monitor-MqHandle-0.0.1-SNAPSHOT.jar* |head -n1 |awk '{print \$9}'")
                ssh ip地址1 "rm -rf ${NAME}"
                echo "删除历史版本${NAME}成功..."
        fi
    elif [[ $GROUP == *"kn-monitor-isexist"* ]];then
        echo "404,server not found..."
    elif [[ $GROUP == *"kn-monitor-provide"* ]];then
        NUM=$(ssh ip地址1 "ls -l -d -rt /data/provide/kn-monitor-provide-0.0.1-SNAPSHOT.jar* |wc -l")
        if [ ${NUM} -gt 3 ];then
                NAME=$(ssh ip地址1 "ls -l -d -rt /data/provide/kn-monitor-provide-0.0.1-SNAPSHOT.jar* |head -n1 |awk '{print \$9}'")
                ssh ip地址1 "rm -rf ${NAME}"
                echo "删除历史版本${NAME}成功..."
        fi
    elif [[ $GROUP == *"kn-review-handle"* ]];then
        NUM=$(ssh ip地址1 "ls -l -d -rt /data/review-handle/kn-review-handle-0.0.1-SNAPSHOT.jar* |wc -l")
        if [ ${NUM} -gt 3 ];then
                NAME=$(ssh ip地址1 "ls -l -d -rt /data/review-handle/kn-review-handle-0.0.1-SNAPSHOT.jar* |head -n1 |awk '{print \$9}'")
                ssh ip地址1 "rm -rf ${NAME}"
                echo "删除历史版本${NAME}成功..."
        fi
    elif [[ $GROUP == *"monitor-scheme-task"* ]];then
        echo "404,server not found..."
    elif [[ $GROUP == *"redis-clustor-text"* ]];then
        NUM=$(ssh ip地址1 "ls -l -d -rt /data/redis-clustor-text/redis-clustor-text-0.0.1-SNAPSHOT.jar* |wc -l")
        if [ ${NUM} -gt 3 ];then
                NAME=$(ssh ip地址1 "ls -l -d -rt /data/redis-clustor-text/redis-clustor-text-0.0.1-SNAPSHOT.jar* |head -n1 |awk '{print \$9}'")
                ssh ip地址1 "rm -rf ${NAME}"
                echo "删除历史版本${NAME}成功..."
        fi
    elif [[ $GROUP == *"wx-master"* ]];then
        echo "404,server not found..."
    fi
    echo "删除历史版本结束..."
}

function rollback_last_version() {
    echo "开始回滚..."
    if [[ $GROUP == *"kn-delayMq-event-push"* ]];then
        ssh ip地址1 "rm -rf  /data/kn-delayMq-event-push/kn-delayMq-event-push-0.0.1-SNAPSHOT.jar;LAST_VERSION=\$(ls -l -t /data/kn-delayMq-event-push/kn-delayMq-event-push-0.0.1-SNAPSHOT.jar* |awk '{print \$9}' |head -n1);mv \$LAST_VERSION /data/kn-delayMq-event-push/kn-delayMq-event-push-0.0.1-SNAPSHOT.jar"
    elif [[ $GROUP == *"kn-delete-information"* ]];then
        echo "404,server not found..."
    elif [[ $GROUP == *"kn-delete-monitor"* ]];then
        ssh ip地址1 "rm -rf /data/delete-monitor/kn-delete-monitor-0.0.1-SNAPSHOT.jar;LAST_VERSION=\$(ls -l -t /data/delete-monitor/kn-delete-monitor-0.0.1-SNAPSHOT.jar* |awk '{print \$9}' |head -n1);mv \$LAST_VERSION /data/delete-monitor/kn-delete-monitor-0.0.1-SNAPSHOT.jar"
    elif [[ $GROUP == *"kn-delete-publicsentiment"* ]];then
        echo "404,server not found..."
    elif [[ $GROUP == *"kn-monitor-MqHandle"* ]];then
        ssh ip地址1 "rm -rf  /data/MqHandle/kn-monitor-MqHandle-0.0.1-SNAPSHOT.jar;LAST_VERSION=\$(ls -l -t /data/MqHandle/kn-monitor-MqHandle-0.0.1-SNAPSHOT.jar* |awk '{print \$9}' |head -n1);mv \$LAST_VERSION /data/MqHandle/kn-monitor-MqHandle-0.0.1-SNAPSHOT.jar"
    elif [[ $GROUP == *"kn-monitor-isexist"* ]];then
        echo "404,server not found..."
    elif [[ $GROUP == *"kn-monitor-provide"* ]];then
        ssh ip地址1 "rm -rf  /data/provide/kn-monitor-provide-0.0.1-SNAPSHOT.jar;LAST_VERSION=\$(ls -l -t /data/provide/kn-monitor-provide-0.0.1-SNAPSHOT.jar* |awk '{print \$9}' |head -n1);mv \$LAST_VERSION /data/provide/kn-monitor-provide-0.0.1-SNAPSHOT.jar"
    elif [[ $GROUP == *"kn-review-handle"* ]];then
        ssh ip地址1 "rm -rf /data/review-handle/kn-review-handle-0.0.1-SNAPSHOT.jar;LAST_VERSION=\$(ls -l -t /data/review-handle/kn-review-handle-0.0.1-SNAPSHOT.jar* |awk '{print \$9}' |head -n1);mv \$LAST_VERSION /data/review-handle/kn-review-handle-0.0.1-SNAPSHOT.jar"
    elif [[ $GROUP == *"monitor-scheme-task"* ]];then
        echo "404,server not found..."
    elif [[ $GROUP == *"redis-clustor-text"* ]];then
        ssh ip地址1 "rm -rf  /data/redis-clustor-text/redis-clustor-text-0.0.1-SNAPSHOT.jar;LAST_VERSION=\$(ls -l -t /data/redis-clustor-text/redis-clustor-text-0.0.1-SNAPSHOT.jar* |awk '{print \$9}' |head -n1);mv \$LAST_VERSION /data/redis-clustor-text/redis-clustor-text-0.0.1-SNAPSHOT.jar"
    elif [[ $GROUP == *"wx-master"* ]];then
        echo "404,server not found..."
    fi
    echo "回滚完成..."
}

function restart_app() {
    echo "重启中..."
    if [[ $GROUP == *"kn-delayMq-event-push"* ]];then
         ssh ip地址1  "/bin/bash /data/kn-delayMq-event-push/server.sh restart"
    elif [[ $GROUP == *"kn-delete-information"* ]];then
        echo "404,server not found..."
    elif [[ $GROUP == *"kn-delete-monitor"* ]];then
         ssh ip地址1  "/bin/bash /data/delete-monitor/server.sh restart"
    elif [[ $GROUP == *"kn-delete-publicsentiment"* ]];then
        echo "404,server not found..."
    elif [[ $GROUP == *"kn-monitor-MqHandle"* ]];then
         ssh ip地址1  "/bin/bash /data/MqHandle/server.sh restart"
    elif [[ $GROUP == *"kn-monitor-isexist"* ]];then
        echo "404,server not found..."
    elif [[ $GROUP == *"kn-monitor-provide"* ]];then
         ssh ip地址1  "/bin/bash /data/provide/server.sh restart"
    elif [[ $GROUP == *"kn-review-handle"* ]];then
         ssh ip地址1  "/bin/bash /data/review-handle/server.sh restart"
    elif [[ $GROUP == *"monitor-scheme-task"* ]];then
        echo "404,server not found..."
    elif [[ $GROUP == *"redis-clustor-text"* ]];then
         ssh ip地址1  "/bin/bash /data/redis-clustor-text/server.sh restart"
    elif [[ $GROUP == *"monitor_auto_push"* ]];then
         ssh ip地址2  "/bin/bash /data/monitor_auto_push/server.sh restart"
    elif [[ $GROUP == *"wx-master"* ]];then
        echo "404,server not found..."
    fi
    echo "重启完成..."
}

main(){
        case $1 in
                deploy_jar)
	          clone_code
		  code_maven
                  scp_jar_file
                  bak_jar
                  cp_jar_file
                  delete_history_jar
                  restart_app
                  ;;
                rollback_last_version)
                  rollback_last_version
                  restart_app
                  ;;
                *)
                  usage
                     ;;
        esac
}

main $1  $2

脚本按自己需求进行修改，需要注意的是发服务的服务器，需要提前配置好免密，否则jenkins无法免密登录，会导致部署失败。

注意：第一次构建运行时，由于linux系统验证问题，需要手动点击yes，所以会导致构建报错，

需要手动在容器内 git clone 输入一次yes。

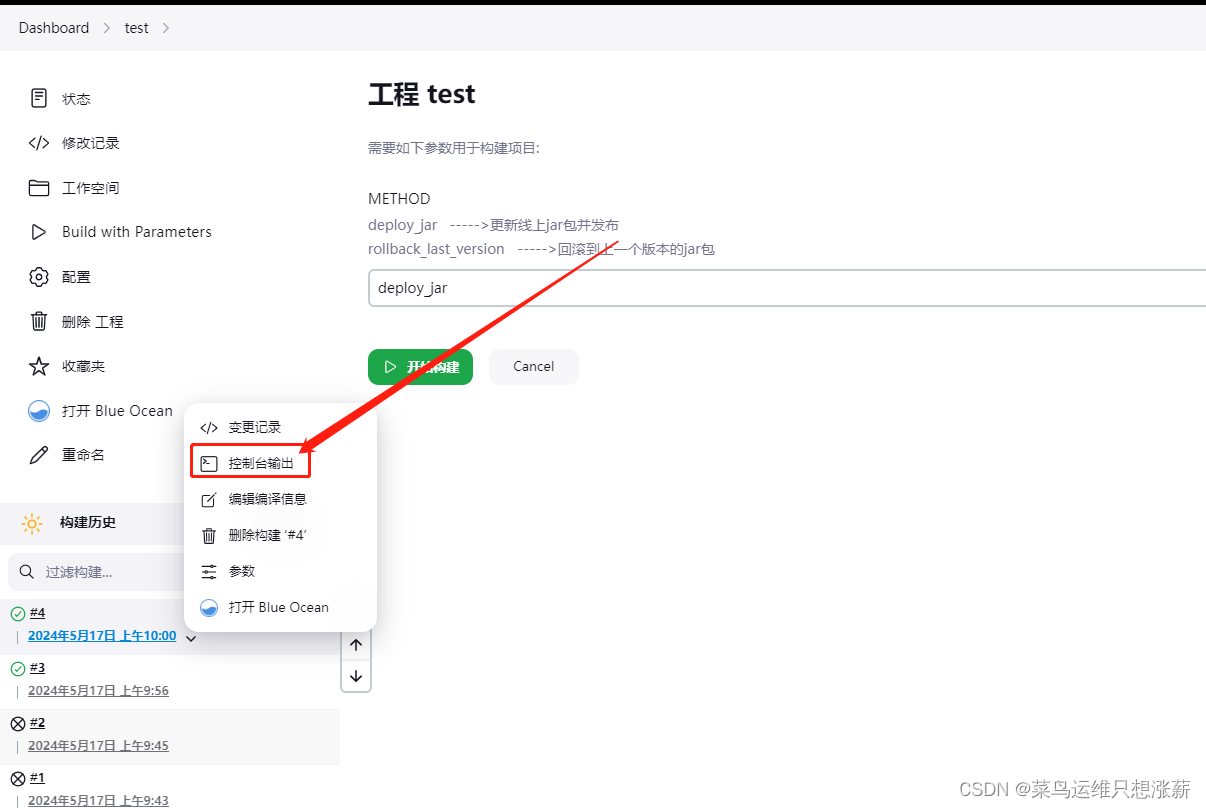

4.3 下面就可以在jenkins，上进行构建发布。

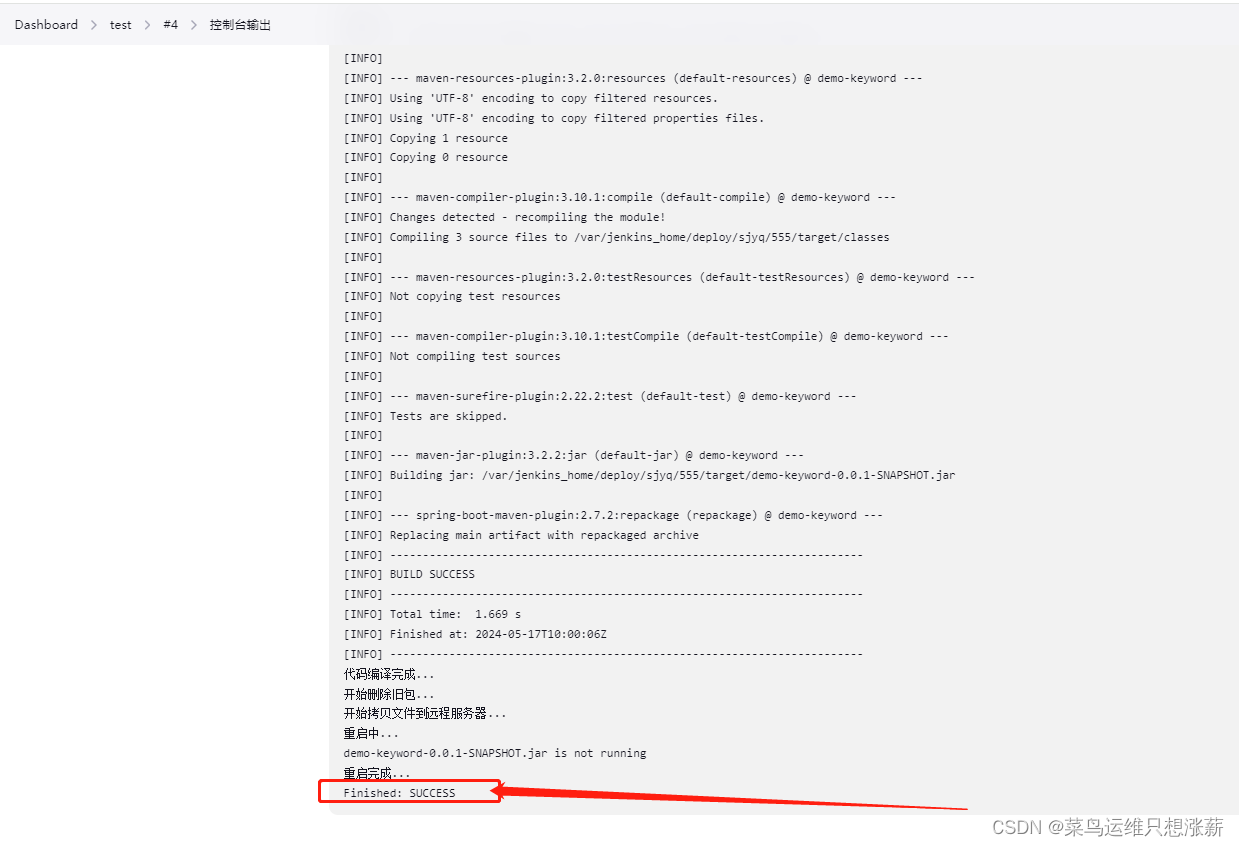

这里可查看构建和发布输出的日志。

输出 Finished: SUCCESS 代表发布成功，去对应部署服务的服务器上验证即可。

补充一点，编辑打包和发布的脚本里，发布到对应服务器上时，会在发布服务的服务器上执行一个服务器重启的脚本，这个脚本需要提前准备，我也把我目前用的重启脚本发出来，大家可以参考。

[root@iv-yd5ck6aeww5i3z3d41dk ~]# cat server.sh

#!/bin/bash

APP_NAME=test.jar
BASE_PATH=/root

usage() {
    echo "Usage: sh java_demo.sh [start|stop|restart|status]"
    exit 1
}

is_exist() {
    pid=`ps -ef | grep $APP_NAME | grep -v grep | awk '{print $2}' `
    #如果不存在返回1，存在返回0
    if [ -z "${pid}" ]; then
      return 1
    else
      return 0
    fi
}

start() {
   is_exist
   if [ $? -eq "0" ]; then
     echo "${APP_NAME} is already running. pid=${pid} ."
   else
      cd $BASE_PATH
      nohup java -jar  -XX:+UseG1GC  -Xms1024m -Xmx1024m -Xss256k -XX:MaxGCPauseMillis=100 -Xloggc:./gc.log -XX:+PrintGCTimeStamps -XX:+PrintGCDetails  $APP_NAME > /root/test.log 2>&1 &
     echo $! > test.pid
     #tail -f test.log
   fi
}

stop() {
   is_exist
   if [ $? -eq 0 ]; then
     kill  $pid
     sleep 5
     pid=`ps -ef | grep $APP_NAME | grep -v grep | awk '{print $2}'`
     while [ -n "$pid" ];
       do
             sleep 2
             pid=`ps -ef | grep $APP_NAME | grep -v grep | awk '{print $2}'`
             echo "The program exits gracefully, please wait..."
       done
   else
     echo "${APP_NAME} is not running"
   fi
}

status() {
   is_exist
   if [ $? -eq "0" ]; then
     echo "${APP_NAME} is running. Pid is ${pid}"
   else
     echo "${APP_NAME} is not running."
   fi
}

restart() {
   stop
   sleep 1
   start
}


case "$1" in
   "start")
     start
     ;;
   "stop")
     stop
     ;;
   "status")
     status
     ;;
   "restart")
     restart
     ;;
   *)
     usage
     ;;
esac

以上内容，可供大家测试使用，如果问题或者更好的方法和脚本，也请各位大佬提出。

菜鸟运维只想涨薪

关注

17
点赞
踩
8

收藏

觉得还不错? 一键收藏
0
评论
jenkins & gitlab 实现自动拉取代码打包发版

docker build -t myjenkins-blueocean:2.414.3-1 . #使用刚才的Dockerfile文件构建镜像。docker network create jenkins # 安装jenkins所需网络服务。docker pull jenkins/jenkins:2.414.3-jdk17 # 拉取镜像。2.1通过阿里云镜像站安装，文档附上，根据系统版本进行安装。2.2 使用docker拉取jenkins镜像。
复制链接

扫一扫
