curl + 铜锁，支持国密HTTPS

curl 命令行工具可以用于发起 HTTPS 请求，但是不支持国密 TLCP 协议，铜锁 curl项目在 curl 的基础上，基于 Tongsuo 支持 curl 命令行国密 HTTPS 通信，即 HTTPS over TLCP，同时支持 libcurl 的国密 HTTPS 通信。

1. 铜锁官网下载 curl

https://www.tongsuo.net/releases/

2. 基于源码构建铜锁 curl

2.1. 基于Tongsuo，需要先构建Tongsuo

git clone https://github.com/Tongsuo-Project/Tongsuo
cd Tongsuo
./config --prefix=/opt/tongsuo enable-ntls

（1）如果报错，是因为缺少依赖       Tongsuo 是基于 OpenSSL 的国密改版，构建脚本依赖不少 Perl 模块，比如 Text::Template、IPC::Cmd，缺了就会报类似的找不到 xxx.pm 的错误。每次报缺哪个模块，按提示安装即可。
（2）如果想一次性安装构建依赖
yum install perl-IPC-Cmd perl-Text-Template
（3）yum 安装模块时被第三方仓库 city-fan.org 的 GPG key 错误阻断

（4）临时绕开 GPG 验证，直接用 yum 装

这里在自己机器上编译：非生产安全交换，不需要 CPAN 环境，最快出结果：

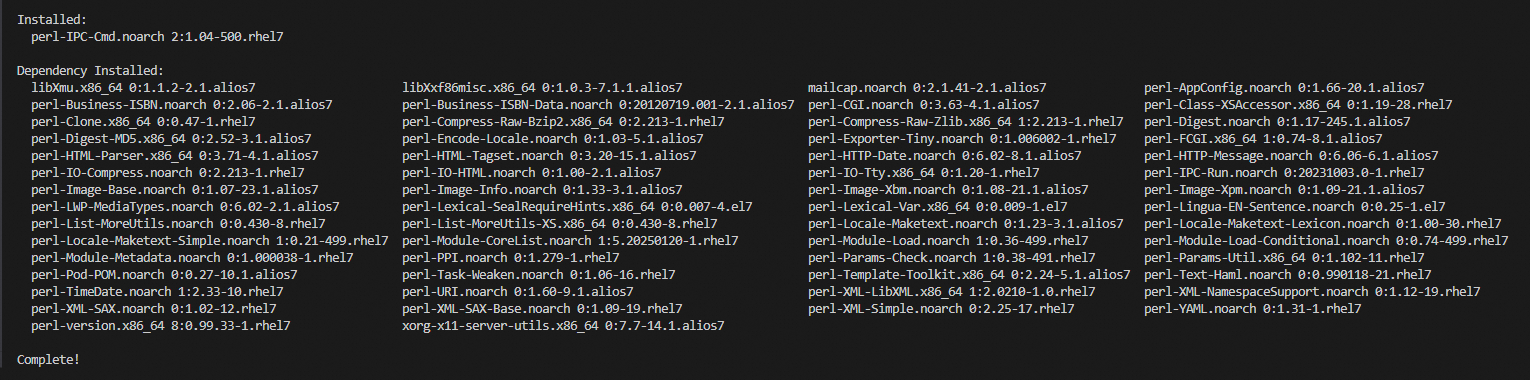

yum install --nogpgcheck perl-IPC-Cmd perl-ExtUtils-MakeMaker perl-ExtUtils-Manifest perl-ExtUtils-ParseXS

（5）安装完后验证
perl -MIPC::Cmd -e 'print "OK\n"'

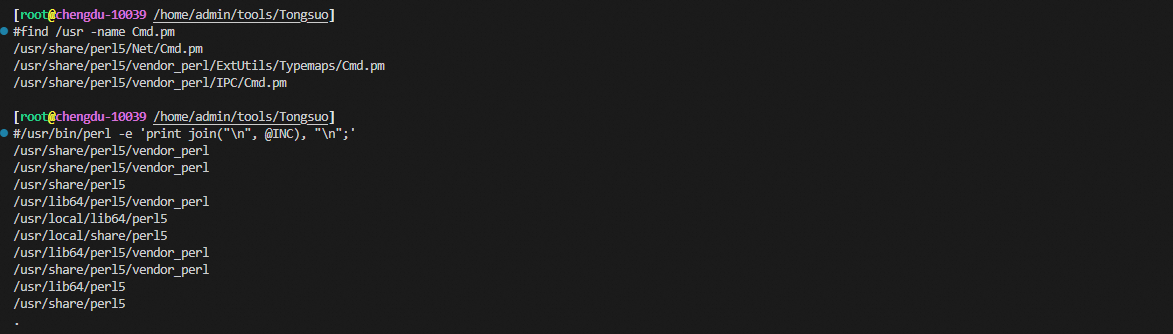

（6）认 IPC::Cmd.pm 在哪，并确认路径是否在 @INC 中
find /usr -name Cmd.pm
/usr/bin/perl -e 'print join("\n", @INC), "\n";'

如果输出 OK，再执行：/usr/bin/perl ./config --prefix=/opt/tongsuo enable-ntls

make -j
make install

cd ../

git clone https://github.com/Tongsuo-Project/curl.git

cd curl

git apply tongsuo.patch

2.2. 依赖autoconf, automake, libtool

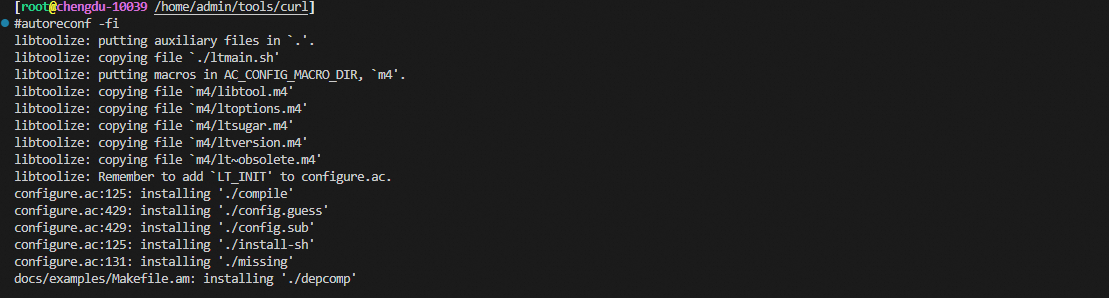

autoreconf -fi

# 依赖pkg-config，否则可能出现configure: error: --with-openssl was given but OpenSSL could not be detected
# 如果configure失败，可能是curl依赖的库不存在，比如brotli，可以安装依赖库，或者关闭该选项，例如增加--without-brotli

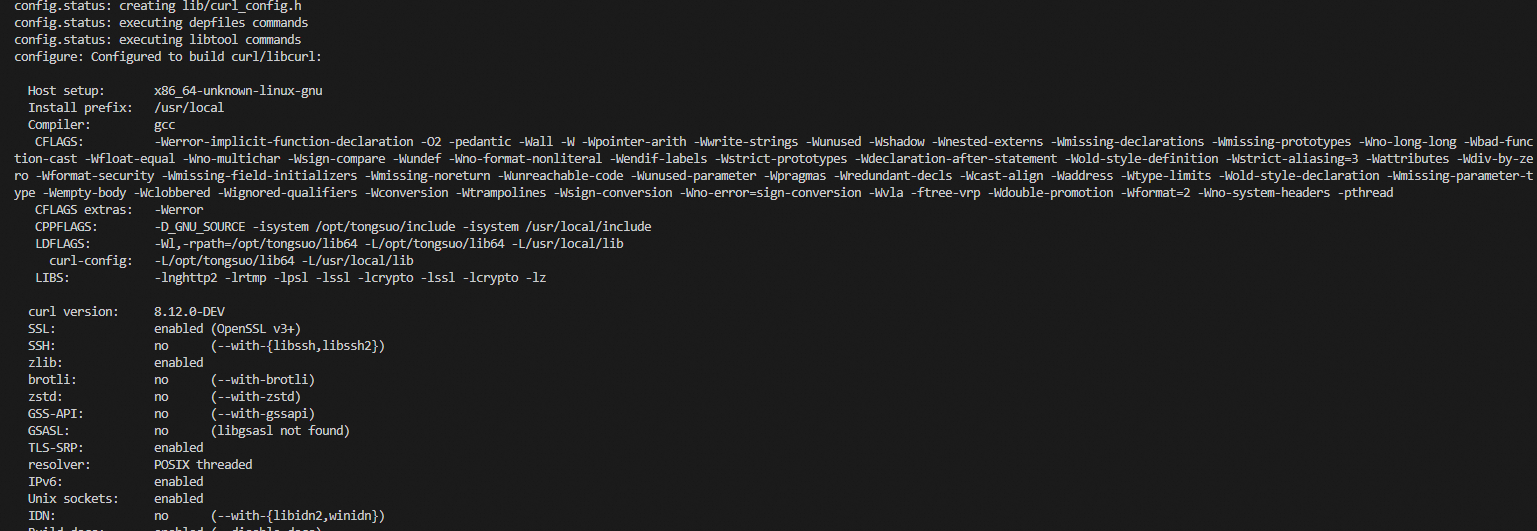

LDFLAGS=-Wl,-rpath=/opt/tongsuo/lib64 ./configure --enable-warnings --enable-werror --with-openssl=/opt/tongsuo

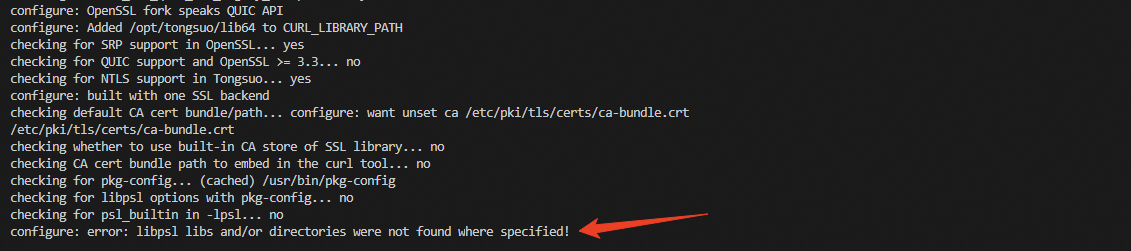

报错执行：yum install --nogpgcheck libpsl-devel 安装libpsl-devel后重新编译curl和Tongsuo

make -j
# 默认curl命令行会安装到/usr/local/bin，libcurl会安装到/usr/local/lib
make install

make install 已完成且无错误，curl 已成功编译并安装到 /usr/local/bin/curl，并且链接的是在 /opt/tongsuo 装的 Tongsuo（替代系统 OpenSSL）

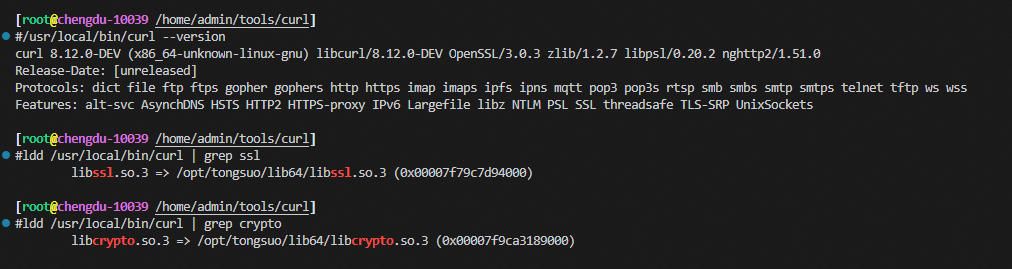

2.3. 验证curl编译成功并且链接到 Tongsuo

/usr/local/bin/curl --version
ldd /usr/local/bin/curl | grep ssl
ldd /usr/local/bin/curl | grep crypto

3. curl 命令行使用国密 HTTPS

#/usr/local/bin/curl --tlcp -kv  https://a1.esa-test5.alicdn-test.com --sign-cert gm.sign.crt --sign-key gm.sign.key --enc-cert gm.enc.crt --enc-key gm.enc.key
* Host a1.esa-test5.alicdn-test.com:443 was resolved.
* IPv6: (none)
* IPv4: 14.215.30.146
*   Trying 14.215.30.146:443...
* ALPN: curl offers h2,http/1.1
* (101) (OUT), , Unknown (1):
* (101) (IN), , Unknown (2):
* (101) (IN), , Unknown (11):
* (101) (IN), , Unknown (12):
* (101) (IN), , Unknown (14):
* (101) (OUT), , Unknown (16):
* (101) (OUT), , Change cipher spec (1):
* (101) (OUT), , Unknown (20):
* (101) (IN), , Unknown (20):
* SSL connection using NTLSv1.1 / ECC-SM2-SM4-CBC-SM3 / UNDEF / SM2
* ALPN: server accepted h2
* Server certificate:
*  subject: CN=a1.esa-test5.alicdn-test.com
*  start date: Nov 25 07:31:10 2025 GMT
*  expire date: Dec  2 07:31:10 2025 GMT
*  issuer: CN=a1.esa-test5.alicdn-test.com
*  SSL certificate verify result: self-signed certificate (18), continuing anyway.
*   Certificate level 0: Public key type SM2/SM2 (256/128 Bits/secBits), signed using SM2-with-SM3
*   Certificate level 1: Public key type SM2/SM2 (256/128 Bits/secBits), signed using SM2-with-SM3
* Connected to a1.esa-test5.alicdn-test.com (14.215.30.146) port 443
* using HTTP/2
* [HTTP/2] [1] OPENED stream for https://a1.esa-test5.alicdn-test.com/
* [HTTP/2] [1] [:method: GET]
* [HTTP/2] [1] [:scheme: https]
* [HTTP/2] [1] [:authority: a1.esa-test5.alicdn-test.com]
* [HTTP/2] [1] [:path: /]
* [HTTP/2] [1] [user-agent: curl/8.12.0-DEV]
* [HTTP/2] [1] [accept: */*]
> GET / HTTP/2
> Host: a1.esa-test5.alicdn-test.com
> User-Agent: curl/8.12.0-DEV
> Accept: */*
>
* Request completely sent off
< HTTP/2 200
< server: ESA
< content-type: text/plain
< set-cookie: acw_tc=0ed71ea117640666951962581e21bf8ba5452ddec18e35bd56a81ea062;path=/;HttpOnly;Max-Age=3600
< set-cookie: cdn_sec_tc=0ed71ea117640666951962581e21bf8ba5452ddec18e35bd56a81ea062;path=/;HttpOnly;Max-Age=3600
< strict-transport-security: max-age=2592000; includeSubDomains; preload
< cache-control: no-cache
< date: Tue, 25 Nov 2025 10:31:35 GMT
< vary: Accept-Encoding
< via: ens-cache2.cn6659[109,0,DP], ens-cache2.cn6659[110,110,200-0,M], ens-cache8.cn6659[113,0]
< x-site-perf-l4: ens-cache2.cn6659[PP,42752->47.98.167.0:443,1|84|0|0]
< x-site-perf-l7: ens-cache2.cn6659[H1S,2|0|111]
< x-site-perf-conn-time: 84
< x-site-perf-conn-count: 1
< port: 443
< ali-swift-global-savetime: 1764066695
< x-site-cache-status: BYPASS
< x-swift-savetime: Tue, 25 Nov 2025 10:31:35 GMT
< x-swift-cachetime: 0
< timing-allow-origin: *
< eagleid: 0ed71ea117640666951962581e
<
GET / HTTP/1.1
User-Agent: curl/8.12.0-DEV
Accept: */*
Eagleeye-Traceid: 0ed71ea117640666951962581e
X-Forwarded-For: 106.11.32.74
cdn-loop: esa;loop=1
Host: a1.esa-test5.alicdn-test.com
Remote-Address: 14.215.30.155
Scheme: https
SNI: a1.esa-test5.alicdn-test.com

* Connection #0 to host a1.esa-test5.alicdn-test.com left intact
