开发软件

因为开发文件包括.ini文件和.com文件所以小编用的是：Notepad++

下载链接：https://notepad-plus-plus.org/

配置启动文件easyscreen.ini

打开机床存储卡文件夹card\sinumerik\hmi\cfg，找到easyscreen.ini这里是全部界面的配置文件。（大家可以复制到\card\oem\sinumerik\hmi\cfg文件中）

[STARTFILES]
StartFile01 = area := AreaStartup, dialog:=SlSuDialog, startfile := startup.com
;StartFile02 = area := Custom, dialog  := SlEsCustomDialog, startfile := custom.com
;StartFile03 = area := AreaProgramEdit, dialog  := SlProgramEdit, startfile := aeditor.com



[LANGUAGEFILES]
LngFile01 = almc.txt
LngFile02 = alsc.txt
LngFile99 = slestemplates.ts


[GENERAL]
SymmetricalAspectRatio=false
DefaultLineHeight=18
DefaultLineSpacing=3
HlpPicFixPos=false
DefaultMultiTouchAdjustmentLevel=1
DefaultVirtualKeyboardMode=1

[640x480]
EasyPwdModalLayout = x:=82, y:=84, width:=435, height:=181

[800x480]
EasyPwdModalLayout = x:=103, y:=84, width:=544, height:=228

[800x600]
EasyPwdModalLayout = x:=103, y:=106, width:=544, height:=228

[1024x768]
EasyPwdModalLayout = x:=131, y:=134, width:=696, height:=290

[1280x768]
EasyPwdModalLayout = x:=164, y:=134, width:=870, height:=362

[1280x800]
EasyPwdModalLayout = x:=164, y:=150, width:=870, height:=362

[1280x1024]
EasyPwdModalLayout = x:=164, y:=134, width:=870, height:=362

[1366x768]
EasyPwdModalLayout = x:=180, y:=134, width:=870, height:=362

[SIDESCREEN_RESOLUTION_MAPPING]
768=640x480
1080=800x600




###############################################################################################################
###############################################################################################################



;#######################################
;#   OEM / Easyscreen Start Softkeys   #
;#################################################################
;#                                                               #
;#  (please copy the required line into section [STARTFILES] and #
;#   delete the semicolone at the beginning of the line)         #
;#                                                               #
;#################################################################



;########################
;# AREA Machine         #
;########################


;<===============================================================>
;< OEM Softkey on horizontal Machine-Automatic Menu              >
;< SOFTKEY position="6"                                          >
;<===============================================================>
;StartFile03 = area := AreaMachine, dialog := SlMachine, menu := SlMaAutoMenuHU, startfile := ma_auto.com

;<===============================================================>
;< OEM Softkey on horizontal Machine-Jog Menu                    >
;< TECHNOLOGY ==> TURNING                                        >
;< SOFTKEY position="6"                                          >
;<===============================================================>
;StartFile04 = area := AreaMachine, dialog := SlMachine, menu := SlMaJogTurnMenuHU, startfile := ma_jog.com

;<===============================================================>
;< OEM Softkey on horizontal Machine-Jog Menu                    >
;< TECHNOLOGY ==> MILLING                                        >
;< SOFTKEY position="6"                                          >
;<===============================================================>
;StartFile05 = area := AreaMachine, dialog := SlMachine, menu := SlMaJogMillMenuHU, startfile := ma_jog.com

;<===============================================================>
;< OEM Softkey on horizontal Machine-Jog Menu                    >
;< TECHNOLOGY ==> UNIVERSAL                                      >
;< SOFTKEY position="6"                                          >
;<===============================================================>
;StartFile06 = area := AreaMachine, dialog := SlMachine, menu := SlMaJogUniversalMenuHU, startfile := ma_jog.com

;<===============================================================>
;< OEM Softkey on horizontal Machine-MDI Menu                    >
;< SOFTKEY position="6"                                          >
;<===============================================================>
;StartFile07 = area := AreaMachine, dialog := SlMachine, menu := SlMaMdaMenuHU, startfile := ma_mda.com

;<===============================================================>
;< OEM Softkey on horizontal Manual Machine Menu >
;< TECHNOLOGY ==> TURNING >
;< SOFTKEY position="3"  (extended horizontal softkey bar)>
;<===============================================================>
;StartFile08 = area := AreaMachine, dialog := SlMachine, menu := SlMaJogManualTurnMenuHU, startfile := xxxx.com

;<===============================================================>
;< OEM Softkey on horizontal Manual Machine Menu >
;< TECHNOLOGY ==> MILLLING>
;< SOFTKEY position="3"  (extended horizontal softkey bar)>
;<===============================================================>
;StartFile09 = area := AreaMachine, dialog := SlMachine, menu := SlMaJogManualMillMenuHU, startfile := xxxxx.com

;<===============================================================>
;< OEM Softkey on vertical menu workpiece zero >
;< TECHNOLOGY ==> CIRCULAR GRINDING >
;< SOFTKEY position="2-7"
;<===============================================================>
;StartFile07 = area := AreaMachine, dialog := SlMachine, screen := SlMaJogMeTurnEdgeEasyScreen, menu := SlMaJogMeTurnEdgeEasyScreenMenuVR, startfile := xxx.com

;<===============================================================>
;< OEM Softkey on vertical menu measure tool >
;< TECHNOLOGY ==> CIRCULAR GRINDING >
;< SOFTKEY position="7"
;<===============================================================>
;StartFile08 = area := AreaMachine, dialog := SlMachine, screen := SlMaJogMeToolCircularGrindEasyScreen, menu := SlMaJogMeToolCircularGrindEasyScreenMenuVR, startfile := xxx.com

;<===============================================================>
;< OEM Softkey on horizontal machine-Jog Menu >
;< TECHNOLOGY ==> CIRCULAR GRINDING >
;< SOFTKEY position="6" >
;<===============================================================>
;StartFile06 = area := AreaMachine, dialog := SlMachine, menu := SlMaJogCircularGrindMenuHU, startfile := xxx.com

;<===============================================================>
;< OEM Softkey on vertical menu workpiece zero >
;< TECHNOLOGY ==> SURFACE GRINDING >
;< SOFTKEY position="2-7"
;<===============================================================>
;StartFile13 = area := AreaMachine, dialog := SlMachine, menu := SlMaJogMeSurfGrindEdge1EasyScreenMenuVR, startfile := xxx.com

;<===============================================================>
;< OEM Softkey on vertical menu measure tool >
;< TECHNOLOGY ==> SURFACE GRINDING >
;< SOFTKEY position="2-7"
;<===============================================================>
;StartFile12 = area := AreaMachine, dialog := SlMachine, screen := SlMaJogMeToolSurfaceGrindEasyScreen, menu := SlMaJogMeToolSurfaceGrindEasyScreenMenuVR, startfile := xxx.com

;<===============================================================>
;< OEM Softkey on horizontal machine-Jog Menu >
;< TECHNOLOGY ==> SURFACE GRINDING >
;< SOFTKEY position="6" >
;<===============================================================>
;StartFile11 = area := AreaMachine, dialog := SlMachine, menu := SlMaJogSurfaceGrindMenuHU, startfile := xxx.com



;########################
;# AREA Parameter       #
;########################


;<===============================================================>
;< OEM Softkey on horizontal Parameter Menu                      >
;< SOFTKEY position="7"                                          >
;<===============================================================>
;StartFile10 = area := AreaParameter, dialog := SlParameter, menu := SlPaMenuHU, startfile := param.com

;<===============================================================>
;< OEM Softkey on vertical Menu 'Ctrl-Energy'                    >
;< 'Energy analysis' and 'Energy-sav. profile'					 >
;< SOFTKEY position="4"                                          >
;<===============================================================>
;StartFile11 = area := AreaParameter,  dialog := SlParameter, menu := SlNrgDisplayVr, startfile := param.com
;StartFile12 = area := AreaParameter,  dialog := SlParameter, menu := SlNrgControlVr, startfile := param.com



;########################
;# AREA Program Editor  #
;########################


;<===============================================================>
;< OEM Softkey on horizontal Main Menu                           >
;< SOFTKEY position="3,4,5"                                      >
;<===============================================================>
;StartFile13 = area := AreaProgramEdit, dialog := SlProgramEdit, menu := SlStepEditorMenuHU, startfile := aeditor.com


;<===============================================================>
;< OEM Softkey on horizontal Main Menu                           >
;< TECHNOLOGY ==> MILLING                                        >
;< SOFTKEY position="15"                                         >
;<===============================================================>
;StartFile14 = area := AreaProgramEdit, dialog := SlProgramEdit, menu := SlStepStdMillMenuHU, startfile := aeditor.com


;<===============================================================>
;< OEM Softkey on horizontal Main Menu                           >
;< TECHNOLOGY ==> TURNING                                        >
;< SOFTKEY position="15"                                         >
;<===============================================================>
;StartFile15 = area := AreaProgramEdit, dialog := SlProgramEdit, menu := SlStepStdTurnMenuHU, startfile := aeditor.com


;<===============================================================>
;< OEM Softkey on horizontal Main Menu                           >
;< OPTION ==> SHOPMILL                                           >
;< SOFTKEY position="15"                                          >
;<===============================================================>
;StartFile16 = area := AreaProgramEdit, dialog := SlProgramEdit, menu := SlStepShopMillMenuHU, startfile := aeditor.com


;<===============================================================>
;< OEM Softkey on horizontal Main Menu                           >
;< OPTION ==> SHOPTURN                                           >
;< SOFTKEY position="15"                                         >
;<===============================================================>
;StartFile17 = area := AreaProgramEdit, dialog := SlProgramEdit, menu := SlStepShopTurnMenuHU, startfile := aeditor.com


;<===============================================================>
;< OEM Softkey on vertical Menu 'Drilling (Drill.)'              >
;< OPTION ==> SHOPMILL                                           >
;< SOFTKEY position="6"                                          >
;<===============================================================>
;StartFile18 = area := AreaProgramEdit, dialog := SlProgramEdit, screen := SlStepShopMillDrillScreen, menu := SlStepShopMillDrillMenuVR, startfile := aeditor.com


;<===============================================================>
;< OEM Softkey on vertical Menu 'Milling (Mill.)'                >
;< OPTION ==> SHOPMILL                                           >
;< SOFTKEY position="7"                                          >
;<===============================================================>
;StartFile19= area := AreaProgramEdit, dialog := SlProgramEdit, screen := SlStepShopMillMillScreen, menu := SlStepShopMillMillMenuVR, startfile := aeditor.com


;<===============================================================>
;< OEM Softkey on vertical Menu 'Contour Milling (Cont. Mill.)'  >
;< OPTION ==> SHOPMILL                                           >
;< SOFTKEY position="15" (2. vertical menue)                     >
;<===============================================================>
;StartFile20 = area := AreaProgramEdit, dialog := SlProgramEdit, screen := SlStepShopMillFciMillScreen, menu := SlStepShopMillFciMillMenuVR, startfile := aeditor.com


;<===============================================================>
;< OEM Softkey on vertical Menu 'Miscellaneous (Misc.)'          >
;< OPTION ==> SHOPMILL                                           >
;< SOFTKEY position="15" (2. vertical menue)                     >
;<===============================================================>
;StartFile21 = area := AreaProgramEdit, dialog := SlProgramEdit, screen := SlStepShopMillMiscScreen, menu := SlStepShopMillMiscMenuVR, startfile := aeditor.com


;<===============================================================>
;< OEM Softkey on vertical Menu 'Drilling (Drill.)'              >
;< OPTION ==> SHOPTURN                                           >
;< SOFTKEY position="6"                                          >
;<===============================================================>
;StartFile22 = area := AreaProgramEdit, dialog := SlProgramEdit, screen := SlStepShopTurnDrillScreen, menu := SlStepShopTurnDrillMenuVR, startfile := aeditor.com


;<===============================================================>
;< OEM Softkey on vertical Menu 'Turning (Turn.)'                >
;< OPTION ==> SHOPTURN                                           >
;< SOFTKEY position="7"                                          >
;<===============================================================>
;StartFile23 = area := AreaProgramEdit, dialog := SlProgramEdit, screen := SlStepShopTurnTurnScreen, menu := SlStepShopTurnTurnMenuVR, startfile := aeditor.com


;<===============================================================>
;< OEM Softkey on vertical Menu 'Countour Turning (Cont. Turn.)' >
;< OPTION ==> SHOPTURN                                           >
;< SOFTKEY position="15" (2. vertical menue)                     >
;<===============================================================>
;StartFile24 = area := AreaProgramEdit, dialog := SlProgramEdit, screen := SlStepShopTurnFciTurnScreen, menu := SlStepShopTurnFciTurnMenuVR, startfile := aeditor.com


;<===============================================================>
;< OEM Softkey on vertical Menu 'Milling (Mill.)'                >
;< OPTION ==> SHOPTURN                                           >
;< SOFTKEY position="7"                                          >
;<===============================================================>
;StartFile25 = area := AreaProgramEdit, dialog := SlProgramEdit, screen := SlStepShopTurnMillScreen, menu := SlStepShopTurnMillMenuVR, startfile := aeditor.com


;<===============================================================>
;< OEM Softkey on vertical Menu 'Miscellaneous (Misc.)'          >
;< OPTION ==> SHOPTURN                                           >
;< SOFTKEY position="15" (2. vertical menue)                     >
;<===============================================================>
;StartFile26 = area := AreaProgramEdit, dialog := SlProgramEdit, screen := SlStepShopTurnMiscScreen, menu := SlStepShopTurnMiscMenuVR, startfile := aeditor.com


;<===============================================================>
;< OEM Softkey on vertical Menu 'Miscellaneous (Misc.)'          >
;< TECHNOLOGY ==> CIRCULAR GRINDING                              >
;<===============================================================>
;StartFile04 = area := AreaProgramEdit, dialog := SlProgramEdit, screen := SlStepCircularGrindingMiscScreen, menu := SlStepCircularGrindingMiscMenuVR, startfile := xxx.com


;<===============================================================>
;< OEM Softkey on vertical Menu 'Contour '                       >
;< TECHNOLOGY ==> CIRCULAR GRINDING                              >
;<===============================================================>
;StartFile05 = area := AreaProgramEdit, dialog := SlProgramEdit, screen := SlStepCircularGrindingFciScreen, menu := SlStepCircularGrindingFciMenuVR, startfile := xxx.com


;<===============================================================>
;< OEM Softkey on horizontal Main Menu                           >
;< TECHNOLOGY ==> CIRCULAR GRINDING                              >
;<===============================================================>
;StartFile14 = area := AreaProgramEdit, dialog := SlProgramEdit, menu := SlStepCircularGrindingMenuHU, startfile := xxx.com


;<===============================================================>
;< OEM Softkey on vertical Menu 'Miscellaneous (Misc.)'          >
;< TECHNOLOGY ==> SURFACE GRINDING                               >
;<===============================================================>
;StartFile04 = area := AreaProgramEdit, dialog := SlProgramEdit, screen := SlStepSurfaceGrindingMiscScreen, menu := SlStepSurfaceGrindingMiscMenuVR, startfile := xxx.com


;<===============================================================>
;< OEM Softkey on vertical Menu 'Contour '                       >
;< TECHNOLOGY ==> SURFACE GRINDING                               >
;<===============================================================>
;StartFile05 = area := AreaProgramEdit, dialog := SlProgramEdit, screen := SlStepSurfaceGrindingFciScreen, menu := SlStepSurfaceGrindingFciMenuVR, startfile := xxx.com


;<===============================================================>
;< OEM Softkey on horizontal Main Menu                           >
;< TECHNOLOGY ==> SURFACE GRINDING                               >
;<===============================================================>
;StartFile14 = area := AreaProgramEdit, dialog := SlProgramEdit, menu := SlStepSurfaceGrindingMenuHU, startfile := tail_man.com



;########################
;# AREA ProgramManager  #
;########################


;<===============================================================>
;< OEM Softkey on first horizontal Main Menu                     >
;< SOFTKEY position="7"                                          >
;<===============================================================>
;StartFile27 = area := AreaProgramManager, dialog  := SlPmDialog, menu := hu_global, startfile := progman.com



;########################
;# AREA Diagnosis       #
;########################

;<===============================================================>
;< OEM Softkey on first horizontal Main Menu                     >
;< SOFTKEY position="7"                                          >
;<===============================================================>
;StartFile28 = area := AreaDiagnosis, dialog:= SlDgDialog, menu := DgGlobalHu, startfile := diag.com



;########################
;# AREA StartUp         #
;########################


;<===============================================================>
;< OEM Softkey on first horizontal Main Menu                     >
;< SOFTKEY position="7"                                          >
;<===============================================================>
;StartFile29 = area := AreaStartup, dialog  := SlSuDialog, menu := SlSuMainScreenMenuHu, startfile := startup.com

.com大概框架

//S(START)                                ;启动软键定义开始，软键栏名称必须用Start
    HS6=(“安全区域”)                       ;启动软键为水平第6软键，软键名为“安全区域
    PRESS(HS6)                            ;点击动作响应定义
        LM(“MaskSafetyArea")              ;专载名为”MaskSafetyArea”的页面
    END PRESS                             ;点击动作结束
//End
//M{屏幕名称,HD="标题",HLP="图片.png",X=X位置,Y=Y位置,W="宽度",H="高度",VAR="系统变量或用户变量",HLP_X=图片X位置MC=屏幕背景色}

    DEF VAR1={TYP="类型",MIN=最小值,MAX=最大值,TGL="转换值",VAL="预设值",LT="长文本",ST="短文本",UT="单位文本",TT="提示框文本",
WR=输入模式,AC=访问级,AL=文本对齐,HLP="图",VAR="系统变量和用户变量",TXT_X="文本XYWH位置",X=输入/输出栏XYWH位置,UT_DX=输入/输出栏之间的间距和单位文本,
BC=输入/输出栏背景色,FC=输入/输出栏前景色,BC_ST=短文本背景,FC_ST=短文本前景色,BC UT=单位文本背景色,FC_UT=单位文本前景色,SC1=进度条信号色,
SC2=进度条信号色2,SVAL1=进度条阀值 1,SVAL2=进度条值 2,DT=显示类型,DO=显示对齐}

    LOAD                                  ;开始标记
        ;s=: 1 = 实线  2 = 虚线  3 = 点线  4 = 点虚线
        ;f=颜色
        LINE (x1,y1,x2,y2,f,s)            ;线
        RECT (x,y,w,h,f1,f2,s)            ;矩形
        ELLIPSE(x,y,w,h,f1,f2,s)          ;圆
        V_SEPARATOR (x,w,f,s)             ;垂直线
        H_SEPARATOR (y,h,f,s)             ;水平线
    END_LOAD                              ;结束标记

//END

补充：

变量类型

R[x]:REAL（小数点位数为正数 +）；I:整数；S[x]:字符串（字符串长度为正数 +）；C: 字符（单字符）；B： BOOL；V:VARIANT

显示模式

dt0：标准（输入/输出栏或转换栏）（默认） dt1：可变色的进度条： dt2：Operate 风格的不变色进度条 dt4：列表栏 dt5：口令输入模式（星号）

显示选项

do0：从左往右（默认） do1：从右往左 do2：从下往上 do3：从上往下

输入模式

wr0:输入/输出栏不可见，短文本可见 wr1:读取（没有输入中心） wr2:读取和写入（行以白色显示） wr3:wr1 带输入中心 wr4:所有变量单元不可见，没有输入中心 wr5:按下任何键立即保存输入的值

文本对齐

al0:左对齐 al1:右对齐 al2:居中

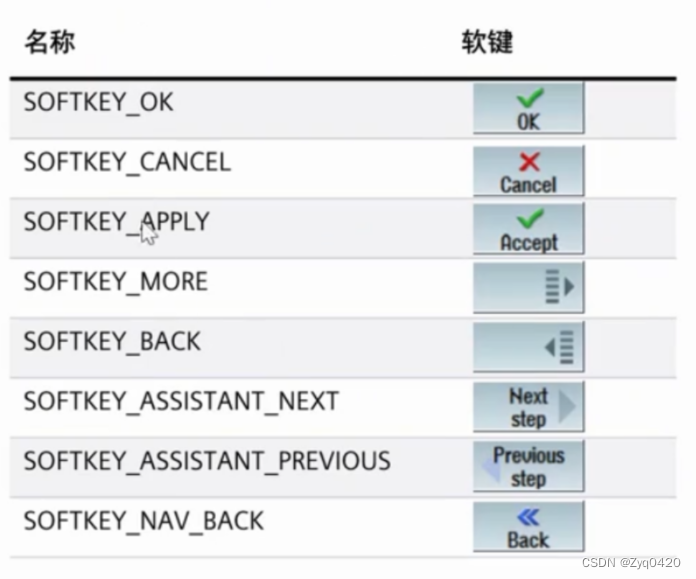

预定义

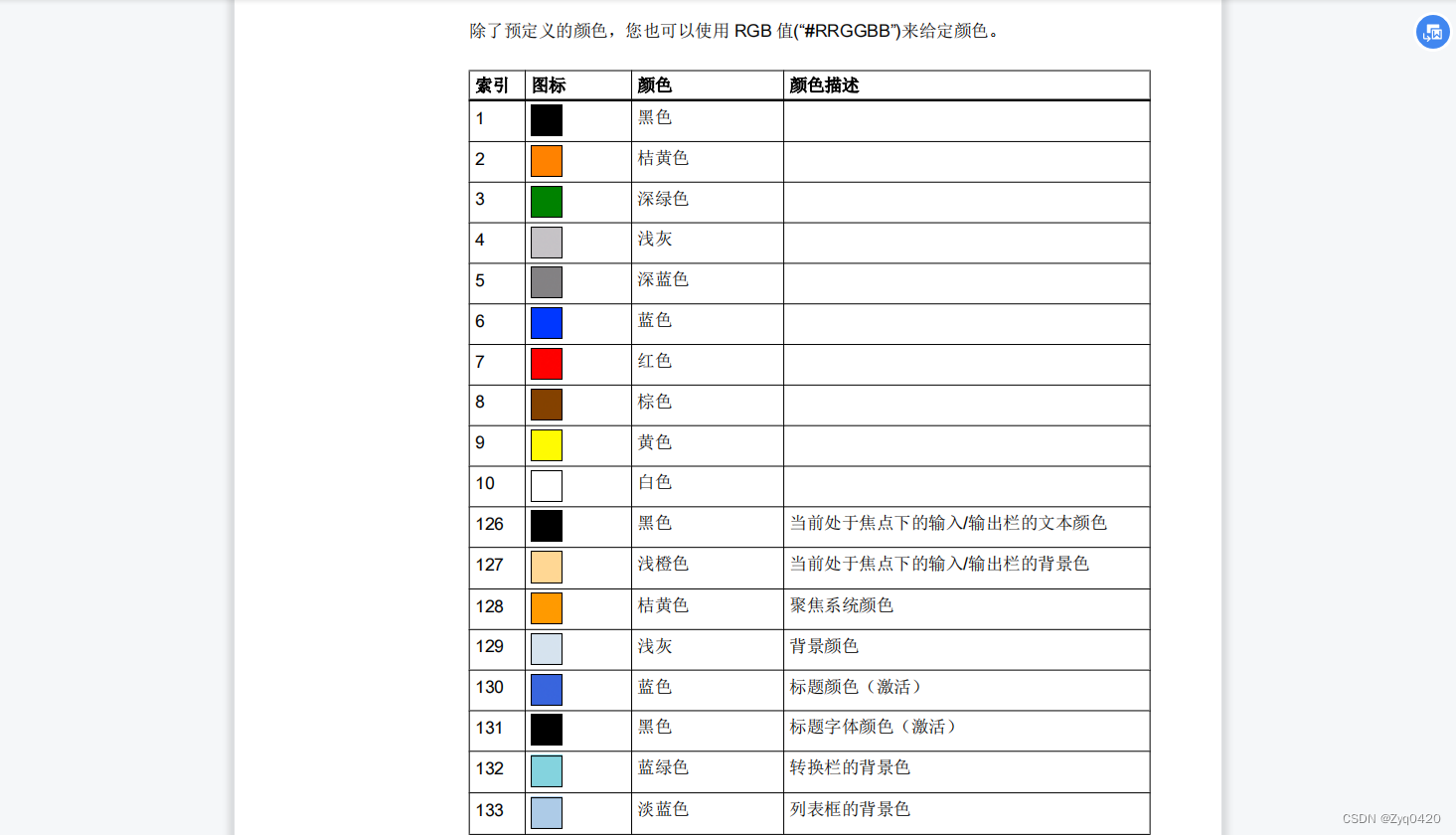

 颜色

 2023年初赛答案

https://www.ad.siemens.com.cn/CNC4YOU/Home/Article/3331

PLC调试部分

https://www.ad.siemens.com.cn/CNC4YOU/Home/Article/3349

界面开发

https://www.ad.siemens.com.cn/CNC4YOU/Home/Video/6835?isNew=1

https://www.ad.siemens.com.cn/CNC4YOU/Home/Video/3226?isNew=1

https://www.ad.siemens.com.cn/CNC4YOU/Home/Article/3265

会陆续把我用到的文档以及视频网站发出！！！

  ！！！小编有不成熟的地方希望大家指出

评论 5
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
