stm32 野火 中级篇指南针作业1

1、把KEY2-PC13也用EXTI的方式实现

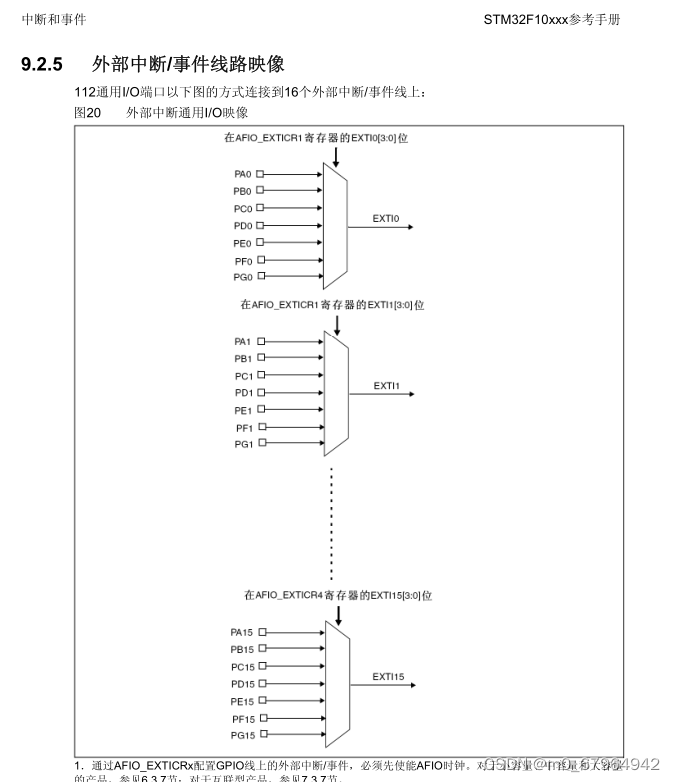

注意：由参考手册知PC13连接EXTI13



bsp_exti.h   /****/为容易忽略修改点

#include "bsp_exti.h"


static void EXTI_NVIC_Config(void)
{
    NVIC_InitTypeDef    NVIC_InitStruct;
    NVIC_PriorityGroupConfig(NVIC_PriorityGroup_1);

    NVIC_InitStruct.NVIC_IRQChannel                         =       EXTI15_10_IRQn;/****/
    NVIC_InitStruct.NVIC_IRQChannelPreemptionPriority       =       1;
    NVIC_InitStruct.NVIC_IRQChannelSubPriority              =       1;
    NVIC_InitStruct.NVIC_IRQChannelCmd                      =       ENABLE;

    NVIC_Init(&NVIC_InitStruct);
}


void EXTI_Key_Config(void)
{
    GPIO_InitTypeDef    GPIO_InitStruct;
    EXTI_InitTypeDef    EXTI_InitStruct;

    //设置中断优先级
    EXTI_NVIC_Config();

    //初始化GPIO

    RCC_APB2PeriphClockCmd(KEY2_INT_GPIO_CLK,ENABLE);
    GPIO_InitStruct.GPIO_Pin    =   KEY2_INT_GPIO_PIN;//配置为输出
    GPIO_InitStruct.GPIO_Mode   =   GPIO_Mode_IN_FLOATING;//输出模式
    GPIO_Init(KEY2_INT_GPIO_PORT, &GPIO_InitStruct);//初始化
    GPIO_SetBits(KEY2_INT_GPIO_PORT, KEY2_INT_GPIO_PIN);//置位

    //初始化EXTI


    RCC_APB2PeriphClockCmd(RCC_APB2Periph_AFIO ,ENABLE);
    GPIO_EXTILineConfig(GPIO_PortSourceGPIOC, GPIO_PinSource13);

    EXTI_InitStruct.EXTI_Line       =       EXTI_Line13;
    EXTI_InitStruct.EXTI_Mode       =       EXTI_Mode_Interrupt;
    EXTI_InitStruct.EXTI_Trigger    =       EXTI_Trigger_Rising;
    EXTI_InitStruct.EXTI_LineCmd    =       ENABLE;

    EXTI_Init(&EXTI_InitStruct);
}

bsp_exti.c

#define KEY2_INT_GPIO_PORT       GPIOC
#define KEY2_INT_GPIO_PIN        GPIO_Pin_13
#define KEY2_INT_GPIO_CLK        RCC_APB2Periph_GPIOC

stm32f10x_it.c

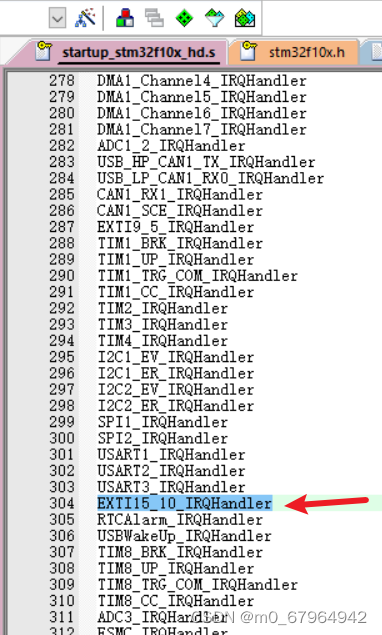

void EXTI15_10_IRQHandler(void) /****/
{
    if(EXTI_GetITStatus(EXTI_Line13)!=RESET)
    {
        LED_G_TOGGLE;
    }
    EXTI_ClearITPendingBit(EXTI_Line13);

}



2、如果PA0 PB0 PC0都连接到EXTI0的时候怎么办？

GPIOA->IDR GPIOB->IDR

3、把硬件相关的GPIO都通过宏定义来实现



 参考课本代码
