Flowable6.8扩展支持OSCAR神通数据库

公司做的项目要求去ioe使用国产的替代方案，考虑flowable社区比较活跃，使用flowable工作流引擎做适配。数据从异构数据库中迁移到OSCAR神通数据库，应用中使用flowable工作流在替换了数据库驱动后启动过程报错如下：

nested exception is org.activiti.engine.ActivitiException: couldn't deduct database type from database product name 'OSCAR'

原因是：flowable6.8.0内置的数据库类型不支持神通数据库.

解决方案一：

将flowable.engine.common相关源码拷贝到工程src下，保持包路径不变，并做相应修改以支持神通数据库，源码地址

https://github.com/flowable/flowable-engine/releases

注意要对应版本，各版本数据库有差异

具体如下：

1、在package org.flowable.common.engine.impl，AbstractEngineConfiguration增加成员变量224行左右

public static final String DATABASE_TYPE_OSCAR = "oscar";

public static final String DATABASE_TYPE_H2 = "h2";

public static final String DATABASE_TYPE_HSQL = "hsql";

public static final String DATABASE_TYPE_MYSQL = "mysql";

public static final String DATABASE_TYPE_ORACLE = "oracle";

2、在package org.flowable.common.engine.impl，AbstractEngineConfiguration修改

getDefaultDatabaseTypeMappings()在248行左右

protected static Properties getDefaultDatabaseTypeMappings() {

    Properties databaseTypeMappings = new Properties();

    databaseTypeMappings.setProperty("OSCAR ", DATABASE_TYPE_OSCAR );

    databaseTypeMappings.setProperty("H2", DATABASE_TYPE_H2);

3、在org.flowable.common.engine.impl.db;152行，DbSqlSessionFactory修改

initBulkInsertEnabledMap(String

databaseType)

if ("oracle".equals(databaseType) || "oscar".equals(databaseType)) {

bulkInsertableMap.put(EventLogEntryEntity.class, Boolean.FALSE);

4、在org.flowable.common.db.properties创建oscar.properties新建 oscar.properties

limitBefore=

limitAfter=LIMIT #{maxResults} OFFSET #{firstResult}

5、在package org.flowable.common.engine.impl.db在ListQueryParameterObject

文件，修改addOrder(String column, String sortOrder。

NullHandlingOnOrder nullHandlingOnOrder)

if (nullHandlingOnOrder.equals(NullHandlingOnOrder.NULLS_FIRST)) {


    if (ProcessEngineConfigurationImpl.DATABASE_TYPE_H2.equals(databaseType)

            || ProcessEngineConfigurationImpl.DATABASE_TYPE_HSQL.equals(databaseType)

            || ProcessEngineConfigurationImpl.DATABASE_TYPE_POSTGRES.equals(databaseType)

            || ProcessEngineConfigurationImpl.DATABASE_TYPE_ORACLE.equals(databaseType)

            || ProcessEngineConfigurationImpl.DATABASE_TYPE_OSCAR.equals(databaseType)) {

        orderBy = orderBy + defaultOrderByClause + " NULLS FIRST";

    } else if (ProcessEngineConfigurationImpl.DATABASE_TYPE_MYSQL.equals(databaseType)) {

        orderBy = orderBy + "isnull(" + column + ") desc," + defaultOrderByClause;

    } else if (ProcessEngineConfigurationImpl.DATABASE_TYPE_DB2.equals(databaseType)

            || ProcessEngineConfigurationImpl.DATABASE_TYPE_MSSQL.equals(databaseType)) {

        orderBy = orderBy + "case when " + column + " is null then 0 else 1 end," + defaultOrderByClause;

    } else {

        orderBy = orderBy + defaultOrderByClause;

    }

} else if (nullHandlingOnOrder.equals(NullHandlingOnOrder.NULLS_LAST)) {


    if (ProcessEngineConfigurationImpl.DATABASE_TYPE_H2.equals(databaseType)

            || ProcessEngineConfigurationImpl.DATABASE_TYPE_HSQL.equals(databaseType)

            || ProcessEngineConfigurationImpl.DATABASE_TYPE_POSTGRES.equals(databaseType)

            || ProcessEngineConfigurationImpl.DATABASE_TYPE_ORACLE.equals(databaseType)

            || ProcessEngineConfigurationImpl.DATABASE_TYPE_OSCAR.equals(databaseType)) {

        orderBy = orderBy + column + " " + sortOrder + " NULLS LAST";

    } else if (ProcessEngineConfigurationImpl.DATABASE_TYPE_MYSQL.equals(databaseType)) {

        orderBy = orderBy + "isnull(" + column + ") asc," + defaultOrderByClause;

    } else if (ProcessEngineConfigurationImpl.DATABASE_TYPE_DB2.equals(databaseType)

            || ProcessEngineConfigurationImpl.DATABASE_TYPE_MSSQL.equals(databaseType)) {

        orderBy = orderBy + "case when " + column + " is null then 1 else 0 end," + defaultOrderByClause;

    } else {

        orderBy = orderBy + defaultOrderByClause;

    }

}

解决方案二：

方案一是为正道但bug重重，除了以上方案还有一个取巧方案：

1、关闭flowable自动建表

2、将方案一中一二三步配置成pgsql或oracle

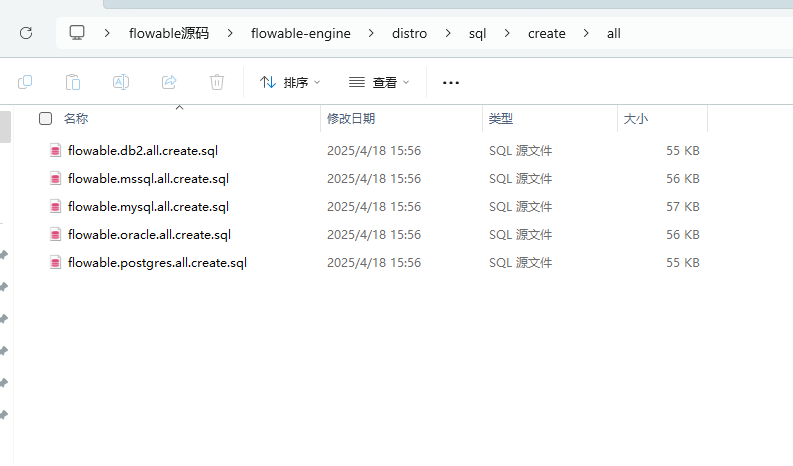

3、找到源码中pgsql建表语句在神通数据库上执行。

完美解决。
