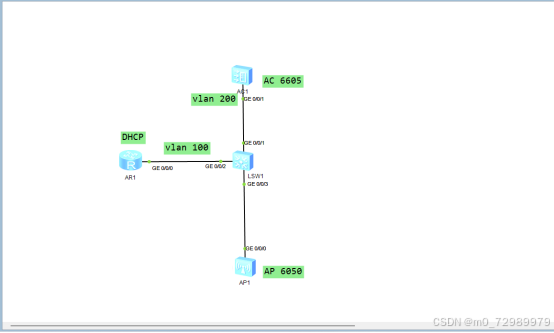

华为 独立DHCP 无线 AC-AP

AP1：

<Huawei>undo terminal monitor

<Huawei>system-view

[Huawei]display system-information

MAC Address              : 00:e0:fc:d0:67:70 改成00e0-fcd0-6770

DHCP:

<Huawei>undo terminal monitor

<Huawei>system-view

[Huawei]sysname DHCP

[DHCP]dhcp enable

ip pool vlan100

 gateway-list 192.168.100.254

 network 192.168.100.0 mask 255.255.255.0

 dns-list 114.114.114.114

 option 43 sub-option 1 ip-address 192.168.200.1

interface GigabitEthernet0/0/0

 ip address 192.168.100.1 255.255.255.0

 dhcp select global

[DHCP]ip route-static 192.168.200.0 24 192.168.100.254

SW1:

<Huawei>undo terminal monitor

<Huawei>system-view

[Huawei]sysname SW1

[SW1]vlan batch 100 200

interface GigabitEthernet0/0/2

 port link-type access

 port default vlan 100

interface
