模仿STM32寄存器定义

I.MAX6U寄存器定义

1.编写外设结构体

/*
 * CCM寄存器结构体定义，分为CCM和CCM_ANALOG
 */
typedef struct
{
	volatile unsigned int CCR;
	volatile unsigned int CCDR;
	volatile unsigned int CSR;
	volatile unsigned int CCSR;
	volatile unsigned int CACRR;
	volatile unsigned int CBCDR;
	volatile unsigned int CBCMR;
	volatile unsigned int CSCMR1;
	volatile unsigned int CSCMR2;
	volatile unsigned int CSCDR1;
	volatile unsigned int CS1CDR;
	volatile unsigned int CS2CDR;
	volatile unsigned int CDCDR;
	volatile unsigned int CHSCCDR;
	volatile unsigned int CSCDR2;
	volatile unsigned int CSCDR3;
	volatile unsigned int RESERVED_1[2];
	volatile unsigned int CDHIPR;
	volatile unsigned int RESERVED_2[2];
	volatile unsigned int CLPCR;
	volatile unsigned int CISR;
	volatile unsigned int CIMR;
	volatile unsigned int CCOSR;
	volatile unsigned int CGPR;
	volatile unsigned int CCGR0;
	volatile unsigned int CCGR1;
	volatile unsigned int CCGR2;
	volatile unsigned int CCGR3;
	volatile unsigned int CCGR4;
	volatile unsigned int CCGR5;
	volatile unsigned int CCGR6;
	volatile unsigned int RESERVED_3[1];
	volatile unsigned int CMEOR;
} CCM_Type;

typedef struct
{
	volatile unsigned int PLL_ARM;
	volatile unsigned int PLL_ARM_SET;
	volatile unsigned int PLL_ARM_CLR;
	volatile unsigned int PLL_ARM_TOG;
	volatile unsigned int PLL_USB1;
	volatile unsigned int PLL_USB1_SET;
	volatile unsigned int PLL_USB1_CLR;
	volatile unsigned int PLL_USB1_TOG;
	volatile unsigned int PLL_USB2;
	volatile unsigned int PLL_USB2_SET;
	volatile unsigned int PLL_USB2_CLR;
	volatile unsigned int PLL_USB2_TOG;
	volatile unsigned int PLL_SYS;
	volatile unsigned int PLL_SYS_SET;
	volatile unsigned int PLL_SYS_CLR;
	volatile unsigned int PLL_SYS_TOG;
	volatile unsigned int PLL_SYS_SS;
	volatile unsigned int RESERVED_1[3];
	volatile unsigned int PLL_SYS_NUM;
	volatile unsigned int RESERVED_2[3];
	volatile unsigned int PLL_SYS_DENOM;
	volatile unsigned int RESERVED_3[3];
	volatile unsigned int PLL_AUDIO;
	volatile unsigned int PLL_AUDIO_SET;
	volatile unsigned int PLL_AUDIO_CLR;
	volatile unsigned int PLL_AUDIO_TOG;
	volatile unsigned int PLL_AUDIO_DENOM;
	volatile unsigned int RESERVED_4[3];
	volatile unsigned int PLL_VIDEO;
	volatile unsigned int PLL_VIDEO_SET;
	volatile unsigned int PLL_VIDEO_CLR;
	volatile unsigned int PLL_VIDEO_TOG;
	volatile unsigned int PLL_VIDEO_NUM;
	volatile unsigned int RESERVED_5[3];
	volatile unsigned int PLL_VIDEO_DENOM;
	volatile unsigned int RESERVED_6[7];
	volatile unsigned int PLL_ENET;
	volatile unsigned int PLL_ENET_SET;
	volatile unsigned int PLL_ENET_CLR;
	volatile unsigned int PLL_ENET_TOG;
	volatile unsigned int PFD_480;
	volatile unsigned int PFD_480_SET;
	volatile unsigned int PFD_480_CLR;
	volatile unsigned int PFD_480_TOG;
	volatile unsigned int PFD_528;
	volatile unsigned int PFD_528_SET;
	volatile unsigned int PFD_528_CLR;
	volatile unsigned int PFD_528_TOG;
	volatile unsigned int RESERVED_7[16];
	volatile unsigned int MISC0;
	volatile unsigned int MISC0_SET;
	volatile unsigned int MISC0_CLR;
	volatile unsigned int MISC0_TOG;
	volatile unsigned int MISC1;
	volatile unsigned int MISC1_SET;
	volatile unsigned int MISC1_CLR;
	volatile unsigned int MISC1_TOG;
	volatile unsigned int MISC2;
	volatile unsigned int MISC2_SET;
	volatile unsigned int MISC2_CLR;
	volatile unsigned int MISC2_TOG;
} CCM_ANALOG_Type;

/*
 * IOMUX寄存器组
 */
typedef struct
{
	volatile unsigned int BOOT_MODE0;
	volatile unsigned int BOOT_MODE1;
	volatile unsigned int SNVS_TAMPER0;
	volatile unsigned int SNVS_TAMPER1;
	volatile unsigned int SNVS_TAMPER2;
	volatile unsigned int SNVS_TAMPER3;
	volatile unsigned int SNVS_TAMPER4;
	volatile unsigned int SNVS_TAMPER5;
	volatile unsigned int SNVS_TAMPER6;
	volatile unsigned int SNVS_TAMPER7;
	volatile unsigned int SNVS_TAMPER8;
	volatile unsigned int SNVS_TAMPER9;
	volatile unsigned int JTAG_MOD;
	volatile unsigned int JTAG_TMS;
	volatile unsigned int JTAG_TDO;
	volatile unsigned int JTAG_TDI;
	volatile unsigned int JTAG_TCK;
	volatile unsigned int JTAG_TRST_B;
	volatile unsigned int GPIO1_IO00;
	volatile unsigned int GPIO1_IO01;
	volatile unsigned int GPIO1_IO02;
	volatile unsigned int GPIO1_IO03;
	volatile unsigned int GPIO1_IO04;
	volatile unsigned int GPIO1_IO05;
	volatile unsigned int GPIO1_IO06;
	volatile unsigned int GPIO1_IO07;
	volatile unsigned int GPIO1_IO08;
	volatile unsigned int GPIO1_IO09;
	volatile unsigned int UART1_TX_DATA;
	volatile unsigned int UART1_RX_DATA;
	volatile unsigned int UART1_CTS_B;
	volatile unsigned int UART1_RTS_B;
	volatile unsigned int UART2_TX_DATA;
	volatile unsigned int UART2_RX_DATA;
	volatile unsigned int UART2_CTS_B;
	volatile unsigned int UART2_RTS_B;
	volatile unsigned int UART3_TX_DATA;
	volatile unsigned int UART3_RX_DATA;
	volatile unsigned int UART3_CTS_B;
	volatile unsigned int UART3_RTS_B;
	volatile unsigned int UART4_TX_DATA;
	volatile unsigned int UART4_RX_DATA;
	volatile unsigned int UART5_TX_DATA;
	volatile unsigned int UART5_RX_DATA;
	volatile unsigned int ENET1_RX_DATA0;
	volatile unsigned int ENET1_RX_DATA1;
	volatile unsigned int ENET1_RX_EN;
	volatile unsigned int ENET1_TX_DATA0;
	volatile unsigned int ENET1_TX_DATA1;
	volatile unsigned int ENET1_TX_EN;
	volatile unsigned int ENET1_TX_CLK;
	volatile unsigned int ENET1_RX_ER;
	volatile unsigned int ENET2_RX_DATA0;
	volatile unsigned int ENET2_RX_DATA1;
	volatile unsigned int ENET2_RX_EN;
	volatile unsigned int ENET2_TX_DATA0;
	volatile unsigned int ENET2_TX_DATA1;
	volatile unsigned int ENET2_TX_EN;
	volatile unsigned int ENET2_TX_CLK;
	volatile unsigned int ENET2_RX_ER;
	volatile unsigned int LCD_CLK;
	volatile unsigned int LCD_ENABLE;
	volatile unsigned int LCD_HSYNC;
	volatile unsigned int LCD_VSYNC;
	volatile unsigned int LCD_RESET;
	volatile unsigned int LCD_DATA00;
	volatile unsigned int LCD_DATA01;
	volatile unsigned int LCD_DATA02;
	volatile unsigned int LCD_DATA03;
	volatile unsigned int LCD_DATA04;
	volatile unsigned int LCD_DATA05;
	volatile unsigned int LCD_DATA06;
	volatile unsigned int LCD_DATA07;
	volatile unsigned int LCD_DATA08;
	volatile unsigned int LCD_DATA09;
	volatile unsigned int LCD_DATA10;
	volatile unsigned int LCD_DATA11;
	volatile unsigned int LCD_DATA12;
	volatile unsigned int LCD_DATA13;
	volatile unsigned int LCD_DATA14;
	volatile unsigned int LCD_DATA15;
	volatile unsigned int LCD_DATA16;
	volatile unsigned int LCD_DATA17;
	volatile unsigned int LCD_DATA18;
	volatile unsigned int LCD_DATA19;
	volatile unsigned int LCD_DATA20;
	volatile unsigned int LCD_DATA21;
	volatile unsigned int LCD_DATA22;
	volatile unsigned int LCD_DATA23;
	volatile unsigned int NAND_RE_B;
	volatile unsigned int NAND_WE_B;
	volatile unsigned int NAND_DATA00;
	volatile unsigned int NAND_DATA01;
	volatile unsigned int NAND_DATA02;
	volatile unsigned int NAND_DATA03;
	volatile unsigned int NAND_DATA04;
	volatile unsigned int NAND_DATA05;
	volatile unsigned int NAND_DATA06;
	volatile unsigned int NAND_DATA07;
	volatile unsigned int NAND_ALE;
	volatile unsigned int NAND_WP_B;
	volatile unsigned int NAND_READY_B;
	volatile unsigned int NAND_CE0_B;
	volatile unsigned int NAND_CE1_B;
	volatile unsigned int NAND_CLE;
	volatile unsigned int NAND_DQS;
	volatile unsigned int SD1_CMD;
	volatile unsigned int SD1_CLK;
	volatile unsigned int SD1_DATA0;
	volatile unsigned int SD1_DATA1;
	volatile unsigned int SD1_DATA2;
	volatile unsigned int SD1_DATA3;
	volatile unsigned int CSI_MCLK;
	volatile unsigned int CSI_PIXCLK;
	volatile unsigned int CSI_VSYNC;
	volatile unsigned int CSI_HSYNC;
	volatile unsigned int CSI_DATA00;
	volatile unsigned int CSI_DATA01;
	volatile unsigned int CSI_DATA02;
	volatile unsigned int CSI_DATA03;
	volatile unsigned int CSI_DATA04;
	volatile unsigned int CSI_DATA05;
	volatile unsigned int CSI_DATA06;
	volatile unsigned int CSI_DATA07;
}IOMUX_SW_MUX_Type;

typedef struct
{
	volatile unsigned int DRAM_ADDR00;
	volatile unsigned int DRAM_ADDR01;
	volatile unsigned int DRAM_ADDR02;
	volatile unsigned int DRAM_ADDR03;
	volatile unsigned int DRAM_ADDR04;
	volatile unsigned int DRAM_ADDR05;
	volatile unsigned int DRAM_ADDR06;
	volatile unsigned int DRAM_ADDR07;
	volatile unsigned int DRAM_ADDR08;
	volatile unsigned int DRAM_ADDR09;
	volatile unsigned int DRAM_ADDR10;
	volatile unsigned int DRAM_ADDR11;
	volatile unsigned int DRAM_ADDR12;
	volatile unsigned int DRAM_ADDR13;
	volatile unsigned int DRAM_ADDR14;
	volatile unsigned int DRAM_ADDR15;
	volatile unsigned int DRAM_DQM0;
	volatile unsigned int DRAM_DQM1;
	volatile unsigned int DRAM_RAS_B;
	volatile unsigned int DRAM_CAS_B;
	volatile unsigned int DRAM_CS0_B;
	volatile unsigned int DRAM_CS1_B;
	volatile unsigned int DRAM_SDWE_B;
	volatile unsigned int DRAM_ODT0;
	volatile unsigned int DRAM_ODT1;
	volatile unsigned int DRAM_SDBA0;
	volatile unsigned int DRAM_SDBA1;
	volatile unsigned int DRAM_SDBA2;
	volatile unsigned int DRAM_SDCKE0;
	volatile unsigned int DRAM_SDCKE1;
	volatile unsigned int DRAM_SDCLK0_P;
	volatile unsigned int DRAM_SDQS0_P;
	volatile unsigned int DRAM_SDQS1_P;
	volatile unsigned int DRAM_RESET;
	volatile unsigned int TEST_MODE;
	volatile unsigned int POR_B;
	volatile unsigned int ONOFF;
	volatile unsigned int SNVS_PMIC_ON_REQ;
	volatile unsigned int CCM_PMIC_STBY_REQ;
	volatile unsigned int BOOT_MODE0;
	volatile unsigned int BOOT_MODE1;
	volatile unsigned int SNVS_TAMPER0;
	volatile unsigned int SNVS_TAMPER1;
	volatile unsigned int SNVS_TAMPER2;
	volatile unsigned int SNVS_TAMPER3;
	volatile unsigned int SNVS_TAMPER4;
	volatile unsigned int SNVS_TAMPER5;
	volatile unsigned int SNVS_TAMPER6;
	volatile unsigned int SNVS_TAMPER7;
	volatile unsigned int SNVS_TAMPER8;
	volatile unsigned int SNVS_TAMPER9;
	volatile unsigned int JTAG_MOD;
	volatile unsigned int JTAG_TMS;
	volatile unsigned int JTAG_TDO;
	volatile unsigned int JTAG_TDI;
	volatile unsigned int JTAG_TCK;
	volatile unsigned int JTAG_TRST_B;
	volatile unsigned int GPIO1_IO00;
	volatile unsigned int GPIO1_IO01;
	volatile unsigned int GPIO1_IO02;
	volatile unsigned int GPIO1_IO03;
	volatile unsigned int GPIO1_IO04;
	volatile unsigned int GPIO1_IO05;
	volatile unsigned int GPIO1_IO06;
	volatile unsigned int GPIO1_IO07;
	volatile unsigned int GPIO1_IO08;
	volatile unsigned int GPIO1_IO09;
	volatile unsigned int UART1_TX_DATA;
	volatile unsigned int UART1_RX_DATA;
	volatile unsigned int UART1_CTS_B;
	volatile unsigned int UART1_RTS_B;
	volatile unsigned int UART2_TX_DATA;
	volatile unsigned int UART2_RX_DATA;
	volatile unsigned int UART2_CTS_B;
	volatile unsigned int UART2_RTS_B;
	volatile unsigned int UART3_TX_DATA;
	volatile unsigned int UART3_RX_DATA;
	volatile unsigned int UART3_CTS_B;
	volatile unsigned int UART3_RTS_B;
	volatile unsigned int UART4_TX_DATA;
	volatile unsigned int UART4_RX_DATA;
	volatile unsigned int UART5_TX_DATA;
	volatile unsigned int UART5_RX_DATA;
	volatile unsigned int ENET1_RX_DATA0;
	volatile unsigned int ENET1_RX_DATA1;
	volatile unsigned int ENET1_RX_EN;
	volatile unsigned int ENET1_TX_DATA0;
	volatile unsigned int ENET1_TX_DATA1;
	volatile unsigned int ENET1_TX_EN;
	volatile unsigned int ENET1_TX_CLK;
	volatile unsigned int ENET1_RX_ER;
	volatile unsigned int ENET2_RX_DATA0;
	volatile unsigned int ENET2_RX_DATA1;
	volatile unsigned int ENET2_RX_EN;
	volatile unsigned int ENET2_TX_DATA0;
	volatile unsigned int ENET2_TX_DATA1;
	volatile unsigned int ENET2_TX_EN;
	volatile unsigned int ENET2_TX_CLK;
	volatile unsigned int ENET2_RX_ER;
	volatile unsigned int LCD_CLK;
	volatile unsigned int LCD_ENABLE;
	volatile unsigned int LCD_HSYNC;
	volatile unsigned int LCD_VSYNC;
	volatile unsigned int LCD_RESET;
	volatile unsigned int LCD_DATA00;
	volatile unsigned int LCD_DATA01;
	volatile unsigned int LCD_DATA02;
	volatile unsigned int LCD_DATA03;
	volatile unsigned int LCD_DATA04;
	volatile unsigned int LCD_DATA05;
	volatile unsigned int LCD_DATA06;
	volatile unsigned int LCD_DATA07;
	volatile unsigned int LCD_DATA08;
	volatile unsigned int LCD_DATA09;
	volatile unsigned int LCD_DATA10;
	volatile unsigned int LCD_DATA11;
	volatile unsigned int LCD_DATA12;
	volatile unsigned int LCD_DATA13;
	volatile unsigned int LCD_DATA14;
	volatile unsigned int LCD_DATA15;
	volatile unsigned int LCD_DATA16;
	volatile unsigned int LCD_DATA17;
	volatile unsigned int LCD_DATA18;
	volatile unsigned int LCD_DATA19;
	volatile unsigned int LCD_DATA20;
	volatile unsigned int LCD_DATA21;
	volatile unsigned int LCD_DATA22;
	volatile unsigned int LCD_DATA23;
	volatile unsigned int NAND_RE_B;
	volatile unsigned int NAND_WE_B;
	volatile unsigned int NAND_DATA00;
	volatile unsigned int NAND_DATA01;
	volatile unsigned int NAND_DATA02;
	volatile unsigned int NAND_DATA03;
	volatile unsigned int NAND_DATA04;
	volatile unsigned int NAND_DATA05;
	volatile unsigned int NAND_DATA06;
	volatile unsigned int NAND_DATA07;
	volatile unsigned int NAND_ALE;
	volatile unsigned int NAND_WP_B;
	volatile unsigned int NAND_READY_B;
	volatile unsigned int NAND_CE0_B;
	volatile unsigned int NAND_CE1_B;
	volatile unsigned int NAND_CLE;
	volatile unsigned int NAND_DQS;
	volatile unsigned int SD1_CMD;
	volatile unsigned int SD1_CLK;
	volatile unsigned int SD1_DATA0;
	volatile unsigned int SD1_DATA1;
	volatile unsigned int SD1_DATA2;
	volatile unsigned int SD1_DATA3;
	volatile unsigned int CSI_MCLK;
	volatile unsigned int CSI_PIXCLK;
	volatile unsigned int CSI_VSYNC;
	volatile unsigned int CSI_HSYNC;
	volatile unsigned int CSI_DATA00;
	volatile unsigned int CSI_DATA01;
	volatile unsigned int CSI_DATA02;
	volatile unsigned int CSI_DATA03;
	volatile unsigned int CSI_DATA04;
	volatile unsigned int CSI_DATA05;
	volatile unsigned int CSI_DATA06;
	volatile unsigned int CSI_DATA07;
	volatile unsigned int GRP_ADDDS;
	volatile unsigned int GRP_DDRMODE_CTL;
	volatile unsigned int GRP_B0DS;
	volatile unsigned int GRP_DDRPK;
	volatile unsigned int GRP_CTLDS;
	volatile unsigned int GRP_B1DS;
	volatile unsigned int GRP_DDRHYS;
	volatile unsigned int GRP_DDRPKE;
	volatile unsigned int GRP_DDRMODE;
	volatile unsigned int GRP_DDR_TYPE;
}IOMUX_SW_PAD_Type;

/*
 * GPIO寄存器结构体
 */
typedef struct
{
	volatile unsigned int DR;
	volatile unsigned int GDIR;
	volatile unsigned int PSR;
	volatile unsigned int ICR1;
	volatile unsigned int ICR2;
	volatile unsigned int IMR;
	volatile unsigned int ISR;
	volatile unsigned int EDGE_SEL;
}GPIO_Type;
上述结构体 IOMUX_SW_MUX_Type 就是 IO 复用寄存器组，成员变量是每个 IO 对应的复
用寄存器，每个寄存器的地址是 32 位，每个成员都使用“ volatile ”进行了修饰，目的是防止编
译器优化。

2.定义IO复用寄存器组的基地址

根据结构体 IOMUX_SW_MUX_Type 的定义，其第一个成员变量为 BOOT_MODE0 ，也就
是 BOOT_MODE0 这个 IO 的 IO 复用寄存器，查找 I.MX6U 的参考手册可以得知其地址为
0X020E0014 ，所以 IO 复用寄存器组的基地址就是 0X020E0014 ，定义如下：
#define CCM_BASE					(0X020C4000)
#define CCM_ANALOG_BASE				(0X020C8000)
#define IOMUX_SW_MUX_BASE			(0X020E0014)
#define IOMUX_SW_PAD_BASE			(0X020E0204)
#define GPIO1_BASE                  (0x0209C000)
#define GPIO2_BASE                  (0x020A0000)
#define GPIO3_BASE                  (0x020A4000)
#define GPIO4_BASE                  (0x020A8000)
#define GPIO5_BASE                  (0x020AC000)

3.定义访问指针

/*
 * 外设指针
 */
#define CCM					((CCM_Type *)CCM_BASE)
#define CCM_ANALOG			((CCM_ANALOG_Type *)CCM_ANALOG_BASE)
#define IOMUX_SW_MUX		((IOMUX_SW_MUX_Type *)IOMUX_SW_MUX_BASE)
#define IOMUX_SW_PAD		((IOMUX_SW_PAD_Type *)IOMUX_SW_PAD_BASE)
#define GPIO1				((GPIO_Type *)GPIO1_BASE)
#define GPIO2				((GPIO_Type *)GPIO2_BASE)
#define GPIO3				((GPIO_Type *)GPIO3_BASE)
#define GPIO4				((GPIO_Type *)GPIO4_BASE)
#define GPIO5				((GPIO_Type *)GPIO5_BASE)
通过上面三步我们就可以通过“ IOMUX_SW_MUX->GPIO1_IO03 ”来访问 GPIO1_IO03 的
IO 复用寄存器了。同样的，其他的外设寄存器都可以通过这三步来定义。

硬件原理分析

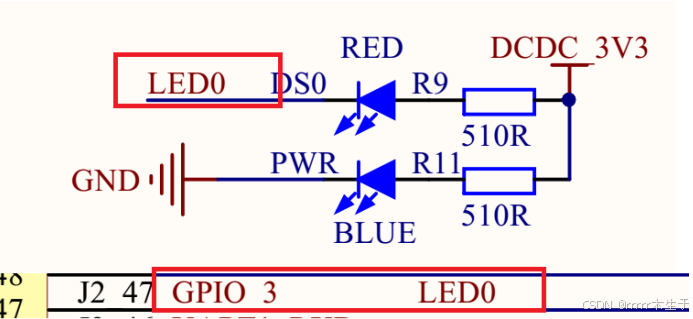

从图 中看出， LED0 接到了 GPIO_3 上， GPIO_3 就是 GPIO1_IO03 ，当 GPIO1_IO03
输出低电平 (0) 的时候发光二极管 LED0 就会导通点亮，当 GPIO1_IO03 输出高电平 (1) 的时候发
光二极管 LED0 不会导通，因此 LED0 也就不会点亮。所以 LED0 的亮灭取决于 GPIO1_IO03
的输出电平，输出 0 就亮，输出 1 就灭。

实验程序编写

创建 VSCode 工程，工作区名字为“ ledc_stm32 ”，新建三个文件： start.s 、 main.c 和 imx6ul.h 。
其中 start.S 是汇编文件， start.S 文件的内容和第十章的 start.S 一样，直接复制过来就可以。 main.c 和 imx6ul.h 是 C 文件，完成一下图所示 ：

文件 imx6ul.h 用来存放外设寄存器定义，
在 imx6ul.h 中输入如下代码：

imx6ul.h

/*
 * 外设寄存器组的基地址
 */
#define CCM_BASE					(0X020C4000)
#define CCM_ANALOG_BASE				(0X020C8000)
#define IOMUX_SW_MUX_BASE			(0X020E0014)
#define IOMUX_SW_PAD_BASE			(0X020E0204)
#define GPIO1_BASE                  (0x0209C000)
#define GPIO2_BASE                  (0x020A0000)
#define GPIO3_BASE                  (0x020A4000)
#define GPIO4_BASE                  (0x020A8000)
#define GPIO5_BASE                  (0x020AC000)

/*
 * CCM寄存器结构体定义，分为CCM和CCM_ANALOG
 */
typedef struct
{
	volatile unsigned int CCR;
	volatile unsigned int CCDR;
	volatile unsigned int CSR;
	volatile unsigned int CCSR;
	volatile unsigned int CACRR;
	volatile unsigned int CBCDR;
	volatile unsigned int CBCMR;
	volatile unsigned int CSCMR1;
	volatile unsigned int CSCMR2;
	volatile unsigned int CSCDR1;
	volatile unsigned int CS1CDR;
	volatile unsigned int CS2CDR;
	volatile unsigned int CDCDR;
	volatile unsigned int CHSCCDR;
	volatile unsigned int CSCDR2;
	volatile unsigned int CSCDR3;
	volatile unsigned int RESERVED_1[2];
	volatile unsigned int CDHIPR;
	volatile unsigned int RESERVED_2[2];
	volatile unsigned int CLPCR;
	volatile unsigned int CISR;
	volatile unsigned int CIMR;
	volatile unsigned int CCOSR;
	volatile unsigned int CGPR;
	volatile unsigned int CCGR0;
	volatile unsigned int CCGR1;
	volatile unsigned int CCGR2;
	volatile unsigned int CCGR3;
	volatile unsigned int CCGR4;
	volatile unsigned int CCGR5;
	volatile unsigned int CCGR6;
	volatile unsigned int RESERVED_3[1];
	volatile unsigned int CMEOR;
} CCM_Type;

typedef struct
{
	volatile unsigned int PLL_ARM;
	volatile unsigned int PLL_ARM_SET;
	volatile unsigned int PLL_ARM_CLR;
	volatile unsigned int PLL_ARM_TOG;
	volatile unsigned int PLL_USB1;
	volatile unsigned int PLL_USB1_SET;
	volatile unsigned int PLL_USB1_CLR;
	volatile unsigned int PLL_USB1_TOG;
	volatile unsigned int PLL_USB2;
	volatile unsigned int PLL_USB2_SET;
	volatile unsigned int PLL_USB2_CLR;
	volatile unsigned int PLL_USB2_TOG;
	volatile unsigned int PLL_SYS;
	volatile unsigned int PLL_SYS_SET;
	volatile unsigned int PLL_SYS_CLR;
	volatile unsigned int PLL_SYS_TOG;
	volatile unsigned int PLL_SYS_SS;
	volatile unsigned int RESERVED_1[3];
	volatile unsigned int PLL_SYS_NUM;
	volatile unsigned int RESERVED_2[3];
	volatile unsigned int PLL_SYS_DENOM;
	volatile unsigned int RESERVED_3[3];
	volatile unsigned int PLL_AUDIO;
	volatile unsigned int PLL_AUDIO_SET;
	volatile unsigned int PLL_AUDIO_CLR;
	volatile unsigned int PLL_AUDIO_TOG;
	volatile unsigned int PLL_AUDIO_DENOM;
	volatile unsigned int RESERVED_4[3];
	volatile unsigned int PLL_VIDEO;
	volatile unsigned int PLL_VIDEO_SET;
	volatile unsigned int PLL_VIDEO_CLR;
	volatile unsigned int PLL_VIDEO_TOG;
	volatile unsigned int PLL_VIDEO_NUM;
	volatile unsigned int RESERVED_5[3];
	volatile unsigned int PLL_VIDEO_DENOM;
	volatile unsigned int RESERVED_6[7];
	volatile unsigned int PLL_ENET;
	volatile unsigned int PLL_ENET_SET;
	volatile unsigned int PLL_ENET_CLR;
	volatile unsigned int PLL_ENET_TOG;
	volatile unsigned int PFD_480;
	volatile unsigned int PFD_480_SET;
	volatile unsigned int PFD_480_CLR;
	volatile unsigned int PFD_480_TOG;
	volatile unsigned int PFD_528;
	volatile unsigned int PFD_528_SET;
	volatile unsigned int PFD_528_CLR;
	volatile unsigned int PFD_528_TOG;
	volatile unsigned int RESERVED_7[16];
	volatile unsigned int MISC0;
	volatile unsigned int MISC0_SET;
	volatile unsigned int MISC0_CLR;
	volatile unsigned int MISC0_TOG;
	volatile unsigned int MISC1;
	volatile unsigned int MISC1_SET;
	volatile unsigned int MISC1_CLR;
	volatile unsigned int MISC1_TOG;
	volatile unsigned int MISC2;
	volatile unsigned int MISC2_SET;
	volatile unsigned int MISC2_CLR;
	volatile unsigned int MISC2_TOG;
} CCM_ANALOG_Type;

/*
 * IOMUX寄存器组
 */
typedef struct
{
	volatile unsigned int BOOT_MODE0;
	volatile unsigned int BOOT_MODE1;
	volatile unsigned int SNVS_TAMPER0;
	volatile unsigned int SNVS_TAMPER1;
	volatile unsigned int SNVS_TAMPER2;
	volatile unsigned int SNVS_TAMPER3;
	volatile unsigned int SNVS_TAMPER4;
	volatile unsigned int SNVS_TAMPER5;
	volatile unsigned int SNVS_TAMPER6;
	volatile unsigned int SNVS_TAMPER7;
	volatile unsigned int SNVS_TAMPER8;
	volatile unsigned int SNVS_TAMPER9;
	volatile unsigned int JTAG_MOD;
	volatile unsigned int JTAG_TMS;
	volatile unsigned int JTAG_TDO;
	volatile unsigned int JTAG_TDI;
	volatile unsigned int JTAG_TCK;
	volatile unsigned int JTAG_TRST_B;
	volatile unsigned int GPIO1_IO00;
	volatile unsigned int GPIO1_IO01;
	volatile unsigned int GPIO1_IO02;
	volatile unsigned int GPIO1_IO03;
	volatile unsigned int GPIO1_IO04;
	volatile unsigned int GPIO1_IO05;
	volatile unsigned int GPIO1_IO06;
	volatile unsigned int GPIO1_IO07;
	volatile unsigned int GPIO1_IO08;
	volatile unsigned int GPIO1_IO09;
	volatile unsigned int UART1_TX_DATA;
	volatile unsigned int UART1_RX_DATA;
	volatile unsigned int UART1_CTS_B;
	volatile unsigned int UART1_RTS_B;
	volatile unsigned int UART2_TX_DATA;
	volatile unsigned int UART2_RX_DATA;
	volatile unsigned int UART2_CTS_B;
	volatile unsigned int UART2_RTS_B;
	volatile unsigned int UART3_TX_DATA;
	volatile unsigned int UART3_RX_DATA;
	volatile unsigned int UART3_CTS_B;
	volatile unsigned int UART3_RTS_B;
	volatile unsigned int UART4_TX_DATA;
	volatile unsigned int UART4_RX_DATA;
	volatile unsigned int UART5_TX_DATA;
	volatile unsigned int UART5_RX_DATA;
	volatile unsigned int ENET1_RX_DATA0;
	volatile unsigned int ENET1_RX_DATA1;
	volatile unsigned int ENET1_RX_EN;
	volatile unsigned int ENET1_TX_DATA0;
	volatile unsigned int ENET1_TX_DATA1;
	volatile unsigned int ENET1_TX_EN;
	volatile unsigned int ENET1_TX_CLK;
	volatile unsigned int ENET1_RX_ER;
	volatile unsigned int ENET2_RX_DATA0;
	volatile unsigned int ENET2_RX_DATA1;
	volatile unsigned int ENET2_RX_EN;
	volatile unsigned int ENET2_TX_DATA0;
	volatile unsigned int ENET2_TX_DATA1;
	volatile unsigned int ENET2_TX_EN;
	volatile unsigned int ENET2_TX_CLK;
	volatile unsigned int ENET2_RX_ER;
	volatile unsigned int LCD_CLK;
	volatile unsigned int LCD_ENABLE;
	volatile unsigned int LCD_HSYNC;
	volatile unsigned int LCD_VSYNC;
	volatile unsigned int LCD_RESET;
	volatile unsigned int LCD_DATA00;
	volatile unsigned int LCD_DATA01;
	volatile unsigned int LCD_DATA02;
	volatile unsigned int LCD_DATA03;
	volatile unsigned int LCD_DATA04;
	volatile unsigned int LCD_DATA05;
	volatile unsigned int LCD_DATA06;
	volatile unsigned int LCD_DATA07;
	volatile unsigned int LCD_DATA08;
	volatile unsigned int LCD_DATA09;
	volatile unsigned int LCD_DATA10;
	volatile unsigned int LCD_DATA11;
	volatile unsigned int LCD_DATA12;
	volatile unsigned int LCD_DATA13;
	volatile unsigned int LCD_DATA14;
	volatile unsigned int LCD_DATA15;
	volatile unsigned int LCD_DATA16;
	volatile unsigned int LCD_DATA17;
	volatile unsigned int LCD_DATA18;
	volatile unsigned int LCD_DATA19;
	volatile unsigned int LCD_DATA20;
	volatile unsigned int LCD_DATA21;
	volatile unsigned int LCD_DATA22;
	volatile unsigned int LCD_DATA23;
	volatile unsigned int NAND_RE_B;
	volatile unsigned int NAND_WE_B;
	volatile unsigned int NAND_DATA00;
	volatile unsigned int NAND_DATA01;
	volatile unsigned int NAND_DATA02;
	volatile unsigned int NAND_DATA03;
	volatile unsigned int NAND_DATA04;
	volatile unsigned int NAND_DATA05;
	volatile unsigned int NAND_DATA06;
	volatile unsigned int NAND_DATA07;
	volatile unsigned int NAND_ALE;
	volatile unsigned int NAND_WP_B;
	volatile unsigned int NAND_READY_B;
	volatile unsigned int NAND_CE0_B;
	volatile unsigned int NAND_CE1_B;
	volatile unsigned int NAND_CLE;
	volatile unsigned int NAND_DQS;
	volatile unsigned int SD1_CMD;
	volatile unsigned int SD1_CLK;
	volatile unsigned int SD1_DATA0;
	volatile unsigned int SD1_DATA1;
	volatile unsigned int SD1_DATA2;
	volatile unsigned int SD1_DATA3;
	volatile unsigned int CSI_MCLK;
	volatile unsigned int CSI_PIXCLK;
	volatile unsigned int CSI_VSYNC;
	volatile unsigned int CSI_HSYNC;
	volatile unsigned int CSI_DATA00;
	volatile unsigned int CSI_DATA01;
	volatile unsigned int CSI_DATA02;
	volatile unsigned int CSI_DATA03;
	volatile unsigned int CSI_DATA04;
	volatile unsigned int CSI_DATA05;
	volatile unsigned int CSI_DATA06;
	volatile unsigned int CSI_DATA07;
}IOMUX_SW_MUX_Type;

typedef struct
{
	volatile unsigned int DRAM_ADDR00;
	volatile unsigned int DRAM_ADDR01;
	volatile unsigned int DRAM_ADDR02;
	volatile unsigned int DRAM_ADDR03;
	volatile unsigned int DRAM_ADDR04;
	volatile unsigned int DRAM_ADDR05;
	volatile unsigned int DRAM_ADDR06;
	volatile unsigned int DRAM_ADDR07;
	volatile unsigned int DRAM_ADDR08;
	volatile unsigned int DRAM_ADDR09;
	volatile unsigned int DRAM_ADDR10;
	volatile unsigned int DRAM_ADDR11;
	volatile unsigned int DRAM_ADDR12;
	volatile unsigned int DRAM_ADDR13;
	volatile unsigned int DRAM_ADDR14;
	volatile unsigned int DRAM_ADDR15;
	volatile unsigned int DRAM_DQM0;
	volatile unsigned int DRAM_DQM1;
	volatile unsigned int DRAM_RAS_B;
	volatile unsigned int DRAM_CAS_B;
	volatile unsigned int DRAM_CS0_B;
	volatile unsigned int DRAM_CS1_B;
	volatile unsigned int DRAM_SDWE_B;
	volatile unsigned int DRAM_ODT0;
	volatile unsigned int DRAM_ODT1;
	volatile unsigned int DRAM_SDBA0;
	volatile unsigned int DRAM_SDBA1;
	volatile unsigned int DRAM_SDBA2;
	volatile unsigned int DRAM_SDCKE0;
	volatile unsigned int DRAM_SDCKE1;
	volatile unsigned int DRAM_SDCLK0_P;
	volatile unsigned int DRAM_SDQS0_P;
	volatile unsigned int DRAM_SDQS1_P;
	volatile unsigned int DRAM_RESET;
	volatile unsigned int TEST_MODE;
	volatile unsigned int POR_B;
	volatile unsigned int ONOFF;
	volatile unsigned int SNVS_PMIC_ON_REQ;
	volatile unsigned int CCM_PMIC_STBY_REQ;
	volatile unsigned int BOOT_MODE0;
	volatile unsigned int BOOT_MODE1;
	volatile unsigned int SNVS_TAMPER0;
	volatile unsigned int SNVS_TAMPER1;
	volatile unsigned int SNVS_TAMPER2;
	volatile unsigned int SNVS_TAMPER3;
	volatile unsigned int SNVS_TAMPER4;
	volatile unsigned int SNVS_TAMPER5;
	volatile unsigned int SNVS_TAMPER6;
	volatile unsigned int SNVS_TAMPER7;
	volatile unsigned int SNVS_TAMPER8;
	volatile unsigned int SNVS_TAMPER9;
	volatile unsigned int JTAG_MOD;
	volatile unsigned int JTAG_TMS;
	volatile unsigned int JTAG_TDO;
	volatile unsigned int JTAG_TDI;
	volatile unsigned int JTAG_TCK;
	volatile unsigned int JTAG_TRST_B;
	volatile unsigned int GPIO1_IO00;
	volatile unsigned int GPIO1_IO01;
	volatile unsigned int GPIO1_IO02;
	volatile unsigned int GPIO1_IO03;
	volatile unsigned int GPIO1_IO04;
	volatile unsigned int GPIO1_IO05;
	volatile unsigned int GPIO1_IO06;
	volatile unsigned int GPIO1_IO07;
	volatile unsigned int GPIO1_IO08;
	volatile unsigned int GPIO1_IO09;
	volatile unsigned int UART1_TX_DATA;
	volatile unsigned int UART1_RX_DATA;
	volatile unsigned int UART1_CTS_B;
	volatile unsigned int UART1_RTS_B;
	volatile unsigned int UART2_TX_DATA;
	volatile unsigned int UART2_RX_DATA;
	volatile unsigned int UART2_CTS_B;
	volatile unsigned int UART2_RTS_B;
	volatile unsigned int UART3_TX_DATA;
	volatile unsigned int UART3_RX_DATA;
	volatile unsigned int UART3_CTS_B;
	volatile unsigned int UART3_RTS_B;
	volatile unsigned int UART4_TX_DATA;
	volatile unsigned int UART4_RX_DATA;
	volatile unsigned int UART5_TX_DATA;
	volatile unsigned int UART5_RX_DATA;
	volatile unsigned int ENET1_RX_DATA0;
	volatile unsigned int ENET1_RX_DATA1;
	volatile unsigned int ENET1_RX_EN;
	volatile unsigned int ENET1_TX_DATA0;
	volatile unsigned int ENET1_TX_DATA1;
	volatile unsigned int ENET1_TX_EN;
	volatile unsigned int ENET1_TX_CLK;
	volatile unsigned int ENET1_RX_ER;
	volatile unsigned int ENET2_RX_DATA0;
	volatile unsigned int ENET2_RX_DATA1;
	volatile unsigned int ENET2_RX_EN;
	volatile unsigned int ENET2_TX_DATA0;
	volatile unsigned int ENET2_TX_DATA1;
	volatile unsigned int ENET2_TX_EN;
	volatile unsigned int ENET2_TX_CLK;
	volatile unsigned int ENET2_RX_ER;
	volatile unsigned int LCD_CLK;
	volatile unsigned int LCD_ENABLE;
	volatile unsigned int LCD_HSYNC;
	volatile unsigned int LCD_VSYNC;
	volatile unsigned int LCD_RESET;
	volatile unsigned int LCD_DATA00;
	volatile unsigned int LCD_DATA01;
	volatile unsigned int LCD_DATA02;
	volatile unsigned int LCD_DATA03;
	volatile unsigned int LCD_DATA04;
	volatile unsigned int LCD_DATA05;
	volatile unsigned int LCD_DATA06;
	volatile unsigned int LCD_DATA07;
	volatile unsigned int LCD_DATA08;
	volatile unsigned int LCD_DATA09;
	volatile unsigned int LCD_DATA10;
	volatile unsigned int LCD_DATA11;
	volatile unsigned int LCD_DATA12;
	volatile unsigned int LCD_DATA13;
	volatile unsigned int LCD_DATA14;
	volatile unsigned int LCD_DATA15;
	volatile unsigned int LCD_DATA16;
	volatile unsigned int LCD_DATA17;
	volatile unsigned int LCD_DATA18;
	volatile unsigned int LCD_DATA19;
	volatile unsigned int LCD_DATA20;
	volatile unsigned int LCD_DATA21;
	volatile unsigned int LCD_DATA22;
	volatile unsigned int LCD_DATA23;
	volatile unsigned int NAND_RE_B;
	volatile unsigned int NAND_WE_B;
	volatile unsigned int NAND_DATA00;
	volatile unsigned int NAND_DATA01;
	volatile unsigned int NAND_DATA02;
	volatile unsigned int NAND_DATA03;
	volatile unsigned int NAND_DATA04;
	volatile unsigned int NAND_DATA05;
	volatile unsigned int NAND_DATA06;
	volatile unsigned int NAND_DATA07;
	volatile unsigned int NAND_ALE;
	volatile unsigned int NAND_WP_B;
	volatile unsigned int NAND_READY_B;
	volatile unsigned int NAND_CE0_B;
	volatile unsigned int NAND_CE1_B;
	volatile unsigned int NAND_CLE;
	volatile unsigned int NAND_DQS;
	volatile unsigned int SD1_CMD;
	volatile unsigned int SD1_CLK;
	volatile unsigned int SD1_DATA0;
	volatile unsigned int SD1_DATA1;
	volatile unsigned int SD1_DATA2;
	volatile unsigned int SD1_DATA3;
	volatile unsigned int CSI_MCLK;
	volatile unsigned int CSI_PIXCLK;
	volatile unsigned int CSI_VSYNC;
	volatile unsigned int CSI_HSYNC;
	volatile unsigned int CSI_DATA00;
	volatile unsigned int CSI_DATA01;
	volatile unsigned int CSI_DATA02;
	volatile unsigned int CSI_DATA03;
	volatile unsigned int CSI_DATA04;
	volatile unsigned int CSI_DATA05;
	volatile unsigned int CSI_DATA06;
	volatile unsigned int CSI_DATA07;
	volatile unsigned int GRP_ADDDS;
	volatile unsigned int GRP_DDRMODE_CTL;
	volatile unsigned int GRP_B0DS;
	volatile unsigned int GRP_DDRPK;
	volatile unsigned int GRP_CTLDS;
	volatile unsigned int GRP_B1DS;
	volatile unsigned int GRP_DDRHYS;
	volatile unsigned int GRP_DDRPKE;
	volatile unsigned int GRP_DDRMODE;
	volatile unsigned int GRP_DDR_TYPE;
}IOMUX_SW_PAD_Type;

/*
 * GPIO寄存器结构体
 */
typedef struct
{
	volatile unsigned int DR;
	volatile unsigned int GDIR;
	volatile unsigned int PSR;
	volatile unsigned int ICR1;
	volatile unsigned int ICR2;
	volatile unsigned int IMR;
	volatile unsigned int ISR;
	volatile unsigned int EDGE_SEL;
}GPIO_Type;


/*
 * 外设指针
 */
#define CCM					((CCM_Type *)CCM_BASE)
#define CCM_ANALOG			((CCM_ANALOG_Type *)CCM_ANALOG_BASE)
#define IOMUX_SW_MUX		((IOMUX_SW_MUX_Type *)IOMUX_SW_MUX_BASE)
#define IOMUX_SW_PAD		((IOMUX_SW_PAD_Type *)IOMUX_SW_PAD_BASE)
#define GPIO1				((GPIO_Type *)GPIO1_BASE)
#define GPIO2				((GPIO_Type *)GPIO2_BASE)
#define GPIO3				((GPIO_Type *)GPIO3_BASE)
#define GPIO4				((GPIO_Type *)GPIO4_BASE)
#define GPIO5				((GPIO_Type *)GPIO5_BASE)
在编写寄存器组结构体的时候注意寄存器的地址是否连续，有些外设的寄存器地址可能不
是连续的，会有一些保留地址，因此我们需要在结构体中留出这些保留的寄存器。比如 CCM 的
CCGR6 寄存器地址为 0X020C4080 ，而寄存器 CMEOR 的地址为 0X020C4088 。按照地址顺序
递增的原理，寄存器 CMEOR 的地址应该是 0X020C4084 ，但是实际上 CMEOR 的地址是
0X020C4088 ，相当于中间跳过了 0X020C4088-0X020C4080=8 个字节，如果寄存器地址连续的
话应该只差 4 个字节 (32 位 ) ，但是现在差了 8 个字节，所以需要在寄存器 CCGR6 和 CMEOR
直接加入一个保留寄存器，这个就是 RESERVED_3[1] 的来源。
如果不添加保留位来占位的话就会导致寄存器地址错位！

start.s

.global _start  		/* 全局标号 */

.global __bss_start
_bss_start:
	.word __bss_start

.global __bss_end
_bss_end:
	.word __bss_end

/*
 * 描述：	_start函数，程序从此函数开始执行，此函数主要功能是设置C
 *		 运行环境。
 */
_start:

	/* 进入SVC模式 */
	mrs r0, cpsr
	bic r0, r0, #0x1f 	/* 将r0寄存器中的低5位清零，也就是cpsr的M0~M4 	*/
	orr r0, r0, #0x13 	/* r0或上0x13,表示使用SVC模式					*/
	msr cpsr, r0		/* 将r0 的数据写入到cpsr_c中 					*/

	/* 清BSS段 */
	ldr r0, _bss_start
	ldr r1, _bss_end
	mov r2,  #0
bss_loop:
	stmia r0!, {r2}		/* 向r0的地址写入0,然后r0寄存器保存的地址值加1 */
	cmp r0, r1  		/* 比较r0和r1，也就是__bss_start和__bss_end的值*/
	ble bss_loop		/* 如果小于等于的话就跳转到bss_loop继续清bss段*/

	/* 设置sp指针 */
	ldr sp,=0X80200000	/* 设置栈指针			 */
	b main				/* 跳转到main函数 		 */

main.c 文件中输入如下所示内容：

main.c

#include "imx6ul.h"
/*
 * @description	: 使能I.MX6U所有外设时钟
 * @param 		: 无
 * @return 		: 无
 */
void clk_enable(void)
{
	CCM->CCGR0 = 0XFFFFFFFF;
	CCM->CCGR1 = 0XFFFFFFFF;
	CCM->CCGR2 = 0XFFFFFFFF;
	CCM->CCGR3 = 0XFFFFFFFF;
	CCM->CCGR4 = 0XFFFFFFFF;
	CCM->CCGR5 = 0XFFFFFFFF;
	CCM->CCGR6 = 0XFFFFFFFF;
}
/*
 * @description	: 初始化LED对应的GPIO
 * @param 		: 无
 * @return 		: 无
 */
void led_init(void)
{
	/* 1、初始化IO复用 */
	IOMUX_SW_MUX->GPIO1_IO03 = 0X5;		/* 复用为GPIO1_IO03 */

	/* 2、配置GPIO1_IO03的IO属性
	 *bit 16:0 HYS关闭
	 *bit [15:14]: 00 默认下拉
     *bit [13]: 0 kepper功能
     *bit [12]: 1 pull/keeper使能
     *bit [11]: 0 关闭开路输出
     *bit [7:6]: 10 速度100Mhz
     *bit [5:3]: 110 R0/6驱动能力
     *bit [0]: 0 低转换率
     */
    IOMUX_SW_PAD->GPIO1_IO03 = 0X10B0;

	/* 3、初始化GPIO */
	GPIO1->GDIR = 0X0000008;	/* GPIO1_IO03设置为输出 */

	/* 4、设置GPIO1_IO03输出低电平，打开LED0 */
	GPIO1->DR &= ~(1 << 3);

}

/*
 * @description	: 打开LED灯
 * @param 		: 无
 * @return 		: 无
 */
void led_on(void)
{
	/* 将GPIO1_DR的bit3清零 	*/
	GPIO1->DR &= ~(1<<3);
}

/*
 * @description	: 关闭LED灯
 * @param 		: 无
 * @return 		: 无
 */
void led_off(void)
{
	/* 将GPIO1_DR的bit3置1 */
	GPIO1->DR |= (1<<3);
}

/*
 * @description	: 短时间延时函数
 * @param - n	: 要延时循环次数(空操作循环次数，模式延时)
 * @return 		: 无
 */
void delay_short(volatile unsigned int n)
{
	while(n--){}
}

/*
 * @description	: 延时函数,在396Mhz的主频下
 * 			  	  延时时间大约为1ms
 * @param - n	: 要延时的ms数
 * @return 		: 无
 */
void delay(volatile unsigned int n)
{
	while(n--)
	{
		delay_short(0x7ff);
	}
}

/*
 * @description	: mian函数
 * @param 		: 无
 * @return 		: 无
 */
int main(void)
{
	clk_enable();		/* 使能所有的时钟 			*/
	led_init();			/* 初始化led 			*/

	while(1)			/* 死循环 				*/
	{
		led_off();		/* 关闭LED 			*/
		delay(500);		/* 延时500ms 			*/

		led_on();		/* 打开LED 			*/
		delay(500);		/* 延时500ms 			*/
	}

	return 0;
}
main.c 中 7 个函数，这 7 个函数的含义和上一章节中的 main.c 文件一样，只是函数体写法变
了，寄存器的访问采用 imx6ul.h 中定义的外设指针。比如第 27 行设置 GPIO1_IO03 的复用功能
就可以通过“ IOMUX_SW_MUX->GPIO1_IO03 ”来给寄存 SW_MUX_CTL_PAD_GPIO1_IO03
赋值。

Makefile和链接脚本这两个都是和上一章节一样

Makefile

objs := start.o main.o

ledc.bin:$(objs)
	arm-linux-gnueabihf-ld -Timx6ul.lds -o ledc.elf $^
	arm-linux-gnueabihf-objcopy -O binary -S ledc.elf $@
	arm-linux-gnueabihf-objdump -D -m arm ledc.elf > ledc.dis

%.o:%.s
	arm-linux-gnueabihf-gcc -Wall -nostdlib -c -O2 -o $@ $<

%.o:%.S
	arm-linux-gnueabihf-gcc -Wall -nostdlib -c -O2 -o $@ $<

%.o:%.c
	arm-linux-gnueabihf-gcc -Wall -nostdlib -c -O2 -o $@ $<

clean:
	rm -rf *.o ledc.bin ledc.elf ledc.dis

链接脚本imx6ul.lds

SECTIONS{
	. = 0X87800000;
	.text :
	{
		start.o
		*(.text)
	}
	.rodata ALIGN(4) : {*(.rodata*)}
	.data ALIGN(4)   : { *(.data) }
	__bss_start = .;
	.bss ALIGN(4)  : { *(.bss)  *(COMMON) }
	__bss_end = .;
}

评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包

打赏作者

rrrrr木生于

你的鼓励将是我创作的最大动力

¥1 ¥2 ¥4 ¥6 ¥10 ¥20
扫码支付：¥1
获取中
扫码支付

您的余额不足，请更换扫码支付或充值

打赏作者

实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
