银行家算法 C/C++ 实现：基本版 & 增强版（自动生成处理日志）

Watching~

📌 概述

本项目实现了 银行家算法，用于处理多个进程对有限资源的请求，并根据 安全性分析 进行决策：

• demo.cpp（基本版）： 实现 单个进程资源请求，并在终端输出决策反馈结果。
• demoPlus.cpp（增强版）： 支持 批量化进程请求，并增加 日志记录，将资源分配过程输出至 log.txt。

---

📌 银行家算法介绍

银行家算法（Banker’s Algorithm） 是一种 避免死锁的资源分配算法，用于管理多个进程对有限资源的请求，以确保系统始终保持 安全状态。其基本流程如下：

1. 读取资源分配情况（config.txt 或 configPlus.txt）。
2. 每个进程请求资源：
   • 检查请求是否合法（不能超过 max 或当前 available）。
   • 临时分配资源，然后运行 安全性检查（isSafe()）。
   • 如果系统安全，则正式分配资源；否则回滚请求。
3. 如果进程满足 max，释放该进程的资源，并更新 available 状态。

---

📌 代码功能对比

功能	demo.cpp	demoPlus.cpp
读取 config.txt 初始化进程资源	✅	✅
单次资源请求	✅	✅
批量资源请求序列	❌	✅
日志记录 (log.txt)	❌	✅
资源安全性检查 (isSafe())	✅	✅
请求失败处理（超出 max 或不安全）	✅	✅
满足最大需求时释放资源	❌	✅
完整输出 max / allocation / need / available	❌	✅

---

📌 代码实现逻辑

1️⃣ 读取资源配置文件

代码首先 从 config.txt 或 configPlus.txt 读取初始资源分配情况：

• numProcesses & numResources 记录 进程数 和 资源类别数。
• available 记录 当前可用资源。
• maximum 记录 每个进程最大资源需求。
• allocation 记录 当前已分配的资源。
• need = max - allocation 计算 每个进程还需要多少资源。

2️⃣ 资源请求处理

每次进程请求资源时：

1. 检查请求是否合法：
   • 不能超过 need（进程最大需求）。
   • 不能超过 available（当前系统可用资源）。
2. 临时分配资源：
   • 先 尝试分配资源，然后运行 安全性检查。
   • 如果系统 仍然处于安全状态，则正式分配资源；
   • 否则 回滚请求，拒绝分配。

3️⃣ 安全性检查（isSafe()）

银行家算法的核心是 安全性检查：

• 创建一个 临时 work 数组，模拟资源分配情况。
• 遍历所有进程，如果某个进程的 need 小于 work，说明它可以顺利执行：
  • 该进程执行后 释放资源，更新 work。
  • 标记为 完成（finish[i] = true）。
• 如果所有进程都能成功执行，说明系统 处于安全状态，否则回滚分配。

4️⃣ 资源释放

如果某进程的 need == 0（即已满足所有最大需求）：

• 释放该进程的所有资源。
• 更新 available，使其他进程可以使用这些资源。

---

📌 核心代码实现

核心代码1

/*
* Filename: demo.cpp
* Created: 2025-05-02
* Description: Implementation of Bankers' Algorithm
* 工作流程的详细陈述:
    1. 读取文件 config.txt 进行进程、资源信息的初始化工作
    2. 可以针对某一进程请求，根据当前系统资源的分配情况，来进行是否分配的决策，并进行一次执行
    3. 同时，可以将决策相关的反馈信息打印输出至终端
*/
#include <iostream>
#include <fstream>
#include <vector>
#include <sstream>

using namespace std;

class BankersAlgorithm {
    int numProcesses, numResources;
    vector<int> available;
    vector<vector<int>> maximum;
    vector<vector<int>> allocation;
    vector<vector<int>> need;
    vector<int> processIDs;

public:
    void readData(const string& filename) {
        ifstream file(filename);
        if (!file) {
            cerr << "Error opening configuration file!!!" << endl;
            return;
        }

        string line = "";
        bool isReadingForTheFirstLine = true;   // 获取首行信息的标记
        while (getline(file, line)) {
            if (line.empty() || line[0] == '#') // 跳过空行、注释
                continue;

            stringstream ss(line);

            int processID;
            char separator;

            if (isReadingForTheFirstLine)   // 获取首行信息
            {
                string numProcessesStr, numResourcesStr;
                getline(ss, numProcessesStr, '|');
                getline(ss, numResourcesStr, '|');
                stringstream numProcessesStream(numProcessesStr);
                stringstream numResourcesStream(numResourcesStr);
                numProcessesStream >> numProcesses;
                numResourcesStream >> numResources;

                string availableStr;
                getline(ss, availableStr, '|');
                stringstream availStream(availableStr);
                int value;
                for (int i = 0; i < numResources; i ++)
                {
                    availStream >> value;
                    available.push_back(value);
                }
                isReadingForTheFirstLine = false;
                continue;
            }

            string processIDValue;                  // 读取 processID
            getline(ss, processIDValue, '|');
            processID = stoi(processIDValue);
            processIDs.push_back(processID);

            vector<int> maxValues, allocValues, needValues;
            int value;

            string maxStr;                          // 读取 max
            getline(ss, maxStr, '|');
            stringstream maxStream(maxStr);
            for (int i = 0; i < numResources; i++) {
                maxStream >> value;
                maxValues.push_back(value);
            }

            string allocStr;                        // 读取 allocation
            getline(ss, allocStr, '|');
            stringstream allocStream(allocStr);
            for (int i = 0; i < numResources; i++) {
                allocStream >> value;
                allocValues.push_back(value);
            }

            maximum.push_back(maxValues);
            allocation.push_back(allocValues);

            for (int i = 0; i < numResources; i ++)
                needValues.push_back(maxValues[i] - allocValues[i]);
            need.push_back(needValues);

        }

        file.close();
    }

    void setAvailableResources(vector<int> avail) {
        available = avail;
    }

    bool isSafe() {
        vector<int> work = available;
        vector<bool> finish(processIDs.size(), false);
        vector<int> safeSeq;

        int count = 0;
        while (count < processIDs.size()) {
            bool found = false;     // 标记本轮扫描是否存在可分配项，若没有，则说明进入了不安全状态
            for (int i = 0; i < processIDs.size(); i++) {
                if (!finish[i]) {                       // 遍历进程表项中的未完进程
                    bool possible = true;
                    for (int j = 0; j < numResources; j++)
                        if (need[i][j] > work[j]) {
                            possible = false;
                            break;
                        }

                    if (possible) {
                        for (int j = 0; j < numResources; j++)
                            work[j] += allocation[i][j];
                        safeSeq.push_back(processIDs[i]);
                        finish[i] = true;
                        found = true;
                        count++;
                    }
                }
            }
            if (!found) return false;
        }

        cout << "Safe Sequence: ";
        for (int i : safeSeq) cout << "p"<< i << " ";
        cout << endl;
        return true;
    }

    bool requestResource(int processID, vector<int> request) {
        int index = -1;
        for (int i = 0; i < processIDs.size(); i++) {
            if (processIDs[i] == processID) {
                index = i;
                break;
            }
        }

        if (index == -1) {
            printf("Process %d is not existing!!!\n", processID);
            return false;
        }

        for (int i = 0; i < numResources; i++) {
            if (request[i] > need[index][i]) {
                printf("Error: The request exceeds the process's maximum demand!!!\n");
                return false;
            }
            if (request[i] > available[i])
            {
                printf("Error: The request exceeds the currently available system resources!!!\n");
                return false;
            }
        }

        for (int i = 0; i < numResources; i++) {    // 预分配
            available[i] -= request[i];
            allocation[index][i] += request[i];
            need[index][i] -= request[i];
        }

        if (!isSafe()) {
            for (int i = 0; i < numResources; i++) {
                available[i] += request[i];
                allocation[index][i] -= request[i];
                need[index][i] += request[i];
            }
            printf("Hint: The request has led to an unsafe system and has been rolled back >_<\n");
            return false;
        }

        cout << "Fine: The request was successfully granted ^_^\n";
        return true;
    }
};

int main() {
    BankersAlgorithm bank;
    bank.readData("C:/Users/lenovo/Desktop/Code for CCCC/OS_lab/lab02/config.txt");

    // prcess 1 request rescource
    vector<int> request = {1, 0, 2};
    int processID = 1;
    bank.requestResource(processID, request);

    system("pause");
    return 0;
}

核心代码2

/*
* Filename: demoPlus.cpp
* Created: 2025-05-02
* Description: Implementation of Bankers' Algorithm(Plus)
* 工作流程的详细陈述:
    1. 读取文件 configPlus.txt 进行进程、资源信息的初始化工作
    2. 可以针对一系列的进程请求序列，根据当前系统资源的分配情况，来进行是否分配的决策，并执行（连续批量化处理）
    3. 执行同时会生成相关的日志信息至文件 log.txt
*/
#include <iostream>
#include <fstream>
#include <vector>
#include <sstream>

using namespace std;

class BankersAlgorithm {
    int numProcesses, numResources;
    vector<int> available;
    vector<vector<int>> maximum;
    vector<vector<int>> allocation;
    vector<vector<int>> need;
    vector<int> processIDs;
    ofstream logFile;  // 日志文件对象

public:
    BankersAlgorithm() {
        logFile.open("C:/Users/lenovo/Desktop/Code for CCCC/OS_lab/lab02/log.txt", ios::out);  // 创建日志文件
        if (!logFile) {
            cerr << "Error creating log file!" << endl;
            exit(1);
        }
        log("Banker's Algorithm Execution Started\n");
    }

    ~BankersAlgorithm() {
        logFile.close();  // 关闭日志文件
    }

    void log(const string &message) {
        logFile << message << endl;
        cout << message << endl; // 控制台同时输出
    }

    void readData(const string& filename) {
        ifstream file(filename);
        if (!file) {
            cerr << "Error opening configuration file!!!" << endl;
            exit(1);
        }

        string line = "";
        bool isReadingForTheFirstLine = true;
        log("Reading configuration from file...");

        while (getline(file, line)) {
            if (line.empty() || line[0] == '#') continue;

            stringstream ss(line);

            if (isReadingForTheFirstLine) {
                string numProcessesStr, numResourcesStr;
                getline(ss, numProcessesStr, '|');
                getline(ss, numResourcesStr, '|');
                stringstream numProcessesStream(numProcessesStr);
                stringstream numResourcesStream(numResourcesStr);
                numProcessesStream >> numProcesses;
                numResourcesStream >> numResources;

                string availableStr;
                getline(ss, availableStr, '|');
                stringstream availStream(availableStr);
                int value;
                for (int i = 0; i < numResources; i++) {
                    availStream >> value;
                    available.push_back(value);
                }
                isReadingForTheFirstLine = false;
                continue;
            }

            string processIDValue;
            getline(ss, processIDValue, '|');
            int processID = stoi(processIDValue);
            processIDs.push_back(processID);

            vector<int> maxValues, allocValues, needValues;
            int value;

            string maxStr;
            getline(ss, maxStr, '|');
            stringstream maxStream(maxStr);
            for (int i = 0; i < numResources; i++) {
                maxStream >> value;
                maxValues.push_back(value);
            }

            string allocStr;
            getline(ss, allocStr, '|');
            stringstream allocStream(allocStr);
            for (int i = 0; i < numResources; i++) {
                allocStream >> value;
                allocValues.push_back(value);
            }

            maximum.push_back(maxValues);
            allocation.push_back(allocValues);

            for (int i = 0; i < numResources; i++)
                needValues.push_back(maxValues[i] - allocValues[i]);

            need.push_back(needValues);
        }

        log("Configuration loaded successfully.");
        printAllocationState(); // 记录初始资源分配情况
        file.close();
    }

    void printAllocationState() {
        log("\nCurrent Resource Allocation:");
        for (int i = 0; i < numProcesses; i++) {
            string maxStr = "Process " + to_string(processIDs[i]) + " - Max: [";
            string allocatedStr = " - Allocated: [";
            string needStr = " - Need: [";

            for (int j = 0; j < numResources; j++) {
                maxStr += to_string(maximum[i][j]);
                allocatedStr += to_string(allocation[i][j]);
                needStr += to_string(need[i][j]);

                if (j < numResources - 1) { // 添加空格分隔
                    maxStr += " ";
                    allocatedStr += " ";
                    needStr += " ";
                }
            }

            maxStr += "]";
            allocatedStr += "]";
            needStr += "]";
            log(maxStr + allocatedStr + needStr); // 一行日志，包含 max、allocation、need
        }

        log("\nAvailable Resources:");
        string availableStr = "[";
        for (int j = 0; j < numResources; j++) {
            availableStr += to_string(available[j]);
            if (j < numResources - 1) availableStr += " ";
        }
        availableStr += "]";
        log(availableStr);
        log("----------------------------");
    }



    bool isSafe() {
        vector<int> work = available;
        vector<bool> finish(processIDs.size(), false);
        vector<int> safeSeq;

        int count = 0;
        while (count < processIDs.size()) {
            bool found = false;
            for (int i = 0; i < processIDs.size(); i++) {
                if (!finish[i]) {
                    bool possible = true;
                    for (int j = 0; j < numResources; j++)
                        if (need[i][j] > work[j]) {
                            possible = false;
                            break;
                        }

                    if (possible) {
                        for (int j = 0; j < numResources; j++)
                            work[j] += allocation[i][j];
                        safeSeq.push_back(processIDs[i]);
                        finish[i] = true;
                        found = true;
                        count++;
                    }
                }
            }
            if (!found) return false;
        }

        log("Safe sequence found: ");
        for (int i : safeSeq) log("p" + to_string(i) + " ");
        return true;
    }

    bool requestResource(int processID, vector<int> request) {
        log("\nProcess " + to_string(processID) + " requests resources: [" +
            to_string(request[0]) + " " + to_string(request[1]) + " " + to_string(request[2]) + "]");

        int index = -1;
        for (int i = 0; i < processIDs.size(); i++) {
            if (processIDs[i] == processID) {
                index = i;
                break;
            }
        }

        if (index == -1) {
            log("Error: Process " + to_string(processID) + " does not exist!");
            log("----------------------------");
            return false;
        }

        for (int i = 0; i < numResources; i++) {
            if (request[i] > need[index][i]) {
                log("Error: The request exceeds the process's maximum demand!");
                log("----------------------------");
                return false;
            }
            if (request[i] > available[i]) {
                log("Error: The request exceeds the currently available system resources!");
                log("----------------------------");
                return false;
            }
        }

        for (int i = 0; i < numResources; i++) {
            available[i] -= request[i];
            allocation[index][i] += request[i];
            need[index][i] -= request[i];
        }

        if (!isSafe()) {
            for (int i = 0; i < numResources; i++) {
                available[i] += request[i];
                allocation[index][i] -= request[i];
                need[index][i] += request[i];
            }
            log("Hint: The request has led to an unsafe system and has been rolled back.");
            log("----------------------------");
            return false;
        }

        log("Success: The request was granted.");
        // 测试此次分配是否已经满足此次请求资源进程所需的最大需求
        int cnt = 0;
        for (int i = 0; i < numResources; i ++)
            cnt += need[index][i];
        if (cnt == 0)  // 该进程释放所有资源
        {
            for (int i = 0; i < numResources; i ++)
                available[i] += allocation[index][i];
            for (int i = 0; i < numResources; i ++)
                need[index][i] = 0, allocation[index][i] = 0;
            log("Congratulation: this granted request can satisfy all max resources of  this process.");
            log("The allocated resources to this process have been released!!!");
        }

        printAllocationState();
        return true;
    }
};

int main() {
    BankersAlgorithm bank;
    bank.readData("C:/Users/lenovo/Desktop/Code for CCCC/OS_lab/lab02/configPlus.txt");

    vector<vector<int>> requestSequence = {
        {1, 0, 2, 2},  // ✅ 安全，成功分配
        {0, 1, 4, 1},  // ❌ 超出系统资源数，拒绝
        {2, 3, 2, 0},  // ❌ 超出最大需求，拒绝
        {0, 7, 3, 3},  // ✅ 安全，成功分配
        {4, 1, 0, 0},  // ❌ processID 不存在，拒绝
        {1, 1, 0, 0},  // ✅ 安全，成功分配，达到 max, 并成功释放资源
    };


    for (const auto& request : requestSequence) {
        int processID = request[0];
        vector<int> resourceRequest = {request[1], request[2], request[3]};
        bank.requestResource(processID, resourceRequest);
    }

    system("pause");
    return 0;
}

---

配置文件

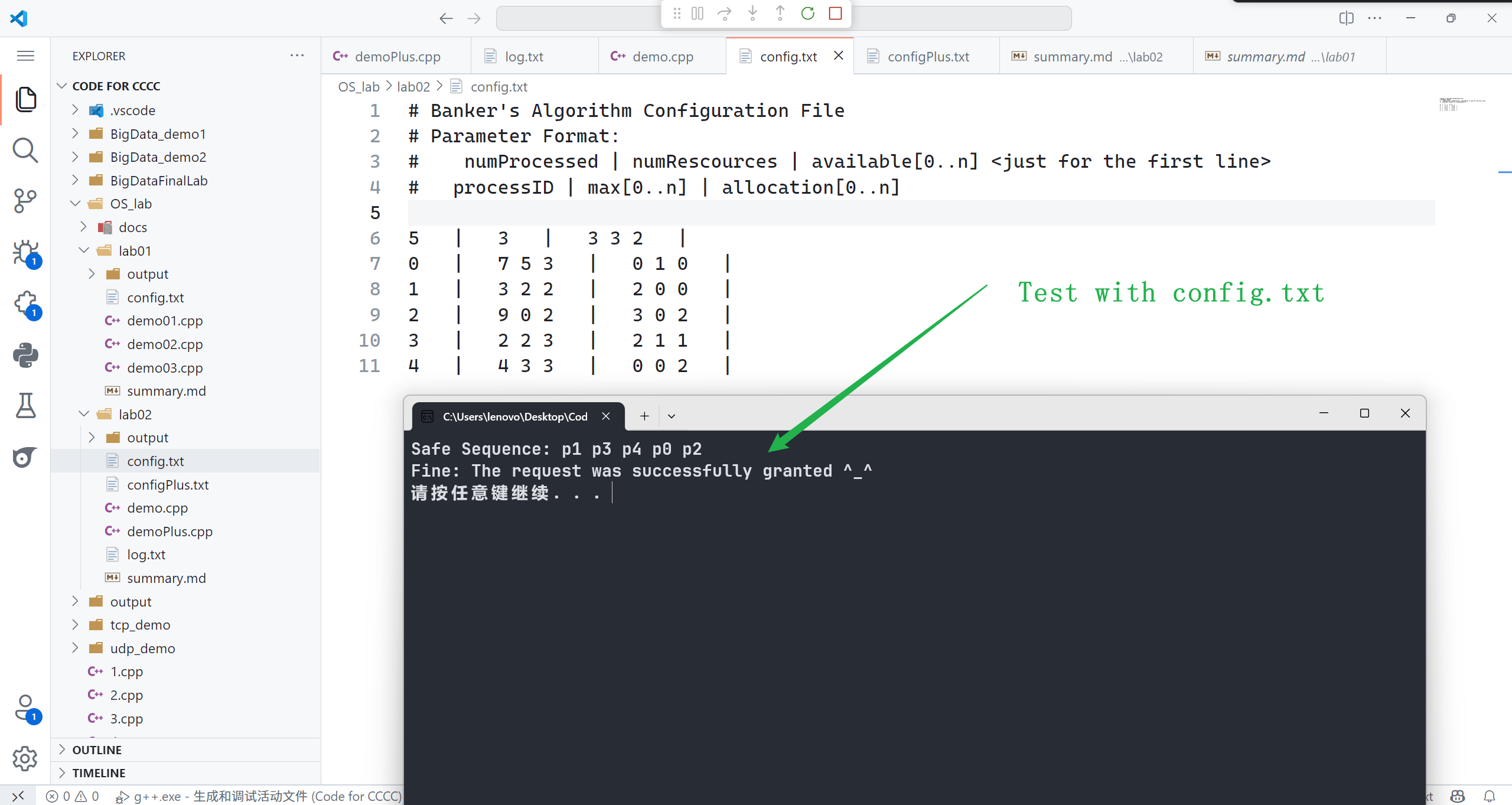

config.txt

# Banker's Algorithm Configuration File
# Parameter Format:
#    numProcessed | numRescources | available[0..n] <just for the first line>
#   processID | max[0..n] | allocation[0..n]

5   |   3   |   3 3 2   |
0   |   7 5 3   |   0 1 0   |
1   |   3 2 2   |   2 0 0   |
2   |   9 0 2   |   3 0 2   |
3   |   2 2 3   |   2 1 1   |
4   |   4 3 3   |   0 0 2   |

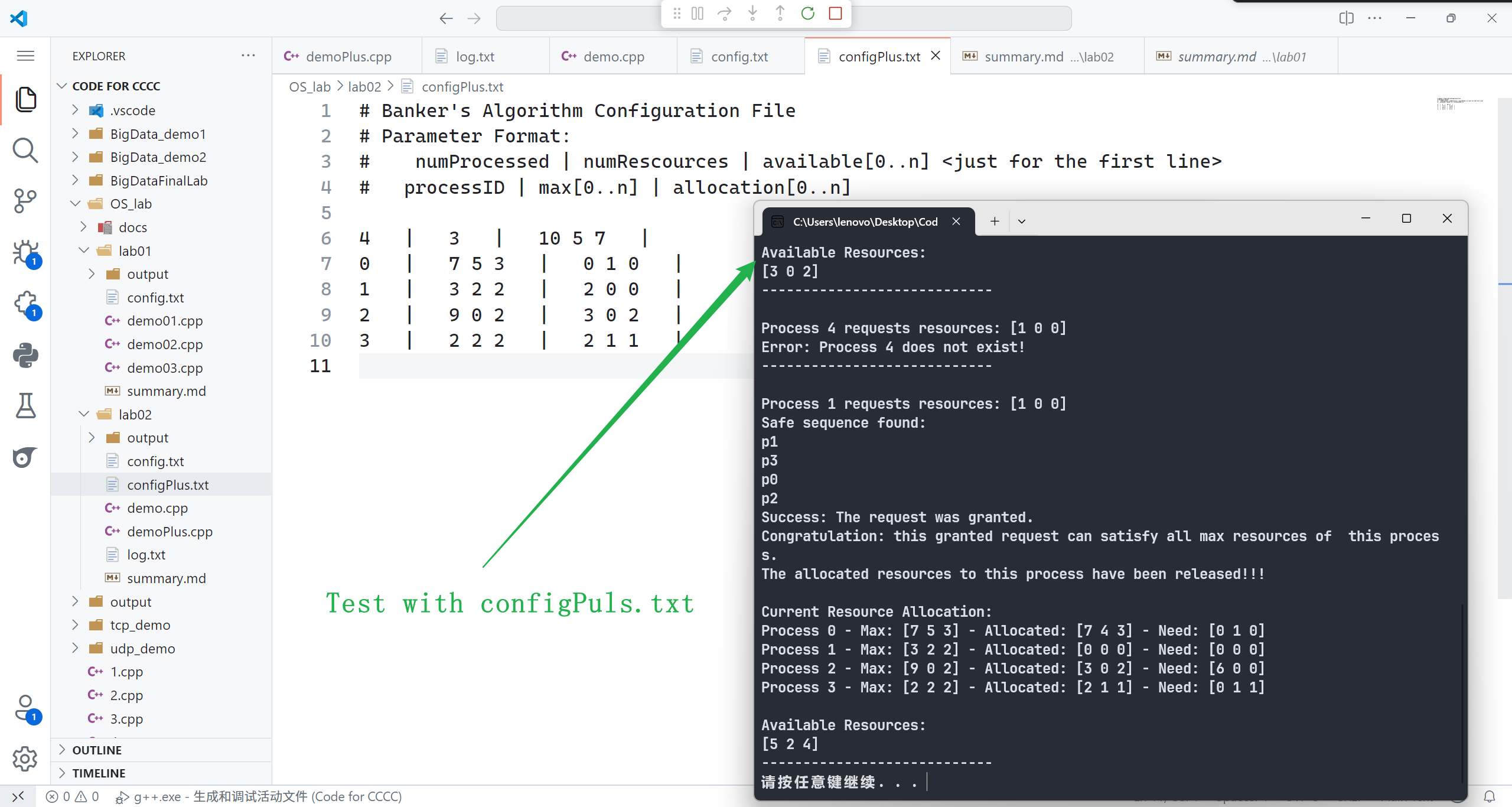

configPlus.txt

# Banker's Algorithm Configuration File
# Parameter Format:
#    numProcessed | numRescources | available[0..n] <just for the first line>
#   processID | max[0..n] | allocation[0..n]

4   |   3   |   10 5 7   |
0   |   7 5 3   |   0 1 0   |
1   |   3 2 2   |   2 0 0   |
2   |   9 0 2   |   3 0 2   |
3   |   2 2 2   |   2 1 1   |

调试测试

日志文件输出（log.txt）

Banker's Algorithm Execution Started

Reading configuration from file...
Configuration loaded successfully.

Current Resource Allocation:
Process 0 - Max: [7 5 3] - Allocated: [0 1 0] - Need: [7 4 3]
Process 1 - Max: [3 2 2] - Allocated: [2 0 0] - Need: [1 2 2]
Process 2 - Max: [9 0 2] - Allocated: [3 0 2] - Need: [6 0 0]
Process 3 - Max: [2 2 2] - Allocated: [2 1 1] - Need: [0 1 1]

Available Resources:
[10 5 7]
----------------------------

Process 1 requests resources: [0 2 2]
Safe sequence found:
p1
p2
p3
p0
Success: The request was granted.

Current Resource Allocation:
Process 0 - Max: [7 5 3] - Allocated: [0 1 0] - Need: [7 4 3]
Process 1 - Max: [3 2 2] - Allocated: [2 2 2] - Need: [1 0 0]
Process 2 - Max: [9 0 2] - Allocated: [3 0 2] - Need: [6 0 0]
Process 3 - Max: [2 2 2] - Allocated: [2 1 1] - Need: [0 1 1]

Available Resources:
[10 3 5]
----------------------------

Process 0 requests resources: [1 4 1]
Error: The request exceeds the currently available system resources!
----------------------------

Process 2 requests resources: [3 2 0]
Error: The request exceeds the process's maximum demand!
----------------------------

Process 0 requests resources: [7 3 3]
Safe sequence found:
p1
p3
p0
p2
Success: The request was granted.

Current Resource Allocation:
Process 0 - Max: [7 5 3] - Allocated: [7 4 3] - Need: [0 1 0]
Process 1 - Max: [3 2 2] - Allocated: [2 2 2] - Need: [1 0 0]
Process 2 - Max: [9 0 2] - Allocated: [3 0 2] - Need: [6 0 0]
Process 3 - Max: [2 2 2] - Allocated: [2 1 1] - Need: [0 1 1]

Available Resources:
[3 0 2]
----------------------------

Process 4 requests resources: [1 0 0]
Error: Process 4 does not exist!
----------------------------

Process 1 requests resources: [1 0 0]
Safe sequence found:
p1
p3
p0
p2
Success: The request was granted.
Congratulation: this granted request can satisfy all max resources of  this process.
The allocated resources to this process have been released!!!

Current Resource Allocation:
Process 0 - Max: [7 5 3] - Allocated: [7 4 3] - Need: [0 1 0]
Process 1 - Max: [3 2 2] - Allocated: [0 0 0] - Need: [0 0 0]
Process 2 - Max: [9 0 2] - Allocated: [3 0 2] - Need: [6 0 0]
Process 3 - Max: [2 2 2] - Allocated: [2 1 1] - Need: [0 1 1]

Available Resources:
[5 2 4]
----------------------------
