如何在vs里用clipper库

1.先下载clipper安装包

Clipper download | SourceForge.net

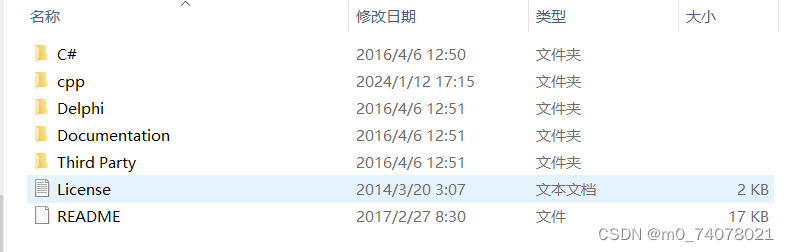

2.解压，里面有如下文件，我用的c++

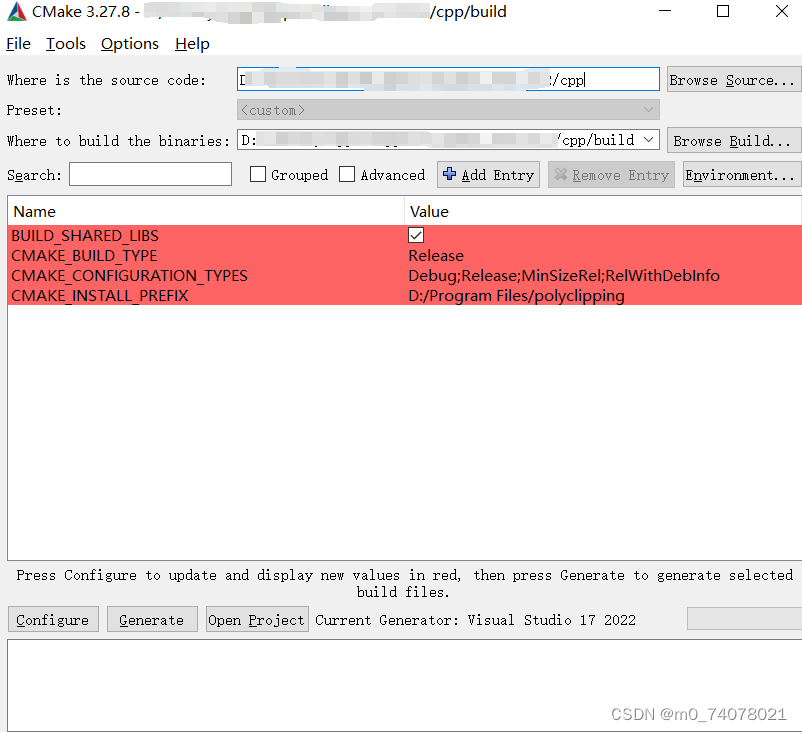

3.cmake配置

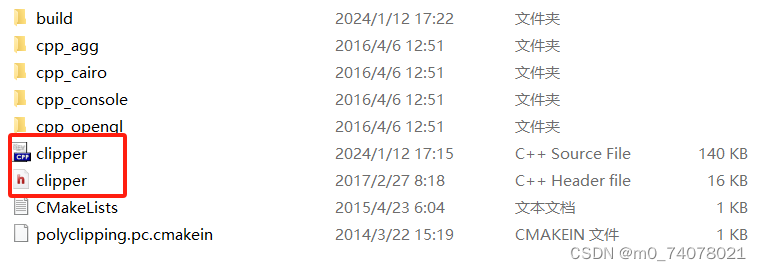

3.1在cpp里新建一个build文件

3.2 cmake一下

configure->generate

4.创建一个新的vs项目

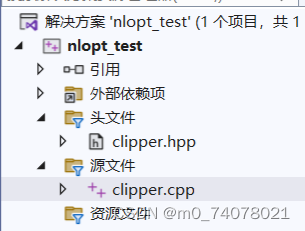

4.1 把cpp文件下的.h和.cpp文件添加到项目中

4.2 运行一下，显然报错了

4.3 在.cpp文件里加入main函数（以下代码）

来源：https://github.com/j0uni/clipper/blob/master/example.cpp

using namespace ClipperLib;

Paths subj;
Paths clip;
Paths solution;

void addPoint(int x, int y, Path *path)
{
    IntPoint ip;
    ip.X = x;
    ip.Y = y;
    path->push_back(ip);
}

int main()
{
    Paths subj;

    Path p;
    addPoint(100,100, &p);
    addPoint(200,100, &p);
    addPoint(200,200, &p);
    addPoint(100,200, &p);
    subj.push_back(p);

    Path p2;
    addPoint(150,50, &p2);
    addPoint(175,50, &p2);
    addPoint(175,250, &p2);
    addPoint(150,250, &p2);
    clip.push_back(p2);

    Clipper c;

    c.AddPaths(subj, ptSubject, true);
    c.AddPaths(clip, ptClip, true);
    c.Execute(ctIntersection, solution, pftNonZero, pftNonZero);

    printf("solution size = %d\n",(int)solution.size());
    for (unsigned i=0; i<solution.size(); i++)
    {
        Path p3 = solution.at(i);

        for (unsigned j=0; j<p3.size(); j++)
        {
            IntPoint ip = p3.at(j);
            printf("%d = %lld, %lld\n",j, ip.X,ip.Y);
        }

    }

    return 0;
}

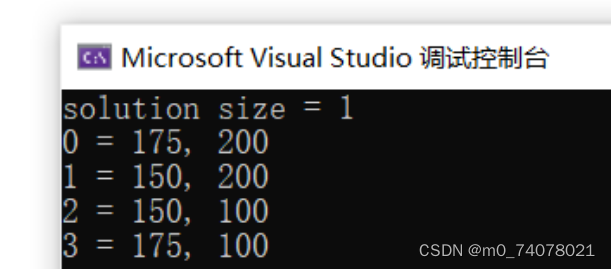

运行结果：

以上，配置完成
