概括

Cpu控制外设以及读写数据，核心是通过指令对内存/端口的访问来实现的。

1. 在真实的硬件设备上，Cpu通过执行指令时访问内存/端口，这是，有一个硬件设备（）将指令进行译码、并通过总线将控制字\数据发送到相应的外设寄存器中，进而实现cpu对外设的控制。

2. nemu控制外设的原理也是如此，但要注意的是，nemu在对外设寄存器进行读取时是对真实硬件的抽象，此时还未实现总线。抽象核心如下：

nemu采用内存映射的方式将外设的地址空间映射到pmem，同时，程序会在初始化外设时会为外设开辟一个大小为2*1024*1024的空间（space），每当添加一个新的外设时，会按照分页管理机制在space为该设备分配一个n*page大小的地址空间，同时为了满足在访问pmem时可以映射到space的要求，会使用结构体数组maps[i]将该设备的name、left、right、&space存放在该数组中（left与right是提前在pmem中划分好的外设地址空间）。至此，当cpu对外设进行操作时，首先cpu会访问pmem，然后根据在pmem中划分的外设空间的偏移进而访问space空间。

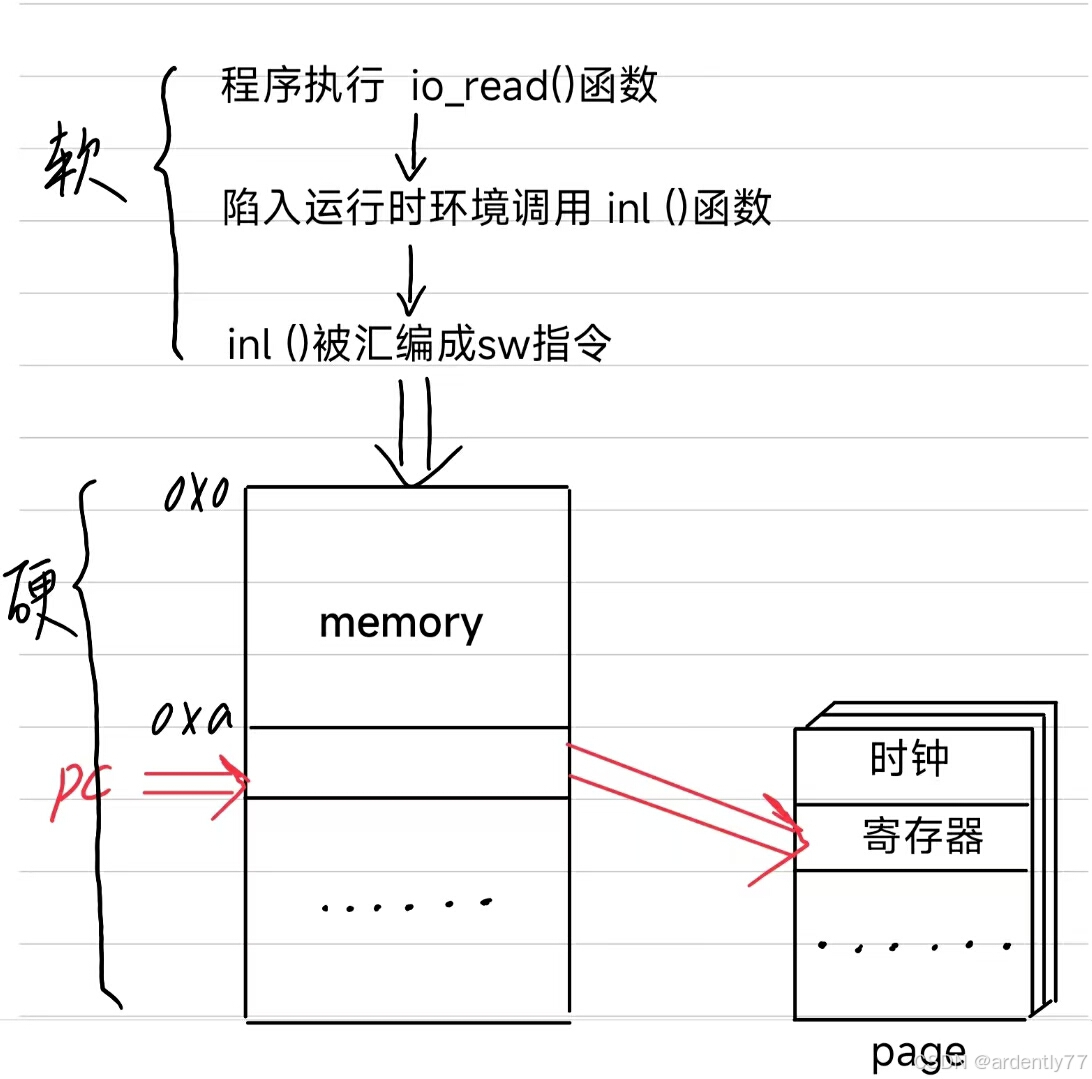

内存映射：

3. 对设备寄存器的抽象：

定义寄存器：

#define AM_DEVREG(id, reg, perm, ...) \
  enum { AM_##reg = (id) }; \
  typedef struct { __VA_ARGS__; } AM_##reg##_T;

AM_DEVREG( 1, UART_CONFIG,  RD, bool present);
AM_DEVREG( 2, UART_TX,      WR, char data);
AM_DEVREG( 3, UART_RX,      RD, char data);
......

读写寄存器，在我看来，inl()\outl()相当于是一个桥梁，软件层面在使用io_read/io_write操作外设寄存器时，最终会调用inl()\outl(),inl()\outl()在汇编后会被会变成load\store指令，这样cpu会访问pmem，接下来过程与上述一致。

#define io_read(reg) \
  ({ reg##_T __io_param; \
    ioe_read(reg, &__io_param); \
    __io_param; })

#define io_write(reg, ...) \
  ({ reg##_T __io_param = (reg##_T) { __VA_ARGS__ }; \
    ioe_write(reg, &__io_param); })


void __am_input_keybrd(AM_INPUT_KEYBRD_T *);
void __am_timer_rtc(AM_TIMER_RTC_T *);
......

typedef void (*handler_t)(void *buf);
static void *lut[128] = {
  [AM_TIMER_CONFIG] = __am_timer_config,
  [AM_TIMER_RTC   ] = __am_timer_rtc,
  [AM_TIMER_UPTIME] = __am_timer_uptime,
  ......
};

void ioe_read (int reg, void *buf) { ((handler_t)lut[reg])(buf); }
void ioe_write(int reg, void *buf) { ((handler_t)lut[reg])(buf); }

设备的实现

准备

定义pmem中设备的起始地址，操作寄存器最终是对这些地址的读写：

#define SERIAL_PORT     (DEVICE_BASE + 0x00003f8)
#define KBD_ADDR        (DEVICE_BASE + 0x0000060)
#define RTC_ADDR        (DEVICE_BASE + 0x0000048)
#define VGACTL_ADDR     (DEVICE_BASE + 0x0000100)
#define AUDIO_ADDR      (DEVICE_BASE + 0x0000200)
#define DISK_ADDR       (DEVICE_BASE + 0x0000300)
#define FB_ADDR         (MMIO_BASE   + 0x1000000)
#define AUDIO_SBUF_ADDR (MMIO_BASE   + 0x1200000)

准备寄存器：

AM_DEVREG( 1, UART_CONFIG,  RD, bool present);
AM_DEVREG( 2, UART_TX,      WR, char data);
AM_DEVREG( 3, UART_RX,      RD, char data);
AM_DEVREG( 4, TIMER_CONFIG, RD, bool present, has_rtc);
AM_DEVREG( 5, TIMER_RTC,    RD, int year, month, day, hour, minute, second);
AM_DEVREG( 6, TIMER_UPTIME, RD, uint64_t us);
AM_DEVREG( 7, INPUT_CONFIG, RD, bool present);
AM_DEVREG( 8, INPUT_KEYBRD, RD, bool keydown; int keycode);
AM_DEVREG( 9, GPU_CONFIG,   RD, bool present, has_accel; int width, height, vmemsz);
AM_DEVREG(10, GPU_STATUS,   RD, bool ready);
AM_DEVREG(11, GPU_FBDRAW,   WR, int x, y; void *pixels; int w, h; bool sync);
AM_DEVREG(12, GPU_MEMCPY,   WR, uint32_t dest; void *src; int size);
AM_DEVREG(13, GPU_RENDER,   WR, uint32_t root);
AM_DEVREG(14, AUDIO_CONFIG, RD, bool present; int bufsize);
AM_DEVREG(15, AUDIO_CTRL,   WR, int freq, channels, samples);
AM_DEVREG(16, AUDIO_STATUS, RD, int count);
AM_DEVREG(17, AUDIO_PLAY,   WR, Area buf);
AM_DEVREG(18, DISK_CONFIG,  RD, bool present; int blksz, blkcnt);
AM_DEVREG(19, DISK_STATUS,  RD, bool ready);
AM_DEVREG(20, DISK_BLKIO,   WR, bool write; void *buf; int blkno, blkcnt);
AM_DEVREG(21, NET_CONFIG,   RD, bool present);
AM_DEVREG(22, NET_STATUS,   RD, int rx_len, tx_len);
AM_DEVREG(23, NET_TX,       WR, Area buf);
AM_DEVREG(24, NET_RX,       WR, Area buf);

1.时钟

计时器初始化时会分别注册0x48处长度为8个字节的端口, 以及0xa0000048处长度为8字节的MMIO空间, 它们都会映射到两个32位的RTC寄存器. CPU可以访问这两个寄存器来获得用64位表示的当前时间.

NEMU:

static uint32_t *rtc_port_base = NULL;

static void rtc_io_handler(uint32_t offset, int len, bool is_write) {
  assert(offset == 0 || offset == 4);
  if (!is_write && offset == 4) {
    uint64_t us = get_time();
    rtc_port_base[0] = (uint32_t)us;
    rtc_port_base[1] = us >> 32;
  }
}

void init_timer() {
  rtc_port_base = (uint32_t *)new_space(8);
#ifdef CONFIG_HAS_PORT_IO
  add_pio_map ("rtc", CONFIG_RTC_PORT, rtc_port_base, 8, rtc_io_handler);
#else
  add_mmio_map("rtc", CONFIG_RTC_MMIO, rtc_port_base, 8, rtc_io_handler);
#endif
  IFNDEF(CONFIG_TARGET_AM, add_alarm_handle(timer_intr));
}

AM:

void __am_timer_uptime(AM_TIMER_UPTIME_T *uptime) {

  uint32_t high = inl(RTC_ADDR + 4);
  uint32_t low = inl(RTC_ADDR);

  uint64_t current_time = ((uint64_t)high << 32) | low;
  uptime->us = current_time;

}

这里要注意的是，AM中要先读取高字节的寄存器数据，因为在NEMU中offset==4时才可以将数据写到对应的内存中，这样在读取低字节的寄存器时，数据已经写好了，直接读取即可。

2.键盘

键盘是最基本的输入设备. 一般键盘的工作方式如下: 当按下一个键的时候, 键盘将会发送该键的通码(make code); 当释放一个键的时候, 键盘将会发送该键的断码(break code)。每当用户敲下/释放按键时, 将会把相应的键盘码放入数据寄存器, CPU可以访问数据寄存器, 获得键盘码; 当无按键可获取时, 将会返回AM_KEY_NONE。

NEMU:

#define NEMU_KEYS(f) \
  f(ESCAPE) f(F1) f(F2) f(F3) f(F4) f(F5) f(F6) f(F7) f(F8) f(F9) f(F10) f(F11) f(F12) \
f(GRAVE) f(1) f(2) f(3) f(4) f(5) f(6) f(7) f(8) f(9) f(0) f(MINUS) f(EQUALS) f(BACKSPACE) \
f(TAB) f(Q) f(W) f(E) f(R) f(T) f(Y) f(U) f(I) f(O) f(P) f(LEFTBRACKET) f(RIGHTBRACKET) f(BACKSLASH) \
f(CAPSLOCK) f(A) f(S) f(D) f(F) f(G) f(H) f(J) f(K) f(L) f(SEMICOLON) f(APOSTROPHE) f(RETURN) \
f(LSHIFT) f(Z) f(X) f(C) f(V) f(B) f(N) f(M) f(COMMA) f(PERIOD) f(SLASH) f(RSHIFT) \
f(LCTRL) f(APPLICATION) f(LALT) f(SPACE) f(RALT) f(RCTRL) \
f(UP) f(DOWN) f(LEFT) f(RIGHT) f(INSERT) f(DELETE) f(HOME) f(END) f(PAGEUP) f(PAGEDOWN)

#define NEMU_KEY_NAME(k) NEMU_KEY_ ## k,

enum {
  NEMU_KEY_NONE = 0,
  MAP(NEMU_KEYS, NEMU_KEY_NAME)
};

#define SDL_KEYMAP(k) keymap[SDL_SCANCODE_ ## k] = NEMU_KEY_ ## k;
static uint32_t keymap[256] = {};

static void init_keymap() {
  MAP(NEMU_KEYS, SDL_KEYMAP)
}

#define KEY_QUEUE_LEN 1024
static int key_queue[KEY_QUEUE_LEN] = {};
static int key_f = 0, key_r = 0;

static void key_enqueue(uint32_t am_scancode) {
  key_queue[key_r] = am_scancode;
  key_r = (key_r + 1) % KEY_QUEUE_LEN;
  Assert(key_r != key_f, "key queue overflow!");
}

static uint32_t key_dequeue() {
  uint32_t key = NEMU_KEY_NONE;
  if (key_f != key_r) {
    key = key_queue[key_f];
    key_f = (key_f + 1) % KEY_QUEUE_LEN;
  }
  return key;
}

void send_key(uint8_t scancode, bool is_keydown) {
  if (nemu_state.state == NEMU_RUNNING && keymap[scancode] != NEMU_KEY_NONE) {
    uint32_t am_scancode = keymap[scancode] | (is_keydown ? KEYDOWN_MASK : 0);
    key_enqueue(am_scancode);
  }
}
static void i8042_data_io_handler(uint32_t offset, int len, bool is_write) {
  assert(!is_write);
  assert(offset == 0);
  i8042_data_port_base[0] = key_dequeue();
}

void init_i8042() {
  i8042_data_port_base = (uint32_t *)new_space(4);
  i8042_data_port_base[0] = NEMU_KEY_NONE;
#ifdef CONFIG_HAS_PORT_IO
  add_pio_map ("keyboard", CONFIG_I8042_DATA_PORT, i8042_data_port_base, 4, i8042_data_io_handler);
#else
  add_mmio_map("keyboard", CONFIG_I8042_DATA_MMIO, i8042_data_port_base, 4, i8042_data_io_handler);
#endif
  IFNDEF(CONFIG_TARGET_AM, init_keymap());
}

在每次执行完一条指令后，会进入device_updata()函数，该函数会根据SDL_PollEvent(&event)得到event.type该事件的类型，将通码/断码的值存到k中，设置is_keydown的值。将这两个值传入send_key函数中，通过掩码区分up和down,以通码作为下标，将符号作为值，存入队列中。

AM:

void __am_input_keybrd(AM_INPUT_KEYBRD_T *kbd) {
  uint32_t code = inl(KBD_ADDR);
  if ((code & 0xfffff000) == KEYDOWN_MASK) {
    kbd->keydown = true;
    kbd->keycode = code & 0xffff00ff;
  }
  else {
    kbd->keydown = false;
    kbd->keycode = AM_KEY_NONE;
  }
}

首先通过判断是否有掩码进而判断是up还是down,其次，清除掩码。

3.VGA

一个像素信息占四个字节

RED

GREEN

BLUE

ALPHA

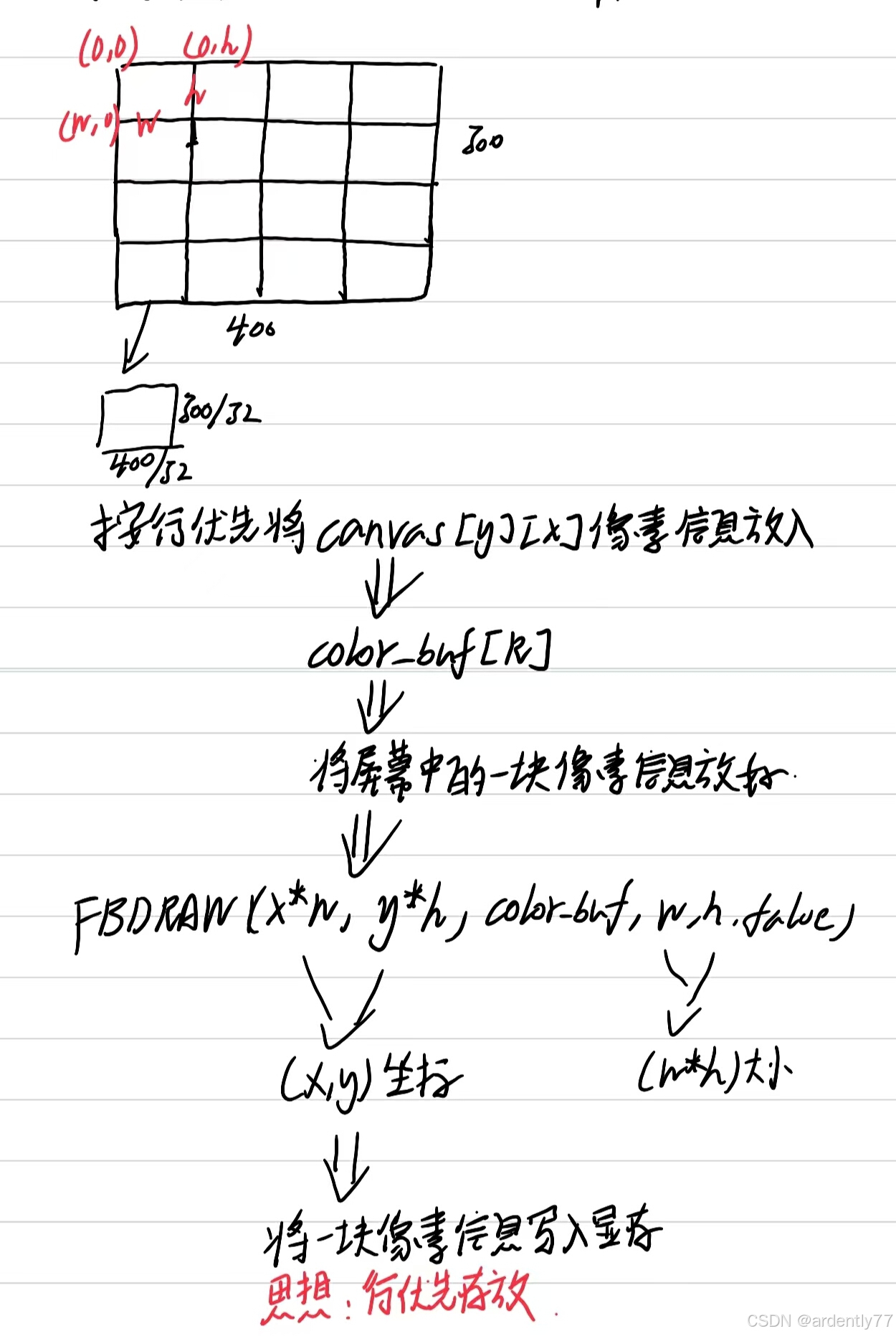

显存大小为400*300个字节

AM:

void __am_gpu_init() {
  // int i;
  // int w = io_read(AM_GPU_CONFIG).width;
  // int h = io_read(AM_GPU_CONFIG).height;
  // uint32_t *fb= (uint32_t *)(uintptr_t)FB_ADDR;
  // for(i = 0; i < w * h; i++) fb[i] = i;
  // outl(SYNC_ADDR,1);
}

void __am_gpu_config(AM_GPU_CONFIG_T *cfg) {
  uint32_t height_and_width = inl(VGACTL_ADDR);
  *cfg = (AM_GPU_CONFIG_T) {
    .present = true, .has_accel = false,
    .width = height_and_width >> 16, .height = height_and_width & 0x0000FFFF,
    .vmemsz = 300 * 400 * 4
  };
}

void __am_gpu_fbdraw(AM_GPU_FBDRAW_T *ctl) {
  int x = ctl->x;
  int y = ctl->y;
  int w = ctl->w;
  int h = ctl->h;
  int screen_width = io_read(AM_GPU_CONFIG).width;
  uint32_t *fb = (uint32_t *)(uintptr_t)FB_ADDR;
  uint32_t *pixel_data = (uint32_t *)ctl->pixels;

  for (int j = 0; j < h; j++) {
    for (int i = 0; i < w; i++) {
      fb[(y + j) * screen_width + (x + i)] = pixel_data[j * w + i];
    }
  }

  if (ctl->sync) {
    outl(SYNC_ADDR, 1);
  }
}


void __am_gpu_status(AM_GPU_STATUS_T *status) {
  status->ready = true;
}

NEMU:

#include <common.h>
#include <device/map.h>

#define SCREEN_W (MUXDEF(CONFIG_VGA_SIZE_800x600, 800, 400))
#define SCREEN_H (MUXDEF(CONFIG_VGA_SIZE_800x600, 600, 300))

static uint32_t screen_width() {
  return MUXDEF(CONFIG_TARGET_AM, io_read(AM_GPU_CONFIG).width, SCREEN_W);
}

static uint32_t screen_height() {
  return MUXDEF(CONFIG_TARGET_AM, io_read(AM_GPU_CONFIG).height, SCREEN_H);
}

static uint32_t screen_size() {
  return screen_width() * screen_height() * sizeof(uint32_t);
}

static void *vmem = NULL;
static uint32_t *vgactl_port_base = NULL;

#ifdef CONFIG_VGA_SHOW_SCREEN
#ifndef CONFIG_TARGET_AM
#include <SDL2/SDL.h>

static SDL_Renderer *renderer = NULL;
static SDL_Texture *texture = NULL;

static void init_screen() {
  SDL_Window *window = NULL;
  char title[128];
  sprintf(title, "%s-NEMU", str(__GUEST_ISA__));
  SDL_Init(SDL_INIT_VIDEO);
  SDL_CreateWindowAndRenderer(
      SCREEN_W * (MUXDEF(CONFIG_VGA_SIZE_400x300, 2, 1)),
      SCREEN_H * (MUXDEF(CONFIG_VGA_SIZE_400x300, 2, 1)),
      0, &window, &renderer);
  SDL_SetWindowTitle(window, title);
  texture = SDL_CreateTexture(renderer, SDL_PIXELFORMAT_ARGB8888,
      SDL_TEXTUREACCESS_STATIC, SCREEN_W, SCREEN_H);
  SDL_RenderPresent(renderer);
}

static inline void update_screen() {
  SDL_UpdateTexture(texture, NULL, vmem, SCREEN_W * sizeof(uint32_t));
  SDL_RenderClear(renderer);
  SDL_RenderCopy(renderer, texture, NULL, NULL);
  SDL_RenderPresent(renderer);
}
#else
static void init_screen() {}

static inline void update_screen() {
  io_write(AM_GPU_FBDRAW, 0, 0, vmem, screen_width(), screen_height(), true);
}
#endif
#endif

void vga_update_screen() {
  // TODO: call `update_screen()` when the sync register is non-zero,
  // then zero out the sync register
  if(vgactl_port_base[1] != 0) {
    update_screen();
    vgactl_port_base[1] = 0;
  }
}

void init_vga() {
  vgactl_port_base = (uint32_t *)new_space(8);
  vgactl_port_base[0] = (screen_width() << 16) | screen_height();
#ifdef CONFIG_HAS_PORT_IO
  add_pio_map ("vgactl", CONFIG_VGA_CTL_PORT, vgactl_port_base, 8, NULL);
#else
  add_mmio_map("vgactl", CONFIG_VGA_CTL_MMIO, vgactl_port_base, 8, NULL);
#endif

  vmem = new_space(screen_size());
  add_mmio_map("vmem", CONFIG_FB_ADDR, vmem, screen_size(), NULL);
  IFDEF(CONFIG_VGA_SHOW_SCREEN, init_screen());
  IFDEF(CONFIG_VGA_SHOW_SCREEN, memset(vmem, 0, screen_size()));
}
