html转图片

一、Pom依赖

    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-freemarker</artifactId>
    </dependency>

    <dependency>
      <groupId>org.xhtmlrenderer</groupId>
      <artifactId>core-renderer</artifactId>
      <version>R8</version>
    </dependency>

二、freemarker模板

<!DOCTYPE html>
<html lang="zh">
<head>
    <meta http-equiv="Content-Type" content="text/html; charset=UTF-8"/>
    <title>LogParse问题统计结果</title>
    <style>
        table.reference {
            border-collapse: collapse;
            width: 100%;
            margin-bottom: 4px;
            margin-top: 4px;
        }

        table.reference tr:nth-child(even) {
            background-color: #fff;
        }

        table.reference tr:nth-child(odd) {
            background-color: #f6f4f0;
        }

        table.reference th {
            color: #fff;
            background-color: #0dcde8;
            border: 1px solid #555;
            font-size: 14px;
            padding: 4px;
            vertical-align: center;
        }

        table.reference td {
            line-height: 2em;
            min-width: 24px;
            border: 1px solid #d4d4d4;
            padding: 7px 5px;
            vertical-align: center;
            text-align: center;
        }

        .article-body h3 {
            font-size: 1.8em;
            margin: 2px 0;
            line-height: 1.8em;
        }
    </style>
</head>
<body>
<div>
    <table class="reference">
        <tbody>
        <tr>
            <th colspan="5" >问题统计结果</th>
        </tr>
        <tr>
            <th>统计时间</th>
            <th>日志类型</th>
            <th>问题类型</th>
            <th>问题出现次数</th>
            <th>车机数</th>
        </tr>

        <#list problemList as element>
            <tr>
                <td> ${element.statisticsTime} </td>
                <td> ${element.logSource} </td>
                <td> ${element.problemType} </td>
                <td> ${element.totalQuantity} </td>
                <td> ${element.totalVin}    </td>
            </tr>
        </#list>
        </tbody>
    </table>
</div>
</body>
</html>

三、代码实现

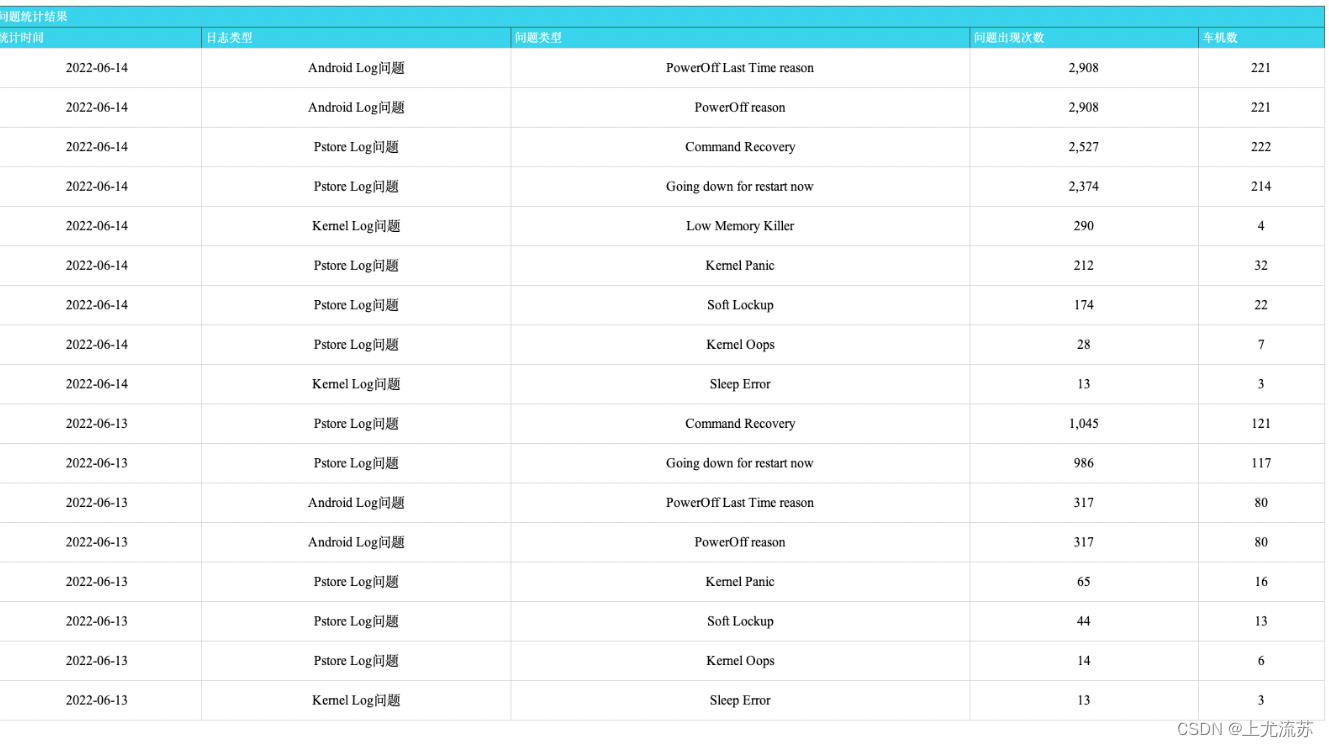

大致过程：组装Model数据，加载freemarker模板，生成Html文件，再将Html文件转成图片（可以设置图片的长和宽，字体等）

// 查询数据库生成Model
  QueryWrapper<ProblemStatistics> queryWrapper = new QueryWrapper<>();
    DateTimeFormatter formatter = DateTimeFormatter.ofPattern("yyyy-MM-dd");
    String statisticsTime = LocalDate.now().minusDays(2).format(formatter);
    queryWrapper
        .ge("statistics_time", statisticsTime)
        .orderByDesc("statistics_time", "total_quantity");
    List<ProblemStatistics> problemList = problemStatisticsMapper.selectList(queryWrapper);

    // 通过数据model和模板生成html
    Map<String, Object> model = new HashMap<String, Object>();
    model.put("problemList", problemList);
    Template template = configuration.getTemplate("logparse.ftlh");
    String html = FreeMarkerTemplateUtils.processTemplateIntoString(template, model);

    // 将html转成文件
    String inputFileName = "logparse.xhtml";
    FileWriter writer = new FileWriter(inputFileName);
    writer.write(html);
    writer.flush();
    writer.close();

    // 将html文件转成图片

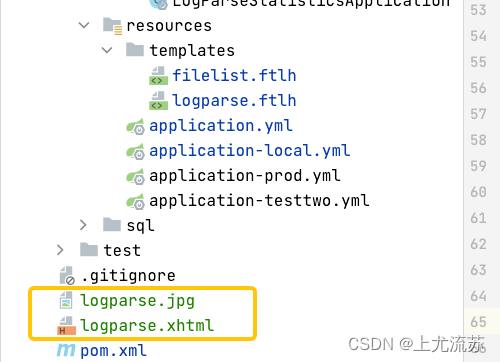

    String outFileName = "logparse.jpg";
    File imageFile = new File(inputFileName);
    int widthImage = 1600;
    int heightImage = 1000;
    Java2DRenderer renderer = new Java2DRenderer(imageFile, widthImage, heightImage);
    BufferedImage img = renderer.getImage();
    FSImageWriter imageWriter = new FSImageWriter();
    imageWriter.setWriteCompressionQuality(0.9f);
    imageWriter.write(img, outFileName);, outFileName);
