docker 开启 tcp 端口

默认安装的Docker服务是不支持远程连接的,开启TCP端口后可以进行远程连接Docker

1、操作系统环境

[root@localhost home]# uname -r
3.10.0-1160.66.1.el7.x86_64

2、编辑 docker 服务

注释原有 ExecStart 参数,新增 ExecStart 参数,见加红色字体。

[root@localhost home]# vi /lib/systemd/system/docker.service
[Unit]
Description=Docker Application Container Engine
Documentation=https://docs.docker.com
After=network-online.target firewalld.service
Wants=network-online.target

[Service]
Type=notify
# the default is not to use systemd for cgroups because the delegate issues still
# exists and systemd currently does not support the cgroup feature set required
# for containers run by docker
# ExecStart=/usr/bin/dockerd
ExecStart=/usr/bin/dockerd -H unix:///var/run/docker.sock -H tcp://0.0.0.0:2375

ExecReload=/bin/kill -s HUP $MAINPID
# Having non-zero Limit*s causes performance problems due to accounting overhead
# in the kernel. We recommend using cgroups to do container-local accounting.
LimitNOFILE=infinity
LimitNPROC=infinity
LimitCORE=infinity
# Uncomment TasksMax if your systemd version supports it.
# Only systemd 226 and above support this version.
#TasksMax=infinity
TimeoutStartSec=0
# set delegate yes so that systemd does not reset the cgroups of docker containers
Delegate=yes
# kill only the docker process, not all processes in the cgroup
KillMode=process
# restart the docker process if it exits prematurely
Restart=on-failure
StartLimitBurst=3
StartLimitInterval=60s

[Install]
WantedBy=multi-user.target

-H代表指定docker的监听方式,这里是socket文件位置,也就是socket方式,2375就是tcp端口

3、保存退出

4、重新加载系统服务配置文件

systemctl daemon-reload

5、重启 docker 服务

systemctl restart docker

6、查看监听端口

ss -tnl | grep 2375

7、查看防火墙是否开放2375端口

[root@localhost home]# firewall-cmd --zone=public --query-port=2375/tcp

no

8、防火墙开启2375端口

[root@localhost home]# firewall-cmd --zone=public --add-port=2375/tcp --permanent

success

9、重启防火墙

[root@localhost home]# firewall-cmd --reload

success

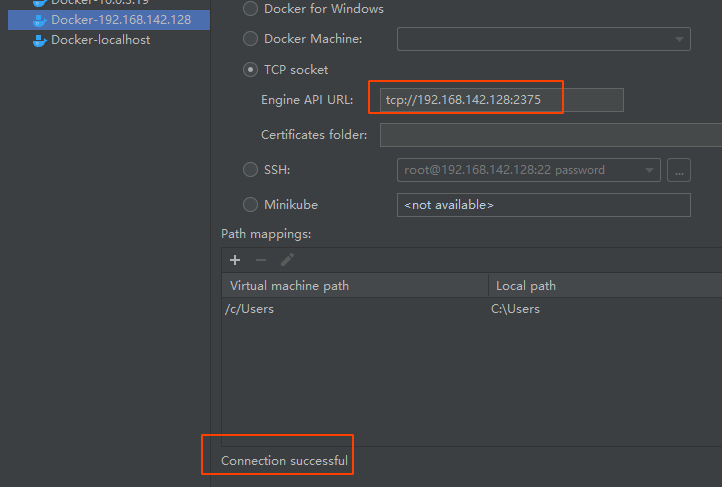

10、idea docker 端口测试
