Overview

Amazon FSx for Windows File Server provides fully managed Microsoft Windows file servers, backed by a fully native Windows file system.
Amazon FSx has native support for Windows file system features and for the industry-standard Server Message Block (SMB) protocol to access file storage over a network.
Windows applications and workloads ideal for Amazon FSx include business applications, home directories, web serving, content management, data analytics, software build setups, and media processing workloads.

Resources

The primary resources in Amazon FSx are file systems and backups.
A file system is where you store and access your files and folders. A file system is made up of one or more Windows file servers and storage volumes.
Amazon FSx for Windows File Server backups are file-system-consistent, highly durable, and incremental.
A Windows file share is a specific folder (and its subfolders) within your file system that you make accessible to your compute instances with SMB
- File shares are accessed using either the file system's DNS name or DNS aliases that you associate with the file system.
- You can access your shares from all Windows versions starting from Windows Server 2008 and Windows 7, and also from current versions of Linux.
- You can access your file shares from on-premises compute instances using AWS Direct Connect or AWS VPN

Security and data protection

It automatically encrypts data at rest (for both file systems and backups) using keys that you manage in AWS Key Management Service (AWS KMS)
Amazon FSx provides access control at the file and folder level with Windows access control lists (ACLs).
It provides access control at the file system level using Amazon Virtual Private Cloud (Amazon VPC) security groups.
In addition, it provides access control at the API level using AWS Identity and Access Management (IAM) access policies.
Users accessing file systems are authenticated with Microsoft Active Directory.
Additionally, it protects your data by taking highly durable backups of your file system automatically on a daily basis and allows you to take additional backups at any point.

Availability and durability

Amazon FSx for Windows File Server oﬀers file systems with two levels of availability and durability. Single-AZ files ensure high availability within a single Availability Zone (AZ) by automatically detecting and addressing component failures.
In addition, Multi-AZ file systems provide high availability and failover support across multiple Availability Zones by provisioning and maintaining a standby file server in a separate Availability Zone within an AWS Region.

Supported clients

Amazon FSx supports connecting to your file system from a wide variety of compute instances and operating systems：

Amazon Elastic Compute Cloud (Amazon EC2) instances, including Microsoft Windows, Mac, Amazon Linux and Amazon Linux 2 instances
Amazon Elastic Container Service (Amazon ECS) containers
WorkSpaces instances
Amazon AppStream 2.0 instances
VMs running in VMware Cloud on AWS environments

Supported access methods

Amazon FSx for Windows File Server provides a Domain Name System (DNS) name for every file system. You access your Amazon FSx for Windows File Server file system by mapping a drive letter on your compute instance to your Amazon FSx file share using this DNS name.
You can also enable access to Amazon FSx from DNS names other than the default DNS name that Amazon FSx creates by registering aliases for your Amazon FSx for Windows File Server file systems.
- DNS aliases allow you to use meaningful names that make it easier to administer tools and applications to connect to your Amazon FSx file systems.
Amazon FSx for Windows File Server supports the use of Microsoft Distributed File System (DFS) Namespaces.
- You can use DFS Namespaces to organize file shares on multiple file systems into one common folder structure (a namespace) that you use to access the entire file dataset.
- You can use a name in your DFS Namespace to access your Amazon FSx file system by configuring its link target to be the file system's DNS name.

Accessing Amazon FSx for Windows File Server file systems from on-premises

Amazon FSx for Windows File Server supports the use of AWS Direct Connect or AWS VPN to access your file systems from your on-premises compute instances.
With support for AWS Direct Connect, Amazon FSx for Windows File Server enables you to access your file system over a dedicated network connection from your on-premises environment.
With support for AWS VPN, Amazon FSx for Windows File Server enables you to access your file system from your on-premises devices over a secure and private tunnel.
Amazon FSx for Windows File Server also supports the use of Amazon FSx File Gateway to provide low latency, seamless access to your in-cloud Amazon FSx for Windows File Server file shares from your on-premises compute instances.

Accessing Amazon FSx for Windows File Server File Systems from Another VPC, Account, or AWS Region

You can use VPC peering or transit gateways to access your Amazon FSx for Windows File Server file system from compute instances in a different VPC, AWS account, or AWS Region from that associated with your file system.
When you use a VPC peering connection or transit gateway to connect VPCs, compute instances that are in one VPC can access Amazon FSx file systems in another VPC.
This access is possible even if the VPCs belong to different accounts, and even if the VPCs reside in different AWS Regions.
A VPC peering connection is a networking connection between two VPCs that you can use to route traffic between them using private IPv4 or IP version 6 (IPv6) addresses.
A transit gateway is a network transit hub that you can use to interconnect your VPCs and on-premises networks.

Optimizing costs

You can pick the storage type (HDD or SSD) to achieve the right balance of cost and performance needs for your application
You can configure your file system's storage and throughput capacities independently.

Working with Microsoft Active Directory

When you create a file system with Amazon FSx, you join it to your Active Directory domain to provide user authentication and file- and folder-level access control.
Your users can then use their existing user identities in Active Directory to authenticate themselves and access the Amazon FSx file system.
Users can also use their existing identities to control access to individual files and folders.
If your organization is using AWS Managed Microsoft AD to manage identities and devices, we recommend that you integrate your Amazon FSx file system with AWS Managed Microsoft AD
Your organization might manage identities and devices on a self-managed Active Directory (on-premises or in the cloud). If so, you can join your Amazon FSx file system directly to your existing self-managed AD domain.

Migrating to Amazon FSx

To migrate your existing files to Amazon FSx for Windows File Server file systems, we recommend using AWS DataSync
Migrating file share configurations to Amazon FSx
Migrating DNS configuration to use Amazon FSx: With DNS aliases, you can continue to use your existing DNS names to access data stored on Amazon FSx when migrating file system storage from on-premises to Amazon FSx.

Protecting your data

Native Amazon FSx backups support your backup retention and compliance needs within Amazon FSx.
- With Amazon FSx, backups are file-system-consistent, highly durable, and incremental.
- To ensure file system consistency, Amazon FSx uses the Volume Shadow Copy Service (VSS) in Microsoft Windows.
- To ensure high durability, Amazon FSx stores backups in Amazon Simple Storage Service (Amazon S3).
AWS Backup backups of your Amazon FSx file systems are part of a centralized and automated backup solution across AWS services in the cloud and on premises.
Windows shadow copies enable your users to easily undo file changes and compare file versions by restoring files to previous versions.
- A Microsoft Windows shadow copy is a snapshot of a Windows file system at a point in time.
- With shadow copies enabled, your users can easily view and restore individual files or folders from an earlier snapshot in Windows File Explorer.
- Shadow copies are stored alongside your ﬁle system's data, and therefore consume the ﬁle system's storage capacity.
- All shadow copies stored in your ﬁle system are included in backups of your ﬁle system.
AWS DataSync scheduled replication of your Amazon FSx file system to a second file system provides data protection and recovery.

Performance

File system performance is measured by its latency, throughput, and I/O operations per second (IOPS)

Latency

Amazon FSx for Windows File Server file servers employ a fast, in-memory cache to achieve consistent sub-millisecond latencies for actively accessed data.
For data that is not in the in-memory cache, that is, for file operations that need to be served by performing I/O on the underlying storage volumes:
- Amazon FSx provides sub-millisecond file operation latencies with solid state drive (SSD) storage
- and single-digit millisecond latencies with hard disk drive (HDD) storage.

Throughput and IOPS

Amazon FSx file systems provide up to multiple GB/s of throughput and hundreds of thousands of IOPS.
The specific amount of throughput and IOPS that your workload can drive on your file system depends on the throughput capacity and storage capacity configuration of your file system, along with the nature of your workload, including the size of the active working set.

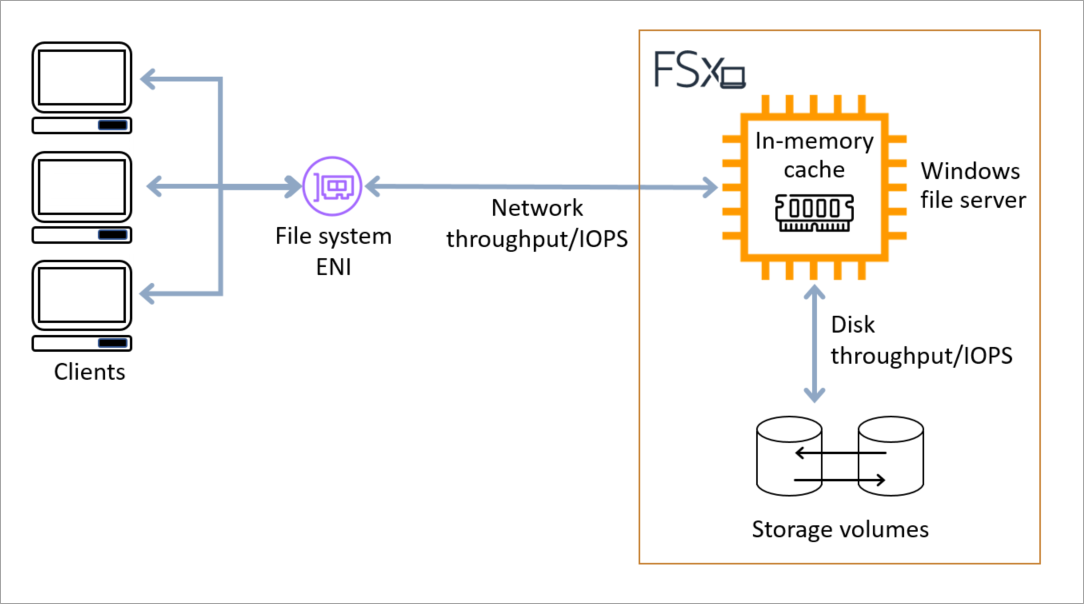

Amazon FSx for Windows File Server architecture.
