Error: could not begin a transaction

2019年10月28日15:36:06

今天使用svn  Apache 进行搭建

搭建完以后发现可以update但不能提交的一个问题:

Error: could not begin a transaction

解决方式:

1:查看权限,如果是权限问题那么恭喜你

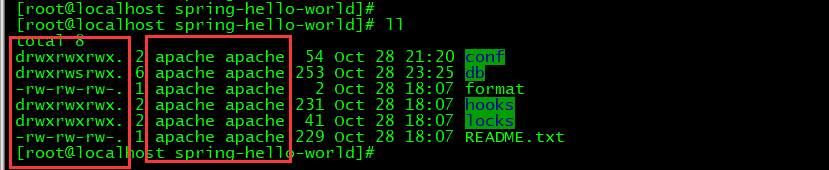

sudo chown -R apache:apache /var/www/svn/spring-hello-world/

将其设置成apache即可

2:不管怎么设置都没有作用,那么可以使用如下

日志文件:

SELinux is preventing httpd from write access on the 文件 /var/www/svn/spring-hello-world/db/txn-current-lock.

*****  插件 httpd_write_content (48.3 置信度) 建议  *********************************

If you want to allow httpd to have write access on the txn-current-lock file
Then 需要更改 '/var/www/svn/spring-hello-world/db/txn-current-lock' 中的标记
Do
# semanage fcontext -a -t httpd_sys_rw_content_t '/var/www/svn/spring-hello-world/db/txn-current-lock'
# restorecon -v '/var/www/svn/spring-hello-world/db/txn-current-lock'

*****  插件 restorecon (48.3 置信度) 建议  ******************************************

If you want to fix the label.
/var/www/svn/spring-hello-world/db/txn-current-lock default label should be httpd_sys_rw_content_t.
Then you can run restorecon. The access attempt may have been stopped due to insufficient permissions to access a parent directory in which case try to change the following command accordingly.
Do
# /sbin/restorecon -v /var/www/svn/spring-hello-world/db/txn-current-lock

*****  插件 catchall_boolean (4.32 置信度) 建议  ************************************

If you want to allow httpd to unified
Then 必须启用 'httpd_unified' 布尔值告知 SELinux 此情况。

Do
setsebool -P httpd_unified 1

*****  插件 catchall (0.97 置信度) 建议  ********************************************

If you believe that httpd should be allowed write access on the txn-current-lock file by default.
Then 应该将这个情况作为 bug 报告。
可以生成本地策略模块以允许此访问。
Do
allow this access for now by executing:
# ausearch -c 'httpd' --raw | audit2allow -M my-httpd
# semodule -i my-httpd.pp

更多信息:
源环境 (Context)                 system_u:system_r:httpd_t:s0
目标环境                          unconfined_u:object_r:httpd_sys_content_t:s0
目标对象                          /var/www/svn/spring-hello-world/db/txn-current-
                              lock [ file ]
源                             httpd
源路径                           httpd
端口                            <Unknown>
主机                            localhost.localdomain
源 RPM 软件包
目标 RPM 软件包
策略 RPM                        selinux-policy-3.13.1-229.el7_6.12.noarch
Selinux 已启用                   True
策略类型                          targeted
强制模式                          Enforcing
主机名                           localhost.localdomain
平台                            Linux localhost.localdomain
                              3.10.0-957.21.3.el7.x86_64 #1 SMP Tue Jun 18
                              16:35:19 UTC 2019 x86_64 x86_64
警报计数                          32
第一个                           2019-10-28 19:48:16 CST
最后一个                          2019-10-28 23:10:32 CST
本地 ID                         f3dd7387-7be1-497b-a5e0-67e71424c600

原始核查信息
type=AVC msg=audit(1572275432.986:358): avc:  denied  { write } for  pid=10332 comm="httpd" name="txn-current-lock" dev="dm-0" ino=85751535 scontext=system_u:system_r:httpd_t:s0 tcontext=unconfined_u:object_r:httpd_sys_content_t:s0 tclass=file permissive=0


Hash: httpd,httpd_t,httpd_sys_content_t,file,write


解决方式在文件里面已经说了大概的解决方式

chcon -R -t httpd_sys_rw_content_t /var/www/svn/spring-hello-world/

即可解决!
