方式一：Kuboard v3 - kubernetes 安装（hostPath 持久化）官网方式

参考文档

不能使用命令kubectl apply -f https://addons.kuboard.cn/kuboard/kuboard-v3.yaml直接安装，否则出现如下问题

设置日志级别为 info
[LOG] 2024/06/28 - 12:44:06.081   | /common/etcd.client_config                                    24 |  info | KUBOARD_ETCD_ENDPOINTS=[]
[LOG] 2024/06/28 - 12:44:06.081   | /common/etcd.client_config                                    52 |  info | {[] 0s 1s 0s 0s 0 0 <nil>   false [] <nil> <nil> <nil> false}
[LOG] 2024/06/28 - 12:44:06.083   | /initializekuboard.InitializeEtcd                             39 |  info | 初始化 ./init-etcd-scripts/audit-policy-once.yaml
{"level":"warn","ts":"2024-06-28T12:44:07.913+0800","caller":"clientv3/retry_interceptor.go:61","msg":"retrying of unary invoker failed","target":"endpoint://client-4068c18c-55c9-4b1e-b60d-df7d4c346d65/","attempt":0,"error":"rpc error: code = DeadlineExceeded desc = latest balancer error: all SubConns are in TransientFailure, latest connection error: connection error: desc = \"transport: Error while dialing dial tcp: missing address\""}
failed to initialize server: server: failed to list connector objects from storage: context deadline exceeded

解决办法

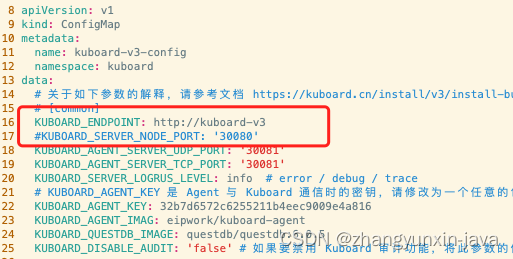

在这里插入图片描述

注释掉
#KUBOARD_SERVER_NODE_PORT: '30080'
增加一个sevice地址
KUBOARD_ENDPOINT: http://kuboard-v3

修改后的内容如下

---
apiVersion: v1
kind: Namespace
metadata:
  name: kuboard

---
apiVersion: v1
kind: ConfigMap
metadata:
  name: kuboard-v3-config
  namespace: kuboard
data:
  # 关于如下参数的解释，请参考文档 https://kuboard.cn/install/v3/install-built-in.html
  # [common]
  KUBOARD_ENDPOINT: http://kuboard-v3
  #KUBOARD_SERVER_NODE_PORT: '30080'
  KUBOARD_AGENT_SERVER_UDP_PORT: '30081'
  KUBOARD_AGENT_SERVER_TCP_PORT: '30081'
  KUBOARD_SERVER_LOGRUS_LEVEL: info  # error / debug / trace
  # KUBOARD_AGENT_KEY 是 Agent 与 Kuboard 通信时的密钥，请修改为一个任意的包含字母、数字的32位字符串，此密钥变更后，需要删除 Kuboard Agent 重新导入。
  KUBOARD_AGENT_KEY: 32b7d6572c6255211b4eec9009e4a816
  KUBOARD_AGENT_IMAG: eipwork/kuboard-agent
  KUBOARD_QUESTDB_IMAGE: questdb/questdb:6.0.5
  KUBOARD_DISABLE_AUDIT: 'false' # 如果要禁用 Kuboard 审计功能，将此参数的值设置为 'true'，必须带引号。

  # 关于如下参数的解释，请参考文档 https://kuboard.cn/install/v3/install-gitlab.html
  # [gitlab login]
  # KUBOARD_LOGIN_TYPE: "gitlab"
  # KUBOARD_ROOT_USER: "your-user-name-in-gitlab"
  # GITLAB_BASE_URL: "http://gitlab.mycompany.com"
  # GITLAB_APPLICATION_ID: "7c10882aa46810a0402d17c66103894ac5e43d6130b81c17f7f2d8ae182040b5"
  # GITLAB_CLIENT_SECRET: "77c149bd3a4b6870bffa1a1afaf37cba28a1817f4cf518699065f5a8fe958889"

  # 关于如下参数的解释，请参考文档 https://kuboard.cn/install/v3/install-github.html
  # [github login]
  # KUBOARD_LOGIN_TYPE: "github"
  # KUBOARD_ROOT_USER: "your-user-name-in-github"
  # GITHUB_CLIENT_ID: "17577d45e4de7dad88e0"
  # GITHUB_CLIENT_SECRET: "ff738553a8c7e9ad39569c8d02c1d85ec19115a7"

  # 关于如下参数的解释，请参考文档 https://kuboard.cn/install/v3/install-ldap.html
  # [ldap login]
  # KUBOARD_LOGIN_TYPE: "ldap"
  # KUBOARD_ROOT_USER: "your-user-name-in-ldap"
  # LDAP_HOST: "ldap-ip-address:389"
  # LDAP_BIND_DN: "cn=admin,dc=example,dc=org"
  # LDAP_BIND_PASSWORD: "admin"
  # LDAP_BASE_DN: "dc=example,dc=org"
  # LDAP_FILTER: "(objectClass=posixAccount)"
  # LDAP_ID_ATTRIBUTE: "uid"
  # LDAP_USER_NAME_ATTRIBUTE: "uid"
  # LDAP_EMAIL_ATTRIBUTE: "mail"
  # LDAP_DISPLAY_NAME_ATTRIBUTE: "cn"
  # LDAP_GROUP_SEARCH_BASE_DN: "dc=example,dc=org"
  # LDAP_GROUP_SEARCH_FILTER: "(objectClass=posixGroup)"
  # LDAP_USER_MACHER_USER_ATTRIBUTE: "gidNumber"
  # LDAP_USER_MACHER_GROUP_ATTRIBUTE: "gidNumber"
  # LDAP_GROUP_NAME_ATTRIBUTE: "cn"

---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: kuboard-boostrap
  namespace: kuboard

---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: kuboard-boostrap-crb
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: cluster-admin
subjects:
- kind: ServiceAccount
  name: kuboard-boostrap
  namespace: kuboard

---
apiVersion: apps/v1
kind: DaemonSet
metadata:
  labels:
    k8s.kuboard.cn/name: kuboard-etcd
  name: kuboard-etcd
  namespace: kuboard
spec:
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      k8s.kuboard.cn/name: kuboard-etcd
  template:
    metadata:
      labels:
        k8s.kuboard.cn/name: kuboard-etcd
    spec:
      affinity:
        nodeAffinity:
          requiredDuringSchedulingIgnoredDuringExecution:
            nodeSelectorTerms:
              - matchExpressions:
                  - key: node-role.kubernetes.io/master
                    operator: Exists
              - matchExpressions:
                  - key: node-role.kubernetes.io/control-plane
                    operator: Exists
              - matchExpressions:
                  - key: k8s.kuboard.cn/role
                    operator: In
                    values:
                      - etcd
      containers:
        - env:
            - name: HOSTNAME
              valueFrom:
                fieldRef:
                  apiVersion: v1
                  fieldPath: spec.nodeName
            - name: HOSTIP
              valueFrom:
                fieldRef:
                  apiVersion: v1
                  fieldPath: status.hostIP
          image: 'eipwork/etcd-host:3.4.16-2'
          imagePullPolicy: Always
          name: etcd
          ports:
            - containerPort: 2381
              hostPort: 2381
              name: server
              protocol: TCP
            - containerPort: 2382
              hostPort: 2382
              name: peer
              protocol: TCP
          livenessProbe:
            failureThreshold: 3
            httpGet:
              path: /health
              port: 2381
              scheme: HTTP
            initialDelaySeconds: 30
            periodSeconds: 10
            successThreshold: 1
            timeoutSeconds: 1
          volumeMounts:
            - mountPath: /data
              name: data
      dnsPolicy: ClusterFirst
      hostNetwork: true
      restartPolicy: Always
      serviceAccount: kuboard-boostrap
      serviceAccountName: kuboard-boostrap
      tolerations:
        - key: node-role.kubernetes.io/master
          operator: Exists
        - key: node-role.kubernetes.io/control-plane
          operator: Exists
      volumes:
        - hostPath:
            path: /usr/share/kuboard/etcd
          name: data
  updateStrategy:
    rollingUpdate:
      maxUnavailable: 1
    type: RollingUpdate


---
apiVersion: apps/v1
kind: Deployment
metadata:
  annotations: {}
  labels:
    k8s.kuboard.cn/name: kuboard-v3
  name: kuboard-v3
  namespace: kuboard
spec:
  replicas: 1
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      k8s.kuboard.cn/name: kuboard-v3
  template:
    metadata:
      labels:
        k8s.kuboard.cn/name: kuboard-v3
    spec:
      affinity:
        nodeAffinity:
          preferredDuringSchedulingIgnoredDuringExecution:
            - preference:
                matchExpressions:
                  - key: node-role.kubernetes.io/master
                    operator: Exists
              weight: 100
            - preference:
                matchExpressions:
                  - key: node-role.kubernetes.io/control-plane
                    operator: Exists
              weight: 100
      containers:
        - env:
            - name: HOSTIP
              valueFrom:
                fieldRef:
                  apiVersion: v1
                  fieldPath: status.hostIP
            - name: HOSTNAME
              valueFrom:
                fieldRef:
                  apiVersion: v1
                  fieldPath: spec.nodeName
          envFrom:
            - configMapRef:
                name: kuboard-v3-config
          image: 'eipwork/kuboard:v3'
          imagePullPolicy: Always
          livenessProbe:
            failureThreshold: 3
            httpGet:
              path: /kuboard-resources/version.json
              port: 80
              scheme: HTTP
            initialDelaySeconds: 30
            periodSeconds: 10
            successThreshold: 1
            timeoutSeconds: 1
          name: kuboard
          ports:
            - containerPort: 80
              name: web
              protocol: TCP
            - containerPort: 443
              name: https
              protocol: TCP
            - containerPort: 10081
              name: peer
              protocol: TCP
            - containerPort: 10081
              name: peer-u
              protocol: UDP
          readinessProbe:
            failureThreshold: 3
            httpGet:
              path: /kuboard-resources/version.json
              port: 80
              scheme: HTTP
            initialDelaySeconds: 30
            periodSeconds: 10
            successThreshold: 1
            timeoutSeconds: 1
          resources: {}
          # startupProbe:
          #   failureThreshold: 20
          #   httpGet:
          #     path: /kuboard-resources/version.json
          #     port: 80
          #     scheme: HTTP
          #   initialDelaySeconds: 5
          #   periodSeconds: 10
          #   successThreshold: 1
          #   timeoutSeconds: 1
      dnsPolicy: ClusterFirst
      restartPolicy: Always
      serviceAccount: kuboard-boostrap
      serviceAccountName: kuboard-boostrap
      tolerations:
        - key: node-role.kubernetes.io/master
          operator: Exists

---
apiVersion: v1
kind: Service
metadata:
  annotations: {}
  labels:
    k8s.kuboard.cn/name: kuboard-v3
  name: kuboard-v3
  namespace: kuboard
spec:
  ports:
    - name: web
      nodePort: 30080
      port: 80
      protocol: TCP
      targetPort: 80
    - name: tcp
      nodePort: 30081
      port: 10081
      protocol: TCP
      targetPort: 10081
    - name: udp
      nodePort: 30081
      port: 10081
      protocol: UDP
      targetPort: 10081
  selector:
    k8s.kuboard.cn/name: kuboard-v3
  sessionAffinity: None
  type: NodePort

方式二：Kuboard v3 - kubernetes 安装（hostPath 持久化非edct）

在方式一使用edct的方式安装，老是出现登录过期的情况，可能原因是edct的时间不同步的问题，这里不使用edct安装

---
apiVersion: v1
kind: Namespace
metadata:
  name: kuboard

---
apiVersion: v1
kind: ConfigMap
metadata:
  name: kuboard-v3-config
  namespace: kuboard
data:
  # 关于如下参数的解释，请参考文档 https://kuboard.cn/install/v3/install-built-in.html
  # [common]
  KUBOARD_PROXY_COOKIE_TTL: '36000'
  KUBOARD_ENDPOINT: 'https://zyx.kuboard.cn'
  #KUBOARD_SERVER_NODE_PORT: '30080'
  KUBOARD_AGENT_SERVER_UDP_PORT: '30081'
  KUBOARD_AGENT_SERVER_TCP_PORT: '30081'
  KUBOARD_SERVER_LOGRUS_LEVEL: info  # error / debug / trace
  # KUBOARD_AGENT_KEY 是 Agent 与 Kuboard 通信时的密钥，请修改为一个任意的包含字母、数字的32位字符串，此密钥变更后，需要删除 Kuboard Agent 重新导入。
  KUBOARD_AGENT_KEY: 32b7d6572c6255211b4eec9009e4a816
  KUBOARD_AGENT_IMAG: eipwork/kuboard-agent
  KUBOARD_QUESTDB_IMAGE: questdb/questdb:6.0.5
  KUBOARD_DISABLE_AUDIT: 'false' # 如果要禁用 Kuboard 审计功能，将此参数的值设置为 'true'，必须带引号。

  # 关于如下参数的解释，请参考文档 https://kuboard.cn/install/v3/install-gitlab.html
  # [gitlab login]
  # KUBOARD_LOGIN_TYPE: "gitlab"
  # KUBOARD_ROOT_USER: "your-user-name-in-gitlab"
  # GITLAB_BASE_URL: "http://gitlab.mycompany.com"
  # GITLAB_APPLICATION_ID: "7c10882aa46810a0402d17c66103894ac5e43d6130b81c17f7f2d8ae182040b5"
  # GITLAB_CLIENT_SECRET: "77c149bd3a4b6870bffa1a1afaf37cba28a1817f4cf518699065f5a8fe958889"

  # 关于如下参数的解释，请参考文档 https://kuboard.cn/install/v3/install-github.html
  # [github login]
  # KUBOARD_LOGIN_TYPE: "github"
  # KUBOARD_ROOT_USER: "your-user-name-in-github"
  # GITHUB_CLIENT_ID: "17577d45e4de7dad88e0"
  # GITHUB_CLIENT_SECRET: "ff738553a8c7e9ad39569c8d02c1d85ec19115a7"

  # 关于如下参数的解释，请参考文档 https://kuboard.cn/install/v3/install-ldap.html
  # [ldap login]
  # KUBOARD_LOGIN_TYPE: "ldap"
  # KUBOARD_ROOT_USER: "your-user-name-in-ldap"
  # LDAP_HOST: "ldap-ip-address:389"
  # LDAP_BIND_DN: "cn=admin,dc=example,dc=org"
  # LDAP_BIND_PASSWORD: "admin"
  # LDAP_BASE_DN: "dc=example,dc=org"
  # LDAP_FILTER: "(objectClass=posixAccount)"
  # LDAP_ID_ATTRIBUTE: "uid"
  # LDAP_USER_NAME_ATTRIBUTE: "uid"
  # LDAP_EMAIL_ATTRIBUTE: "mail"
  # LDAP_DISPLAY_NAME_ATTRIBUTE: "cn"
  # LDAP_GROUP_SEARCH_BASE_DN: "dc=example,dc=org"
  # LDAP_GROUP_SEARCH_FILTER: "(objectClass=posixGroup)"
  # LDAP_USER_MACHER_USER_ATTRIBUTE: "gidNumber"
  # LDAP_USER_MACHER_GROUP_ATTRIBUTE: "gidNumber"
  # LDAP_GROUP_NAME_ATTRIBUTE: "cn"

---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: kuboard-boostrap
  namespace: kuboard

---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: kuboard-boostrap-crb
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: cluster-admin
subjects:
- kind: ServiceAccount
  name: kuboard-boostrap
  namespace: kuboard


---
apiVersion: apps/v1
kind: Deployment
metadata:
  annotations: {}
  labels:
    k8s.kuboard.cn/name: kuboard-v3
  name: kuboard-v3
  namespace: kuboard
spec:
  replicas: 1
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      k8s.kuboard.cn/name: kuboard-v3
  template:
    metadata:
      labels:
        k8s.kuboard.cn/name: kuboard-v3
    spec:
      affinity:
        nodeAffinity:
          preferredDuringSchedulingIgnoredDuringExecution:
            - preference:
                matchExpressions:
                  - key: node-role.kubernetes.io/master
                    operator: Exists
              weight: 100
            - preference:
                matchExpressions:
                  - key: node-role.kubernetes.io/control-plane
                    operator: Exists
              weight: 100
      containers:
        - env:
            - name: HOSTNAME
              value: kuboard-v3-swartz
            - name: TZ
              value: Asia/Shanghai
          envFrom:
            - configMapRef:
                name: kuboard-v3-config
          image: 'eipwork/kuboard:v3'
          imagePullPolicy: IfNotPresent
          livenessProbe:
            failureThreshold: 3
            httpGet:
              path: /kuboard-resources/version.json
              port: 80
              scheme: HTTP
            initialDelaySeconds: 30
            periodSeconds: 10
            successThreshold: 1
            timeoutSeconds: 1
          name: kuboard
          ports:
            - containerPort: 80
              name: web
              protocol: TCP
            - containerPort: 443
              name: https
              protocol: TCP
            - containerPort: 10081
              name: peer
              protocol: TCP
            - containerPort: 10081
              name: peer-u
              protocol: UDP
          readinessProbe:
            failureThreshold: 3
            httpGet:
              path: /kuboard-resources/version.json
              port: 80
              scheme: HTTP
            initialDelaySeconds: 30
            periodSeconds: 10
            successThreshold: 1
            timeoutSeconds: 1
          volumeMounts:
            - mountPath: /data
              name: data
            - mountPath: /init-etcd-scripts/import-cluster-once.yaml
              name: import-cluster-yaml
          resources: {}
          # startupProbe:
          #   failureThreshold: 20
          #   httpGet:
          #     path: /kuboard-resources/version.json
          #     port: 80
          #     scheme: HTTP
          #   initialDelaySeconds: 5
          #   periodSeconds: 10
          #   successThreshold: 1
          #   timeoutSeconds: 1
      volumes:
        - hostPath:
            path: "/usr/share/kuboard"
          name: data
        - hostPath:
            path: "/usr/share/kuboard/import-cluster-once.yaml"
          name: import-cluster-yaml
      dnsPolicy: ClusterFirst
      restartPolicy: Always
      serviceAccount: kuboard-boostrap
      serviceAccountName: kuboard-boostrap
      tolerations:
        - key: node-role.kubernetes.io/master
          operator: Exists

---
apiVersion: v1
kind: Service
metadata:
  annotations: {}
  labels:
    k8s.kuboard.cn/name: kuboard-v3
  name: kuboard-v3
  namespace: kuboard
spec:
  ports:
    - name: web
      nodePort: 30080
      port: 80
      protocol: TCP
      targetPort: 80
    - name: tcp
      nodePort: 30081
      port: 10081
      protocol: TCP
      targetPort: 10081
    - name: udp
      nodePort: 30081
      port: 10081
      protocol: UDP
      targetPort: 10081
  selector:
    k8s.kuboard.cn/name: kuboard-v3
  sessionAffinity: None
  type: NodePort

注意：KUBOARD_ENDPOINT需要换成自己的域名
如果安装了ingress-nginx，可以把kuboard的NodePort端口关闭，使用ingress进行域名路由

方式三：Kuboard v3 - static pod 安装

参考文档

  • /etc/kubernetes/manifests/kuboard.yaml 文件内容
---
apiVersion: v1
kind: Pod
metadata:
  annotations: {}
  labels:
    k8s.kuboard.cn/name: kuboard-v3
  name: kuboard-v3
  namespace: kuboard
spec:
  containers:
    - env:
        - name: KUBOARD_TLS_AUTOCERT
          value: "true"
        - name: KUBOARD_TLS_DOMAIN
          value: "lianme.cn"
        - name: KUBOARD_ENDPOINT
          value: "https://lianme.cn"
        - name: KUBOARD_AGENT_SERVER_UDP_PORT
          value: "10081"
        - name: KUBOARD_AGENT_SERVER_TCP_PORT
          value: "10081"
      image: 'eipwork/kuboard:v3'
      imagePullPolicy: IfNotPresent
      livenessProbe:
        failureThreshold: 3
        httpGet:
          path: /kuboard-resources/version.json
          port: 80
          scheme: HTTP
        initialDelaySeconds: 30
        periodSeconds: 10
        successThreshold: 1
        timeoutSeconds: 1
      name: kuboard
      ports:
        - containerPort: 80
          hostPort: 80
          name: web
          protocol: TCP
        - containerPort: 443
          hostPort: 443
          name: https
          protocol: TCP
        - containerPort: 10081
          name: peer
          protocol: TCP
          hostPort: 10081
        - containerPort: 10081
          name: peer-u
          protocol: UDP
          hostPort: 10081
      readinessProbe:
        failureThreshold: 3
        httpGet:
          path: /kuboard-resources/version.json
          port: 80
          scheme: HTTP
        initialDelaySeconds: 30
        periodSeconds: 10
        successThreshold: 1
        timeoutSeconds: 1
      volumeMounts:
        - mountPath: /data
          name: data
        - mountPath: /init-etcd-scripts/import-cluster-once.yaml
          name: import-cluster-yaml
  volumes:
    - hostPath:
        path: "/usr/share/kuboard"
      name: data
    - hostPath:
        path: "/usr/share/kuboard/import-cluster-once.yaml"
      name: import-cluster-yaml
  dnsPolicy: ClusterFirst
  restartPolicy: Always
  tolerations:
    - key: node-role.kubernetes.io/master
      operator: Exists

请将 lianme.cn 域名指向您的 Kuboard 所在宿主机的公网 IP，并且确保 80, 443 端口开放。Kuboard 启动后，在您第一次访问 https://lianme.cn 时， 将自动申请证书（浏览器上显示第一次访问将失败）。等候 1-5 分钟时间，再次访问 https://lianme.cn 时，您将能够成功访问，证书也已经颁发并且自动配置好；通常免费证书有效期是一年时间，证书到期前一个月，系统会自动为您更新证书，无需您额外做任何操作。

  • /root/kuboard-sa.yaml 文件内容
---
kind: Namespace
apiVersion: v1
metadata:
  name: kuboard

---
kind: ServiceAccount
apiVersion: v1
metadata:
  name: kuboard-admin
  namespace: kuboard

---
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: kuboard-admin-crb
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: cluster-admin
subjects:
  - kind: ServiceAccount
    name: kuboard-admin
    namespace: kuboard

---
kind: ServiceAccount
apiVersion: v1
metadata:
  name: kuboard-viewer
  namespace: kuboard

---
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: kuboard-viewer-crb
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: view
subjects:
  - kind: ServiceAccount
    name: kuboard-viewer
    namespace: kuboard
  • 安装
kubectl apply -f /root/kuboard-sa.yaml

输入初始用户名和密码，并登录

用户名： admin
密码： Kuboard123

zyx-java
关注
【k8s集群管理工具篇】安装kubernetes集群管理工具 - Kuboard v3版本
jks212454的博客
05-13 1321
【k8s集群管理工具篇】安装kubernetes集群管理工具 - Kuboard v3版本
K8s接入Kuboard-v3
weixin_47148066的博客
09-09 2504
K8s接入Kuboard-v3 直接在节点执行 kubectl apply -f https://addons.kuboard.cn/kuboard/kuboard-v3.yaml 等待 Kuboard v3 就绪 执行指令 watch kubectl get pods -n kuboard，等待 kuboard 名称空间中所有的 Pod 就绪，如下所示， 查看SVC 访问 Kuboard 在浏览器中打开链接 http://your-node-ip-address:30080 输入初始用户名和密码，并
Kubernetes 可视化管理工具Kuboard V3
因上努力，果上随缘。但行好事，莫问前程。
08-02 3579
Kuboard是一款专为Kubernetes设计的免费管理界面，兼容Kubernetes版本1.13及以上。Kuboard每周发布一个beta版本，最长每月发布一个正式版本，经过两年的不断迭代和优化，已经具备多集群管理、权限管理、监控套件、日志套件等丰富的功能特点多种认证方式Kuboard可以使用内建用户库、gitlab/github单点登录或者LDAP用户库进行认证，避免管理员将ServiceAccount的Token分发给普通用户而造成的麻烦。...
Docker 安装 Kuboard V3
最新发布
2302_78308374的博客
02-24 201
3、创建容器（ip 改成自己的）6、添加要管控的 k8s 集群。把输出内容粘贴到此处，点击确定。7、选择访问集群是使用的身份。4、查看是否创建成功。5、Web 页面登录。
【云原生】Kubernetes 多集群管理工具Kuboard v3
康师傅没有眼泪
04-16 2545
Kuboard，是一款免费的 Kubernetes 图形化管理工具，Kuboard 力图帮助用户快速在 Kubernetes 上落地微服务。Kuboard v3.x 支持 Kubernetes 多集群管理。您可以同时使用 Kuboard v3.x 和 Kuboard v2.0.x；Kuboard v3.x 支持 amd64 (x86) 架构和 arm68 (armv8) 架构的 CPU。
安装 Kubernetes 多集群管理工具 - Kuboard v3
m_phappy的博客
01-25 2063
Kuboard安装方式主要有两种 docker run 的方式运行 Kuboard sudo docker run -d \ --restart=unless-stopped \ --name=kuboard \ -p 30080:80/tcp \ -p 10081:10081/udp \ -p 10081:10081/tcp \ -e KUBOARD_ENDPOINT="http://119.96.241.143" \ -e KUBOARD_AGENT_SERVER_UDP_...
10、kuboard-v3
weixin_44797299的博客
02-03 424
访问地址：kuboard.huanghuanhui.cloud。用户密码：admin、Kuboard123。
K8s UI工具 Kuboard 安装
lmj3732018的博客
01-20 435
按照提示操作点击确认即可。
k8s图形管理界面kubord-v3版docker安装-详细笔记资料包
06-27
k8s图形管理界面kubord_v3版docker安装-详细笔记资料包，k8s图形管理界面相关使用
k8s 部署kuboard v3
01-04
为了成功部署 Kuboard v3 版本至 Kubernetes (K8S) 集群，需先确认集群已正常运行并具备访问权限。此外，还需确保 kubectl 命令行工具配置正确以便能够与目标 K8S 集群交互。 #### 下载 Kuboard 安装包 前往官方...
sealos离线安装k8s资源包-labring.kuboard.v3.tar
08-15
sealos离线安装k8s资源包-labring.kuboard.v3.tar
云原生|kubernetes |部署k8s图形化管理组件 kuboard v3
zsk_john的技术分享专用博客
09-20 1981
【代码】云原生|kubernetes |部署k8s图形化管理组件 kuboard v3。
K8S部署Kuboard V3
学亮编程手记
06-01 1598
--- apiVersion: v1 kind: Namespace metadata: name: kuboard --- apiVersion: v1 kind: ConfigMap metadata: name: kuboard-v3-config namespace: kuboard data: # 关于如下参数的解释，请参考文档 https://kuboard.cn/install/v3/install-built-in.html # [common] KUBOARD_E
k8s部署Kuboard v3
weixin_42104154的博客
06-01 2175
k8s使用hostPath提供持久化存储方式安装Kuboard v3
Kuboardv3与监控套件安装
tushanpeipei的博客
06-20 1415
Kuboardv3与监控套件安装
在 K8S 中安装 Kuboard v3
weixin_44449869的博客
04-26 406
在 K8S 中安装 Kuboard v3
k8s图形管理界面kubord_v3版docker安装
qq_34953582的博客
06-18 299
k8s图形管理界面kubord_v3版docker安装
K8S搭建自动化部署环境（二）安装K8S管理工具Kuboard V3
一掬净土
12-18 1821
在K8S集群内安装Kuboard V3 1、 安装Kuboard V3 [root@nb1 ~]# kubectl apply -f https://addons.kuboard.cn/kuboard/kuboard-v3-swr.yaml namespace/kuboard created configmap/kuboard-v3-config created serviceaccount/kuboard-boostrap created clusterrolebinding.rbac.authoriz.
kuboard v3 + ssl + ldap 安装配置
weixin_44147866的博客
12-24 1566
kuboard-v3 + ssl + ldap 1.前提条件 kuboard域名 ssl证书 客户端域名配置-需要能够解析配置的kuboard域名 ldap信息 docker版本不低于19.03，当前版本19.03.12 Kubernetes集群版本不低于v1.13,当前版本1.18 部署过程中遇到pod日志pull image error，可手动docker pull kuboard版本目前最好使用 eipwork/kuboard:v3.0.0-beta.4 官方回答：反向代理功能待验证，暂时使用本地s
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
