android自定义动画demo

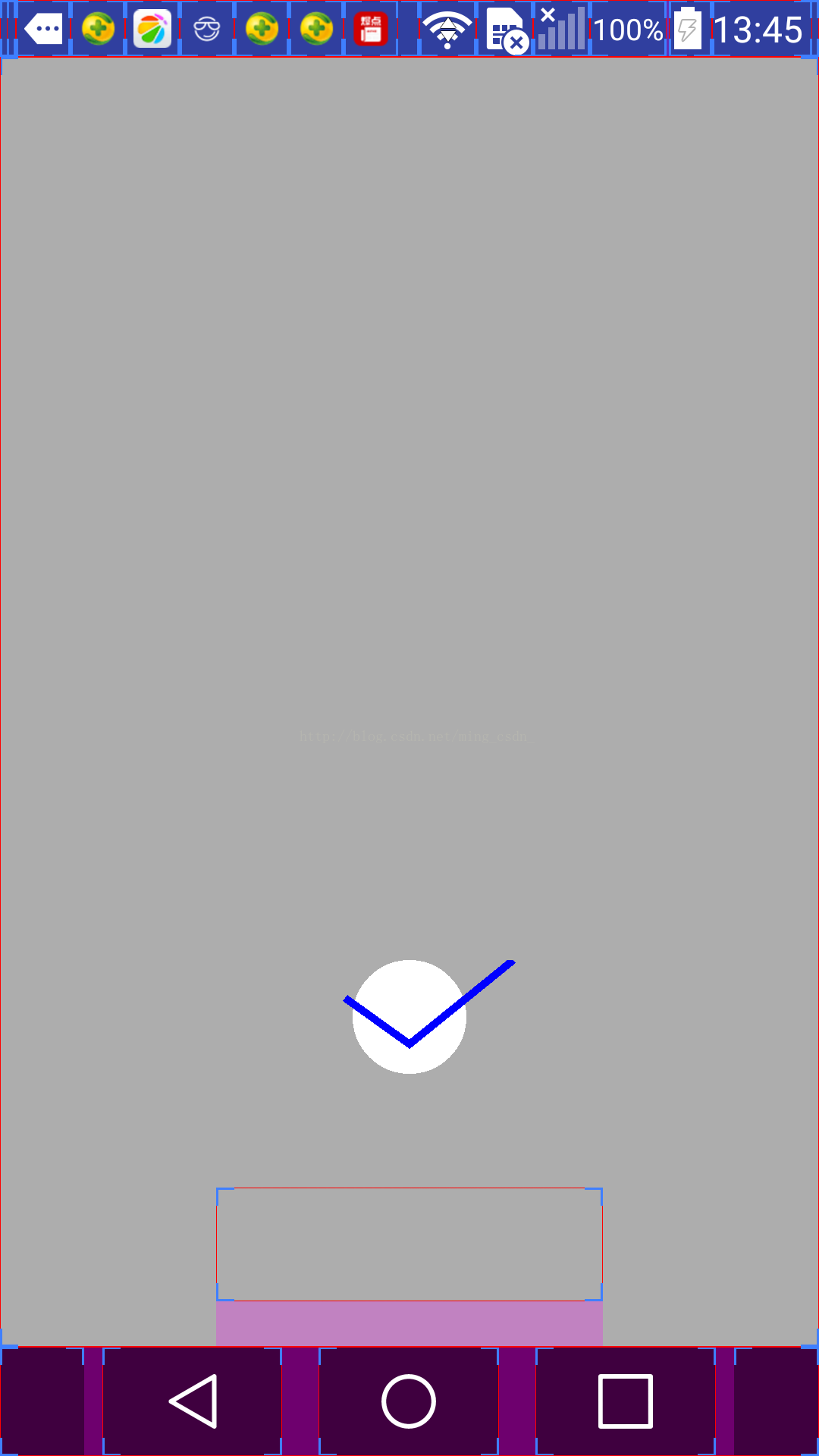

第一次传动图，不是很清晰，不好意思。

这个动画效果我是在网上看到的，非常感兴趣，自己就做了一遍，在这里记录一下我的代码，有不妥之处，尽情指正！！

写一个自定义view ,继承至View

public class MyButton extends View {

    public MyButton(Context context) {
        super(context);
    }

    public MyButton(Context context, AttributeSet attrs) {
        super(context, attrs);
    }

    public MyButton(Context context, AttributeSet attrs, int defStyleAttr) {
        super(context, attrs, defStyleAttr);
    }

    private int isDown = 0;
    private float circleValue;
    private ValueAnimator animatorCircle, animatorOk;
    private ObjectAnimator animatorUp;
    private final Paint okPaint = new Paint();
    private Paint txtPaint = new Paint();
    private AnimatorSet animatorSet = new AnimatorSet();
    private PathMeasure pathMeasure;
    private Path path;

    @Override
    public boolean onTouchEvent(MotionEvent event) {
        int eventaction = event.getAction();
        switch (eventaction) {
            case MotionEvent.ACTION_DOWN:
                isDown = 1;
                initOk();
                //1 按钮渐变为圆
                final float circle_move_distance = (getWidth() - getHeight()) / 2;
                animatorCircle = ValueAnimator.ofFloat(0, circle_move_distance);
                animatorCircle.setDuration(2000);
                animatorCircle.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {
                    @Override
                    public void onAnimationUpdate(ValueAnimator animation) {
                        circleValue = (float) animation.getAnimatedValue();
                        int alpha = (int) (255 - (circleValue * 255) / circle_move_distance);
                        txtPaint.setAlpha(alpha);
                        invalidate();
                    }
                });
                //2 上移的动画
                final float curTranslationY = this.getTranslationY();
                animatorUp = ObjectAnimator.ofFloat(this, "translationY", curTranslationY, curTranslationY - 300);
                animatorUp.setDuration(800);
                //3 绘制对勾的动画
                animatorOk = ValueAnimator.ofFloat(1, 0);
                animatorOk.setDuration(2000);
                animatorOk.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {
                    @Override
                    public void onAnimationUpdate(ValueAnimator animation) {
                        float upValue = (Float) animation.getAnimatedValue();
                        DashPathEffect effect = new DashPathEffect(new float[]{pathMeasure.getLength(), pathMeasure.getLength()}, upValue * pathMeasure.getLength());
                        okPaint.setPathEffect(effect);
                        invalidate();
                    }
                });
                //按顺序执行动画
                animatorSet
                        .play(animatorUp)
                        .before(animatorOk)
                        .after(animatorCircle);
                animatorSet.start();
                break;
        }
        return super.onTouchEvent(event);
    }

    @Override
    protected void onDraw(Canvas canvas) {
        super.onDraw(canvas);
        Paint paint = new Paint();
        paint.setColor(Color.WHITE);
        txtPaint.setTextSize(60);
        txtPaint.setStrokeWidth(7);
        switch (isDown) {
            case 0:
                //初始化一个长方形
                RectF oval1 = new RectF(0, 0, getWidth(), getHeight());
                canvas.drawRect(oval1, paint);
                break;
            case 1:
                RectF oval3 = new RectF(circleValue, 0, getWidth() - circleValue, getHeight());
                canvas.drawRoundRect(oval3, circleValue, circleValue, paint);
                //需要等前面两个动画都播放完毕了，再开始画对勾
                if (!animatorUp.isRunning() && !animatorCircle.isRunning()) {
                    canvas.drawPath(path, okPaint);
                }
                break;
        }
        canvas.drawText("确认", 190, 100, txtPaint);
    }

    //绘制对勾
    private void initOk() {
        path = new Path();
        //对勾的路径 这个坐标是我自己定义的
        //此坐标是根据此控件的坐标(打开布局边界查看，会发现控件的位置还在下面)算出来的。不是屏幕坐标，也不是圆圈的坐标
        path.moveTo(getWidth() / 3, getHeight() / 3);
        path.lineTo(getWidth() / 2, getHeight() / 4 * 3);
        path.lineTo(getWidth() / 9 * 7, 0);
        pathMeasure = new PathMeasure(path, false);
        okPaint.setColor(Color.BLUE);
        okPaint.setStrokeWidth(10);
        okPaint.setStyle(Paint.Style.STROKE);
    }

}
